Product Type	4-Port HDMI Switch (B119-004-UHD)
Number of Input Ports	4
Number of Output Ports	1
Maximum Video Resolution	4K @ 60 Hz (4:4:4)
Color Depth	48-bit (16 bits per channel)
Data Rate	18 Gbit/s
Supported Audio Formats	DTS-HD, Dolby TrueHD, 7.1-channel surround sound
HDCP Compatibility	HDCP v2.2
Switching Methods	Select push button, remote control, intelligent auto-switching
External Power Supply	Input: 100-240 V, 50/60 Hz, 0.3 A; Output: 5 V, 1 A
Power Consumption	2 W (max)
Dimensions (H x W x D)	20 x 123 x 51 mm
Weight	0.15 kg
Operating Temperature	0 to 40 °C
Operating Humidity	10% to 85% RH, non-condensing
Storage Temperature	-10 to 80 °C
Storage Humidity	5% to 90% RH, non-condensing
Warranty	3-year limited
Package Contents	Switch, remote control, external power supply with adapters (NEMA, Schuko, BS, AS/NZS), manual
Maximum HDMI Cable Length	5 m (16 ft) for source and display connections
Plug and Play	Yes, no software or driver required

Frequently Asked Questions - B119004UHD Tripp Lite

How do I connect the HDMI switch?

Ensure all devices are powered off. Connect an HDMI source to an input port (cable ≤ 5 m), then connect the switch output to the display (cable ≤ 5 m). Plug the external power supply into the switch, then into a wall outlet. Turn on the sources and display. Use the Select button or the remote control to change sources.

Why is there no picture on my display?

Check that the switch power supply is plugged in and the red LED is on. Make sure the source is on and HDMI cables are securely connected. Try a shorter cable or reduce the video resolution. If the problem persists, test the cables with another device.

The auto-switching is not working, why?

Auto-switching only works when source devices are completely turned off (not in standby mode). When the active device is turned off, the switch automatically switches to the next powered-on source. If multiple sources are on, the lowest-numbered port has priority.

What is the recommended maximum HDMI cable length?

For optimal reliability, the HDMI cable length between the source and the switch should not exceed 5 meters (16 ft). Similarly, the connection between the switch and the display should not exceed 5 meters. Use high-quality cables, such as Tripp Lite's P569 series.

My TV does not display 4K resolution, what should I do?

Make sure your source and display support 4K and you are using a high-speed HDMI cable. Check that the switch supports 4K @ 60 Hz (4:4:4). If the image remains unstable, reduce the resolution or color depth in the source settings.

The remote control does not respond, what should I do?

Check that the remote control batteries are inserted correctly and are not depleted. Point the remote at the sensor on the switch. If the remote still does not work, use the Select button directly on the device to change sources.

The power LED does not light up, what should I check?

Ensure the external power supply is properly connected to the switch and plugged into a working wall outlet. Check that the power adapter is not damaged. If the LED remains off, contact Tripp Lite technical support for a warranty replacement.

Does the switch get hot during use?

The switch may warm up slightly during operation, but the surface temperature should remain below 40 °C. Do not block the ventilation openings and place it in a well-ventilated area. If the device becomes very hot to the touch, unplug it and contact customer service.

Can I use standard HDMI cables or do I need specific cables?

For optimal performance, it is recommended to use high-speed HDMI cables with Ethernet, such as Tripp Lite's P569 series. Lower quality cables may limit resolution or cause signal loss. The maximum recommended length is 5 meters.

What if the audio does not work or is distorted?

Check that the source is sending a compatible audio format (DTS-HD, Dolby TrueHD, PCM 7.1). Make sure the HDMI cable is in good condition and does not exceed 5 m. In the source settings, try switching the audio format to PCM if the problem persists.

USER MANUAL B119004UHD Tripp Lite

HDMI Switches with Remote Control, 4K @ 60 Hz

Models:

B119-002-UHD

B119-004-UHD

B119-005-UHD

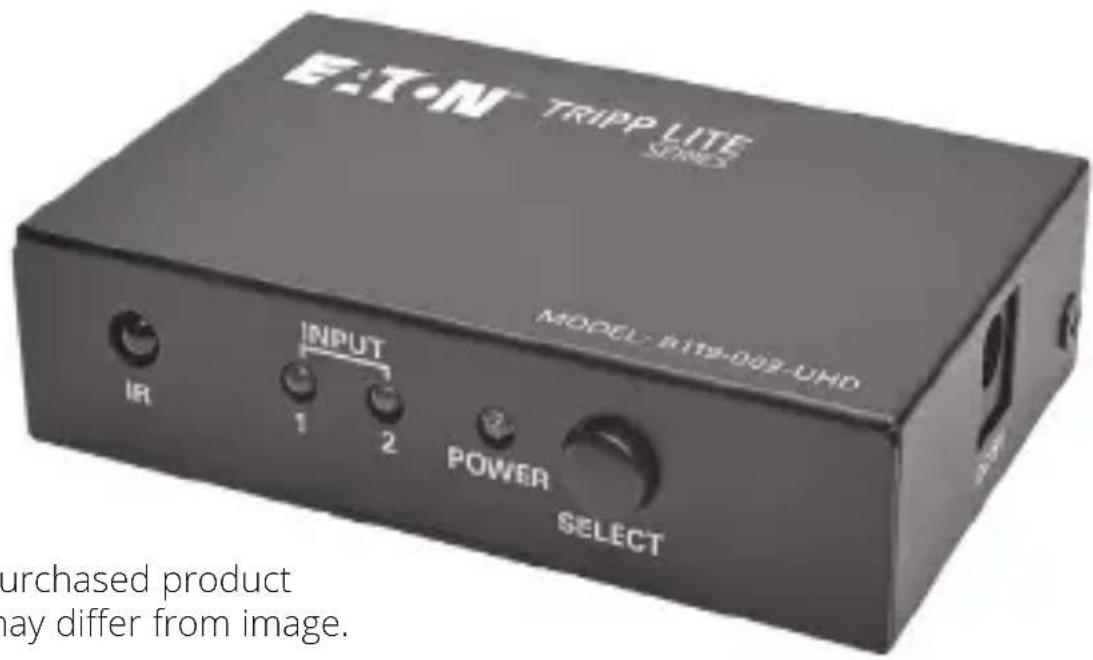

Purchased product may differ from image.

Espanol 11

Français 21

Deutsch 31

Italiano 41

Powering Business Worldwide

Product Features

• Switch between multiple HDMI source devices connected to a single HDMI port on a monitor
• Switch devices via pushbutton or the included remote control
• Intelligent Auto Switching functionality will automatically switch to the next powered-on device when the power to the current device is turned off*
  Supports video resolutions up to 4K @ 60 Hz (4:4:4)
  Supports up to 48-bit Deep Color (16 bits per channel)
• Up to 18 Gbps data rate
  Supports DTS-HD, Dolby® TrueHD and 7.1 channel surround sound audio
• 3D, HDCP v2.2 and EDID compatible
• Includes an international power supply with compatible North American, U.K., European and Australian plug adapters.

Product Features

• Plug and play; no software or drivers required

*Auto switching will not work properly if you have a device that is in sleep mode. Devices must be powered off completely for auto switch to work properly.

Package Contents

• B119-002-UHD, B119-004-UHD or B119-005-UHD
• Remote Control
• External Power Supply (Input: 100-240V, 50/60 Hz, 0.3A; Output: 5V 1A)*
• Owner's Manual

*Includes NEMA 1-15P (North America), CEE 7/16 Schuko (Europe), BS 1363 (U.K.) and AS/NZS 3112 (Australia) plugs.

Optional Accessories

• P569-XXX-CERT Premium High-Speed HDMI with Ethernet Cables

Installation

1. Make sure the power to all devices that you will be connecting is turned off.
2. Connect an HDMI source device to an Input port on the switch.

Note: The length of the HDMI cable connecting the source to the switch must not exceed 16 ft. (5 m).

1. Repeat step 2 to connect source devices to the remaining Input ports on the switch.
2. Connect the Output port on the switch to the HDMI input port of your display.

Note: The length of the HDMI cable connecting the switch to the display must not exceed 16 ft. (5 m).

Installation

1. Connect the external power supply to the switch, and then plug it into a Surge Protector, Uninterruptible Power Supply (UPS) or Power Distribution Unit (PDU). The red Power LED and green Input 1 LED will illuminate to indicate that power is being received.
2. Turn on the power to the HDMI source devices and display.
3. Switch between source devices via the Select pushbutton on the unit or the included remote control. You can also let the Auto Switch functionality automatically switch to ports that are powered on. When multiple ports have powered-on devices connected to them, the lowest numbered port will be switched to. Once the device connected to the lowest numbered port is powered off, the next powered-on port in line will be switched to.

Troubleshooting

If you are unable to get an acceptable image after following the installation instructions, try the troubleshooting tips below.

1. Is the external power supply that came with the product connected and plugged into a working power source?
   For the product to function properly, the switch must be connected to and receiving power from an external power supply.
2. Was the power to the connected devices turned off prior to installation? If not, restart them.
3. What resolution are you trying to reach? B119-002-UHD, B119-004-UHD and B119-005-UHD are tested to support 4K x 2K Ultra High Definition (UHD) video resolutions up to 4K @ 60 Hz, and 48-bit Deep Color (16 bits per channel).
4. What length HDMI cable are you using? (See the Installation section in this manual for details on the maximum cable distance). The shorter the cable being used, the higher the resolution you will be able to obtain. (continued)

Troubleshooting

If you are not able to get an acceptable image, try using a shorter cable, or lowering your source's video resolution or color depth settings.

5. What type of cabling are you using?

Inferior cabling can result in poor performance, so it is important that you use cables that can support the video resolution you are trying to obtain. For optimal results, use P569-Series High Speed HDMI cables. They have been tested to work with the B119-002-UHD, B119-004-UHD and B119-005-UHD switches.

6. Test your cables to ensure they are working properly. For example, connect your HDMI cable between a source and monitor that you know works to see if the cable is functioning.

7. Is the unit located in an area that exposes it to higher temperatures?

If the product is overheated, it will not function properly.

Specifications

Model B119-002-UHD B119-004-UHD B119-005-UHD

Connectors
Video

Input (x2) HDMI	Female (x4) HDMI	Female (x5) HDMI Female
Output HDMI Female HDMI Female HDMI Female

Maximum Resolution	4K @ 60 Hz (4:4:4)	4K @ 60 Hz (4:4:4)	4K @ 60 Hz (4:4:4)
Color Depth	48-bit Deep Color (16 bits per channel)	48-bit Deep Color (16 bits per channel)	48-bit Deep Color (16 bits per channel)
Video Amplifier Bandwidth	6Gbps / 600Mhz 6Gbps / 600Mhz 6Gbps / 600Mhz

Environmental
Physical

Operating Temperature	32°F to 104°F (0°C to 40°C)	32°F to 104°F (0°C to 40°C)	32°F to 104°F (0°C to 40°C)
Operating Humidity	10% to 85% RH, Non-Condensing	10% to 85% RH, Non-Condensing	10% to 85% RH, Non-Condensing
Storage Temperature	14°F to 176°F (-10°C to 80°C)	14°F to 176°F (-10°C to 80°C)	14°F to 176°F (-10°C to 80°C)
Storage Humidity	5% to 90% RH, Non-Condensing	5% to 90% RH, Non-Condensing	5% to 90% RH, Non-Condensing

Power Requirements

Unit Dimensions (HxWxD, in.)	0.8 x 3.1 x 2.0 0.8 x 4.8 x 2.0 0.8 x 4.8 x 2.0
Unit Dimensions (HxWxD, mm)	20 x 80 x 51 20 x 123 x 51 20 x 123 x 51
Unit Weight (lb.)	0.23 0.33 0.33
Unit Weight (kg)	0.1062 0.15 0.15

External Power Supply	5V/1A 5V/1A 5V/1A
Power Consumption (Max)	2W 2W 2.5W

Warranty

3-YEAR LIMITED WARRANTY

We warrant our products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Triplite. Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, we are not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Warranty

WEEE Compliance Information for Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton, they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Eaton has a policy of continuous improvement.

Specifications are subject to change without notice.
