USER MANUAL DMPDS2342TRIC Tripp Lite

Line drawing of a tripod-mounted device with adjustable legs and a central vertical support (no text or symbols)

Portable Digital Signage Stand for 23" to 42" Screens

Model: DMPDS2342TRIC

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

75x75/100x100/200x100/200x200

Español 8 • Français 15 • Русский 22 • Deutsch 29

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR ^® surge protector in our monthly drawing!

tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2021 Tripp Lite. All rights reserved.

Safety Instructions

Note: Read the entire instruction manual before you start assembly and installation.

WARNING

• Do not begin the installation until you have read and understood the instructions and warnings contained in this manual. If you have any questions regarding any of the instructions or warnings, please visit tripplite.com/support.
• This mount was designed to be installed and utilized ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.
• This product should only be installed by someone of good mechanical ability, with basic building experience and a full understanding of this instruction manual.
• Make sure that the mounting surface can safely support the combined load of the equipment and all attached hardware and components.
  • Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not over-tighten. Over-tightening screws can damage the items, greatly reducing their holding power.
  • This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.

Warranty and Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

Component Checklist

IMPORTANT: Ensure you have received all parts according to the component checklist prior to installing. If any parts are missing or faulty, visit tripplite.com/support for service.

Technical line drawing of a mechanical assembly with no visible text or symbols

A (x1)

B (x1)

C (x1)

E (x1)

D (x1)

Package W

F (x2)

G (x6)

H (x4)

I (x10)

J (x4)

K (x1)

Package M

M4x14
M-A (x4)

M5x14
M-B (x4)

M6x14
M-C (x4)

M8x20
M-D (x4)

M-E (x4)

M-F (x8)

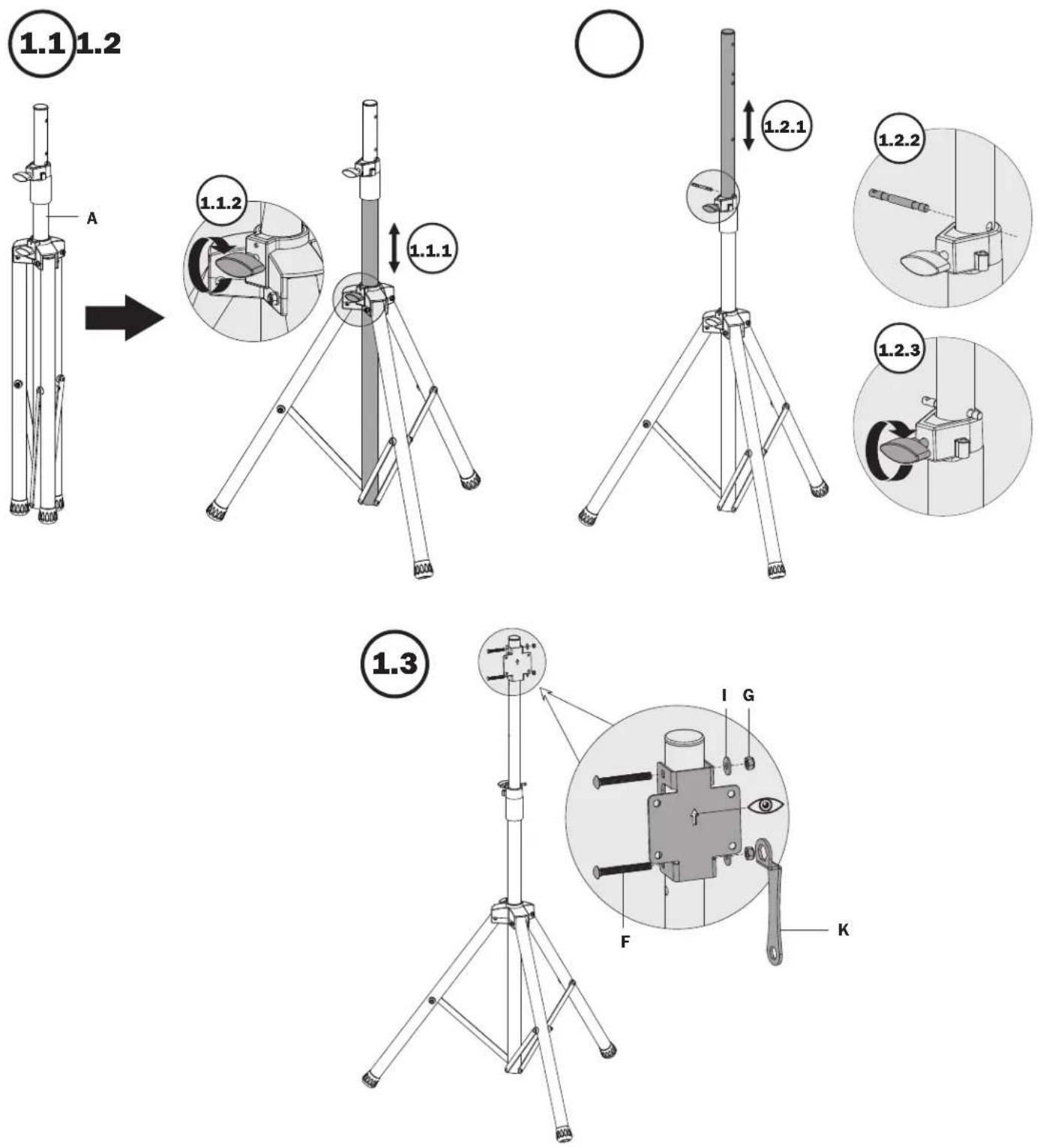

1. Assembling the Stand

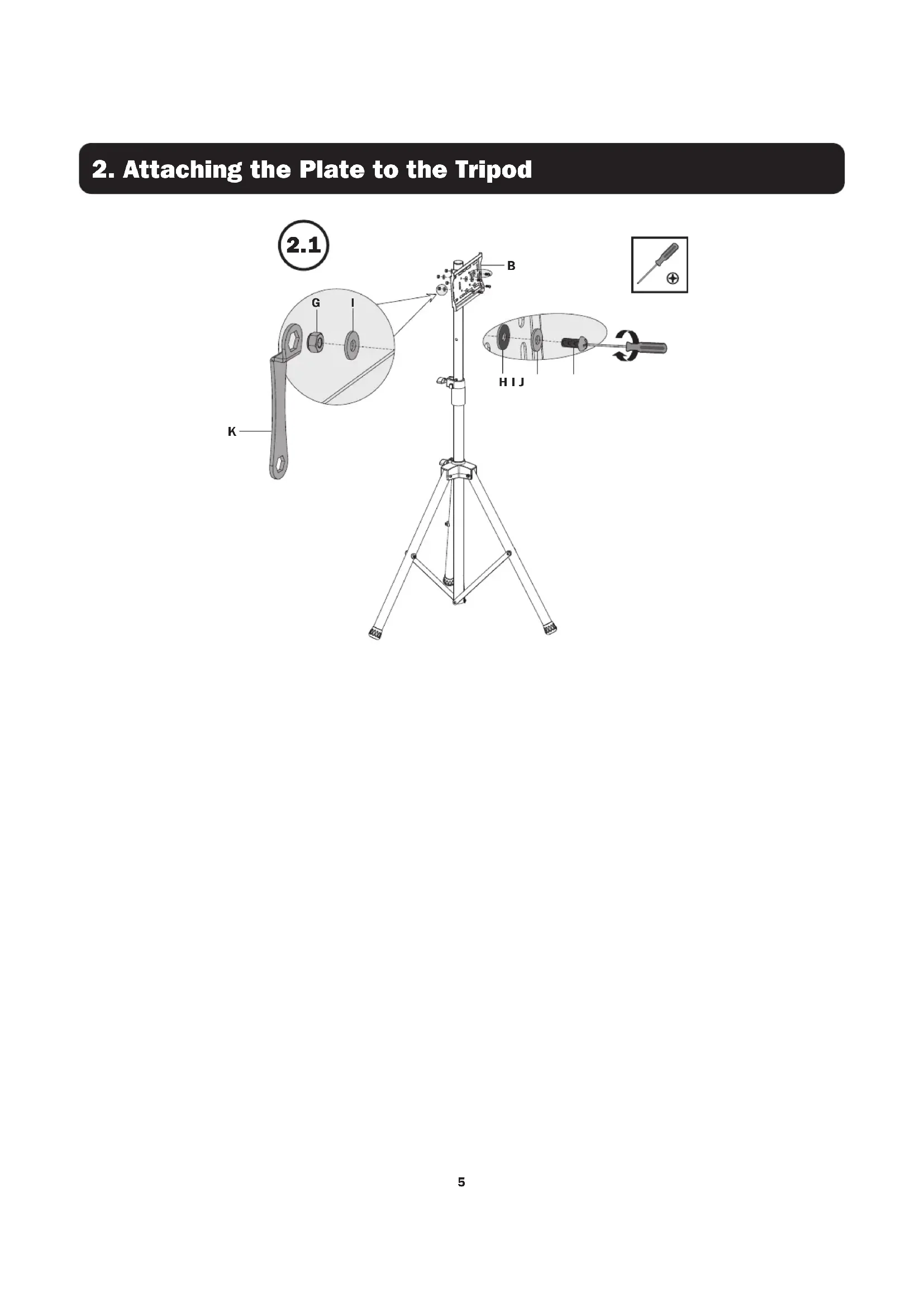

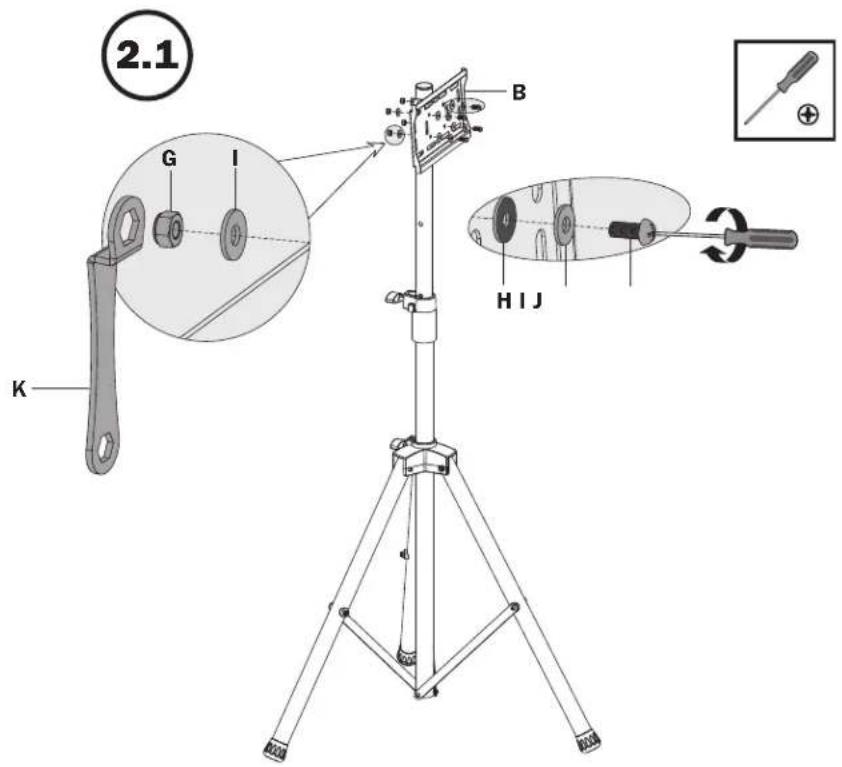

2. Attaching the Plate to the Tripod

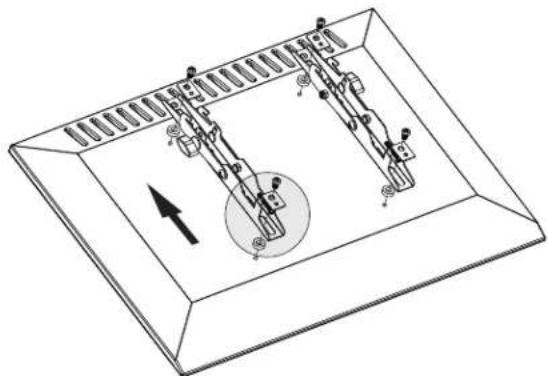

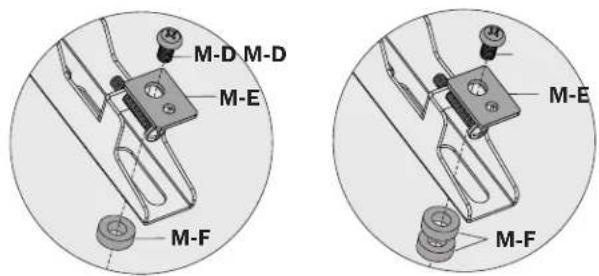

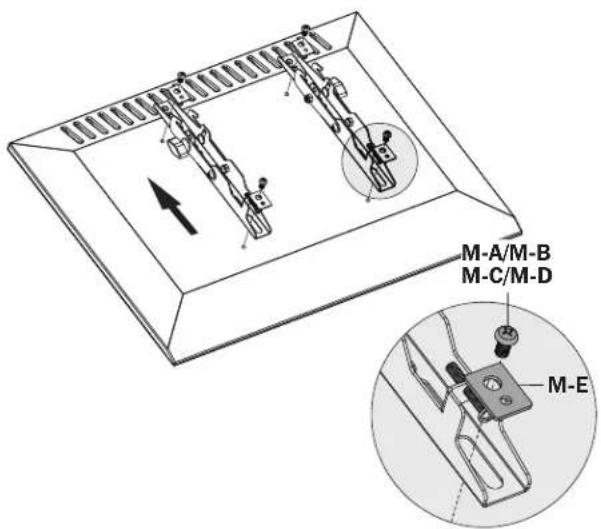

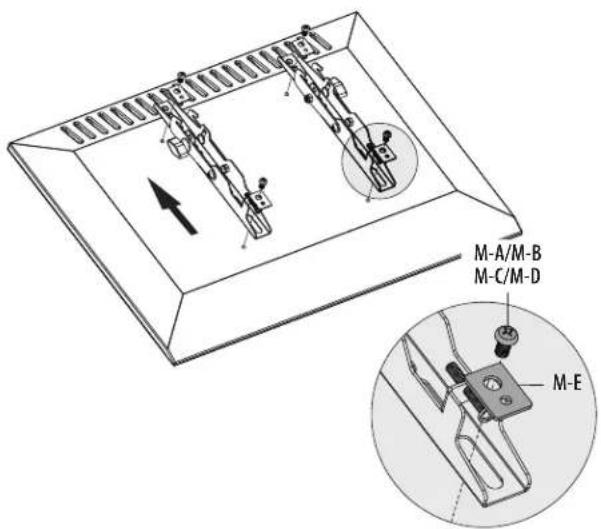

3. Attaching the Mounting Brackets to the Display

Pure technical diagram of a mechanical assembly inside a rectangular frame, showing internal components and an arrow indicating direction (no text or symbols)

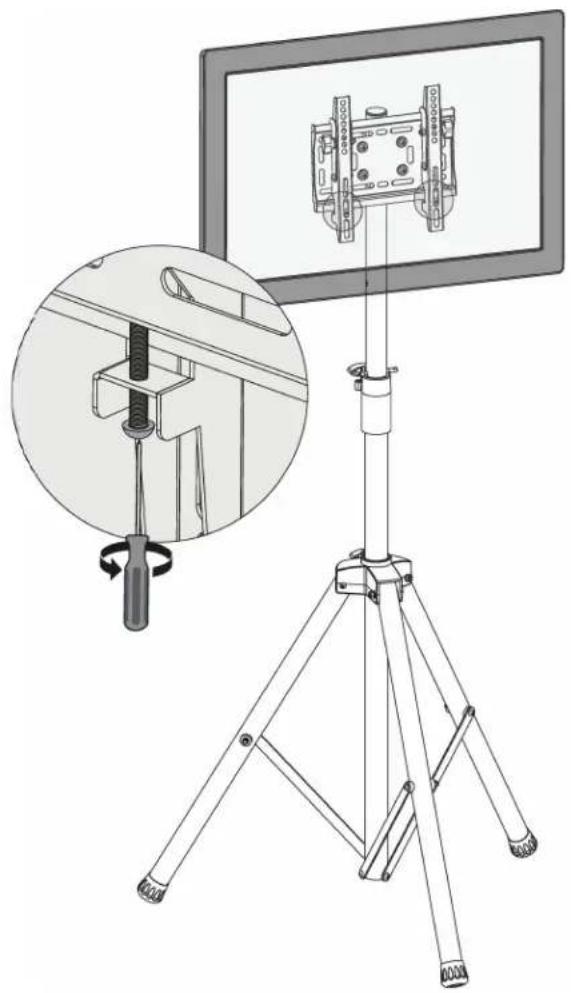

4. Securing the Display to the Tripod

4.1 4.2

Technical illustration of a tripod-mounted device with a close-up inset showing a mechanical clamp mechanism (no text or symbols present)

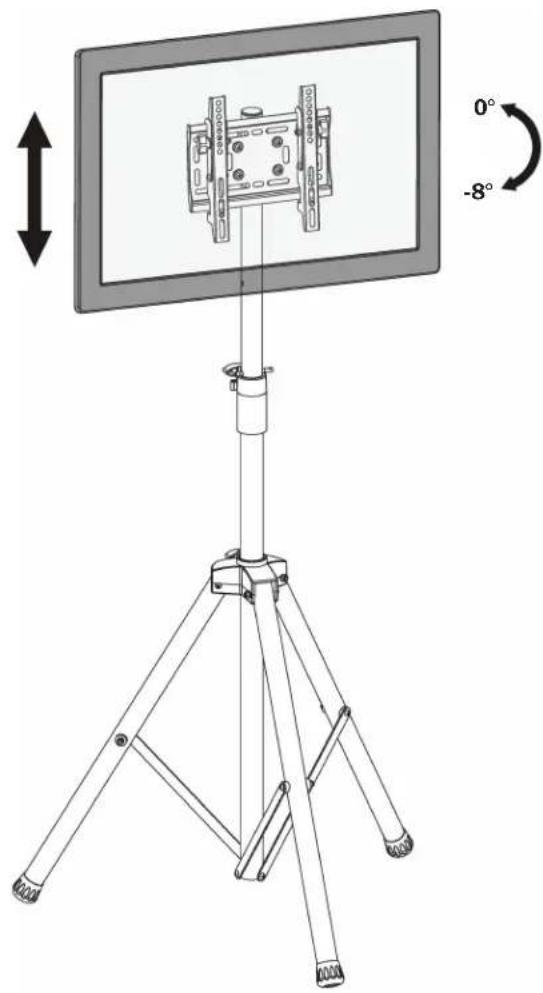

Diagram of a tripod-mounted display unit with an adjustable angle labeled (0° and -8°) shown, no text or symbols present.

MAINTENANCE: Check at regular intervals (at least every 3 months) to make sure the display is secure and safe to use.
