USER MANUAL PDUMH20HVNET Tripp Lite
Switched Rack PDU 208/230V, 50/60Hz AC Input and Output
Model: PDUMH20HVNET
(Series Number: AGPD6684)
Important Safety Instructions 2
Installation 3
Features 6
Technical Support 7
Warranty and Product Registration 7
Español 8
Français 15
Русский 22
Deutsch 29
PROTECT YOUR INVESTMENT!
Register your product for quicker service and ultimate peace of mind.
You could also win an ISOBAR6ULTRA surge protector—a \$100 value!
www.tripplite.com/warranty
TrippLite.Eaton.com/support
Copyright © 2023 Tripp Lite. All rights reserved.
Important Safety Instructions
SAVE THESE INSTRUCTIONS
This manual contains instructions and warnings that should be followed during the installation, operation, and storage of this product. Failure to heed these instructions and warnings may affect the product warranty.
CAUTION Only those who are properly trained or qualified to use this device should do so. Anyone who is not trained or qualified should not use this device unless it is under the supervision of someone who is properly trained or qualified to do so.
Children must be supervised to ensure that they do not use the device as a toy.
Never use the device if the cord and plug are damaged; if it is not working properly, or if it has been dropped or damaged, take it to an authorized service center for inspection and repair.
If the power cord is damaged, it must be replaced by the manufacturer, its authorized service agent, or by qualified personnel in order to avoid a danger.
- The PDU provides the convenience of multiple outlets, but DOES NOT provide surge or line noise protection for connected equipment.
- The PDU is designed for indoor use only, in a controlled environment, away from excess moisture, temperature extremes, conductive contaminants, dust or direct sunlight.
- Keep indoor ambient temperature between 32^ and 104^ (0°C and 40°C).
• The PDU must be installed by a qualified technician only. - Do not attempt to mount the PDU to an insecure or unstable surface.
• Install in accordance with National Electrical Code standards. Be sure to use the proper overcurrent protection for the installation, in accordance with the plug/equipment rating. - Connect the PDU to an outlet that is in accordance with your local building codes and that is adequately protected against excess currents, short circuits and earth faults.
- The electrical outlets supplying power to the equipment should be installed near the equipment and easily accessible.
- Do not connect the PDU to an ungrounded outlet or to extension cords or adapters that eliminate the connection to ground.
- Be sure to provide a local disconnect device on any models that are permanently installed without a plug that is easily accessible.
- Never attempt to install electrical equipment during a thunderstorm.
- Individual equipment connected to the PDU should not draw more current than the individual PDU's outlet's rating.
• The total load connected to the PDU must not exceed the maximum load rating for the PDU. - Do not attempt to modify the PDU, input plugs or power cables.
- Do not drill into or attempt to open any part of the PDU housing. There are no user-serviceable parts inside.
- Do not attempt to use the PDU if any part of it becomes damaged.
- Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Do not use this equipment in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.
Installation
Mounting the PDU
The PDU supports five primary mounting configurations: 1U Rack, OU Rack (Vertical), Wall, Under-Counter and Reduced-Depth.
Note: Regardless of configuration, the user must determine the fitness of hardware and procedures before mounting. The PDU and included hardware are designed for common rack and rack enclosure types and may not be appropriate for all applications. Exact mounting configurations may vary. Screws for attaching the mounting brackets to the PDU are included. Use only the screws supplied by the manufacturer, or their exact equivalent (#6-32, 3/16" flat head).

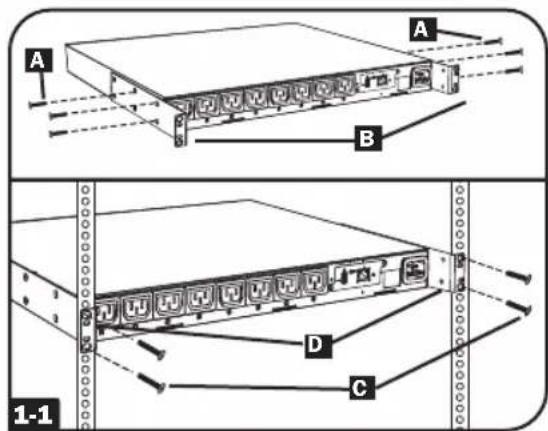

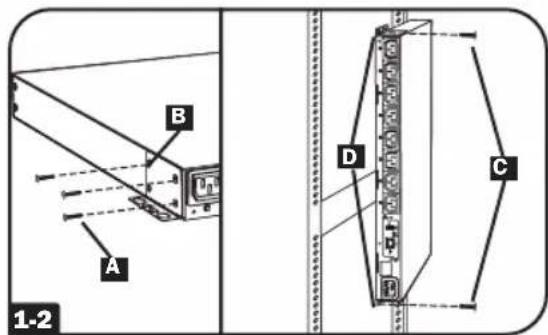

1U Rack Mounting: Use 3 screws A to
attach each of the 2 longer mounting brackets B to the PDU as shown. You can mount the PDU in a recessed position by attaching the mounting brackets so they extend beyond the front panel of the PDU. Mount the PDU in the rack by inserting 4 user-supplied screws C through the mounting brackets D and into the mounting holes of the rack rails.

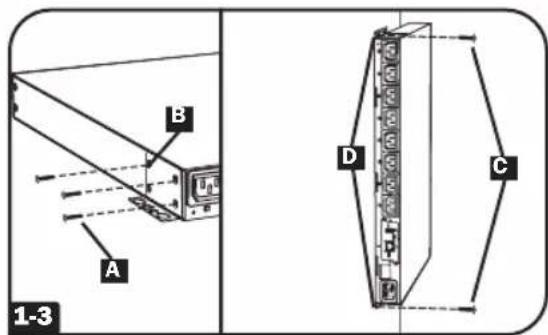

OU Rack Mounting: Use 3 screws A to attach each of the 2 shorter mounting brackets B to the PDU as shown. Mount the PDU vertically by inserting 2 or more user-supplied screws C through the mounting brackets D and into mounting points in the rack or rack enclosure.
Wall Mounting: Use 3 screws A to attach each of the 2 shorter mounting brackets B to the PDU as shown. Mount the PDU to the wall by inserting 2 or more user-supplied screws C through the mounting brackets D and into secure mounting points.

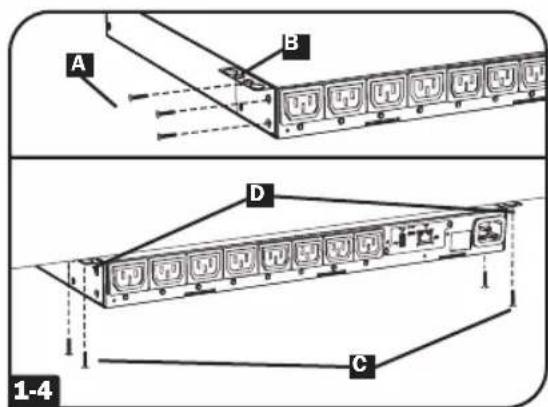

Under-Counter Mounting: Use 3 screws
A to attach each of the 2 shorter mounting brackets B to the PDU as shown. Mount the PDU under the counter by inserting 2 or more user-supplied screws C through the mounting brackets D and into secure mounting points.
Installation
1-5

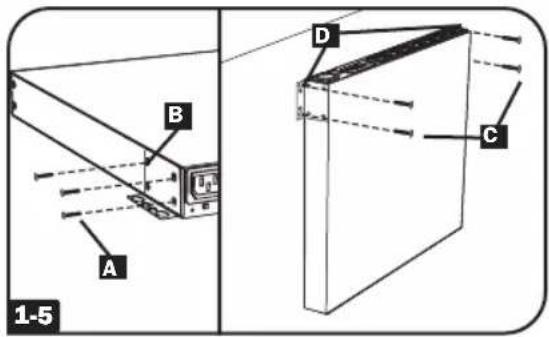

Reduced-Depth Mounting: Use 3 screws A to attach each of the 2 shorter mounting brackets B to the PDU as shown. Mount the PDU to a stable surface with the outlets facing upward by inserting 2 or more user-supplied screws C through the mounting brackets D and into secure mounting points.
Connecting the PDU
2-1

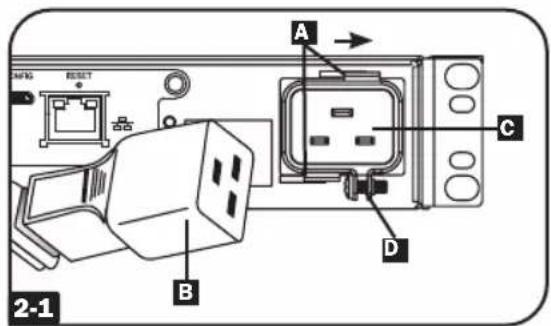

Input Power Cord Connection: Attach the cable clamp to the PDU by inserting the tabs into available slots on the top and bottom of the power inlet A. Secure the clamp by sliding it to the right. Attach the included power cord to the PDU by inserting the IEC C19 connector B of the power cord into the cable clamp and IEC C20 power inlet C. Install the included screw D on the cable clamp to secure the power cord connection. Connect the other end of the input power cord to a compatible source of AC power, such as a UPS system, PDU or utility outlet.
Note: The AC power source should not share a circuit with a heavy electrical load.
Note: When connecting the PDU, it should be provided with over-current protection and a maximum 20A branch-rated over-current protection device.
2-2

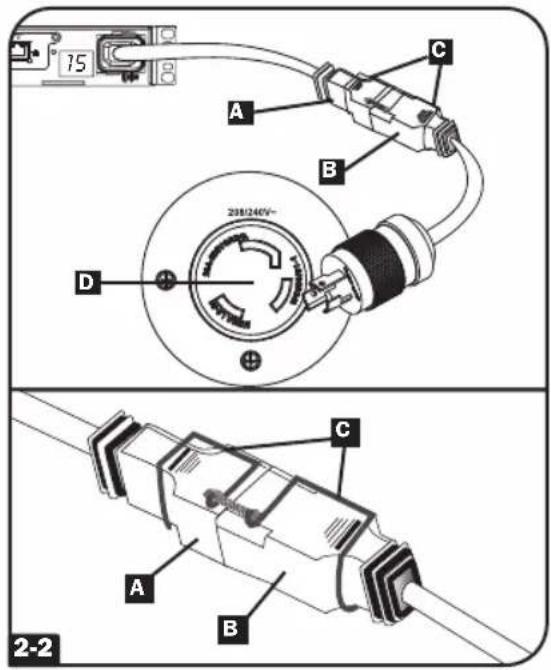

NEMA Adapter Connection: This product includes a plug adapter that adds a NEMA L6-20P plug to the input power cord. Use this adapter only if you will be connecting the PDU to a NEMA L6-20R outlet. Insert the IEC C19 connector A of the adapter into the IEC C20 connector B of the input power cord. Secure the connection with the retention bracket C by using the included bolts to fasten the two halves of the bracket around the connection as shown. Connect the NEMA L6-20P plug to a compatible source of AC power D, such as a UPS system, PDU or utility outlet.
CAUTION: To avoid the risk of electric shock, ensure that the Neutral (L2) conductor has been identified before connecting the PDU.
Note: Do not attempt to attach a user-supplied power cord unless it is certified to be compatible with the input power source that will be used by the PDU.
Installation
Equipment Power Cord Connection:

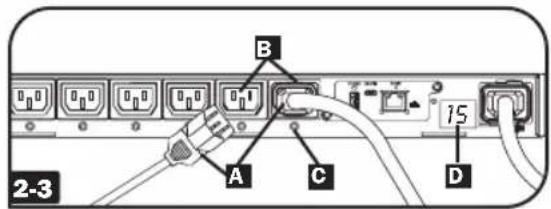

Insert the IEC C14 connectors A of the equipment power cords into the PDU's IEC C13 output receptacles B. The LED C near each output receptacle illuminates when the receptacle is ready to distribute live AC power. The digital load meter D will display the total connected equipment load in amps.

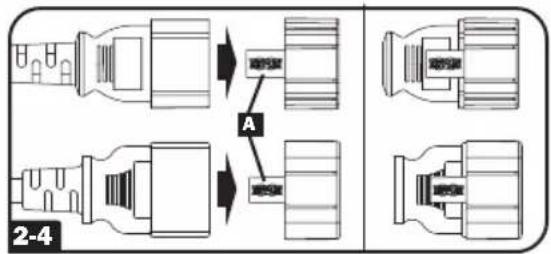

Optional Cord Retention Procedure: Use the included C14 sleeves to secure plugs to receptacles. Attach the sleeve to the plug, making sure that the pull tabs A remain outside the plug and that the fit is secure. To unplug equipment properly, use the pull tabs to remove the plug and sleeve from the receptacle.
Networking the PDU
For network configuration instructions, please refer to the WEBCARDLX owner's manual (PN 93358E) included with this product.
Features
AC Input Power Cord: The detachable cord has an IEC 60320 C19 connector A and an IEC 60320 C20 connector B
Digital Load Meter (Ammeter): The total electrical current drawn by connected equipment is displayed on the meter in amperes.
WEBCARDLX: Allows you to operate this PDU as a managed network device, accessible via SNMP network management platform, web browser, SSH or Telnet.
