USER MANUAL N252048SHK Tripp Lite
48-Port Cat6 Krone IDC STP High-Density 1U Patch Panel
Model: N252-048-SH-K
Espanol 9 • Français 17 • Pycckn 25
PROTECT YOUR INVESTMENT!
Register your product for quicker service and ultimate peace of mind. You could also win an ISOBAR6ULTRA surge protector—a $100 value! www.triplite.com/warranty
Manufacturing Excellence
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2018 Tripp Lite. All rights reserved.
Installation

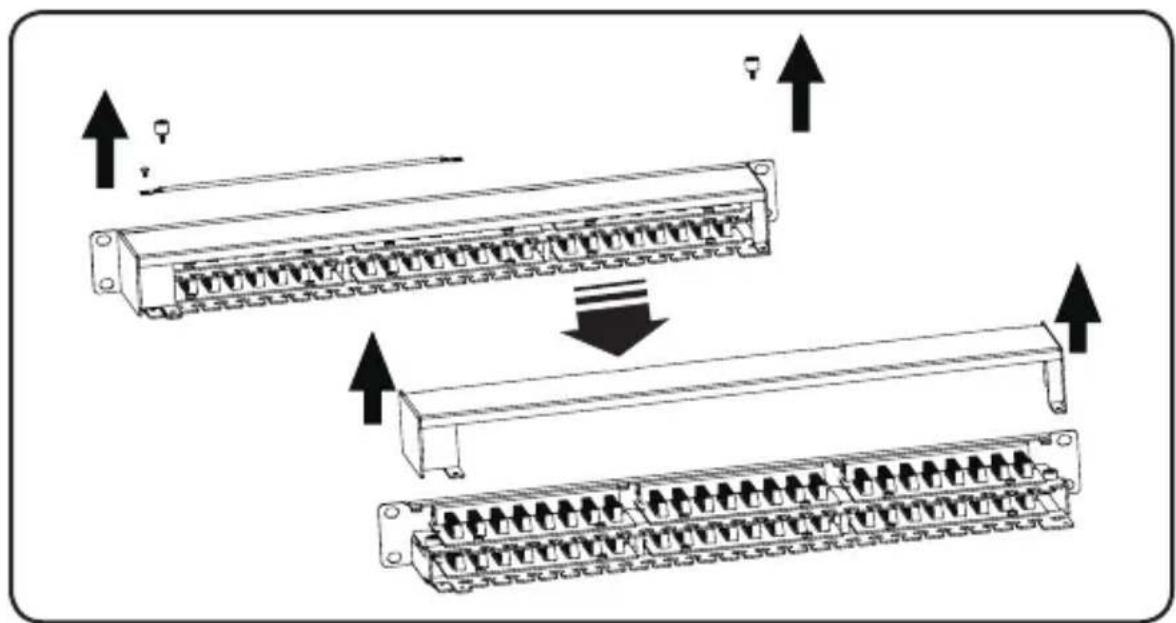

1 Separate the grounding wire (lug) and shielded cap from the top.

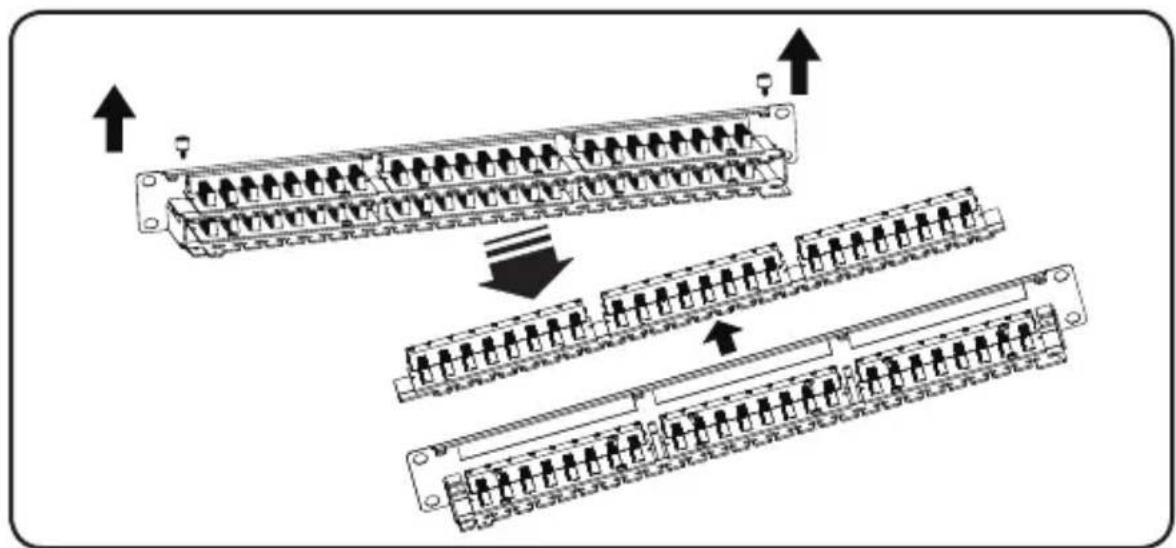

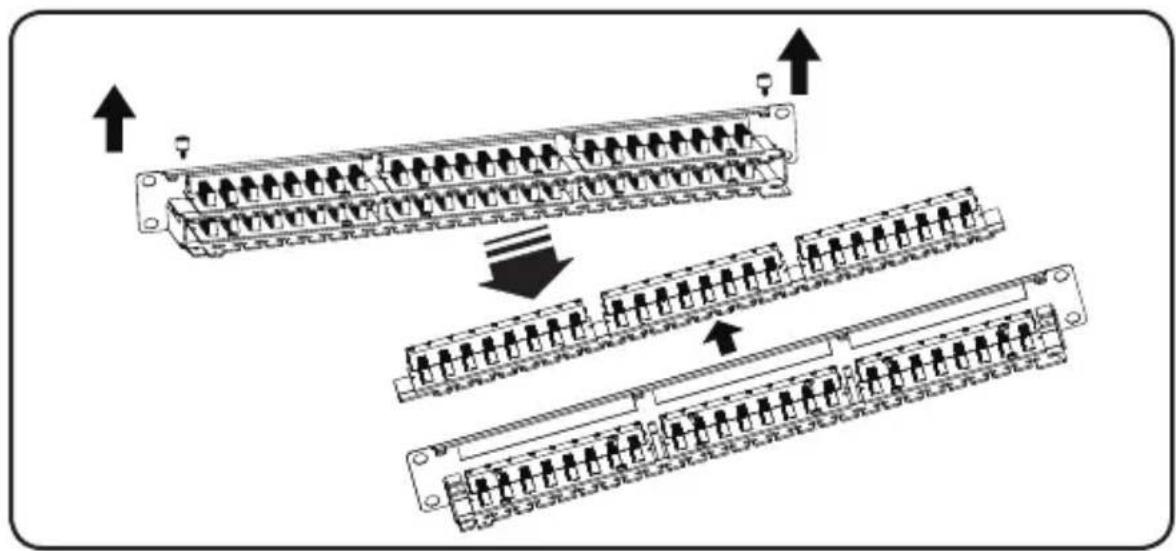

2 Separate the 2-layer panel.
Installation

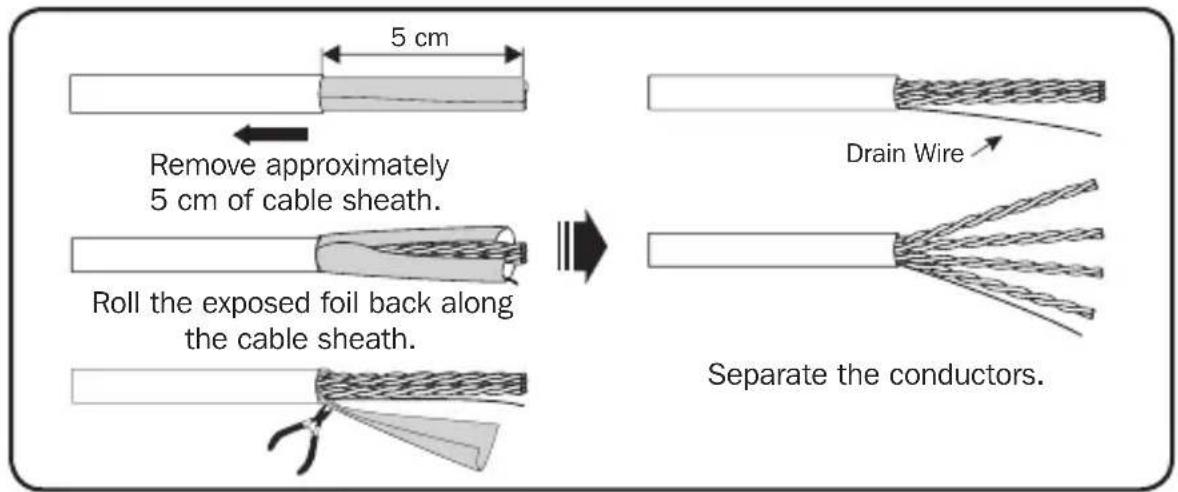

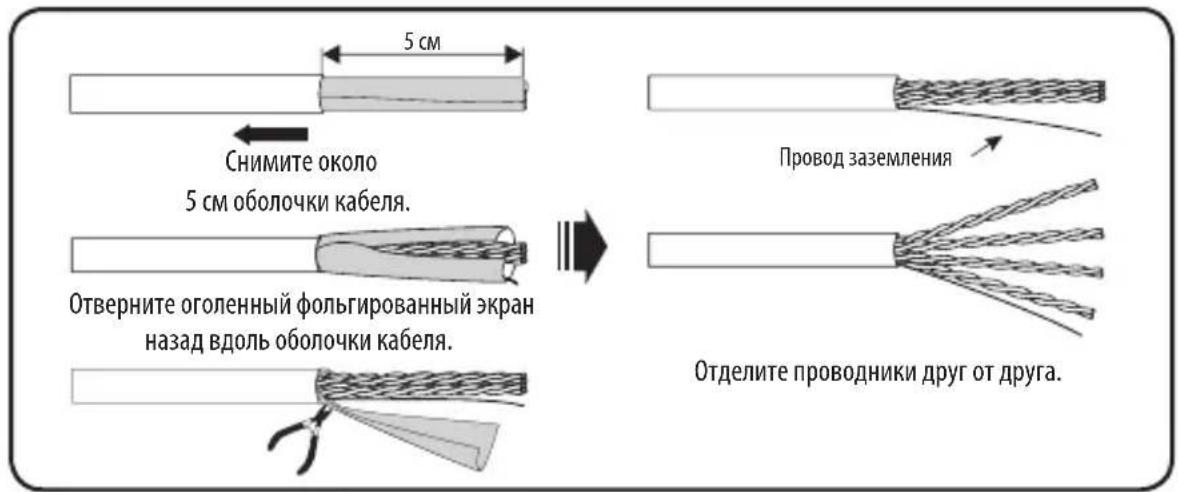

3 Prepare cables.

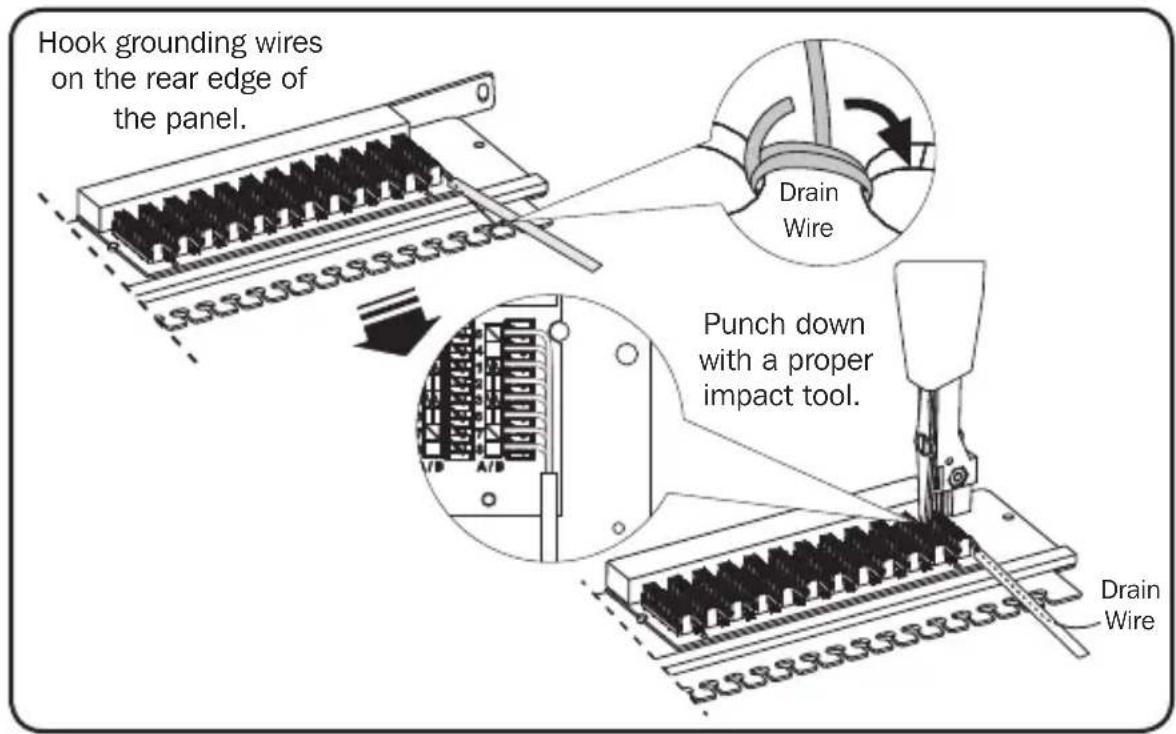

4 Secure drain wires.
Installation

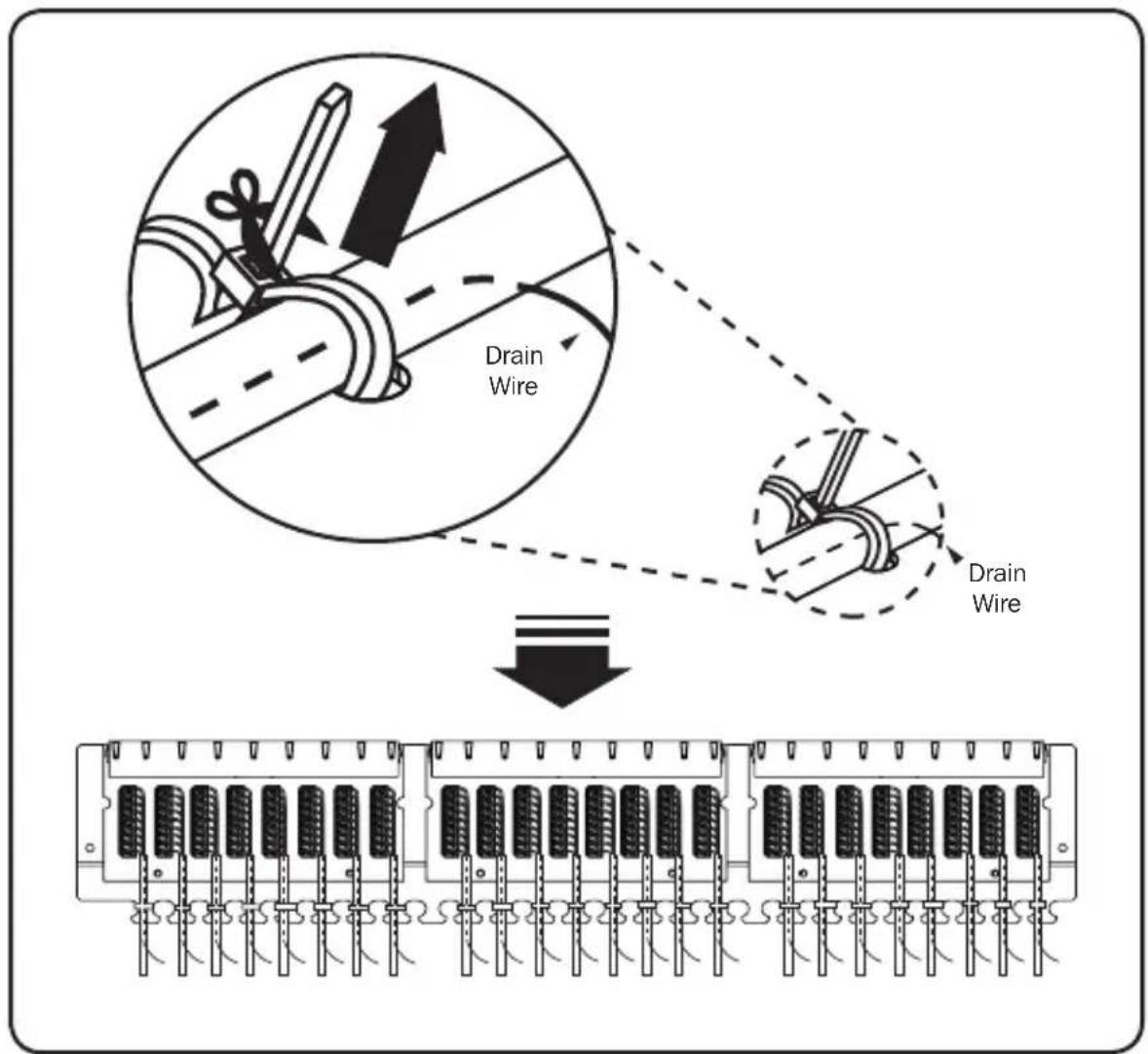

Make sure the drain wire is tied between the panel and the rear cable manager.
Installation

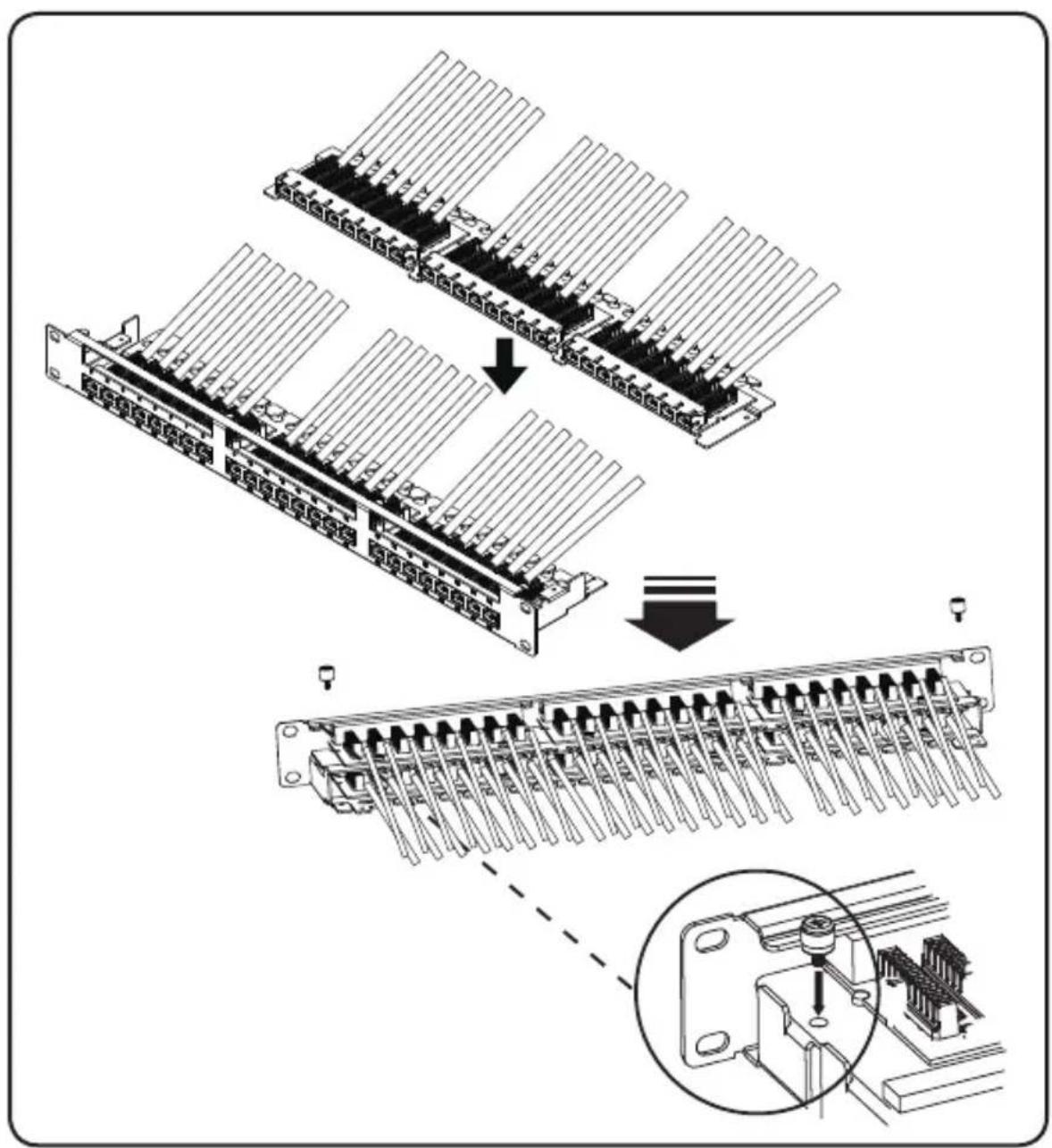

6 Use the included screws to combine the two patch panel layers.
Installation

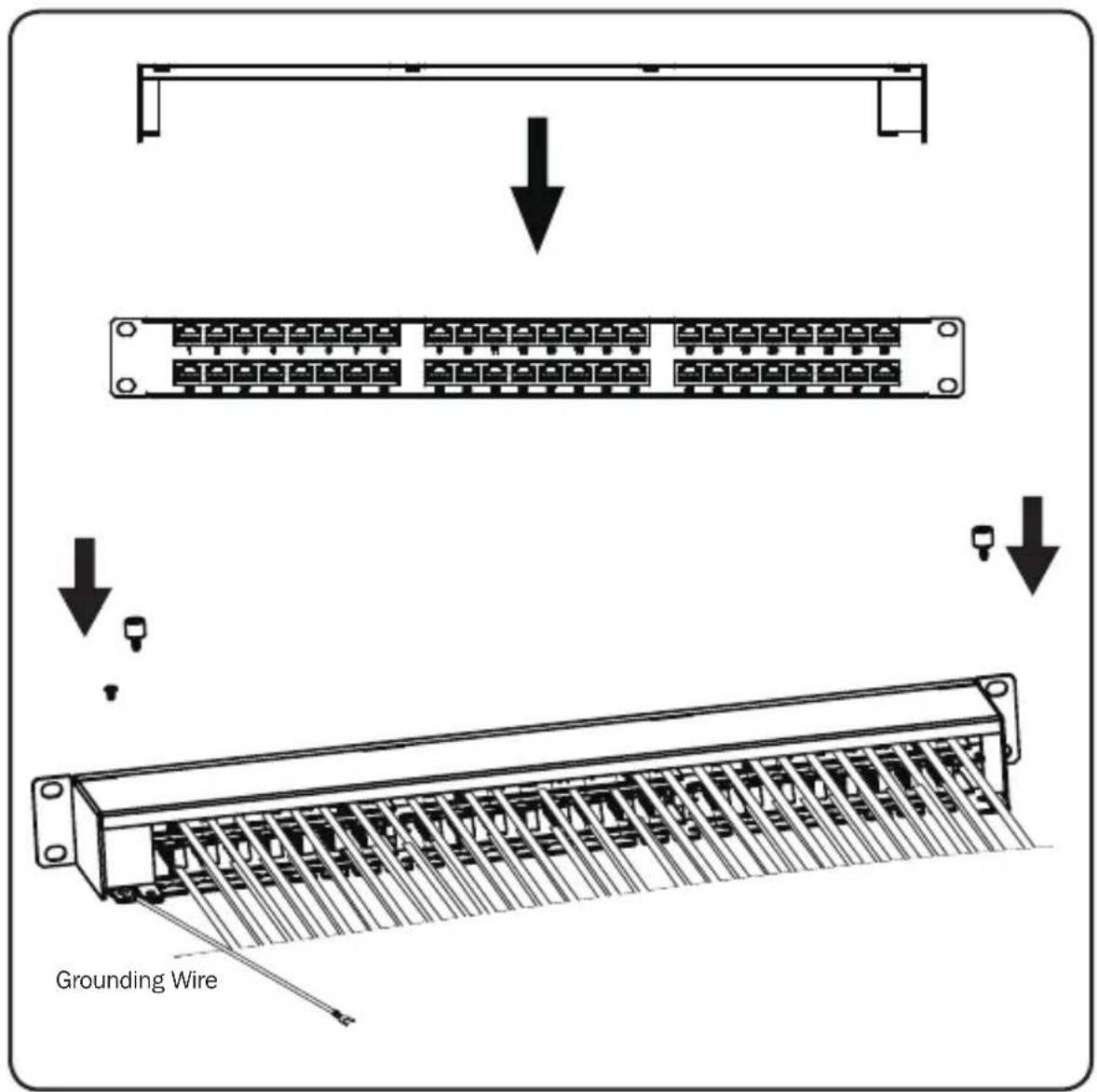

7 Use the included screws to attach the cap and grounding wire.
Installation

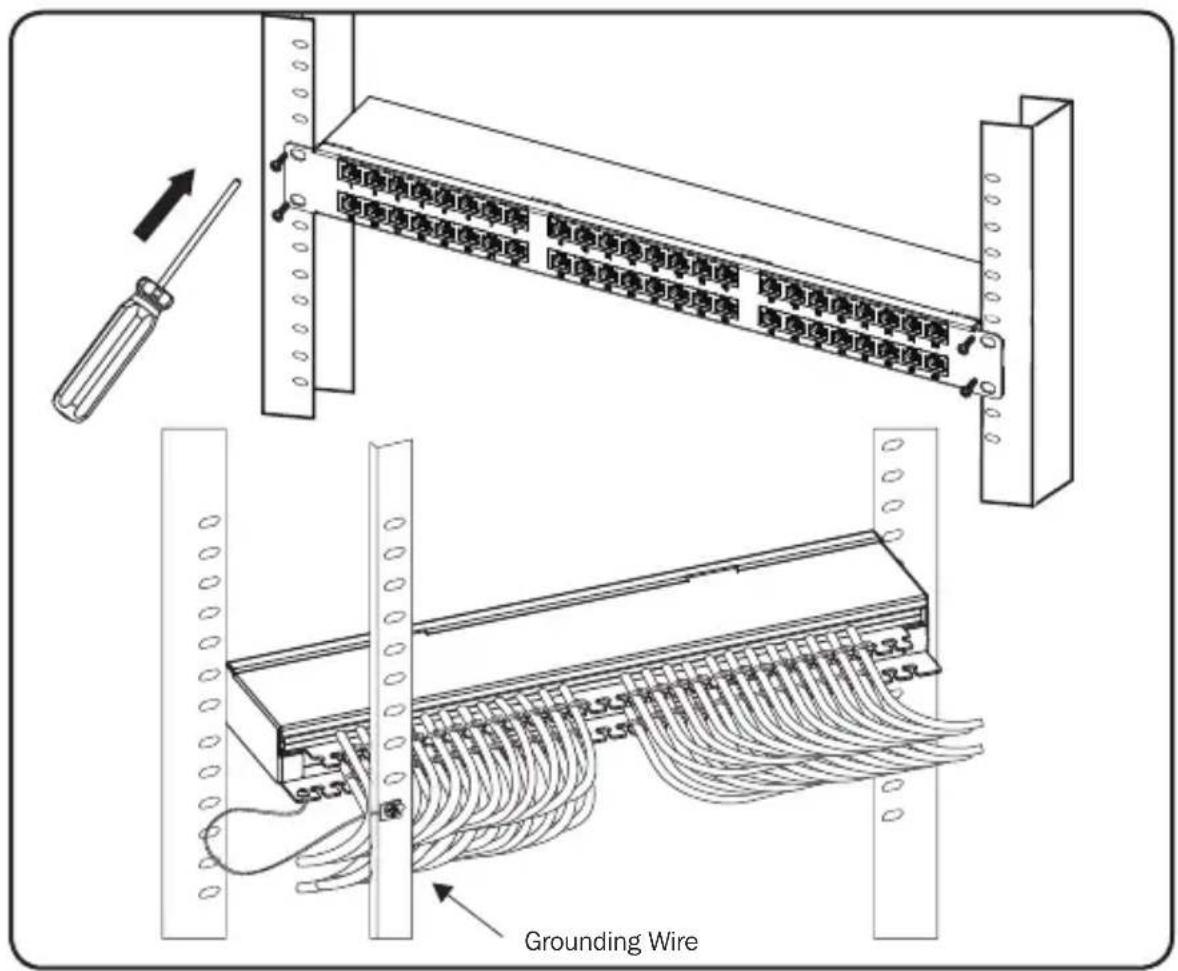

8 Attach the panel and grounding wire to a rack or cabinet.
Warranty and Product Registration
Lifetime Limited Warranty
Tripp Lite warrants its products to be free from defects in materials and workmanship for life. Tripp Lite's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from Tripp Lite or an authorized Tripp Lite service center. Products must be returned to Tripp Lite or an authorized Tripp Lite service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, Tripp Lite MAKES NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL Tripp Lite BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, Tripp Lite is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.
Product Registration
Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*
- No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support
Guía de Instalación
1111 W. 35th Street, Chicago, IL 60609 EE UU • www.triplite.com/support
1111 W. 35th Street, Chicago, IL 60609 EE UU • www.triplite.com/support
1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support
1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support
PykoBoDCTBO NO yCTaHOBKe
48-nopTOBaKOMMyTaZnOHHa NaHeIb Cat6 Krone IDC STP BbICOToUc BBICOKOПLOTHOCTbIO MOHTaJa
1111 W. 35th Street, Chicago, IL 60609 USA - www.triplite.com/support
OxpaHareTc aBTopcKm npaBOM © 2018 Tripp Lite. NepeneaTk3 anpeetaetc.
yctahOBka
1 OToeHnTe 3a3emJIoUnnI npOBoD (HaKoHeuHnK) n CHMnTe KpbIshky C 3aunTHbIMN 3KpaHaMn C BepxHeJ qACTn NaHeJI.
2 Pa3beHnTe DByxpyHyo naHeIb.
yctahOBka
3 IoproToBbTe Ka6eHn.

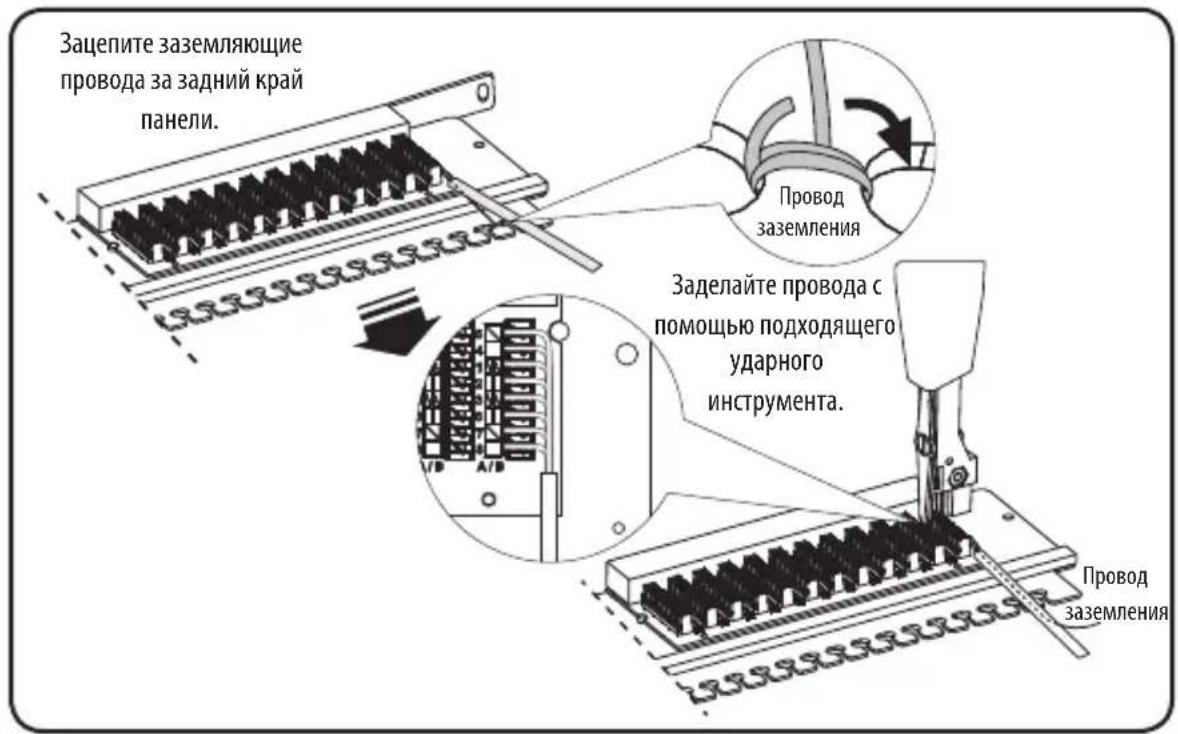

4 3aKpeNte npoB0da 3a3eMJIeHnJ.
yctahOBka
5 06a3aTeNbHo 3akpenIte npoBOD 3a3emIeHnMaKdY naHeIbIO n 3aHnM Ka6eIbHbIM opraHn3aTOpOM.
yctahOBka
6 CoeHHte IBa pIa KOMMyTaUHOHNoHaHeJIc NOMOuB BuHTOB, BXoJauX B KOMnJIeKT.
yctahOBka
7 3aKpeHnTe KpbIshky n 3a3eMIAUoN ppoBOD npn NOMOuN BnHTOB, BXoJaXx B KOMnJIeKT.
yctahOBka

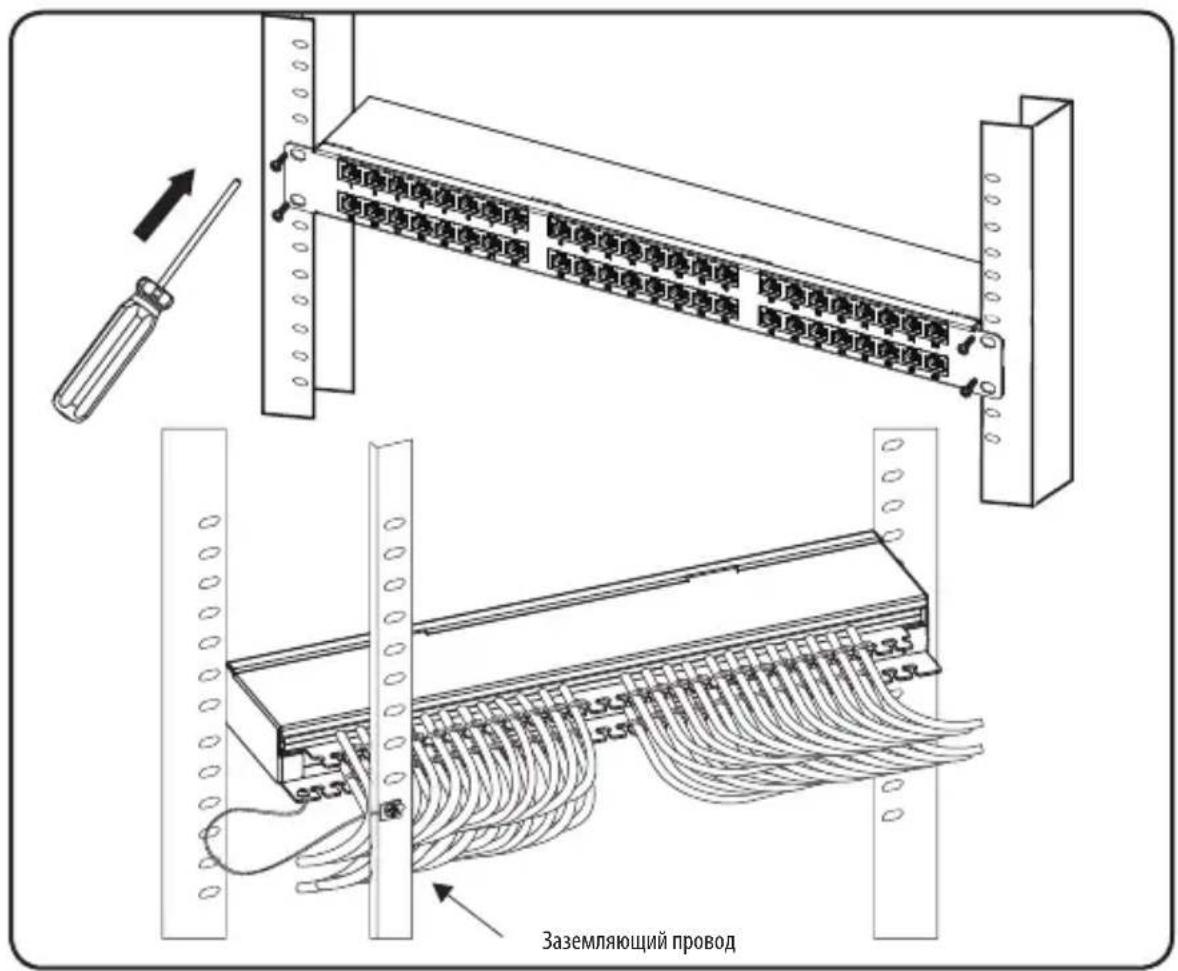

8 Прикpenite паньи 3a3eMяюши npOBOD K kopnucyстКишkaфа.
