N48412LC - Network Equipment Tripp Lite - Free user manual and instructions

Product Type	Fiber Optic Patching Cassette
Brand	Tripp Lite (Eaton)
Model	N48412LC
Height	1U (rack unit)
Width	19 inches (standard rack)
Depth	Approximately 250 mm (outside enclosure)
Weight	Approximately 0.5 kg
Power	None (passive)
Connectors	LC (12 fibers)
Fiber Type	Single-mode or multimode (depending on version)
Main Functions	Fiber optic cable management and splicing, quick connection
Installation	Mount in a N484 enclosure (sold separately)
Maintenance and Cleaning	Clean with a soft dry cloth; avoid solvents
Safety	Do not place near active equipment (UPS, server)
Spare Parts and Repairability	Not user-repairable; contact Eaton support
Warranty	Limited lifetime warranty
General Information	WEEE compliant; designed for data centers

Frequently Asked Questions - N48412LC Tripp Lite

How to install the N48412LC cassette into the enclosure?

First remove the blank panel from the desired slot by unscrewing the thumbscrews. Then align the cassette with the slot and insert it. Tighten the thumbscrews to secure it. Make sure the enclosure is mounted in a standard rack.

What types of fibers does the N48412LC cassette accept?

It accepts single-mode and multimode fibers with LC connectors. Capacity is 12 fibers per cassette.

Does the N48412LC require electrical power?

No, it is a passive device. No power is required.

How to clean the N48412LC cassette?

Use a soft dry cloth to remove dust. Avoid solvents or chemicals. Do not immerse in water.

What is the warranty of the N48412LC?

Eaton offers a limited lifetime warranty against defects in materials and workmanship. Visit Tripplite.eaton.com for return procedures.

Can I use the N48412LC directly on a server?

No, it must be mounted in an N484 series enclosure, then in a rack. Avoid direct contact with active equipment like servers or UPS.

How many cassettes can be installed in an N484-01U enclosure?

The N484-01U enclosure can hold up to 12 N48412LC cassettes, for a total of 144 fibers.

How to replace a blank panel with the cassette?

Unscrew the thumbscrews of the blank panel, remove it, then insert the cassette in its place. Tighten the screws to secure.

Is the N48412LC compatible with the N484-00U?

Yes, it is compatible with all N484 series enclosures, including the N484-00U which mounts with magnets onto a metal surface.

What to do if the cassette appears defective?

Contact Eaton support at https://tripplite.eaton.com/support/product-returns. Do not attempt to repair yourself as this would void the warranty.

USER MANUAL N48412LC Tripp Lite

High-Density Copper/Fiber Cassette Solutions

Modular Cassette Enclosures\*

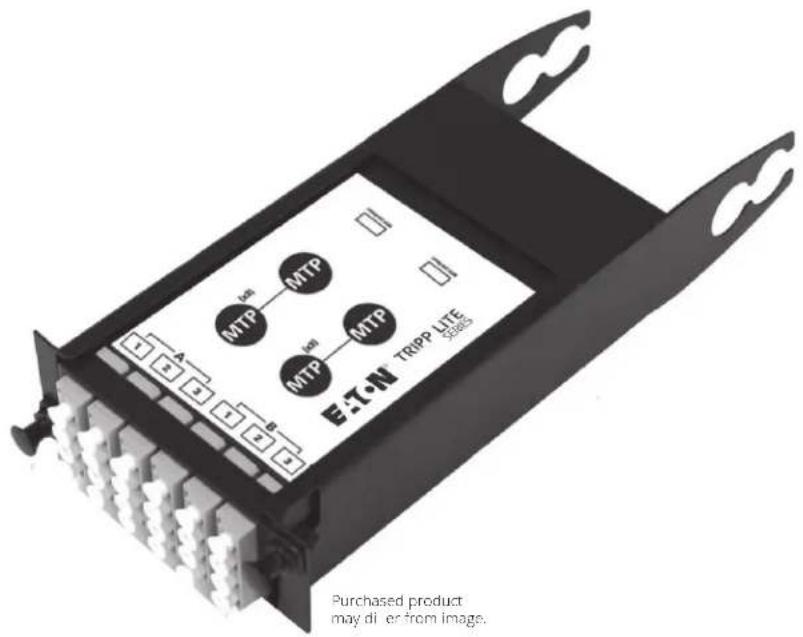

Cassettes\*

* This Quick Start Guide covers installation of all N484-Series enclosures and cassettes. Any new models, even if not listed above, will include this Quick Start Guide and can be installed by following its instructions.

Models:

N484-00U

N484-01U

N484-01U-MINI

N484-1M24-LC12

N484-2M12-LC12

N484-3M8-LC12

N484-3M8L12S

N484-2M24-6M12

N484-12LC,

N484-12M12

N484-12M24

N484-12RJ

Español 4

Français 7

Deutsch 10

Italiano 13

EATON

Powering Business Worldwide

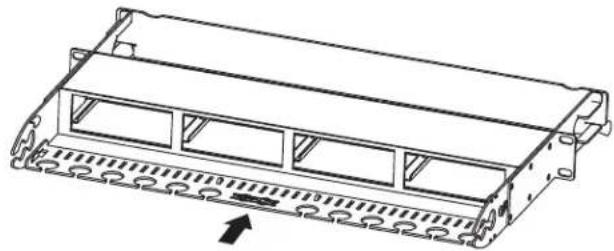

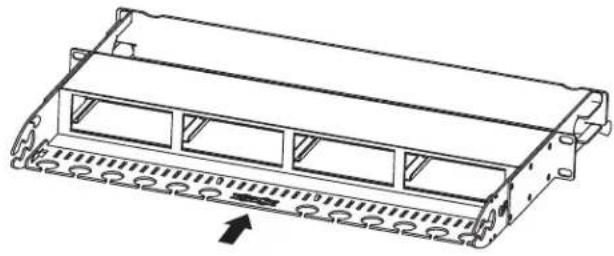

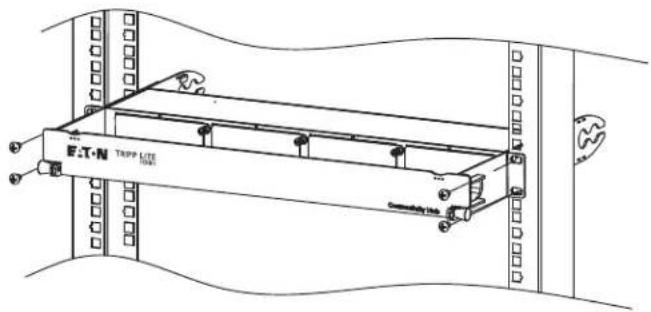

Installation

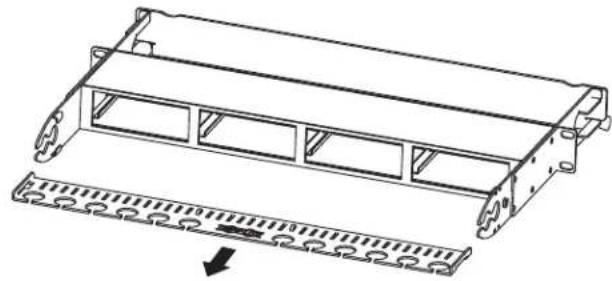

Installing the Cable Management Bracket:

The panel rails on the back of the N484-01U enclosure contain mounting notches that allow the cable management bracket to be installed on the top or bottom of the rails. Choose the top or bottom notches, insert the bracket into the notches, and slide the bracket inward to secure it into place.

Technical line drawing of a mechanical component with a downward arrow indicating a detail (no text or symbols present)

Technical line drawing of a rectangular electronic device with internal compartments and mounting brackets (no text or symbols)

Installing the Panel Shield Bracket:

The N484-01U contains a shield bracket that attaches to the front of the enclosure. Mounting holes are located on the right and left front panel rails for bracket attachment. To attach the bracket, pull on the pull tabs found on each side of the bracket to move the connected pins outward. Then insert the bracket into the enclosure. Once the pins are lined up with the mounting holes on the panel rail sides, release the pull tabs to lock the bracket into place. The bracket slides up and down to allow access to the enclosure or to shield it from contact.

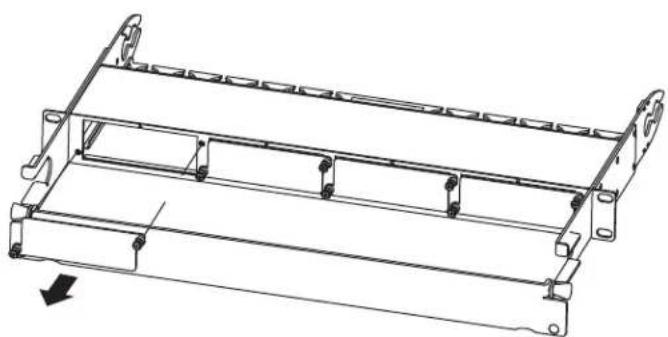

Inserting/Removing Blanking Panels:

The N482-01U comes with pre-installed blanking panels attached to the enclosure's cassette slots. When a slot is needed, remove the blanking panel by unscrewing the thumbscrews located on the opposite side of the blanking panel. To attach a blanking panel to an empty cassette slot, line up the blanking panel with the corresponding holes on the enclosure. Then tighten the thumbscrews to secure the blanking panel into place.

Technical line drawing of a mechanical housing or enclosure component with mounting brackets and internal slots (no text or symbols)

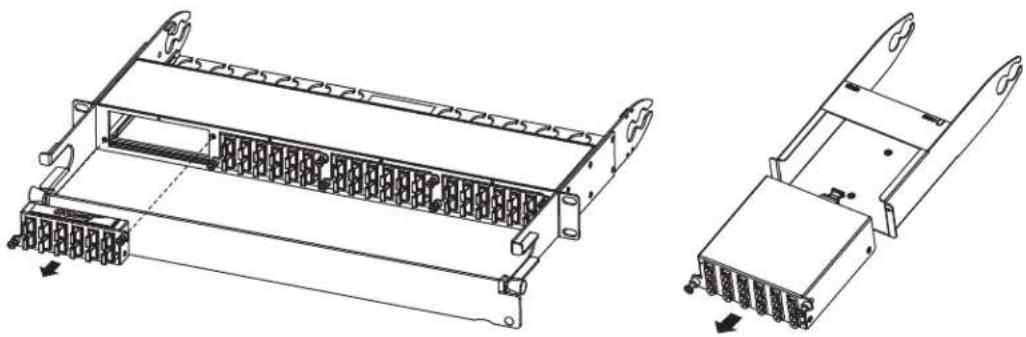

Inserting/Removing Cassettes:

After creating an open slot by removing a blanking panel, line up a cassette with the corresponding slot on the enclosure and insert the cassette into the slot. Then tighten the thumbscrews to secure it into place. To remove a cassette, unscrew the thumbscrews to release it from the enclosure.

Technical line drawing of a multi-chamber electronic device housing with mounting brackets and internal components (no text or symbols)

Installation

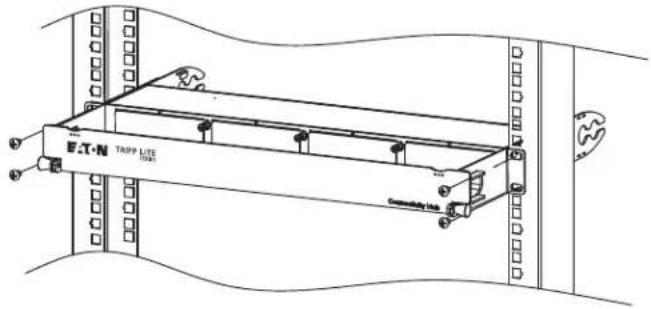

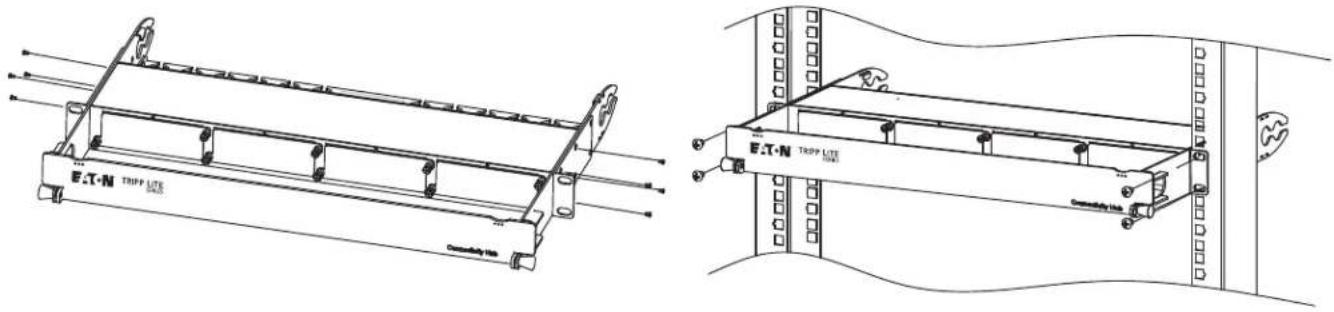

Mounting the Enclosure:

To mount the enclosure, you must first fasten the included mounting brackets to the sides of the enclosure with the supplied screws. Once attached, secure the enclosure to the rack with appropriate user-supplied mounting hardware.

Note: The N484-00U's magnets are designed for mounting onto the metal surface of a rack enclosure, cable manager or other similar structure. Ideal placement should be away from direct contact with any active equipment (e.g., UPS, server, switch).

Warranty

Limited Lifetime Warranty

Eaton warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for life. If the product should prove defective in material or workmanship within that period, we will, subject to the foregoing terms and limitations, replace the product, in its sole discretion, as your exclusive remedy for our breach of the limited warranty. Visit Triplite.Eaton.com/support/product-returns before sending any equipment back for repair.

THIS LIMITED WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. Eaton MAKES NO WARRANTIES OTHER THAN THE LIMITED WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations or exclusion of implied warranties, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This limited warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate, or safe for the use intended. Because individual applications are subject to great variation, we make no representation or warranty as to the suitability or fitness of these devices for any specific application.

WEEE Compliance Information for Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton, they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Eaton has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

Powering Business Worldwide

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122

United States

Eaton.com

© 2023 Eaton

All Rights Reserved

Publication No. 23-08-374 / 93-341E_RevF

September 2023

Eaton is a registered trademark.

All trademarks are property of their respective owners.
