USER MANUAL FGGF304DPF FRIGIDAIRE

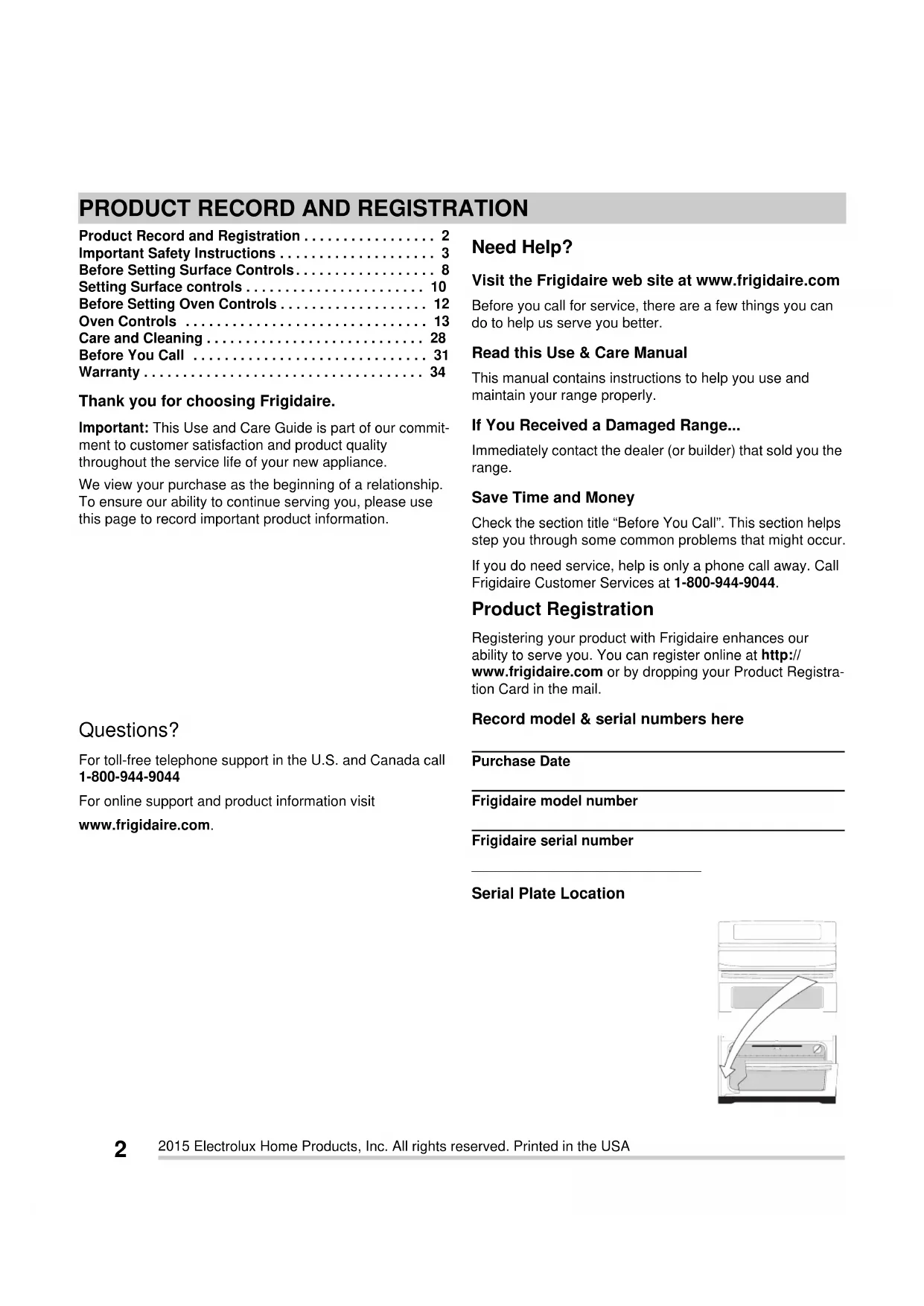

Questions? For toll-free telephone support in the U.S. and Canada call 1-800-944-9044 For online support and product information visit www.frigidaire.com.3 CAUTIONS & WARNINGS Read all instructions before using this appliance. This manual contains important safety symbols and instruc-tions. Please pay attention to these symbols and follow all instructions given. Do not attempt to install or operate your appliance until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a WARNING or CAUTION statement based on the risk type.DEFINITIONS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

Indicates a potentially hazardous situation which, if not avoided, may result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. Indicates installation, operation, maintenance, or valuable information that is not hazard related.

• Do not leave children alone - children should not be left alone or unattended in the area where appliance is in use. They should never be allowed to sit or stand on any part of the appli- ance, including the storage drawer, lower broiler drawer, warmer drawer, or lower double oven.

• Stepping, leaning or sitting on the door or drawers of a range can result in serious injuries and also cause damage to the appliance. Do not allow children to climb or play around the range. The weight of a child on an open oven door may cause the range to tip, resulting in serious burns or other injury. WARNING CAUTION IMPORTANT WARNING WARNING! If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the fire department.

• Installation and service must be performed by a qualified installer, service technician or the gas supplier. Important Safety Notice - The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to cause cancer, birth defects or other reproductive harms, and requires businesses to warn customers of potential exposures to such substances. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. IMPORTANT WARNING

• A child or adult can tip the appliance and be killed.• Verify the device is engaged with the countertops or that the device has been installed to the walls of the cabinet, the wall, or the floor as per the installation instructions• Ensure the anti-tip device is re-engaged with the countertop, the walls of the cabinet, the wall, or the floor as per the installation instructions when the appliance is moved.• Do not operate the appliance without the anti-tip device in place and engaged.• Failure to follow these instructions can result in death or serious burns to children and adults.To check if the anti-tip bracket is installed properly, use both arms to grasp the rear edge of the appliance back. Carefully attempt to tilt appliance forward. When properly installed, the appliance should not tilt forward.Refer to the anti-tip bracket installation instructions supplied with your range for proper installation.• Storage in or on appliance—flammable materials should not be stored in an oven, near surface units, or in the storage drawer, warmer drawer, or lower oven. This includes paper, plastic and cloth items such as cookbooks, plastic ware and towels, as well as flammable liquids. Do not store explosives, such as aerosol cans, on or near the range.• Never cover any slots, holes, or passages in the oven bottom or cover an entire oven rack with aluminum foil or any other material or oven liners. Aluminum foil linings may trap heat, causing a fire hazard.• Do not operate range during a power failure. If power fails, turn off range. If range is not turned off and power resumes, the range may begin to operate again. Once the power resumes, reset the clock and oven function.• Cold temperatures can damage the electronic control. When using this appliance for the first time, or when the appliance has not been used for an extended period of time, be sure the appliance has been in temperatures above 32ºF (0ºC) for at least 3 hours before turning on the power to the appliance.• Remove the oven door from any unused range if it is to be stored or discarded.• Be sure to have an appropriate foam-type fire extinguisher available, visible, and easily acces-sible located near the appliance. WARNING IMPORTANT5

IMPORTANT SAFETY INSTRUCTIONS

Read and follow these instructions and precautions for unpacking, installing, and servicing your appli- ance:

• Remove all tape and packaging before using the range. Destroy the carton and plastic bags after unpacking the range. Never allow children to play with packaging material.

• Proper Installation—Be sure your appliance is properly installed and grounded by a qualified technician in accordance with the National Fuel Gas Code ANSI Z223.- latest edition, or in Canada CAN/CGA B149.1, and CAN/CGA B149.2, and the National Electrical Code ANSI/ NFPA No.70-latest edition, or in Canada CSA Standard C22.1, Canadian Electrical Code, Part 1, and local code requirements. Install only per installation instructions provided in the literature package for this range. Ask your dealer to recommend a qualified technician and an autho- rized repair service. Know how to disconnect the power to the range at the circuit breaker or fuse box in case of an emergency.

• User servicing—Do not repair or replace any part of the appliance unless specifically recom- mended in the manuals. All other servicing should be done only by a qualified technician. This reduces the risk of personal injury and damage to the range. Ask your dealer to recommend a qualified technician and an autho- rized repair service. Know how to disconnect the power to the range at the circuit breaker or fuse box in case of an emergency.

• Remove the oven door from any unused range if it is to be stored or discarded.

• Never modify or alter the construction of a range by removing the leveling legs, panels, wire covers, anti-tip brackets/screws, or any other part of the range. IMPORTANT

• Do not store items of interest to children in the cabinets above a range on the backguard of the ranges. Children climbing on the range to reach items could be seriously injured.

• Do not touch surface heating units or surface cooking elements, areas near these units or elements, or interior surface of the oven. Surface heating areas and oven heating elements may be hot even though they appear cool. Areas near surface cooking units may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials touch these areas until they are cool. These areas may include the cook top, surfaces facing the cook top, oven vent areas, oven door, and oven window.

• Wear proper apparel. Loose-fitting or hanging garments should never be worn while using this appliance. Do not let clothing or other flammable materials come into contact with hot surfaces.

• Do not heat unopened food containers. Build-up of pressure may cause container to burst and result in injury.

• When heating fat or grease, watch it closely. Fat or grease may catch fire if it becomes too hot.

• Do not use water or flour on grease fires. Cover the fire with a pan lid, use baking soda, or use a dry chemical or foam type extinguisher.

• Use dry potholders. Moist or damp potholders on hot surfaces may result in burns from steam. Do not let potholders touch hot cooking areas. Do not use towels or other bulky cloths.

• Air curtain or other overhead range hoods, which operate by blowing a downward air flow on to a range, shall not be used in conjunction with gas ranges other than when the hood and range have been designed, tested and listed by an independent test laboratory for use in combina- tion with each other. CAUTION6

• Never use the appliance for warming or heating the room. Doing so may result in carbon monoxide poisoning.

• Use care when opening oven door, lower oven door, or warmer drawer (some models). Stand to the side of the range when opening the door of a hot oven. Let hot air or steam escape before you remove or replace food in the oven.

• Keep oven vent ducts clear. Touching surfaces in this area when the oven is on may cause severe burns. Do not place plastic or heat-sensitive items on or near the oven vent. These items can melt or ignite.

• Always handle oven racks when the oven is cool. Place oven racks in desired positions while the oven is cool. If a rack must be moved while the oven is hot, use extreme caution. Use potholders and grasp the rack with both hands to reposition. Do not let potholders contact the hot heating elements in the oven. Remove all cookware and utensils before moving the rack.

• Do not use a broiler pan without its insert. Do not cover the broiler insert with aluminum foil; exposed fat and grease could ignite.

• Do not use aluminum foil or other protective liners to line the oven bottom. Only use aluminum foil as recommended in this manual. Improper installation of these liners may result in risk of electric shock or fire.

• Do not cook food on the oven bottom. Always cook in proper cookware and always use the oven racks.

• Know which knob controls each surface burner. Place a pan of food on the burner before turning it on, and turn the burner off before removing the pan.

• Always turn knob to the full LITE position when igniting top burners and check that burner has lit. Adjust flame so it does not extend beyond the edge of cookware.

• Utensil handles should be turned inward and not extend over adjacent surface burners.

• Never leave surface burners unattended at high heat settings — spill overs cause smoking and greasy spills that may ignite, or a pan that has boiled dry may melt.

• Glazed cooking utensils — Only certain types of cookware are suitable for cook top service without breaking due to the sudden change in tempera- ture. Check the manufacturer’s recommendations for cook top use.

• When you are flaming foods under a ventilating hood, turn the fan on. Use Proper Flame Size — Adjust flame size so it does not extend beyond the edge of the utensil. The use of undersized utensils will expose a portion of the burner flame to direct contact and may result in ignition of clothing. WARNING7

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT INSTRUCTIONS FOR CLEANING

• Clean the range regularly to keep all parts free of grease that could catch fire. Pay particular attention to the area around each burner. Do not allow grease to accumulate.

• Always follow the manufacturer’s recommended directions for use of kitchen cleaners and aerosols. Be aware that excess residue from cleaners and aerosols may ignite causing damage and injury.

• Clean ventilating hoods frequently. Grease should not be allowed to accumulate on the hood or filter. Follow the manufacturer’s instructions for cleaning hoods. SELF-CLEANING OVENS

• Use the self-clean cycle to clean only the parts listed in this manual. Before using self-clean, remove the broiler pan, any food, utensils, and cookware from the oven. Remove oven racks unless otherwise instructed.

• Do not use oven cleaners. No commercial oven cleaner, oven liner, or protective coating of any kind should be used in or around any part of the oven. Do not clean the oven door gasket. The door gasket is essential for a good seal. Do not rub, damage, or move the gasket.
• Some birds are extremely sensitive to the fumes given off during the self-clean cycle of any range. Move birds to another well-ventilated r oom.

CONVERSION TO L.P. GAS

This appliance allows for conversion to Liquefied Petroleum (L.P.) Gas. If L.P. conversion is needed, contact your local L.P. Gas provider for assistance. The L.P. conversion kit is provided with this appliance and is located on the lower REAR (back side) panel of the range. Before installing the kit be sure to read the L.P. Installation Instructions and follow them carefully when making the installation. GROUNDING INSTRUCTIONS For personal safety, the appliance must be properly grounded. For maximum safety, the power cord must be plugged into an electrical outlet that is correctly polarized and properly grounded. Do not operate the appliance using a 2-prong adapter or an extension cord. If a 2-prong wall receptacle is the only available outlet, it is the personal responsi- bility of the consumer to have it replaced with a properly grounded 3-prong wall receptacle installed by a qualified electrician. See the installation instructions packaged with this cook top for complete installation and grounding instructions. Before manually cleaning any part of the range, be sure all controls are turned off and the range is cool. Cleaning a hot range can cause burns. Personal injury or death from electrical shock may occur if the conversion to L.P. gas is not made by a qualified installer or electrician. Any additions, changes or conversions required in order for this appliance to satisfactorily meet the application needs must be made by a qualified technician. CAUTION WARNING Avoid fire hazard or electrical shock. Do not use an adapter plug, and extension cord, or remove grounding prong from the power cord. Failure to follow this warning may cause serious injury, fire, or death. This appliance is equipped with a 3-prong grounding plug. For your protection it should be plugged directly into a properly grounded recep- tacle. Do not cut or remove the grounding prong from this plug. Do not cut, remove, or bypass the grounding plug under any circumstances.Grounding type wall receptaclePower supply cord with 3-prong grounding plug WARNING8 Control locations of the gas surface burners Your range is equipped with gas surface burners with different BTU ratings. The ability to heat food quicker and in larger volumes increases as the burner size increases.

• The small simmer burner is best used for simmering delicate sauces, etc. This burner is located at the right rear burner position on the cooktop.

• The standard burner can be used for most surface cooking needs. The standard burners are located at the left front and left rear positions on the cooktop.

• The power burners are best used for bringing large quantities of liquid rapidly up to temperature or when preparing larger quantities of food. The POWER burner is located at the right front position on the cooktop.

• Regardless of size, always select cookware that is suitable for the amount and type of food being prepared. Select a burner and flame size appropriate to the pan. Never allow flames to extend beyond the outer edge of the pan. Assembly of the burner caps and burner grates It is very important to make sure that all of the surface burner caps and surface burner grates are installed correctly and at the correct locations.

1. Remove all packing material from cooktop area.

2. Discard all packing material (if applicable).

3. Unpack burner grates and position on the cooktop.

On round style burners, the burner cap lip (Figure 1) should fit snug into the center of burner head and rest level. Refer to Figure 2 for correct and incorrect burner cap placement. Once in place, you may check the fit by gently sliding the burner cap from side to side (Figure 3) to be sure it is centered and firmly seated. When the burner cap lip makes contact inside the center of the burner head you will be able to hear the burner cap click. Figure 1: Burner cap and burner head Figure 2: Proper burner cap placement Figure 3: Gently move cap for proper placement Burner cap lip Burner cap Burner head Correct burner cap placement Incorrect burner cap placement

Do not allow spills, food, cleaning agents or any other material to enter the gas orifice holder opening. Always keep the burner caps and burner heads in place whenever the surface burners are in use. Please note that the burner cap should not move off the center of the burner head when sliding from side to side.

• Check and be sure that all oval style (some models) burner caps are correctly in place on oval burner heads.

• Do not use the surface burners without the burner caps and burner grates properly installed.

• Missing pieces or improper installation may lead to spills, burns, or damage to your range and cookware.

• Make sure the burner grates are properly placed on the cooktop before using the surface burners (Figure 4). The grates are designed to rest inside the recess on the cooktop.

• To install burner grates, place grates flat-side down and align into the cooktop recess.

• Grates should rest flush against each other and against the sides of the recess.

• Do not line the area underneath the grates or any part of the cooktop with aluminum foil or with any other lining.

• Never place flammable items on the cooktop. CAUTION IMPORTANT Figure 4: Proper grate installation Do not straddle cookware over two burner areas unless the cookware is specifically designed for that purpose. CAUTION10 Operating the gas surface controls1. Place cooking utensil on surface burner.2. Push the surface control knob down and turn counter-clockwise out of the OFF position.

3. Release the knob and rotate to the LITE position

(Figure 6). Note: All four electronic surface ignitors will spark at the same time. However, only the burner you are turning on will ignite.4. Visually check that the burner has a flame.5. Turn the control knob counterclockwise to the desired flame size. The control knobs do not have to be set at a particular setting. Use the knob indicator settings to adjust the flame as needed. Do not cook with the surface control knob in the LITE position. (The elec-tronic ignitor will continue to spark if the knob is left in the LITE position.)Setting proper surface burner flame sizeFor most cooking, start on the highest control setting and then turn to a lower one to complete the process. Use the recommendations below as a guide for determining proper flame size for various types of cooking. The size and type of utensil used and the amount of food being cooked will influence the setting needed. Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on top of the range when it is in use. These items could melt or ignite. Pot holders, towels or wood spoons could catch fire if placed too close to a flame. Do not operate the burner for an extended period of time without cookware on the grate. The finish on the grate may chip without cookware to absorb the heat.Figure 5: Gas knob view showing OFF and Lite positions. Bottom view showing temperature settings. CAUTION OFF Flame Size Type of CookingHigh Flame• Start most foods• Bring water to a boil• Pan broilingMedium Flame• Maintain slow boil• Thicken sauces and gravies• Steaming foodsLow Flame• Keep foods cooking, poaching and stewingFigure 6: Gas flame adjustmentNever extend the flame beyond the outer edge of the utensil. A higher flame wastes heat and energy, and increases the risk of being burned by the gas flame.Do not line the area underneath the grates or any part of the cooktop with aluminum foil or with any other lining. Settings based on using medium weight metal or aluminum pans. Settings may vary using other types of pans. The color of the flame is key to proper burner adjustment. A good flame is clear, blue, and hardly visible in a well-lighted room. Each cone of the flame should be steady and sharp. Clean burner if flame is yellow-orange. IncorrectCorrect CAUTION IMPORTANT

Setting Surface Controls Your gas appliance may be equipped with different sized surface burners. The ability to heat food quicker and in larger volumes increases as the burner size increases. It is important to select cookware that is suitable for the amount and type of food being prepared. The smaller simmer burner (on some models) is best suited for simmering delicate sauces, etc. The standard size burners may be used for most surface cooking needs. Some models are equipped with a center burner. The larger power burners (on some models) or TURBO BOIL burner (on some models) are recommended for bringing large quantities of liquid to temperature and when preparing larger quantities of food. Important:

• Do not cook with the surface control knob left in the Lite position. The electronic ignitor will continue to spark if the control knob setting remains in the LITE position.

• When setting any surface control knob to the LITE position, all electronic surface ignitors will spark at the same time. However, only the surface burner you are setting will ignite.

• Never place or straddle a cooking utensil over 2 different surface cooking areas at the same time. This can cause uneven heating results.

• In the event of an electrical power outage, the surface burners can be lit manually. Use caution when lighting surface burners manually. To light a surface burner, hold a lit match to the burner head, then slowly turn the surface control knob to LITE. After burner lights push in and turn knob to desired setting.

• When operating the oven, it is possible for residual heat from the oven to build-up and over time to eventually transfer to the surface control knobs located directly above the oven door. To set surface burners:

1. Place cooking utensil on center of surface burner grate.

Be sure the cooking utensil sets stable on the burner grate.

2. Push the desired surface control knob in and turn coun-

terclockwise out of the OFF position.

3. Release the surface control knob and rotate to the LITE

position. Visually check that the burner is lit.

4. Once the burner has a flame, push the control knob in

and turn counterclockwise to the desired flame size. Use the control knob markings and adjust the flame as needed. Home Canning Be sure to read and observe all the following points when home canning with your appliance. Check with the United States Department of Agriculture (USDA) website and be sure to read all the information they have available as well as follow recommendations for home canning procedures.

• Use only quality flat bottom canners when home canning. Use a straight-edge to check canner bottom.

• Make sure the diameter of the canner does not exceed 1 inch beyond the surface element markings or burner.

• Start with hot tap water to bring water to boil more quickly.

• Use the highest heat setting when first bringing the water to a boil. Once boiling is achieved, reduce heat to lowest possible setting to maintain that boil. Figure 7: Proper way to set burners OFF Lite

Oven vent location The oven vent is located near the back of the cooktop on the backguard and serves to vent both the upper and lower ovens. When the oven is on, warm air passes through this vent. This venting is necessary for proper air circulation in the oven and good baking results. Steam or moisture may appear near the oven vent; this is normal. Do not block oven vent. Types of oven racks Oven Rack Descriptions• Flat oven racks (or the flat handle oven rack) may be used for most cooking needs and may be placed in most oven rack positions.• The offset oven rack (some models) provides additional step-down positions from the standard flat rack design. The offset design positions the base of the rack about 1/2 of a rack position lower than the flat rack and may be used in most oven rack positions. To maximize oven cooking space place the bottom oven rack (some models) in the lowest rack position for baking or roasting large cuts of meat. Removing, replacing, and arranging flat or offset oven racks To arrange: Always arrange the oven racks when the oven is cool (prior to operating the oven).To remove: Pull the oven rack straight forward until it reaches the stop position. Lift up front of oven rack slightly and slide out.To replace: Place the oven rack on the rack guides on both sides of oven walls. Tilt the front of oven rack upward slightly and slide the oven rack back into place. Be sure oven racks are level before usingFigure 8: Do not block oven vent locationAlways use pot holders or oven mitts when using the oven. The oven interior, exterior, oven racks and cook top can become very hot and can cause burns.Protective Liners — Do not use aluminum foil or any other material or liners to line the oven bottom, walls, racks or any other part of the range. Doing so will alter the heat distribution, produce poor baking results and may cause permanent damage to the oven interior. Only use aluminum foil as recommended in this manual. Improper installation of these liners may result in risk of electric shock or fire. During self clean temperatures the oven will be hot enough to melt foil.Remove all oven racks before starting a self clean cycle. If oven racks are left inside the oven during a cleaning cycle, the slide ability of the oven racks may be damaged and all of the oven racks will lose their shiny finish.To prevent possible damage to the oven, do not attempt to close the oven door until all the oven racks are fully posi-tioned back inside the oven cavity. Upper and Lower Oven Vent CAUTION WARNING IMPORTANT Figure 9: Oven rack types oven rackat handleoven rack oset oven rack

2. probe — Use to monitor internal temperature of food for

3. quick preheat — Use to quickly raise the oven to

preheat temperature.

4. convect convert — Use to convert regular recipe

temperature to convection recipe temperature.

5. self clean — Use to select self-clean function.

6. delay start — Use to program a delayed time bake or

delayed self-cleaning cycle start time.

7. bake time — Use to enter the length of baking time.

8. set clock — Use set clock key with the numeric keypad

to set the time of day.

9. timer on- off — Use to set or cancel the timer. Timer

does not start or stop the cooking process.

10. oven light — Use to turn the oven light on and off.

11. oven lockout — Use to lock the oven door and the

12. bake — Use to select the bake cooking feature.

13. broil — Use to select broil cooking feature.

14. convect — Use to select between convection bake,

convection roast, and convection broil (some models).

15. warm — Use to keep food and dishes warm until

17. start — Use for starting all cooking features.

18. off — Use to turn off any oven function entered except

time of day and minute timer.

19. numeric keypad — Use to set times and temperatures.

Time and Temperature Settings All of the features listed below may be entered into the control. An entry acceptance beep will sound each time a control key is touched (the acceptance beep on the oven lockout key is delayed 3 seconds). An entry error tone (3 short beeps) will sound if the entry of the temperature or time is below the minimum or above the maximum settings for the feature

1. Press set clock. CLO will appear in the display.

2. Press 1 3 0 on the numeric keypad to set the time of

day to 1:30. CLO will stay in the display.

3. Press start. CLO will disappear and the clock will start.

2. If 550° appears, the display is set to show temperatures

in Fahrenheit. If 288° appears, the display is set to show temperatures in Celsius.

3. If the preferred temperature mode is in the display,

press off to keep the setting or wait 6 seconds and the control will return to display the time of day.

4. To change the setting press and hold broil for about 6

seconds until F or C appears in the display.

5. Press self clean to switch between °F or °C display

6. Press start to accept the change or press off to reject

the change. Setting 12 or 24 Hour Time of Day Display

1. Press and hold set clock for 6 seconds. CLO will

appear in the display.

2. Continue holding the key until 12Hr dAY or 24Hr dAY

appears in the display and the control beeps once.

3. Press self clean to switch between the 12 and 24 hour

time of day display. The display will show either 12Hr dAY or 24Hr dAY.

4. Press start to accept the change or press off to reject

5. Reset the correct time as described in this section. If the

24 hour time of day mode was chosen, the clock will display time from 0:00 through 23:59 hours. Setting Continuous Bake or 6 Hour Energy Saving The timer on-off and self clean keys are used to set the continuous bake or 6 Hour Energy saving features. The oven control has a factory preset 6 hour energy saving feature that shuts off the oven if the oven control is left on for more than 6 hours. The oven can be programmed to override this feature for continuous baking. To set the control for continuous bake or 6 hour energy saving:

1. Press and hold timer on-off for 6 seconds. After 6

seconds 6Hr OFF or StAY On will appear in the display and the control will beep once.

2. Press self clean to switch between the 6 hour energy

saving and continuous bake features.

3. Press start to accept the change (display will return to

time of day) or press off to reject the change. 6Hr OFF indicates the control is set for the 6 hour energy saving mode. StAY On indicates the control is set for the continuous bake feature.15 OVEN CONTROLS Setting Control for Silent Operation Delay start and self clean keys control the silent operation feature. This feature allows the oven control to be operated without sounds or beeps whenever necessary. If desired the control can be programmed for silent operation and later returned to operating with all the normal sounds and beeps. To change control from normal sound operation to silent control operation:

1. Press and hold delay start. -- -- will appear and DELAY

will flash in the display. Continue to hold the key until bEEP On or bEEP OFF appears in the display. Then release the delay start key.

2. Press self clean to switch between normal sound

operation (bEEP On) and silent operation (bEEP OFF).

3. Press start to accept the change or press off to reject

the change. Oven Light Each oven is equipped with one oven light. The oven light will turn on automatically when the oven door is opened. The oven light may be turned on when the door is closed by using the oven light key on the control panel.The light will stay off until the door unlocks. To toggle the oven lights on and off:

The interior oven lights are covered with a glass shield. The glass shield must be in place whenever the oven is in use. To change the interior oven lights, see “Replacing the oven light” on page 30 Important: When baking delicate items like cakes, breads and pastries leave the oven light off. Setting the Timer The timer on-off key controls the minute timer and serves as an extra timer and can be used during any of the other oven control functions. To set the minute timer:

1. Press timer on-off. -- -- will appear and timer will flash

in the display. Press the number keys to set the desired time.

2. Press start. The time will begin to count down and

TIMER will stay in the display. When the time expires, End and TIMER will show in the display. The clock will beep three times every 30 seconds until timer on-off is pressed.

3. To cancel the minute timer before the set time expires,

press timer on-off. Setting Oven Lockout Feature The key controls the oven lockout. When activated, this feature automatically locks the oven door, preventing the oven from being turned on. It does not affect the clock, timer, or the interior oven lights. Both ovens can be locked individually. To activate the oven lockout feature:

1. Select upper or lower oven and press and hold for 3

2. After 3 seconds, door Loc will appear, a tone will

sound, and the word DOOR and the icon will flash.

3. Once locked, DOOR and the lock icon will stop flashing

and Loc remains visible in the display. To reactivate normal oven operation:

1. Press and hold for 3 seconds.

2. After 3 seconds, door Loc will appear, a tone will

sound, and the word DOOR and the lock icon will flash in the display until the oven door has completely unlocked.

3. The oven is now fully operational.

The control will still beep when the timer ends and a set temperature is reached, when set for silent operation The oven light will not operate during the self clean function. NOTE NOTE If start is not pressed, the timer will return to the time of day after 25 seconds.The timer does not start or stop the cooking process. NOTE16 OVEN CONTROLS Setting Quick Preheat The quick preheat key controls the quick preheat feature and is recommended for single rack baking only. Quick preheat can be programmed for temperatures between 170°F (77°C) to 550°F(288°C) and is not necessary when roasting or cooking casseroles. For batter and dough-based goods such as cakes, pastries, and breads, use the convection function in the lower oven for best results. To set the preheat temperature for 350°F (177°C):

1. Press quick preheat. 350 will appear in the display.

2. Press start. 350 and PREHEAT will be displayed while

the oven is preheating.

3. Press off when baking is complete or to cancel the

preheat feature. To change preheat temperature while oven is preheating (ex: changing from 350°F to 425°F):

1. Press quick preheat. 350 will appear in the display.

2. Enter the new preheat temperature. Press 4 2 5.

3. Press start. 425 will show in the display.

4. When baking is complete, press off.

Setting Bake The bake key controls normal baking. The oven can be programmed to bake at any temperature from 170°F (77°C) to 550°F (288°C). For best bake results:

• Fully preheat the oven before baking items like cookies, cakes, biscuits, and breads. When using any single rack, position the rack so that the food is in the center of the oven. If baking in the upper oven always use rack position 2.

• Allow at least 2 inches (5 cm) of space between cookware for proper air circulation.

• Dark or dull bakeware absorbs more heat than shiny bakeware. It may be necessary to reduce oven temper- ature and cook time to prevent overbrowning of some foods. Dark bakeware is recommended for pies. Shiny bakeware is recommended for cakes, cookies, and muffins.

• Do not open oven door often. Doing so will reduce oven temperature and extend cooking time. To set the bake temperature to 375°F (190°C):

1. Select upper or lower oven. Press bake. 350 will appear

4. When fully preheated, place food in oven.

• A beep will sound once the preheat cycle is complete.

• The bake feature will display the set oven tempera- ture and will continue cooking at the set bake temper- ature.

• Once the oven reaches set temperature the bake element and the bake element indicator will cycle on and off to maintain a steady baking level. NOTE Figure 10: Rack positions lower oven Figure 11: Pan spacing

OVEN CONTROLS Convection Cooking (lower oven only) Multiple rack baking may slightly increase cook time for some foods, but the overall result is time saved. Some food may cook faster and more evenly with convection bake. Convection baking uses the bake function along with the convection heating element and fan to circulate the heat evenly and continuously within the oven (See Figure 12). Benefits of convection cooking:

• Multiple rack baking.

• Some foods cook faster, saving time and energy. Convection baking tips:

• Fully preheat the oven before baking items like cookies, cakes, biscuits, and breads.

• If your recipe cooking temperature has already been converted for convection baking, there is no need to reduce your oven temperature. If not, see “Setting Convection Convert” on page 18 for further instruction on temperature conversion.

• When using any single rack, position the rack so that the food is in the center of the oven.

• When baking cakes using two oven racks place racks in positions 1 and 3 (See Figure 13).

• When baking using two oven racks, position cookware as shown in Figure 14. Allow at least 2 inches (5 cm) of space between cookware for proper air circulation.

• Dark or dull bakeware absorbs more heat than shiny bakeware. It may be necessary to reduce oven temper- ature and cook time to prevent overbrowning of some foods. Dark bakeware is recommended for pies. Shiny bakeware is recommended for cakes, cookies, and muffins.

• Most baked goods (except cakes) should be baked on pans with no sides or low sides to allow heated air to circulate around food. Setting Convection Bake This mode of cooking enables you to obtain the best results when baking with multiple pans and racks. The oven can be programmed for convection baking at any temperature between 300°F (148°C) to 550°F (288°C) with a default temperature of 350°F (176°C). To set the oven for convection bake and temperature to 375°F (190°C):

1. Arrange interior oven racks. Select lower oven.

2. Press convect. Convect and bake will flash and 350

will appear in the display. If a convection bake of 350°F is needed, press start.

3. Press 3 7 5. Convect and bake will keep flashing, and

375° will appear in the display.

4. Press start. The convection fan will begin rotating about

6 minutes after oven starts heating. A beep will sound once the oven temperature reaches 375°F. The display will show 375°, CONVECT, BAKE, and the fan icon.

5. Place food in oven.

Figure 12: Air circulation in convection function Figure 13: Rack positions Figure 14: Pan spacing The convection fan and fan icon will start after the oven has heated for 6 minutes. The display will show an icon of rotating fan within a square, indicating the convection fan is operating. The bake and convection elements will also cycle for a better heat distribution. Do not open oven door often. Doing so will reduce oven temperature and extend cooking time.

NOTE18 OVEN CONTROLS Setting Convection Convert Convection convert automatically converts a standard baking recipe for convection baking. When set properly, this feature is designed to display the actual converted (reduced) temperature in the display. Convection convert may only be used with a convection bake cooking mode. It can be used with a delay start and bake time. For delay start instructions or bake time instructions, see page 19. If convection conversion is used with the bake time and delay start features, CF (check food) will be displayed when 75% of the bake time is complete. At this time the oven control will sound three long beeps at regular intervals until baking time is finished. The control will display End and continue to beep at regular intervals until off is pressed. To set the oven for convection bake with a standard baking recipe temperature of 400°F (204°C):

1. Arrange interior oven racks. Select lower oven.

2. Press convect. Convect and bake will flash and 350

will appear in the display.

3. Pres 4 0 0. Convect and bake will keep flashing and

400° will appear in the display.

5. Set bake time or delay start if needed. For delay start

and bake time instructions, see page 19.

7. Place food in the oven.

Setting Convection Roast This mode is best for cooking tender cuts of beef, lamb, pork, and poultry. Convection roasting gently browns the exterior and seals in the juices using the bake function, convection element, and fan to circulate the heat evenly and continuously within the oven. The oven can be programmed for convection roasting at any temperature between 300°F (148°C) to 550°F (288°C) with a default temperature of 350°F (176°C). Convection roasting tips:

• Use a broiler pan and insert, as well as a roasting rack (available online at frigidaire.com). The broiler pan will catch grease drippings, and the grid will help prevent spatters. The roasting rack will hold the meat. It’s not recommended to roast chicken on a roasting rack. Use a deep pan instead.

• Place the offset rack on position 1. Make sure the roasting rack is securely seated on the grid in the broiler pan. Do not use the broiler pan without the insert. Do not cover the insert with aluminum foil.

• Pull the rack out to the stop position before removing food. Position food (fat side up) on the roasting rack. No preheat is needed in convection roast. To set a convection roast temperature of 375°F (190°C):

1. Arrange oven racks and place food in lower oven.

2. Select lower oven.

3. Press convect; Convect and bake will flash.

4. Press convect again. Convect and roast will flash.

5. Enter 3 7 5 using the number keys.

6. Press start. Convect, roast, and the fan icon will be

displayed. When using a bake time under 20 minutes, the convec- tion convert will display the CF message with no beeps. Pressing off will stop the feature at any time. NOTE Should an oven fire occur, close oven door and turn off the oven. If the fire continues, throw baking soda on the fire or use a fire extinguisher. Do not put water or flour on the fire. Flour may be explosive, and water can cause a grease fire to spread and cause personal injury

WARNING19 OVEN CONTROLS Setting Bake Time Use bake time when setting the oven to cook for a specific length of time and shut off automatically when the time is complete. When cooking time ends, the oven will shut off and will beep. This feature can be used with bake, convec- tion bake, convection roast, and slow cook modes. To program the oven to begin baking immediately and to shut off automatically (example: Bake at 350°F (176°C) for 30 minutes):

1. Be sure the clock is set for the correct time of day.

2. Arrange interior oven rack(s) and place the food in then

3. Press bake. 350 will appear in the display.

6. Enter the desired baking time by pressing 3 0.

7. Press start. Once the timed bake feature starts, the

current time of day will appear in the display. Press off when baking has finished or at any time to cancel. When the timed bake finishes:

8. End and the time of day will show in display. The oven

will shut off automatically. The control will beep three times every 30 seconds until off is pressed. Setting Delay Start The bake time and delay start keys control the delayed start timed bake feature. The automatic timer of delayed start will turn the oven on and off at the time you select in advance. To program the oven for a delayed start time with the bake function. (example: baking at 375°F (190°C) for 30 minutes, starting at 5:30):

1. Be sure that the clock is set with the correct time of day.

2. Arrange interior oven rack and place the food in the

3. Press bake. 350 will appear in the display.

11. Press start. Delay, bake, and the current time of day

will appear in the display.

12. When the desired start time is reached, the oven starts

the bake function automatically and will turn off after 30 minutes. *When baking items such as pies, cakes, and cookies, bake time can be set after the oven is fully preheated. Baking time can be set for any time between 1 minute to 5 hrs and 59 minutes. The time remaining can be shown in the timer section of the display by pressing bake time at any moment of the cooking. To cancel the bake time but keep the oven baking at the set temperature, press bake time and enter 0, then press start. This will allow the oven to continue baking until canceled by pressing off. A beep will sound when the oven temperature reaches the set temperature. NOTE Food Poisoning Hazard. Do not let food sit for more than one hour before or after cooking. Doing so can result in food poisoning or sickness. Foods that can easily spoil such as milk, eggs, fish, meat, or poultry should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins and should be removed promptly when finished cooking. CAUTION20 OVEN CONTROLS Setting Broil (upper oven only) Broil is best for cooking meats, fish and poultry up to 1” thick by direct heat. The broil key controls the broil feature in the upper oven only. The oven can be programmed to broil at any temperature from 400°F(204°C) to 550°F (288°C) with a default temperature of 550°F. Broiling tips:

• Broil foods with oven door closed.

• For optimum browning, preheat broil for 2 minutes. . To set a broil:

1. Place the broiler pan insert on the broiler pan and place

the food on the broiler pan insert. Do not use the broiler pan without the insert. The exposed grease could ignite.

2. Arrange the interior oven rack and place the broiler pan

on the rack. Center the broiler pan directly under the broiler element.

3. Select upper oven. Press broil. 550 will appear in the

display. NOTE: If a lower broil temperature is desired (minimum broil temperature setting is 400°F (204°C), enter the desired temperature.

4. Press start.The oven will begin to broil. 550° will appear

in the display. Preheat for 2 minutes before broiling.

5. Broil food (with oven door closed) on first side until food

is browned; turn and cook on the second side. Always pull the rack out to the stop position before turning or removing food. Broiling is direct heat cooking and will produce smoke. If smoke is excessive, place food further away from direct heat.

6. To stop broiling, press off.

Note: If a broiler pan and insert (shown here) are not supplied with this appliance, they may be purchased at frigidaire.com. Always wear oven mitts when broiling. Should an oven fire occur, close the oven door and turn the oven off. If the fire continues, throw baking soda on the fire or use a fire extinguisher. Do not put water or flour on the fire. Flour may be explosive. The broiler pan and the insert (some models) allow grease to drain and be kept away from the high heat of the broiler. Do not use the pan without the insert. Do not cover the insert with aluminum foil; the exposed grease could ignite. Figure 15: Upper oven rack positions WARNING Upper Oven

Table 2: Suggested Broiling Settings Food item Rack Position Temperature Cook time in minutes1st side 2nd side Internal Temperature Doneness Steak 1” thick 1st or 2nd* 550°F (288°C) 6 4 140°F (60°C) Rare**1st or 2nd* 550°F (288°C) 7 5 160°F (71°C) MediumPork Chops 3/4” thick 1st or 2nd* 550°F (288°C) 8 6 170°F (77°C) Well Chicken - Bone In 2nd* 450°F (232°C) 20 10 170°F (77°C) Well Chicken Boneless 1st or 2nd* 450°F (232°C) 8 6 170°F (77°C) Well Fish 2nd* 500°F (260°C) 13 -n/a 170°F (77°C) Well Shrimp 2nd* 550°F (288°C) 5 -n/a 170°F (77°C) Well Hamburger 1” thick 1st or 2nd* 550°F (288°C) 9 7 145°F (63°C) Medium *Use the off-set rack if you choose to use an oven rack in position 2 in upper oven. **The U.S. Department of Agriculture states, “Rare fresh beef is popular, but you should know that cooking it to only 140°F (60°C) means some food poisoning organisms may survive.” The lowest temperature recommended by the USDA is 145°F (63°C) for medium rare fresh beef. For well done 170°F (77ºC)21 OVEN CONTROLS Cooking with Meat Probe (lower oven) Use the probe feature for best results when cooking foods such as roasts, hams, or poultry. For meats like poultry and roasts, using a probe to check internal temperature is the safest method to ensure properly cooked food. The probe feature, when set correctly, will signal an alert when the internal food temperature reaches the set target temperature. When active, the probe displays the internal food tempera- ture which is visible in the display during the cooking process. This eliminates any guesswork or the need to open the oven door to check the thermometer. Proper placement of probe in food.

• Insert the probe so that the probe tip rests inside the center of the thickest part of meat or food (See Figure 16). For best results, do not allow the probe temperature sensor to contact bone, fat, gristle, or the cookware.

• For bone-in ham or lamb, insert the probe into the center of lowest large muscle or joint.

• For meat loaf or casseroles, insert the probe into center of food.

• When cooking fish, insert meat probe just above the gill.

• For whole poultry or turkey, fully insert the probe sensor into the thickest part the breast (See Figure 16). To set probe:

1. Insert the probe into the food. Place prepared food on

the desired oven rack position and slide into the oven.

2. Plug the connector end of the probe all the way into the

probe receptacle while the oven is still cool. The recep- tacle is located on the upper left front oven cavity wall.

3. When the probe is set, an acceptance tone will sound,

the probe icon will illuminate, and the actual probe temperature appears in the display (See Figure 17). Close the oven door

4. Select lower oven. Press probe key once. Enter the

desired target food temperature using the numeric keys and set temperature for food type. The minimum setting is 140ºF (60ºC); the maximum is 210ºF (99ºC). Default is 170ºF (77ºC).

5. Press start to accept the target temperature.

6. Set for quick preheat, bake, convect bake, or

convect roast, and if necessary adjust the oven temperature accordingly. Do not use kitchen utensils to pull on the probe cable or handles. Always insert and remove the probe using the provided handles, as shown in Figure 16, and always use a pot holder to protect hands from possible burns.

• Do not store the probe inside the oven. Use only the original probe provided. Connecting any other probe or device could result in damage to the oven control, electronics, and the receptacle.

• Before starting self clean, check that the probe is removed from the oven interior.

• Defrost frozen foods completely before inserting the probe. CAUTION IMPORTANT Figure 16: Probe in thickest area of food Figure 17: Probe set showing probe temperature Insertprobe tipto center of food22 OVEN CONTROLS Probe (cont’d)

7. The control will provide three beeps when the internal

target temperature is reached. The oven will automati- cally change to a warm setting (HLd) and the actual probe temperature will alternate in the display. Warm will maintain the oven temperature at 170°F (77°C) for 3 hours unless otherwise cancelled. To stop cooking at any time, press off. To set how the oven will operate once the probe reaches the target temperature: The oven is preset to automatically stop cooking and start the warm feature when probe sensor reaches the target temperature. This may be set to continue cooking if desired. Setting the options once the probe reaches the target temperature must be done when the oven is inactive. The probe is not required to be connected to the probe receptacle when setting this option. To set the oven to continue cooking after reaching the target temperature:

1. Press probe key and hold for 6 seconds.

2. Press self clean key and toggle until Continu:

appears, as shown in Figure 18, then press start to accept. To set the oven to automatically stop cooking and start warm once reaching target temperature:

1. Press probe key and hold for 6 seconds.

2. Press the self clean key and toggle until CAnCEL

appears, as shown in Figure 19, then press start to accept Probe too hot message: When the message Prob... Too... Hot... flashes in the display, the probe temperature has exceeded 250°F (121°C). If the probe is not removed, this message may continue until the sensor reaches 300°F (149°C) or higher, and oven will automatically turn off. Be sure the probe sensor is fully covered by the food. Figure 18: Probe set to continue cooking Figure 19: Probe set to cancel cooking During cooking the internal food temperature will display by default. To see the target temperature press the probe key once. After 6 seconds the display will revert to the internal food temperature. To assure accuracy, do not remove the probe from the food or receptacle until the desired internal temperature is reached. If the probe is removed from the receptacle only, the probe feature will cancel but the oven will continue to cook. If the probe is removed from the food only, the probe feature will remain active and may eventually generate a probe too hot message. To change the target temperature while cooking, press the probe key once. Use the numeric keys to change the temperature. Press the start key to accept any change. Table 3: USDA recommended minimum internal cooking temperatures Food Type Internal Temp. Beef, Pork, Veal, Lamb 160°F (71°C) Medium-rare * 145°F (63°C) Medium 160°F (71°C) Well Done 170°F (77°C) Chicken and Turkey, whole 165°F (74°C) Poultry Breasts, Roasts 165°F (74°C) Ham Fresh (raw) 160°F (71°C) Ham Pre-cooked (to reheat) 140°F (60°C Eggs dishes 160°F (71°C) Leftovers and Casseroles 165°F (74°C) The U.S. Department of Agriculture states, “Rare fresh beef is popular, but you should know that cooking it to only 140°F (60°C) means some food poisoning organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide, USDA Rev. June 1985.) Visit the USDA Food Safety and Inspection website at www.fsis.usda.gov NOTE handle probe cable probe sensor handle receptacle probe connector23 OVEN CONTROLS Setting Pizza (Upper Oven) The pizza key is designed to give you the best cooking performance when cooking fresh or frozen pizza. It is available in the upper oven only. This feature lets you choose baking a frozen pizza 425°F (218°C) or a fresh pizza 400°F (204°C). If needed, a different target temperature than the presets can be entered. Some fresh pizza recipes call for preheating the oven using broil for a few minutes, but this is not part of the pizza feature preset. Pizza tips:

• Follow the instructions on the box for preheating and bake times.

• For best results bake one pizza at a time on rack position 1.

• Check the pizza at 75% of the maximum bake time listed on the package. To set oven for frozen pizza:

1. Arrange interior oven racks. Press upper oven.

2. Press pizza key. FRO will appear in the display. If a

different temperature than 425°F is needed, enter the desired temperature using the numeric keys.

4. Place pizza in oven when the control beeps.

5. If needed, enter a bake time.

6. To turn off the pizza feature at any time press off.

To set oven for fresh pizza:

1. Arrange interior oven racks. Press upper oven.

2. Press pizza key. Frh will appear in the display. If a

different temperature than 400°F is needed, enter the desired temperature using the numeric keys.

4. Place pizza in oven when the control beeps.

5. If needed, enter a bake time.

6. To turn off the pizza feature at any time press off.

Setting Warm (Keep Warm) Warm is best for keeping oven baked foods warm for serving after cooking has finished. The warm key turns on the warm feature, will maintain an oven temperature of 170°F (77°C), and will keep oven baked foods warm for serving up to 3 hours after cooking. After 3 hours, the warm feature will shut the oven off. The warm feature may be used without any other cooking operations or can be set to turn on automatically after a bake time or delay start. Warm tips:

• Always start with hot food. Do not use the warm feature to heat cold food.

• Food in heat-safe glass and ceramic containers may need higher temperature settings compared to food in regular cookware.

• Aluminum foil may be used to cover food to increase moisture content. To set warm:

1. Arrange interior oven racks and place food in oven.

2. Press warm. HLd will appear in the display.

4. To turn off the warm feature at any time, press off.

Trailing Warm (Keep Warm) When it is necessary to keep cooked foods at serving temperature after a timed bake, the keep warm function can be set to turn on automatically and remain on at a steady 170°F (77°C) for up to three hours. This feature works automatically with the meat probe if the probe is set to cancel cooking. For details see “Cooking with Meat Probe (lower oven)” starting on page 21. To set warm to turn on automatically:

1. Arrange interior oven racks and place food in oven.

2. Set the oven for bake time or delay start. For delay

start or bake time instructions, see page 19.

3. Press warm. If no key is touched within 25 seconds, the

request to turn on the warm feature will be cancelled.

4. Press start. HLd will disappear and the temperature will

be displayed. The warm feature will turn on automati- cally when the timed bake ends.

5. To turn the warm feature off at any time, press off.24

OVEN CONTROLS Setting the Sabbath Feature (For use on the Jewish Sabbath and Holidays) The bake time and delay start keys are used to set the Sabbath feature. For further assistance, guidelines for proper usage, and a complete list of models with the Sabbath feature, please visit the web at www.star-k.org. The Sabbath feature may only be used with the bake function. Once the oven is properly set using bake with the Sabbath feature active, the oven will remain on until cancelled. The Sabbath feature overrides the factory preset 12 hour energy saving feature. If the oven light is needed during the Sabbath, press oven light before activating the Sabbath feature. Once the oven light is turned on and the Sabbath feature is active, the oven light will remain on until the Sabbath feature is turned off. If the oven light needs to be off, be sure to turn the oven light off before activating the Sabbath feature. To program the oven to begin baking immediately and activate the Sabbath feature (example: baking at 350°F (176°C):

1. Be sure that the clock is set with the correct time of day.

2. Place the food in the oven. Press bake. 350° appears in

the display. Press start.

3. If you desire to set the oven control for a bake time or

delayed start bake time, do so at this time. For delay start instructions, and bake time instructions, see page 19. Remember the oven will turn off after using bake time or delay start and may only be used once during the Sabbath/Jewish holidays. The maximum bake time is 5 hours and 59 minutes.

4. The oven will turn on and begin heating.

5. Press and hold both the bake time and delay start

keys for at least 3 seconds. SAb will appear in the display. Once SAb appears in the display, the oven control will no longer beep or display any further changes, and the oven is properly set for the Sabbath feature.

6. The oven may be turned off at any time by first pressing

off (this will turn the oven off only). To turn off the Sabbath feature:

1. Press and hold both the bake time and delay start

keys for at least 3 seconds.

2. SAb will disappear from the display.

Power failure while using Sabbath feature: Should you experience a power failure or interruption, the oven will shut off. When power is returned, SF (Sabbath Failure) will be displayed, and the oven will not turn back on automatically. If your food was nearly fully cooked, you may allow the trapped heat in the oven to finish the cooking process. Otherwise, you should remove the food when the power failure occurs because you may only start the oven once during the Sabbath/Jewish holidays. After the Sabbath observance turn off the Sabbath feature. Press and hold both the bake time and delay start keys for at least 3 seconds. SAb will disappear from the display and the oven may be used with all normal functions. It is advised to not activate any cooking function other than bake while the Sabbath feature is active.

• You may change the oven temperature once baking has started by pressing bake and the numeric keys for the new temperature. For example, to change from 350°F to 425°F, press 4 2 5. Then, press start twice.

• Only the following controls will function after setting the Sabbath feature: numeric keypad, bake, start, and off. All other features will not function once the Sabbath feature is properly activated. The display will not show temperature changes or sound any audible tones when the oven is set with the Sabbath feature Food Poisoning Hazard. Do not let food sit for more than one hour before or after cooking. Doing so can result in food poisoning or sickness. IMPORTANT NOTE CAUTION25 OVEN CONTROLS Adjusting Oven Temperature (UPO) The temperature in the oven is pre-set at the factory. When first using the oven, be sure to follow recipe times and temperatures. If you think the oven is cooking too hot or too cool for the temperature you select, you can adjust the actual oven temperature to be more or less than what is displayed. Before adjusting the UPO (User Programmable Offset), test a recipe by using a temperature setting higher or lower than the recommended temperature. The baking results should help you to decide how much of an adjust- ment is needed. Note: Do not use thermometers such as those found in grocery stores to check the temperature settings inside the oven. These thermometers may display temperatures that vary between 20 and 40 degrees from the actual tempera- ture. To adjust the oven temperature higher:

1. Press and hold bake key for 6 seconds. UPO 0 will

appear in the display.

2. To increase the temperature, use the number keys to

enter the desired change. For example, for 30°F, press 3 0. The temperature may be increased as much as 35°F (19°C).

3. Press start to accept the temperature change and the

display will return to the time of day. Press off to reject the change if necessary. To adjust the oven temperature lower:

1. Press bake for 6 seconds. UPO 0 will appear in the

2. To decrease the temperature, use the number keys to

enter the desired change (example -30°F) 3 0. Then, press self clean to change from + to -. The tempera- ture may be decreased as much as 35°F (19°C).

3. Press start to accept the temperature change and the

display will return to the time of day. Press off to reject the change if necessary. Restoring Factory Control Settings Your appliance was built with predetermined oven control settings (default). Over time, users may make changes to these settings. The following options have settings that can be modified and may have been changed since the appliance was new:

• 12 or 24 hour display mode

• Continuous bake or 6 Hour Energy Savings mode

• Oven temperature adjustments (offsets) Note: If you choose to restore factory default settings, all of the above user preferences will be restored to their original settings (factory default). To restore oven control to factory default settings:

1. Press and hold 7 until the acceptance tone sounds

2. Press start. The control is now reset to default settings.

The UPO can be changed for each oven cavity indepen- dently. The oven temperature adjustments made with this feature will not change the self clean temperature or the broil temperature. The oven temperature adjustments are permanent and will stay forever in the unit memory unless you manually change it again. Even a power outage will not reset these changes. Follow the same procedure again if you wish to change it to a different setting. NOTE26 OVEN CONTROLS Self Cleaning Operation A self cleaning oven cleans itself with high temperatures (well above normal cooking temperatures) which eliminate soils completely or reduces them to a fine powdered ash you can wipe away with a damp cloth. What to expect during self cleaning While in self clean mode, the oven heats to temperatures much higher than those used in normal cooking. Sounds of metal expansion and contraction are normal. Odors are normal as the food soil is being removed. Smoke may appear through the oven vent. If heavy spills are not wiped up before cleaning, they may flame and cause more smoke and odor than usual. This is normal and safe and should not cause alarm. If available, use an exhaust fan during the self cleaning cycle.

• Do not line the oven walls, racks, bottom, or any other part of the oven with aluminum foil, oven liners, or any other materials. Doing so will block heat distribution, produce poor baking results, and cause permanent damage to the oven interior (aluminum foil will melt to the interior surface of the oven).

• The health of some birds is extremely sensitive to the fumes given off during the self cleaning cycle of any oven. Move birds to another well-ventilated room.

• During the self cleaning cycle, the outside of the oven can become very hot to the touch. Do not leave small children unattended near the appliance.

• Do not force the oven door open. This can damage the automatic door locking system.

• Use caution when opening the door after the self- cleaning cycle is completed. The oven may still be very hot. Stand to the side of the oven door when opening the door to allow hot air or steam to escape. Figure 20: Clean around the oven door gasket WARNING Adhere to the following cleaning precautions:

• Do not use oven cleaners or protective coatings in or around any part of the oven interior. Do not clean the oven door gasket. Take care not to rub, damage, or remove the gasket or use any cleaning substances on the oven door gasket (See Figure 20). Doing so could cause damage and reduce the efficiency of the oven’s performance.

• Remove all items from the cooktop and oven including cookware, utensils and any aluminum foil. Aluminum foil will not withstand the high heat of self clean.

• Clean any soil from the oven frame, door liner outside the oven door gasket, and the small area at the front center of the oven bottom with soap and water (See Figure 20). These areas heat sufficiently to burn soil on.

• Remove any excessive spills from the oven cavity before starting the self cleaning cycle. To clean, use hot, soapy water and a cloth. Large spills can cause heavy smoke or fire when subjected to high tempera- tures. Do not allow food spills with a high sugar or acid content (such as milk, tomatoes, sauerkraut, fruit juices, or pie filling) to remain on the surface as they may leave a dull spot even after cleaning.

• Completely remove all oven racks and accessories. If oven racks are not removed before a self clean, they will lose their special coating and will no longer slide in and out of the oven cavity effortlessly.

• Oven racks accidentally left in the oven during self clean may be wiped down after cooling with a high- temperature cooking oil to lubricate them. WARNING27 OVEN CONTROLS Setting Self Clean Cycle Duration The self clean key controls the self cleaning feature. If you are planning to use the oven directly after a self clean cycle remember to allow time for the oven to cool down and the oven door to unlock. This normally takes about one hour. A 3 hour self clean cycle will actually take about 4 hours to complete. It is recommended to use a 2 hour self clean cycle for light soils, a 3 hour cycle for average soils, and a 4 hour cycle for heavy soils. To set the controls for a 3 hour self cleaning cycle to start immediately and shut off automatically:

1. Be sure the clock is set with the correct time of day and

the oven door is closed.

2. Select upper or lower oven and press self clean. CLn

and 3:00 HR will show in the display. The control will automatically clean for a 3 hour period (default self cleaning cycle time). If a 2 or 4 hour clean time is desired, press self clean multiple times to toggle between 2, 3, or 4 hours.

3. Press start. The word DOOR and the (lock icon)

will flash; CLn will remain on in the display.

4. As soon as the control is set, the motor driven oven

door lock will begin to close automatically. Do not open the door when the lock motor is running or when any locking indicators or displays are showing. Once the door is locked, the DOOR indicator light and icon will stop flashing and remain on, and the oven icon will appear in the display. Allow about 15 seconds for the oven door to lock completely. When the self-clean cycle is completed:

1. HOT will appear in the display. The time of day, the

word DOOR, and the icon will remain in the display.

2. Once the oven has cooled for approximately 1 hour,

door OPn will appear, and the word DOOR and the lock icon will flash until the door unlocks. The door can be opened, and the display will show the time of day. WARNING! Use caution when opening the door after the self-cleaning cycle is completed. The oven may still be very hot. Stand to the side of the oven door when opening the door to allow hot air or steam to escape To stop a self cleaning cycle:

2. The oven door can only be opened after the oven has

cooled down for about 1 HOUR. door OPn will appear, and the word DOOR and the icon will flash until the door is unlocked. The oven door can then be opened, and the timer will revert back to the time of day.

3. The self clean and delay start keys control the delayed

self clean operation. The automatic timer will turn the oven on and off at the time you select in advance. To set the control for the self cleaning cycle to start at a delayed time and shut off automatically (example: 3 hour self clean cycle to start at 4:30):

1. Be sure the clock is set with the correct time of day and

the oven door is closed.

2. Press self clean. CLn and 3:00 HR will show in the

display. The control will automatically clean for a 3 hour period. If a 2 or 4 hour clean time is desired, press self clean multiple times to toggle between 2, 3, or 4 hours.

3. Press start. door Loc will appear, a beep will sound,

and the word DOOR and the lock icon will flash. The letters CLn will remain on in the display.

4. As soon as the control is set, the motor driven oven

door lock will begin to close automatically. Once the door has been locked, the word DOOR and the lock icon indicator light will quit flashing and remain on.

6. Press start. DELAY, DOOR, and the icons will

7. The control will start the self cleaning at the set start

time for the period of time previously selected. At that time, the icon DELAY will go out; CLn and oven icon will appear in the display. When the self clean cycle is completed:

1. HOT will appear in the display. The time of day, the

word DOOR, and the lock icon will remain in the display.

2. When oven cools approximately 1 HOUR, door OPn

will appear, and the word DOOR and the icon will flash until the door is unlocked. The oven door can then be opened, and the timer will revert back to the time of day.28 Cleaning Various Parts of Your Oven Before cleaning any part of the oven, be sure all controls are turned off and the oven is cool. Remove spills and any heavy soiling as soon as possible. Regular cleaning will reduce the number of major cleaning later. Surface Type Recommendation Aluminum and Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth. Painted and plastic control knobs Painted body parts Painted decorative trims Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of vinegar and water. Follow by rinsing the area with clean water; dry and polish with a soft cloth. Glass cleaners may be used if sprayed on a soft cloth first. Do not spray liquids directly on the oven control and display area. Do not use large amounts of water on the control panel - excess water on the control area may cause damage to the appliance. Do not use other liquid cleaners, abrasive cleaners, scouring pads, or paper towels - they will damage the finish. Control knobs To remove control knobs, turn to the OFF position; grasp firmly and pull straight off the shaft. To replace knobs after cleaning, line up the flat sides of both the knob and the shaft; then push the knob into place. Stainless Steel Smudge Proof™ Stainless Steel (some models) Your oven finish may be made with stainless steel (some models). Clean the stainless with warm soapy water using a clean sponge or cloth. Rinse with clean water and dry with a soft clean cloth. Do not use any store bought cleaners like stainless steel cleaners or any other types of cleaners containing any abrasive, chlorides, chlorine, or ammonia. It is recom- mended to use mild dish soap and water or a 50/50 solution of water and vinegar. Porcelain enamel broiler pan and insert (available by mail order) Door liner and body parts Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution of clear water and ammonia. If necessary, cover difficult spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and then scrub with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove all cleaners or the porcelain may become damaged during future heating. Oven racks Oven racks must be removed from oven cavity. Clean by using a mild, abrasive cleaner following manufacturer’s instructions. Rinse with clean water and dry. Oven door Use soap and water to thoroughly clean the top, sides, and front of the oven door. Rinse well. You may use a glass cleaner on the outside glass of the door. Do not immerse the door in water. Do not spray or allow water or the glass cleaner to enter the door vents. Do not use oven cleaners, cleaning powders, or any harsh abrasive cleaning materials on the outside of the oven door. Do not clean the oven door gasket on the oven cavity. On self-clean models, the oven door gasket is made of a woven material which is essential for a good seal. Care should be taken not to rub, damage, or remove this gasket. Surface burners and grates For detailed information regarding the cleaning of surface burners and grates see “Cleaning the cooktop and surface burners” on page 30.

1. Open oven door completely horizontal with floor (See

2. Pull the door hinge locks on both left and right door

hinges down from the oven frame completely towards the oven door (See Figure 22). A tool such as a small flat-blade screwdriver may be required.

3. Firmly grasp both sides of oven door along the door

sides. Do not use the oven door handle (See Figure 23).

4. Close the door to approximately 10 degrees from the

located on each side of the oven frame (See Figure 24). To replace oven door:

1. Firmly grasp both sides of oven door along the door

sides. Do not use the oven door handle (See Figure 23).

2. Holding the oven door at the same angle as the removal

position, seat the hook of the hinge arm over the roller pins located on each side of the oven door frame (See Figure 24). The hook of the hinge arms must be fully seated onto the roller pins.

3. Fully open the oven door, horizontal with floor See

4. Push the door hinge locks up towards and into the oven

frame on both left and right oven door hinges to the locked position (See Figure 22).

5. Close the oven door.

The door is heavy. For safe, temporary storage, lay the door flat with the inside of the door facing down. Special door care instructions - Most oven doors contain glass that can break. Do not close the oven door until all the oven racks are fully in place. Do not hit the glass with pots, pans, or any other object. Scratching, hitting, jarring, or stressing the glass may weaken its structure causing an increased risk of breakage at a later time. CAUTION IMPORTANT Figure 21: Door hinge location Figure 22: Door hinge locks Figure 23: Holding door for removal Figure 24: Replacement and location of hinge arm and roller pin Oven doorhingelocations

Cleaning the cooktop and surface burners To avoid possible burns turn off all of the surface burners and allow them to cool. Any additions, changes or conver- sions required in order for this appliance to satisfactorily meet the application needs must be made by an authorized qualified agency. Routinely clean the cooktop. Wipe with a clean, damp cloth and wipe dry to avoid scratches. Keeping the surface burner head ports and slots clean will prevent improper ignition and an uneven flame. To clean recessed and contoured areas of cooktop If a spill occurs on or in the recessed or contoured areas, blot up spill with an absorbent cloth. Rinse with a clean, damp cloth and wipe dry. To clean burner grates

• Clean when the grates are cool. Use nonabrasive plastic scrubbing pad and mild abrasive cleanser.

• Food soils containing acids may affect the finish. Clean immediately after the grates are cool. Thoroughly dry grates immediately following cleaning. To clean burner caps

• Remove caps from burner heads after they have cooled. Clean heavy soils with a plastic scrubbing pad and absorbent cloth. Thoroughly dry burner caps imme- diately following cleaning including the bottom and inside of cap.

• Do not use abrasive cleaners. Do not clean burner caps in the dishwasher. Do not operate surface burners without burner caps properly in place. To clean the surface burner heads For proper gas flow it may be necessary to clean the burner head and slots. First use a clean damp cloth to soak up any spills. Remove any food from between the burner slots using a small nonabrasive brush like a toothbrush and wipe up using a damp cloth. For stubborn soils located in the slots, use a small-gauge wire or needle to clean. The electrode must be carefully cleaned. Take care not to hit the electrode with any thing hard or it could be damaged. To clean the burner head ignition ports Each burner head has a small ignition port (Figure 25). Should you experience ignition problems it may be that this port hole is partially blocked with soil. With the burner head in place, use a small wire gauge needle or the end of paper clip to clear the ignition port. Replacing the oven light The interior oven lights are located at the rear of the oven cavity and are covered with a glass shield. To replace the oven interior light bulb:

1. Turn electrical power off at the main source or unplug

2. Remove interior oven light shield by turning a quarter

turn in upper oven, and by removing shield in lower oven as shown below.

3. Replace with a new T-4 type Halogen 40 watt appliance

bulb in lower cavity and a 25 watt incandescent bulb in the upper cavity.

4. Replace glass oven light shield.

5. Turn power back on again at the main source (or plug

the appliance back in).

6. Be sure to reset the time of day on the clock.

Figure 25: Gas burner head parts Be sure the oven is unplugged and all parts are cool before replacing oven light. Do not allow your fingers to touch the new halogen bulb when replacing. This will shorten the life of the bulb. Use a paper towel or cotton glove handling and installing. Figure 26: Upper oven light (L) and lower oven (R) ignition port slotsorice port CAUTION glassshield halogen light bulb light shield31

Oven Baking For best cooking results, heat the oven before baking cookies, breads, cakes, pies, pastries, etc. There is no need to preheat the oven for roasting meat or baking casseroles. The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance. Baking Problems and Solutions Baking Problems Causes Corrections Cookies and biscuits burn on the bottom.

• Cookies and biscuits put into oven before preheating time is completed.

• Oven rack is overcrowded.

• Dark pans absorbs heat too fast.

• Allow oven to preheat to desired temperature before placing food in oven.

• Choose pan sizes that will permit 2” to 4” of air space (5.1 cm o 10.2 cm) on all sides when placed in the oven.

• Use a medium weight baking sheet. Cakes too dark on top or bottom

• Cakes put in oven before preheating time is completed.

• Rack position too high or too low, and oven too hot.

• Allow oven to preheat to the selected temperature before placing food in the oven.

• Use proper rack position for baking needs.

• Set oven temperature 25°F (13°C) lower than recom- mended. Cakes not done in center • Oven too hot.

• Pan not centered in oven.

• Glass cookware slow heat conductor.

• Set oven temperature 25°F (13°C) lower than recom- mended.

• Use pan size suggested in recipe.

• Use proper rack position and place pan so there are 2” to 4” (5.1 cm to 10.2 cm) of space on all sides of pan.

• Reduce temperature and increase cook time or use shiny bakeware. Cakes not level. • Oven not level.

• Pan too close to oven wall or rack overcrowded or pan warped.

• Oven light left on while baking.

• Place a marked glass measuring cup filled with water on the center of the oven rack. If the water level is uneven, refer to the installation instructions for leveling the oven.

• Use proper rack position and place pan so there are 2” to 4” (5.1 cm to 10.2 cm) of space on all sides of pan.

• Do not use pans that are dented or warped.

• Turn off oven light while baking. Foods not done when cooking time is over.

• Oven door opened too frequently.

• Set oven temperature 25°F (13°C) higher than suggested and bake for the recommended time.

Be sure to remove all pans from the oven except the ones to be used for baking.

• Open oven door only after shortest recommended baking time.

Solutions to Common Problems: Before you call for service, review the following list. It may save you time and expense. Possible solutions are provided with the problem listed: Problem Solution Poor baking results. Many factors effect baking results. Use proper oven rack position. Center food in the oven and space pans to allow air to circulate. Preheat oven to the set temperature before placing food in the oven. Try adjusting the recipe's recommended temperature or baking time. See “Adjusting Oven Temperature (UPO)” on page 25 if you feel the oven is too hot or cold. Oven light does not work. Be sure the oven light is secure in the socket. See “Replacing the oven light” on page 30. Flames inside oven or smoking from oven vent. Excessive spills in oven. Grease or food spilled onto oven bottom or oven cavity. Wipe up excessive spills before starting oven. If flames or excessive smoke are present when using broil, see “Setting Broil (upper oven only)” on page 20. Self clean does not work. Oven control not set properly. See “Setting Warm (Keep Warm)” on page 23. Oven racks discolored or do not slide easily. Oven racks left in oven cavity during self clean. Remove oven racks from oven cavity before starting a self-clean cycle. Clean by using a mild abrasive cleaner following manufacturer's instructions. Rinse with clean water, dry, and replace in oven. Oven smokes excessively when broiling. Incorrect setting. Follow the “Convection Cooking (lower oven only)” instructions on page 16. Meat too close to the broil element. Reposition broil rack to provide proper clearance between the meat and broil element. Remove excess fat from meat. Cut remaining fatty edges to prevent curling, but do not cut into lean. Grease build up on oven surfaces. Regular cleaning is necessary when broiling frequently. Grease or food splatters will cause excessive smoking. Oven control panel beeps and displays any F or E code error. Oven control has detected a fault or error condition. Press the off key to clear the error code. Try bake or broil function. If the F or E code error repeats, turn off the power to appliance, wait 5 minutes, and then repower appliance. Set clock with correct time of day. Try bake or broil function again. If fault recurs, press the off key to clear. Surface burner uneven or not flaming all the way around the burner cap. Mineral deposits from water and food can clog burner. Carefully clean burner slots as directed in Care and Cleaning section. Soil not completely removed after self clean. Self clean was interrupted. Review instructions on “Setting Warm (Keep Warm)” on page 23. Excessive spills on oven bottom. Clean before starting self clean. Failure to clean soil from the oven frame, the door liner outside the oven door gasket, and the small area at the front center of the oven bottom. These areas are not in the self- cleaning area, but get hot enough to burn on residue. Clean these areas before starting the self-cleaning cycle. Burned-on residue can be cleaned with a stiff nylon brush and water or a nylon scrubber. Be careful not to damage the oven gasket. Convection fan does not rotate. Convection fan will turn off if oven door is opened when convection is active. Close oven door. Convection fan starts after 6 minutes of preheating in convection mode.33

Surface burners do not ignite. Be sure range is properly plugged in and ignitor sparks when knob is turned to the LITE position. Surface burner flame is too high or surface burner flame is orange. Gas pressure may be too high. If using LP make sure the range has been converted for the use of LP Gas. Appliance is not level. Be sure floor is level, strong, and stable enough to adequately support range.If floor is sagging or sloping, contact a carpenter to correct the situation. Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust leveling legs at base of appliance until the rack is level. Kitchen cabinet alignment may make range appear not level. Be sure cabinets are square and have sufficient room for appliance clearance. Cannot move appliance easily. Appliance must be accessible for service. Cabinets not square or are built in too tightly. Contact builder or installer to make appliance accessible. Carpet interferes with appliance. Provide sufficient space so appliance can be lifted over carpet. Oven does not operate. Make sure power cord is plugged properly into outlet. Electrical power outage. Check house lights to be sure. Call your local electric company for service outage informa- tion.Service wiring is not complete. (See warranty on back cover). Make sure clock is set properly.34 WARRANTY Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions. Exclusions This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or

3. Rust on the interior or exterior of the unit.

4. Products purchased “as-is” are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances

not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,

etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs,

handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip

charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,

cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than

genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God. CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below. DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice. If You Need Service Canada

planchers, aux placards, aux murs, etc.

Electrolux Home Products, Inc. 10200 David Taylor Drive Charlotte, NC 28262 GARANTIE
