CLS0301W - Grooming set Carmen - Free user manual and instructions

Product type	Grooming set
Brand	Carmen
Model	CLS0301W
Power supply	1 AA battery (not included)
Recommended runtime	30 minutes maximum continuous use
Cooling time	30 minutes minimum between uses
Razor head	Yes, removable
Eyebrow trimmer	Yes, with 17 mm and 6 mm blades
Precision trimmer	Yes, with adjustable comb (3 mm)
Cutting combs	3 mm and 6 mm for eyebrows and precision
Cleaning brush	Included
Protective caps	For each accessory
Usage	For human hair only (face, eyebrows, body)
Cleaning	Brush and rinse accessories with water (except the device)
Safety	Do not immerse, keep out of reach of children under 8 years
Material	Plastic, stainless steel blades
Dimensions (approx.)	Height 15 cm, Width 3 cm, Depth 3 cm
Weight (approx.)	120 g
Warranty	24 months
Spare parts	Available at www.carmen.nl/support
Country of origin	Netherlands

Frequently Asked Questions - CLS0301W Carmen

How to change the battery of the device?

To change the battery, rotate the lower part of the device to open it, remove the old battery and insert a new AA battery respecting the indicated polarity. Replace the lower part and rotate it to the closed position.

How to use the eyebrow trimmer?

Place the eyebrow trimmer on the device, remove the protective cap. To trim, attach the snap-on comb (3 or 6 mm) onto the trimmer. Turn on the device and move it against the grain on the eyebrow. For precision work, use the blade without the comb.

Can I use the device in the shower?

No, never immerse the device in water. Only the accessories can be rinsed under running water. The device itself must be cleaned with a soft cloth.

How to clean the device after use?

Turn off the device and remove the battery. Detach the accessories and brush them with the included cleaning brush. You can rinse the accessories under running water, but not the device. Let them dry before reassembling.

What is the maximum continuous runtime?

The device can be used for a maximum of 30 minutes consecutively. After that, let it cool down for at least 30 minutes before using again.

What to do if the device no longer works properly?

First check the battery. If the problem persists, do not repair the device yourself. Contact Carmen customer service at [e-mail]. Only use original spare parts.

Where to buy accessories or spare parts?

You can order accessories and spare parts on the website www.carmen.nl/support.

Is the warranty valid internationally?

The 24-month warranty is valid when the product is used according to the instructions and the original proof of purchase is provided. For detailed conditions, see www.carmen.nl/support.

How to shave with the razor head?

Place the razor head on the device, remove the protective cap. Turn on the device and gently move the head against the grain on the skin. Stretch the skin with your free hand if necessary. Turn off after use and replace the cap.

Can I use the device on the beard?

Yes, the device is designed to trim and shave human hair, including the beard. Use the precision trimmer with a comb for uniform cutting, or the razor head for a close shave.

USER MANUAL CLS0301W Carmen

Abstract wavy line pattern with no text or symbols

Three women's CARMEN hairbrushes with different designs, shown from different angles (no text or symbols visible on the products themselves)

CARMEN

CLS0301W

7-IN-1 TRIMMER

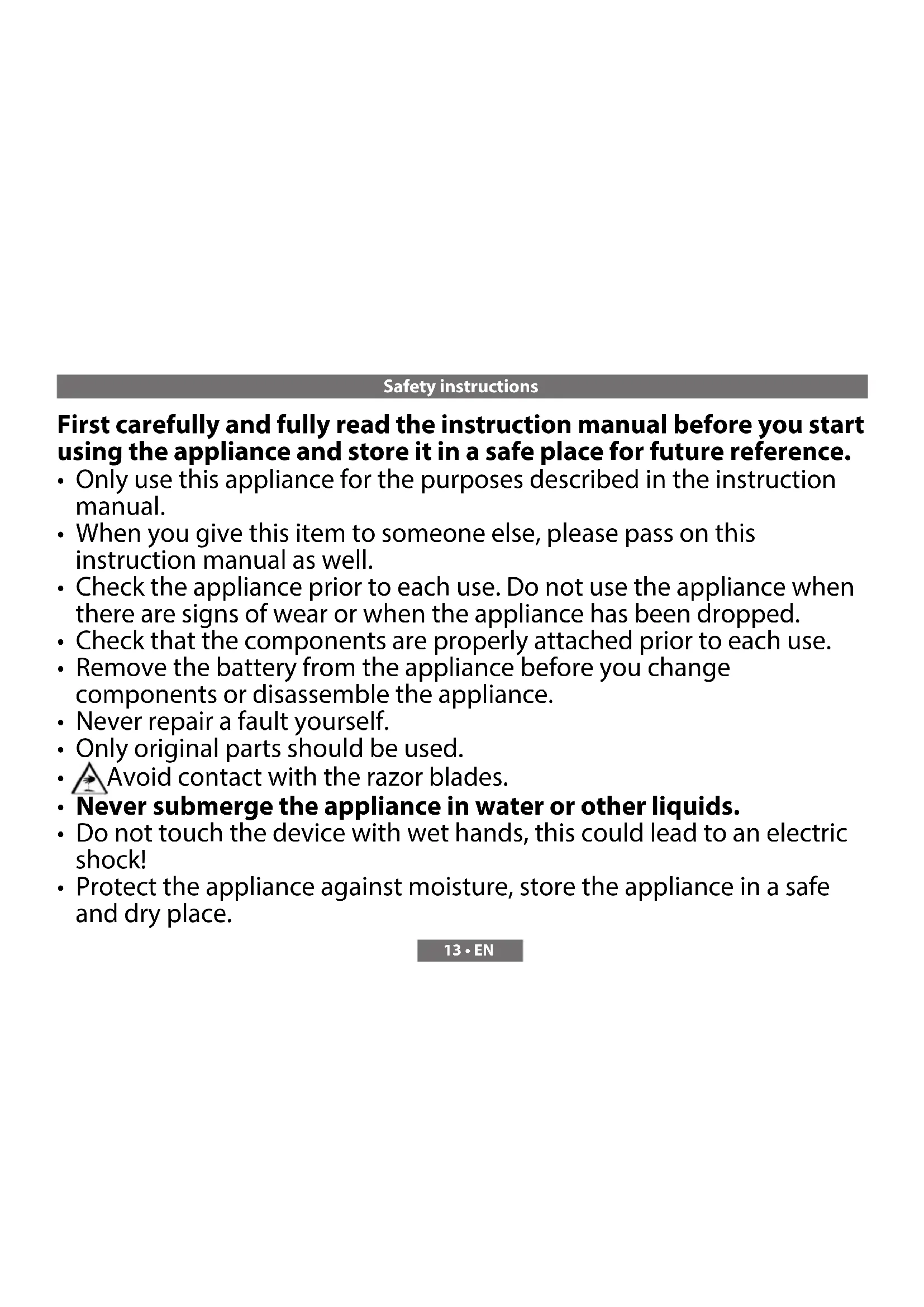

First carefully and fully read the instruction manual before you start using the appliance and store it in a safe place for future reference.

• Only use this appliance for the purposes described in the instruction manual.
• When you give this item to someone else, please pass on this instruction manual as well.
• Check the appliance prior to each use. Do not use the appliance when there are signs of wear or when the appliance has been dropped.
• Check that the components are properly attached prior to each use.
• Remove the battery from the appliance before you change components or disassemble the appliance.
• Never repair a fault yourself.
• Only original parts should be used.
• Avoid contact with the razor blades.
• Never submerge the appliance in water or other liquids.
• Do not touch the device with wet hands, this could lead to an electric shock!

• Protect the appliance against moisture, store the appliance in a safe and dry place.

• The appliance may become hot during use, use the appliance for a maximum period of 30 minutes at one time and allow it to cool down for at least 30 minutes afterwards.

• Do not leave the appliance unsupervised if the appliance is operational.
• Do not place the appliance on top of anything while it is operational.
• Never place the appliance near heat sources such as ovens, hotplates, open fire, etc.
• If the appliance is not being used, switch it off completely.
• Keep the appliance out of reach of children. Children do not see the dangers associated with handling appliances. Therefore, never allow children to operate appliances without supervision. Keep the appliance out of reach of children younger than 8 years of age.

• The appliance can be used by children of 8 years and older and by persons with limited physical, sensory or mental capacities or lack of experience or knowledge, provided they use the appliance under supervision or have been instructed about its safe use and understand the hazards it may involve.
  • Children must not play with the appliance.

• The appliance must not be cleaned or maintained by children, unless this is done under supervision.

• Extra attention is required when the appliance is used near ears, eyes and face.
• This appliance is exclusively intended for trimming and shaving human hair.
• Leaking batteries could damage your appliance. If you do not want to use the appliance for a longer period of time, you must remove the battery.
• When a battery has leaked, you should use gloves to remove the battery. Clean the battery compartment with a dry cloth. Dispose of the batteries by bringing them to the waste processing department concerned of your municipality.
• Hazard of explosion! Do not throw the batteries into fire.
• If the appliance is not used as intended, no compensation can be claimed in case of defects or accidents and the warranty will be invalidated.
• If you have any questions about using our appliances, please contact our customer service.

- If due to a defect, you decide to stop using the appliance, please take the appliance to the waste processing department concerned of your municipality. Small household appliances do not belong in the dustbin.

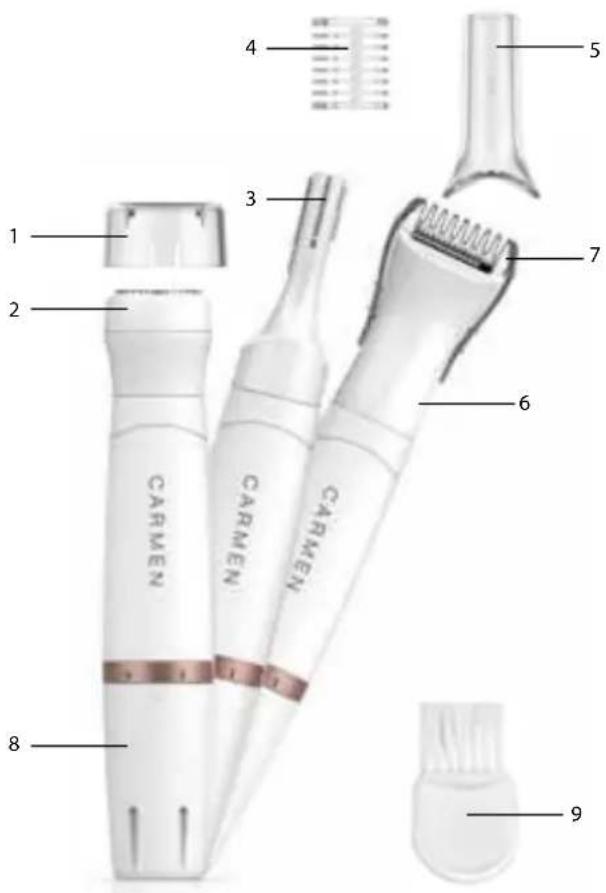

Product description

1. Protective cover razor head
2. Razor head
3. Eyebrow trimmer
4. Attachable comb (3 mm & 6 mm)
5. Protective cover eyebrow trimmer
6. Precision trimmer
7. Attachable comb (3 mm)
8. Underside of appliance
9. Cleaning brush

1 2 3 4 5 6 7 8 9 CARMEN CARMEN

Prior to first use

Before using the appliance for the first time, proceed as follows: Carefully unpack the appliance and remove all packaging material. Keep the packaging (plastic bags and cardboard) out of reach of children. After unpacking the appliance, carefully check it for external damage that may have occurred during transport.

Placing the battery

1. Turn the underside of the appliance to position:

The underside comes loose and can now be removed.
2. Place the battery in the appliance, as indicated on the battery holder.
3. Slide the underside of the appliance back over the battery and turn it in order to close it: ▼ 0 1

The battery needs replacement when the trimmer starts making less noise during use.

Extra instructions for use

Important!:

• Always look in a mirror when using the appliance for your face.
- Always place back the protective covers on the accessories when you are not using them.
- During use, do not press the appliance too hard against the skin, this could lead to irritation of the skin and damage to the appliance.
- After shaving your skin could be sensitive, we recommend trying any moisturiser on a small area first to test whether the skin will become irritated.
- Make sure the appliance does not come into contact with clothes or other objects, as this could lead to injury and affect the efficient operation of the appliance.

Changing accessories

1. Always first check that the appliance has been switched off and that the battery has been removed from the appliance.
2. Disconnect the accessory from the appliance by turning it to position: -
3. Place the required accessory on the appliance, making sure the triangles are pointing to each other:
4. Fasten the accessory by turning it to position:
5. Place the battery back in the appliance, as indicated in section Placing the battery.

Switching on/off

Before switching on the appliance, check that the accessory is placed correctly on the appliance and remove any protective cover from the accessory.

In order to switch on the appliance, turn the underside of the appliance to position:

In order to switch off the appliance, turn the underside of the appliance to position:

After switching off the appliance, place the protective cover back on the accessory.

Using the razor head

1. Place the razor head on the appliance, as indicated in section Changing accessories.
2. Remove the protective cover from the razor head and switch on the appliance.
3. Carefully move the razor head over the skin, in the opposite direction to the hair growth.
4. If necessary, use your free hand to pull the skin taut and move the razor head in vertical direction over the area to be shaved.
5. Switch off the appliance once you are finished shaving and place the protective cover back on the razor head.

Using the eyebrow trimmer

The eyebrow trimmer has a razor blade on 2 sides, a 17 mm long blade for trimming body hair and a 6 mm short blade that is ideal for precision trimming. The provided attachable comb also has 2 sides, the longer teeth for trimming at a length of 6 mm and the shorter teeth for a length of 3 mm. The trim length is indicated on the top side of the comb. Select the required options on the basis of the area to be trimmed and the required result.

For trimming eyebrows, proceed as follows:

1. Place the eyebrow trimmer on the appliance, as indicated in section Changing accessories.
2. Remove the protective cover from the eyebrow trimmer and place the attachable comb on the eyebrow trimmer.

1. Switch on the appliance.
2. Carefully move the eyebrow trimmer with comb over the eyebrow, in the opposite direction to the hair growth.
3. Switch off the appliance once you are finished shaving, remove the comb and place the protective cover back on the eyebrow trimmer.

For refining the shape of the eyebrows, proceed as follows:

1. Place the eyebrow trimmer on the appliance, as indicated in section Changing accessories.
2. Remove the protective cover from the eyebrow trimmer and switch on the appliance.
3. Carefully move the eyebrow trimmer with the required razor blade along the outer edge of the eyebrow. Move both in the direction of the hair growth and in the opposite direction to the hair growth. This allows you to shave the eyebrow in the correct shape with precision.
4. Switch off the appliance once you are finished shaving and place the protective cover back on the eyebrow trimmer.

Using the precision trimmer

1. Place the precision trimmer on the appliance, as indicated in section Changing accessories.
2. In order to shave off hair without completely removing it, attach the attachable comb to the precision trimmer. This is done by first placing the top side of the precision trimmer in the comb and then snapping the comb on the trimmer.

1. Switch on the appliance.
2. Carefully and evenly move the razor head over the skin, in the opposite direction to the hair growth.
3. Switch off the appliance once you are finished shaving and place the comb on the razor head, it also serves as protective cover.

Cleaning and maintenance

Clean the appliance after each use. This is not only beneficial for the life span of the appliance, it also ensures a better function of the appliance.

Cleaning should involve the following:

• Check that the appliance has been switched off and that the battery has been removed from the appliance.
• Remove the accessories from the appliance, leave the underside of the appliance connected.
• Brush clean the accessories and the appliance with the supplied cleaning brush.

Note that you can loosen the top side of the razor head by turning it to position . In this way you can also clean the interior of the razor head. When placing back the top side, make sure the triangles are pointing to each other and then fasten the top side by turning it to position .

• Clean the separate accessories (not the appliance itself) under running water.
• Clean the exterior of the appliance by wiping it clean with a soft cloth.
• Allow all accessories to dry properly before they are attached to the appliance again.

Attention:

• Never use abrasives, alcohol, solvents or other cleaning agents when cleaning.
• Never submerge the appliance in water or other liquids.

Storage

When the appliance is not being used for a longer period of time, switch off the appliance and remove the battery to prevent it from leaking. Then clean the appliance as indicated in section Cleaning and maintenance. Place the protective covers on the accessories and store the appliance in a dry and safe place, out of reach from children.

Ordering Accessories - EN

Go to www.carmen.nl/support to purchase accessories or spare parts.

Warranty conditions - EN

A 24 month warranty is provided for this product. Your warranty is valid if the product has been used in accordance with the user instructions and for the purpose for which it was made. Also the original proof of purchase must be submitted, stating the date of purchase, the name of the retailer and the item number of the product. For extensive warranty information you are referred to our website: www.carmen.nl/support

Download the most recent

manual from www.carmen.nl

CLS0301W/01.0421 Wijzigingen en drukfouten voorbehouden/ Änderungen und Druckfehler vorbehalten/ Sous réserve de modification / Modifications and printing errors reserved

CLS0301W/01.0421
