Brand	Carmen
Model	NT1550
Product name	Carmen Exact Combi trim
Product type	Nose, ear, and eyebrow trimmer
Power source	1 AA 1.5 V battery (included)
Voltage	1.5 V
Combs included	2 combs (3 mm and 6 mm)
Integrated light	Yes
Washable	Yes (cutting head)
Usage	Household use only
Warranty	2 years
Batteries	Use only new batteries; remove used batteries
Cleaning	Rinse the cutting head under warm water; use the cleaning brush
Safety	Do not immerse the body; do not use on eyelashes; do not insert more than 0.5 cm into the nose or ear
Instructions	Read before use; keep the instructions
Disposal	Device and batteries: separate recycling
Operation	Rotary dial (battery compartment cover)
Handle	Comfortable with unique shaving corner
Protective cover	Included
Cleaning brush	Included

Frequently Asked Questions - NT1550 Carmen

How to turn on the Carmen NT1550 trimmer?

Turn the battery compartment cover until the mark aligns with the on indicator on the device.

How to use the integrated light?

Turn the battery compartment cover until the mark aligns with the lamp symbol. To turn off only the light, set back to on; to turn off both the light and the device, set to off.

How to trim eyebrows correctly?

Attach the comb attachment (3 or 6 mm) to the cutting head. Move the comb over the eyebrow from the outside inward (toward the nose). Never use the trimmer on eyelashes.

What is the maximum depth for the nose and ears?

Do not insert the cutting head more than 0.5 cm into the nostril or ear to avoid internal damage.

How to clean the trimmer?

Use the cleaning brush to remove hair, or rinse the cutting head under warm water (device on). Never immerse the body of the device.

Can I use the device in the shower?

No, the body of the device must not be immersed. Only the cutting head is washable under running water. The device is suitable for use on dry or damp skin, but not in the bath or shower.

What to do if the device stops working?

Check the battery: replace it if empty. If the problem persists, contact an approved repairer. Do not use if the device has been dropped or damaged.

How to replace the battery?

Turn the battery compartment cover until the mark aligns with the arrows ◆, remove the cover, insert an AA 1.5 V battery observing polarity, then close.

Is the device under warranty?

Yes, the warranty is 2 years against manufacturing defects and material faults, except for normal wear and tear and damage due to incorrect use.

Can I use the trimmer on eyelashes?

No, never use the cutting head on eyelashes. It could cause injury.

User questions about NT1550 Carmen

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Grooming set in PDF format for free! Find your manual NT1550 - Carmen and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. NT1550 by Carmen.

USER MANUAL NT1550 Carmen

Carmen Exact Combi trim

Gebruiksaanwijzing

Mode d'emploi

Gebrauchsanweisung

Manual

Carmen NT1550 - 1


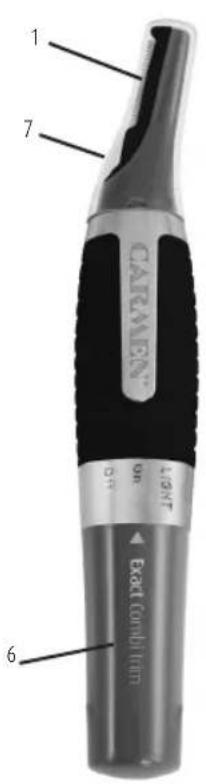

1 7 CARMEN® 1.5/NT 6th D" Exact combi tum 6

Carmen NT1550 - 2


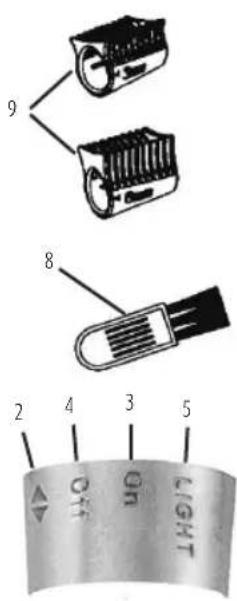

9 8 2 4 3 5 Off On LIGHT

Scheerkop voor neushaar, wenkbrauwen en oorhaar/ Tondeuse poils nez/oreilles et sourcils/ Schneidkopf für Augenbrauen, Haare in Nase und Ohren/ Cutting head for nasal hair, eyebrows and ear hair
Batterijhouder openen/ Ouverture du compartiment à piles/ Öffnung des Batteriedeckels/ Opening of the battery cover
Trimmer inschakelen/ Bouton ON/ EINSCHALTEN/ Switch ON
Trimmer uitschakelen/ Bouton OFF/ AUSSCHALTEN/ Switch OFF
Lampschakelaar/ Interrupteur lampe/ Lampenschalter/Lamp Switch
Batterijhouder/ Couvercle compartiment à piles/Batteriedeckel/Battery cover
Beschermkap/ Capuchon/ Schutzkappe/ Protection cap
Schoonmaakborsteltje/ Pinceau/ Reinigungsbürste/ Cleaning brush
Kammen (3 mm & 6 mm)/ Embouts peigne (3 mm et 6 mm)/ Distanzkämme (3 mm und 6 mm)/ Distance combs (3 mm and 6 mm)

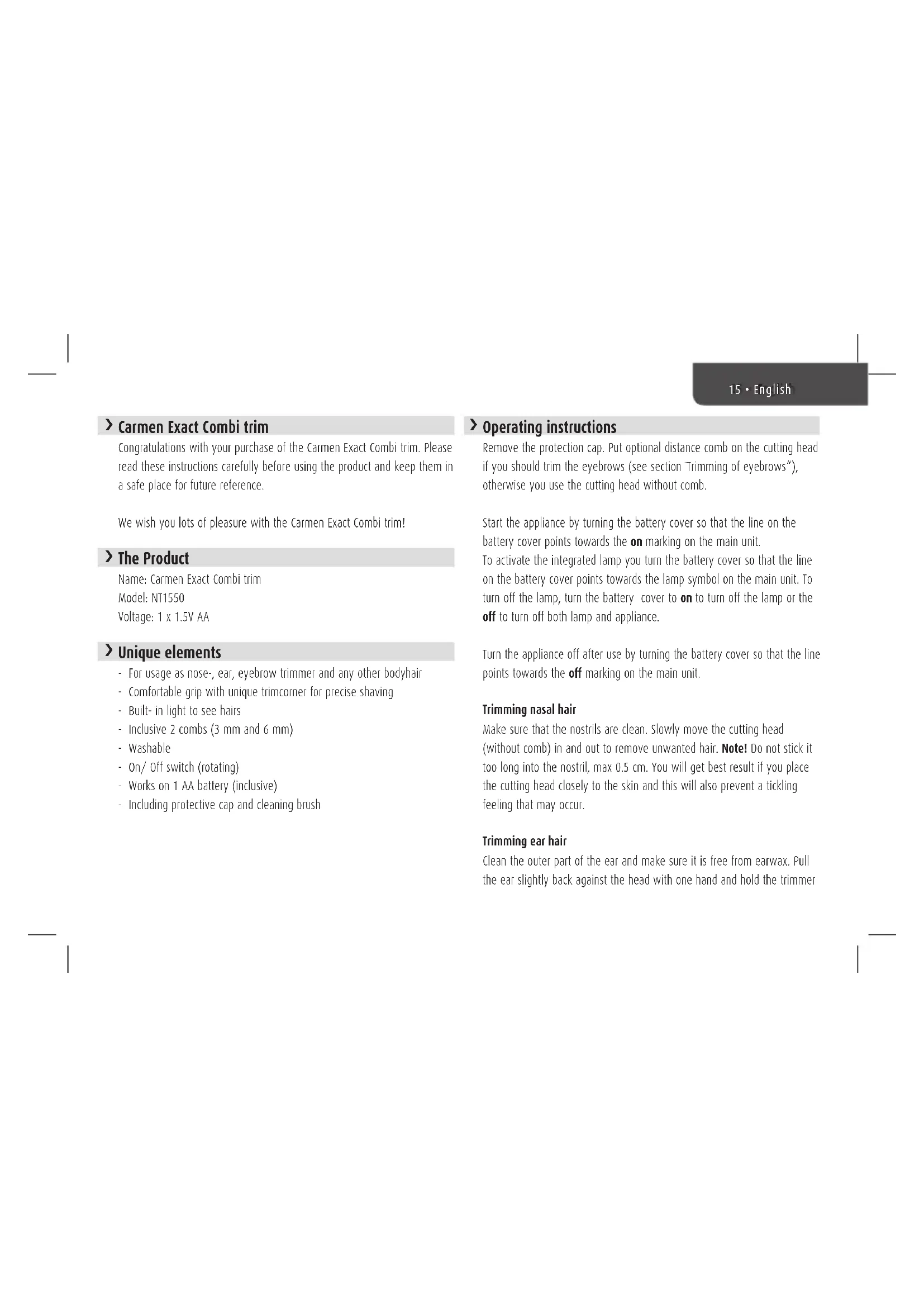

> Carmen Exact Combi trim

Congratulations with your purchase of the Carmen Exact Combi trim. Please read these instructions carefully before using the product and keep them in a safe place for future reference.

We wish you lots of pleasure with the Carmen Exact Combi trim!

> The Product

Name: Carmen Exact Combi trim

Model: NT1550

Voltage: 1 x 1.5V AA

> Unique elements

For usage as nose-, ear, eyebrow trimmer and any other bodyhair
Comfortable grip with unique trimcorner for precise shaving
Built-in light to see hairs
Inclusive 2 combs (3 mm and 6 mm)
Washable
On/ Off switch (rotating)
Works on 1 AA battery (inclusive)
Including protective cap and cleaning brush

> Operating instructions

Remove the protection cap. Put optional distance comb on the cutting head if you should trim the eyebrows (see section "Trimming of eyebrows"), otherwise you use the cutting head without comb.

Start the appliance by turning the battery cover so that the line on the battery cover points towards the on marking on the main unit.

To activate the integrated lamp you turn the battery cover so that the line on the battery cover points towards the lamp symbol on the main unit. To turn off the lamp, turn the battery cover to on to turn off the lamp or the off to turn off both lamp and appliance.

Turn the appliance off after use by turning the battery cover so that the line points towards the off marking on the main unit.

Trimming nasal hair

Make sure that the nostrils are clean. Slowly move the cutting head (without comb) in and out to remove unwanted hair. Note! Do not stick it too long into the nostril, max 0.5 cm. You will get best result if you place the cutting head closely to the skin and this will also prevent a tickling feeling that may occur.

Trimming ear hair

Clean the outer part of the ear and make sure it is free from earwax. Pull the ear slightly back against the head with one hand and hold the trimmer

16 · English

with the other. Start the trimmer and move the cutting head around the outer part of the ear to remove visible hair. Move the cutting head carefully into the ear (max 0.5 cm to avoid damaging the inner ear).

Trimming of eyebrows

Put on optional distance comb on the cutting head. Make sure that the comb fits the slides on the cutting head. It is recommended to start with the longest comb (6 mm) and change to the shorter (3 mm) if needed. Start the appliance by turning the battery cover so that the line on the battery cover points towards the inner, i.e. the nose. Note: never use the trimmer to the eyelashes.

Turn the appliance off after use by turning the battery cover so that the line points towards the off marking on the main unit. Remove the comb by pulling it upwards.

Battery change

Turn the battery cover until the line on the battery cover points to the arrows ◆ on the main unit. Pull the battery cover to remove it Place 1 AA 1,5V battery according to the directions in the battery compartment

Put the cover back and turn until the line on the battery cover points towards the off marking on the main unit

Change batteries when the appliance works slowly to avoid bad result

> Cleaning and maintenance

Use the enclosed brush to remove hair and/or rinse the cutting head under running warm water. The appliance should be turned on when rinsing it. Always remove the comb (if used) and wash it separately. Note: Do not immerse the complete appliance in water.

Wipe dry with a towel before you put on the protection cap.

> For your safety

Read the instruction carefully before use, and save it for future use
Rinse the cutting head under running water. The main unit must not be immersed into water or other liquids. Should it get wet, it must be wiped off immediately, as liquids contain minerals which may result in rust in the electroni parts or which may totally destroy the electronic parts
If the appliance gets dirty, the dirt can be wiped off with a slightly humid cloth, and then wiped with a dry cloth
• Never use the cutting head to the eyelashes
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety
Children should be supervised to ensure that they do not play with the appliance. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances
The appliance must not be used if it has been dropped on the floor, or if it is clear that the appliance is damaged
Use only new batteries of the correct size. Used batteries should always be removed, as they may leak chemicals which may damage the circuitry oft he appliance
• The appliance is for domestic use only
If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty

> Environment and disposal

Carmen NT1550 - > Environment and disposal - 1

When disposing of batteries it is essential to take the environment into consideration. Used batteries must never be disposed of with domestic garbage. Used batteries must be returned to one oft he authorized collection points. Batteries must be removed from

the appliance before it is disposed of. Also take care that the batteries are not expired or become worn-out since there may then be a risk that the batteries will leak acid. Check the vadility date printed on the batteries.

Disposal of the appliance

Carmen NT1550 - Disposal of the appliance - 1

Legislation requires that all electrical and electronic equipment must be collected for re-use and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

> Guarantee

The guarantee covers this product for a period of 2 years, with the exception of individual parts, beginning on the date of original purchase. Use of the guarantee does not result in extension of the guarantee period. The guarantee covers manufacturing faults and material faults in original parts.

This guarantee does not include normal wear and tear and damage to the product by accident or misuse, abuse, alteration to the product or use inconsistent with the technical and/or safety instructions required.

If your product requires repair, you should contact an authorized service dealer.

Never dispose of your appliance with the regular household waste. Follow the waste disposal regulations for our locality or return your appliance to the retailer. Retain the retailer's receipt as proof of purchase.

Carmen has a policy of continuous improvement in product quality and design. Carmen therefore reserves the right to change the specifications of its products at any time.

|
—
|
|
—
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]

一

[Non-Text]

一

[Non-Text]

CARMEN®

Carmen Exact Combi trim

NT1550

Glen Dimplex BV

Tel: +31 (0)513 78 98 40

Fax: +31 (0)513 78 98 41

Service: +31 (0)513 78 98 58

info@glendimplex.nl

www.carmen.nl

Tel: +32 (0)9210 02 17

Fax: +31 (0)9210 0218

info@glendimplex.be

www.carmen-personalcare.be
