| Product type | Wireless gaming mouse |
| Model | Prime Mini Wireless |
| Brand | SteelSeries |
| Sensor | TrueMove Air |
| Connectivity | Wireless 2.4 GHz, USB-C wired |
| Buttons | 5 programmable buttons (left/right click, scroll wheel, 2 side buttons), CPI button |
| Scroll wheel | Yes, with RGB light indicator |
| CPI levels | 5 levels: 400 (purple), 800 (blue), 1200 (green), 2400 (yellow), 3200 (red) |
| Polling rate | 4 levels: 125 Hz (blue), 250 Hz (green), 500 Hz (yellow), 1000 Hz (red) |
| Power | Built-in rechargeable battery, level indicator: green (11-100%), yellow (6-10%), red (0-5%) |
| Battery life | Not specified, but rechargeable via USB |
| Compatibility | PC, Mac, Xbox |
| Software | SteelSeries Engine (download at steelseries.com) |
| Box contents | Mouse, USB-C to USB-A cable (2.08 m), USB-C dongle, extension adapter, information guide |
| Feet | Virgin Grade PTFE |
| Factory reset | Simultaneous press of CPI button + left click + right click for 5 seconds |
| Maintenance | Clean with a soft, dry cloth. Avoid moisture and liquids. |
| Safety | Do not expose to water, fire, or shocks. Respect battery polarity. |
| Spare parts | Available at steelseries.com/gaming-accessories |
Frequently Asked Questions - Prime Mini Wireless STEELSERIES
User questions about Prime Mini Wireless STEELSERIES
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Mouse in PDF format for free! Find your manual Prime Mini Wireless - STEELSERIES and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Prime Mini Wireless by STEELSERIES.
USER MANUAL Prime Mini Wireless STEELSERIES
Welcome 2
SteelSeries Engine 3
Product Overview 5-6
Setup 7
Connecting via 2.4 GHz Wireless
Connecting via Cable
CPI Button Functions 8
Battery Level Indicator 9
Translations
Español 10
简体中文 11
繁體中文 13
日本語 14
한국어 16
Deutsch 17
Русский 19
Français 21
Italiano 23
Português 25
Polskie 26
Regulatory 29
PRIMED FOR VICTORY
Your new mouse is the result of our unyielding pursuit of perfection for over 20 years. We poured our hearts into creating the best possible gaming mouse by pushing the boundaries of performance through precision, comfort, and durability.
The Prime Mini Wireless is our glory; now go chase yours.
STEELSERIES ENGINE
PACKAGE CONTENTS
Prime Mini Wireless Mouse
USB Type-C to USB Type-A Cable (6'10" / 2.08 m)
Extension Adapter
USB Type-C Dongle
Product Information Guide
SYSTEM REQUIREMENTS / COMPATIBILITY
PC
Mac
Xbox
STEELSERIES ENGINE SOFTWARE REQUIREMENTS
Platforms
Windows 7+
Mac OS X 10.13+
160 MB of free hard drive space for installation
PRODUCT OVERVIEW
2 Scroll Wheel
3 Side Buttons
4 USB Type-C to USB Type-A Super Mesh Data/Charging Cable
5 USB Type-C Wireless Dongle
6 Extension Adapter


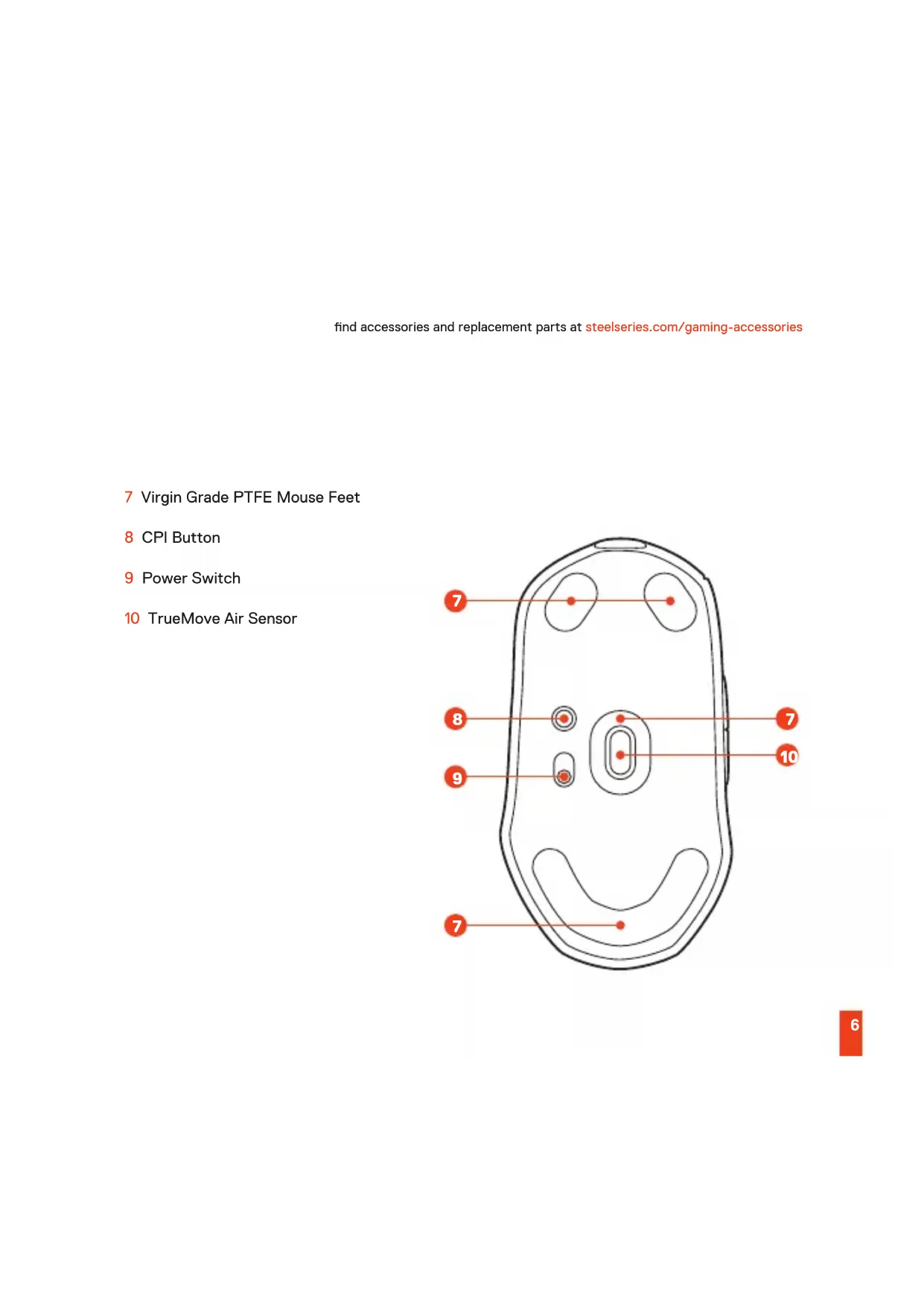

7 Virgin Grade PTFE Mouse Feet
8 CPI Button
9 Power Switch
10 TrueMove Air Sensor
find help at support.steelseries.com
CONNECTING VIA 2.4GHZ WIRELESS
VIA CABLE
CPI BUTTON FUNCTIONS
CPI VALUE
Quick press the CPI Button 8 to change the CPI level. A solid color will appear on the Scroll Wheel 2 for three seconds to signify the CPI level.
Level 1 400 CPI Purple
Level 2 800 CPI Blue
Level 3 1200 CPI Green
Level 4 2400 CPI Yellow
Level 5 3200 CPI Red
POLLING RATE
Long press the CPI Button ^8 to change the polling rate once. A flashing color will appear on the Scroll Wheel ^2 for three seconds to signify the polling rate level. Long press again to cycle through polling rates.
Level 1 1000 Hz Red
Level 2 500 Hz Yellow
Level 3 250 Hz Green
Level 4 125 Hz Blue
FACTORY RESET
Press and hold the CPI Button ^8 and both Mouse Buttons ^1 together for five seconds.
The Scroll Wheel 2 will flash pink three times before all settings will be reset to the factory settings.
BATTERY LEVEL INDICATOR
During use, the mouse will flash red when 5 % or less battery remains.
When turning on or waking from sleep, the mouse will flash a color to indicate remaining battery level:
Red 0–5% battery
Yellow 6–10% battery
Green 11–100% battery
When charging, the lighting will flash green for 5 seconds before resuming default lighting.
ESPAÑOL
CONTENIDO DE LA CAJA
Ratón Prime Mini Wireless
Cable USB tipo C a USB tipo A (6'10" / 2,08 m)
7 Virgin Grade PTFE 鼠脚
8 CPI 按键
9 电源开关
10 TrueMove Air 传感器
* 如需配件和更换部件，请访问steelseries.com/gaming-accessories
设置
连接 VIA 2.4 GHZ 无线
要进一步定制鼠标或为无线适配器重新配对5，请从steelseries.com/engine下载SteelSeries Engine软件
通过连接线连接
更多详细的产品信息，请访问steelseries.com/prime-wireless
CPI 按键功能
CPI 值
覽：steelseries.com/gaming-accessories
設定
透過 2.4 GHZ 無線連接
如要進一步自訂滑鼠或重新配對無線接收器 ^5 ，請從steelseries.com/engine下載SteelSeries Engine軟體
透過連接線連接
如需更詳細的產品資訊，請瀏覽steelseries.com/prime-wireless
CPI 按鍵功能
CPI 值
USB-C to USB-A 케이블 (6'10"/2.08m)
연장 어댑터
USB-C 동글
제품 정보 가이드
시스템 요구 사항/호환성
PC/Mac/Xbox
Prime Mini Wireless Maus
Souris Prime Mini Wireless
Prime Mini Wireless Mouse
Rato Prime Mini Wireless
Mysz Prime Mini Wireless
steelseries.com/prime-wireless
FUNKCJE PRZYCISKU CPI
WARTOŚĆ CPI
Europe – EU Declaration of Conformity
Hereby, SteelSeries ApS. declares that the equipment which is compliance with directive RoHS 2.0 (2015/863/EU), R.E.D (2014/53/EU), EMC Directive (2014/30/EU), and LVD (2014/35/EU) which are issued by the Commission of the European Community.
The full text of the EU declaration of conformity is available at the following internet address: https://steelseries.com/
Operating Temperature: 0 to +40°C.
SteelSeries ApS. hereby confirms, to date, based on the feedback from our suppliers indicates that our products shipping to the EU territory comply with REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals - (EC) 1907/2006) compliance program. We are fully committed to offering REACH compliance on the products and posting accurate REACH compliance status for the all of products.
Frequency bands and Powers (Mouse and Transceiver)
a. Frequency band(s) in which the radio equipment operates: 2.400 - 2.4835 GHz
b. Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates:
- EIRP: /4-DQPSK : 0.47 dBm (Mouse)
• EIRP: /4 -DQPSK: 2.27 dBm (Transceiver)
c. Firmware Version: V1.0.0
WEEE
This product must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.
TURKEY ROHS COMPLIANCE
Republic of Turkey: In conformity with the EEE Regulation
Safety Guideline for the Battery
This battery must not be disposed of with your other household waste or treat them in
compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Consult the dealer or an experienced radio/TV technician for help.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Radiation Exposure Statement:
The device has been evaluated to meet general RF exposure requirement, the device can be used in portable exposure condition without restriction.
FCC ID: ZHK-M00027 (Mouse)
FCC ID: ZHK-M00027TX(Transceiver)
Frequency bands and Powers (Mouse and Transceiver)
a. Frequency band(s) in which the radio equipment operates: 2.400 - 2.4835 GHz
b. Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates:
- Conducted Peak Power/л/4-DQPSK: -0.88 dBm(Mouse)
- Conducted Peak Power/π/4-DQPSK: -0.54 dBm (Transceiver)
- Conducted Peak Power/GFSK: 0.89 dBm
c. Firmware Version: 1.0.0
| Regions Contact Information | ||
| USA | SteelSeries ApS.,656 W Randolph St., Suite 3E,Chicago, IL 60661, USA | +1 312 258 9467 |
More information and support from steelseries.com
Industry Canada Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
- this device may not cause interference, and
- this device must accept any interference, including interference that may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter, except tested built-in radios.
The County Code Selection feature is disabled for products marketed in the US/ Canada.
The appliance must not be exposed to splashes or drops of water and it should not be used as a support for any object filled with liquid, such as a vase.
Radiation Exposure Statement
The device has been evaluated to meet general RF exposure requirement, The device can be used in portable exposure condition without restriction.
RISK OF EXPLOSION IF BATTERY PACK IS NOT REPLACE BY SAME TYPE AS SPECIFIED BY THE MANUFACTURER.
Please keep follow all listed important warnings and cautions below while using this battery pack to avoid any damage or hazard.
- The battery polarity (+) and (-) shall not be connected and charged reversely. Risk of explosion if the battery polarity (+) and (-) is reversed.
- Please keep this battery pack away from fire and high heat sources due to the explosion that might happen. Do not place your battery pack close to any heater or hot location.
- This battery pack shall not be hit or impacted. This battery pack shall not be dealt with any sharp or keen objects either.
-
This battery pack shall not be exposed to moisture, dripping or splashing.
-
If any electrolyte flows out of this battery pack when touching the user's eyes and skin, please seek medical advice immediately.
"MISE EN GARDE!"
RISQUE D'EXPLOSION SI LE BLOC-PILES N'EST PAS REMPLACÉ PAR LE MÊME TYPE QUE SPÉCIFIÉ PAR LE FABRICANT.
IC: 9638A-M00027TX (Transceiver)
SteelSeries Products and Australian Consumer Law
Our goods come with guarantees that cannot be excluded under Australian consumer law. You are entitled to a repair, replacement, or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Should your product be defective, you can make a claim under Australian consumer law.
SteelSeries will provide its own remedies equivalent to those remedies in the consumer guarantee provisions of the Australian Consumer Law at any time within 24 months of the date of purchase. For the avoidance of doubt, SteelSeries acknowledges that the Australian Consumer Law may provide for remedies beyond 24 months for a number of its products.
Summary of Australian statutory consumer guarantees
Consumer guarantees in relation to goods
The goods will be of acceptable quality, The goods will be fit for a particular purpose, The goods will match their description, The goods will match the sample or demonstration model, You have title to the goods, You have undisturbed possession of the goods, There are no undisclosed securities on the goods.
Consumer guarantees in relation to services
We will provide the services with due care and skill, The services will be fit for a particular purpose. The services will be provided within a reasonable time.
For SteelSeries-branded goods, in addition to the above, we also guarantee that we will provide repairs or spare parts for a reasonable time. Under Australian consumer law, the remedy you are entitled to if a product fails to meet a consumer guarantee will depend on whether the failure to comply with the guarantee is major or minor.
Minor failures to comply with a consumer guarantee can normally be fixed or resolved in a reasonable amount of time. In this case, the seller can choose to offer you a refund, replacement,
repair or, in the case of services, resupply. If the seller does not fix the problem or takes too long, you may be able to get it fixed by someone else and recover the costs from the seller depending on the circumstances.
Remedies for major failure with goods
Return the product and ask for a refund, Return the product and ask for an identical replacement, or one of similar value if reasonably available, Keep the product and ask for compensation for the drop in value caused by the problem.
Remedies for major failure with services
Cancel the contract and pay a reasonable amount for the work done, or seek a refund. For money already paid, keep the contract and negotiate a reduced price for the drop in value of the service — this may mean asking for some of your money back if you have already paid.
For goods, there is a major failure to comply with a consumer guarantee when:
- You would not have purchased the product if you had known about the problem.
- The product is significantly different from the description, sample or demonstration model you were shown.
- The product is substantially unfit for its normal purpose and cannot easily be made fit within a reasonable time.
- The product is substantially unfit for a purpose that you told the supplier about, and cannot easily be made fit within a reasonable time.
• The product is unsafe.
For services, there is a major failure to comply with a consumer guarantee when:
- You would not have engaged the service if you had known the nature and extent of the problem.
- The service does not meet the reasonable expectations for that type of service, and the problem cannot be rectified within a reasonable time.
- You told the supplier that you wanted the service for a specific purpose, which was not fulfilled, and the problem could not be easily rectified within a reasonable time.
- You told the supplier that you wanted a specific result, yet the service and end result failed to meet your specifications and could not be easily rectified within a reasonable time.
- The supply of the service has created an unsafe situation.
For information on Australian consumer laws, please visit Australian consumer law website at www.consumerlaw.gov.au.
Importer Name and Address: Ingram Micro Pty LTD / Level1, 61 Dunning Avenue. Rosebery NSW 2018
Telephone technical support: +61-2-9381-6000
RED (2014/53/EU), EMCD(2014/30/EU) and LVD (2014/35/EU) Compliances (The Commission of the European Community.)
Restriction on Hazardous Substances statement (India)
This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.
Ukraine RoHS:
The RoHS test method is based on the standards JIS C 0950 and CNS 15663.
| 設備名稱:無線滑鼠 型號(型式):M-00027Equipment name: Wireless Mouse Type designation: M-00027 | ||||||
| 單元/Unit | 限用物質及其化學符號Restricted substances and its chemical symbols | |||||
| 鉛Lead(Pb) | 汞Mercury(Hg) | 鎘Cadmium(Cd) | 六價鉻Hexavalent chromium(Cr+6) | 多溴聯苯Polybrominated biphenyls(PBB) | 多溴二苯醚Polybrominated diphenyl ethers(PBDE) | |
| 塑膠部件/Plastic | ○ | ○ | ○ | ○ | ○ | ○ |
| 電路板及元件/PCBA | - | ○ | ○ | ○ | ○ | ○ |
| 線材/Cables | - | ○ | ○ | ○ | ○ | ○ |
| 金屬部件/Metal | - | ○ | ○ | ○ | ○ | ○ |
| 備考1.“超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.備考2. ○係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: ○indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.備考3. ×係指該項限用物質為排除項目。Note 3: ×indicates that the restricted substance corresponds to the exemption根据中国大陆《电子电气产品有害物质限制使用标识要求》,以下部分列出了产品中可能包含的有害物质的名称和含量: | ||||||
| 零部件名称 | 有害物质 | |||||
| 铅(Pb) | 汞(Hg) | 镉(Cd) | 六价铬(Cr(VI)) | 多溴联苯(PBB) | 多溴二苯醚(PBDE) | |
| 电路板组件 | × | ○ | ○ | ○ | ○ | ○ |
| 其他线材 | × | ○ | ○ | ○ | ○ | ○ |
| *:电路板组件包括印刷电路板及其构成的零部件,如电阻、电容、集成电路、连接器等。 | ||||||
| 本表格依据SJ/T 11364的规定编制。○:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572规定的限量要求以下。×:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572规定的限量要求;上表中打“X”的部件,应功能需要,部分有害物质含量超出GB/T 26572规定的限量要求,但是符合欧盟RoHS法规要求(属于豁免部分)。 | ||||||
| Regions Contact Information | ||||||
| Asia亞洲 | SteelSeries ApS. Taiwan Branch16F, No.150, Jian-Yi Rd., Chung-Ho Dist, New Taipei City, Taiwan, R.O.C.(235)丹麥商賽睿有限公司台灣分公司新北市中和區建一路150號16樓 | +886 2 8226 3858 | ||||
| USA 656 | W Randolph St, Suite 3E, Chicago, IL 60661, USA +1 312 258 9467 | |||||
| Europe Dirch Passers Allé 27, 5.Sal., 2000 Frederiksberg, Denmark +45 702 500 75 | ||||||
More information and support at steelseries.com
Product Name (產品名稱/產品名称): Wireless Mouse (無線滑鼠/無線鼠标)
Model No. (型號/型号): M-00027
Rated (規格/规格): 5 V = 500 mA
Rated (規格/规格): 5 V = 100mA
Malaysia approval (SIRIM)
Custom Union Compliance. (Russia / Belarus / Kazakhstan / Armenia / Kyrgyzstan)
ACMA Compliance (Australia/New-Zealand)
Direct current
Complies with IMDA Standards DA 106032
Singapore approval (IMDA)
learn more at steelseries.com
