Product type	Wireless gaming mouse
Brand	SteelSeries
Model	Aerox 9 Wireless
Connectivity	Wireless 2.4 GHz and Bluetooth 5.1
Sensor	TrueMove Air
CPI Resolution	Adjustable via dedicated button
Number of buttons	14 (2 triggers, clickable scroll wheel, CPI button, 12 side buttons)
Scroll wheel	Yes
Lighting	Customizable RGB
Battery	Built-in rechargeable, battery indicator
Battery life	Up to 180 hours (Bluetooth) / 80 hours (2.4 GHz)
Weight	Approximately 89 g
Dimensions (L x W x H)	128.5 x 84.5 x 42.5 mm
Material	Honeycomb shell
Feet	Virgin-grade PTFE
System compatibility	PC, Mac, Xbox, PlayStation
Software	SteelSeries Engine (via GG)
Included cable	Super Mesh USB Type-C to USB Type-A (1.8 m)
Included accessories	USB Type-C wireless dongle, extension adapter
Care and cleaning	Soft dry cloth, avoid liquids
Safety	Do not expose to water, do not open battery

Frequently Asked Questions - Aerox 9 Wireless STEELSERIES

How to connect the mouse in wireless 2.4 GHz mode?

Plug the USB Type-C dongle into a USB port on your device. Switch the wireless mode switch to the 2.4 GHz position. The mouse and dongle pair automatically. For manual pairing, use the SteelSeries Engine software.

How to connect the mouse via Bluetooth?

Enable Bluetooth on your device (version 5.1 or later). Hold down the CPI button and switch the wireless mode switch to Bluetooth. The mouse flashes blue. Select 'Aerox 9 Wireless' from the list of Bluetooth devices.

How to customize the buttons and lighting?

Download SteelSeries Engine from steelseries.com/engine. Use the interface to assign functions to buttons (macros, keys, etc.) and customize RGB lighting effects. The software is part of SteelSeries GG.

What to do if the mouse does not turn on?

Check that the battery is charged. Plug in the USB-C cable to charge. If the mouse does not respond, try resetting by holding down the left and right buttons for 5 seconds while plugging in the cable. If the problem persists, contact SteelSeries support.

How to check the battery level?

When powering on or waking up, the mouse flashes red (0-5%), yellow (6-10%), or green (11-100%). During use, a red flash indicates low battery (≤5%). You can also see the level in SteelSeries Engine.

Is the mouse compatible with my console?

Yes, the mouse is compatible with PC, Mac, Xbox, and PlayStation. For consoles, use wireless 2.4 GHz mode with the dongle or Bluetooth mode depending on the console. Note that some features may require an adapter.

How to clean the mouse?

Use a soft dry cloth to wipe the honeycomb surface. Avoid liquids and abrasive cleaners. For hard-to-reach areas, an anti-static brush can be used. Do not disassemble the mouse.

What is the battery life?

Battery life can be up to 180 hours in Bluetooth mode and up to 80 hours in 2.4 GHz mode. Actual battery life depends on usage, lighting, and settings.

How to reset the mouse?

To reset, hold down the left, right, and scroll wheel buttons for 5 seconds. Release, then the mouse will restart. You can also use SteelSeries Engine to restore default settings.

Can I use the mouse in wired mode?

Yes, you can use the mouse in wired mode by plugging in the provided USB-C cable. This also charges the battery. The mouse functions normally in wired mode.

USER MANUAL Aerox 9 Wireless STEELSERIES

Line drawing of a computer mouse with a textured pattern and a central handle (no text or symbols)

AEROX 9 WIRELESS

PRODUCT INFORMATION GUIDE

WELCOME TO AEROX 9 WIRELESS

Your new mouse is the result of our unyielding pursuit of perfection since 2001. We poured our hearts into creating the first ever ultra lightweight MMO / MOBA gaming mouse, optimizing it for speed, performance and comfort. The SteelSeries Aerox 9 Wireless is engineered to get the fastest swipes, so you can beat the competition to the trigger for during long gaming sessions. When milliseconds count, speed matters.

TABLE OF CONTENTS

General 5

Product Overview 7

Setup 8

To enjoy GameSense integration, program macros, and customize lighting effects and other mouse settings on your new Aerox 9 Wireless mouse, download SteelSeries Engine at steelseries.com/engine

steelseries.com/gg

Engine is part of SteelSeries GG that comes with free apps and content we know you'll love. You can try out Moments, an app that allows you to easily clip, edit and share your gaming highlights with friends.

MOUSE

1 Left Trigger
2 Right Trigger
3 Scroll Wheel
4 CPI Button
5 USB-C Jack
6 Virgin-grade PTFE Feet
7 TrueMove Air Sensor
8 Wireless Mode Switch
9 12 Side-Button Area (See page 9 for default mapping)

ACCESSORIES

10 USB Type-C to USB Type-A Super Mesh Data Cable
11 USB Type-C Wireless Dongle
12 Extension Adapter

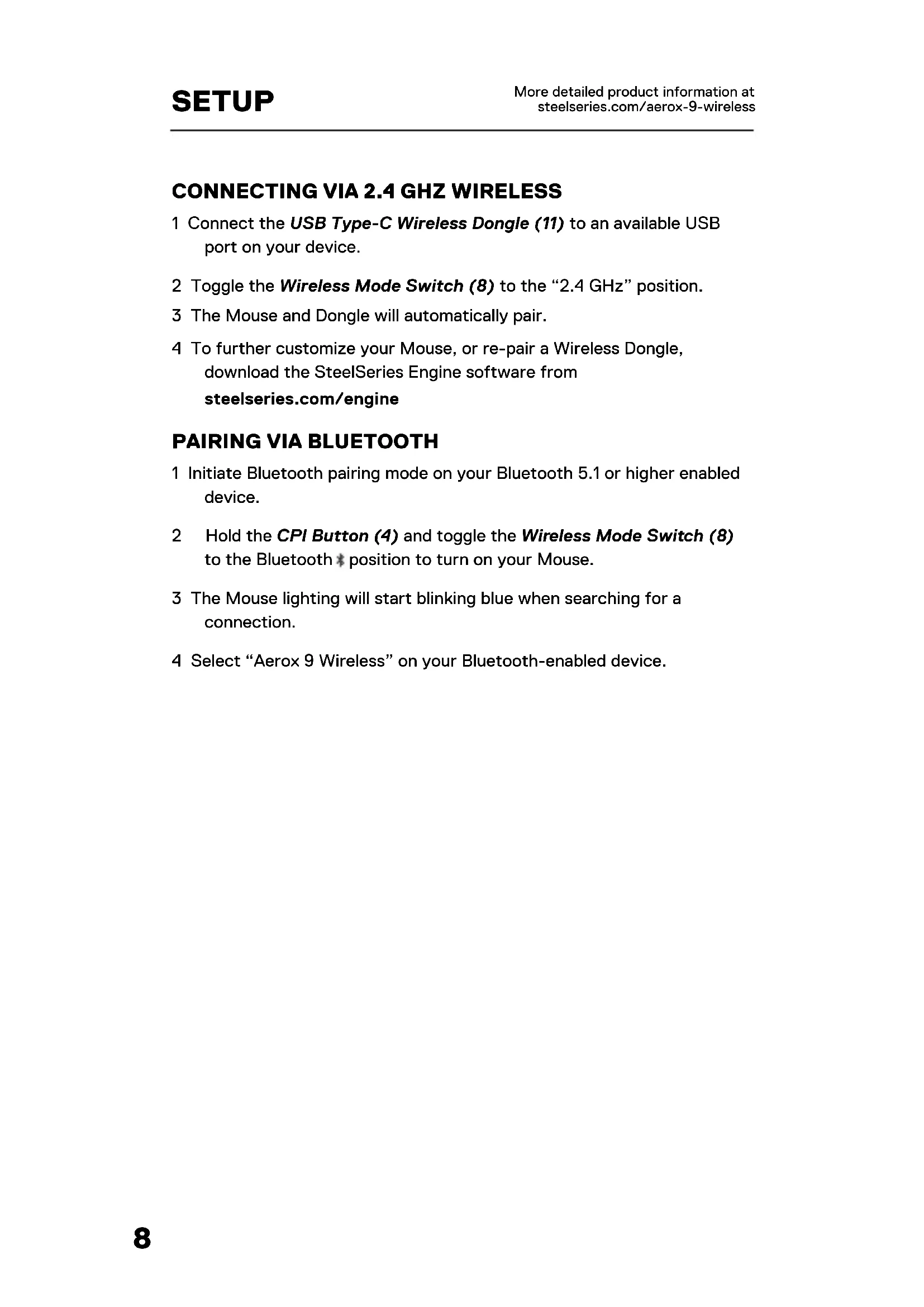

CONNECTING VIA 2.4 GHZ WIRELESS

1 Connect the USB Type-C Wireless Dongle (11) to an available USB port on your device.
2 Toggle the Wireless Mode Switch (8) to the "2.4 GHz" position.
3 The Mouse and Dongle will automatically pair.
4 To further customize your Mouse, or re-pair a Wireless Dongle, download the SteelSeries Engine software from steelseries.com/engine

PAIRING VIA BLUETOOTH

1 Initiate Bluetooth pairing mode on your Bluetooth 5.1 or higher enabled device.
2 Hold the CPI Button (4) and toggle the Wireless Mode Switch (8) to the Bluetooth * position to turn on your Mouse.
3 The Mouse lighting will start blinking blue when searching for a connection.
4 Select "Aerox 9 Wireless" on your Bluetooth-enabled device.

DEFAULT MAPPING

By default the side buttons are mapped to the number keys of your Keyboard.

12 45 78 101 12 ESC 1 2 3 4 5 6 7 8 9 10 P ( ) I TAM Q W E R T Y U I O P L

To change the mapping of your buttons, download SteelSeries Engine at steelseries.com/gg. Use our a user friendly interface to map your buttons to other keys, macros, and more.

During use, the mouse will flash red when 5 % or less battery remains.

When turning on or waking from sleep, the mouse will flash a color to indicate remaining battery level:

Red 0–5% battery

Yellow 6–10% battery

Green 11–100% battery

When charging, the lighting will flash green for 5 seconds before resuming default lighting.

DEUTSCH

ALLGEMEIN

LIEFERUMFANG

Aerox 9 Wireless Mouse

USB-C-Wireless-Dongle

steelseries.com/gaming-accessories

CONFIGURACIÓN

CONECTAR MEDIANTE INALÁMBRICO DE 2.4 GHZ

ASSOCIATION VIA BLUETOOTH

*在steelseries.com/gaming-accessories查找配件和替换件

设置

2.4 GHZ 无线连接

*在steelseries.com/gaming-accessories查找配件和替换件

設定

2.4 GHZ 無線連接

Europe – EU Declaration of Conformity

Hereby, SteelSeries ApS. declares that the equipment which is compliance with directive RoHS 2.0 (2015/863/EU), R.E.D (2014/53/EU), EMC Directive (2014/30/EU), and LVD (2014/35/EU) which are issued by the Commission of the European Community.

The full text of the EU declaration of conformity is available at the following internet address: steelseries.com

Operating Temperature: 0^ C to +40^ C

SteelSeries ApS. hereby confirms, to date, based on the feedback from our suppliers indicates that our products shipping to the EU territory comply with REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals – (EC) 1907/2006) compliance program. We are fully committed to offering REACH compliance on the products and posting accurate REACH compliance status for the all of products.

Frequency bands and Powers (Headset and Transceiver)

a. Frequency band(s) in which the radio equipment operates: 2.400–2.4835 GHz
b. Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates:

• EIRP: GFSK: 2.77 dBm (Mouse)
- EIRP: /4 -DQPSK: 2.67 dBm (Mouse/Bluetooth)
• EIRP: /4 -DQPSK: 3.14 dBm (Transceiver)

c. Firmware Version: V1.9.8 (Mouse); V1.0.2 (Transceiver)

UK Declaration of Conformity

Hereby, SteelSeries ApS. declares that the following equipment which is compliance with Electromagnetic Compatibility Regulations 2016, Electrical Equipment (Safety) Regulations 2016 and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 issued by the Department for Business, Energy& Industrial Strategy. The full text of the UK declaration of conformity is available at the following internet address: www.steelseries.com

WEEE

This product must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.

Turkey RoHS Compliance

Republic of Turkey: In conformity with the EEE Regulation

Safety Guideline for Lithium Battery

This battery must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Radiation Exposure Statement:

The device has been evaluated to meet general RF exposure requirement, the device can be used in portable exposure condition without restriction.

FCC ID: ZHK-M00028(Mouse)

FCC ID: ZHK-M00028TX(Transceiver)

Frequency bands and Powers (Mouse and Transceiver)

a. Frequency band(s) in which the radio equipment operates: 2.400 - 2.4835 GHz
b. Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates;

• Conducted Peak Power/ GFSK: 0.27 dBm (Mouse)
• Conducted Peak Power/ л/4-DQPSK: -1.25 dBm (Mouse/Bluetooth)
• Conducted Peak Power/ л/4-DQPSK: -0.76 dBm (Transceiver)

a. Firmware Version: V1.9.8 (Mouse); V1.0.2 (Transceiver)

Industry Canada Statement

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

1. this device may not cause interference, and
2. this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter, except tested built-in radios.

The County Code Selection feature is disabled for products marketed in the US/ Canada.

The appliance must not be exposed to splashes or drops of water and it should not be used as a support for any object filled with liquid, such as a vase.

RISK OF EXPLOSION IF BATTERY PACK IS NOT REPLACE BY SAME TYPE AS SPECIFIED BY THE MANUFACTURER.

Please keep follow all listed important warnings and cautions below while using this battery pack to avoid any damage or hazard.

1. The battery polarity (+) and (-) shall not be connected and charged reversely. Risk of explosion if the battery polarity (+) and (-) is reversed.
2. Please keep this battery pack away from fire and high heat sources due to the explosion that might happen. Do not place your battery pack close to any heater or hot location.
3. This battery pack shall not be hit or impacted. This battery pack shall not be dealt with any sharp or keen objects either.
4. This battery pack shall not be exposed to moisture, dripping or splashing.
5. If any electrolyte flows out of this battery pack when touching the user's eyes and skin, please seek medical advice immediately.

"MISE EN GARDE!"

RISQUE D'EXPLOSION SI LE BLOC-PILES N'EST PAS REMPLACÉ PAR LE MÊME TYPE QUE SPÉCIFIÉ PAR LE FABRICANT.

IC: 9638A-M00028TX (Transceiver)

This product is compliant with requirements of Circular No. 30/2011/TT-BCT Regulations "STIPULATING TEMPORARILY THE PERMISSIBLE CONTENT LIMITATION OF SOME TOXIC CHEMICALS IN THE ELECTRONIC, ELECTRICAL PRODUCTS"

Restriction on Hazardous Substances statement (India)

This product complies with the "India E-waste Rule 2011" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

根据中国大陆《电子电气产品有害物质限制使用标识要求》,以下部分列出了产品中可能包含的有害物质的名称和含量:
零部件名称	有害物质
	铅(Pb)	汞(Hg)	镉(Cd)	六价铬(Cr(VI))	多溴联苯(PBB)	多溴二苯醚(PBDE)
电路板组件	×	○	○	○	○	○
其他线材	×	○	○	○	○	○
*电路板组件包括印刷电路板及其构成的零部件,如电阻、电容、集成电路、连接器等。
本表格依据SJ/T 11364的规定编制。○:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572规定的限量要求以下。×:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572规定的限量要求;上表中打“”的部件,应功能需要,部分有害物质含量超出GB/T 26572规定的限量要求,但是符合欧盟RoHS法规要求(属于豁免部分)。
設備名稱:無線滑鼠 型號(型式):M-00028Equipment name: Wireless Mouse Type designation: M-00028
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead(Pb)	汞Mercury(Hg)	鎘Cadmium(Cd)	六價鉻Hexavalent chromium(Cr+6)	多溴聯苯Polybro-minated biphenyls(PBB)	多溴二苯醚Polybro-minated diphenyl ethers(PBDE)
塑膠部件Plastic	○	○	○	○	○	○
電路板及元件PCBA	-	○	○	○	○	○
線材Cables	-	○	○	○	○	○
金屬部件Metal	-	○	○	○	○	○
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.備考2. ○係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: ○indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.備考3. -係指該項限用物質為排除項目。Note 3: -indicates that the restricted substance corresponds to the exemption

FR

More information and support from steelseries.com

ACMA Compliance

(Australia/ New Zealand)

Malaysia Approval (SIRIM)

Direct Current

Complies with IMDA Standards DA 106032

Singapore approval (IMDA)

Product Name (產品名稱/產品名称): Wireless Mouse (無線滑鼠/无线鼠标)

Model No. (型號/型号): M-00028

Rated (規格/规格): 5V 500 mA

Accessories information (配件資訊/配件信息)

Product Name (產品名稱/产品名称): Transceiver (接收器/收发器)

Model No. (型號/型号): M-00028TX

Rated (規格/規格): 5V 30 mA

Operating Temperature: 0 to +40 °C

產品使用環境溫度: 0 - 40度
