| Product type | Radio-controlled alarm clock with thermometer |
| Brand | TFA |
| Model | 60.2561.55 |
| Housing dimensions | 99 × 90 × 42 mm |
| Weight | 121 g (device only) |
| Power supply | 2 x 1.5 V AA batteries (not included, alkaline recommended) |
| Display | LCD |
| Radio reception | DCF-77 (77.5 kHz), range approx. 1,500 km |
| Indoor temperature range | -10°C to +60°C (14°F to 140°F) |
| Alarm function | Yes, with 5-minute snooze |
| Backlight | Manual (5 seconds) or automatic via light sensor |
| Weekday languages | 8 languages: German, English, Dutch, French, Italian, Spanish, Danish, Russian |
| Time zone setting | -12 to +12 hours |
| Time format | 24h or 12h (adjustable) |
| Cleaning | Soft, damp cloth, no solvents or abrasives |
| Safety | Do not disassemble; protect from moisture and extreme temperatures |
| Batteries | Do not mix types, remove if unused for long, dispose of according to regulations |
| Declaration of conformity | Complies with directive 2014/53/EU (available at www.tfa-dostmann.de) |
| Instruction manual | Available in French, German, English, Spanish, Italian, Dutch |
Frequently Asked Questions - 60.2561.55 TFA
User questions about 60.2561.55 TFA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Clock in PDF format for free! Find your manual 60.2561.55 - TFA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 60.2561.55 by TFA.

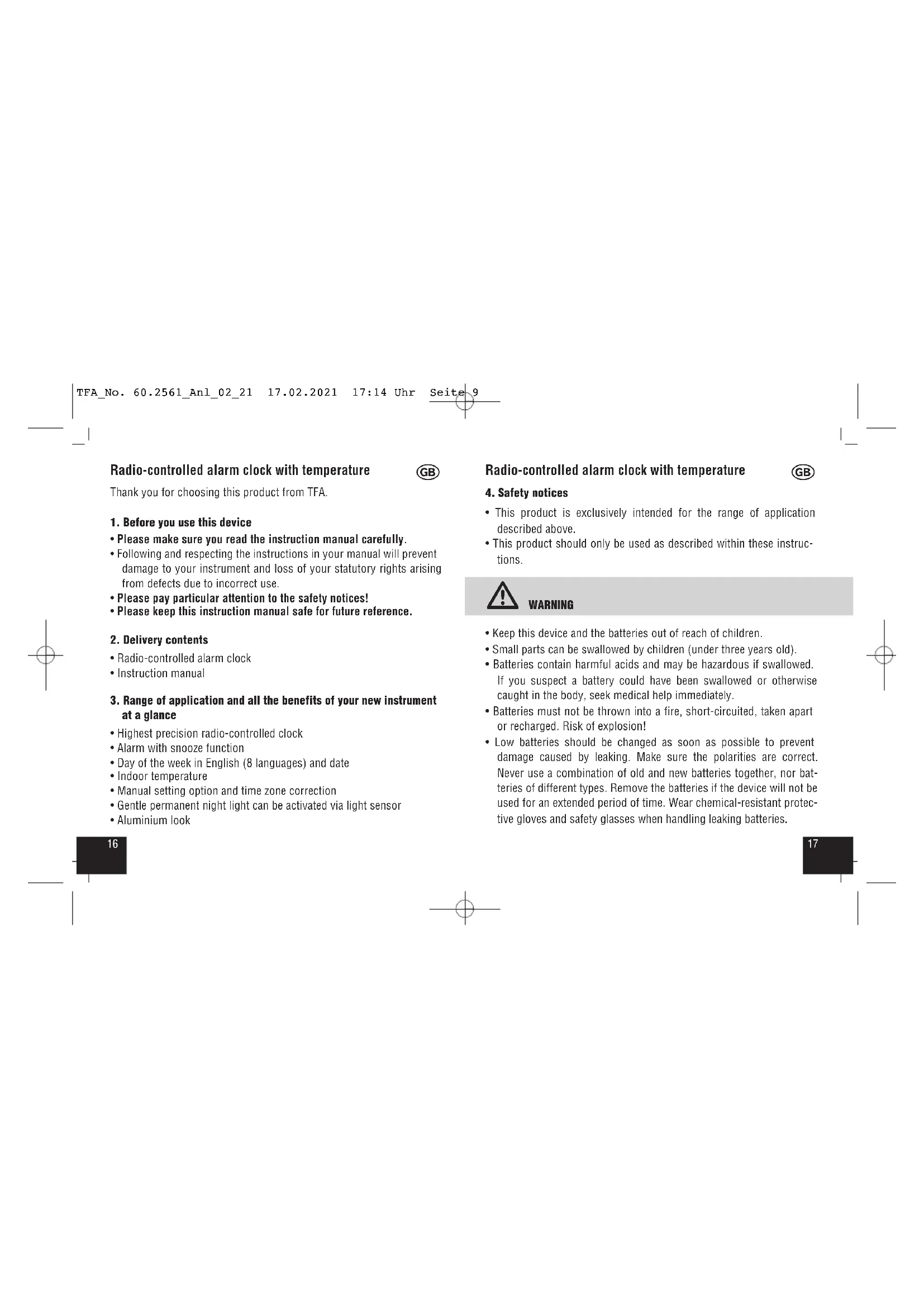

USER MANUAL 60.2561.55 TFA
Radio-controlled alarm clock with temperature
Thank you for choosing this product from TFA.
1. Before you use this device
- Please make sure you read the instruction manual carefully.
- Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
- Please pay particular attention to the safety notices!
- Please keep this instruction manual safe for future reference.
2. Delivery contents
- Radio-controlled alarm clock
- Instruction manual
3. Range of application and all the benefits of your new instrument at a glance
- Highest precision radio-controlled clock
- Alarm with snooze function
Day of the week in English (8 languages) and date - Indoor temperature
- Manual setting option and time zone correction
- Gentle permanent night light can be activated via light sensor
Aluminium look
Radio-controlled alarm clock with temperature
4. Safety notices
- This product is exclusively intended for the range of application described above.
- This product should only be used as described within these instructions.
WARNING
- Keep this device and the batteries out of reach of children.
- Small parts can be swallowed by children (under three years old).
- Batteries contain harmful acids and may be hazardous if swallowed. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
- Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
- Low batteries should be changed as soon as possible to prevent damage caused by leaking. Make sure the polarities are correct. Never use a combination of old and new batteries together, nor batteries of different types. Remove the batteries if the device will not be used for an extended period of time. Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.
Radio-controlled alarm clock with temperature
CAUTION
- Unauthorized repairs, alterations or changes to the product are prohibited.
- Do not expose the device to extreme temperatures, vibrations or shocks.
- Clean the instrument with a soft damp cloth. Do not use solvents or scouring agents.
- Protect it from moisture!
5. Elements
A:Display (Fig.1):
A 1: Daylight Saving Time (DST) symbol
A 2: DCF reception symbol A 3: Alarm symbol
A 4: Indoor temperature A 5: Day of the week
A6:Date A7:Time
B: Buttons (Fig. 1):
B 1: AUTO LIGHT ON/OFF switch
B2:TIME SET button
B3:DOWN button
B4:UP button
B5:RESET button
B 6: ALARM SET button
Radio-controlled alarm clock with temperature
B7:ALARM ON/OFF switch
B 8: SNOOZE/LIGHT button on the top
C: Housing (Fig. 1+2):
C 1: Light sensor
C 2: Battery compartment
6. Getting started
6.1 Insert the batteries
- Open the battery compartment and insert two new AA 1.5 V batteries, polarity as illustrated.
- The backlight turns on for a short period. The device will alert you with a beep and all LCD segments will be displayed for a short moment. Close the battery cover again.
6.2 Radio-controlled time reception
The clock will now scan the DCF frequency signal and the DCF symbol flashes on the display. When the time code is successfully received after some minutes, the radio-controlled time and the DCF symbol will be shown steadily on the display. In Daylight Saving Time DST is shown on the display.
- If there is no reception, you can start the initialisation manually. Press and hold the DOWN button for 3 seconds.
- The DCF symbol flashes.
Radio-controlled alarm clock with temperature
- Interrupt the reception by pressing the DOWN button again for three seconds. The DCF reception symbol disappears.
- The DCF reception always takes place daily at 3:00 o'clock in the morning.
- There are three different reception states:
flashing- Reception is active
remains - Reception is successful
disappears - No reception
- If the clock cannot detect the DCF-signal (e.g. due to interference, transmitting distance, etc.), the time can be set manually.
6.3 Note on radio-controlled time
The time is transmitted from an atomic clock near Frankfurt am Main by a DCF-77 (77.5 kHz) frequency signal with a range of about 1,500 km. Your radio-controlled clock receives the signal, converts it and always shows the exact time. The adjustment of Daylight Saving Time and Standard Time is also automatic.
- Make sure to avoid the vicinity of any source of interference such as computer screens, TV sets or solid metal objects. Within concrete walls (reinforced with steel) such as basements, the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve reception.
Radio-controlled alarm clock with temperature
- During night-time, the atmospheric interference is usually less severe. A single daily reception is adequate to keep the accuracy deviation under 1 second.
7. Operation
7.1 Manual settings
- Press and hold the TIME SET button for three seconds to enter the setting mode.
The first adjustable value flashes on the display. - Use the UP or DOWN button to make the desired setting.
-
Confirm with the TIME SET button and go to the next setting
The sequence is shown as follows: -
DCF reception on/off (default: RCC ON)
-24/12-hour format (default: 24Hr)
Time zone -12/+12 (default: 0)
Hours, minutes, seconds
Day-of-week language: (default: GER)
Year, month, day -
Temperature unit ^ C or ^ F (default: ^ C )
-
Press and hold the UP or DOWN button in the respective setting mode for quick setting. The device will automatically quit the setting mode if no button is pressed for 15 seconds.
Radio-controlled alarm clock with temperature
7.1.1 DCF reception
- By default, the DCF reception is activated (RCC ON) and after successful reception of the DCF signal no manual adjustment is necessary.
- Once the DCF time reception is deactivated (RCC OFF), the clock and date must be manually set. No time zone will appear.
- If the DCF reception is activated, the manually set time will be overwritten by the DCF time when the signal is received successfully.
7.1.2 Time zone setting
In the setting mode you can make the time zone correction
The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the DCF time (e.g. +1 = one hour plus).
7.1.3 Day-of-week language setting
- In the setting mode you can set the day-of-the week language: German (GER), English (ENG), Dutch (DUT), French (FRE), Italian (ITA), Spanish (ESP), Danish (DAN) and Russian (RUS).
7.2 Year display
- Press the TIME SET button and the year appears briefly.
Radio-controlled alarm clock with temperature
8. Alarm time setting
- Press the ALARM SET button in normal mode. ALM and the last adjusted alarm time will be displayed for a short moment (default: 7:00).
- Press and hold the ALARM SET button for three seconds to enter the setting mode.
The hour digits flash. - Press the UP or DOWN button to adjust the hours.
- Confirm the setting with the ALARM SET button and set minutes in the same way.
- Press the ALARM SET button again to return to the current time.
To activate the alarm function, move the ALARM ON/OFF switch to ON. - The alarm symbol appears on the display. The display shows the adjusted alarm time instead of the date.
- When the alarm is activated, the alarm starts to ring when the set alarm time is reached. The alarm symbol flashes.
- Press any button (except SNOOZE/LIGHT) and the alarm will stop.
- Press the SNOOZE/LIGHT button to activate the snooze function.
- The backlight turns on for a short period. The alarm will be interrupted for about 5 minutes.
The alarm symbol flashes. - Press any button to stop the snooze function
- To deactivate the alarm function, slide the ALARM ON/OFF switch to OFF. The alarm symbol disappears.
Radio-controlled alarm clock with temperature
9. Backlight
- Press the SNOOZE/LIGHT button and the backlight will be activated for 5 seconds.
- Move the AUTO LIGHT ON/OFF switch to ON, a weak backlight turns on automatically as soon as the light sensor registers darkness.
10. Battery replacement
- Change the batteries when the device functions become weak.
- Open the battery compartment and insert two new AA 1,5 V batteries.
Make sure the polarities are correct. - Close the battery compartment.
11. Troubleshooting
Problem Solution
No display Ensure the batteries' polarities are
correct
Change the batteries
No DCF reception Activate DCF reception in setting mode (RCC ON)
Start the initialization manually
Wait for an attempt reception during the night
Radio-controlled alarm clock with temperature
Choose another place for your device
Set the clock manually
Incorrect indication Press the RESET button
If your device fails to work despite these measures, contact the retailer where you purchased the product.
12. Waste disposal
This product has been manufactured using high-grade materials and components which can be recycled and reused.
Never dispose of empty batteries and rechargeable batteries with ordinary household waste.
As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.
The symbols for the contained heavy metals are: Cd=cadmium, Hg=mercury, Pb=lead
This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).
Radio-controlled alarm clock with temperature
Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.
13. Specifications
Power consumption 2 × AA 1.5 V batteries (not included) Use alkaline batteries
Measuring range temperature -10^ ... +60^ (14...140°F)
Indication: LL.L / HH.H Temperature is outside measuring range
Housing dimension 99 × 90 × 42 ~mm
Weight 121 g (device only)
Radio-controlled alarm clock with temperature
No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.
EU Declaration of conformity
Hereby, TFA Dostmann declares that the radio equipment type 60.2561 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.tfa-dostmann.de/service/downloads/ce
www.tfa-dostmann.de
E-Mail: info@ta-dostmann.de
TFA Dostmann GmbH & Co.KG, Zum Ottersberg 12, D-97877 Wertheim, Germany
02/21
