USER MANUAL 859315 CAS

Simple Weighing Scale

SW-1S / 1C Series

OWNER'S MANUAL

CONTENTS

PRECAUTIONS 4

PREFACE 6

NAMES AND FUNCTIONS 6

OPERATIONS 8

1. Simple Weighing Mode 8
2. Weighing with Tare 8
3. Changing Unit of Weight 9
4. Hold Function (SW-1S only) 9
5. Comparator Function (SW-1C only) 10
6. Counting Function (SW-1C only) 11
7. Auto-Power Off Function 13

BATTERY MAINTENACE 14

ERRORMESSAGE14

SPECIFICATIONS 15

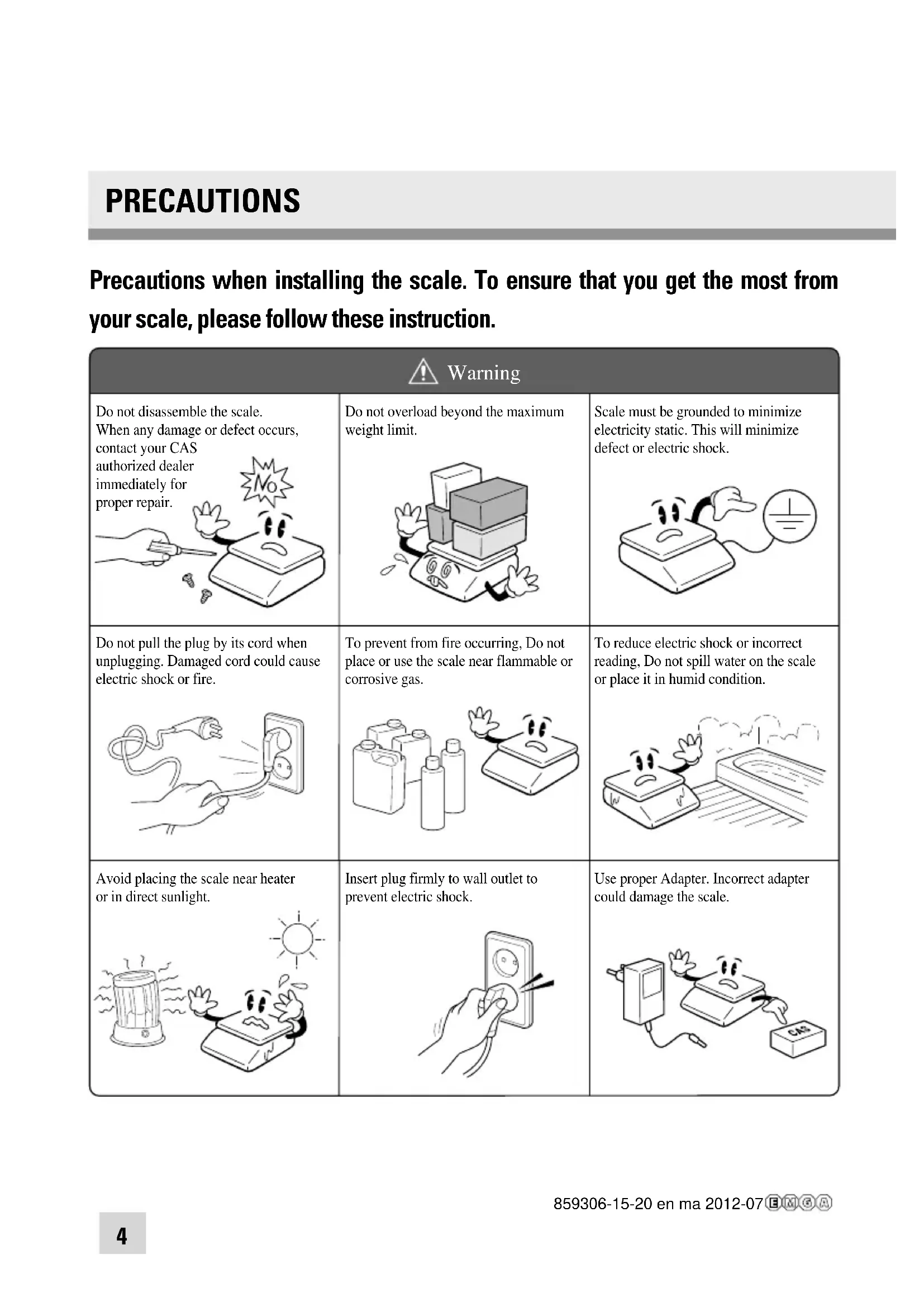

Precautions when installing the scale. To ensure that you get the most from your scale, please follow these instruction.

Warning
Do not disassemble the scale. When any damage or defect occurs, contact your CAS authorized dealer immediately for proper repair.	Do not overload beyond the maximum weight limit.	Scale must be grounded to minimize electricity static. This will minimize defect or electric shock.
Do not pull the plug by its cord when unplugging. Damaged cord could cause electric shock or fire.	To prevent from fire occurring, Do not place or use the scale near flammable or corrosive gas.	To reduce electric shock or incorrect reading, Do not spill water on the scale or place it in humid condition.
Avoid placing the scale near heater or in direct sunlight.	Insert plug firmly to wall outlet to prevent electric shock.	Use proper Adapter. Incorrect adapter could damage the scale.

Make sure to plug your scale into the proper power outlet. For maximum performance, plug into a power outlet 30 minutes before the usage for warm up.

Attention
For consistent and accurate reading, maintain periodical check by your CAS authorized dealer.	Avoid sudden shock to the scale. Internal mechanism could be damaged.	Grab on the bottom of the scale when moving. Do not hold by the platter.
Take the battery out when scale is not in use for long time. Leakage from the batteries is hazardous.	Place the scale on firm and temperature consistent environment.	By adjusting 4 corners of the scale, set the scale even using the built in scale leveling indicator.
Keep the scale away from other electromagnetic generating devices. This may interfere with accurate reading.

PREFACE

Thank you for purchasing CAS SW-1S/1C Series.

These series have been designed with CAS reliability, under rigid quality control and with outstanding performance. Your specialty departments can enjoy these high quality reliable CAS products.

We believe that your needs will be satisfied and you will have proper reliability. This manual will help you with proper operation and care of the SW-1S/1C Series. Please keep it handy for future reference.

NAMES AND FUNCTIONS

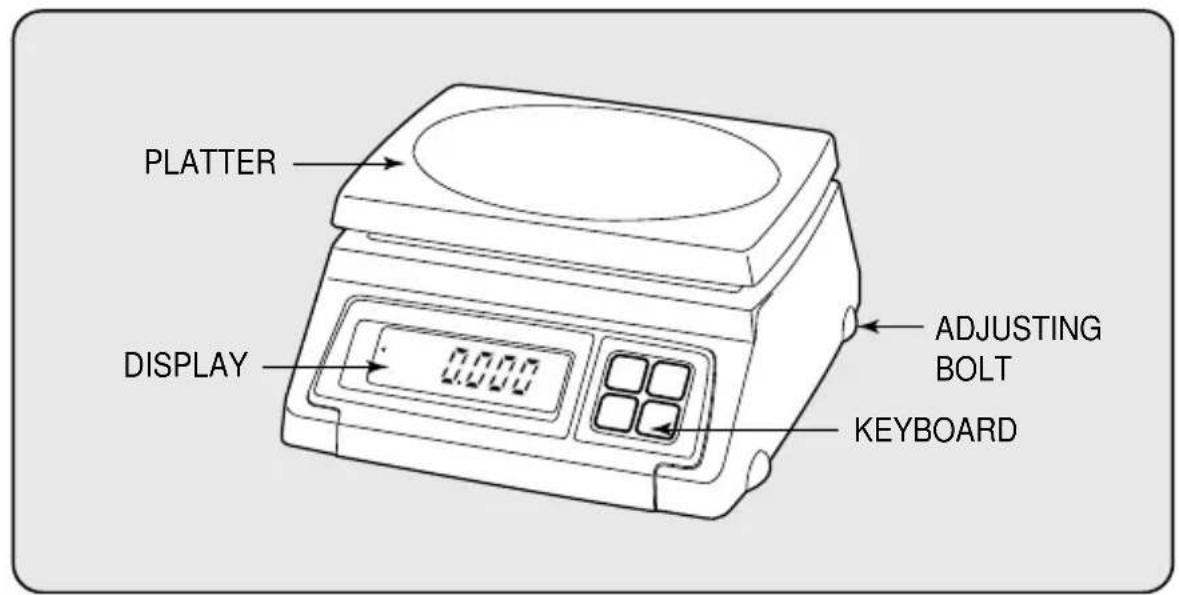

OVERALL VIEW

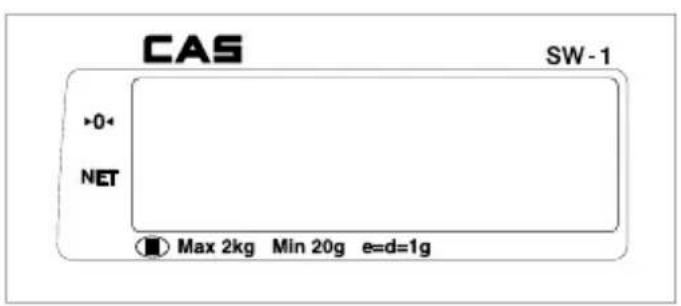

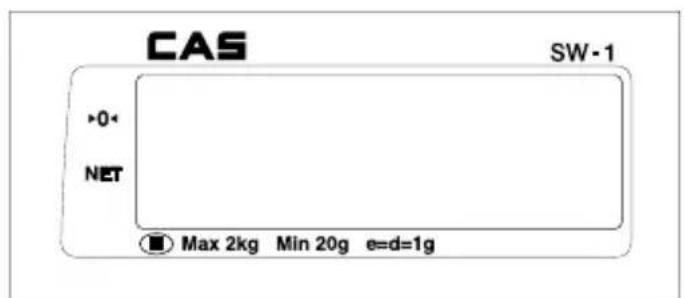

DISPLAY & KEYBOARD

SW-1S

859306-15-20 en ma 2012-07

KEY FUNCTIONS

KEYS FUNCTIONS
·0·	Used to set the zero point.
·T·	Used to input or cancel the weight of tare.
·H·	Used to make the weight of commodity stable. This weight is average value.
·①·	Used to turn on and off the scale.

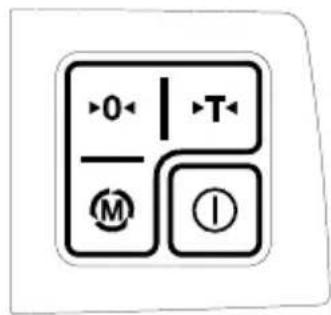

SW-1C

KEY FUNCTIONS

KEYS FUNCTIONS
0	Used to set the zero point.
T	Used to input or cancel the weight of tare.
M	Used to change the unit of weight, and shown as following sequence on the display. [Kg] [WL on or off] [PCS] [Kg]→
1	Used to turn on and off the scale.

OPERATIONS

• Turn on the display by pressing ① key. Then, the display will show all the segments and count up "0" to "9". You may stop this automatic counting by pressing the · 0· key.
• When you turn on the display, make sure that platter is empty. Otherwise, display will show "Err", an error of initial zero range. Please refer to "ERRORMESSAGE" section for more information on page 14.
• When the weight becomes stable the display shows the stable sign ( )con.

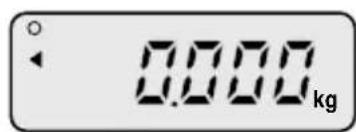

• You may need to make it "0.000" by pressing · 0· key unless the display indicate "0.000" under the empty platter.

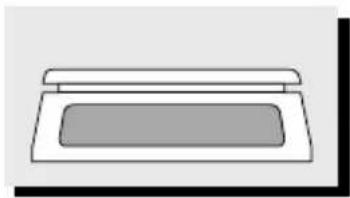

1. Simple Weighing Mode

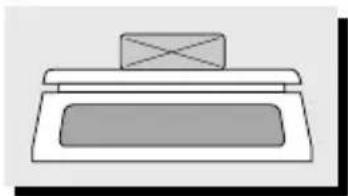

① Place a commodity on the platter.
② Remove the commodity from the platter.

2. Weighing with Tare

TARE means the weight of container being used for a commodity.
TARE key function is to subtract the weight of the container from full weight loaded.

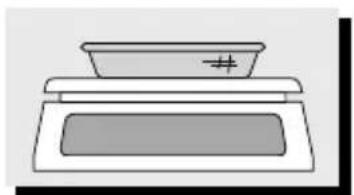

① Place a container on the platter.

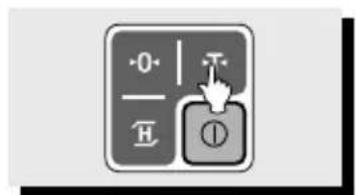

②Press the key.

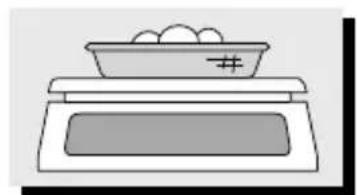

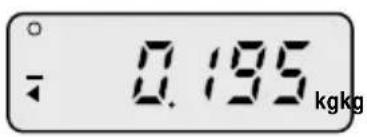

③ Place a commodity into the container, then the display will show only the weight of the commodity.

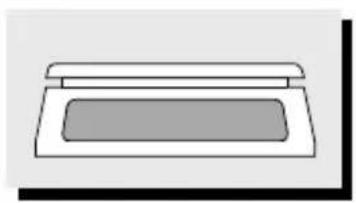

Remove container and commodity, then the display will show the weight of the container with "-" symbol.

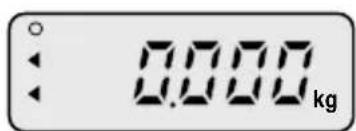

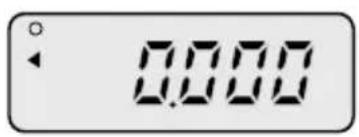

⑤ Press the key, then display will show the "0.000".

3. Changing Unit of Weight (kg, lb, oz)

• Press the key first. Holding it, press the key in the simple weighing mode. The display shows the "UnIt" shortly and then you may select kg, lb, or oz as the unit of weight.

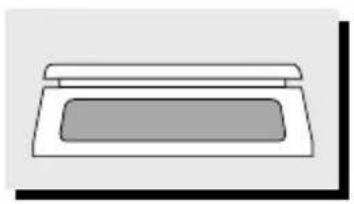

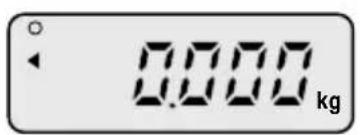

4. Hold Function (SW-1S only)

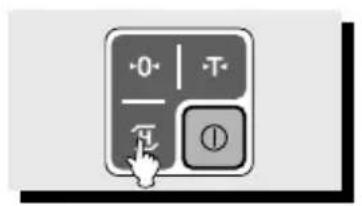

When the weight is unstable, press the key.

Remove the commodity from the platter, or press key again to exit from "HOLD" mode.

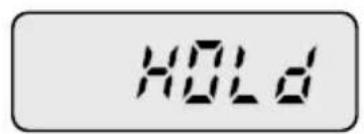

②Display will show the "HOLD" for a few seconds.

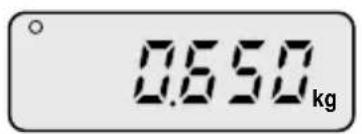

③ Then the display will show the average weight.

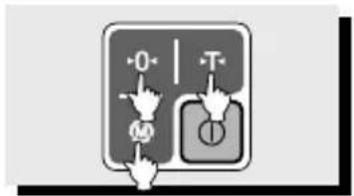

5. Comparator Function - HI / LOW Limit Setting (SW-1C only)

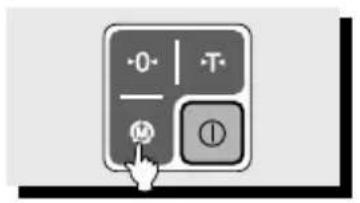

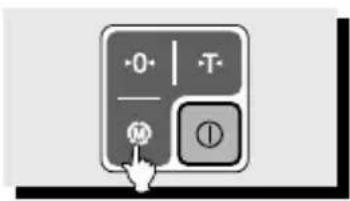

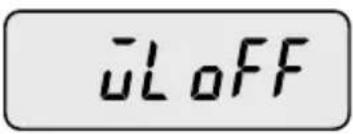

① Press the key until the display shows "WL OFF". "WL OFF" means that comparator function is not activated.

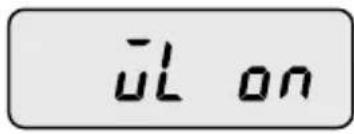

② Press key to activate this function. The display shows "WL ON".

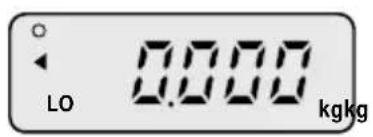

③ Press key once to set up the low limit. The display shows "0.000" and the first number flashes.

4 Press the key to have number increase. To move flash to next digit, press the key.

5 Press key to set up HIGH limit. The display shows "0.000" and you can change these numbers by pressing key. If you want to move to next digit you can go by pressing key.

If you set up HIGH limit you can go out by pressing · 0· key, and you can see "ENd" message shortly and "WL on" message on the display.

If you set up HIGH limit and LOW limit incorrectly, "Err" will be shown on the display. Then you may need to set it up again. For example, LOW LIMIT=2.990 kg and HIGH LIMIT=1.990 kg this is incorrect setting because HIGH limit is lower than the LOW limit. When HIGH and LOW limit are set as the same or above maximum capacity it still shows "Err" message.

If you want to go back to the simple weighing mode just press twice.

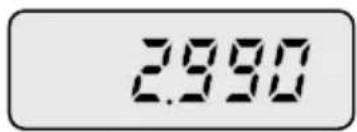

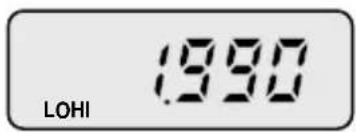

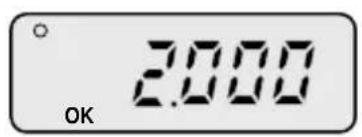

Suppose that the HIGH limit and LOW limit are set up as 2.990kg and 1,990kg respectively. If the weight loaded is 2kg between HIGH and LOW limit the display shows "OK" and the scale continues to beep slowly. If the weight loaded is above 2.990kg, HIGH limit, the scale continues to beep rapidly.

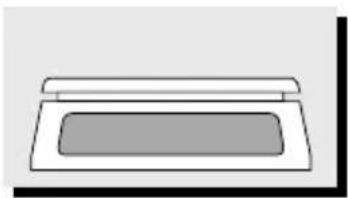

6. Counting Function (SW-1C only)

Counting without Tare

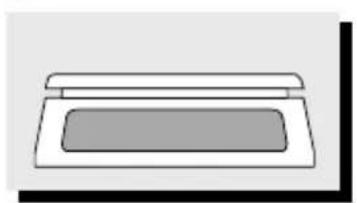

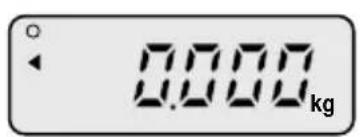

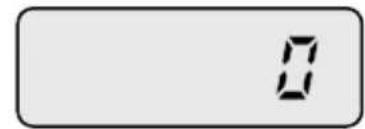

①Initial display as above.

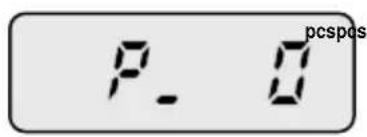

② Press twice to go to sample unit selection mode.

3 Press key to select the number of sample unit. You can select 10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 200, 300, 400, or 500 as a sample unit.

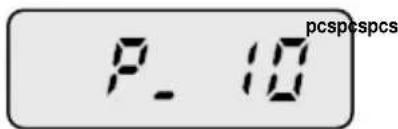

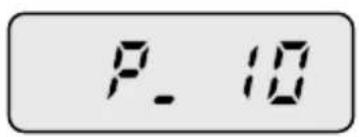

If you select "P_10" as a sample unit, then please put 10 sample units on the scale. Then press key to set sample units.

Put all of commodities you wish to count, and then check the number of pieces on display.

⑥ Remove all of commodities from the scale.

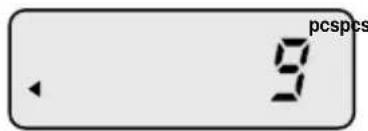

Counting with Tare

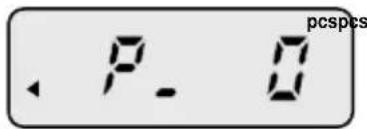

1 Press twice to go to sample unit selection mode. "PCS" is shown on the display, then press key to select the number of sample unit.

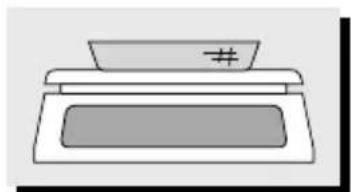

② Put the container on the scale and press key to set weight of tare.You can select 10,20,30,40,50, 60,70,80,90,100,200, 300,400,or 500 as a sample unit, by pressing key.

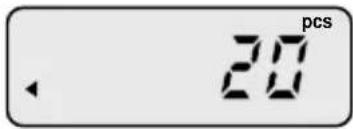

If the number of selected sample unit is 20, please put 20 sample units on the scale. Then press key to set unit weight.

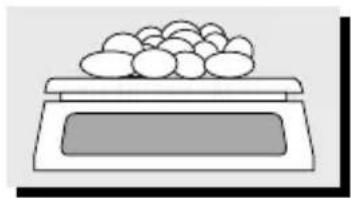

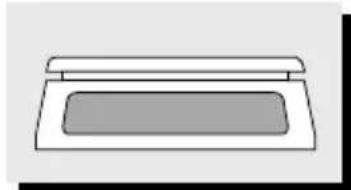

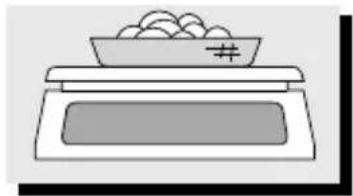

Put all of commodities you wish to count, and then count the number on display.

⑤ Remove all of commodities from the scale.

When you try to set the number of sample unit at the stage the display may show "LACK" message shortly. The result of counting may be incorrect in the following cases. a(unit weight 1/2 e* b.weight loaded 2 % of maximum weighting capacity.

7. How to Set Auto Power Off

Auto-Power off function is to automatically power off as time is set. This function is helpful to save battery, which is not in use. The following is the setting procedure of Auto-power off.

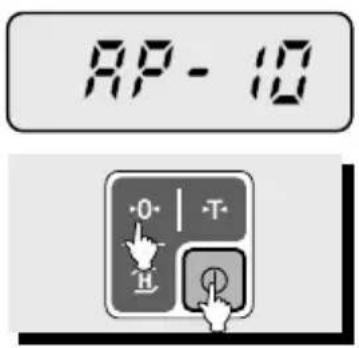

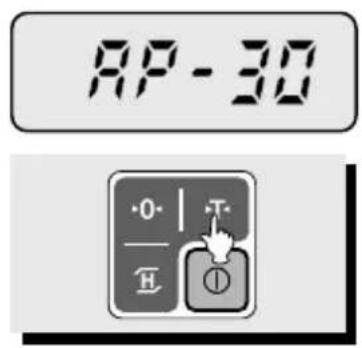

When the scale is turned off press key, holding 0 key. Then you will see the "AP-10".(If you have set this before, display will show previous value.)

② Press the key until the display shows the "AP-x0" that you wish to take. (Refer to TABLE 1.)

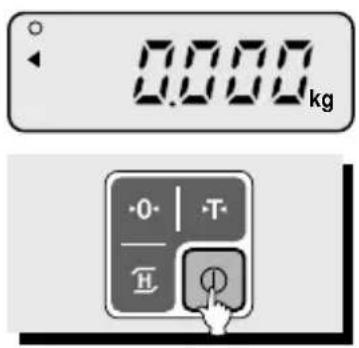

③ Press the key, and then the scale saves what you programmed and shows all the segments, counting up "0" to "9".

TABLE 1.

DISPLAY	FUNCTION
AP-00 This function does not automatically power off.
AP-10 This function does automatically power off when the scale is not in use for 10 minutes.
AP-20 This function does automatically power off when the scale is not in use for 20 minutes.
AP-30 This function does automatically power off when the scale is not in use for 30 minutes.

^ ^ value may be various on capacity of product model.

Please refer to "SPECIFICATION" on page 15. For example, a product model which capacity is 2.000kg has 1g as "e" value

BATTERY MAINTENACE

LOW BATTERY WARNING

When the battery is low the display shows the "BAT" sign.

You can replace the battery new one.

If you still use the scale without replacing the battery the scale may provide incorrect result on measurement.

ERRORMESSAGE

ERROR	REASONS	SOLUTIONS
Err	An error of the initial zero range	Set the platter empty.
Init	Problems on Analog Module	Try to turn OFF and ON the scale. Call your CAS dealer if still problems.
OFL	Overload on the platter	Remove it from the platter Do not put something exceeding maximum capacity on the platter
UNStA	Unstable conditions of scale	Make the scale stable conditions

SPECIFICATIONS (SW-1S/1C)

MODEL	SW1S/1C-02	SW1S/1C-05	SW1S/1C-10	SW1S/1C-20
Capacity / e	2kg/0.001kg5 lb/0.002 lb80oz/0.05oz	5kg /0.002kg10 lb/0.005 lb160oz/0.1oz	10kg/0.005kg20 lb/0.01lb400oz/0.2oz	20kg/0.01kg30 lb/0.02 lb800oz/0.5oz
Internal Resolution	1/20,000	1/25,000	1/20,000	1/20,000
External Resolution	1/2,000	1/2,500	1/2,000	1/2,000
Display	110 × 35[mm]/43" × 13.8" 5 digit LCD
Symbols	STABLE, ZERO, TARE, HI/OK/LO, PCS, g, kg, lb, oz, Low BatteryHI/OK/LO & PCS (SW-1C only)
Keys	ZERO, TARE, HOLD(SW-1S only), MODE(SW-1C only), POWER
Functions	WeighingHold Function (SW-1S only)Counting-Counting SampleRange : 10~100,200,300,400,500 (SW-1C only)Weight Comparison Function : hi, ok, low(SW-1C only)Weight Unit Conversion Function : kg, lb, oz
Dimensions	260(W) × 287(D) 137(H)[mm]/102(W) × 113(D) 54(H)[inch]
Platter size	230(W) × 190(D)[mm]/90.55(W) 74.80(D)[inch]
Weight	2.8kg
Power	1.5V × 6 units (D size Battery) or 9V Adapter
Battery Life	Approx. 800hours (Manganese battery)/1600hours (Alkaline at 20°C/68°F)
Operating Temperature	-10°C 40°C / 14°F 104°F
Option	9V Adapter 300mA, Rear Display, Stainless Tray

Notice: Specifications are subject to change for improvement without notice.
