USER MANUAL 226720NST MILWAUKEE

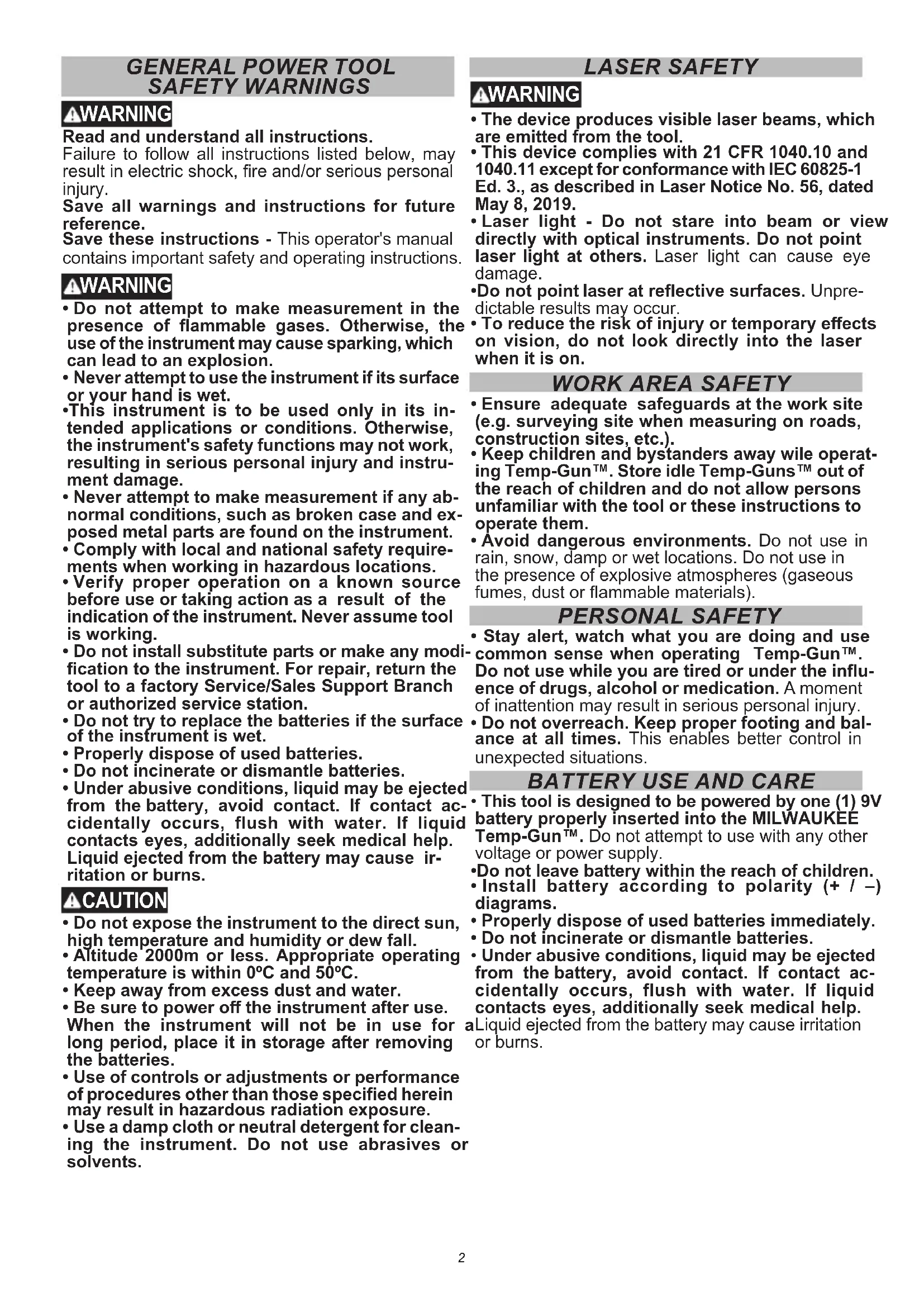

SAFETY WARNINGS WARNING Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, re and/or serious personal injury. Save all warnings and instructions for future reference. Save these instructions - This operator's manual contains important safety and operating instructions. WARNING

• Do not attempt to make measurement in the presence of ammable gases. Otherwise, the use of the instrument may cause sparking, which can lead to an explosion.

• Never attempt to use the instrument if its surface or your hand is wet.

• This instrument is to be used only in its in- tended applications or conditions. Otherwise, the instrument's safety functions may not work, resulting in serious personal injury and instru- ment damage.

• Never attempt to make measurement if any ab- normal conditions, such as broken case and ex- posed metal parts are found on the instrument.

• Comply with local and national safety require- ments when working in hazardous locations.

• Verify proper operation on a known source before use or taking action as a result of the indication of the instrument. Never assume tool is working.

• Do not install substitute parts or make any modi- cation to the instrument. For repair, return the tool to a factory Service/Sales Support Branch or authorized service station.

• Do not try to replace the batteries if the surface of the instrument is wet.

• Properly dispose of used batteries.

• Do not incinerate or dismantle batteries.

• Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact ac- cidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause ir- ritation or burns. CAUTION

• Do not expose the instrument to the direct sun, high temperature and humidity or dew fall.

• Altitude 2000m or less. Appropriate operating temperature is within 0ºC and 50ºC.

• Keep away from excess dust and water.

• Be sure to power o󰀨 the instrument after use. When the instrument will not be in use for a long period, place it in storage after removing the batteries.

• Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

• Use a damp cloth or neutral detergent for clean- ing the instrument. Do not use abrasives or solvents. LASER SAFETY WARNING

• The device produces visible laser beams, which are emitted from the tool.

• This device complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019.

• Laser light - Do not stare into beam or view directly with optical instruments. Do not point laser light at others. Laser light can cause eye damage.

• Do not point laser at reective surfaces. Unpre- dictable results may occur.

• To reduce the risk of injury or temporary e󰀨ects on vision, do not look directly into the laser when it is on.

• Ensure adequate safeguards at the work site (e.g. surveying site when measuring on roads, construction sites, etc.).

• Keep children and bystanders away wile operat- ing Temp-Gun™. Store idle Temp-Guns™ out of the reach of children and do not allow persons unfamiliar with the tool or these instructions to operate them.

• Avoid dangerous environments. Do not use in rain, snow, damp or wet locations. Do not use in the presence of explosive atmospheres (gaseous fumes, dust or ammable materials). PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating Temp-Gun™. Do not use while you are tired or under the inu- ence of drugs, alcohol or medication. A moment of inattention may result in serious personal injury.

• Do not overreach. Keep proper footing and bal- ance at all times. This enables better control in unexpected situations.

BATTERY USE AND CARE

• This tool is designed to be powered by one (1) 9V battery properly inserted into the MILWAUKEE Temp-Gun™. Do not attempt to use with any other voltage or power supply.

• Do not leave battery within the reach of children.

• Install battery according to polarity (+ / –) diagrams.

• Properly dispose of used batteries immediately.

• Do not incinerate or dismantle batteries.

• Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact ac- cidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.3 SYMBOLOGY Volts Direct Current LASER RADIATION

DO NOT STARE INTO BEAM

CLASS 2 LASER PRODUCT

To reduce the risk of injury, user must read operator's manual. SPECIFICATIONS Cat. No. ...................................... 2267-20, 2268-20 IR Temperature Range 2267-20 .............. -22°F to 752°F(-30°C to 400°C) 2268-20 ........... -22°F to 1022°F (-30°C to 550°C) IR Accuracy 2267-20 ................. -22°F to 0°F (-30°C to -18°C): ± 4°F (2.0°C) + 0.1°C / 1°C 0°F to 32°F(-18°C to 0°C): ± 5°F (2.5°C) 32°F to 752°F (0°C to 400°C): ± 4°F (2.0°C) or 2.0% of reading, whichever is greater 2268-20 ................. -22°F to 0°F (-30°C to -18°C): ± 4°F (2.0°C) + 0.1°C / 1°C 0°F to 50°F(-18°C to 10°C): ± 5°F (2.5°C) 50°F to 1022°F (10°C to 550°C): ± 4°F (1.8°C) or 1.8% of reading, whichever is greater *Assume ambient operating temperature of 70°F to 77°F (23°C ± 2°C) Repeatability .................. ± 0 . 8 % O R ± 2 ° F ( ± 1 ° C ) (whichever is greater) Temperature Display Resolution ............0.1°F/°C in Primary and Secondary EMC ...............FCC15B, CAN ICES-3(B)-NMB-3(B) Distance to Spot (90% energy) 2267-20 ......................................................10 to 1 2268-20 ......................................................12 to 1 Emissivity ........................................................0.95 Response Time ...................................< 500 msec Spectral Response ............................... 8 to 14µm Indoor Use Drop Rating .......................................... 6.5 ft (2 m) Laser Class ..........................................................II (Complies with 21 CFR 140.10 and 1040.11) Max Average Power (P AVG ) ......................... ≤ 1mW Wavelength ........................................ 630-670 nm Operating Temperature .................. 32°F to 122°F (0°C to 50°C) Storage Temperature ....................... -4°F to 140°F (-20°C to 60°C) without battery Maximum Relative Humidity .............80% RH for temperatures up to 88°F (31°C), decreasing linearly to 50% RH at 104°F (40°C) Polution Degree ...................................................2 Altitude ...............................Up to 6561 ft (2000 m) Battery .......9V DC, PP3, IEC 6LR61, ANSI 1604A Battery Life ............................. Greater than 12 hrs with all functions NOTE: 2267-20 and 2268-20 may not meet its stated accuracy when exposed to 330-600MHz at 3V/m. SERVICE

• Have your Temp-Gun™ serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the tool is maintained.

• Do not disassemble. Incorrect reassembly may result in the risk of electric shock or re. If it is dam- aged, take it to a MILWAUKEE service facility.

• Store in a cool, dry place. Do not store where temperatures may exceed 140°F (60°C) such as in direct sunlight, a vehicle or metal building during the summer.

• Do not remove or deface labels. Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a replacement. Federal Communications Commission Pursuant to part 15.21 of the FCC Rules, you are cautioned that changes or modications not expressly approved by the party responsible for compliance could void your authority to operate the product. This equipment has been tested and found to comply with the limits for a Class B digital device, pursu- ant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harm- ful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o󰀨 and on, the user is encouraged to try to correct the interference by one or more of the fol- lowing measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit di󰀨erent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.4 ASSEMBLY Loading/Changing the Battery

1. Using a at screwdriver,

rotate the battery door lock to the unlocked position and open the battery door.

2. Connect one (1) 9V battery

to the connector block. Fit the battery into the com- partment.

3. Close the battery door.

Turn the battery door lock to the locked position. Selecting Celsius or Fahrenheit To set the temperature scale, pull the trigger and then press the SET button three times. Press the buttons above the up and down arrows to toggle between °C and °F. Wait 5 seconds for the setting to save and exit. Setting the Laser To turn the laser on and o󰀨, pull the trigger and then press the SET button four times. Press the buttons above the up and down arrows to toggle between ON and OFF. Wait 5 seconds for the setting to save and exit. OPERATION Scanning Object Temperature

1. Pull and hold the trigger for at least 2 seconds

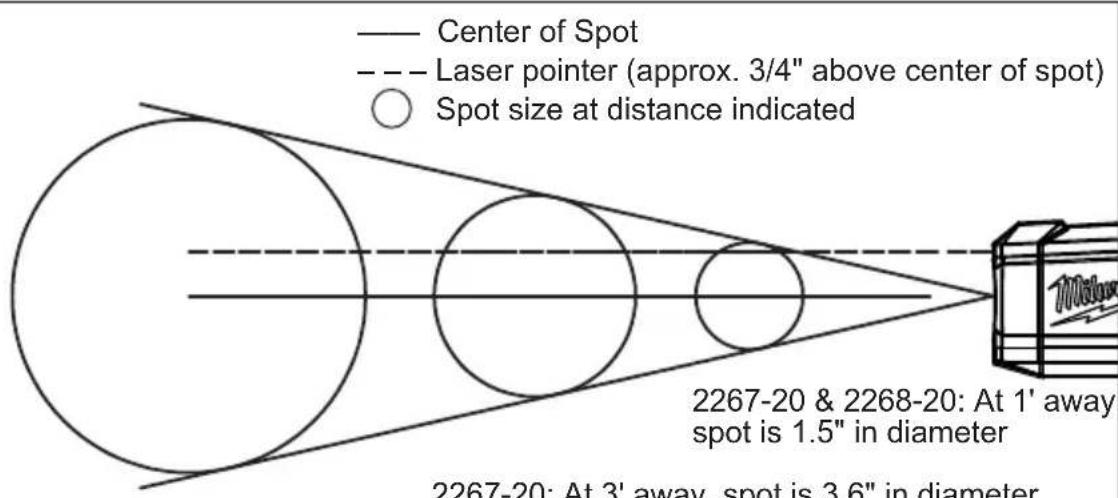

and scan the surface temperature of an object. A laser pointer is used for aiming on the area being scanned. NOTE: The object should be larger than the spot being scanned. If not, readings will be a󰀨ected. See Dis- tance To Spot for necessary object size.

2. As you continue to hold the trigger,

the icon is displayed along with the primary measurement (surface temperature) and secondary mea- surement (maximum, minimum, average, or di󰀨erential tempera- ture) readings.

3. Release the trigger. HOLD is

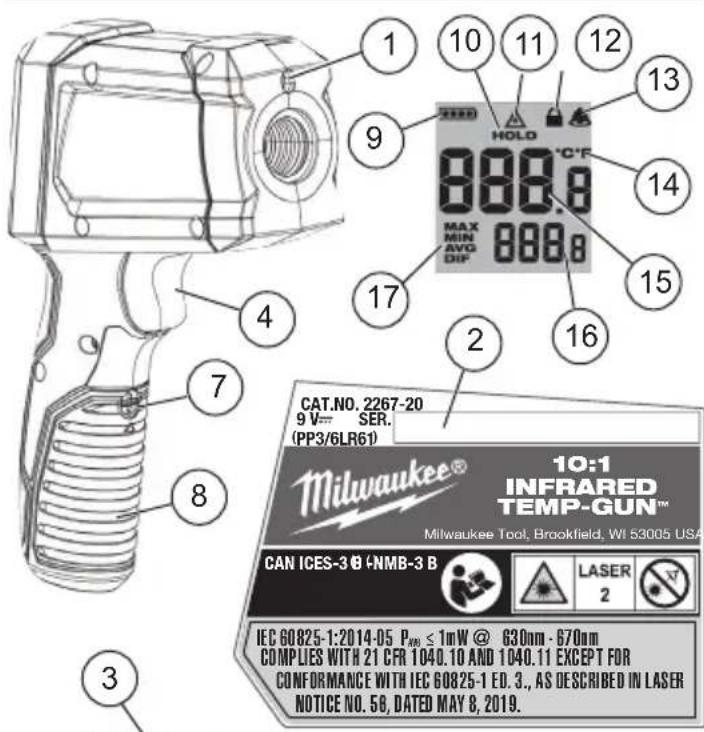

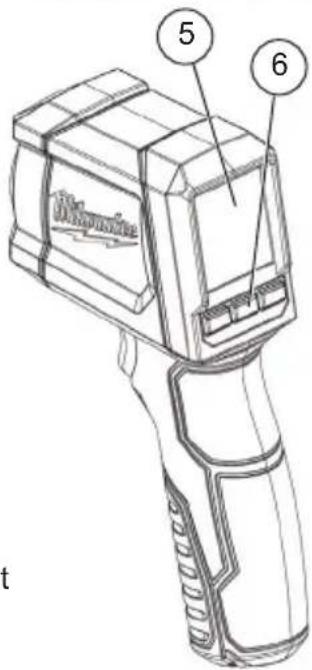

displayed until the screen shuts o󰀨 in about ten seconds. Setting the Trigger Lock To turn the trigger lock on and o󰀨, pull the trigger and then press the SET button ve times. Press the buttons above the up and down arrows to toggle between ON and OFF. Wait 5 seconds for the setting to save and exit. Temperature Alarm Press the ALARM button to turn on the alarm function. The bell icon is displayed. If the temperature reading is outside the preset range, the tem- perature reading will ash. FUNCTIONAL DESCRIPTION

15. Primary measurement

16. Secondary measurement

Setting Preset Range for the Alarm

1. To set the alarm range, pull the

trigger and then press the SET button. Repeat to toggle between HI and LO settings.

2. Press the up or down arrow soft

keys to toggle between tempera- tures. Wait 5 seconds for the ranges to save and exit. Low Battery When the Low Battery icon is dis- played, change the battery. Mode Description MAX Displays maximum temperature measured during a continuous reading MIN Displays minimum temperature measured during a continuous reading AVG Displays average temperature of last 20 measurements during a continuous reading DIF Displays the di󰀨erence between MAX and MIN during a continuous reading MAINTENANCE WARNING To reduce the risk of injury, always remove the batteries from the tool before performing any maintenance. Never disas- semble the tool. Contact a MILWAUKEE service facility for ALL repairs. Maintaining Tool Keep your tool in good repair by adopting a regular maintenance program. After one year, it is recom- mended to return the tool to a MILWAUKEE service facility for calibration. If the tool does not start or operate at full power with fully charged batteries, clean the contacts on the bat- tery door. If the tool still does not work properly, return the tool to a MILWAUKEE service facility for repair. WARNING To reduce the risk of personal in- jury and damage, never immerse your tool in liquid or allow a liquid to ow inside them. Cleaning Clean dust and debris from any vents. Keep tool clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain clean- ing agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household deter- gents containing ammonia. Never use ammable or combustible solvents around tools. Cleaning the Lense Blow off loose particles with clean compressed air. Carefully wipe the surface with a cotton swab moistened with water. Using a second cotton swab, dry completely. Repairs For repairs, return the tool, battery pack and charger to the nearest authorized service center. ACCESSORIES WARNING Use tools only with specifically designated accessories. Use of any other accessories may create risk of injury. Distance to Spot: 10:1 (2267-20) 12:1 (2268-20) —— Center of Spot – – – Laser pointer (approx. 3/4" above center of spot) Spot size at distance indicated 2267-20: At 5' away, spot is 6" in diameter 2268-20: At 5' away, spot is 5" in diameter 2267-20: At 3' away, spot is 3.6" in diameter 2268-20: At 3' away, spot is 3" in diameter 2267-20 & 2268-20: At 1' away, spot is 1.5" in diameter NOTE: A quick change in temperature (>10°F) a󰀨ects the meter’s readings. Allow the meter to reach ambient temperature before use (5 to 30 minutes, depending on temperature change).6

SERVICE - UNITED STATES

1-800-SAWDUST (1.800.729.3878) Monday-Friday, 7:00 AM - 6:30 PM CST or visit www.milwaukeetool.com Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions. Email: [e-mail] Become a Heavy Duty Club Member at www.milwaukeetool.com to receive important notications regarding your tool purchases.

Monday-Friday, 7:00 AM - 4:30 PM CST or visit www.milwaukeetool.ca LIMITED WARRANTY USA & CANADA MILWAUKEE Test & Measurement Product (including bare tool, M12™ battery pack(s) and battery charger) is warranted to the original pur- chaser from an authorized MILWAUKEE distributor only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on this product which, after examination, is determined by MILWAUKEE to be defective in material or workmanship for a period of ve (5) years* after the date of purchase. Return of the Test & Measurement tool to the nearest Milwaukee Electric Tool Corporation - factory Service Center, freight prepaid and insured is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents.

• See separate & distinct CORDLESS BATTERY PACK LIMITED WARRANTY statement for the warranty period of the LITHIUM-ION battery pack that ships with Test & Measurement Product. *Alkaline battery that ships with Test & Measurement Product is separately warranted by the alkaline battery manufacturer. *The warranty period for a Voltage Detector with Work Light – 2201- 20, Voltage Detector with LED – 2202-20 or M12™ 2-Beam Plumb Laser – 2230-20 is one (1) year from the date of purchase. Warranty Registration is not necessary to obtain the applicable war- ranty on MILWAUKEE product. The manufacturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time warranty service is requested. ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CON- TRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CON- SEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EX- CLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS

ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION

Monday-Friday, 7:00 AM - 4:30 PM CST www.milwaukeetool.ca

• This instrument is to be used only in its in- tended applications or conditions. Otherwise, the instrument's safety functions may not work, resulting in serious personal injury and instru- ment damage.
