USER MANUAL Infrared TempGun 226820NST MILWAUKEE

Cat. No./No de Cat. 2267-20,2268-20

INFRARED TEMP-GUNSTM TEMP-GUNSTM À INFRAROUGE TERMÔMETROS INFRARROJOS TEMP-GUNSTM

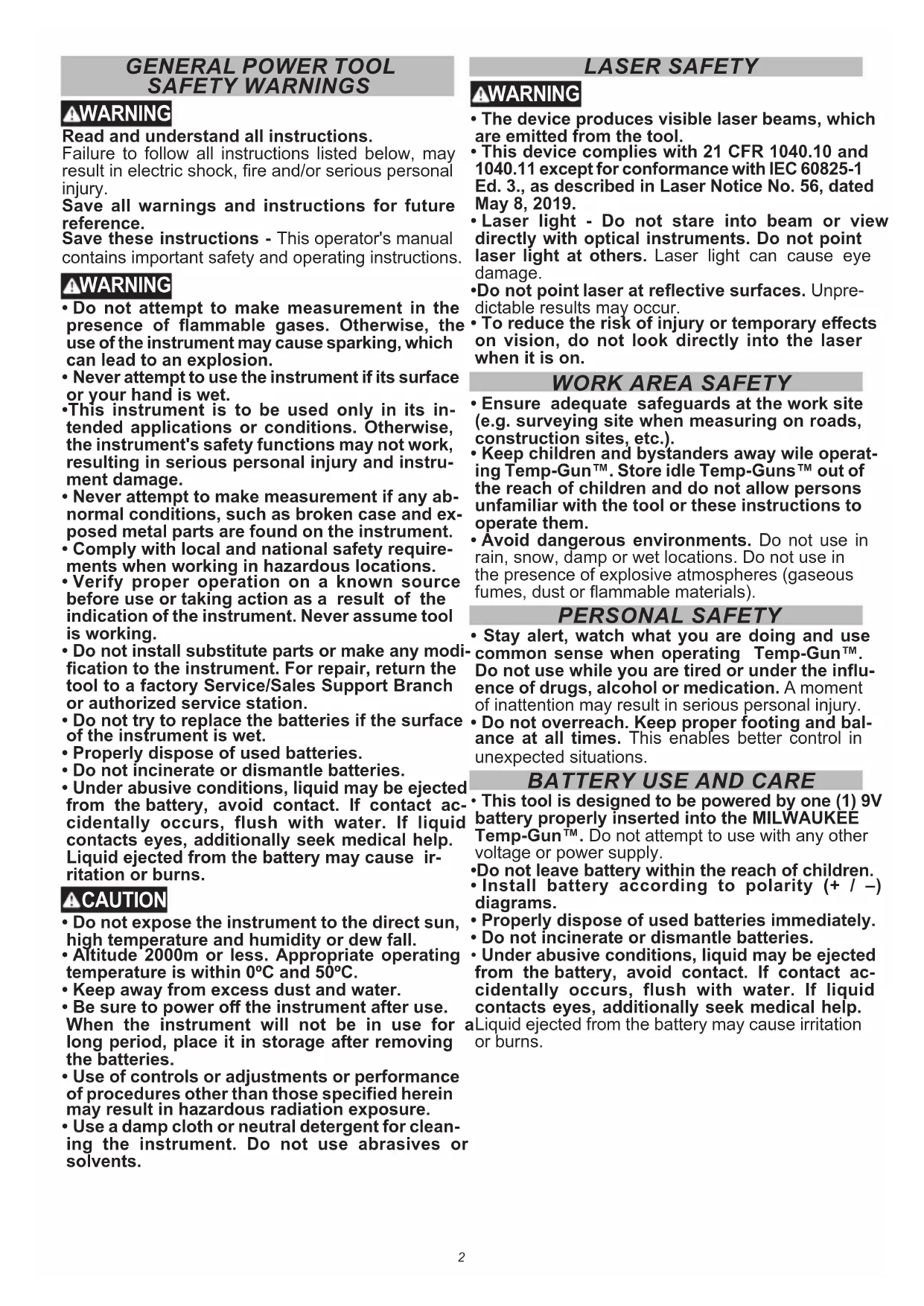

GENERAL POWER TOOL SAFETYWARNINGS

LASER SAFETY

WARNING

Read and understand all instructions.

Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.

Save all warnings and instructions for future reference.

Save these instructions - This operator's manual contains important safety and operating instructions.

WARNING

• Do not attempt to make measurement in the presence of flammable gases. Otherwise, the use of the instrument may cause sparking, which can lead to an explosion.
• Never attempt to use the instrument if its surface or your hand is wet.
  This instrument is to be used only in its intended applications or conditions. Otherwise, the instrument's safety functions may not work, resulting in serious personal injury and instrument damage.
• Never attempt to make measurement if any abnormal conditions, such as broken case and exposed metal parts are found on the instrument.
• Comply with local and national safety requirements when working in hazardous locations.
• Verify proper operation on a known source before use or taking action as a result of the indication of the instrument. Never assume tool is working.
• Do not install substitute parts or make any modification to the instrument. For repair, return the tool to a factory Service/Sales Support Branch or authorized service station.
• Do not try to replace the batteries if the surface of the instrument is wet.
• Properly dispose of used batteries.
• Do not incinerate or dismantle batteries.
• Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

CAUTION

• Do not expose the instrument to the direct sun, high temperature and humidity or dew fall.
• Altitude 2000m or less. Appropriate operating temperature is within 0^ and 50^ .
• Keep away from excess dust and water.
• Be sure to power off the instrument after use.
  When the instrument will not be in use for long period, place it in storage after removing the batteries.
• Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
• Use a damp cloth or neutral detergent for cleaning the instrument. Do not use abrasives or solvents.

WARNING

The device produces visible laser beams, which are emitted from the tool.
This device complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed.3., as described in Laser Notice No.56, dated May 8, 2019.
- Laser light - Do not stare into beam or view directly with optical instruments. Do not point laser light at others. Laser light can cause eye damage.
- Do not point laser at reflective surfaces. Unpredictable results may occur.
- To reduce the risk of injury or temporary effects on vision, do not look directly into the laser when it is on.

WORK AREA SAFETY

• Ensure adequate safeguards at the work site (e.g. surveying site when measuring on roads, construction sites, etc.).
• Keep children and bystanders away wile operating Temp-Gun™. Store idle Temp-Guns™ out of the reach of children and do not allow persons unfamiliar with the tool or these instructions to operate them.
• Avoid dangerous environments. Do not use in rain, snow, damp or wet locations. Do not use in the presence of explosive atmospheres (gaseous fumes, dust or flammable materials).

PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating Temp-Gun™. Do not use while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention may result in serious personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control in unexpected situations.

BATTERY USE AND CARE

• This tool is designed to be powered by one (1) 9V battery properly inserted into the MILWAUKEE Temp-Gun™. Do not attempt to use with any other voltage or power supply.
• Do not leave battery within the reach of children.
• Install battery according to polarity (+/−) diagrams.
• Properly dispose of used batteries immediately.
• Do not incinerate or dismantle batteries.
• Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
  aLiquid ejected from the battery may cause irritation or burns.

SERVICE

• Have your Temp-Gun™ serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the tool is maintained.
  -Do not disassemble. Incorrect reassembly may result in the risk of electric shock or fire. If it is damaged, take it to a MILWAUKEE service facility.
  -Store in a cool, dry place. Do not store where temperatures may exceed 140^ (60^) such as in direct sunlight, a vehicle or metal building during the summer.
  -Do not remove or deface labels. Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a replacement.

Federal Communications Commission Pursuant to part 15.21 of the FCC Rules, you are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the product.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

SYMBOLOGY

Volts

Direct Current

LASER RADIATION DO NOT STARE INTO BEAM OR PRODUCT

To reduce the risk of injury, read operator's manual.

SPECIFICATIONS

Cat. No. 2267-20, 2268-20

IR Temperature Range

2267-20 -22°F to 752°F(-30°C to 400°C)
2268-20 -22°F to 1022°F (-30°C to 550°C)

IR Accuracy

2267-20 -22°F to 0°F (-30°C to -18°C):

± 4^(2.0^) + 0.1^ / 1^

0^ to 32^(-18^ to 0^) ± 5^(2.5^)

32^ to 752^ (0^ to 400^) : ± 4^ (2.0^)

or 2.0% of reading, whichever is greater

2268-20 -22°F to 0°F (-30°C to -18°C):

± 4^(2.0^) + 0.1^ / 1^

0^ to 50^(-18^ to 10^) : ± 5^ (2.5°C)

50^ to 1022^ (10^ to 550^) : ± 4^ (1.8^)

or 1.8% of reading, whichever is greater

*Assume ambient operating temperature

of 70^ to 77^ (23^± 2^)

Repeatability. ± 0.8% OR ± 2^ (± 1^)

whichever is greater)

Temperature Display Resolution.0.1°F/°C in Primary and Secondary

EMC.FCC15B, CAN ICES-3(B)-NMB-3(B)

Distance to Spot (90% energy)

2267-20 10 to 1
2268-20 12 to 1

Emissivity 0.95

Response Time. < 500 msec

Spectral Response 8 to 14 m

Indoor Use

Drop Rating 6.5 ft (2 m)

Laser Class

(Complies with 21 CFR 140.10 and 1040.11)

Max Average Power (P_AVG) . 1mW

Wavelength 630-670 nm

Operating Temperature 32°F to 122°F

(0^ to 50^)

Storage Temperature. -4°F to 140°F

(-20^ to 60^) without battery

Maximum Relative

Humidity 80% RH for temperatures up to

88^ (31^) decreasing linearly to

50% RH at 104°F (40°C)

Solution Degree 2

Altitude Up to 6561 ft (2000 m)

Battery.....9V DC, PP3, IEC 6LR61, ANSI 1604A

Battery Life. Greater than 12 hrs

with all functions

NOTE: 2267-20 and 2268-20 may not meet its stated accuracy when exposed to 330-600MHz at 3V / m

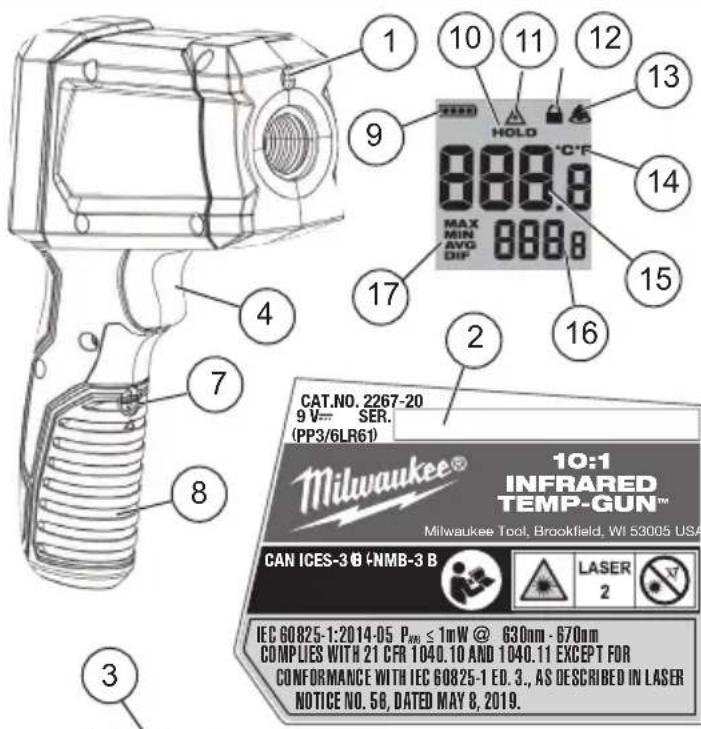

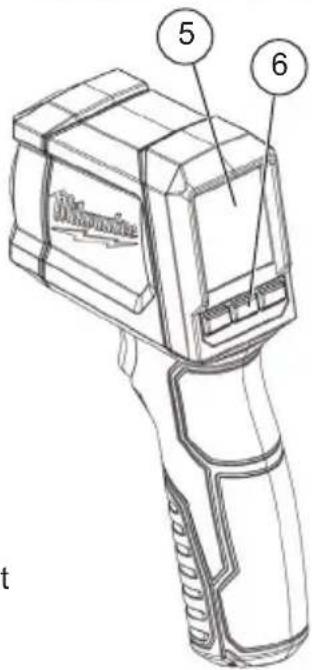

1. Laser window
2. 2267-20 nameplate
   3.2268-20 nameplate
3. Trigger
4. Display
5. Mode/Set/Alarm buttons
6. Battery door lock
7. Battery door
8. Battery indicator
   10.Hold indicator
9. Laser active indicator
10. Trigger lock indicator
11. Alarm indicator
12. ^ C or ^ F indicator
13. Primary measurement
14. Secondary measurement
    17.Mode indicator

Loading/Changing the Battery

1. Using a flat screwdriver, rotate the battery door lock to the unlocked position and open the battery door.
2. Connect one (1) 9V battery to the connector block. Fit the battery into the compartment.
3. Close the battery door. Turn the battery door lock to the locked position.

Selecting Celsius or Fahrenheit

To set the temperature scale, pull the trigger and then press the SET button three times. Press the buttons above the up and down arrows to toggle between ^ C and ^ F . Wait 5 seconds for the setting to save and exit.

Setting the Laser

To turn the laser on and off, pull the trigger and then press the SET button four times. Press the buttons above the up and down arrows to toggle between ON and OFF. Wait 5 seconds for the setting to save and exit.

OPERATION

Scanning Object Temperature

1. Pull and hold the trigger for at least 2 seconds and scan the surface temperature of an object. A laser pointer is used for aiming on the area being scanned.

NOTE: The object should be larger than the spot being scanned. If not, readings will be affected. See Distance To Spot for necessary object size.
2. As you continue to hold the trigger, the icon is displayed along with the primary measurement (surface temperature) and secondary measurement (maximum, minimum, average, or differential temperature) readings.
3. Release the trigger. HOLD is displayed until the screen shuts off seconds.

Setting the Trigger Lock

To turn the trigger lock on and off, pull the trigger and then press the SET button five times. Press the buttons above the up and down arrows to toggle between ON and OFF. Wait 5 seconds for the setting to save and exit.

Temperature Alarm

Press the ALARM button to turn on the alarm function. The bell icon is displayed. If the temperature reading is outside the preset range, the temperature reading will flash.

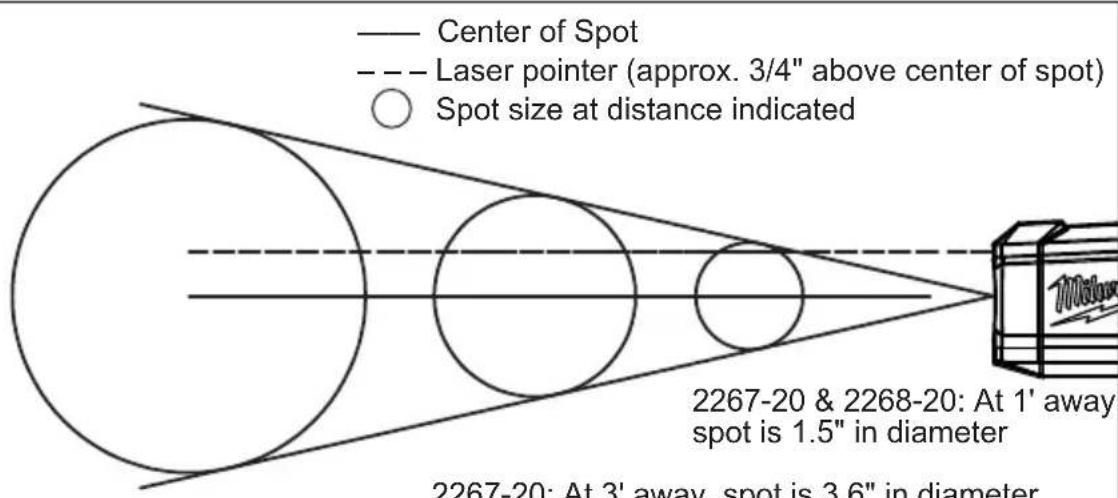

Distance to Spot: 10:1 (2267-20) 12:1 (2268-20)

NOTE: A quick change in temperature (>10^) affects the meter's readings. Allow the meter to reach ambient temperature before use (5 to 30 minutes, depending on temperature change).

2267-20: At 3' away, spot is 3.6" in diameter
2268-20: At 3' away, spot is 3" in diameter

2267-20: At 5' away, spot is 6" in diameter
2268-20: At 5' away, spot is 5" in diameter

Setting Preset Range for the Alarm

1. To set the alarm range, pull t trigger and then press the SE button. Repeat to toggle between HI and LO settings.

2. Press the up or down arrow soft keys to toggle between temperatures. Wait 5 seconds for the ranges to save and exit.

Low Battery

When the Low Battery icon is displayed, change the battery.

Mode	Description
MAX	Displays maximum temperature measured during a continuous reading
MIN	Displays minimum temperature measured during a continuous reading
AVG	Displays average temperature of last 20 measurements during a continuous reading
DIF	Displays the difference between MAX and MIN during a continuous reading

MAINTENANCE

WARNING To reduce the risk of injury, always remove the batteries from the tool before performing any maintenance. Never disassemble the tool. Contact a MILWAUKEE service facility for ALL repairs.

Maintaining Tool

Keep your tool in good repair by adopting a regular maintenance program. After one year, it is recommended to return the tool to a MILWAUKEE service facility for calibration.

If the tool does not start or operate at full power with fully charged batteries, clean the contacts on the battery door. If the tool still does not work properly, return the tool to a MILWAUKEE service facility for repair.

WARNING To reduce the risk of personal injury and damage, never immerse your tool in liquid or allow a liquid to flow inside them.

Cleaning

Clean dust and debris from any vents. Keep tool clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household detergents containing ammonia. Never use flammable or combustible solvents around tools.

Cleaning the Lense

Blow off loose particles with clean compressed air. Carefully wipe the surface with a cotton swab moistened with water. Using a second cotton swab, dry completely.

Repairs

For repairs, return the tool, battery pack and charger to the nearest authorized service center.

ACCESSIONS

WARNING Use tools only with specifically designated accessories. Use of any other accessories may create risk of injury.

Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions.

Email: [e-mail]

Become a Heavy Duty Club Member at www.milwaukeetool.com to receive important notifications regarding your tool purchases.

SERVICE - CANADA

Milwaukee Tool (Canada) Ltd 1.877.948.2360

Monday-Friday, 7:00 AM - 4:30 PM CST
