Product Type	Garage door control kit with Internet connectivity (myQ)
Brand	Chamberlain
Model	041A79283MC
Kit contents	myQ control panel (model 41A7928-3) and Chamberlain CIGBU Internet gateway
Control panel power supply	7-28 V DC via low-voltage wires from the opener
Internet gateway power supply	100-240 V AC via power adapter (includes Ethernet cable)
Compatibility	Chamberlain Security+™ openers (1998 to present); not compatible with Security+ 2.0™
myQ communication frequency	900 MHz
Main functions	Push bar open/close, light control, motion sensor, Timer-to-Close (TTC), lock, programming of remote controls and keypads, control via myQ app
Maximum number of programmable accessories	12 Security+ 2.0™ remote controls, 2 remote lockout devices, 16 myQ accessories (combination)
Opener light	Activation by motion sensor or LIGHT button; adjustable duration from 1½ to 4½ minutes
Timer-to-Close (TTC)	Automatic closing after 1, 5, or 10 minutes; can be temporarily disabled
Remote control	Via myQ app on smartphone (iOS/Android) or mychamberlain.com website
Internet connection required for gateway	Ethernet RJ45 (Wi-Fi adapter not included if needed)
Minimum installation height	1.5 m from the floor, out of reach of children
Important safety instructions	Turn off power before installation; do not use on rigid or swinging doors; always watch the door until completely closed
Maintenance	Clean with a soft dry cloth; do not use chemical or abrasive products
Spare parts / Repairability	No user-serviceable parts; contact customer service for any intervention
Warranty	1-year limited (defects in materials and workmanship)
Customer service	1-800-528-9131 (toll-free); www.chamberlain.com
Certifications	FCC Part 15, IC RSS-210, Class B (NMB-003 Canada)

Frequently Asked Questions - 041A79283MC CHAMBERLAIN

How to install the myQ control panel?

First, cut the power to the opener. Remove the old wall control, noting the polarity of the wires (red and white). Connect the wires of the new panel to the corresponding terminals (red to red, white to white). Mount the panel on the wall at least 1.5 m high. Restore power: the yellow LED flashes during charging (up to 5 minutes), then stays on. Test by pressing the push bar.

Is my opener compatible with this control panel?

The myQ control panel is compatible with Chamberlain Security+™ openers manufactured between 1998 and present. It is NOT compatible with Security+ 2.0™ models. If the yellow and red LEDs flash slowly, the opener is not compatible.

How to program a remote control on the control panel?

Press the LEARN button on the control panel twice (the red LED lights up). Then press the button on the desired remote control. The opener light flashes (or two clicks are heard) to confirm programming. You can program up to 12 Security+ 2.0 remote controls.

How to activate the lock function (LOCK)?

Press and hold the LOCK button for 2 seconds. The control LED flashes to indicate that the lock is active. In locked mode, portable remote controls cannot operate the door (except Chamberlain keypads). To deactivate, repeat the operation.

The Timer-to-Close (TTC) is not working, what to do?

Make sure the safety reversing sensors are properly installed and aligned. If the door encounters two consecutive obstructions, the TTC function disables. Also check that the door is not a rigid or swinging door (TTC incompatible). To reactivate TTC, press ON until an LED lights up, then press again to select the interval.

How to connect the Chamberlain Internet gateway to Wi-Fi?

The Internet gateway requires a wired Ethernet connection via an RJ45 cable. If you only have a Wi-Fi signal, you must use a wireless Ethernet adapter (not included). Plug the gateway into the power outlet: the green LED stays solid when the Internet connection is established. Create an account on www.mychamberlain.com (from a computer) and register the gateway with its serial number.

Can I control my garage door from my smartphone?

Yes, after installing the Chamberlain Internet gateway and creating a myQ account, download the myQ app from the App Store or Google Play. You can then open/close the door, monitor its status, and schedule alerts. Make sure the control panel is programmed to the gateway (follow the steps in the manual).

What to do if the yellow LED on the control panel does not light up?

Check the wiring: the red and white wires must be connected to the corresponding terminals. If necessary, reverse the wires. If the problem persists, replace the wires with appropriate gauge wires. If the yellow and red LEDs flash slowly, the opener is not compatible. If they flash quickly, the panel is charging (wait up to 5 minutes).

How to erase all remote control codes from memory?

Press and hold the LEARN button on the garage door opener (not the control panel) for about 6 seconds until the LED turns off. All remote controls and remote lockout devices are erased. To also erase myQ accessories, repeat the operation immediately after (press again for 6 seconds).

What to do if my myQ app cannot connect?

Check that the Internet gateway is properly plugged in and its green LED is solid. If the green LED flashes, the gateway has an IP address but cannot access the Internet: check your router and connection. If the LED is off, the router is not assigning an IP address. Also make sure the control panel is properly programmed to the gateway (see manual). Contact customer service if necessary.

USER MANUAL 041A79283MC CHAMBERLAIN

This kit includes the myQ® Control Panel model 41A7928-3 and the Chamberlain® Internet Gateway model CIGBU. The myQ Control Panel is intended to be installed with Security:™ Garage Door Openers manufactured between 1998 and present. The myQ Control Panel is NOT compatible with Security: 2.0^TM Garage Door Openers. DO NOT install this door control on garage door opener systems controlling one-piece or swing doors.

OVERVIEW

The myQ Control Panel offers a quick and convenient way to add Security ^+ 2.0^TM and myQ technology to your existing garage door opener. myQ technology uses a 900MHz signal to provide two-way communication between the garage door opener and myQ enabled accessories. When programmed to the Chamberlain® Internet Gateway you can monitor and control your garage door from any internet enabled computer or smartphone. You may program up to 12 Security ^+ 2.0^TM remote controls, 2 Security ^+ 2.0^TM keyless entries and a combination of 16 myQ accessories to the myQ control panel. For full compatibility, see page 4.

INSTALL THE myQ CONTROL PANEL

Install the control panel in place of the existing door control. Due to power consumption the control panel cannot be used in conjunction with another wired door control connected to your garage door opener. If an additional door control is needed, the wireless door control model 41A7773-1 can be programmed to the control panel. To program the 41A7773-1 to the control panel, follow the remote control programming steps. When in battery backup mode, any feature using unattended operation such as Timer-to-Close, closure from a garage door and gate monitor or remote operation utilizing the Chamberlain® Internet Gateway will be disabled.

1. Disconnect all electrical and battery power (if applicable) to the garage door opener.
2. Remove the existing door control from the wall.

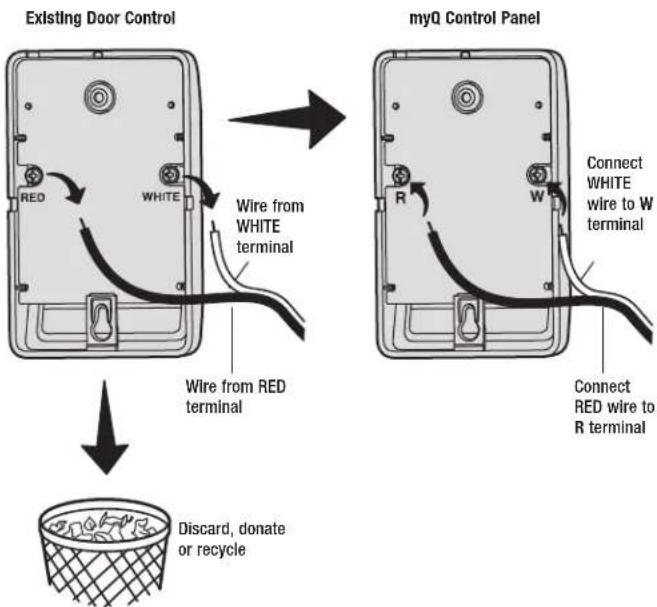

3. Note the polarity of the wires connected to the existing door control.

4. Label the wire connected to the RED terminal.

5. Label the wire connected to the WHITE terminal.

Disconnect the wires from the existing door control.

1. Connect the wires to the new myQ Control Panel. Make sure the polarity is correct.
   Red wire to the R terminal.

2. White wire to the W terminal.

3. Mount the control panel to the wall.

4. Reconnect power. The yellow command LED and the red learn LED will blink quickly for up to 5 minutes as the control panel recharges. When the control panel is operational, the yellow command LED will glow steadily.

5. To test the control panel, press the push bar to activate the garage door opener.

TROUBLESHOOTING

• If the yellow command LED does not turn on, reverse the wires connected to the R and W terminals of the control panel. Replace wire if necessary.
• If yellow and red LEDs are blinking slowly, the control panel is not compatible with your garage door opener.
• If the yellow and red LEDs are blinking quickly, the control panel is charging, and may take up to 5 minutes to become operational.

WARNING

To prevent possible SERIOUS INJURY or DEATH from electrocution:

• Be sure power is NOT connected BEFORE installing door control.
• Connect ONLY to 7-28 VOLT low voltage wires.

To prevent possible SERIOUS INJURY or DEATH from a closing garage door:

• Install door control within sight of garage door, out of reach of children at a minimum height of 5 feet (1.5 m), and away from ALL moving parts of door.
• NEVER permit children to operate or play with door control push buttons or remote control transmitters.
• Activate door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel.
• ALWAYS keep garage door in sight until completely closed. NEVER permit anyone to cross path of closing garage door.
• DO NOT install this door control on garage door opener systems controlling one-piece or swing doors.

To provide an adequate visual alert, the garage door opener light bulb(s) MUST be a minimum of 40 Watt (or equivalent).

INSTALL THE CHAMBERLAIN® INTERNET GATEWAY

The Chamberlain® Internet Gateway gives you control of your garage door from your internet connected computer or smart phone.

1 CONNECT THE CHAMBERLAININTERNET GATEWAY

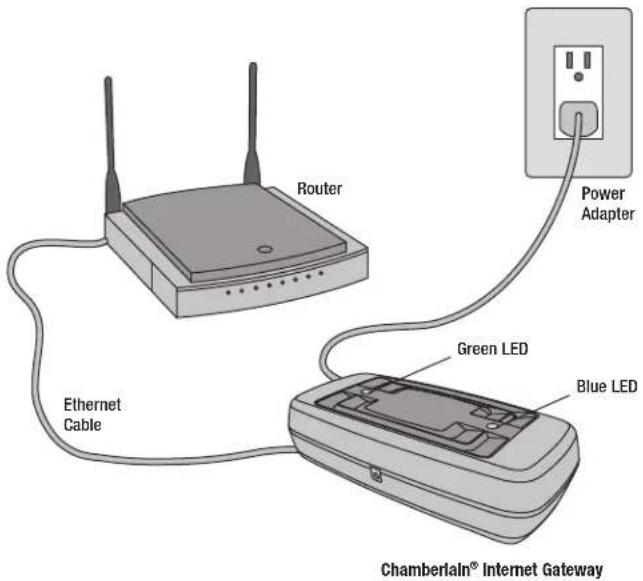

1.1 Connect the Chamberlain © Internet Gateway to a router with the ethernet cable. If you only have access to a Wi-Fi signal and not a router, you must use a wireless ethernet adapter (not provided) to connect to the internet.
1.2 Connect power to the Chamberlain® Internet Gateway. The blue and green LEDs will blink momentarily and then the green LED will light solid.

2 CREATE AN ACCOUNT

From your computer, go to www.mychamberlain.com and follow the instructions to create an account. Use a computer for this step; you cannot create an account from a mobile device.

3 REGISTER THE CHAMBERLAIN® INTERNET GATEWAY

Register the Chamberlain® Internet Gateway by entering the serial number from the label on the bottom of the device.

4PROGRAMTHEmyQ CONTROL PANEL TO THE CHAMBERLAIN® INTERNET GATEWAY

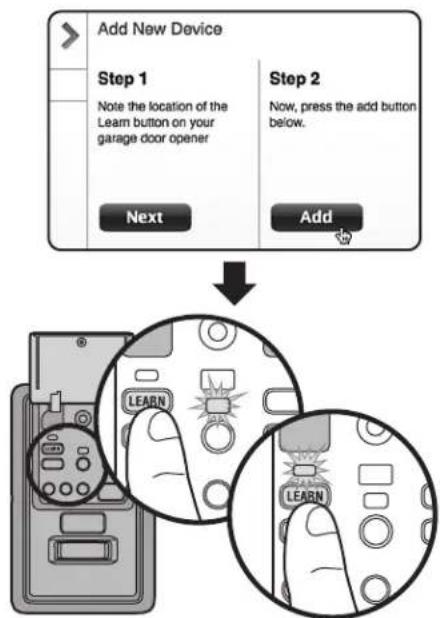

4.1 Click on "Manage Places>Add New Device>Garage Door Opener" and follow the directions.
4.2 Once you click ADD you have 3 minutes to press the LEARN button two times on the myQ control panel. The red learn LED will turn on.
4.3 The red learn LED will turn off when programming is complete. The blue LED on the Chamberlain® Internet Gateway will light to indicate that a device has been learned. Once the control panel is learned, it will appear on your screen and you can then name the device (e.g., My Control Panel, etc.).

4.4 Click SAVE

The control panel has now been programmed to the internet gateway and the garage door can now be controlled from a computer or smartphone. Follow the same steps to add other myQ devices.

Visit the app store for your smartphone to download the myQ app. With the app you can monitor and control your garage door opener and myQ devices. You can also add or remove other myQ accessories.

TROUBLESHOOTING

After power up, the LED lights will show the status of the Chamberlain® Internet Gateway.

GREEN On Solid - The Chamberlnternet Gateway has an IP address and is connected to the Internet.
GREEN flashing steadily On & Off - The Chamberl Internet Gateway has an IP address, but is not accessing the internet. Check your router settings and internet connections.
GREEN Off - The router is not providing an IP address to the Chamberlain® Internet Gateway. Check your router settings and internet connections.

1

2

3

4

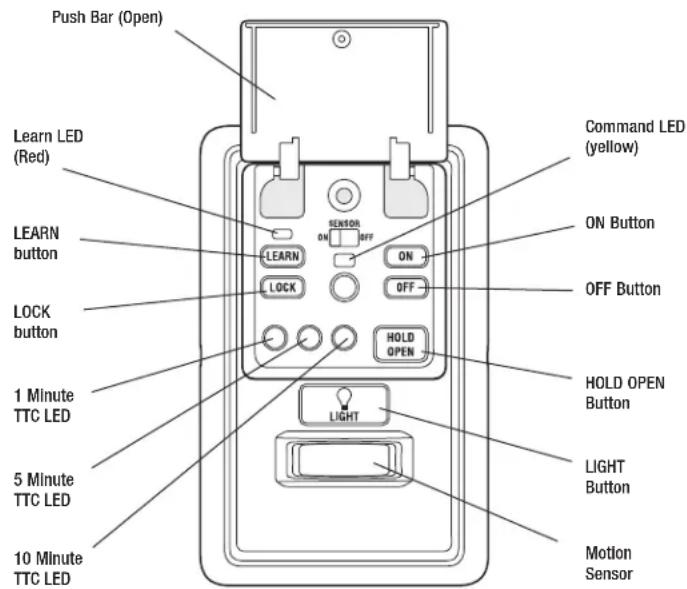

FUNCTIONS

PUSH BAR

Press the push bar to open/close the door.

LIGHTS

Press the LIGHT button to turn the garage door opener lights on or off. When the lights are turned on they will stay on until the LIGHT button is pressed again, or until the garage door opener is activated. Once the garage door opener is activated the lights will turn off after the specified period of time (the factory setting is 4-1/2 minutes). The LIGHT button will not control the lights when the door is in motion.

To change the amount of time the garage door opener lights will stay on: Press and hold the LOCK button until the garage door opener lights flash. The time interval is indicated by the number of flashes.

NUMBER OF TIMES GARAGE DOOR OPERER LIGHTS FLASH	1 2 3 4
TIME THE GARAGE DOOR OPERER LIGHT STAYS ON	1 1/2 Minutes	2 1/2 Minutes	3 1/2 Minutes	4 1/2 Minutes

MOTION SENSOR

This feature will automatically turn on the garage door opener lights when motion is sensed. The lights will come on for the set period of time, then shut off.

Activate/Deactivate:

Slide the motion sensor switch ON or OFF.

TIMER-TO-CLOSE (TTC)

NOTE: DO NOT install this door control on garage door opener systems controlling one-piece or swing doors.

The TTC feature automatically closes the door after a specified time period (1, 5, or 10 minutes). Once the TTC has been set and the door is open, the LED for the selected close interval will blink and begin to count down to close the door. The control panel will beep and the garage door opener lights will flash before closing the door.

The TTC feature will deactivate if the garage door encounters an obstruction twice; or the safety reversing sensors are incorrectly installed. The garage door will reverse open and WILL NOT close until the

obstructions are clear or the safety reversing sensors are correctly installed. When the obstruction has been cleared or the safety reversing sensors have been aligned, the door will close when the garage door opener is activated.

Activate:

Press and hold the ON button until one of the TTC LEDs light up. Then press the ON button again to cycle through the time interval options (the corresponding TTC LED will light for each time interval). The garage door opener light bulbs will blink as confirmation.

Deactivate:

Press and hold the OFF button until all TTC LEDs turn off and a beep is heard from the control panel.

Temporarily hold door open (suspend TTC):

Press and release the HOLD OPEN button. The HOLD OPEN button will begin to flash. Press the HOLD OPEN button again to resume normal TTC operation.

LOCK

Activate*:

Press and hold the LOCK button for 2 seconds. The command LED will flash as long as the lock feature is activated and your handheld remote control will not operate your door at this time.

Deactivate:

Press and hold the LOCK button again for 2 seconds. The command LED will stop flashing and normal operation will resume.

• Your Chamberlain® keypad will continue to work when LOCK has been activated.

ERASE DEVICES FROM MEMORY

Erase all remote controls and keyless entries:

1. Press and hold the LEARN button on the control panel until the red learn LED goes out (approximately 6 seconds). All remote control and keyless entry codes are now erased. Reprogram any compatible accessory you wish to use.

NOTE: Erasing remote controls and keyless entries from the control panel does not erase them from the garage door opener, you need to erase the memory of the garage door opener separately.

Erase all devices (including myQ enabled accessories):

1. Press and hold the LEARN button on the control panel until the red learn LED goes out (approximately 6 seconds).

2. Immediately press and hold the LEARN button again until the red learn LED goes out. All codes are now erased. Reprogram any compatible accessory you wish to use.

PROGRAMMING

A variety of accessories (available separately) can be programmed to the myQ Control Panel.

REMOTE CONTROL

1. Press the control panel LEARN button twice, the red learn LED will turn on.
2. Press the button on the remote control that you wish to operate your garage door.
3. The garage door opener lights will flash (or two clicks will be heard) when the code has been programmed.

KEYLESS ENTRY

1. Press the control panel LEARN button twice, the red learn LED will turn on.
2. Enter a 4-digit personal identification number (PIN) of your choice on the keyless entry keypad. Then press the ENTER button.
3. The garage door opener lights will flash (or two clicks will be heard) when the code has been programmed.

????

myQ ENABLED ACCESSORIES

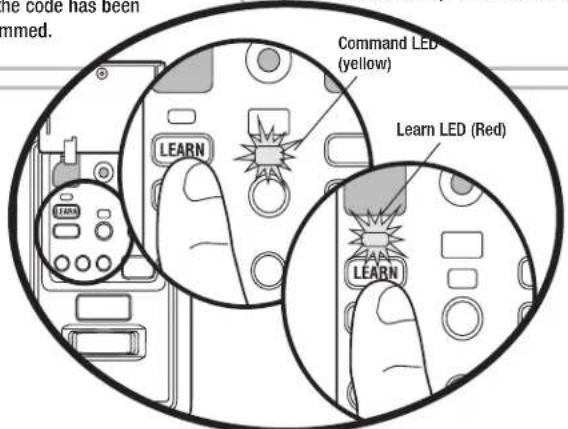

1. Press the control panel LEARN button twice, the red learn LED will turn on.
2. Press the LEARN button on the myQ device.*

LEARN Button

Model WSLCEV/WSLCEVC Remote Light Switch Light module can be synchronized with the gara door opener light bulbs.

LEARN Button

Model PILCEV/PILCEVC Remote Light Control Light module can be synchronized with the garage door opener light bulbs.

myQ accessories may be programmed to the Chamberlain' Internet Gateway or the myQ control panel. For instructions on programming to the Internet gateway refer to the manual.

COMPATIBLE ACCESSORIES

SECURITY+2.0TM ACCESSORIES:

Model 950ESTD

1-Button Remote Control

Model 953ETSD

3-Button Remote Control

Model 956EV/956EVC

3-Button Mini Remote Control

Model 953EV/953EVC

3-Button Remote Control

Model 940ESTD

Wireless Keyless Entry

Model 940EV/940EVC

Wireless Keyless Entry

myQ

ACCESSIONS:

Model WSLCEV/WSLCEVC

Remote Light Switch

Model PILCEV/PILCEVC

Remote Light Control

WARRANTY

ONE YEAR LIMITED WARRANTY

The Chamberlain Group, Inc. warrants to the first consumer purchaser of this product that is free from defect in materials and/or workmanship for a period of 1 year from the date of purchase.

FOR SERVICE DIAL OUR TOLL FREE NUMBER:

1-800-528-9131

www.chamberlain.com

NOTICE: To comply with FCC and/or Industry Canada (IC) rules, adjustment or modifications of this transceiver are prohibited. THERE ARE NO USER SERVICEABLE PARTS. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC rules and IC RSS-210. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICEs-003.
