Product type	Beach shelter (beach tent)
Brand	Rocktrail
Model	IAN 398605
Dimensions (assembled)	120 x 120 x 60 cm (L x W x H)
Approximate weight	Approx. 2.3 kg (estimate)
Material	Polyester
UV protection	UPF 60 (UV Standard 801)
Water resistance	Not waterproof for long periods, not designed for rain
Assembly type	Pop-up (automatic setup)
Number of included pegs	6 sand pegs
Sand pockets	Yes, sewn-in pockets for extra stability
Intended use	Wind and sun protection, private use
Important safety instructions	Do not use as a camping tent, do not close completely if people are inside, flammable material
Care and cleaning	Clean with a damp cloth, dry completely before storage
Storage	In a dry, clean place at room temperature
Spare parts available	Replacement pegs (not included, but available separately)
Warranty	3 years (subject to conditions, material and manufacturing defects)
Package contents	1 beach shelter, 6 pegs, 1 storage bag for shelter, 1 storage bag for pegs, 1 instruction manual
Zippers	Wear parts, not covered by warranty

Frequently Asked Questions - IAN 398605 Rocktrail

How to set up the Rocktrail IAN 398605 beach tent?

Take the shelter out of the storage bag and lay it flat on the ground. Remove the elastic band: the shelter unfolds automatically. Insert the 6 pegs into the loops around the shelter and secure them into the ground. Fill the sand pockets with sand for extra stability.

How to disassemble the pop-up tent?

Remove the pegs and empty the sand pockets. Start from the back of the shelter. Grasp the center of the lower loops with one hand, hold the shelter upright, then push the top arch toward the ground while holding the bottom arch on the ground with your foot. Turn the tip toward the center, then push the loops inward. Release your hand and push all arches into each other. Secure the elastic band around the shelter and store it in the bag.

Is the tent waterproof?

No, the beach shelter is not designed to withstand rain. It provides wind and sun protection but should not be used in the rain. To improve water resistance, you can use a seam-sealing spray.

What is the UV protection level?

The tent offers UV protection with a UPF rating of 60 according to the UV Standard 801, blocking about 98% of UV rays. Note that mesh inserts may reduce protection.

Can I use this tent as a camping tent?

No, this beach tent is intended only for private use as wind and sun protection. It should not be used as a camping tent. It is not waterproof and does not provide adequate protection for camping.

How to clean and maintain the tent?

Clean the shelter with a damp cloth and clean water. Never use harsh chemicals or detergents. Allow it to dry completely before storing to prevent mold and odors.

Where can I find spare parts such as pegs?

Replacement pegs are not included, but you can find them in stores or contact customer service. Zippers are considered wear parts and are not covered under warranty.

What is the warranty period?

Delta-Sport Handelskontor GmbH offers a 3-year warranty from the date of purchase for material and manufacturing defects. Keep the original receipt. The warranty does not cover normal wear, wear parts (such as zippers), or damage from improper use.

Is the tent dangerous for children?

Yes, there is a risk of suffocation from the packaging. Do not leave children unattended. The tent is not a toy or climbing equipment. Ensure no one climbs on it to avoid injury.

Can I use insect repellent spray inside the tent?

No, do not use insect repellent spray in or on the beach shelter. It could damage the fabric. Use alternative methods to keep insects away.

USER MANUAL IAN 398605 Rocktrail

Instructions for use

IAN 398605_2107

DE AT CH

FR IT GB

A

SM-10535

SM-10536

E

F

DE AT CH

Instructions for use 23

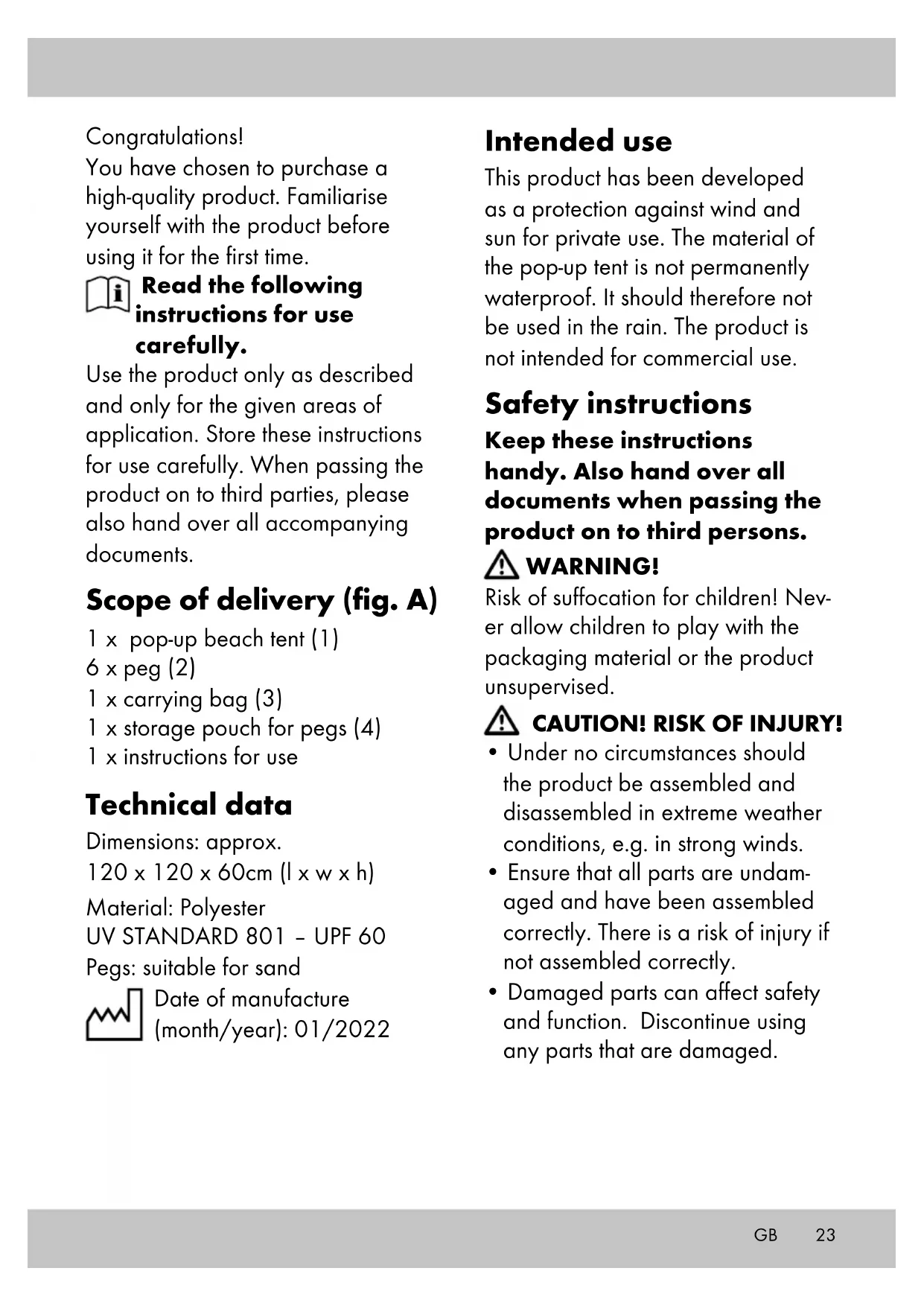

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

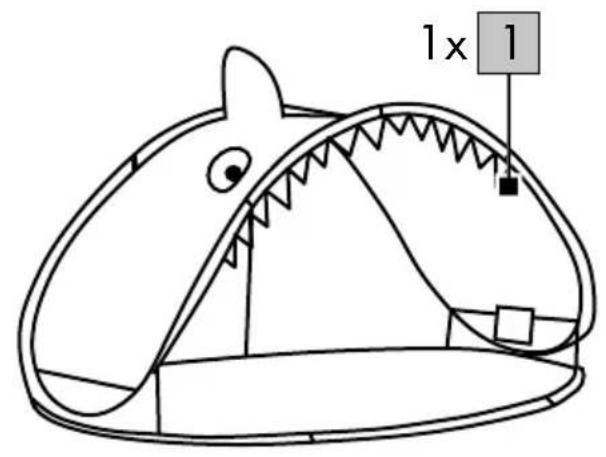

Scope of delivery (fig. A)

1 x pop-up beach tent (1)
6 x peg (2)

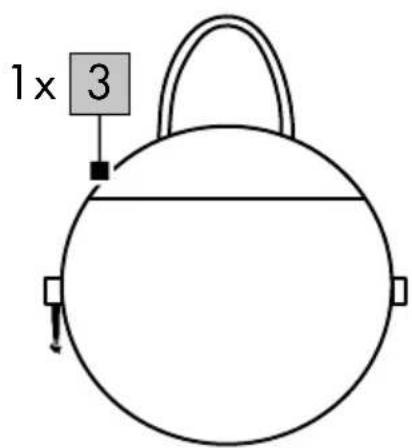

1 x carrying bag (3)
1 x storage pouch for pegs (4)
1 x instructions for use

Technical data

Dimensions: approx.

$$ 1 2 0 \times 1 2 0 \times 6 0 \mathrm {c m} (1 \times w \times h) $$

Material: Polyester

$$ U V \quad S T A N D A R D 8 0 1 - U P F 6 0 $$

Pegs: suitable for sand

Date of manufacture

(month/year): 01/2022

Intended use

This product has been developed as a protection against wind and sun for private use. The material of the pop-up tent is not permanently waterproof. It should therefore not be used in the rain. The product is not intended for commercial use.

Safety instructions

Keep these instructions handy. Also hand over all documents when passing the product on to third persons.

WARNING!

Risk of suffocation for children! Never allow children to play with the packaging material or the product unsupervised.

CAUTION! RISK OF INJURY!

• Under no circumstances should the product be assembled and disassembled in extreme weather conditions, e.g. in strong winds.
• Ensure that all parts are undamaged and have been assembled correctly. There is a risk of injury if not assembled correctly.

• Damaged parts can affect safety and function. Discontinue using any parts that are damaged.

• Do not leave children unsupervised. The product is not for climbing on or playing with! Make sure that people, particularly children, do not climb on the product or lean against it.
  The product may become unbalanced and fall over. Injuries and/or damage may result.

• Select a location for the product with as firm and level a surface as possible.
• Never force the pegs into the ground! Lengthen the guys with the aid of a loop in the guy rope and then choose another location for the peg.
• Check regularly that all connection points are intact; check the guys and also make sure that the pegs give firm support.
• Remove any sewn-on tabs, labels, name tags, or warning signs.
  WARNING! Do not use as a camping tent!
• WARNING! The product is made of flammable material. Do not use open flame inside or near the pop-up tent!

• WARNING! The beach tent may not be closed completely when people are inside.

• Check the product for damage or wear before each use. The product may be used only when in good working order and condition.

Keep an eye on the weather and adverse weather conditions.

• Take the product down if the wind picks up or under any other adverse weather conditions.
• When setting up, do not over-stretch the tent since it may then not be able to adapt to changing weather conditions and may be damaged.
• Zips are wear parts and are not covered by the terms of the warranty.
• Do not use insect spray in or on the beach tent.
• Small leaks at the seams can be dealt with by using a seam sealer spray.
• A waterproofing spray can be used for the tent fabric.
• Be aware that using mesh inserts could reduce UV protection.

Assembly

An adult should always assemble the product. Please follow the individual assembly steps in the order indicated.

Note: Do not set up the product with the opening facing the prevailing wind direction.

Warning: Remember that the poles are under tension and always spring back into the product's natural shape.

Since the product is under tension, be careful that it does not cause any injuries.

Maintain distance when unfolding the product.

1. Take the product (1) out of the carrying bag (3) and lay it flat on the ground.
2. Undo the rubber strap around the product.
3. The product springs into its starting position on its own.
4. Insert the pegs (2) into the loops all around the product and secure the pegs in the ground.

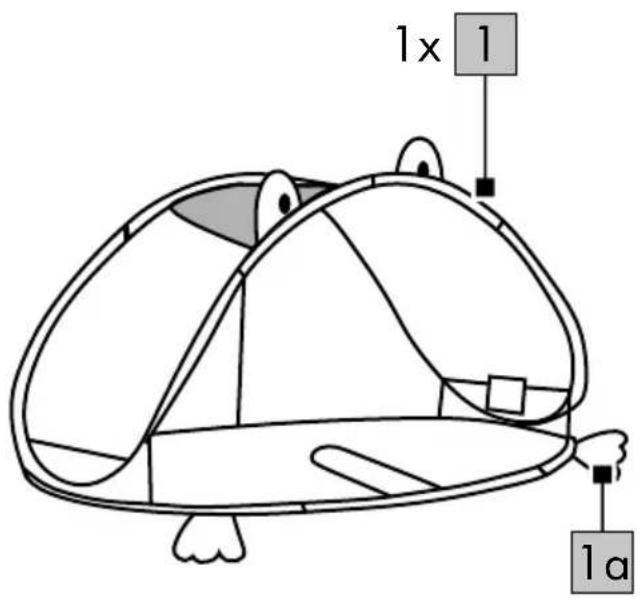

5. Fill the sewn-on sand pockets (1a) with sand (SM-10536) to give the product additional support.

Disassembly

Watch the informational video on how to fold down the product by scanning the QR code

with a suitable device.

1. Remove the pegs (2) from the ground and store them in the storage pouch (4).

2. If necessary empty out the sewn-on sandbags (1a) (SM-10536).
   Note: Start at the rear of the product so that the air can escape at the front through the entrance.

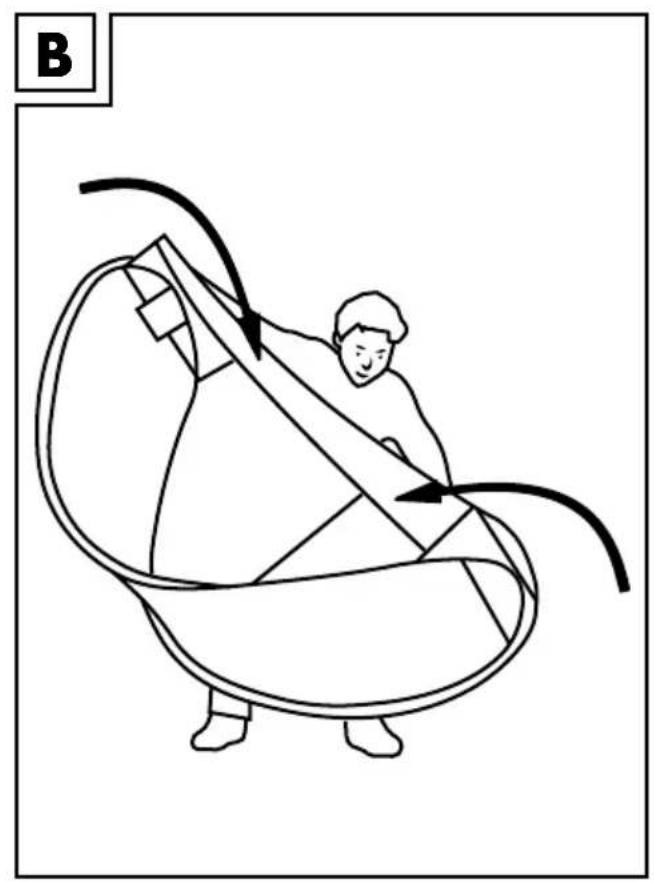

3. Grasp the lower loops at their centre point with one hand (fig.B).

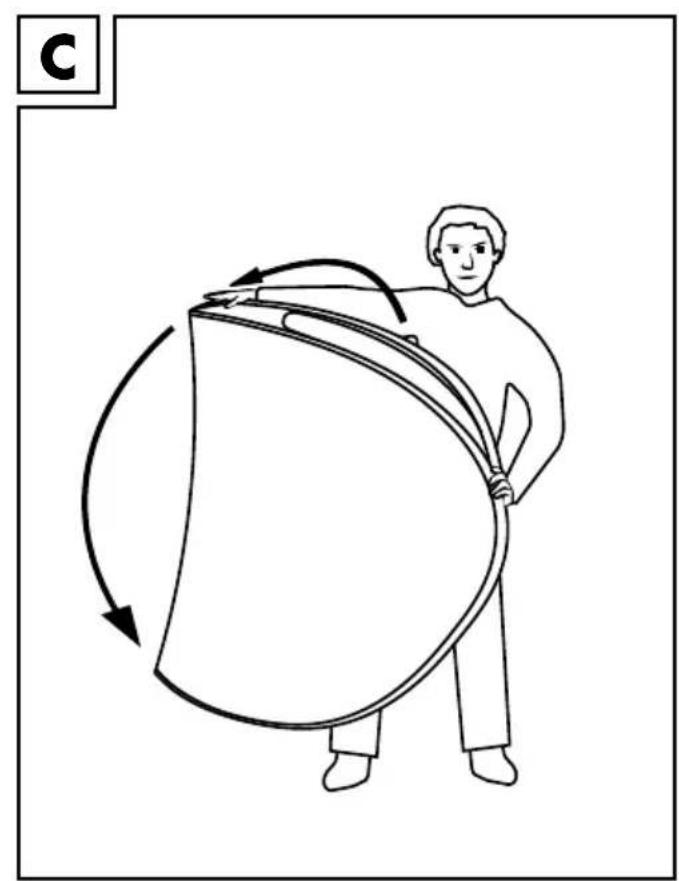

4. Hold the product upright while holding all the loops together in one hand (fig. C).

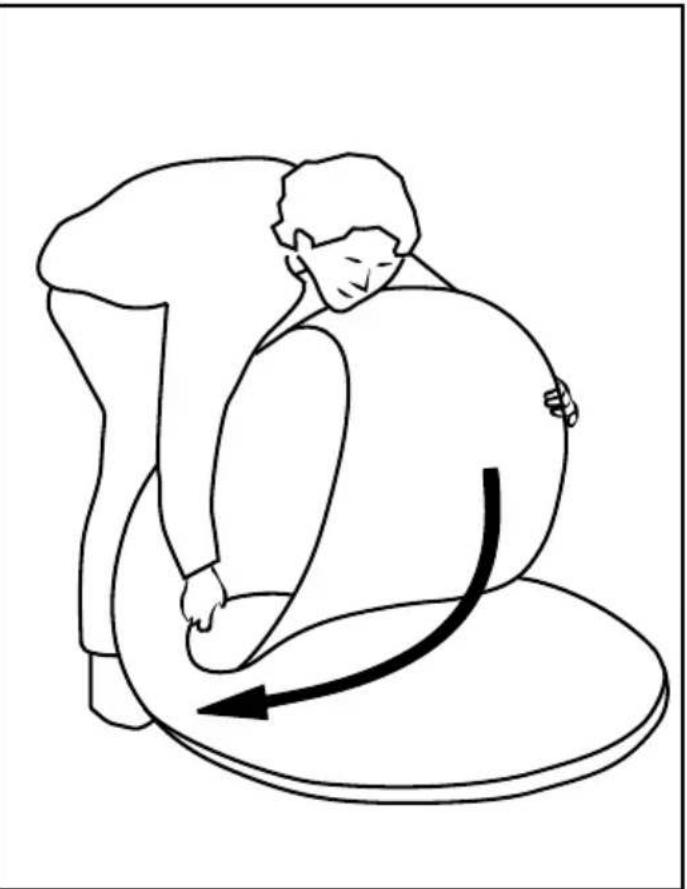

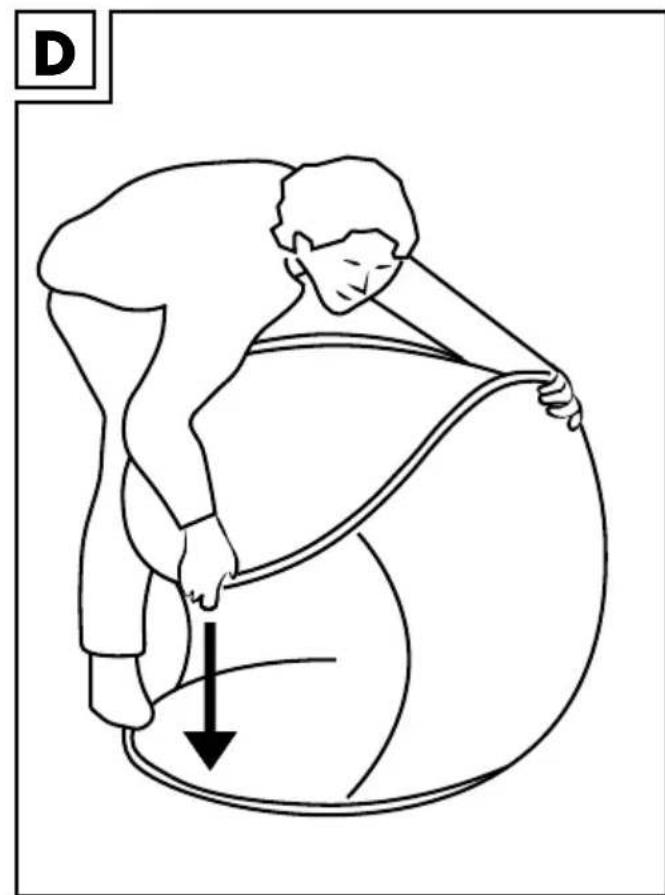

5. Press the tip of the upper arch formed by the tent down towards the ground while holding down the lower arch with your foot and turn it towards the centre (fig. D).

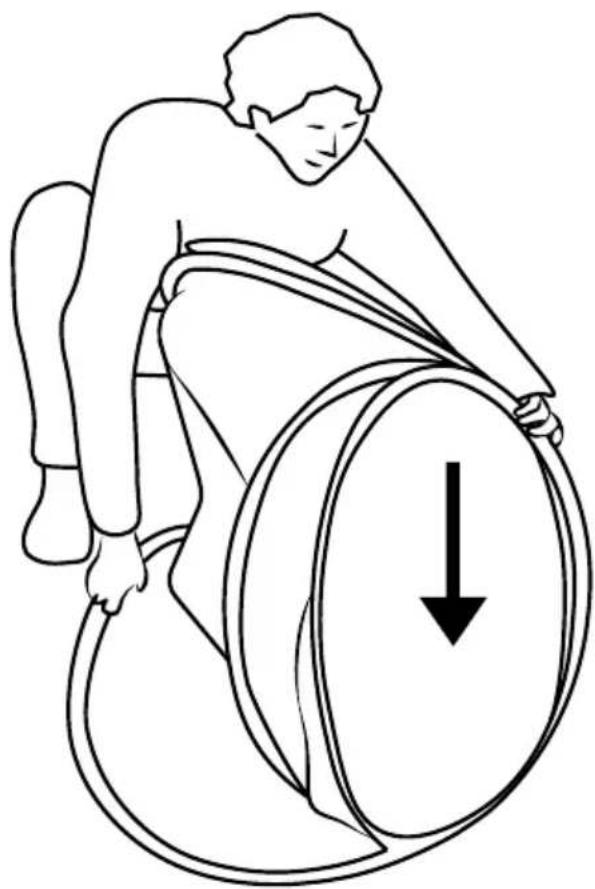

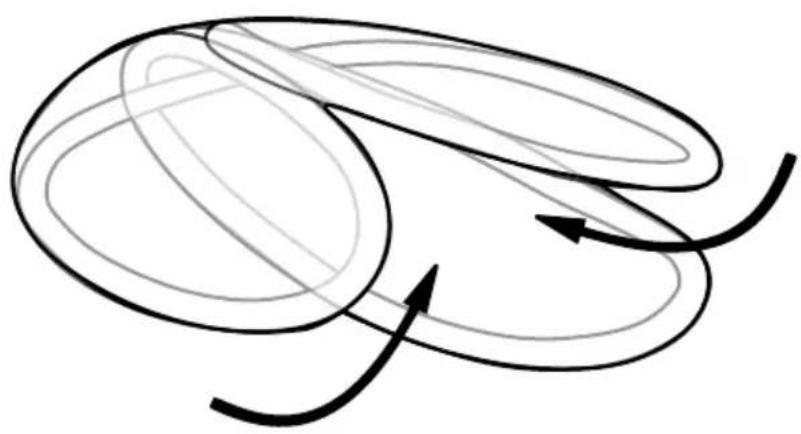

6. Press the two newly created loops inwards (fig. E).

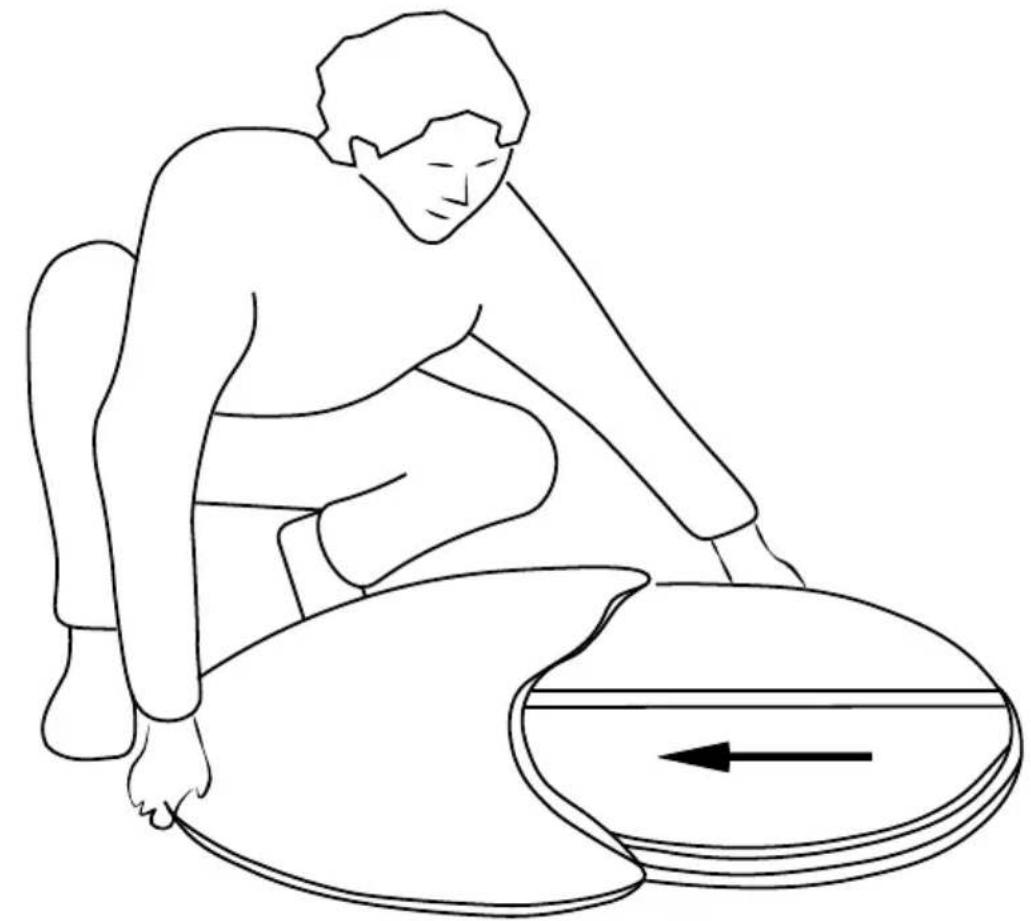

7. Loosen the grip of the hand holding the four loops together and telescope all the arches together (fig. F).

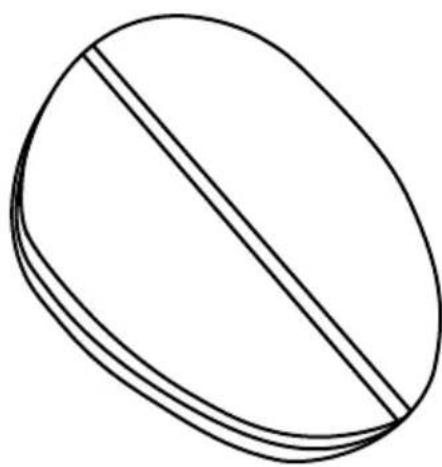

8. Wrap the rubber strap around the product and store it in the carrying bag (3) (fig. G).

Storage, cleaning

Allow all parts to dry out thoroughly before packing it again. This prevents mould, odours, and discolourations. When not in use, always store the product clean and dry at room temperature. If the product is stored improperly, there is the risk of mildew forming.

Only clean the product with a damp cloth and wipe dry afterwards.
IMPORTANT! Never clean the product with harsh cleaning agents.
Clean the pegs and store them in the pouch supplied. Do not keep them in the tent itself.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol - which is meant to reflect the recycling cycle - and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions.

The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances.

Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt. The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts.

If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice.

Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.

IAN: 398605_2107

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6 • DE-22397 Hamburg

GERMANY

01/2022
