BrandIFM
ModelO3M960
CategoryInfrared lighting
Product typeInvisible infrared lighting (risk group 1)
Power supply9..32 V DC, protection class III
Max consumption14 A
ConnectorM12, 4-pin (A-coding)
Sensor-light distance0 to 2.80 m
CompatibilityIFM 3D sensors: O3M150, O3M160, O3M151, O3M161, O3M250, O3M260, O3M251, O3M261, O3M271
Required MCI cableE3M121, E3M122, E3M123
Required power cableE3M131, E3M132, E3M133
Mounting accessoriesU-bracket kit (E3M100/102), round profile kit (E3M103)
SafetyInfrared light risk group 1, do not look into the beam
InstallationBy qualified electrician, comply with national/international standards
ApprovalsIEC 62471, EU declaration of conformity
SoftwareContains Open Source under GNU license
DeliveryLighting only, without sensor or accessories
ManualUser manual included (30 pages)

Frequently Asked Questions - O3M960 IFM

What are the risks associated with using the O3M960 light?
The light emits invisible infrared light of risk group 1 according to IEC 62471. The retina of the eye can be damaged. Avoid looking into the beam and follow safety instructions.
How to install the O3M960 light?
Installation must be carried out by a qualified electrician. Mount the sensor and light at a distance of 0 to 2.80 m, clear the illuminated area, and use cables with strain relief.
What accessories are required for operation?
The required accessories are: an MCI connection cable (E3M121, E3M122 or E3M123) and a power cable (E3M131, E3M132 or E3M133). U-bracket or round profile mounting kits are available.
What is the maximum distance between the sensor and the light?
The maximum distance between the sensor and the light is 2.80 meters. Choose the appropriate MCI cable based on this distance.
How to connect the light to the power supply?
Use an M12 connector with 4 pins (A-coding). Pinout: 1 and 4 for GND, 2 and 3 for 9..32 V. Use all 4 wires and the shortest possible cable to limit voltage drop.
Which sensors is the O3M960 light compatible with?
The light is compatible with mobile 3D sensors O3M150, O3M160, O3M250, O3M260 and smart sensors O3M151, O3M161, O3M251, O3M261, O3M271.
What to do if the light does not work?
Check the wiring, especially the tightening of the M12 connectors (protection rating only guaranteed if properly tightened). Ensure the power supply is on and the sensor-light distance does not exceed 2.80 m.
What user manuals are available?
The user manual is available in French, German, and English. A translated version can be requested by email. The complete programming manual is also available on the ifm website.
Does the light contain Open Source software?
Yes, the device contains Open Source software (modified if necessary) subject to specific licenses, including the GNU General Public License. The source code can be requested against payment of copying costs.
Where to find information on accessories?
Information on accessories (cables, mounting kits) is available on the www.ifm.com website. References: MCI cables E3M121/122/123, power cables E3M131/132/133, mounting kits E3M100/102/103.

User questions about O3M960 IFM

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Lighting in PDF format for free! Find your manual O3M960 - IFM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. O3M960 by IFM.

USER MANUAL O3M960 IFM

1 About these instructions 4

1.1 Symbols used. 4
1.2Warnings used 4

2 Safety instructions 4
2.1 Safety note 5

3 Functions and features 6
4 Items supplied. 6

5 Accessories. 6
6 Installation. 7

6.1 Mounting accessory 8

7 Electrical connection. 8
7.1 Wiring illumination unit 9

8 Set-up 10
8.1 Put the sensor into operation 10

9 Approvals/standards 10
10 Note on the software. 10

UK

IFM O3M960 - 1

IFM O3M960 - 2

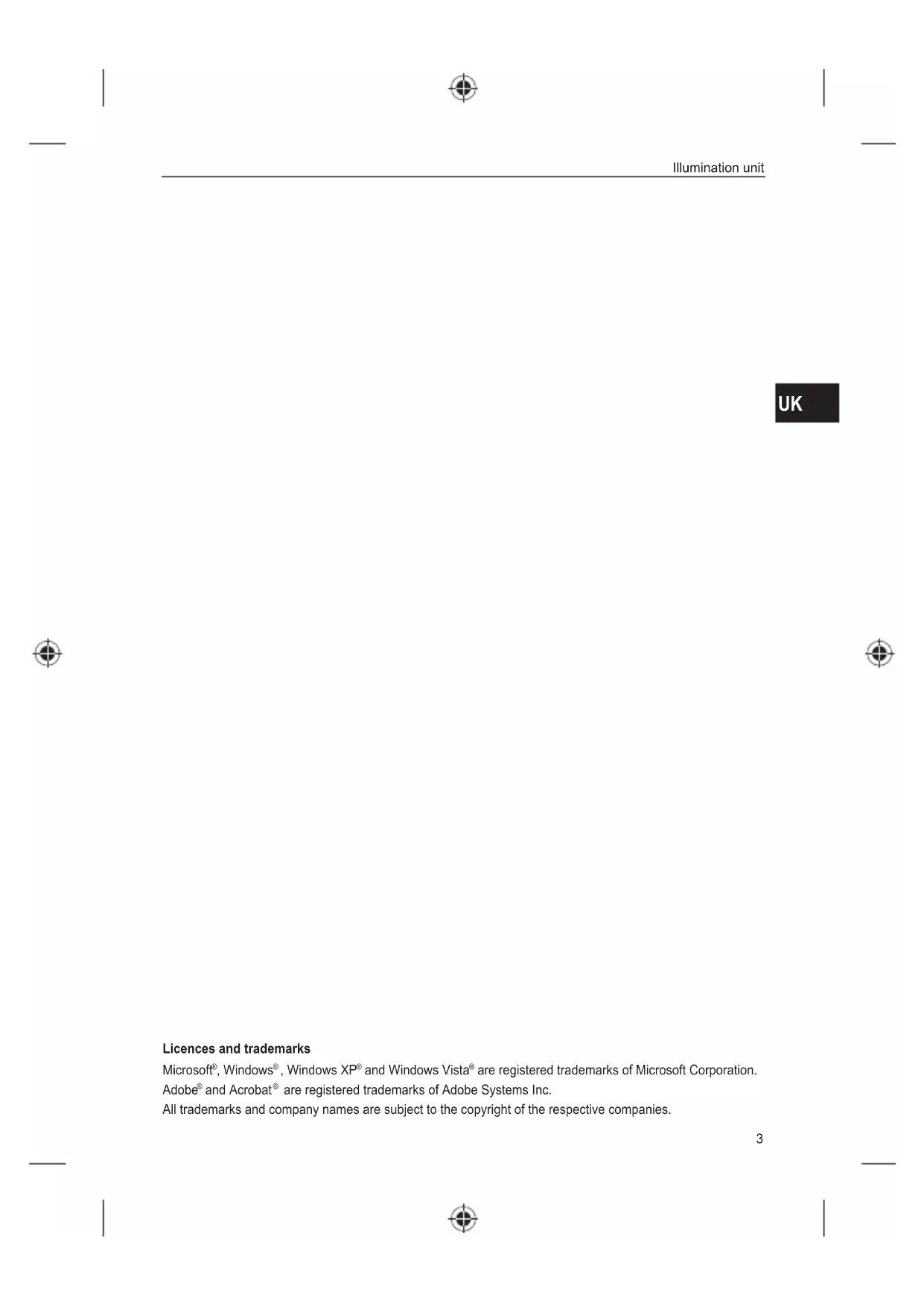

Licences and trademarks

Microsoft, Windows, Windows XP and Windows Vista are registered trademarks of Microsoft Corporation.

Adobe and Acrobat are registered trademarks of Adobe Systems Inc.

All trademarks and company names are subject to the copyright of the respective companies.

1 About these instructions

This document is intended for specialists. These specialists are people who are qualified by their appropriate training and their experience to see risks and to avoid possible hazards that may be caused during operation or maintenance of the device. The document contains information about the correct handling of the device.

Read this document before use to familiarise yourself with operating conditions, installation and operation. Keep this document during the entire duration of use of the device.

For a detailed description of the device please read the operating instructions and the programming manual.

1.1 Symbols used

Instructions

Reaction, result

[...] Designation of keys, buttons or indications

Cross-reference

Important note

Non-compliance may result in malfunction or interference.

Information

Supplementary note

1.2Warnings used

CAUTION

Warning of personal injury.

Slight reversible injuries may result.

2 Safety instructions

These instructions are part of the device. They contain texts and figures concerning the correct handling of the device and must be read before installation or use.

Note the safety instructions. Use the device as intended.

The installation and connection must comply with the applicable national and international standards. Responsibility lies with the person installing the unit.

Only the signals indicated in the technical data or on the device label may be supplied to the connections or wires.

CAUTION

Invisible infrared light

The illumination unit emits infrared light of risk group 1 (IEC 62471:2006) invisible to the human eye.

The infrared light can cause damage to the retina.

Use the illumination unit with the described devices and settings.
Avoid staring into the infrared beam.
Observe the safety note ( 2.1)

2.1 Safety note

IFM O3M960 - Safety note - 1

NOTICE IR light emitted from this product.

Classification acc. to IEC 62471:2006 Risk Group 1

3 Functions and features

The illumination unit illuminates a scene using infrared light. A sensor processes the infrared light reflected by the surfaces.

The illumination unit may be used as a component of a photoelectric system only with the following devices:

O3M150 Mobile 3D Sensor
O3M160 Mobile 3D Sensor
O3M151 Smart Sensor
O3M161 Smart Sensor
O3M250 Mobile 3D Camera
O3M260 Mobile 3D Camera
O3M251 Mobile 3D Smart Camera
O3M261 Mobile 3D Smart Camera
O3M271 Mobile 3D Smart Camera

4 Items supplied

O3M950 / O3M960 / O3M970 illumination unit
- Brief instructions

IFM O3M960 - Items supplied - 1

The illumination unit is supplied without sensor, installation and connection accessories and software.

5 Accessories

The following accessories are needed for the operation of the illumination unit:

Description Article no.
Mobile 3D sensor O3M150 / O3M160 / O3M250 / O3M260
Smart Sensor O3M151 / O3M161 / O3M251 / O3M261 /O3M271
MCI connection cable between sensor and illumination unit E3M121 (alternatives: E3M122, E3M123)
Power supply cable for illumination unit E3M131(alternatives: E3M132, E3M133)

You can find more information about the accessories at: www.ifm.com

6 Installation

The sensor is operated as a system together with the illumination unit.

During installation note the following:

Operate sensor and illumination unit in combination.

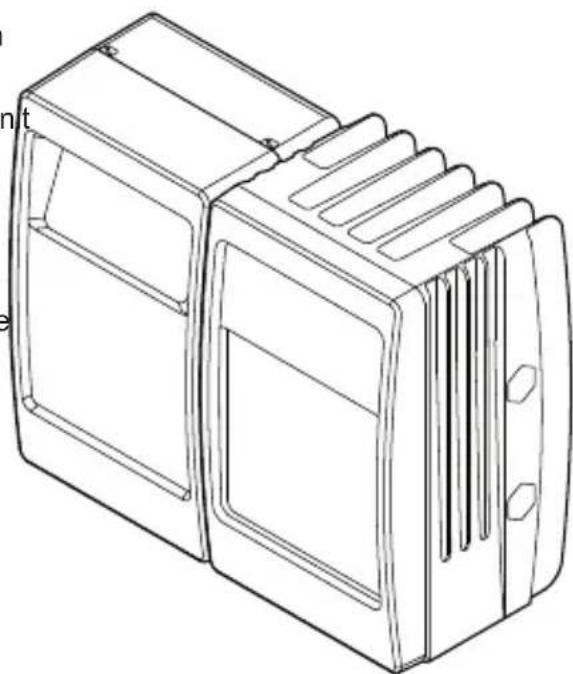

Install sensor and illumination un between 0 and 2.80m apart.

Select the matching MCI connection cable depending on the distance.

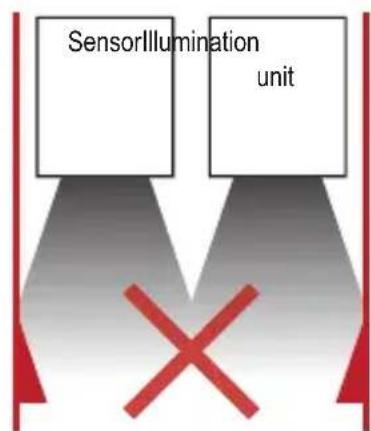

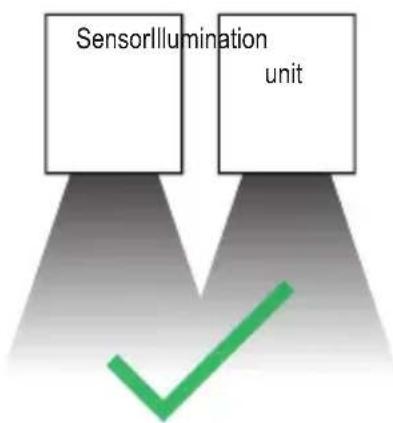

- Keep the area illuminated by the illumination unit free from any obstructions in a close range (up to 50 cm).
Use cables with strain relief.

IFM O3M960 - Installation - 1

IFM O3M960 - Installation - 2

IFM O3M960 - Installation - 3

6.1 Mounting accessory

Depending on the intended location and type of mounting the following mounting accessories are available:

Description Article no.
Mounting set U-shaped (U-shaped fixture, adjustable for types O3Mxxx)E3M100
Mounting set U-shaped, black (U-shaped fixture, adjustable for types O3Mxxx)E3M102
Mounting set for rod mounting Ø 14 mm (clamp and bracket for types O3Mxxx)E3M103
Mounting rod straight Ø 14 mm, length 130 mm, M12 E20939
Rod, angled Ø 14 mm, length 200 mm, M12 E20941

You can find more information about the accessories at: www.ifm.com

7 Electrical connection

NOTE
The unit must be connected by a qualified electrician.
Device of protection class III (PC III)
The electric supply must only be made via PELV circuits.
Switch off the power supply before electrical connection.
NOTE
The IP rating given in the data sheet is only guaranteed if the M12 connectors are firmly screwed.
The unit can be damaged by insufficiently tightened M12 connectors.
Firmly screw the M12 connectors to the unit.

IFM O3M960 - Electrical connection - 1

UK

7.1 Wiring illumination unit

(1) MCI - Modulation and communication interface
Connection sensor - illumination unit
Only use original ifm cables E3M121, E3M122 or E3M123.
(2) Power supply
M12 connector, A-coded, 4 poles
2 1 3 41 GND 2 9..32 V 3 9..32 V 4 GND

IFM O3M960 - Wiring illumination unit - 1

Before wiring note the following:

Use all 4 wires of the M12 connector for the power supply.

Unnecessarily long cables cause an additional voltage drop. For the power supply keep the cable short.
Up to 14 A may flow via the cable for the power supply. Ensure a sufficiently dimensioned core cross-section.
Use original ifm cables E3M131, E3M132 or E3M133.

8 Set-up

8.1 Put the sensor into operation

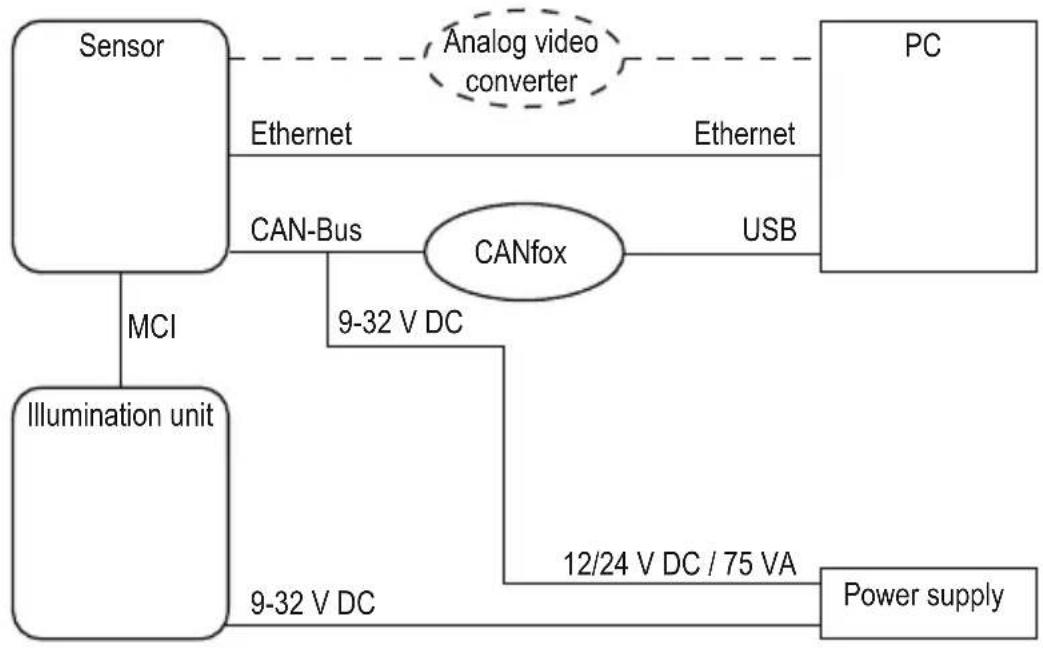

To put the sensor into operation follow the instructions below.

  1. Switch off the power supply.
  2. Use MCI cable to connect sensor and illumination unit.
  3. Connect sensor with Ethernet cable.
  4. Connect the sensor with the sensor cable for CAN bus and power supply.

The sensor cable connects the power supply and CAN with the sensor.

  1. Connect illumination unit with power supply.
  2. Connect CANfox USB interface with PC via USB and with CAN via adapter cable.
  3. Establish power supply.

IFM O3M960 - Put the sensor into operation - 1

During the first set-up the sensor connects with the illumination unit. Connection may take up to 60 s.

9 Approvals/standards

The EU Declaration of Conformity is available on our website: www.ifm.com

10 Note on the software

This unit contains (maybe modified) Open Source software which is subject to special licensing terms.

For copyright information and licensing terms please refer to: www.ifm.com/int/GNU

For software subject to the GNU General Public License or the GNU Lesser General Public License the source code can be requested against payment of the copying and shipping costs.

UK

IFM O3M960 - Note on the software - 1
