| Product type | Industrial RFID control unit |
| Brand / Model | IFM / DTE100 |
| Dimensions (approx.) | 150 x 100 x 50 mm |
| Weight (approx.) | 500 g |
| Power supply | 24 V DC via M12 connector, max. current consumption 3 A |
| Protection | IP67 (with caps and connectors tightened to 1 Nm) |
| Fieldbus interfaces | Profibus DP-V0/DP-V1 galvanically isolated, data rate 9600 baud to 12 Mbaud |
| Configuration interface | Ethernet 10/100 Mbps, TCP/IP, HTTP server (factory IP address 192.168.0.79) |
| Process channels | 4 configurable channels: IEC 61131 input/output or RFID antenna (ANT51x) |
| Main functions | RFID control, data exchange with PLC via Profibus, configuration via web browser |
| Mounting | On DIN rail (NS35/15 or NS35/7.5) or mounting plate (2 screws M4) |
| Minimum mounting distance | 10 mm from other objects |
| Electrical connection | By qualified electrician, de-energize before, according to national/international standards |
| LED indications | LEDs for AUX, PROFIBUS, COM, IO1…IO4 with status codes |
| Factory reset | Shunt on pins 1 and 3 of IO-3 connector, power up |
| Diagnostics | Via Profibus DP diagnostics and status LEDs |
| Maintenance and cleaning | No specific maintenance; dispose ecologically according to national regulations |
| Safety | Do not open, do not insert objects, avoid metallic foreign bodies |
| Spare parts / accessories | Cables, connectors, terminating resistor, protective caps (ifm ref.: E73004, E70390, E12315…) |
| Approvals | CE; other approvals available at www.ifm.com |
| User manual | Available at www.ifm.com datasheet DTE100 |
Frequently Asked Questions - DTE100 IFM
User questions about DTE100 IFM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Industrial control enclosure in PDF format for free! Find your manual DTE100 - IFM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DTE100 by IFM.
USER MANUAL DTE100 IFM
Operating instructions
RFID evaluation unit
6.4 Prozessanschlüsse IO-1 ... IO-4 13
6.4 Prozessanschlüsse IO-1 ... IO-4
1 Preliminary note 4
1.1 Notes on this document 4
1.2 Symbols used 4
2 Safety instructions 4
2.1 General 4
2.2 Installation and connection 4
2.3 Tampering with the device 5
3 Functions and features 5
3.1 "PROFIBUS IN" and "PROFIBUS OUT" fieldbus interface 5
3.2 "COM" configuration interface 6
3.3 RFID antennas 6
3.4 Requirements on the Profibus DP master 6
4 Function 6
5 Installation 7
5.1 Installation distance 7
5.2 Installation orientation 7
5.3 Mounting options 8
5.3.1 Mounting on DIN rail 8
5.3.2 Removal 8
5.3.3 Mounting plate 8
6 Electrical connection 10
6.1 AUX voltage supply 10
6.2 Field bus connection PROFIBUS IN 11
6.2.1 Profibus address 11
6.3 Fieldbus connection PROFIBUS OUT 11
6.3.1 Factory setting of the Ethernet parameters 12
6.4 Process connections IO-1 ... IO-4 13
6.4.1 Use as input/output to IEC 61131 13
6.4.2 Use with RFID read/write heads 14
6.5 Functional earth connection. 15
6.5.1 Mounting on DIN rail 15
6.5.2 Mounting plate 15
7 Operating and display elements 16
2
7.1 Reset to factory settings 16
7.2 LED indicators 16
7.2.1 LED AUX 16
7.2.2 LED PROFIBUS 17
7.2.3 LED COM 17
7.2.4 LEDsIO1...IO4 18
7.2.5 Special device-LED indications 19
8 Diagnosis 20
9 Technical data 2
9.1 Data sheets 20
9.2 Device manual 20
10 Maintenance, repair and disposal 20
11 Approvals/standards 20

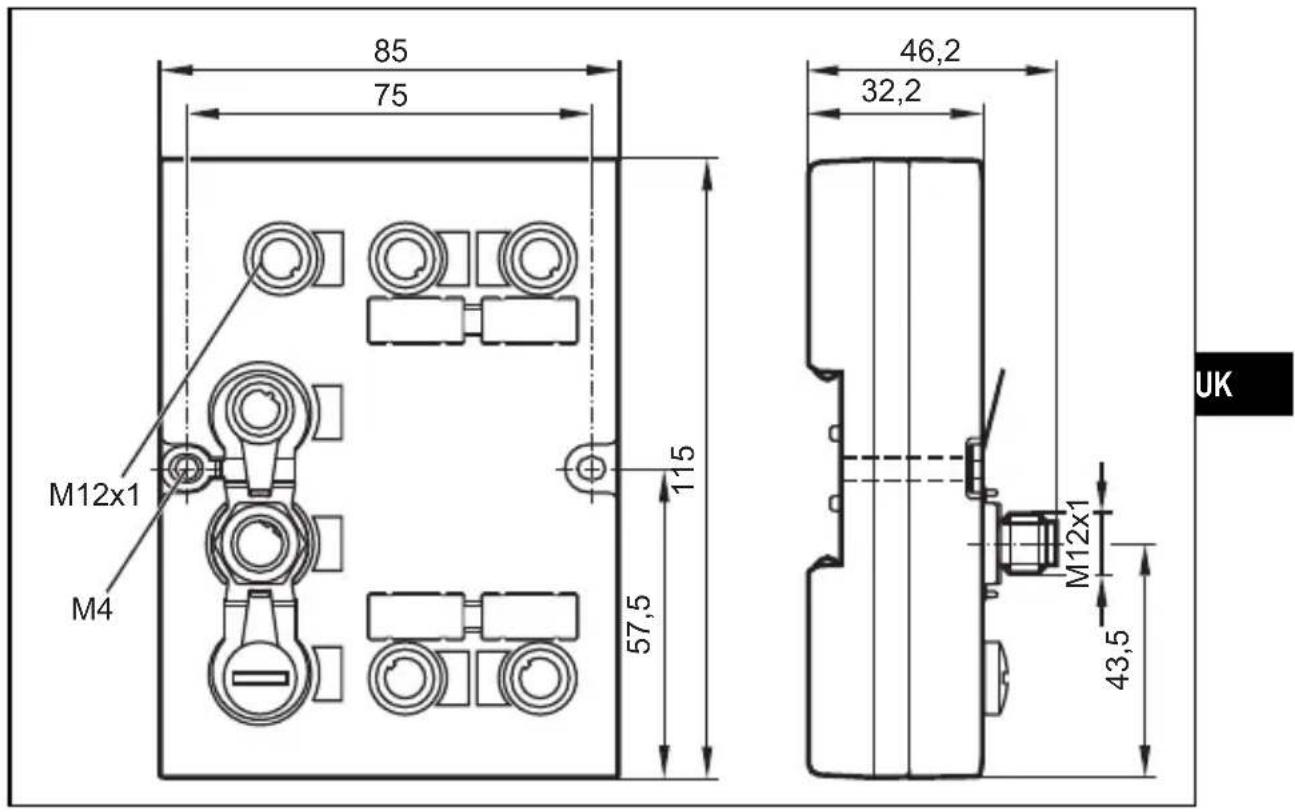

12 Scale drawing 21
Licences and trademarks
Microsoft® und Internet Explorer® are registered trademarks of Microsoft Corporation. All trademarks and company names are subject to the copyright of the respective companies.

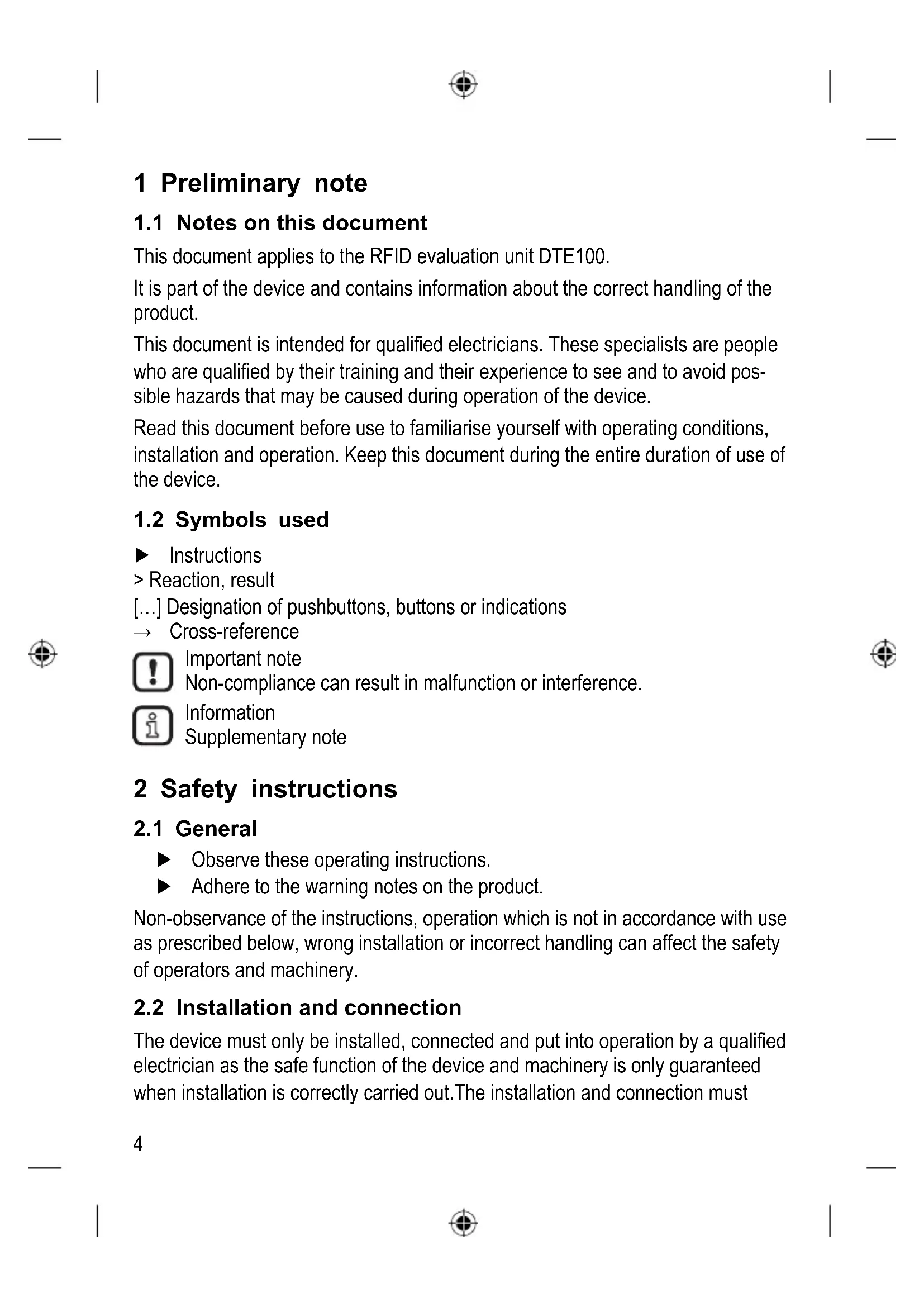

1 Preliminary note
1.1 Notes on this document
This document applies to the RFID evaluation unit DTE100.
It is part of the device and contains information about the correct handling of the product.
This document is intended for qualified electricians. These specialists are people who are qualified by their training and their experience to see and to avoid possible hazards that may be caused during operation of the device.
Read this document before use to familiarise yourself with operating conditions, installation and operation. Keep this document during the entire duration of use of the device.
1.2 Symbols used
Instructions
Reaction, result
[...] Designation of pushbuttons, buttons or indications
Cross-reference
Important note
Non-compliance can result in malfunction or interference.
Information
Supplementary note
2 Safety instructions
2.1 General
Observe these operating instructions.
Adhere to the warning notes on the product.
Non-observance of the instructions, operation which is not in accordance with use as prescribed below, wrong installation or incorrect handling can affect the safety of operators and machinery.
2.2 Installation and connection
The device must only be installed, connected and put into operation by a qualified electrician as the safe function of the device and machinery is only guaranteed when installation is correctly carried out. The installation and connection must
comply with the applicable national and international standards. Responsibility lies with the person installing the device.
This is a class A product. The device may cause radio interference in domestic areas. In this case it can be necessary for the user to take appropriate measures.
2.3 Tampering with the device
Tampering with the device is not allowed and will lead to an exclusion of liability and warranty. Tampering with the device can affect the safety of operators and machinery.
Do not open the device.
Do not insert any objects into the device.
Prevent metal foreign bodies from penetrating.
3 Functions and features
The RFID evaluation unit DTE100 integrates a Profibus DP interface and 4 channels for the connection of field devices. Each channel can be used either for the connection of an RFID antenna or as input/output to IEC 61131.
The device
- controls the data exchange to the RFID antennas or the sensor/actuator level.
- communicates with the higher-level control level via Profibus.
- allows device configuration via a web server.
Application examples:
- Material flow control in production lines
- Warehouse management by the automatic detection of stored products
Tank management, order picking or product tracking
3.1 "PROFIBUS IN" and "PROFIBUS OUT" fieldbus interface
- Profibus DP-V0 / DP-V1 interface isolated from potential
Baud rate 9600 baud to 12 Mbaud - Max. distance between gateway and host: depending on the baud rate
max. 127 participants, 32 per segment
3.2 "COM" configuration interface
10 Mbps and 100 Mbps
- TCP/IP - Transport Control Protocol/ Internet Protocol
- UDP - User Datagram Protocol
- IT functionality: HTTP server
M12, twisted pair
3.3 RFID antennas
The device supports up to four RFID read/write heads of type ANT51x from ifm electronic gmbh.
You can find information about the matching read/write heads on our website at:
www.ifm.com data sheet search ANT51
3.4 Requirements on the Profibus DP master
Profibus DP master of class 1 (DPM1) with DPV0 support or
Profibus DP master of class 1 (DPM1) with DPV1 support (recommended)
By using the DPV1 services the data size within the cyclically transferred input/output data of the Profibus DP master is considerably reduced.
4 Function
You can find detailed information about the function of the system in the device manual at:
www.ifm.com data sheet search DTE100 Operating instructions
5 Installation

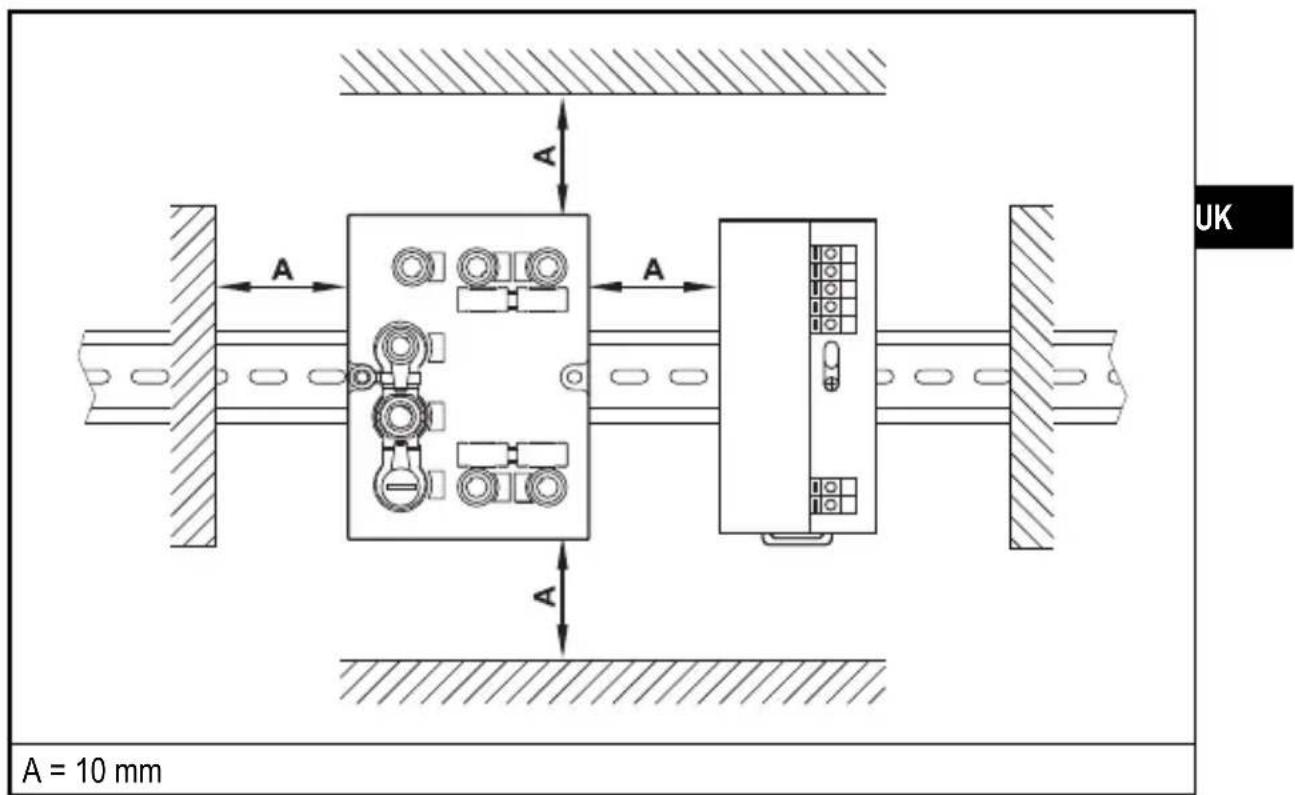

5.1 Installation distance
Due to the internal heating of the device a minimum distance to other objects of 10mm is to be taken into account during installation.
5.2 Installation orientation
The installation orientation can be freely selected.
In a wet environment upside-down mounting is not permitted.
5.3 Mounting options

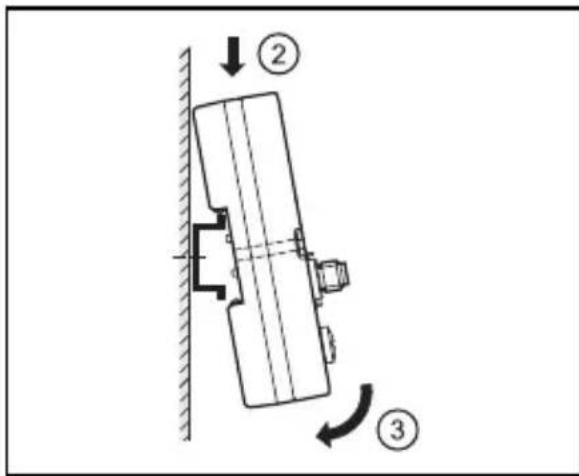

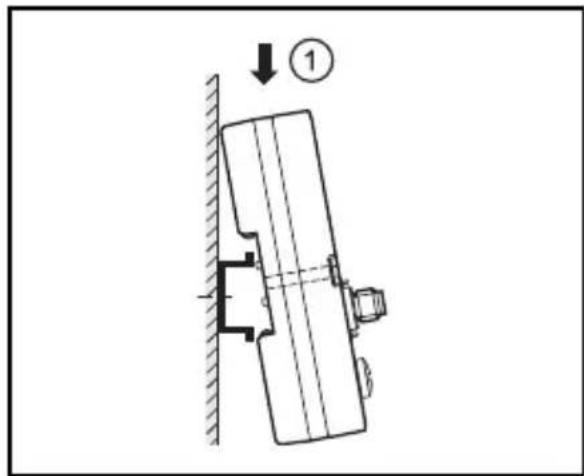

5.3.1 Mounting on DIN rail
The device can be installed on a DIN rail of type NS35/15 or NS35/7.5.
- Angle the device and place the fixing clamp onto the upper edge of the DIN rail.
- Press device down.
- Simultaneously rotate the device in the direction of the DIN rail.

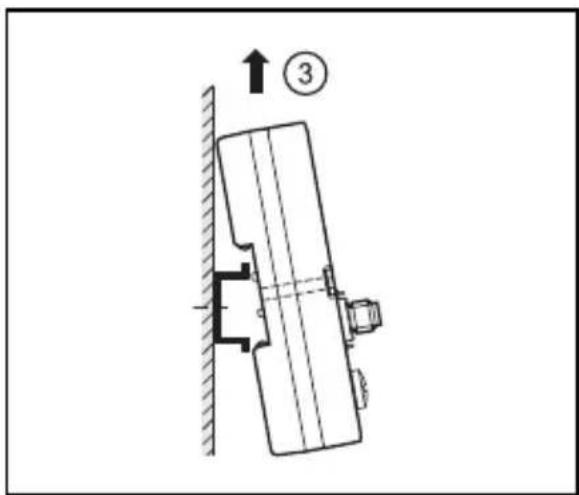

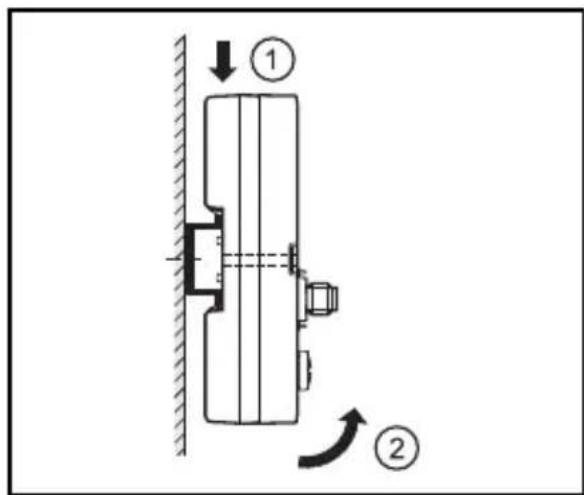

5.3.2 Removal
- Press device down.
- Simultaneously rotate the device away from the DIN rail.
- Remove the device from the top.

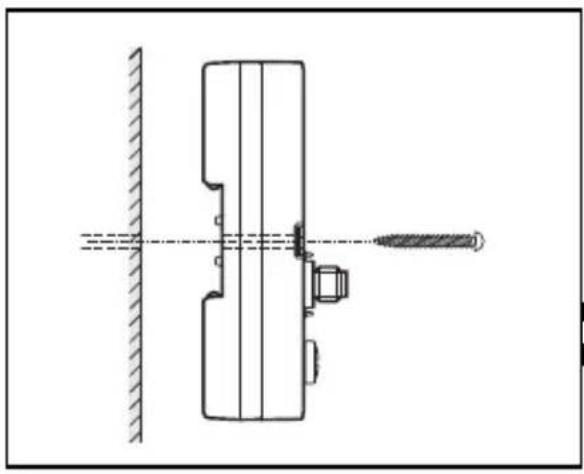

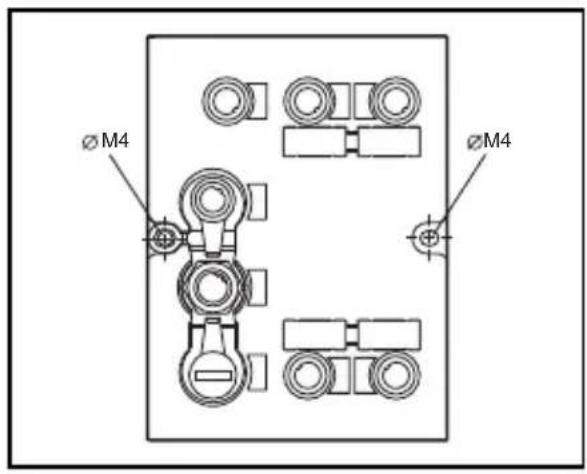

5.3.3 Mounting plate
The device can be fixed to a mounting plate using 2 screws (M4 x 35 or longer).
UK
This installation mode is recommended for vibration and shock requirements.
6 Electrical connection
The device must be connected by a qualified electrician.
Disconnect power before connecting the device.
- Observe the national and international regulations for the installation of electrical equipment.
Ensure voltage supply to EN 50178, SELV, PELV.
Connect the device according to the indicated pin connection.
A total current consumption of the device of 3 A must not be exceeded.
Please note the following points to ensure protection rating IP 67:
Cover the unused sockets with protective caps.
- Tighten all protective caps and connectors with a tightening torque of 1 Nm.
You will find matching accessories at www.ifm.com
| Accessories ifm article number | |
| Protective cap E73004 | |
| Torque wrench E70390 |
6.1 AUX voltage supply
Connect the device to the voltage supply using an M12 connection cable.
Pin Connection
1 24 V DC
2 not used
3 0V
4 not used
5 not used
You can find matching connection cables at:
www.ifm.com data sheet search DTE100 Accessories
6.2 Field bus connection PROFIBUS IN
- Connect the device to a Profibus DP master e.g. S7-315 DP using a suitable M12 Profibus connection cable.
| 5 2 1 3 4 Note: screened connection cable required | Pin Connection | |
| 1 not used | ||
| 2 RxD/TxD-N (bus A) | ||
| 3 not used | ||
| 4 RxD/TxD-P (bus B) | ||
| 5 not used | ||
The following connection cables are recommended for use with the device:
| Description ifm article number | |
| Connection cable, straight - angled E12316, E12317 | |
| Cable plug, straight E12318, E12319 | |
| Socket, straight E12320, E12321 | |
6.2.1 Profibus address
Profibus address on delivery: 126
The address can be adapted via the integrated web server ( chapter 6.4) or a suitable Profibus DP master of class 1 or 2.
6.3 Fieldbus connection PROFIBUS OUT
- Connect the device to the next Profibus DP participant using a suitable M12 Profibus connection cable.
As an alternative: Connect terminating resistor if the device is operated at the end of the Profibus DP line.
| 1 2 4 3 Note: screened connection cable required | Pin Connection | |
| 1 P5V | ||
| 2 RxD/TxD-N (bus A) | ||
| 3 DGND | ||
| 4 RxD/TxD-P (bus B) | ||
The following terminating resistor is suitable for use with the device:
| Description ifm article number | |
| Terminating resistor E12315 |
Ethernet connection COM
The device features an Ethernet interface for parameter setting and diagnosis. The settings are made via a web browser, e.g. Microsoft Internet Explorer® as from V7.0.
Connect the device to a PC using a suitable M12 Ethernet connection cable.
| 1 2 4 3 Note: screened connection cable required | Pin Connection | |
| 1 TD+ | ||
| 2 RD+ | ||
| 3 TD- | ||
| 4 RD- | ||
The following connection cable is suitable for use with the device:
| Description ifm article number | |
| Ethernet connection cable M12 / RJ45 E12090 |
6.3.1 Factory setting of the Ethernet parameters
The following values are preset on delivery of the device:
| Parameters Factory setting | |
| IP address 192.168.0.79 | |
| Gateway address 192.168.0.100 | |
| Subnet mask 255.255.255.0 | |
| Auto-negotiation on |
6.4 Process connections IO-1 ... IO-4
Each process connection can be used as input/output to IEC 61131 or for connection of an RFID read/write head. The connections are set via the hardware configuration of the Profibus DP master.
UK
| Pin Connection | |
| 1 | L+ |
| 2 switching | input (I/Q) |
| 3 | L- |
| 4 switching | output (C/Qo) or input (C/Qi) |
| 5 not used | |
The evaluation unit has to be disconnected before field units are connected.
Please note that the total current consumption of the device must not exceed the value of 3 A.
6.4.1 Use as input/output to IEC 61131
Ensure the following settings in the Profibus master:
| Application Example Configuration in the Profibus DP master | ||
| Input sensor input | ||
| Output | actuator | output |
6.4.2 Use with RFID read/write heads
There are various operation modes when an RFID read/write head of type ANT51x is connected:
| Operating mode Configuration in the Profibus DP master | |
| Acyclic execution of commands via PIB | PIB state |
| Read UID from tag or write UID to tag | RWH UID |
| Cyclic execution of commands RWH STRG | |
You can find detailed information about the available operating modes in the device manual at:
www.ifm.com data sheet search DTE100 Operating instructions
6.5 Functional earth connection.
To ensure trouble-free operation the device must be connected to an earth potential free from external voltage.

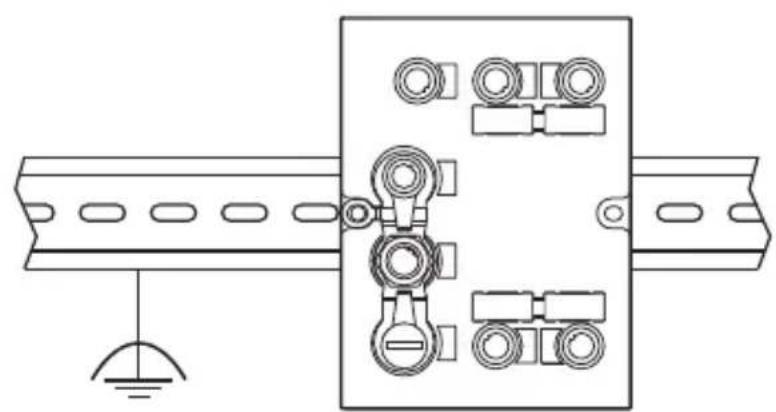

6.5.1 Mounting on DIN rail
The connection is made automatically via the DIN rail. Note that the DIN rail must be connected with the earth potential.

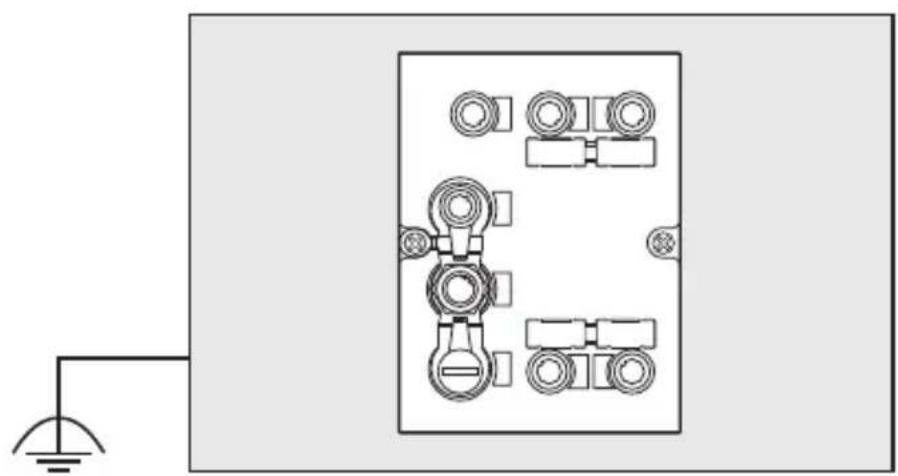

6.5.2 Mounting plate
When the device is fixed on a mounting plate, connection is made via the left fixing screw. Note that the plate must be connected with the earth potential.
7 Operating and display elements
7.1 Reset to factory settings
Profibus address and Ethernet parameters can be reset to the factory settings.
Take the following steps:
Remove all cable connections from the device.
- Insert an electrically conductive bridge between pin 1 and pin 3 on the process connection IO-3.
- Connect device with the voltage supply and wait until the yellow LED indication on AUX and IO-3 flashes at approx. 8 Hz.
Disconnect the device from the voltage supply and connect it again.
The settings are reset.
7.2 LED indicators
The device indicates the current status of the interface via the status LEDs.
7.2.1 LED AUX
| LED green LED yellow Status Note | |||
| off off no voltage supply U | AUX < 5 V | ||
| on | flashes at 2 Hz | voltage supply too low | 5 V ≤ U AUX ≤ 18 V |
| on off | voltage supply OK 18 V ≤ U AUX ≤ 36 V | ||
| on | flashes at 8 Hz | voltage supply too high | U AUX > 36 V |
7.2.2 LED PROFIBUS
| LED red LED green Status | Note | ||
| on off | no connection to the Profibus DP master | Profibus DP protocol stack in the device does not run or no connection to the DP master | |
| on | flashes at 2 Hz | connection to Profibus DP master exists, no cyclical data exchange | device is in the "WAIT_PRM" or "WAIT_CFG" state |
| off on | connection to the Profibus DP master exists, cyclical data exchange running | device is in the "DATA_EXCH" state" |
UK
7.2.3 LED COM
| LED green LED yellow Status Note | |||
| off off | no connection to another Ethernet counterpart | link status "no link"" | |
| on off | connection to Ethernet counterpart exits, no data exchange | link status "link", "no traffic" | |
| on | flashes sporadically | connection to Ethernet counterpart exists, data exchange running | link status "link", "traffic" |
7.2.4 LEDs IO1 ... IO4
The LED indications of the process connections differ with each connection configuration.
Use as input to IEC 61131
| LED green LED yellow Status Note | |||
| off off interface deactivated | interface in DP master not configured | ||
| on off | interface activated, input on L level (0 V) | - | |
| on on | interface activated, input on H level (24 V) | - | |
| flashes at 8 Hz | flashes at 8 Hz | overload or short circuit - | |
Use as output to IEC 61131
| LED green | LED yellow Status | Status Note | |
| off off | interface deactivated | interface in DP master not configured | |
| on off | interface activated, output L-active (0 V) | - | |
| on on | interface activated, output H-active (24 V) | - | |
| flashes at 8 Hz | flashes at 8 Hz | overload or short circuit - | |
Use with RFID read/write heads
| LED green LED yellow Status Note | |||
| off off interface deactivated | interface in DP master not configured | ||
| flashes at 2 Hz | off | interface activated, antenna off | - |
| on off | interface activated, tag not in the field | - | |
| on on | interface activated, tag in the field | - | |
| flashes at 8 Hz | flashes at 8 Hz | overload, short-circuit or communication error | - |
UK
7.2.5 Special device-LED indications
| LED Status Note | ||
| green AUX LED on yellow AUX LED flashes at 8 Hz yellow IO1...IO4 LEDs flash at 8 Hz | Device is in the service mode "emergency system started". | A firmware update is neces-sary and can be executed via the web server. |
| green AUX LED on yellow AUX LED flashes at 8 Hz green IO1...IO4 LEDs flash at 8 Hz yellow IO1...IO4 LEDs flash at 8 Hz | Major error, device has to be returned. | Hardware fault or permanent data in the device are corrupt. |
| green AUX LED on | Reset to factory settings - | |
| yellow AUX LED flashes at 8 Hz | ||
| yellow IO3 LED flashes at 8 Hz |
8 Diagnosis
Errors occurring during operation can be evaluated via the Profibus DP diagnostics and via the LED status indications (chapter 7 ).
9 Technical data
9.1 Data sheets
Data sheets can be found at:
www.ifm.com data sheet search DTE100
9.2 Device manual
The device manual can be found at:
www.ifm.com data sheet search DTE100 operating instructions
10 Maintenance, repair and disposal
- Dispose of the device in accordance with the national environmental regulations.
11 Approvals/standards
The EC declaration of conformity and approvals can be found at:
www.ifm.com data sheet search DTE100 Approvals
12 Scale drawing
Contenu
6.4 Raccords process IO-1 ... IO-4 13
