Product type Range hood
Brand Soler & Palau
Model VA900
Width 90 cm
Depth 50 cm
Height Variable with telescopic chimney
Weight Approximately 12 kg
Power supply 220-240 V ~ 50 Hz
Maximum power 200 W (excluding lighting)
Control type Electronic touch controls
Number of speeds 4 (slow, medium, fast, turbo)
Timed turbo function Yes (15 minutes, then switches to speed 3)
Timed shutdown Yes (10 minutes)
Air renewal mode Yes (10 min ON / 50 min OFF cycle)
Grease filters Metal, washable (at least every 2 months)
Activated carbon filters Not washable, replace every 4 months (optional)
Lighting Halogen lamp G4 12V max 20W
Outlet diameter 150 mm (reducible to 120 mm)
Double electrical insulation Yes (no grounding required)
Minimum distance above cooking surface 650 mm
Installation Wall-mounted, with decorative telescopic chimney
Mode of use Extraction or recirculation
Spare parts Filters, lamps, chimney (available from dealer)
Repairability index High (standard parts, easy access)

Frequently Asked Questions - VA900 Soler & Palau

What is the minimum distance between the hood and the cooking surface?
The minimum distance is 650 mm for a safe installation.
How to clean the grease filters?
The metal filters can be washed by hand with water and a neutral detergent or in the dishwasher. It is recommended to clean them every two months.
When should the activated carbon filter be replaced?
The activated carbon filter is not washable and must be replaced every four months at most. Its lifespan depends on usage.
How to replace a lamp on the hood?
Gently unclip the glass disk with a screwdriver, remove the lamp and replace it with a lamp of the same type: G4, 12V, 20W max. Note: lamps may be hot after use.
Can the hood operate without external extraction?
Yes, in recirculation mode. You must then install two activated carbon filters (not supplied) as an option. The air is filtered and returned to the room.
What does the TURBO mode mean?
TURBO mode is a timed speed that lasts 15 minutes. After this time, the hood automatically returns to speed 3. It is activated by pressing the + button up to speed 4.
How to use the timed shutdown?
Press the timer button to program the hood to turn off after 10 minutes at the current speed.
What is the air renewal mode and how to activate it?
When the hood is off, press the dedicated button for 2 seconds. The hood runs for 10 minutes at speed 1 (slow), then stops for 50 minutes, and this cycle repeats until you turn it off.
Does the hood need grounding?
No, the hood has double electrical insulation. It does not require grounding. Connection is made with brown (live) and blue (neutral) wires.
What are the possible exhaust duct diameters?
The hood is designed for a 150 mm diameter duct. A 150-120 mm reducer can be used if necessary.

User questions about VA900 Soler & Palau

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Basket in PDF format for free! Find your manual VA900 - Soler & Palau and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VA900 by Soler & Palau.

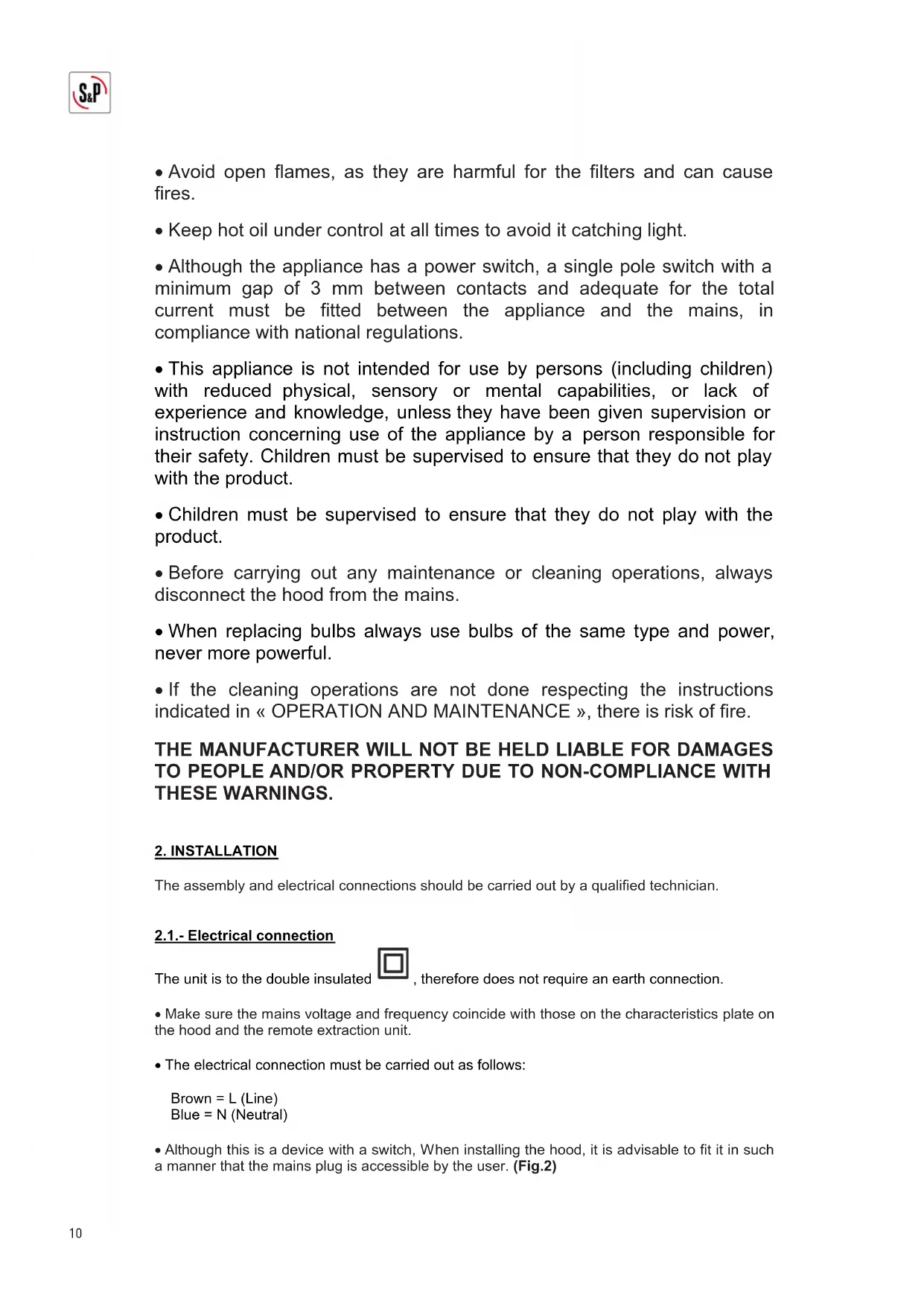

USER MANUAL VA900 Soler & Palau
