| Product type | Car battery charger |
| Brand | GYS |
| Model | Batium 15.12 |
| Dimensions (L x W x H) | 240 x 150 x 100 mm |
| Weight | 1.5 kg |
| Power supply | 230 V ~ 50/60 Hz |
| Charging voltage | 6 V or 12 V |
| Battery capacity | From 35 Ah to 225 Ah |
| Charging current | 15 A |
| Main functions | Automatic charging, forced charging, SOS Recovery (regeneration) |
| Protections | Short circuit, reverse polarity, anti-spark, internal fuse 30 A |
| Indicators | Charge, capacity, end-of-charge, SOS Recovery indicators |
| Maintenance | Dust with compressed air, check connections by qualified personnel |
| Cleaning | With a dry cloth, without solvents |
| Safety | Do not use if cable is damaged; do not expose to rain; wearing gloves and goggles recommended |
| Spare parts and repairability | Internal fuse replaceable by manufacturer or after-sales service; power cable replaceable by a professional |
| Warranty | 2 years (parts and labor) |
| Compliance | European directives, EAC, British, Moroccan (CMIM) |
Frequently Asked Questions - Batium 15.12 GYS
User questions about Batium 15.12 GYS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Phone charger in PDF format for free! Find your manual Batium 15.12 - GYS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Batium 15.12 by GYS.
USER MANUAL Batium 15.12 GYS
EN 7-11 / 37-40
DE 12-16 / 37-40
ES 17-21 / 37-40
RU 22-26 / 37-40
NL 27-31 / 37-40
IT 32-36 / 37-40
BATIUM
Electronic Battery Charger 7/12 • 15/12 • 7/24 • 15/24
INSTRUCTIONS DE SÉCURITÉ
ANOMALIES CAUSES REMEDES
CONDITIONS DE GARANTIE

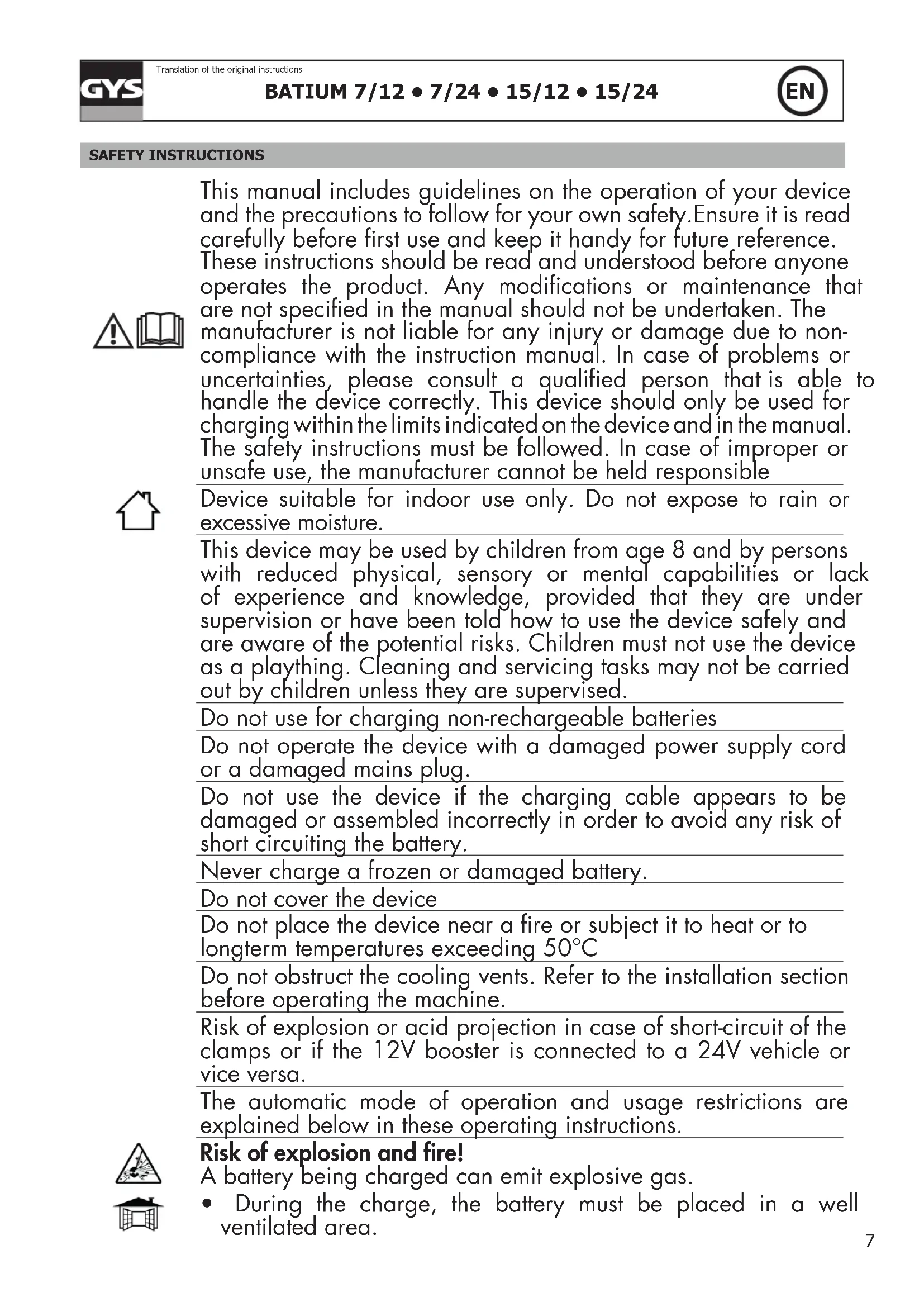

This manual includes guidelines on the operation of your device and the precautions to follow for your own safety. Ensure it is read carefully before first use and keep it handy for future reference. These instructions should be read and understood before anyone operates the product. Any modifications or maintenance that are not specified in the manual should not be undertaken. The manufacturer is not liable for any injury or damage due to non-compliance with the instruction manual. In case of problems or uncertainties, please consult a qualified person that is able to handle the device correctly. This device should only be used for charging within the limits indicated on the device and in the manual. The safety instructions must be followed. In case of improper or unsafe use, the manufacturer cannot be held responsible
Device suitable for indoor use only. Do not expose to rain or excessive moisture.
This device may be used by children from age 8 and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the device safely and are aware of the potential risks. Children must not use the device as a plaything. Cleaning and servicing tasks may not be carried out by children unless they are supervised.
Do not use for charging non-rechargeable batteries
Do not operate the device with a damaged power supply cord or a damaged mains plug.
Do not use the device if the charging cable appears to be damaged or assembled incorrectly in order to avoid any risk of short circuiting the battery.
Never charge a frozen or damaged battery.
Do not cover the device
Do not place the device near a fire or subject it to heat or to longterm temperatures exceeding 50^ C
Do not obstruct the cooling vents. Refer to the installation section before operating the machine.
Risk of explosion or acid projection in case of short-circuit of the clamps or if the 12V booster is connected to a 24V vehicle or vice versa.
The automatic mode of operation and usage restrictions are explained below in these operating instructions.
Risk of explosion and fire!
A battery being charged can emit explosive gas.
- During the charge, the battery must be placed in a well ventilated area.
- Avoid flames and sparks. Do not smoke.
- Protect the electrical contacts of the battery against short-circuiting.
Do not leave a charging battery unattended for a long time
- Wear safety goggles and protective gloves.
- If your eyes or skin come into contact with battery acid, rinse the affected part of the body with plenty of water and seek immediate medical assistance.
Connection / disconnection:
- Disconnect the power supply before connecting/disconnecting the device to/from the battery
- The terminal of the battery that is not connected to the car frame must be connected first. The other connection must be made on the car frame, far from the battery and the fuel line. The battery charger must be connected to the power supply network.
- After the charging process, disconnect the battery charger from the power supply network and remove the connector from the car frame and then the connector from the battery, in this order.
Connection:
- This device must be connected to an earthed power supply.
- This machine is fuse-protected.
- Connection to the mains must be made according to the national installation regulations.
Maintenance:
- If the power supply cable is damaged, it must be replaced by the manufacturer, its service agent or an equally qualified person.
• Service should be performed by a qualified person. - Warning! Always remove the power plug from the wall socket before carrying out any work on the device.
- If the internal fuse is blown, it must be replaced by the manufacturer, its after-sales service or an equally qualified person.
- Regularly take off the cover and remove dust with an air gun. Take the opportunity to have a qualified person check the electrical connections with an insulated tool.
- Under no circumstances should solvents or other aggressive cleaning agents be used.
- Clean the device's surfaces with a soft, dry cloth.
• The device complies with European Directive.
- The certificate of compliance is available on our website.
• EAC conformity mark (Eurasian Economic Commission).
- Equipment in compliance with British requirements. The British Declaration of Conformity is available on our website (see home page).
• Equipment in conformity with Moroccan standards.
- The declaration C_ (CMIM) of conformity is available on our website (see cover page).
Disposal:
- This product should be disposed of at an appropriate recycling facility. Do not dispose of in domestic waste.
GENERAL DESCRIPTION
The Batium range is designed to charge all common batteries including lead-acid, electrolyte or gel batteries.
| Reference 7 / 12 | 7 / 24 15 / 12 15 / 24 | |||||||||
| Voltage | 6 V | 12 V | 6 V | 12 V | 24 V | 6 V | 12 V | 6 V | 12 V | 24 V |
| Battery capacity | From 15 Ah to 130 Ah | From 35 Ah to 225 Ah | ||||||||
CONNECTIONS AND GENERAL OPERATIONS
Ensure that the correct sequences are followed.
Precaution: Check the electrolyte level for open batteries. Fill it up if necessary, before starting the charge.
- Connect the clamps: Red clamp to the battery's (+) and black clamp to the battery's (-).
- Connect the charger to the mains on a 230 V socket. An indicator Ⓐ (interface diagram p.44) and Ⓑ switches on that matches the latest saved data.
- Select the battery voltage (6, 12, 24 V) according to the recommendations features on the battery or according to the battery coupling (series or parallel cf p.44).
Risk of explosion or acid projections if the wrong voltage is selected (24V for a 12V battery).
To confirm the selection, do not press any button for 5 seconds.
-
Select the battery capacity. The Batium automatically determines the charging current.
-
The charge starts automatically. The display indicates the battery's state of charge. (indicators ① and ②)
In the event of a power cut, the BATIUM saves the state of charge (except in « SOS Recovery » mode), and resumes the charge using the latest settings.
- When the battery is charged, disconnect the power supply
- Disconnect the clamps or the battery connectors.
FORCED CHARGE
If the battery is deeply discharged (very low voltage <2 V), the charge doesnt not start automatically. The charge indicator ① does not switch on. The battery voltage indicators A, and capacity indicator B are switched on. In this situation, select the voltage and the charging current, then press the battery voltage button during 5 seconds to start a "forced charge". The indicator ① switches on once the button is released. If no indicator switches on, your battery cannot be recovered (<0.5 V (± 0.3)).
When connecting the battery, the SOS Recovery indicator ⑥ flashes to signal that the battery suffered a deep discharge over a long period, with a start in sulfation.
The « SOS Recovery » mode uses a specific curve to repair the battery over a 24 to 48 hours cycle.
To activate this feature, follow these steps :
- Disconnect the battery from the vehicle. (OVERVOLTAGE DANGER)
- Connect the Batium to the battery.
- Connect the Batium to the mains.
- Choose the charging voltage.
- Activate « Sos Recovery » by pressing the button ^4 during 5 seconds, until the indicator ^6 switches on (the indicators ^8 are switched off).
- The indicator ① switches on and blinks when the "Sos Recovery" stops and the normal charge resumes.
- The green indicator ② indicated the charge is over.
PROTECTIONS
The Batiums are protected against short-circuits, polarity reversals and vehicle start (they maintain a constant charge even when the vehicle is started). It has an anti-spark feature which prevents sparks whilst connecting the Gysflash to the battery. The Batium will not deliver current if there is no battery detected (no voltage in the clamps).
TROUBLESHOOTING
| ANOMALIES CAUSES SOLUTIONS | |||
| 1 | The charge indicator 1 is switched off. The battery voltage indicators blink alternatively after 1 minute of charging. | The selected voltage does not match the battery voltage. | - Unplug the device from the mains while holding the clamps on the battery.- Reconnect the BATIUM to the mains supply.- Select the correct voltage within 5 seconds of reconnecting the product. |
| The battery cannot be recovered. Change the battery. | |||
| 2 | The battery capacity indicators flash alternatively. | The battery is in short circuit or damaged | Change the battery. |
| A power consumer has been left on accidentally (e.g. lights). | Switch off the power consumer and continue/restart the charge | ||
| The charger is used as a power supply to compensate for the use of power consumers that are dragging the battery's energy. | Charger behaves normally but incorrect use. The indicator that signals the end of the charge cannot switch on. | ||
| The battery capacity (Ah) is higher than the charger's | The charging time will be abnormally long. If possible, use a more powerful charger | ||
| Choose the capacity indicated on your battery. | |||
| The battery voltage does not rise, the battery is damaged. | Change the battery. | ||
| 3 | The battery is connected. The charge indicator 1 does not switch on. The battery voltage indicators and battery capacity indicators are switched on. | Polarities + and – are reversed | Put the red clamp at the + the black clamp at the - |
| Bad clamp connections. | Clean the terminals and reconnect the clamps. | ||
| The battery is deeply discharged. | Use the « forced charge » mode (see the procedure on the previous page) | ||
| The fuse is melted. | Disconnect the machine from the mains. Remove the clamps from the battery. Replace the fuse with regard to its size (15 A for a Batium 7-12 7-24 or 30 A for a Batium 15-12 and 15-24). | ||
| 4 | The indicator light «SOS Recovery» (Batium 15.12 et 15.24) flashes after one minute of charge. | The battery has suffered a deep discharge over a long period, with a start in sulfation. . The charge continues but it is recommended to switch to « SOS recovery ». | Disconnect the machine from the mains, then the clamps. Activate the « SOS Recovery » mode, see the previous page. |
| 5 | SOS RECOVERY (Batium 15.12 / 15.24) : after 24 hours, the charge and end of charge indicators are switched off. | Battery cannot be recovered Battery | to be replaced |
| 6 | Forced charge : After pressing the battery voltage button during 5 seconds to start the forced charge, the indicator does not switch on. | Battery voltage < 0.5 V (± 0.3) Battery | to be replaced |
| 7 | When connecting to the mains, no indicator switches on | Disconnect the Batium from the mains during 10 sec., then reconnect it. | |
WARRANTY
The warranty covers faulty workmanship for 2 years from the date of purchase (parts and labour).
The warranty does not cover:
- Transit damage.
- Normal wear of parts (eg. : cables, clamps, etc..).
- Damages due to misuse (power supply error, dropping of equipment, disassembling).
- Environment related failures (pollution, rust, dust).
In case of failure, return the unit to your distributor together with:
- The proof of purchase (receipt etc ...)
- A description of the fault reported
