USER MANUAL WLA 5321TRW Texas

Please read the user manual carefully before operating the machine. Always wear eye and ear protection.

Safety information about hazards that can result in personal injury

Pay attention to thrown objects Do not use on hills above 22° Do not touch rotating parts

Remove the spark plug cap from the spark plug before service or repai

Stop the engine before cleaning of work area Keep distance to other people, children and animals

The blade is sharp, do not touch the knife Do not place hands or feet under cutting deck

Always use correct tools and original spare parts

Remove the spark plug cap from the spark plug before service or repai

Stop the engine before cleaning of work area Keep distance to other people, children and animals

The blade is sharp, do not touch the knife Do not place hands or feet under cutting deck

Always use correct tools and original spare parts

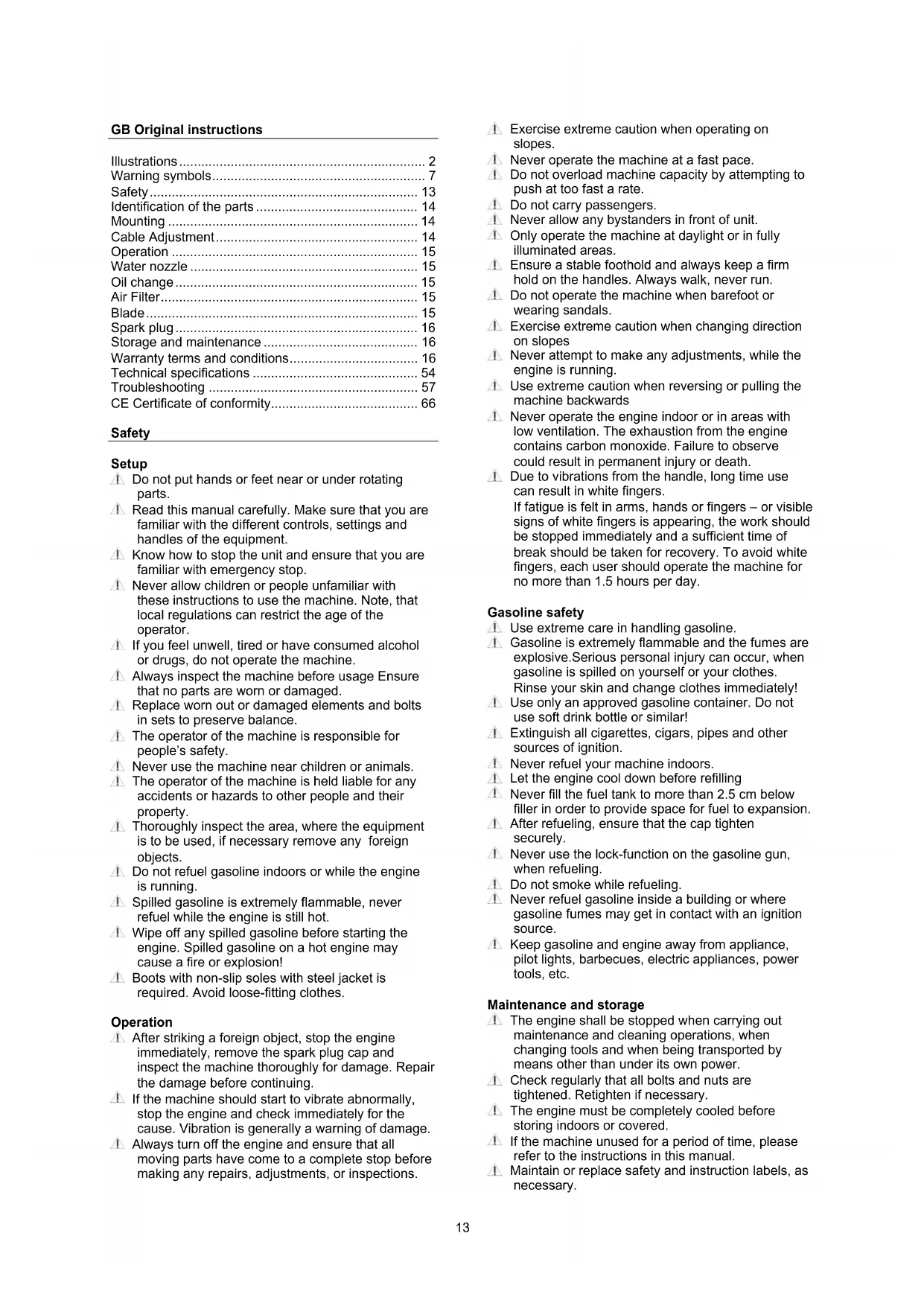

• Warning symbols p. 7
• Safety p. 13
• Identification of the parts p. 14
• Mounting p. 14
• Cable Adjustment p. 14
• Operation p. 15
• Water nozzle p. 15
• Oil change p. 15
• Air Filter p. 15
• Blade p. 15
• Spark plug p. 16
• Storage and maintenance p. 16
• Warranty terms and conditions p. 16
• Technical specifications p. 54
• Troubleshooting p. 57
• CE Certificate of conformity Safety Setup Do not put hands or feet near or under rotating parts. Read this manual carefully. Make sure that you are familiar with the different controls, settings and handles of the equipment. Know how to stop the unit and ensure that you are familiar with emergency stop. Never allow children or people unfamiliar with these instructions to use the machine. Note, that local regulations can restrict the age of the operator. If you feel unwell, tired or have consumed alcohol or drugs, do not operate the machine. Always inspect the machine before usage Ensure that no parts are worn or damaged. Replace worn out or damaged elements and bolts in sets to preserve balance. The operator of the machine is responsible for people’s safety. Never use the machine near children or animals. The operator of the machine is held liable for any accidents or hazards to other people and their property. Thoroughly inspect the area, where the equipment is to be used, if necessary remove any foreign objects. Do not refuel gasoline indoors or while the engine is running. Spilled gasoline is extremely flammable, never refuel while the engine is still hot. Wipe off any spilled gasoline before starting the engine. Spilled gasoline on a hot engine may cause a fire or explosion! Boots with non-slip soles with steel jacket is required. Avoid loose-fitting clothes. Operation After striking a foreign object, stop the engine immediately, remove the spark plug cap and inspect the machine thoroughly for damage. Repair the damage before continuing. If the machine should start to vibrate abnormally, stop the engine and check immediately for the cause. Vibration is generally a warning of damage. Always turn off the engine and ensure that all moving parts have come to a complete stop before making any repairs, adjustments, or inspections. Exercise extreme caution when operating on slopes. Never operate the machine at a fast pace. Do not overload machine capacity by attempting to push at too fast a rate. Do not carry passengers. Never allow any bystanders in front of unit. Only operate the machine at daylight or in fully illuminated areas. Ensure a stable foothold and always keep a firm hold on the handles. Always walk, never run. Do not operate the machine when barefoot or wearing sandals. Exercise extreme caution when changing direction on slopes Never attempt to make any adjustments, while the engine is running. Use extreme caution when reversing or pulling the machine backwards Never operate the engine indoor or in areas with low ventilation. The exhaustion from the engine contains carbon monoxide. Failure to observe could result in permanent injury or death. Due to vibrations from the handle, long time use can result in white fingers. If fatigue is felt in arms, hands or fingers – or visible signs of white fingers is appearing, the work should be stopped immediately and a sufficient time of break should be taken for recovery. To avoid white fingers, each user should operate the machine for no more than 1.5 hours per day. Gasoline safety Use extreme care in handling gasoline. Gasoline is extremely flammable and the fumes are explosive.Serious personal injury can occur, when gasoline is spilled on yourself or your clothes. Rinse your skin and change clothes immediately! Use only an approved gasoline container. Do not use soft drink bottle or similar! Extinguish all cigarettes, cigars, pipes and other sources of ignition. Never refuel your machine indoors. Let the engine cool down before refilling Never fill the fuel tank to more than 2.5 cm below filler in order to provide space for fuel to expansion. After refueling, ensure that the cap tighten securely. Never use the lock-function on the gasoline gun, when refueling. Do not smoke while refueling. Never refuel gasoline inside a building or where gasoline fumes may get in contact with an ignition source. Keep gasoline and engine away from appliance, pilot lights, barbecues, electric appliances, power tools, etc. Maintenance and storage The engine shall be stopped when carrying out maintenance and cleaning operations, when changing tools and when being transported by means other than under its own power. Check regularly that all bolts and nuts are tightened. Retighten if necessary. The engine must be completely cooled before storing indoors or covered. If the machine unused for a period of time, please refer to the instructions in this manual. Maintain or replace safety and instruction labels, as necessary.14 Only use orginal spare parts or accessories. If not orginal parts or accessories is used, the liablility is no longer applied. Miscellaneous The motor is not pre-filled with oil. Always before start check the engine oil level. Factory-fitted control devices, such as the handle- mounted clutch cable, must not be removed or exposed. Only drain the fuel tank outdoors. Gasoline is extremely flammable and the fumes are explosive. Ensure that the machine is properly secured when transported on a flatbed etc. p. 66

Waste electrical products must not be disposed of with the household waste. This tool should be taken to your local recycling centre for safe treatment. The lawnmower is manufactured according to the latest safety requirements. These include a blade brake that stops the motor and blade in 3 seconds when the blade brake. Every precaution is only effective when it is followed exactly. Use the following description when you mount your lawnmower. Identification of the parts See Illustration 1 Notice: the illustrations may vary from your present model A. Handlebar for drive B. Handlebar for engine brake C. Recoil starter D. Handle lock nut E. Rear discharge guard F. Water nozzle G. Grass collector H. Gasoline filling cap

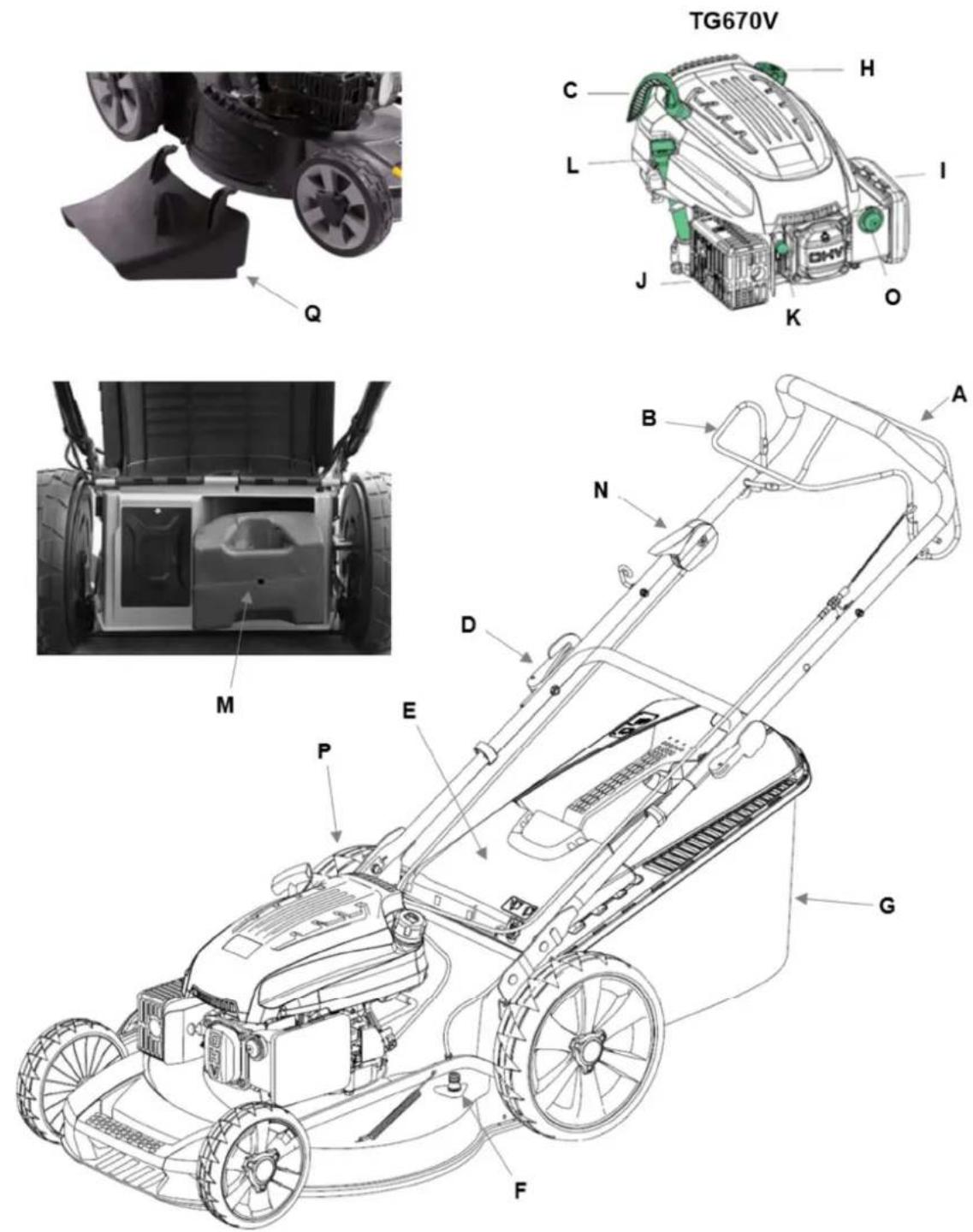

J. Exhaust K. Spark plug L. Oil cap M. Mulching plug N. Throttle lever (only WLA 5321TR/W) O. Primer (only WLA 5321TR/W) P. Height adjustment Q. Side discharge guard Mounting Unpacking: Remove the mower from the box by pulling the machine out from the side.

Warning: Ensure that cables are not pinched.

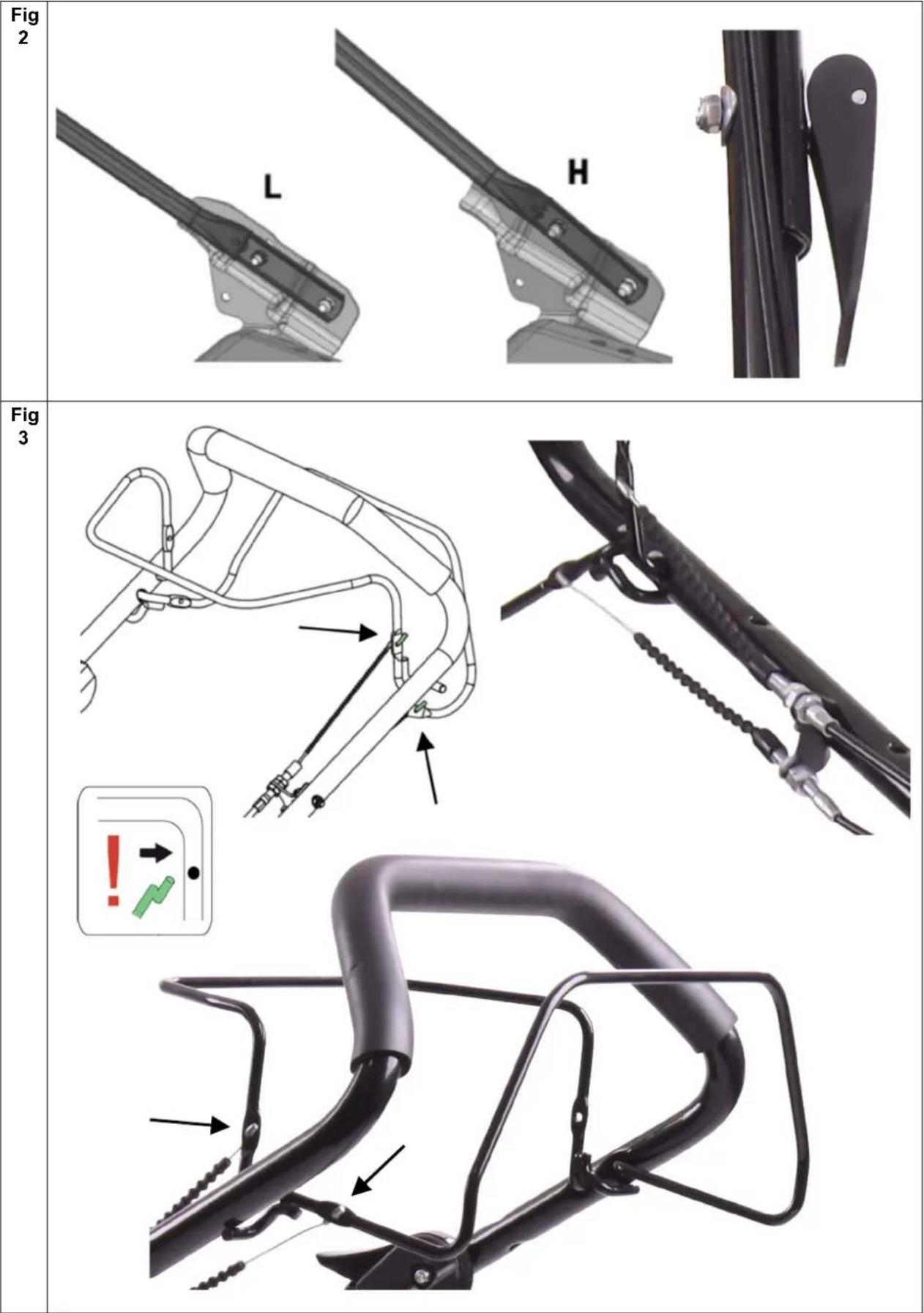

Handlebar and height adjustment: Illustration M2 The handlebars are height adjustable. This means that they can be adjusted so that it best fits you. Before you install the handlebar, it may be a good idea to have decided which height is best for you.

1. Set the lower handlebar tube to the working height

that suits you. “H” is high position and the “L” is low position.

2. Attach the nut from the inside of the side bracket

and into the lower handlebar.

3. Attach the upper handlebar on the lower. Fasten

with nut from the inside of the handlebar.

4. Customize cable and secure with cable clamps

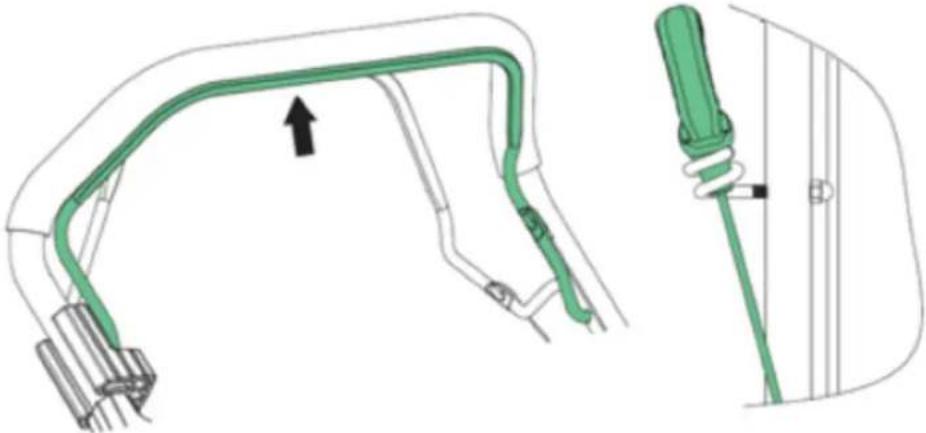

Mounting the engine brake cable: Illustration 3

1. Gently push the top handlebar (1-B) forward

2. Insert the engine brake cable from the outside, into

the hole in the bracket on handlebar and lock. Mounting the drive cable: Illustration 3

1. Gently push the lower handlebar (1-A) downward

2. Insert the drive cable from the inside, into the hole

in the bracket on handlebar and lock. Mounting the recoil-starter: Illustration 4

1. Pull the engine brake handlebar and hold, in order

to release the starter cord on the engine.

2. Pull gently the starter cord from the engine

(Engine brake handlebar MUST be hold)

3. Attach the starter grip on the rack of handlebar.

4. Release the engine brake handlebar and the

starter grip. Mounting the grass collector:

1. Click the frame to the grass collector.

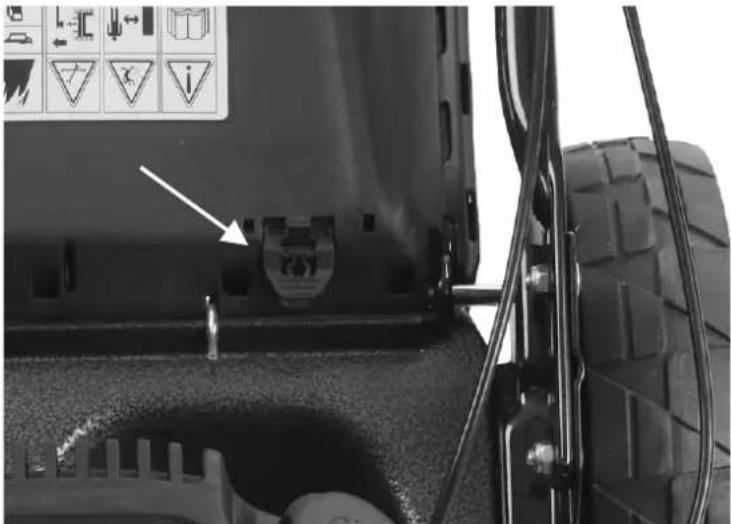

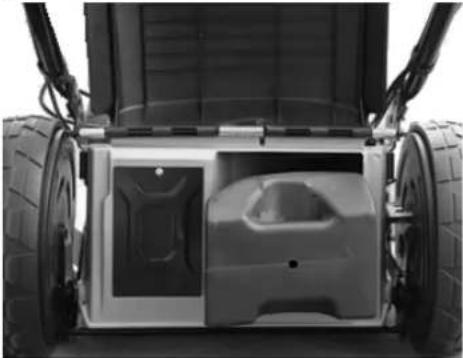

The grass collector comes with a handy indicator showing whether the box is full of grass and needs emptying. Rear discharge guard: Illustration 5 If you want to mow without grass collector it is important to use the space block. Note: The space block are for rear ejection only!.

Warning: If the space block is not used. The mower

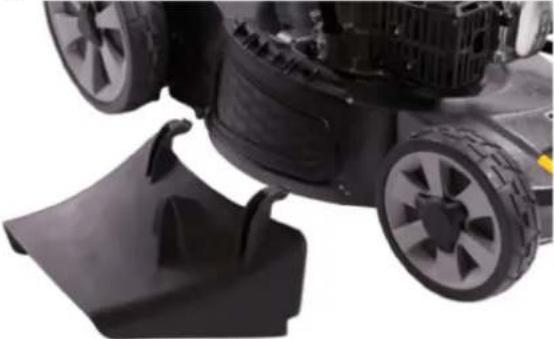

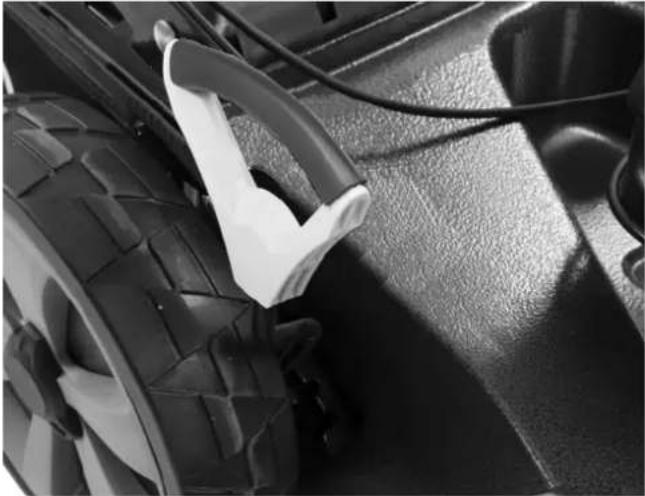

will have difficulties to dispose the grass. Mulching plug: Illustration 6A Insert the mulching plug and remove side discharge guard, if you want to mow with mulching functionality. Note: Don’t use the grass collector Important: Remember to remove the mulching plug, when using the grass collector. Side discharge guard: Illustration 6B Lift the side guard and insert side discharge guard. Then insert the mulching plug in rear discharger to mow with side discharge function. NB Don’t use the grass collector Cable Adjustment Before the machine is being used, the cable adjustment should always be checked. The cables can be checked by activating the handles fully and check if the cable is tight. If not, it must be tightened. If the handle cannot easily be fully activated, the cable should be loosened. After first season, it must be expected that the cables need to be adjusted for optimal activation, as cables can stretch when used. The following cables may be necessary to re-adjust: Illustration 7

2. Cable for engine brake

3. Cable for throttle cable

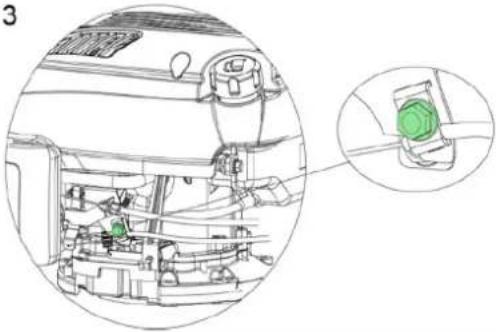

Adjusting the drive cable: Illustration 7-1* If you experience slack in the drive cable, this can be solved simply by tighten or loosen the bolt on the cable.

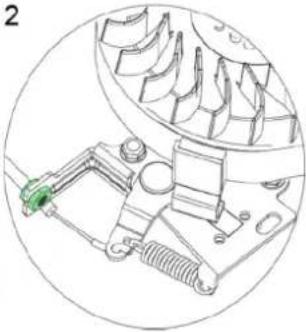

• Cable can only be adjusted on some models.15 Adjusting the engine brake cable: Illustration 7-2 If you experience slack in engine brake cable, this can be solved simply by tighten or loosen the bolt on the engine block. Adjusting the throttle cable: Illustration 7-3* If you experience slack in throttle cable, this can be solved simply by tighten or loosen the bolt on the engine block.

• Not all models have throttle cable. Operation Always check and refill oil before the start! Read and apply the instructions given in the enclosed start guide! The oil level should always be between min. and max on the dipstick. Fill with SAE-30 oil. There should be total 0.6 liter oil in the engine. Use only unleaded E5 fuel to the engine. Never overfill the tank. Cutting height adjustment: Illustration 8 The mower has 8 different heights. The cutting height ranges from 15 mm to 80 mm Start: Never start the mower directly on long grass. Recoil with primer (TG670V): Illustration 9

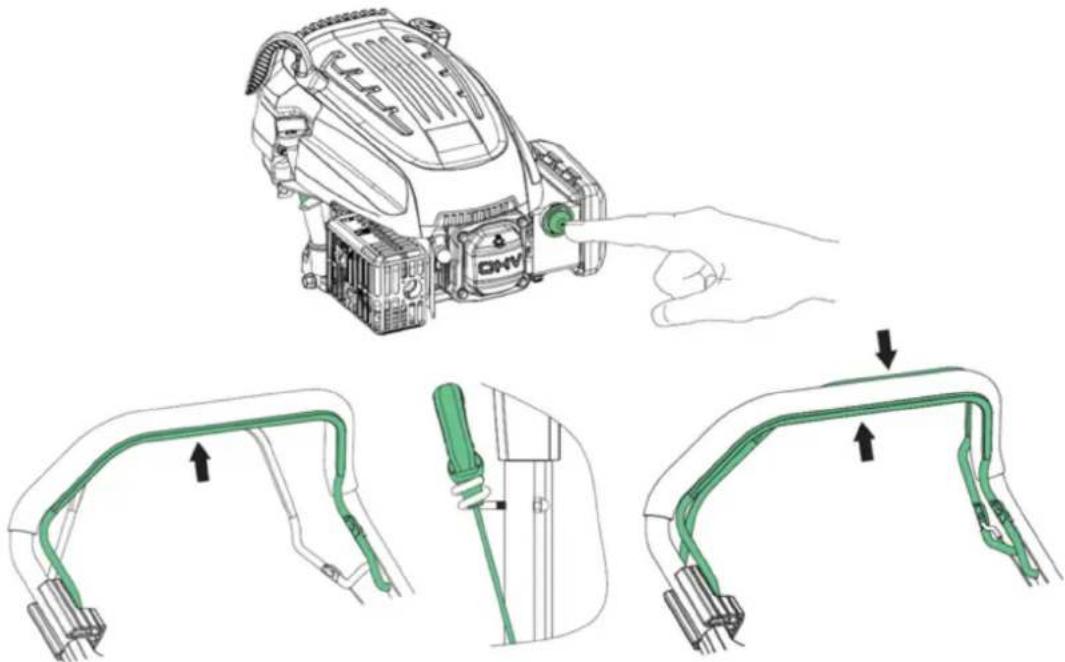

1. Move the throttle lever to full

2. Push the primer several times, first time push 1-3

times, if necessary, supplement with up to 3-5 times. Note: It is not possible to drown engine

3. Hold the handlebar for the engine brake; this will

release the engine brake.

4. Pull the recoil starter gently until you feel resistance

in the rope, then pull quickly and energetic. Do not at any time let go of the recoil starter but slide it gently into starting position.

5. Adjust the throttle lever if necessary

6. Hold the bar for self-propelled in order to start

mowing Note: As long as operating the mower, the bar forengine brake must be engaged. Throttle lever* Engine speed can be adjusted while driving. Turn gas handle to adjust rpm (1-N). It is recommended to run at full throttle for best cutting results.

• Note: Not all models have throttle control Stop: Illustration 10

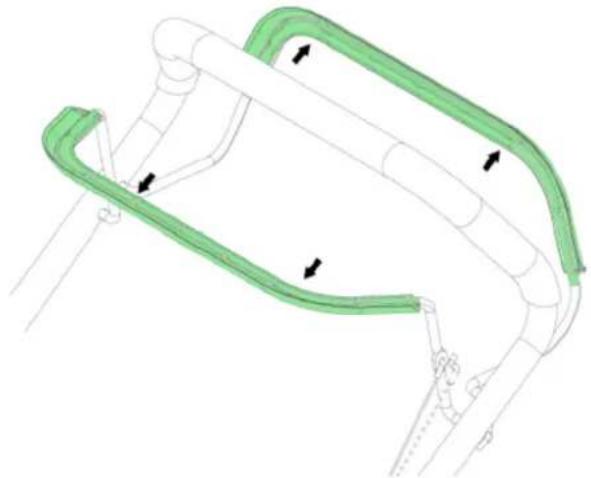

1. Release the engine brake and self-propelled bar to

turn off the mower and the engine Note: The blades will still rotate at up to 3 seconds after stopping. Water nozzle The left side of the mower deck is fitted with a water nozzle for washing the deck. (See Illustration 1-F)

• When using the water nozzle, the machine must be in the lowest height position and placed on the lawn. This ensures that the water remains under the deck during cleaning.

• Attach a hose to the nozzle.

• Turn on the water and start the engine.

• The rotations of the blades will ensure that the water will clean the underside of the deck. If above instruction is not followed, water may splash back on the gearbox and clutch cable, which increases the risk of corrosion and damage to both parts. This will not be covered by the warranty! Note: For best result clean the deck with the water nozzle function right after each mowing. If the grass dries out, this function will not work optimally. Oil change Oil should be changed for the first time after 5 hours, then at least 1 time per year. You will need an oil extractor kit. Art. no. 40-11336 Oil and oil extractor kit is not included Use an extractor kit and do as follows:

1. Turn on the engine and let it run for 5 min or until

the engine is hot. A hot engine liquefies the oil which makes it easier to drain.

2. Suck the oil up through the oil filler hole using the

syringe that came with the oil extractor kit. Use the hose to reach the sump.

3. Transfer the used oil into a empty container.

4. Fill the engine with SAE-30 oil.

5. Check the oil level using the dipstick. (Min / Max)

Remember to dispose the used oil so that it does no harm to nature. Use your local recycling station. Air Filter The air filter should be inspected and cleaned regularly. If the filter has not been cleaned for a long time, the engine’s power will drop. See Illustration 11A (TG670V)

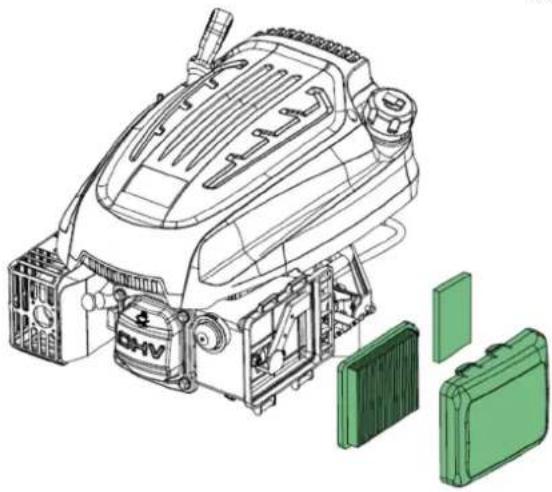

1. Clean around the air filter before removing the cap.

2. Push the two flaps down and gently pull the cover

3. Carefully remove the paper filter and inspect it.

Brush it with a soft brush. If it is very dirty, replace it. Be careful that no dirt gets into the inlet.

4. Wash the black foam element in the right side in

warm water and soap.

5. Press the water out of the foam element and let it

dry. Put a few drops of SAE-30 oil on the filter to moisten it lightly. Carefully squeeze any surplus oil out of the foam element and reattach.

6. Please note that all parts are assembled correctly

and properly closed, as shown in the picture. Blade Inspection of the blade

• Tilt the mower with the front upwards.

• Inspect blade for damage, cracks or excessive rust or corrosion.

• Check that the blade bolt is tightened. Note: A dull blade can be sharpened! But a blade that is worn, bent, cracked or otherwise damaged must be replaced.16 Removing the blade: See illustration 11B If you remove the blade to sharpen or replace it, you must use a torque wrench and some heavy gloves to protect your hands.

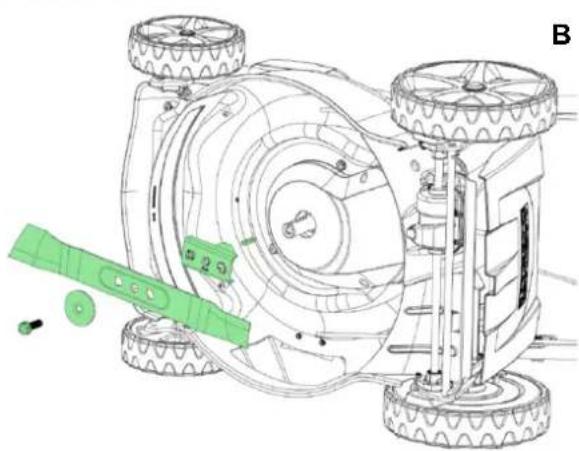

1. Loosen the blade bolt. Use a piece of wood to

prevent the blade from turning around.

2. Remove the bolt, washer, blade and blade holder

4. Insert the blade holder, blade, washer and bolt in

5. Tighten the blade bolt with 50 Nm. Use a piece of

wood to prevent the blade from turning around.

Warning: A blade must be sharpened so it is in

100 % balance, otherwise it may cause vibrations that could damage the engine. Damage to engine due to faulty sharpening is not covered by warranty. We therefore recommend letting a service center sharpen the blade. Spark plug

1. Remove the spark plug.

2. Brush off dirt from the spark plug.

3. Use a spark plug wrench to loosen the spark plug.

4. Check the insulation is intact.

5. Clean the spark plug with a wire brush.

6. Measure the electrode, taking care not to damage

7. The distance should be: 0.7 to 0.8 mm

8. If the spark plug is undamaged refit or replace.

9. Reattach the spark plug.

Storage and maintenance Maintain your lawnmower: Check all bolts, screws, nuts and deck. Dismount the blade and the belt plastic cover for regular cleaning. Always make sure that the blade is sharp. It’s a good idea to take your lawn mower to an annual service check with your authorized service dealer. See your nearest service center at www.texas.dk. Storage: After use the lawnmower kept in a dry and clean room. Clean the machine after every use. Grass and dirt must be removed from the underside of the deck. By tipping the mower (for cleaning) is recommended to tilt the front up (max. 45 degrees). If you tilt it sideways, the carburetor and air filter always face upwards, since oil may run out and destroy the engine. Be aware that removing the spark plug before the mower maintenance. Winter storage: Empty the fuel tank and let the engine run until the gasoline in the carburetor is used up. Spark plug removed. Remove the spark plug and add a teaspoon of oil (engine oil) in the hole. Pull the starter to distribute oil. Mount the spark plug, but not the spark plug cap. Change oil as described in the section above. Spray silicone lubrication into the cables and move them. Finally, clean the mower thoroughly. Dip a cloth in oil and luricate metal parts to prevent rust. Cleaning and lubricating of rachet wheels: See illustration A5 Cleaning and lubricating of all rachet wheels should be done minimum once per year to ensure longer durability. If no maintenance is performed, the warranty will not cover these parts. Follow below procedure (for both rear wheels)*:

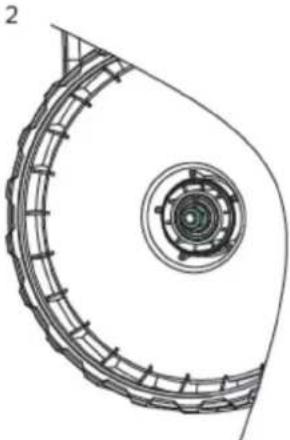

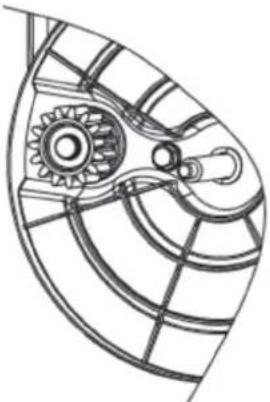

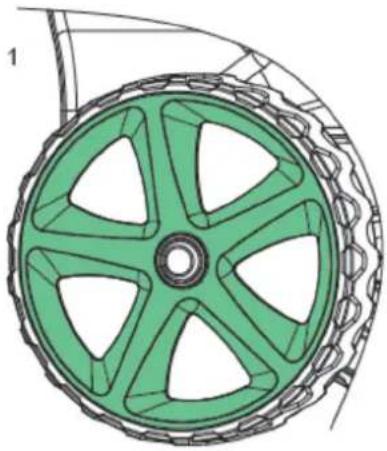

1. Remove the wheel covers

2. Unscrew the nut with a 13 mm wrench

3. Pull of the washer and the wheel

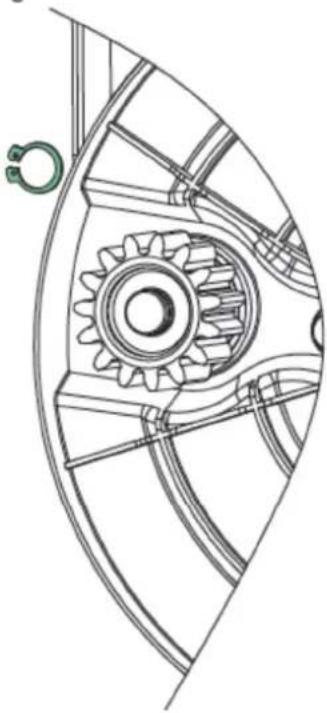

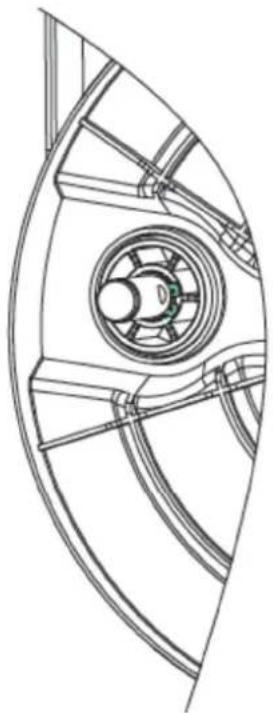

4. Remove the retainer ring with a suitable tool and

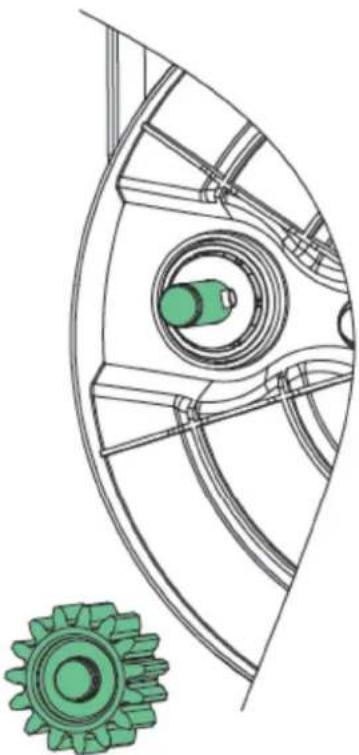

5. Clean shaft/rachet wheel for old grease and dirt.

6. Lubricate with suitable grease (e.g. EP-0)

7. Mount the wheel and wheel cover again

• Only apply for self-propelled models. Warranty terms and conditions The warranty period is 2 years for private end users in EU countries. Products sold for commercial use, only have a warranty period of 1 year. The warranty covers material and/or fabrication faults. Restrictions and requirements Normal wear and replacement of wearing parts are NOT covered by the warranty. Wearing parts, which are NOT covered for more than 12 months:

• Engine liquids (oil, gasoline)

• Battery: If the battery is not stored correct (frost- free and recharged every 3 months), the durability is only guaranteed for 6 months. If you start the engine without adding oil, it will be damaged and cannot be repaired and therefore not covered by the warranty. The warranty does NOT cover damages/faults caused by:

• Lack of service and maintenance

• Exposure to unusual external conditions

• Damages to the bodywork, deck, handles, panels etc.

• If the machine has been improperly used or overloaded

• Wrong use of oil, gasoline or other liquid types, which are not recommended in this user manual

• Bad or dirty gasoline, which results in contamination of the fuel system

• Use of unoriginal spare parts.

• Other conditions where Texas cannot be held responsible. Whether a case is a warranty claim or not is determined in each case by an authorized service center. Your receipt is your warranty note, why it should always be kept safe.17 DE Übersetzung der Originalbetriebsanleitung Abbildungen ................................................................. 2

Technical specifications Specifications

Difficult to start Problem Cause Solution Generally difficult to start

Wrong starting procedure

Follow the starting instructions in the manual precisely. The start cable is very tight (will not start)

• The brake handle is not being activated

• The machine is placed in high grass

• Activate the brake handle and pull the start cord.

• Move the machine away from the high grass and repeat the start procedure. Set the height adjustment in the highest position, so that the blade is lifted free of the grass. The machine will not start when the start cord is pulled.

The brake handle is not being activated

• the brake cable is incorrectly adjusted

• The machine is standing in high grass

• Engine is not primed before starting

• The choke is not in the correct position

• No more gasoline in fuel tank

The gasoline is more than 3 months old

• Adjust the engine brake cable, following the instructions in the manual.

• Move the machine away from the high grass to start it. Tip the machine when starting. Set the height adjustment in the highest position, so that the blade can run freely.

• Push the primer 1-3 times before starting.

• Move the choke lever to a different position.

• Check and fill fuel tank with gasoline.

Empty the fuel tank and carbureto

from old gasoline, and fill with new gasoline. No ignition spark (cannot start)

• The spark plug cap is loose

• The spark plug is damp or dirty

• Incorrect gap between the spark plug and the electrode

The air filter is dirty or defective

• Check that the cap is firmly attached to the spark plug.

• Check that there is no dirt on the spark plug, following the instructions in the manual.

• Check and adjust the spark plug gap, following the instructions in the manual. Alternatively, replace the spark plug.

Check the air filter for dirt and clean it, following the instructions in the manual. The mower starts, but runs unevenl

Problem Cause Solution Insufficient engine revolutions

• Lever is in the "Choke" position

The throttle lever is set for "Turtle "

• Set the lever in the "Run" position.

Set the throttle lever for "Rabbit". The rear wheels are not pulling, or only very little

• The clutch cable is too tight/too loose

The ratchets in the rear wheels are worn

• Adjust the clutch cable, following the instructions in the manual.

Replace the ratchets. The engine runs irregularly and/or its performance becomes poor as you are working

The spark plug cap is loose

• The spark plug is dirty

• Incorrect gap between the spark plug and the electrode

• The air filter is dirty or defective

• Evaporation of fuel in the carburetor

• Loose throttle cable

Dirt in the carbureto

Check that the cap is firmly attached to the spark plug.

• Check that the spark plug is clean and not damaged, following the instructions in the manual.

• Check and adjust the spark plug gap, following the instructions in the manual.

• Check the air filter for dirt and clean it, following the instructions in the manual.

• Wait a few minutes, and then try to start again.

• Tighten the throttle cable, following the instructions in the manual.

ine will not stop Problem Cause Solution The machine does not stop after 5 seconds

The engine brake cable runs too tightly

Johnny Lolk Managing Director6768
