USER MANUAL 4 Stagioni G60024 G3 Ferrari

Front view of a Ferrari air conditioner fan with visible blades and grille (no text or symbols on the fan body)

Ventilatore Caldo-Fresco

Heater and Fan

4 STAGIONI

ITA: INDICE

Simbologia.... p. 2

Main operation.... p. 12

Cleaning....p. 13

Technical features....p. 13

Waste of electric and electronic equipment (WEEE

Directive)....p. 21

FRANCAIS: p. 14

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

Caution: this symbol reminds the user that the part on which it is placed must not be covered in any way.

AVVERTENZE DI SICUREZZA

Labeled diagram of a front-mounted air conditioner fan with numbered parts for identification.

10 11 12 ECO 13 14 15 16 - + 17

PULSANTI

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug

from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- Children less than 3 years should be kept away from unit if not continuously supervised.

- Children between 3 and 8 years can only switch on and off appliance, only if it is placed or installed in its normal functioning position and if they receive supervision and instructions about safe use of the appliance, and understand relative dangers. Children between 3 and 8 years must not insert the plug, set or clean or make the maintenance of the appliance.

- CAUTION: some parts of this appliance can become very hot and cause skin burning. Pay big attention in presence of children or vulnerable persons.

- Children must not play with the appliance.

- Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any

risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

WARNING: This appliance includes heating function. Do not cover. Keep space on sides when using. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.

• This appliance is intended to be used in household an similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.

GENERAL INFORMATION

- Never leave the appliance unattended while it is running. Unplug it after each use.

-To unplug the unit, do not pull the power cord.

- Do not immerse the product in water or other liquids and avoid any splashing of liquids reaching the unit.

- Store the product only when it is completely cold.

-Before carrying out any cleaning operation, disconnect the plug from the electrical outlet and wait for the complete cooling of each part of the unit.

- Do not insert anything in the protective grid. Not to obstruct it and place the unit half a meter from the surrounding objects. Pay attention: the air outlet becomes very hot during use.

-Before each use, unroll the power cord completely.

- Install the unit on solid and stable surfaces. During use, place leave at least half a meter on each side of the unit.

- CAUTION! Don't leave product on unattended. Always turn off the unit after each use.

- Do not use as a shelf support for objects.

- Do not cover for any reason, subject to overheating.

- Do not use in rooms smaller than 4 square meters.

The product is equipped with an automatic switch-off that comes into play in case of overheating. If the product fails during use, check that the ventilation openings are not blocked, unplug the unit and allow to cool down for 30 minutes before operating.

G60024 DESCRIPTION

1 Air outlet grille

2 Handle

3 Housing

4 ON/OFF button (on the back)

5 Display

6 Infrared receiver

7 Function light

8 Oscillating base

9 Control panel

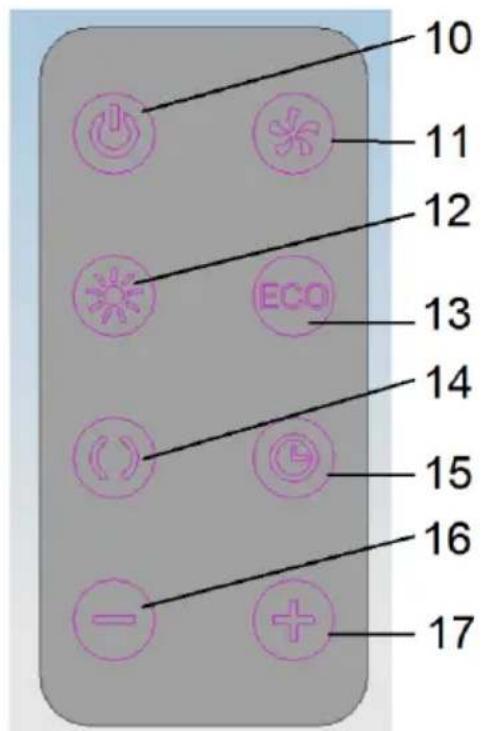

ON REMOTE CONTROL

10 On/Off button

11 FAN mode button

12 HEATING button

13 ECO button

14 OSCILLATION button

15 TIMER button

16 - key

17 + key

BUTTONS

- ON/OFF general (4) enables or disables any function.

On the control panel (9) and on the remote control, are present the same buttons here listed:

• ON/OFF button (10) for turning on/off the unit.
  • FAN (11) activates the product in ventilation function ( ).
• HEATING (12) activates the functions heating 1000W (°), or heating 2000W (°).
  • ECO (13) for entering the energy saving mode (icon ECO).
• OSCILLATION (14) enables the horizontal oscillation (Icon 2).
  • TIMER (15) sets the 1-24 hours timer (icon ☐).
  • + and - (16 and 17) to set temperature and timer.

Display

The display can show the timer, the set temperature or the ambient temperature.

1 2 3 4 25 8 ECO + -

OPERATION

Insert in the remote control a battery 3V, type CR2025 or CR2032.

Bring the general ON/OFF button (4) in position "I".

FAN MODE

- Press the switch on button (10) on control panel (9) or on the remote control.

○ Appliance switches on in fan mode ( ) and with fan speed 1.
○ Display shows ambient temperature
- The function light (7) lights up in blue, to show that the fan mode is active.

- Press the fan button (11) to change the speed of the fan from 1 to 4.

HEATING MODE

• Press the switch on button (10). L' Appliance switches on in fan mode ( ) and with fan speed 1.
• Press the heating button (12) once to activate the low power heating mode. The icon “✗” and the letters “P1” will appear on display.
• Press the heating button (12) twice to activate the hig power heating mode. The icon “☐” and the letters “P2” will appear on display.
• Pressing the heating button (12), the fan mode will return.

In the heating mode:

• The fan works at speed 2 and the speed cannot be changed.
• The function light (7) lights up in red, to show that the heating mode is active.
• If the product is switched off, it will keep working in fan mode for 30 seconds, for cooling down.

OSCILLATION

Switch on the product in any mode (Fan or heating).

Press the Oscillation button (14).

The base will start to oscillate horizontally and on display appears the icon.

TIMER 24H

Switch on the product in any mode (Fan or heating).

The heater has a timer up to 24 hours, to activate it:

• Press the button Timer (15).
• Set the time from 1 to 24 hours with the buttons + and - (16 and 17).

On display appears the time set and the icon. After the time, the heater will stop.

TEMPERATURE SETTING

Switch on appliance in heating mode (P1 o P2).

Set the desired temperature from 10 to 35°C, with buttons “+” and “-” (16-17).

In this case the appliance will keep heating until reaching the temperature set, and then will pass from fan mode to heating mode to keep the temperature set.

ECO MODE

Switch on appliance in heating mode (P1 o P2), and set the desired temperature.

Press the button ECO (13). The function light (7) lights up in green, to show that the ECO mode is active.

The product now works in energy saving mode and automatically sets the function mode, basing on the difference between ambient temperature and set temperature.

• If set temperature is 6 degrees over ambient temperature, works in high power heating (“” - “P2)
• If set temperature is 3 degrees over ambient temperature, works in low power heating (“” - “P1)
• If set temperature is equal or lower than ambient temperature, works in fan mode.

Dunring operation the appliance will automatically change the working mode depending on the difference between ambient temperature and set temperature.

CLEANING

Unplug the power cord from the electrical outlet and allow the unit to cool down before cleaning.

Do not immerse in water. In any case prevent splashes of water or other liquids reaching the appliance. Regularly clean the ventilation slot on the back of the unit and the air outlet grille (1) to prevent the dirt from clogging the airflow. Do not clean the unit with a sponge or abrasive detergents.

TECHNICAL FEATURES

• Power supply: AC 220-240V\~50Hz
• Heating power: 1800-2000W. Fan power: 55W
• Digital display, Remote control
- Timer 24H, ECO Mode
• Horizontal Oscillation
- Safety device against overheating

Information requirement for the electric local space heaters

Model identifier(s):G3FERRARI G60024
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	1,8-2,0	kW		manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	Pmin	1,00	kW		manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c	2,0	kW		electronic heat charge control with room and/or outdoor temperature feedback	No
					fan assisted heat output	No
Auxiliary electricity consumption					Type of heat output/room temperature control (select one)
At nominal heat output	elmax	N/A	kW		single stage heat output and no room temperature control	No
At minimum heat output	elmin	N/A	kW		Two or more manual stages, no room temperature control	No
In standby mode	elsB	0,00019	kW		with mechanic thermostat room temperature control	No
					with electronic room temperature control	Yes
					electronic room temperature control plus day timer	No
					electronic room temperature control plus week timer	No
					Other control options (multiple selections possible)
					room temperature control, with presence detection	No
					room temperature control, with open window detection	No
					with distance control option	No
					with adaptive start control	No
					with working time limitation	Yes
					with black bulb sensor	No
Contact details	TREVIDEA SRL, Strada Consolare RN-RSM, 62 - 47924 - Rimini, Italy

FRANÇAIS: ADVERTISSEMENT

1234 258 ∞ © © © © © © © + -

OPÉRATION

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

RÉSIDUS D'APPAREILS ELÉCTRIQUES ET ELÉCTRONIQUES

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.
