Safety instructions.... p. 8

General information.... p. 10

Description.... p. 10

Assembling p. 10

Refilling the tank.... p. 11

Control panel.... p. 11

Remote control....p. 11

Operating.... p. 11

Oscillation....p. 11

Timer....p. 11

Mist function....p. 11

Light....p. 11

Breeze and Sleep Mode.... p. 12

Cleaning.... p. 12

Technical features....p. 12

Waste of electric and electronic equipment (WEEE

Directive) p. 32

PORTUGUES:....p. 12

ESPAÑOL ...... p. 17

FRANCAIS p. 22

DEUTSCH....p. 27

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

Exploded diagram of a fan assembly with numbered parts for identification

MONTAGGIO

Diagram of a circular mechanical component with arrows indicating direction (no text or symbols)

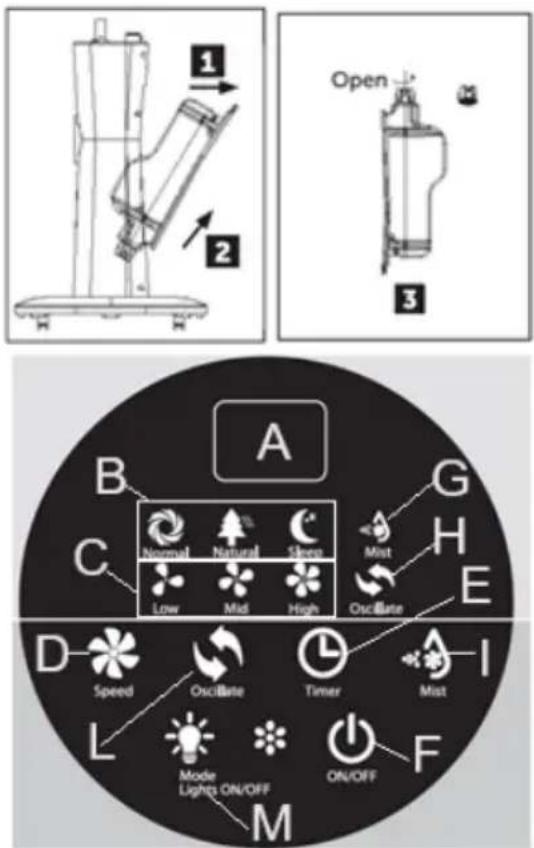

COME RIFORNIRE LA TANICA

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or force directions.

Open 3

A B C Normal Natural Sleep Low Mid High Mist Oscillate G H E D Speed Oscillate Timer Mist I L Mode Lights ON/OFF ON/OFF F M

FUNZIONAMENTO

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.
• This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.
• Children must not play with the appliance.
• Keep the appliance and its cord out of reach of children less than 8 years.
  If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.

- Use original spare parts and accessories only.

- Do not subject the product to strong impacts, serious damages may result.

Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

Do not connect the electric plug since the installation is not complete.

Do not leave the appliance unattended while it is running. Unplug after each use.

Unplug the unit by pulling the plug, not the power cord.

Do not immerse product in water or other liquids and avoid splashing liquids reach the unit.

Before carrying out any cleaning, disconnect the unit from the electrical outlet.

Before each use, unroll the power cord. Do not insert anything through the protection grids.

Do not obstruct in any way the protection grids.

Place on solid and stable surfaces and away from windows or drafts.

DESCRIPTION G50053

1. Front mist plate

2. Front Guard

3. Blade cap

4. Blade

5. Guard Mounting Nut

6. Rear Guard

7. Motor Housing

8. Body

9. Base

10. Castor wheels

11. Base Nut

12. Pole

13. Plastic Tube

14, Grill fixing screw

1. Display

2. Container

ASSEMBLING

The fan motor can work even if the protective grids have not yet been assembled and fixed. To ensure the maximum safety, perform the installation completely before operating.

1. Mount the base (9) securing it to the body (8) with the nuts (11) and insert the 4 wheels (10) into the base.

2. Place the pole (9) on the body (8) and secure it by tightening the knob.

3. Place the rear grid (6) on the motor body (7) with the metal handle facing upwards and lock the two parts with the retainer (5).

4. Insert the fan blade (4) in the motor shaft and tighten the lock (3). Remove the fixing screw (14).

5. Place the front grid (2) in front of the rear grid (6) matching the holes on the grids.

6. Close the locking pins and fasten the two grids tightening the securing screw (14) previously removed.

Technical line drawing of a mechanical component with mounting holes and a central hub (no text or symbols)

REFILLING WATER TANK

Place the fan on a stable surface and add water to activate the mist function. Operate as shown in the following figures. Remove the water container (16) from the body (8), fig 1. Unscrew the cap on the bottom of container, fig.2, and pour water, paying attention to not fill over the maximum capacity.

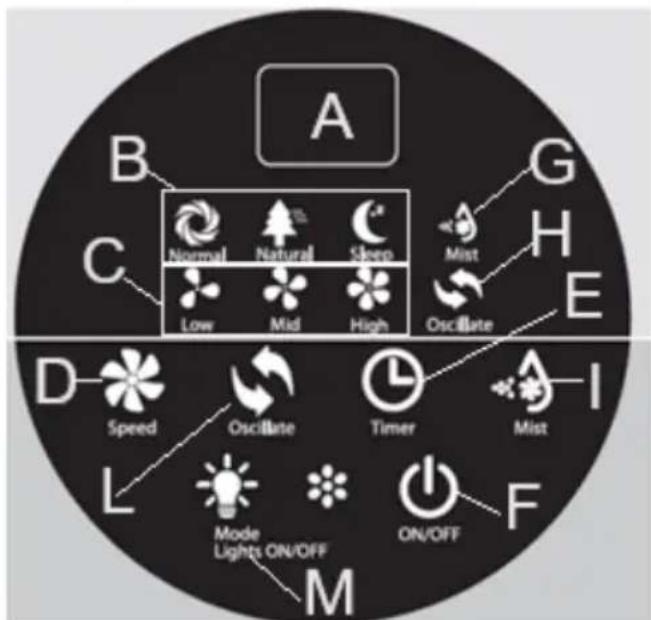

CONTROL PANEL

A. Display LED
B. MODE indicator
C. SPEED indicator
D. Speed button
E. TIMER button
F. ON/OFF button
G. Mist indicator
H. Oscillation indicator
I. Mist button
L. Oscillation button
M. Button Light

REMOTE CONTROL

1 2 Open 3 A B C G Normal Natural Shore Mist H Low Mid High OscBate E D Speed OscBate Timer Mist I L Mode Lights ON/OFF ON/OFF F M

Open the cover on the back of the remote control and insert 1 battery 3V type CR2025 following the correct polarity (+/-). Close the battery cover before using the remote control.

• Remove the batteries if you will not use the remote for an extended period of time.
• Whatever the type of exhausted battery, it must not be thrown in the household waste, in the fire or in the water. Exhausted battery must be recycled or disposed of in the appropriate dedicated collection centers.

OPERATING

Once finished assembling the unit, place the fan following the safety instructions, then plug it to the electrical outlet. Pressing ON/OFF (F on panel) or ON/OFF (remote control) The rotation power can be adjusted on 3 different levels by pressing button B (on panel) or SPEED (remote control).

Press the OFF button to stand-by the appliance.

OSCILLATION

The oscillation of the head is only possible when the fan is turned on and it can be activated by pressing L button (on panel) or OSC (remote control). Press the button again to stop this function.

TIMER

Press E button (on panel) or TIMER (remote control) if you want the appliance to turn off after a certain period of time (between 1 and 8 hours). Press once to set it off after 1 hour. Every time you press the button the time increases 1 hour, up to 8 hours. LED display shows the time set.

MIST FUNCTION

The mist function can be activated independently or combined with the fan for spreading the mist throughout the environment. Press I button (on panel) or MIST (remote control) to activate the function.

LIGHT

In the window placed on the front part of housing there is a blue light that can be activated with the button M (on panel) or LED (on remote).

BREEZE AND SLEEP MODE

At switch on the fan will go automatically on NORMAL mode.

- By pressing the MODE button on the remote control you can activate the BREEZE mode (the corresponding indicator lights up on the display). This mode reproduces the natural breath of the wind, according to some preset cycles that regulate the power automatically from a light breeze to a most powerful jet.

- Press the MODE button again to activate the SLEEP mode (the indicator lights up on the display). This feature is ideal at night: the ventilation cycles are preset, alternating light soft wind, powerful breeze and some pauses for a greater comfort during sleep.

CLEANING

Disconnect the plug from the electrical outlet before attempting any cleaning operation.

Do not immerse the unit in water. In any case prevent splashes of water or other liquids reaching the motor body. Do not clean the unit with metallic sponges or abrasive cleaners, only use neutral detergents and a soft cloth moistened with water to clean the outer parts.

Dry the product completely before operating the unit. Clean the water tank and the mist cask every 2-3 weeks and dry them carefully before installing them again in position.

TECHNICAL FEATURES

• Power supply: AC 220-240V\~50Hz. Power 75W
- Fan diameter: 40cm - Water Tank Capacity: 2.5L – Mist Capacity: 145 ml/h
• 3 operation speeds - Automatic oscillation
- Timer – Sleep & Natural Mode - Remote control

PORTUGUES: ADVERTÊNCIAS

Technical diagram showing two mechanical device configurations with labeled parts and directional arrows

A B C G Normal Natural Sleep Mist H Low Mid High Oscillate E D Speed Oscillate Timer Mist I L Mode Lights ON/OFF ON/OFF F M

TELECOMANDO

Technical diagram showing two views of a mechanical device with labeled parts and directional arrows

PANEL DE CONTROL

A. Display LED
B. Indicador MODE

Technical diagram of a mechanical device with labeled components and directional arrows

Open 3

A B C Normal Natural Sleep Low Mid High G H E D Speed Oscillate Timer Mist I L Mode Lights ON/OFF ON/OFF F M

Technical diagram showing two views of a mechanical device with labeled parts and directional arrows

BEDIENFELD

A B C G Normal Natural Sleep Mist H Low Mid High Oscillate E D Speed Oscillate Timer Mist I L Mode Lights ON/OFF ON/OFF F M

FERNBEDIENUNG

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.g3ferrari.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
