USER MANUAL Wind Master G50051 G3 Ferrari

White nightlight lamp with a black button and control panel (no visible text or symbols)

Safety instructions.... p. 7

General information.... p. 9

G50051 p. 9

Operating.... p. 9

Oscillation.... p. 9

Timer.... p. 9

Natural Mode p. 9

Remote Control ...... p. 9

Cleaning.... p. 10

Technical features....p. 10

Waste of electric and electronic equipment (WEEE

Directive).... p. 22

PORTUGUES:....p. 10

FRANCAIS ...... p. 14

DEUTSCH.... p. 18

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

Timing Being Lighting Wind Type Level On/Standby 10 7 9 12 8 11

SWING SPEED LIGHT TIMER ON/OFF 7 8 9 10 11

Labeled diagram of a white electric hair dryer with numbered parts and control buttons

NOMENCLATURA G50051

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.
• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Children must not play with appliance. Keep appliance and its cord out of reach of children less than 8 years.
• This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.

- Do not subject the product to strong impacts, serious damages may result.

GENERAL INFORMATION

Do not connect the electric plug since the installation is not complete. Do not leave the appliance unattended while it is running. Unplug after each use.

Unplug unit by pulling the plug and not the power cord.

Do not immerse product in water or other liquids and avoid splashing liquids reach the unit.

Place on solid and stable surfaces and away from windows or drafts. Before carrying out any cleaning, disconnect the unit from the electrical outlet.

Before each use, unroll the power cord. Do not insert anything through the protection grids.

Do not obstruct in any way the protection grids.

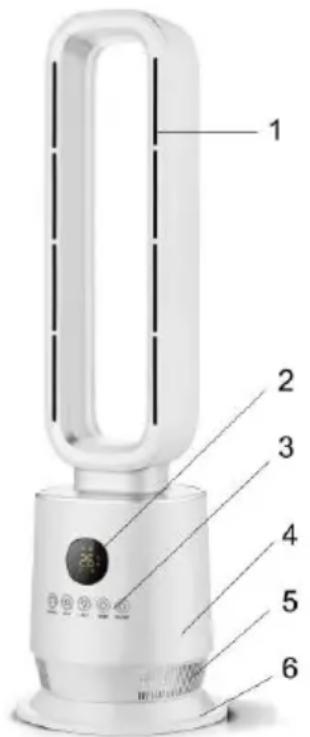

DESCRIPTION G50051

1 Air outlet

2 Fan

3 Display

4 Motor housing

5 Air grids

6 Base

7 Button Oscillation

8 Button Speed

9 Button Light

10 Button Timer

11 Button ON/OFF

12 Button Mode

OPERATING

Connect the plug to the electrical outlet. The display (2) switch on and show ambient temperature.

The control panel (3) and the remote control operate the various functions of the fan.

Press button ON/OFF (11). The fan switches on.

Press the button SPEED (8) to adjust the wind power different speeds.

1: low speed

2: medium speed

3: high speed

OSCILLATION The oscillation is only possible when the fan is turned on and it can be activated by pressing the button oscillation (7). Push again to disable the oscillation.

TIMER The fan is equipped with a 12 hours timer. Press button TIMER (10) if you want the appliance to turn off after a certain period of time (between 1 and 12 hours). Press once to set it off after 1 hour, twice to set 2 hours, and so on up to 12 hours. The display indicates the time set for the timer.

NATURAL MODE

Pressing one time the button MODE (12) the fan enters in NATURAL mode and the corresponding light switches on. In this mode the fan reproduces the natural breath of the wind, according to some preset cycles.

REMOTE CONTROL Open the cover on the back of the remote control and insert 2 batteries 1.5V type AAA following the correct polarity (+/-). Close the battery cover before using the remote control.

- Remove the batteries if you will not use the remote for an extended period of time.

- Whatever the type of exhausted battery, it must not be thrown in the household waste, in the fire or in the

water. Exhausted battery must be recycled or disposed of in the appropriate dedicated collection centers.

CLEANING Disconnect the plug from electrical outlet before attempting any cleaning operation. Do not immerse the unit in water. In any case prevent splashes of water or other liquids reaching the motor body. Do not clean the unit with metallic sponges or abrasive cleaners, only use neutral detergents and a soft cloth moistened with water to clean the outer parts. Dry the product completely before operating the unit.

TECHNICAL FEATURES

• Power supply: AC 230V\~50Hz. Power 50W
- 3 operation speeds – Oscillation
- Timer – Function Natural – Remote control

PORTUGUES: ADVERTÊNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.g3ferrari.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
