USER MANUAL VDM 2 Hot & Cold STEBA

Attention! Blade is sharp! ∙ Clean the housing with a damp cloth. ∙ Do not use abrasive or acidic cleaning agents or steel sponges.18 Workplace Important: Never place this device on or next to hot surfaces (e.g. hot sto- ves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

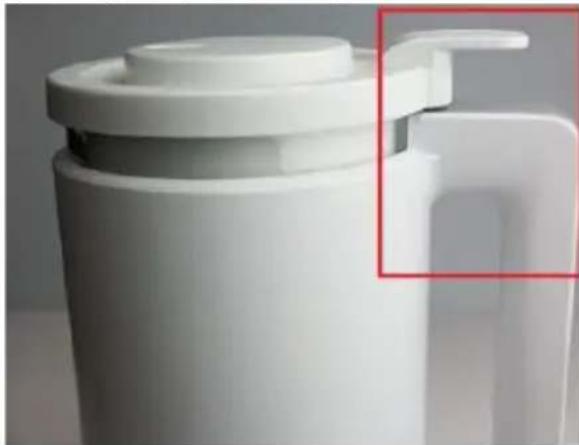

Usage ∙ Never leave the appliance running unfilled, as this can cause the bearings to overheat. ∙ Only fill the appliance with food and liquids up to max. 600ml. The minimum filling quantity is 200 ml (see scale on the appliance). ∙ The appliance is not suitable for dry mixing, grinding or pulverising. ∙ For safety reasons, the lid must always be placed correctly on the jug (see picture). If the lid is not placed correctly, the appli- ance will not start and ‘Cover the Lid’ will appear in the display. ∙ Always place the jug on the motor part with the handle to the right. ∙ Connect the appliance, a signal can be heard and the display lights up “short press turn on”. ∙ Press the knob 6), the standard programme SOYA lights up. ∙ With the control dial 6) you can select the different programmes. ∙ Put the ingredients into the appliance and start the programme by briefly pressing the knob 6). ∙ After the time has elapsed, a beep sounds and “SOYA complete” is shown in the display. ∙ If an ingredient is to be added while the programme is running, open the lid. The machine beeps and says “Cover the Lid”. Add the ingredient and replace the lid as described above, the programme will continue. ∙ If the programme is to be ended prematurely, press and hold knob 6) for 3 seconds. ∙ Note: when preparing hot dishes, the cooking time starts to run after the cooking temperature has been reached. ∙ Let the appliance cool down for a few minutes before starting a new programme.20 Preset - Time Preselection ∙ This function allows you to set the number of hours in which a programme should start. ∙ Connect the appliance and select the PRESET programme with the control dial 6). ∙ Press the knob, the display shows 04 HOUR. Turn the knob to select the time preset between 1 and 12 hours. Confirm your entry by pressing the knob. ∙ Now select your desired programme, e.g. SOYA, and confirm it as well. ∙ The display now shows “Preset Soya” and the selected time preset. ∙ After the preset time has elapsed, the selected programme starts. Programmes Programme Time in Min Temperature °C Mode Soya 21 100 heat + mix Paste – Baby food 21 100 heat + mix Grains – cereals 20 100 heat + mix Soup 25 100 heat + mix Congee – Rice soup 20 100 heat + mix Corn – Sweetcorn drink 19 100 heat + mix Juice 1,5 cold mix Smoothie 1 cold mix Preset – Time preselection Clean / Mix 1 cold mix Note: the appliance clocks in some programmes. I.e. the mixer function does not run constantly.21 Troubleshooting Dear Client, Thank you for buying this STEBA product. The following table will help you with pro- blems that may occur when using your device. For many problems there is a simple solution, because not everything that appears like a malfunction must be serious. Please check the following list before contacting our customer service. Problem Reason Solution OLED-Display does not work ∙ Device is not plugged

∙ Jug is not in the correct position ∙ Check fuse ∙ Plug it in ∙ Place jug correctly Display is on, but device does not work ∙ Lid is not placed cor- rectly ∙ No programme se- lected ∙ Place lid correctly ∙ Select a programme Food spills over ∙ Food exceeds the max marking ∙ Do not overfill Food is not well cooked ∙ Too many ingredients ∙ Security switch has triggered ∙ Put in less food ∙ Contact service Error code E1 ∙ Short circuit ∙ Contact service Error code E2 ∙ Jug is not in the correct position ∙ Place jug correctly Error code E3 ∙ Overheating ∙ Contact service Error code E4 ∙ Temperature too low ∙ Contact service22 RECIPES ∙ Please use flawless ingredients. ∙ Fruit should be ripe but not rotten. ∙ The dishes must be eaten immediately or stored in the refrigerator for no longer than 2 days. ∙ Note: All dishes are guidelines and depend on your own taste or the food. Soy Drink Soak 40 g soybeans overnight in plenty of water. Drain the soybeans, rinse and place in the device. Fill up to the “MAX” mark with water. Add 1 - 2 tbsp. maple syrup. Start the soya programme. Then filter the liquid as desired in a sieve and squeeze out the residue. Tofu Soak 60 g soybeans overnight in plenty of water. Drain the soybeans, rinse and place in the device. Fill up to the “MAX” mark with water. Add 1 - 2 tbsp. maple syrup. Start the soya programme. Once the programme is finished, add 2 - 3 tbsp vinegar or 2 tbsp lemon juice, and ½ tsp salt to the liquid and start the mix / clean programme. Then pour the liquid into a bowl and let it stand for 1 hour until the whey has settled. Pour the mixture into a sieve lined with a cloth and allow to drain. Mix spices and herbs into the still soft mass and then squeeze. Note: The more you squeeze, the drier and firmer the tofu will be. You can then strain the tofu and fry it. You can also use sweet lupins instead of soya. Silken tofu The mass is soft, still contains liquid and is suitable for salads, soups or smoothies without the spices.23 Paste - Baby food Vegetables - Meat - Paste 100 g sweet potatoes 50 g courgette 40 g leaf spinach, fresh 30 g meat 1 carrot 10 g butter (rapeseed oil) 70 ml water Cut everything into small pieces (ap- prox. 2 cm). Place in the jug and add ap- prox. 70 - 80 ml water. Start the paste programme. Fruit paste 1 apple ½ pear 1 banana Approx. 30 - 40 ml water (Possibly 20 g tender oat flakes). Cut the fruit into small pieces (2 cm), place in the jug and fill with water. Start the paste programme. Vegetables - Fruit - Porridge ¼ courgette 50 g leaf spinach, fresh 60 g broccoli ½ apple ¼ sweet potato (potato or parsnip) ½ pear 1 carrot 10 g butter (rapeseed oil) Note: if the porridge is too coarse, mix again for 1 min using the Mixer / Clean programme. The porridge is very hot! Grains / Cereals Basic recipe: Put 60 g of various grains into the de- vice. Add 500 ml water, 1 pinch of salt and, if desired 3 - 4 tbsp. maple syrup. Start the Grains programme. Then filter the liquid if necessary. The residue can be used for baking bread, sauces or muesli. Grains-Nuts-Drink 20 g macadamia nuts 20 g cashew nuts 200 ml cereal drink 1 pinch of salt

3 - 4 tbsp. maple syrup or honey

Possibly a little vanilla Fill up to max. 600 ml with water and select the mix / clean programme. Soup Basic recipe: 150 g vegetables (also mixed) Salt, pepper Vegetable stock Fill up to max. 600 ml with water and select the Soup programme. Congee - rice soup Asian rice porridge 1 tsp rice 12 tsp water or stock bring to the boil Is eaten plain or mixed with bamboo shoots, shallots and soy sauce. As a dessert, mix in maple syrup or ho- ney.24 Corn Place 25 g of corn in the device and fill up to 600 ml with water. Select the Corn programme and start. After the time has elapsed, add maple syrup or chilli powder according to taste and mix in with the mix / clean program- me (1 minute). Mix / Clean You can use this programme to mix in spices or herbs after the cooking pro- cess is finished. You can also use this programme for cleaning by adding warm water and a few drops of washing-up liquid to the glass jug. Put the lid on, select the Mix program- me. Smoothie Cut fruits into small pieces and place in the glass jug, fill up to 600 ml with wa- ter and select the smoothie programme. Instead of water, you can use cold milk or soy drink. Use honey or maple syrup to sweeten. Note: Intended for immediate con- sumption because of the vitamins. The fruit used should be ripe Green smoothie 100 ml water 1 apple 50 g field salad 1 banana 1 mango 4 strawberries Cut everything into small pieces, place in the appliance and select the smooth- ie programme. Summer Smoothie 100 ml water 100 g pineapple 200 g melon (yellow) 100 g mango 1 banana ½ apple Some fresh lemon juice Select the smoothie programme. The fruits can also be frozen. Tomato and pepper smoothie
