USER MANUAL 232118 Arktic
Item: 232118
232125
233108
233122
232132
232149
233115
233139
233146
233153
You should read this user manual carefully before using the appliance
Keep this manual with the appliance.
For indoor use only.
INDEX
01 IMPORTANT SAFETY INSTRUCTIONS....3
02 SPECIAL SAFETY REGULATIONS 4
03 GROUNDING INSTALLATION....4
04 INTENDED USE 5
05 TECHNICAL DATA....5
06 BEFORE THE FIRST USE 7
07 HOW TO USE....9
08 CLEANING AND MAINTENANCE 13
09 FOOD STORAGE....14
10 TROUBLESHOOTING....14
11 WARRANTY....15
12 DISCARDING & ENVIRONMENT....15
Thank you for purchasing this Hendi appliance. Before using the appliance for the first time, please read this manual carefully, paying particular attention to the safety regulations outlined below.
1. IMPORTANT SAFETY INSTRUCTIONS
- This appliance is intended for commercial use only and must not be used for household use.
- The appliance must only be used for the purpose for which it was intended and designed. The manufacturer is not liable for any damage caused by incorrect operation and improper use.
- Keep the appliance and electrical plug away from water and any other liquids. In the event that the appliance should fall into water, immediately remove plug from the socket and do not use until the appliance has been checked by a certified technician. Failure to follow these instructions could cause a risk to lives.
- Never attempt to open the casing of the appliance yourself.
- Do not insert any objects in the casing of the appliance.
- Do not touch the plug with wet or damp hands.
- Danger of electric shock! Do not attempt to repair the appliance yourself. In case of malfunctions, repairs are to be conducted by qualified personnel only.
- Never use a damaged appliance! Disconnect the appliance from the electrical outlet and contact the retailer if it is damaged.
- Warning! Do not immerse the electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.
- Regularly check the power plug and cord for any damage. If the power plug or power cord is damaged, it must be replaced by a service agent or similarly qualified persons in order to avoid danger or injury.
- Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. To pull the plug out of the socket, always pull on the plug and not on the cord.
- Ensure that the cord (or extension cord) is positioned so that it will not cause a trip hazard.
• Always keep an eye on the appliance when in use.
- Warning! As long as the plug is in the socket the appliance is connected to the power source.
- Turn off the appliance before pulling the plug out of the socket.
- Never carry the appliance by the cord.
- Do not use any extra devices that are not supplied along with the appliance.
- Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.
- Connect the power plug to an easily accessible electrical outlet so that in case of emergency the appliance can be unplugged immediately. To completely switch off the appliance pull the power plug out of the electrical outlet.
• Always turn the appliance off before disconnecting the plug.
- Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
- This appliance must not be used by children under any circumstances.
- Keep the appliance and its cord out of reach of children.
- Always disconnect the appliance from the mains if it is left unattended or is not in use, and before as-
sembly, disassembly or cleaning.
- Never leave the appliance unattended during use.
2. SPECIAL SAFETY REGULATIONS
- This appliance is designed for short-time storage of cake for display to customer under low temperature. Do not store any other materials in the appliance. Do not place any dangerous products, such as fuel, alcohol, paint, flammable or explosives, etc. inside or near the appliance. No medicine is allowed to keep inside the appliance.
- Products put in the appliance must be already pre-cooled. Otherwise, moisture evaporating while cooling food products can condensate inside the cooling compartment, which is natural and does not indicate any malfunction of the appliance.
- This appliance must be installed, commissioned and services by a qualified or trained person. And this appliance is intended to be used by trained or qualified personnel such as kitchen or bar staff.
- WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- WARNING: Do not damage the refrigerant circuit.
The refrigerant R600 and R290 used in appliances is a highly flammable refrigerant.
- WARNING: Keep all ventilation openings in the appliance enclosure clear of obstruction. Provide sufficient ventilation in the surrounding structure when building-in. Never block the air flow suction and air outlet in order to keep air circulation.
- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Place the appliance on a clean, stable, dry, level surface only.
- Keep the appliance away from any hot surfaces and open flames. Protect the appliance against heat, dust, direct sunlight, moisture, dripping and splashing water.
- Allow at least 50 cm surrounding spacing for ventilation purpose during use.
- Do not use hard utensils to hit the glass surface. Do not use water jet, flush directly with water or steam cleaner as the parts will get wet and electric shock might be resulted.
- Do not place articles on top of the appliance. Do not place objects with open sources of fire (e.g. candles) on top or beside the appliance. Do not place objects filled with water (e.g. vases) on or near the appliance.
- Never cover the appliance during use. This may cause a fire hazard.
- Do not wash the appliance with water. Washing can cause leakages and increase the risk of electric shock.
- Do not make any additional openings on the appliance. Do not install any gadgets in the appliance.
- Do not overload the shelves inside to avoid damage. Max. loading of each shelf is about 40kg. Place the food evenly on each shelf.
- Do not attempt to climb up to the top of the appliance.
3. GROUNDING INSTALLATION
This appliance is classified as protection class I appliance and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
In case of electrical or refrigeration failure, service agent authorized by the manufacturer or professional maintenance staff shall be responsible for the maintenance work in case of danger or expanded failure.
4. INTENDED USE
Cooling appliances are designed for short-time storage of food at a lower temperature for display to the customer.
Freezing appliances are designed to store fresh food with an extended best before date - even for several months, depending on the type of food and storage temperature.
- This appliance is designed for use in restaurants, canteens, and commercial enterprises such as bakeries, supermarkets, etc.
- This appliance is designed for commercial use.
- This appliance is intended for indoor use.
-
Use the appliance only as described in the manual.
-
Any other use may lead to damage to the appliance, other user property, or personal injury.
- No liability will be accepted for damage resulting from improper use or non-compliance with this manual.
NOTE: products put in the appliance must be already pre-cooled. Otherwise, moisture evaporating while cooling food products can condensate inside the cooling compartment.
Otherwise, it will contaminate with other food.
Do not store any medications in the appliance.
Operating the appliance for any other purpose means misuse of the appliance.
5. TECHNICAL DATA
Common features of cooling and freezing cabinets:
- Inner and outer housing are made of high-quality stainless steel, except the outer rear cover which is made of galvanized steel.
- Forced cooling
• Digital display and electronic thermostat.
- EMBRACO compressor.
- Self-closing lockable door, opens on the left side.
- Comfortable curved door handle.
Model 232118 232125 233108* 233122*
| Dimensions [mm] | 730x805x2065 | 1314x805x2065 | 600x740x(H) | 1950 | 1200x740x(H) | 1950 |
| Chamber Dimen-sions [mm] | 610x635x(H) | 1540 | 1194x635x(H) | 1540 | 500x540x(H) |
| Numbers/ dimen-sions of shelves [mm] | 3x GN 2/1 | 6x GN 2/1 | 3x | 485x525 | 6x | 525x530 |
| Capacity. Brutto [l] | 670 | 1240 | 410 |
Model 232118 232125 233108* 233122*
| Power [W] 220 350 290 450 |
| Voltage/ Frequency 220-240V ~50 Hz 220-240V ~50 Hz 220-240V ~50 Hz 220-240V ~50 Hz |
| Energy Use daily/ annum [kWh] | 1,26 / 459 2,01 / 733 1,43/522 2,18/796 |
| Refrigerant/ Amount [kg] | R600a/0,11 R600a /0,14 R600a/0,08 R600a / 0,13 |
| GWP - - - - |
| Climate class 5 5 5 5 |
| CO2 equivalent [kg] - - - - |
| EEI B | B | C | C | |
| Temp. range [°C] | 0/+8 | 0/+8 | -2/+8 | -2/+8 |
| Weight [kg] | 107 171 | 82 | 132 | |
| Model | 232132 232149 233115 233139 |
| Dimensions [mm] | 730x805x(H)2065 | 1314x805x(H)2065 | 600x740x(H)1950 | 1200x740x(H)1950 |
| Chamber Dimen-sions [mm] | 610x635x(H)1540 1194x635x(H)1540 | 500x540x(H)1380 1100x540x(H)1380 |
| Numbers/ dimen-sions of shelves [mm] | 3x GN 2/1 6x GN 2/1 3x 485x525 | 6x 525x530 |
| Capacity. Brutto [l] | 670 1240 | 410 900 | | |
| Power [W] | 600 980 | 600 750 | | |
| Voltage/ Frequency | 220-240V ~50 Hz | 220-240V ~50 Hz | 220-240V ~50 Hz | 220-240V ~50 Hz |
| Energy Use daily/ annum [kWh] | 4,99 / 1821 | 8,19 / 2989 | 5,78 / 2110 | 9,17 / 3347 |
| Refrigerant/ Amount [kg] | R290/0,12 | R290/0,15 | R290/0,09 | R290/0,15 |
| GWP - - - - | | | | |
| Climate class | 5 5 4 4 | | | |
| CO2 equivalent [kg] - - - - | | | | |
| EEI C | C | D | D | |
| Temp. range [°C] | -22/-17 -22/-17 -22/-17 | -22/-17 | |
| Weight [kg] | 115 177 | 82 | 132 | |
Weight [kg] 158 207
| Model | 233146 | 233153 |
| Dimensions [mm] | 1200x740x(H)1950 | 1800x740x(H)1950 |
| Chamber Dimensions [mm] | 525x540x(H)1380 REFRIGERATOR525x540x(H)1380 FREEZER | 1100x540x(H)1380 REFRIGERATOR525x540x(H)1380 FREEZER |
| Numbers/ dimensions of shelves [mm] | 6x 510x525 | 6x 525x530 REFRIGERATOR + 3x 510x525 FREEZER |
| Capacity. Brutto [l] | 420 REFRIGERATOR | 890 REFRIGERATOR |
| 420 FREEZER | 420 FREEZER |
| Power [W] 870 1150 |
| Voltage/ Frequency 220-240V ~50 Hz 220-240V ~50 Hz |
| Energy Use daily/ annum [kWh] 8,22 / 3000 9,32 / 3402 |
| Refrigerant/ Amount [kg] | R600a/0,08 REFRIGERATOR | R600a/0,13 REFRIGERATOR |
| R290/0,09 FREEZER | R290/0,09 FREEZER |
| Climate class 4 4 |
| GWP - - |
| CO2 equivalent [kg] - - |
| EEI D D |
| Temp. range [°C] | -2/+8 | -2/+8 |
| -22/-17 | -22/-17 |
*Equipment contains fluorinated greenhouse GAS
Appliances are designed to work efficiently on the ambient of +30 °C with 55% relative humidity (\*233108, 233122, +40°C/40%)
Climate class indicates the maximum ambient temperature at the place of appliance installation. Compliance with the determined maximum ambient temperature ensures that internal temperature inside the appliance is maintained and products are safely stored. Remember that too high ambient temperature of the environment in which the cooling or freezing cabinet is placed may influence power consumption and have impact on storage safety of the products placed inside.
The manufacturer and dealer is not liable for any inaccuracies due to printing errors or transcription, in this manual. In line with our policy of continuous improvement products, we reserve the right to make modification of the product, packaging and specifications contained in the Documentation without prior notice.
6. BEFORE THE FIRST USE
6.1. TRANSPORT
- Special package box is required for the delivery of the equipment. Keep the equipment level during transportation and handling.
- Please carefully check the package box after receiving the product to ensure that the equipment is not damaged during transportation.
- Check for the completeness of the equipment. In case of incomplete delivery and damages. Please contact supplier (See == > Warranty).
- When removing the package box, carefully move away the wood plate in case of scratch the equipment.
- In case that the equipment tilts during the transportation and handling, the lubricant in the com-
pressor may flow into the cooling loop. Therefore, in order to ensure the lubricant flows back to the compressor, it is necessary to keep the equipment level for 24 hours before plug in the equipment and starts to work.
- Do not throw away the package randomly. Please dispose as per relevant local rules and regulations.
- Clean all components as described (See == > Cleaning and Maintenance).
- Place all the shelves inside the appliance.
NOTE: Due to manufacturing residues, the appliance may emit a slight odor in the first few cycles. This is normal and does not indicate any defect or
hazard. Make sure the appliance is well ventilated.
- Turn on the lighting switch, check the light is normal.
- The digital temperature controller is delivered with default parameters. Do not alter the parameters casually except for special need.
- When running for the first time, it should run without load for 2 hours to ensure the refrigeration system is working normally. Only when the temperature within the appliance is reduced within the indicated scope can the food be put into the appliance.
- Don't put too much food in the appliance to prevent instantaneous high load. The food shall not
6.2. PACKAGING
Upon receipt of the appliance, check the packaging for any transport damage.
Carefully remove the external cardboard, loosen the bolts fixing the appliance to the pallet (if present - they secure the appliance from movement during transport), put the appliance aside and remove the protection film from the outer housing.
6.3. LEVELLING
To ensure correct functioning it is important to level the appliance. Correct levelling allows for reduction of vibration generated by the unit in operation.
Thoroughly check the levelling with the use of a spirit level.
CAUTION!
To ensure proper functioning of the cooling/freezing appliance, strictly follow the instructions below:
Do not put the appliance in a place exposed to direct sunlight and near appliances emitting radiation, such as: heat lamps, stoves, radiators etc.
Avoid integrating or building over of the appliance.
Do not place any objects on the top of the appliance
block the air outlet and air inlet. Nor shall it be close to side glass. Otherwise it will lead to condensation.
- To keep the taste of the food, please have the equipment running 24 hours a day.
- During the frosting process, the temperature of the appliance may rise slightly. When the frosting end, it will return to normal.
ATTENTION: During transport, avoid skew the unit from the vertical by an angle greater than 30^ , If necessary, wait approximately 3-4 hours before running, until the oil flows to the unit. Otherwise, the condensing unit may be damaged.
By recycling of packaging materials such as plastics, steel, cardboard and wood, we significantly contribute to saving raw materials and waste reduction.
Comply with local regulations regarding the method and place of disposal of the appliance packaging materials.
housing where the refrigerating unit is located.
Do not place the appliance in a room with relatively high humidity (water can liquify on the housing).
Do not place the appliance in narrow recesses (if there is no air circulation, the appliance will not function properly).
Do not cover ventilation openings located on the housing.
Do not place the appliances back to back (they will not operate properly).
Ensure that the room where the appliance is placed is properly ventilated, also outside of working hours; it is crucial for proper operation of the refrigerating unit.
6.4. MINIMUM DISTANCE FROM WALLS
In order to ensure proper operation of the appliance, during the installation remember to ensure minimum distance from walls in accordance with the drawings below. Remember to ensure the appropriate amount of space in front of the appliance as well - it is necessary for easy opening of the cooling/freezing chamber doors.
6.5. CONNECTION TO POWER SUPPLY
The connection to the power source must be made by trained and qualified service technicians. The power cable is supplied with the cooling/freezing
Prior to making the connection, make sure:
- The supply voltage corresponds to the appliance voltage of 230 V / 50 Hz / 1 ph. Proper operation of the appliance requires that the voltage should be within ± 6% of the rated voltage.
- The electrical system used to power the appliance must be suitable for rated parameters of the ap-
Connection stages:
• Install the thermomagnetic circuit breaker suitable for rated output power of the appliance to be installed.
FRONT SIDE
counter. A thermomagnetic circuit breaker (field supply) must be installed between the socket and the power cable of the appliance.
pliance to be installed.
- The electronic system connected to the counter complies with applicable requirements. Electrical connections and installation of the thermomagnetic circuit-breaker have been performed by a qualified person.
- Connect the counter to the output on the thermomagnetic circuit breaker.
- Make sure the counter is operational (signalled by an indicator lamp).
7. HOW TO USE
7.1. PLACING TRAYS AND CONTAINERS IN THE REFRIGERANT'S/FREEZER'S CHAMBER

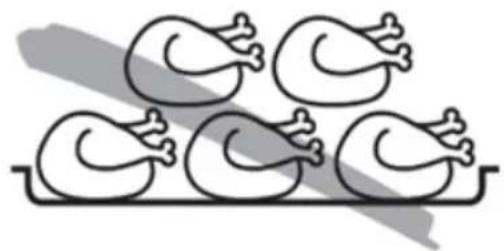

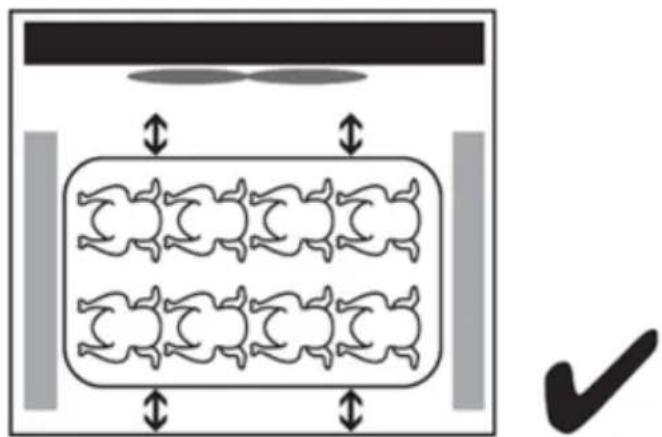

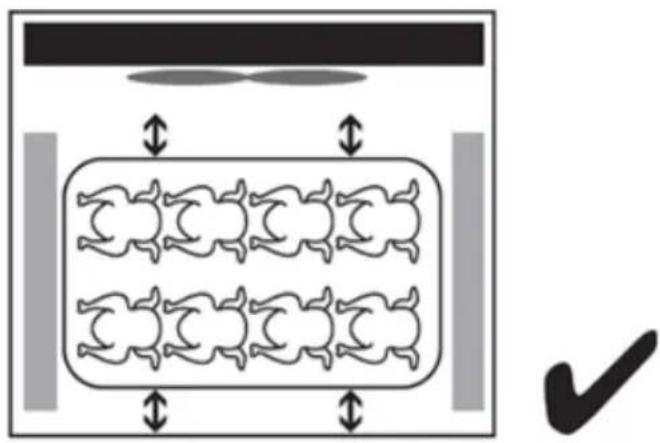

Never stack food items on top of each other. Divide them evenly on the tray or GN container.


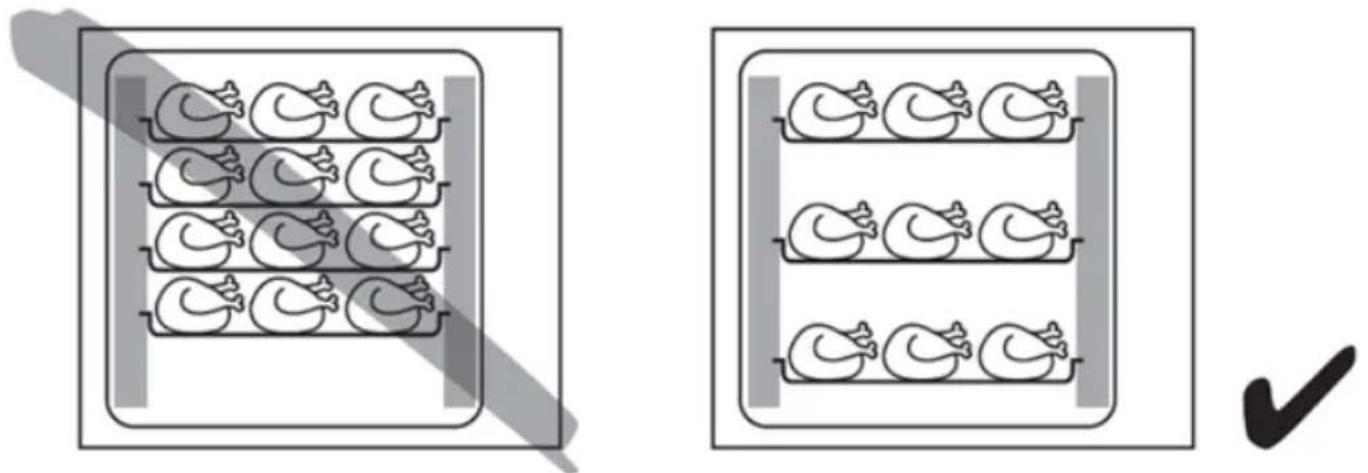

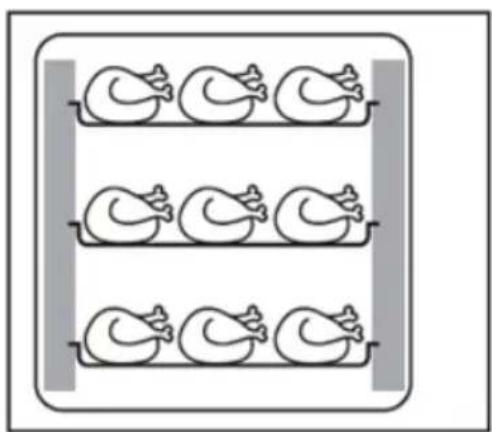

Keep vertical space between trays and/or GN containers
In order to ensure optimum circulation of hot air in the refrigerant's/freezer's chamber, a minimum vertical distance of 40 mm between the trays or GN containers is required.
Positioning of trays and/or GN containers in the refrigerant's/freezer's chamber
To ensure optimum cold air circulation:
- Don't position the tray or GN container against the fan
- Position them evenly and in the middle in the oven chamber
EN
7.2. AUTOMATIC DEFROSTING
The appliance is equipped with an automatic defrosting system with default parameters, whereas the number, duration and time intervals between subsequent defrosting cycles can be set in the control panel.
This process should be conducted by qualified staff; in individual cases the appliance may require manual defrosting, which can be set in the control panel or you can switch the appliance off and wait until the ice melts (the time required for this process depends on the room conditions and the amount of ice).
In case of appliances designed for frozen or packed food, it is recommended to fully clean and defrost the appliance once a month.
It is recommended to clean the external housing of the appliance and internal part of the door, especially near the gasket.
7.3. FIRST USE
Before starting use of a new appliance , it should be opened and aired. Then, its interior should be cleaned with warm water.
After connecting to the mains, press the power button on the control panel (green signal light will be lighted). The appliance will start. A microcomputer controller installed in the control panel may adjust temperature ranges automatically. The smart digital controller operates in the following way: when the temperature increases and a set point is reached, a compressor is switched on, then it is switched off, when the temperature reaches a set value again.
7.4. OPERATION
Before placing the food product in the appliance chamber, wait until it reaches the requested temperature. All food products placed inside the appliance should be pre-cooled to the internal operating temperature of the chamber. Do not place inside the appliance any hot food just taken out of oven or stove. Before placing the food in the appliance, check whether the actual temperature inside the chamber corresponds to the the required temperature. The temperature of deep frozen products should not exceed -18°C. Placing in the appliance any products that had not been cooled down before may result in their spoiling or disturb the operation of the appliance.
To ensure proper operation of the appliance, the products have to be placed in a way that does not block the circulation of cooled air inside the appliance. When the door is open, cool air escapes from the chamber, therefore it is recommended to limit the door opening frequency to the necessary minimum. Ensure the door is open only for a period necessary to take out or put the food inside. Do not place any products on the top of the appliance.
7.5. CONTROL PANEL
Compresor
Illuminated - Compressor on
Blinks - Time delay between two starts enabled (AC parameter)
Up
Press and release - scrolling functions; increasing the value of the selected parameter;
In the programming mode, the up button makes it possible to display parameters' codes.
LIGHTS BUTTONS
| DefrostingIlluminated - Defrosting in progressBlinks - Condensing in progress | DownPress and release - scrolling functions; decreasing the value of the selected parameter;In the programming mode, the up button makes it possible to display parameters' codes. |
| The Celcius ScaleIlluminated - Unit of measureBlinks - Programming mode | SetPress and release - displays the target, requested value of the set temperatureIn the programming mode, it makes it possible to select the parameter and confirm the selected operation |
| The Fahrenheit Scale DefrostingIlluminated - Unit of measureBlinks- Programming mode | Press and hold for min. 2 seconds- Manual defrosting will start |
Cooling Fan
Illuminated - fan activated
Blinks - Time delay of fan activation
- In order to display the set value, press and immediately release the SET button.
- Press and hold the button for at least 2 seconds to change the set value. The current set value will be displayed, and the “°C” or “°F” LED
will start to flash.
- To change the set value, press the or arrows.
- To store the new set value, press the SET button again or wait 10 seconds.
7.6.2. CHANGING PF THE UNIT OF MEASURE
- To change a parameter value, enter the programming mode by pressing and holding the SET+ button for 3 seconds (the "°C" or "°F" LED will start to flash) and select desired parameter
- Press the SET button to display its value. Change
the value using the or
- Press SET, to store the new value and go to next parameter. To exit: Press the button or wait 15 seconds without pressing any buttons.
CAUTION: the set value is stored even when exiting the procedure by not pressing any buttons.
7.6.3. LOCK & UNLOCK KEYBORD
- Press and hold the buttons for more than 3 seconds. "OFF" will be displayed and the keyboard will be locked.
- Press and hold the buttons for more than 3 seconds, till the "on" message is displayed.
To start the manual defrosting, press and hold the DEF button for more than 2 seconds.
7.7. ALARMS
Alarm Error
| P1 Chamber sensor error |
| P2 Evaporator sensor error |
| HA Maximum temperature alert |
| LA Minimum temperature alert |
| EA External alert |
| CA Severe external alert |
| dA Door opened |
8. CLEANING AND MAINTENANCE
CAUTION: Before cleaning and/or maintenance make sure that the appliance is NOT connected to the power supply. The maintenance of the appliance should be performed by qualified and certified personnel.
8.1. CLEANING
Trouble-free operation and service life of the appliance are essentially dependent on the proper maintenance according to the schedule. Daily cleaning of the cooling/freezing chamber is essential to prevent bacterial growth. Before cleaning, manually defrost the appliance with the door open and the drain plug removed. Follow the instructions below:
- Do not use direct water jet and water under pressure to clean the appliance as it can damage the electrical wiring.
- Do not use any metal objects to remove ice ac-
8.2. CLEANING OF THE CONDENSER
Before cleaning of the condenser make sure that the appliance is NOT connected to the power supply. To ensure a trouble-free and long-term operation of the condenser unit it is necessary to clean the condenser at least once a month. Use a brush with long bristles for condenser cleaning. It is recommended to wear protective gloves during cleaning of the condenser - it reduces the risk of injury
8.3. MAINTENANCE
Remember to check the technical condition of the appliance regularly (at least once a year) - the overhaul should be carried out by qualified and licensed personnel.
Check whether:
cumulated inside the chamber as it may scratch and/or damage its internal surfaces.
- Always use lukewarm (not hot!) water with a mild detergent for cleaning and a soft cloth for drying of the appliance.
- Avoid using corrosive substances that contain chlorine (and its solutions), caustic soda, hydrochloric acid, acetum, bleach etc.
It is recommended to wear protective gloves during cleaning of the appliance.
and cutting with its sharp edges. Dirty condenser unit reduces motor power which increases power consumption of the appliance.
Take care not to damage the cooling system.
It is recommended to wear protective gloves during cleaning of the appliance - risk of injury.
properly.
- The condenser is clean.
- The digital control panel operates properly.
9. FOOD STORAGE
In order to ensure the best possible operation of the cabinet, the following rules should be observed:
- Place food products in the cabinet when it reaches the requested set temperature (visible on the display).
- Do not place warm food and liquids inside the appliance.
- If possible, the food should be wrapped or secured in any other way (air circulation speeds up
the drying of food)
- Do not block air circulation inside the chamber (remove unnecessary obstructions).
- Avoid frequent and prolonged opening of the door.
- Wait a while before opening the door again, if it has just been closed (suction force created in the chamber after the door is closed will hinder its subsequent opening, which is a standard phenomenon).
10. TROUBLESHOOTING
A defect of the appliance is often caused by problems which can be easily solved without having to contact a service technician. In such cases, the following activities should be performed.
10.1. IF THE APPLIANCE DOES NOT WORK, CHECK WHETHER:
- The plug is firmly secured in the power outlet • The power cord is not damaged.
10.2. IF THE REQUESTED TEMPERATURE IS NOT OBTAINED, CHECK WHETHER:
- The controller switch is on,
- The settings on the electronic control panel are correct (see item 8.3),
- The appliance is undergoing a defrosting cycle or whether the defrosting cycle just ended,
- The condenser is covered with dust,
- The appliance is located close to a source of heat or the airflow around the condensation unit is not
obstructed,
- The products stored or other objects make it impossible to close the door properly,
- The appliance is operating in abnormal working conditions (excessive load, too many products inside, products are placed in a manner which obstructs air circulation).
10.3. IF THE APPLIANCE GENERATES EXCESSIVE NOISE, CHECK WHETHER:
- There are no loose screws in the frame,
- The appliance is placed on a stable surface and is properly levelled.
In case the appliance still makes excessive noise after performing the above activities, please contact technical service. Be ready to provide the following
information:
- The trade name of the model as well as the serial number (this can be found on the rating plate),
- Error codes appearing on the display of the control panel.
10.4. HIGHLY IMPROBABLE RISK
- In case of fire, disconnect the appliance from the mains if possible and use a powder extinguisher.
11. WARRANTY
Any defect affecting the functionality of the appliance which becomes apparent within one year after purchase will be repaired by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and when it was purchased and include proof of purchase (e.g. receipt). In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.
12. DISCARDING & ENVIRONMENT
When decommissioning the appliance, the product must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a designated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.
Keep this manual with the appliance.
For indoor use only.
INHALTSVERZEICHNIS
7.2. AUTOMATISCHES ABTAUEN
KONTROLLAMPE TASTE
Keep this manual with the appliance.
For indoor use only.
CE
INDEX
01 VEILIGHEIDSINSTRUCTIES 32
02 SPECIALE VEILIGHEIDSVOORSCHRIFTEN....33
03 ELEKTRISCHE ONDERDELEN EN ANDERE......
GEVAREN 34
6.3. HET APPARAAT WATERPAS ZETTEN
Positionering trays en/of gn-bakken in de apparaatkamer
7.2. AUTOMATISCH ONTDOOIEN
LAMPJE KNOP
Keep this manual with the appliance.
For indoor use only.
SPIS TREŚĆI
01 WAŻNE ZASADY BEZPIECZEŃSTWA 47
02 SZCZEGÓŁOWE ZASADY BEZPIECZEŃSTWA....48
03 UZIEMIENIE 49
04 PRZEZNACZENIE 49
05 DANE TECHNICZNE 49
06 PRZED PIERWSZYM UŻYCIEM....52
07 INSTRUKCJA OBSŁUGI 54
08 CZYSZCZENIE I KONSERWACJA 57
09 PRZECHOWYWANIE ARTYKUŁÓW ......
ŻYWNOŚCIOWYCH....58
10 WYKRYWANIE USTEREK....58
11 GWARANCJA....59
12 WYCOFANIE Z UŻYTKOWANIA I OCHRONA ......
ŚRODOWISKA 59
7.2. AUTOMATYCZNE ROZMRAŻANIE
KONTROLKA PRZYCISK
Keep this manual with the appliance.
For indoor use only.
SOMMAIRE
01 RÈGLES DE SÉCURITÉ....61
02 SPECIAL SAFETY REGULATIONS....62
03 PIECES ELECTRIQUES ET AUTRES RISQUES......63
04 DESTINATION 63
05 CARACTERISTIQUES TECHNIQUES 64
06 PREMIERE UTILISATION....66
07 COMMENT UTILISER....68
08 NETTOYAGE ET ENTRETIEN....72
09 STOCKAGE DES PRODUITS ALIMENTAIRES....73
10 DÉPANNAGE ET MESURES CORRECTIVES....73
11 GARANTIE 74
12 RETRAIT DE L'EXPLOITATION ET PROTECTION ....
DE L'ENVIRONNEMENT....74
Cher client,
Distance entre les plateaux / recipients gn
7.2. DÉGIVRAGE AUTOMATIQUE
LUMIÈRE BOUTON
Keep this manual with the appliance.
For indoor use only.
INDICE
01 PRECAUZIONI DI SICUREZZA 76
02 REGOLE DI SICUREZZA SPECIALI 77
03 PARTI ELETTRICHE ED ALTRI RISCHI ....78
04 DESTINAZIONE....78
05 SPECIFICHE TECNICHE....78
06 PRIMO UTILIZZO....81
07 FUNZIONAMENTO 83
08 PULIZIA E MANUTENZIONE 87
09 STOCCAGGIO DEI PRODOTTI ALIMENTARI .....87
10 RISOLUZIONE DEI PROBLEMI 88
11 GARANZIA....88
12 SMALTIMENTO & AMBIENTE 88
- The digital temperature controller is delivered with default parameters. Do not alter the parameters casually except for special need.
- When running for the first time, it should run without load for 2 hours to ensure the refrigeration system is working normally. Only when the temperature within the appliance is reduced within the indicated scope can the food be put into the appliance.
- Don't put too much food in the appliance to prevent instantaneous high load. The food shall not block the air outlet and air inlet. Nor shall it be close to side glass. Otherwise it will lead to condensation.
- To keep the taste of the food, please have the equipment running 24 hours a day.
- During the frosting process, the temperature of the appliance may rise slightly. When the frosting end, it will return to normal.
Keep this manual with the appliance.
For indoor use only.
INDEX
01 REGULI DE SIGURANTĂ....90
02 REGULI SPECIALE DE SIGURANTĂ 91
03 COMPONENTE ELECTRICE ŞI ALTE PERICOLE .....92
04 UTILIZARE PRECONIZATĂ 92
05 DATE TECHNICE 92
06 PRIMA UTILIZARE 95
07 CUM SĂ UTILIZAȚI 97
7.2. DECONGELARE AUTOMATĂ
Keep this manual with the appliance.
For indoor use only.
СОДЕРЖАНИЕ
01 ПРАВИЛА ТЕХНИКИ БЕЗОПАСНОСТИ ..... 105
ИНДИКАТОР КНОПКА
CAUTION: the set value is stored even when exiting the procedure by not pressing any buttons.
- Press and hold the buttons for more than 3 seconds. "OF" will be displayed and the keyboard will be locked.
- Press and hold the buttons for more than 3 seconds, till the "on" message is displayed.
Hendi Food Service Equipment GmbH
Central Barn, Hornby Road
Lancaster, LA2 9JX, United Kingdom
Tel: +44 (0)333 0143200
Email: sales@hendi.co.uk
Hendi Food Service Equipment Romania Srl
1208, 12/F Exchange Tower
33 Wang Chiu Road, Kowloon Bay, Hong Kong
Tel: +852 2154 2618
Email: info-hk@hendi.eu
Find Hendi on internet:
www.hendi.eu
www.facebook.com/HendiFoodServiceEquipment
www.linkedin.com/company/hendi-food-service-equip-
ment-b.v.
www.youtube.com/HendiEquipment
- Changes, printing and typesetting errors reserved.
