Product type	Microwave oven
Brand	Progress
Model	PM20810X
Dimensions (W x D x H)	600 x 560 x 362 mm
Weight	Approximately 12 kg
Power supply	230 V, 50 Hz
Microwave power	1000 W (estimated)
Grill power	1000 W (estimated)
Capacity	25 L (estimated)
Main functions	Microwave, Grill, Combination cooking, Defrost by weight/time, Automatic programs (8 menus), Quick start 30s, Timer, Child lock
Installation type	Built-in or countertop
Supplied accessories	Glass turntable, roller support, metal rack
Maintenance and cleaning	Clean the interior after each use with a damp sponge and mild soap. Use a specific product for stubborn stains. Clean the accessories regularly with warm soapy water.
Safety	Child safety lock, automatic stop when door is opened, protection against electrical arcs (do not operate empty)
Spare parts and repairability	Use only original parts. For any repair, contact authorized after-sales service. The lighting (bulb) is replaceable.
General information	Manual available in several languages. Energy efficiency score: class G (light source).
Warranty	Not specified in the manual, refer to the retailer.

Frequently Asked Questions - PM20810X PROGRESS

How to set the time on the microwave?

After plugging in, press the ⏻ button twice, then turn the knob to set the hours, press to confirm, then turn the knob for minutes and confirm.

Can I use metal containers?

No, never heat food or drinks in metal containers in the microwave, unless stated otherwise by the manufacturer. Use only microwave-safe utensils.

How to activate child lock?

Hold the specified button (identified by a padlock) pressed for 3 seconds. A beep sounds and the icon [二] appears. To deactivate, hold again for 3 seconds.

What to do if sparks appear?

This may be due to metal dishes or aluminum foil touching the walls. Remove the object immediately. Make sure to use only suitable containers.

How to clean the interior of the oven?

After each use, clean with a damp sponge and soapy water. For dried residues, boil a glass of water for 2-3 minutes at full power. For odors, boil water with lemon juice for 5 minutes.

Can I cook eggs in their shells?

No, eggs in their shells or whole hard-boiled eggs can explode in the microwave. Pierce the yolks for fried eggs.

How to use the defrost by weight function?

Press the defrost by weight button, turn the knob to enter the weight (100 g to 2000 g), then press to start. The time is automatically calculated.

The turntable does not rotate or squeaks, what to do?

Check that there is no object or dirt under the glass turntable. Clean the underside of the turntable and the roller support. Make sure the turntable is properly installed on the shaft.

What automatic programs are available?

There are 8 programs: Pizza, Meat, Vegetables, Pasta gratin, Potatoes, Fish, Drinks, Popcorn. Select the menu with the knob, then the weight, and the appliance automatically adjusts the power and time.

The display shows [2], what does this code mean?

The code [2] indicates that child lock is activated. Hold the child lock button for 3 seconds to deactivate.

USER MANUAL PM20810X PROGRESS

Diagram showing a microwave oven with 4x speed adjustment and a close-up of the component being inserted into a screw.

Diagram showing two views of a microwave oven with labeled check and cross symbols indicating inspection or repair status.

Technical diagram showing two labeled components of a microwave oven with directional arrows indicating movement or force.

8 Progress

Diagram of a microwave oven with a close-up view showing internal components and a magnified inset (no text or symbols)

Technical line drawing of two circular components with rings and a small knob (no text or symbols)

PŘED PRVNÍM POUŽITÍM

Line drawing of a simple oval-shaped metal grate with three legs and a central slatted top (no text or symbols)

Používá se pro:

Technical line drawing of a circular mechanical component with a base and top view, showing internal structure and assembly (no text or symbols)

Line drawing of a circular heating element with a grating and wheels (no text or symbols)

DOPLŇKOVÉ FUNKCE

Diagram showing a microwave oven with 4x speed indicator and mechanical component, illustrating assembly or mounting process.

Diagram showing two views of a microwave oven with labeled check and cross symbols indicating inspection or testing conditions.

Diagram showing two labeled views of a microwave oven with directional arrows indicating movement or force directions.

Diagram of a microwave oven with a close-up inset showing internal components (no text or symbols)

BESCHRIJVING VAN HET PRODUCT

Algemeen overzicht

1 2 3 4 9 8 7 6 5

Technical line drawing of two circular components with rings and a small protrusion (no text or symbols)

Line drawing of a simple oval-shaped metal grate with slatted edges and two legs (no text or symbols)

Gebruiken voor:

Diagram showing a circular component with internal structure and a small star-shaped object at the base (no text or symbols)

Line drawing of a circular heating element with a gridded top and wheels (no text or symbols)

EXTRA FUNCTIONS

Kinderslot

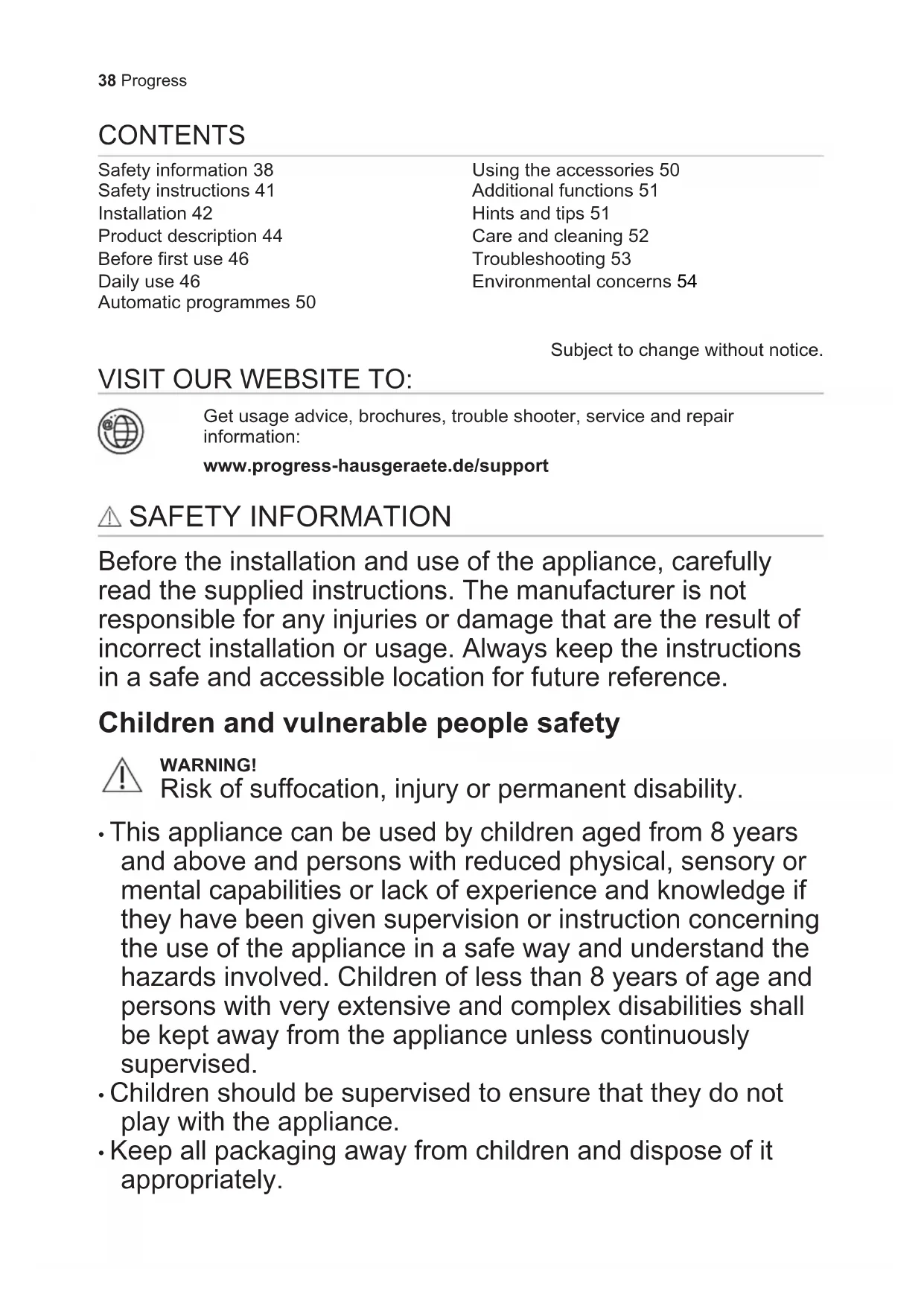

Safety instructions 41

Installation 42

Product description 44

Before first use 46

Daily use 46

Automatic programmes 50

Using the accessories 50

Additional functions 51

Hints and tips 51

Care and cleaning 52

Troubleshooting 53

Environmental concerns 54

Subject to change without notice.

Get usage advice, brochures, trouble shooter, service and repair information:

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging away from children and dispose of it appropriately.

• WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.

• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

General Safety

• This appliance is for cooking purposes only.

- This appliance is designed for single household domestic use in an indoor environment.

- This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

- Always use oven gloves to remove or insert accessories or ovenware.

- Do not use a steam cleaner to clean the appliance.

- Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.

- If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

- Do not operate the appliance by means of an external timer or separate remote-control system.

- WARNING: Only a qualified person can carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

- WARNING: Do not heat liquids and other foods in sealed containers. They are liable to explode.

- WARNING: If the door or door seals are damaged, the appliance must not be operated until it has been repaired by a qualified person.

- Metallic containers for food and beverages are not allowed during microwave cooking. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking.

- Only use utensils that are suitable for use in microwave ovens.

- When heating food in plastic or paper containers, keep an eye on the appliance due to the possibility of ignition.

- The appliance is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

- If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

- Microwave heating of beverages can result in delayed eruptive boiling. Care must be taken when handling the container.

- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

- Eggs in their shell and whole hard-boiled eggs should not be heated in the appliance since they may explode, even after microwave heating has ended.

- The appliance should be cleaned regularly and any food deposits removed.

- Failure to maintain the appliance in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

- The temperature of accessible surfaces may be high when the appliance is operating.

- The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

• The rear surface of appliances shall be placed against a wall.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
• Do not activate the appliance when it is empty. Metal parts inside the cavity can create electric arcing.
• Pay attention to the minimum dimensions of the cabinet (if applicable). Refer to the installation chapter.
• The appliance must be operated with the decorative door open (if applicable).

SAFETY INSTRUCTIONS

Installation

WARNING! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• Keep the minimum distance from other appliances and units.
  • Install the appliance in a safe and suitable place that meets installation requirements.
• The sides of the appliance must stay next to appliances or units with the same height.

Electrical Connection

WARNING! Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the

electrical ratings of the mains power supply.

• If the appliance is connected to the socket via an extension cord, make sure the cord is earthed.
• Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service or an electrician to change a damaged mains cable.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

Use

WARNING! Risk of injury, burns and electric shock or explosion.

• Do not change the specification of this appliance.
• Do not let the appliance stay unattended during operation.
• Do not apply pressure on the open door.
• Make sure that the ventilation openings are not blocked.
• Do not use the appliance as a work surface and do not use the cavity for storage purposes.

Care and Cleaning

WARNING! Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Clean regularly the appliance to prevent the deterioration of the surface material.
• Do not allow food spills or cleaner residue to accumulate on door sealing surfaces.
• Fat and food remaining in the appliance can cause fire and electric arcing when the microwave function operates.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, obey the safety instructions on the packaging.

Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.

INSTALLATION

WARNING! Refer to Safety chapters.

Electrical installation

WARNING! Only a qualified person must do the electrical installation.

The manufacturer is not responsible if you do not follow the safety precautions from the chapter "Safety Information".

This microwave is supplied with a main cable and main plug.

The cable has an earth wire with an earthing plug. The plug must be plugged into an outlet that is properly installed and

• This product contains a light source of energy efficiency class G.
• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

Disposal

WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shock.

Installation - preliminary preparation

To install the microwave in a cupboard with dimensions as specified below, remove the 4 screws and the bracket from the bottom of the appliance.

600 mm 560+8 mm 18 mm 362 +3 mm min. 300 mm

Diagram showing a microwave oven with 4x speed adjustment and a close-up of the component being inserted into a screw.

Follow the steps below, starting from number 1.

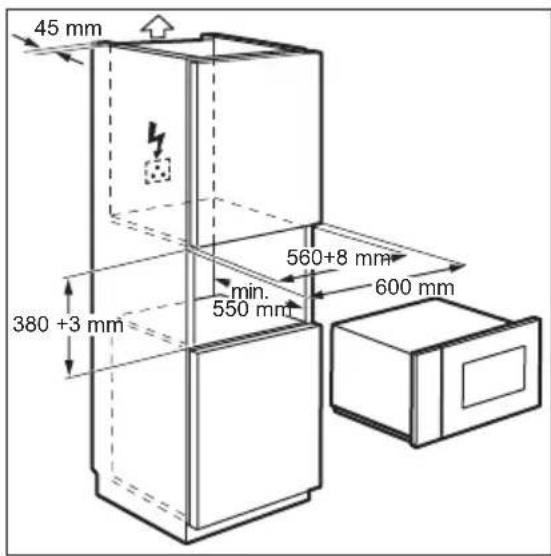

To install the microwave in a cupboard with dimensions as specified below, no modification is needed.

45 mm 380 +3 mm min. 550 mm 560+8 mm 600 mm

Installation

1. The electrical cable must not be trapped in any way.

Diagram showing two views of a microwave oven with labeled check and cross symbols indicating inspection or repair status.

1. Insert the microwave inside the cupboard.

Technical diagram showing two labeled views of a microwave oven with directional arrows indicating movement or force.

1. Fix the upper bracket with 2 screws.

Diagram of a cabinet interior with an open door and a close-up inset showing a hand holding a tool (no text or symbols present)

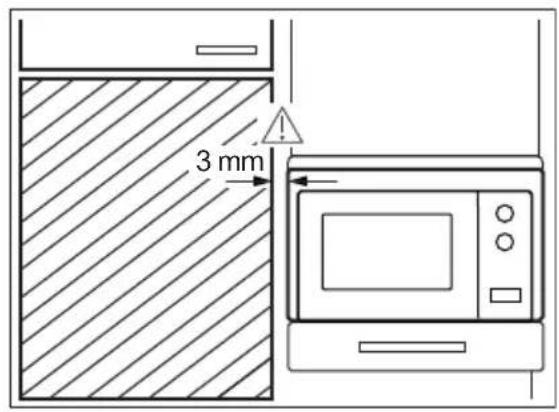

1. Keep the minimum distance between the microwave and the adjacent furniture.

3 mm

PRODUCT DESCRIPTION

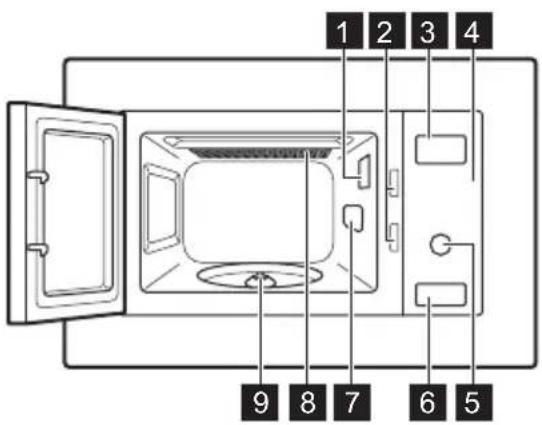

General overview

1 2 3 4 9 8 7 6 5

1 Lamp
2 Safety interlock system
3 Display
4 Control panel
5 Knob
6 Door opener
7 Waveguide cover
8 Grill
9 Turntable shaft

Control Panel

	Display element Function description
1	Display Shows the settings and current time.
2		To set the microwave function.
3		To set the grilling or combination cooking function.
4		To set the clock and timer.
5		To deactivate the microwave or to delete the cooking settings.
6		To start the appliance or increase the cooking time for 30 seconds at full power.
7	Setting knob	To set the cooking time or weight or function.
8		To defrost food by weight.
9		To defrost food by time.

Accessories

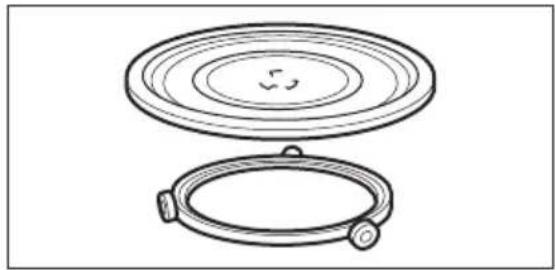

Turntable set

Always use the turntable set to prepare food in the microwave.

Technical line drawing of two circular components with concentric rings and mounting holes (no text or symbols)

BEFORE FIRST USE

WARNING! Refer to Safety chapters.

Initial Cleaning

CAUTION! Refer to chapter "Care and Cleaning".

• Remove all the parts and additional packaging from the microwave.
• Clean the appliance before first use.

Setting the time

Set the time to operate the microwave.

DAILY USE

WARNING! Refer to Safety chapters.

General information about using the appliance

• After you deactivate the appliance, let the food stand for some minutes.
- Remove the aluminium foil packaging, metal containers, etc. before you prepare the food.

Cooking

- If possible, cook food covered with material suitable for use in the microwave. Only cook food without a cover if you want to keep it crusty

Glass cooking tray and roller guide.

Grill Rack

Line drawing of a simple outdoor table with slatted top and legs (no text or symbols)

Use for:

• grilling food
• combi cooking

When you connect the appliance to the electrical supply or after a power cut, the display shows 0:00 and an acoustic signal sounds.

You can set the time in a 24 hour clock system.

1. Press twice.
2. Turn the Setting knob to set the hours.
3. Press to confirm.
4. Turn the Setting knob to set the minutes.

5. Press to confirm.

6. Do not overcook the dishes by setting the power and time too high. The food can dry out, burn or catch fire in some places.

7. Do not use the appliance to cook eggs or snails in their shells, because they can explode. With fried eggs, pierce the yolks first.
8. Pierce skin or peel of potatoes, tomatoes, sausages and similar types of food with a fork several times before cooking so that the food does not burst.
9. For chilled or frozen food, set a longer cooking time.
10. Dishes which contain sauce must be stirred from time to time.

• Vegetables that have a firm structure, such as carrots, peas or cauliflower, must be cooked in water.
- Turn larger pieces of food after half of the cooking time.
- If possible, cut vegetables into similar-sized pieces.
- Use flat, wide dishes.
- Do not use cookware made of porcelain, ceramic or earthenware with unglazed bottoms or small holes for example on handles. Moisture going into the holes can cause the cookware to crack when it is heated.
- The glass cooking tray is necessary for the operation of the microwave. Place the food or liquids on it.

Defrosting meat, poultry, fish

• Put the frozen, unwrapped food on a small upturned plate with a container below it so that the defrosting liquid collects in the container.
• Turn the food after half of the defrosting time. If possible, divide and then remove the pieces that started to defrost.

Defrosting butter, portions of gateau, quark

- Do not fully defrost the food in the appliance, but let it defrost at room temperature. It gives a more even result. Remove all metal or aluminium packaging before defrosting.

Defrosting fruit, vegetables

• If fruit and vegetables should remain raw, do not defrost them fully in the appliance. Let them defrost at room temperature.
  • To cook fruit and vegetables without defrosting them first use a higher microwave power.

Ready meals

• You can prepare ready meals in the appliance only if their packaging is suitable for microwave use.
• You must follow the manufacturer's instructions printed on the packaging (e.g. remove the metal cover and pierce the plastic film).

1) With no silver, gold, platinum or metal plating / decorations
2) Without quartz or metal components, or glazes which contain metals
3) You must follow the manufacturer's instructions about the maximum temperatures.
Suitable cookware and materials

Cookware / Material Microwave Grilling	Defrost-ing	Heating	Cook-ing
Ovenproof glass and porcelain with no metal components, e. g. Pyrex, heat-proof glass	√	√	√	√
Non-ovenproof glass and porcelain 1)	√	XXX
Glass and glass ceramic made of oven-proof/frost-proof material (e. g. Arco-flam), grill shelf	√	√	√	√
Ceramic 2), earthenware 2)	√	√	√	X
Heat-resistant plastic up to 200 °C 3)	√	√	√	X
Cardboard, paper XXX	√
Clingfilm XXX	√
Roasting film with microwave safe closure 3)	√	√	√	X
Roasting dishes made of metal, e. g. enamel, cast iron	XXX			√
Baking tins, black lacquer or silicon-coated 3)	XXX			√
Baking tray XXX				√
Browning cookware, e. g. crisp pan or crunch plate	X	√	√	X
Ready meals in packaging 3)	√	√	√	√

√ suitable

X not suitable

Activating and deactivating the microwave

CAUTION! Do not let the microwave operate if there is no food in it.

1. Press once.

2. Repeatedly press or turn the Setting knob to set the desired function.

3. Press to confirm.

4. Turn the Setting knob to set the time.
5. Press to confirm and activate the microwave.
6. The microwave deactivates automatically when the set time comes to an end. An acoustic signal sounds.

To deactivate the microwave earlier:

• press .
• open the door. The microwave stops automatically. Close the door and press D_+30 to continue cooking. Use this option to inspect food.

Power setting table

Press	Power setting	Approximate Percentage of Power
1 time P100 100 %
2 times P 80	80 %
3 times P 50	50 %
4 times P 30	30 %

Press	Power setting Approximate Percentage of Power
5 times P 10 10 %

Grilling and Combi cooking

Press [IMAGE]	Power setting Function mode
Grill
1 time G Full Grill
Combi Cooking
2 times C – 1 55 % Microwaves, 45 % Grill
3 times C – 2 36 % Microwaves, 64 % Grill

Quick Start

The maximum cooking time is 95 minutes.

To activate the microwave for 30 seconds at full power press ▷+30

The cooking time increases by 30 seconds with each additional press of the button.

To set the cooking time in standby mode turn the Setting knob counterclockwise then press to activate the microwave at full power.

Defrosting

You can choose between 2 defrosting modes:

• Weight defrosting
• Time defrosting

Do not use weight defrosting on food that is left out of the freezer for more than 20 minutes, or for frozen ready-made food.

To activate weight defrosting you must use more than 100 g of food and less than 2000 g.

To defrost less than 200 g of food place it on the edge of the turntable.

1. Press for weight defrosting or for time defrosting.
2. Turn the Setting knob to set the weight or time. For weight defrosting the time is set automatically.
3. Press to confirm and activate the microwave.

Multistage cooking

If one stage is defrosting, set it as the first stage.

You can cook food in maximum 2stages.

1. Press for weight defrosting or for time defrosting.
2. Turn the Setting knob to set the defrosting time or weight.
3. Press ≡ to confirm.
4. Press repeatedly to choose a power level.
5. Turn the Setting knob to set the time.
6. Press to confirm and activate the microwave. After each step an acoustic signal sounds.

Grilling and Combi Cooking

1. Press to set the desired function.

2. Turn the Setting knob to set the time.

3. Press to confirm and activate the microwave.

You can change the power setting or time, while the Grilling or Combi cooking mode is active.

AUTOMATIC PROGRAMMES

WARNING! Refer to Safety chapters.

Auto cooking

Use this function to easily cook favourite food. The microwave automatically sets the optimum settings.

1. Turn the Setting knob clockwise to choose the desired menu.
2. Press to confirm.
3. Turn the Setting knob to set the weight of the menu.
4. Press to confirm and activate the microwave.

Menu Amount
A - 1	200 g
Pizza	400 g
A - 2	250 g
Meat	350 g
	450 g
A - 3	200 g
Vegetables	300 g
	400 g
A - 4	50 g (add 450 ml of water)
Pasta	100 g (add 800 ml of water)
A - 5	200 g
Potato	400 g
	600 g
A - 6	250 g
Fish	350 g
	450 g
A - 7	1 cup (120 ml)
Beverage	2 cups (240 ml)
	3 cups (360 ml)
A - 8	50 g
Popcorn	100 g

USING THE ACCESSORIES

WARNING! Refer to Safety chapters.

Inserting the turntable set

CAUTION! Do not cook food without the turntable set. Use only the turntable set provided with the microwave.

Never cook food directly on the glass cooking tray.

1. Place the roller guide around the turntable shaft.
2. Place the glass cooking tray on the roller guide

Diagram of a circular fan assembly with a base and top view, showing internal components and a small final component (no text or symbols)

Inserting the grill rack

Place the grill rack on the turntable set.

Line drawing of a circular heating element with a gridded top and side-mounted wheels (no text or symbols)

ADDITIONAL FUNCTIONS

Child Safety Lock

The Child Safety Lock prevents an accidental operation of the microwave.

Press and hold for 3 seconds. An acoustic signal sounds. When the Child Safety Lock is active the display shows To deactivate the Child Safety Lock Press and hold for 3 seconds.

Kitchen Timer

You can set a maximum 95 minutes.

HINTS AND TIPS

WARNING! Refer to Safety chapters.

1. Press .
2. Turn the Setting knob to set the time.
3. Press to confirm.
   The Timer still works when you open the door or pause the microwave.
   Press ☑ to cancel.
   When the set time is reached, an acoustic signal sounds.

Tips for the microwave

Problem Remedy
You cannot find details for the amount of food prepared.	Look for a similar food. Increase or shorten the length of the cooking times according to the following rule: Double the amount = almost double the time, Half the amount = half the time
The food got too dry. Set shorter cooking time or select lower microwave power.
The food is not defrosted, hot or cooked after the time came to an end.	Set longer cooking time or set higher power. Note that large dishes need longer time.
After the cooking time comes to an end, the food is overheated at the edge but is still not ready in the middle.	Next time set a lower power and a longer time. Stir liquids halfway through, e.g. soup.

To get better results for rice use a flat, wide dish.

Defrosting

Always defrost roast with the fat side down.

Do not defrost covered meat because this may cause cooking instead of defrosting.

Always defrost whole poultry breast side down.

Cooking

Always remove chilled meat and poultry from the refrigerator at least 30 minutes before cooking.

Let the meat, poultry, fish and vegetables stay covered after cooking.

Brush a little oil or melted butter over the fish.

All vegetables should be cooked at full microwave power.

Add 30 - 45 ml of cold water for every 250 g of vegetables.

CARE AND CLEANING

Cut the fresh vegetables into even size pieces before cooking. Cook all vegetables with a cover on the container.

Reheating

When you reheat packed ready meals always follow the instruction written on the packaging.

Grilling

Grill flat food items in the middle of the grill rack.

Turn the food over halfway through the set time and continue grilling.

Combi Cooking

Use the Combi Cooking to keep the crispness of certain foods.

At the half of the cooking time, turn over the foods then continue.

Each mode combines the microwave and the grill functions at different time periods and power levels.

WARNING! Refer to Safety chapters.

Notes and tips on cleaning

- Clean the front of the appliance with a soft cloth with warm water and a cleaning agent.

• To clean metal surfaces, use a usual cleaning agent.
• Clean the appliance interior after each use. The dirt does not burn on and can be removed easily.
• Clean stubborn dirt with a special cleaner.

• Clean all accessories regularly and let them dry. Use a soft cloth with warm water and a cleaning agent.

• To soften the hard to remove remains, boil a glass of water at full microwave power for 2 to 3 minutes.

• To remove odours, mix a glass of water with 2 tsp of lemon juice and boil at full microwave power for 5 minutes.

TROUBLESHOOTING

WARNING! Refer to Safety chapters.

What to do if...

Problem Possible cause Remedy
The appliance does not operate.	The appliance is deactivated. Activate the appliance.
The appliance does not operate.	The appliance is not plugged in. Plug in the appliance.
The appliance does not operate.	The fuse in the fuse box is blown.	Check the fuse. If the fuse blows more than one time, contact a qualified electrician.
The appliance does not operate.	The door is not closed properly. Make sure that nothing blocks the door.
The lamp does not operate.	The lamp is defective. The lamp has to be replaced.
The display shows [2].	The Child Safety Lock is active. Deactivate the Child Safety Lock. Hold for 3 seconds.
There is sparking in the cavity.	There are metal dishes or dishes with metal trim.	Remove the dish from the appliance.
There is sparking in the cavity.	There are metal skewers or aluminium foil that touches the interior walls.	Make sure that the skewers or foil do not touch the interior walls.
The turntable set makes scratching or grinding noise.	There is an object or dirt below the glass cooking tray.	Clean the area below the glass cooking tray.
The appliance stops operating without a clear reason.	There is a malfunction. If this situation repeats call the Authorised Service Center.

Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is on the appliance. Do not remove the rating plate from the appliance.

We recommend that you write the data here:

Model (MOD.) ......

Product number (PNC) ....

Serial number (S.N.) ....

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do

not dispose of appliances marked with the symbol with the household waste.

Return the product to your local recycling facility or contact your municipal office.

TABLE DES MATIÈRES

Diagram showing a microwave oven with a 4x speed indicator and a close-up of the component being inserted into it.

Diagram showing two views of a microwave oven with labeled check and cross symbols indicating installation status.

Diagram of a microwave oven with labeled parts and directional arrows indicating assembly or movement.

Diagram of a microwave oven with a close-up inset showing internal components (no text or labels)

Line drawing of two circular objects with rings and a small protrusion, no text or symbols present

Line drawing of a simple oval-shaped object with diagonal slats and two legs, resembling a fire pit or fan (no text or symbols)

Utilisez-la pour :

Technical line drawing of a circular mechanical component with a base and top view, showing internal structure and mounting point (no text or symbols)

Installation de la grille

Line drawing of a circular heating element with a grating and wheels (no text or symbols)

FONCTIONS SUPPLÉMENTAIRES

Sécurité enfants

Diagram showing a microwave oven with screw and 4x speed indicator, illustrating assembly or mounting process.

Diagram showing two views of a microwave oven with labeled check and cross symbols indicating inspection or testing conditions.

Diagram showing two labeled views of a microwave oven with directional arrows indicating movement or force directions.

Diagram of a microwave oven with a close-up inset showing internal components (no text or symbols)

Line drawing of two circular objects with rings and small protrusions, no text or symbols present

Line drawing of a simple outdoor table with slatted top and legs (no text or symbols)

Verwendung:

• Grillen
• Kombi-Garen

Diagram of a mechanical assembly showing concentric rings and a base with a small component (no text or symbols)

Line drawing of a circular mechanical or electrical component with a grid-like structure and mounting feet (no text or symbols)

ZUSATZFUNKTIONEN

Kindersicherung

Diagram showing a microwave oven with 4x speed indicator and mechanical assembly, including a magnified view of the component.

Diagram showing two views of a device with labeled symbols (√ and ×) indicating correct and incorrect states.

Diagram of a microwave oven with labeled parts and directional arrows indicating movement or assembly.

1. Upevnite hornú konzolu 2 skrutkami.

Diagram of a cabinet interior with an open door and a close-up inset showing a hand holding a tool (no text or symbols present)

Technical line drawing of two circular components with rings and a small protrusion (no text or symbols)

PRED PRVÝM POUŽITÍM

Line drawing of a simple outdoor table with slatted top and legs (no text or symbols)

Používa sa na:

Technical diagram showing a circular component with internal structure and a small star-shaped component at the base (no text or symbols)

Line drawing of a circular heating element with a grating and wheels (no text or symbols)

DOPLNKOVÉ FUNKCIE

Detská poistka
