USER MANUAL PARTYBTHPXL BIGBEN

Close-up of a black electronic device with a glowing orange-red gradient and two purple circular buttons, labeled 'BLUE' at the top (no other text or symbols visible)

MODE D'EMPLOI

AVANT D'UTILISER CET APPAREIL, VEUILLEZ LIRE ATTENTIVEMENT CE MODE D'EMPLOI ET LE CONSERVER AFIN DE POUVOIR LE CONSULTER ULTÉRIEUREMENT.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

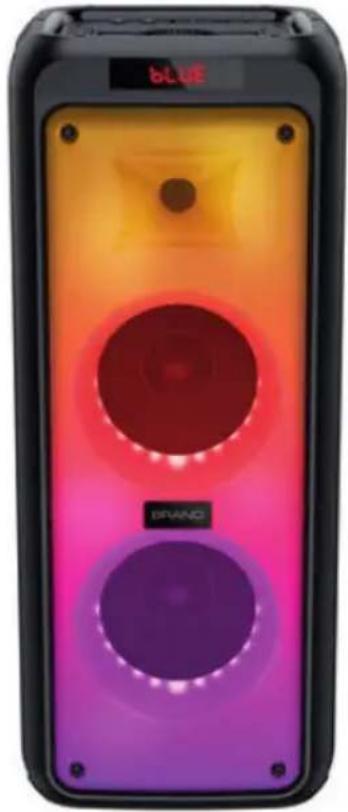

PARTYBTHPXL

BLUETOOTH SPEAKER WITH LIGHTING

Black and orange gradient digital display device with 'BLUE' and 'BRAND' labels (no readable text beyond branding)

OPERATING INSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE OPERATING THIS UNIT AND RETAIN FOR FUTURE REFERENCE.

Getting started 10		Remote control	14
Safety warning and instructions 10		Device specifications	14
Package contents 12		Technical specifications	15
Description of parts 12		Care for the environment	15
Charging	13	Additional information	16
Bluetooth connection	13	Declaration of compliance	16

Getting started

• Take the appliance out of the box.
- Remove all the packaging from the product.
- Place the packaging inside the box or dispose of it safely in compliance with the waste sorting instructions shown on the product packaging.

Safety warning and notice

You must read and understand all the instructions before using this appliance. The warranty will not apply if damage is caused by failure to follow the instructions.

1. Never remove the appliance casing.
2. Never place this appliance on top of other electrical equipment.
3. Protect the power cord from being stepped on or pinched, particularly at the plugs, sockets, and the point where it exits the appliance. Make sure that the power voltage corresponds to the voltage shown on the rating plate at the rear of the appliance. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cord. Ensure you have completed all the other connections before connecting the plug.

4. Only use attachments/accessories that are recommended by the manufacturer.

5. Entrust all appliance repairs to qualified repairers. Repair is needed when the appliance has been damaged in any fashion, and in particular:

6. if the power cord is damaged;

7. in the event of a liquid spill or objects being inserted into the appliance;
8. if the appliance is exposed to rain or dampness;
9. if the appliance does not operate normally;

10. or if the appliance has been dropped or impacted.

11. The series panel is located on the bottom of the appliance.

12. Never block the air vents.
13. Ensure you have sufficient stable space around the device for ventilation.
14. This device must be used in a moderate climate, away from direct sunlight, bare flames or heat, heating devices, cookers or any other devices (including amplifiers) that generate heat. Do not install near a heat source.
15. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat, such as sunshine, fire, etc.
16. Always unplug the device before cleaning it. Never lubricate any part of this appliance. Clean it with a soft cloth. Do not use abrasive products or harsh cleaners.
17. Ensure that you always have easy access to the power cord, plug or adaptor to disconnect

this appliance from the mains if necessary.

1. Do not use this appliance near water. It must not be dripped on or splashed. Do not use this appliance in a damp or wet environment.
2. Disconnect this appliance in the event of a storm or if you are not going to use it for a long period of time.
3. This appliance can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the appliance, and they understand the risks involved. Children must not play with the appliance or the power cord (risk of strangulation). Children must not clean or maintain the appliance without supervision.
4. This device must only be supplied with very low safety voltage corresponding to the marking on the device.
5. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.
6. The product must be at a minimal distance of 20 cm from human body when working.

7. Avoid using batteries under the following conditions:

8. Extremely low or high temperature during use, storage or transport.

9. Replacing the battery with an incorrect type that may prevent the protections from working.
10. Battery thrown into a fire or hot oven, or crushed or mechanically crushed, which may cause an explosion.
11. Battery left in an extremely high temperature environment, which may cause an explosion or leakage of flammable liquid or gas.
12. Extremely high temperature and/or extremely low atmospheric pressure which may cause an explosion or leakage of gas or flammable liquid.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated electrical voltages inside the device that are strong enough to present a risk of electric shock.

The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) instructions in the literature accompanying the appliance.

Class II material
Direct current
Alternating current
For indoor use only

Package contents

Check and identify the contents of the packaging:

• 1 speaker
  • 2 wired microphones
  • 1 remote control
• 1 plug adapter
  • 1 audio cable for the AUX-IN function

Description of parts

10 11 12 13 MIC 1 MIC 2 AUX TF USB DC 9V 4 3 2 1 5 6 7 8 Multi Off

1. ON/OFF power button. The power button is located at the top of the speaker. Slide to ON position to turn on.
2. Up button. Press the > to raise the volume and switch to the next track via Bluetooth, SD and USB – Press briefly to raise the volume. Press and hold in SD/USB mode to switch from one file to another.

3. Play/Pause button. Press to play via Bluetooth, SD and USB. Press briefly to play or pause.

4. Down button. Press the < button to lower the volume and return to the previous track via Bluetooth, SD and USB – Press briefly to reduce the volume.

5. Lighting button. Press briefly to scroll between the lighting modes.

- RGB colours with flame effect.

• The colours react in synchronisation with the music. The light effect starts at the bottom.
• The colours react in synchronisation with the music. The light effect starts from the bottom and top.

• The colours react in synchronisation with the music. The light effect starts from the top.

• Multiple volume control. Multiple volume selection. Press briefly to toggle between the microphone input volume (H), echo amount (E), and output volume (V) levels indicated from 0 to 30 on the front LED display. Turn the volume control knob to adjust each level.

• Microphone priority button. When activated, if the user speaks into the microphone, the music stops automatically.

• Input mode button. Switches between all the input modes available. BT/USB/SD/AUX modes available. The LED display indicates which mode has been selected.

• Main volume control. Use the master volume control to increase and decrease the volume of your speaker. Press the multi-volume button to toggle between the microphone volume and the amount of echo and adjust these values to your preference.

• Microphone inputs x 2

• AUX-IN input 3.5 mm. Note: The reset button is also located in this cavity. If the system locks up, simply use a thin object such as a needle or paper clip to press this button to reset the product.

• USB/SD card input

Note: Maximum supported capacity of 32 GB for USB/SD card reading. MP3 music encoding only.

1. Plug adapter 9V 5A (please only use the adapter provided with the speaker)

Charging

Connect the USB cable to the charging port on top of the speaker. During charging, the LED indicator turns red. The charging LED light switches off when charging is complete. A beep will sound a few minutes before the battery is discharged. As soon as the first beep is heard, remember to plug in your speaker to recharge it.

Note: If you experience any drop in volume during battery use, please put the speaker back on mains power as this will be due to low battery.

Bluetooth connection

When the speaker is turned on, the speaker automatically switches to Bluetooth search mode.

Make sure the microphone is plugged in and turned on.

Search for “PARTYBTHPXL” on your mobile device and select it. Once found, a beep will sound to indicate that the speaker is connected to the device.

During pairing, the LED indicator flashes. Once paired, it will turn solid blue.

All connections are located at the rear. The playback mode will automatically default to the connected device. Disconnect the USB-SD card or the auxiliary cable to return to the Bluetooth connection.

Make sure your storage media is in FAT 32 format.

Microphone

Connect the microphone(s) to the inputs on the top panel of the speaker and switch them on using the slide switches. Adjust the microphone volume and echo using the multi-volume button mentioned above.

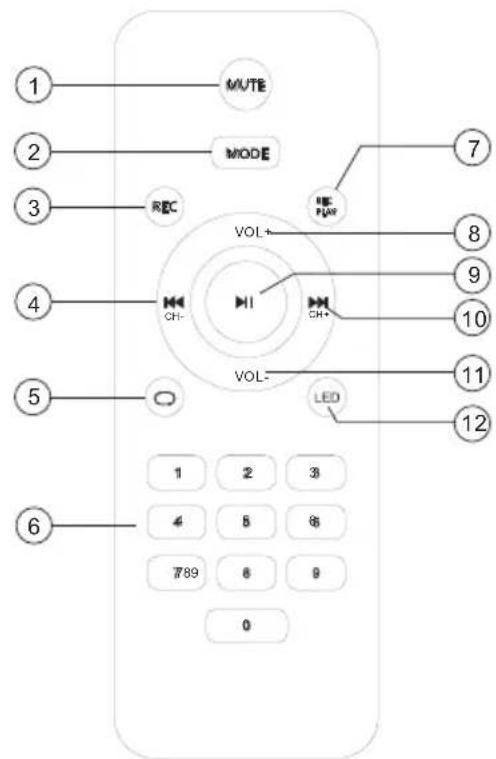

Remote control

1 2 3 4 5 6 MUTE MODE REC VOL+ CH- VOL- LED 7 8 9 10 11 12 1 2 3 4 5 6 789 8 9 0

1. Mute: Press this button to mute the music.
2. MODE: Press this button to switch between the different input modes
3. REC*: Press this button to start recording.
4. CH- : Last channel/Previous track
5. Press this button to repeat a song or restart a total cycle
6. Press the numbers from 0 to 9 to change the song stored in the USB media/SD card
7. REC Play: Press this button to play recorded music
8. VOL+: Press this button to increase the volume
9. Play/Pause: Press briefly to pause the music
10. CH+: Next channel/Next track
11. VOL- : Press this button to lower the volume
12. LED: Press to switch on/off the lighting on the speaker.

\*Note

• The recording option allows you to record your voice to a connected USB or SD card.
• Simply press the record button and the speaker will record your voice. Press again to stop recording.
• Please note that this does NOT mix music with your voice. This function is only for recording voice messages.
  • To play your voice recording, press the play REC button.
  •

Device specifications

• Output power: 2 X 20 W RMS
• Power supply: 9V - 5 A
- Loud-speaker: 2 x 6"

• Battery capacity: 7.4 V 5000 mAh
- Wireless transmission distance: 10 meters
• Product dimensions: 24 x 25 x 63 cm
- Bluetooth pairing name: PARTYBTHPXL

Note: The maximum connection distance is approximately 10 metres. Place your speaker Place your Bluetooth speaker as close as possible to the device to avoid the connection being disturbed.

Technical specifications

Speaker 2 x 20 W	Charging time 4 hours
Peak power Playing	ing time		100% volume for about 2 hours, 50% volume for about 4 hours
RMS power 40 W		Bluetooth version	5.0
Energy consumption		EIRP 2.24 dBm
Power supply 9V/5A		Bluetooth frequency	2.402 - 2.480GHz
Speaker resistance		Speaker frequency	80Hz - 20kHz
S/B ratio ≥ 55dB	Loud-speaker
Battery type	5000 mAh battery - Lithium	Transmission distance	10 m
Output (V, A) TO	BE DETERMINED Size 24	x 25 x 63 cm

In an environment with electrostatic discharge, the device may turn off. The user must then recharge the battery and reset the device.

Care for the environment

Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When this crossed-out wheelie bin symbol is applied to a product, it means that the product is covered by European Directive 2002/96/EC. Please find out about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products in your household waste. By ensuring this product is disposed of correctly, you are also helping to prevent potentially negative consequences for the environment and human health.

Additional information

• To save energy, when the appliance does not issue any audio output for a certain amount of time, it will automatically go into standby mode. It can be switched ON by using the POWER selector again.
• The word Bluetooth ^ , the mark and logo are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.

Declaration of compliance

- Bigben Interactive declares that the PARTYBTHPXL radio equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following web address: https://www.bigben-interactive.co.uk/support/

Made in China

Manufactured by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2 - FRETIN

CS 90414

59814 LESQUIN Cedex - France

www.bigben.eu

Fabricant : Bigben Interactive FRANCE

396, Rue de la Voyette, C.R.T. 2, Fretin, CS90414 - 59814 Lesquin Cedex, France

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

PARTYBTHPXL

Close-up of a black electronic device with a glowing orange-red gradient and two purple circular buttons, labeled 'BLUE' at the top (no other text or symbols visible)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

PARTYBTHPXL

ALTOPARLANTE BLUETOOTH CON LUCE

Black and orange gradient digital display device with 'BLUE' and 'BRAND' labels (no readable text beyond branding)

ISTRUZIONI PER L'USO

LEGGERE IL PRESENTE MANUALE CON ATTENZIONE PRIMA DI METTERE IN FUNZIONE IL DISPOSITIVO E CONSERVARLO PER UNA CONSULTAZIONE FUTURA.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

PARTYBTHPXL

Black and orange gradient digital device with two circular buttons, labeled 'BLUE' at top (no readable text or symbols on main body)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

PARTYBTHPXL

BLUETOOTH-LAUTSPRECHER MIT BELEUCHTUNG

Close-up of a black electronic device with a glowing orange-red gradient and two purple circular buttons, labeled 'BLUE' at the top (no other text or symbols visible)

BEDIENUNGSANLEITUNG

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

PARTYBTHPXL

Close-up of a black electronic device with a glowing orange-red gradient and two purple circular buttons, labeled 'BLUE' at the top (no other text or symbols visible)

GEBRUIKSAANWIJZING

ALVORENS DIT APPARAAT TE GEBRUIKEN, LEES DEZE INSTRUCTIES AANDACHTIG DOOR EN BEWAAR DEZE VOOR TOEKOMSTIGE RAADPLEGING.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

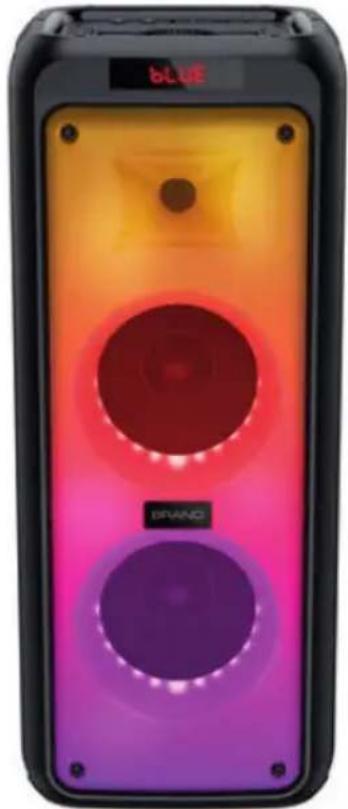

PARTYBTHPXL

GŁOŚNIK BLUETOOTH Z OŚWIETLENIEM

Close-up of a black electronic device with a glowing orange-red gradient and two purple circular buttons, labeled 'BLUE' at the top (no other text or symbols visible)

INSTRUKCJA OBSŁUGI

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

PARTYBTHPXL

SVIJETLEĆI BLUETOOTH ZVUČNIK

Close-up of a black electronic device with a glowing orange-red gradient and two purple circular buttons, labeled 'BLUE' at the top (no other text or symbols visible)

UPUTE ZA UPORABU

PRIJE UPORABE OVOG APARATA PAŽLJIVO PROČITAJTE OVE UPUTE I SAČUVAJTE IH ZA BUDUĆE UORABE.

Pokretanje	66	Daljinski upravljač	70
Upozorenja i sigurnosne upute 66		Specifikacije uređaja	70
Sadržaj pakiranja 68		Tehničke specifikacije	71
Opis dijelova	68	Zaštita okoliša	71
Punjenje	69	Dodatne informacije	72
Bluetooth veza	69	Izjava o sukladnosti	72

Pokretanje

• Izvadite uređaj iz kutije.
• Uklonite sav materijal za pakiranje s proizvoda.
• Stavite materijale za pakiranje u kutiju ili ih odložite na siguran način prema uputama za recikliranje naznačenim na pakiranju uređaja.

Upozorenja i sigurnosne upute

Class II material
Direct current
Alternating current
For indoor use only

Sadržaj pakiranja
