DHD30U990CMDA - Basket Dacor - Free user manual and instructions

Product type	Wall-mounted range hood
Brand	Dacor
Model	DHD30U990CMDA
Width	30 in (76 cm)
Depth	25 in (63.5 cm)
Height	18 in (45.7 cm)
Power supply	120 V ~ 60 Hz, 15 A, dedicated circuit
Venting	Round duct 10 in (25.4 cm) to the outside
Duct material	Rigid metal only
Fan motor	Internal, single or dual depending on model
Filters	Dishwasher-safe metal filters
Lighting	LED (not specified, estimated)
Controls	Electronic (not specified, estimated)
Minimum mounting height (gas)	30 in (76.2 cm) above cooking surface
Minimum mounting height (electric)	24 in (60.9 cm) above cooking surface
Maintenance	Regular cleaning of filters and fans
Safety	Complies with FCC Part 15 and IC, grounding required
Accessories sold separately	Duct cover kit, extension kit
Use	Residential only

Frequently Asked Questions - DHD30U990CMDA Dacor

What is the recommended minimum mounting height for the DHD30U990CMDA hood?

For a gas cooking surface, the bottom edge of the hood must be at least 76.2 cm (30 in) above the cooking surface. For an electric or induction surface, the minimum height is 60.9 cm (24 in). A maximum height of 91.4 cm (36 in) is recommended for optimal performance.

What types of ductwork are recommended for venting?

Use only rigid metal ductwork of 10 in (25.4 cm) diameter. Flexible or plastic ducts are not recommended as they reduce performance. The system must vent directly to the outside, not into an attic or crawl space.

How to clean the hood filters?

The metal filters are dishwasher-safe or can be washed by hand with warm soapy water. Let them dry completely before reinstalling. Clean them regularly to prevent grease buildup.

What are the electrical requirements for installation?

The hood requires a 120 V ~ 60 Hz, 15 A dedicated circuit. A qualified electrician must perform the installation in accordance with local and national codes. A UL/CSA listed strain relief is required.

Can I use a recirculation kit with this hood?

No, this hood is designed for external venting only. It is not compatible with a recirculation system. Use metal ductwork to exhaust air to the outside.

How to install the internal fan motor?

Place the motor assembly inside the hood, slide the mounting plate flange under the support, engage the spring tab, then secure with 4 screws of 6x16 mm and washers. Connect the wire harness to the junction box using the supplied connector.

What to do if there is a power outage or the hood does not work?

First check the circuit breaker or fuse. Ensure power is off before any intervention. If the problem persists, contact Dacor customer service with the model and serial number.

Where is the rating plate with the model and serial number located?

The rating plate is located inside the hood, above the filters, on the back wall of the chassis. It contains the information needed for customer service.

Can I use the hood without external venting?

No, the hood must be vented to the outside to function properly and safely. Do not route the air into an attic, garage, or enclosed space.

How to attach the Dacor badge plate on the hood?

Use the provided template to align the badge on the front surface of the hood, on the right. Practice positioning the badge before removing the protective paper. The adhesive is very strong, so place it correctly the first time.

USER MANUAL DHD30U990CMDA Dacor

Pro-Canopy Wall Hood

Hotte murale Pro-Canopy

Campana de pared Pro-Canopy

DHD**U990C*/DA

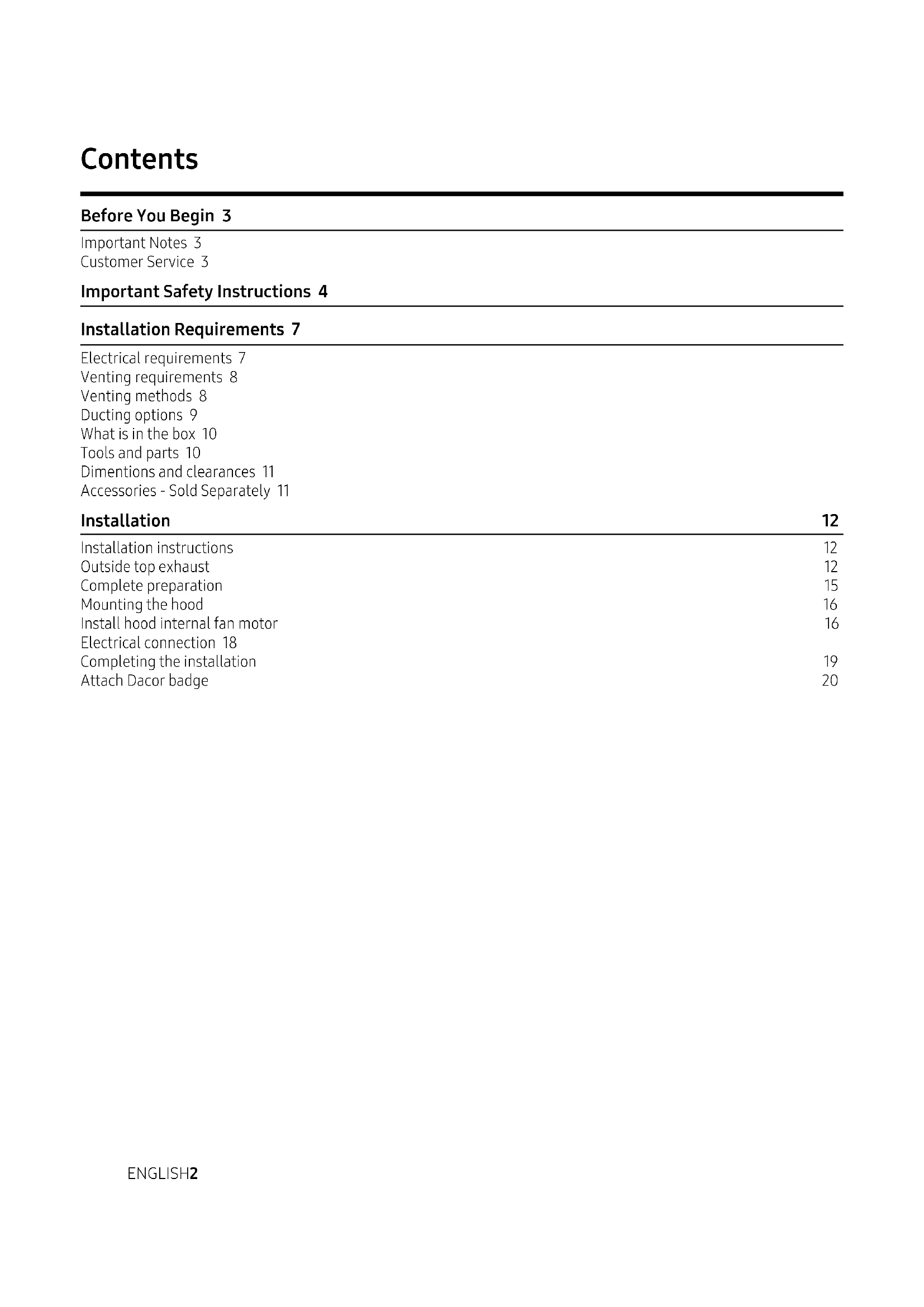

Contents

Before You Begin 3

Important Notes 3

Customer Service 3

Important Safety Instructions 4

Installation Requirements 7

Electrical requirements 7

Venting requirements 8

Venting methods 8

Ducting options 9

What is in the box 10

Tools and parts 10

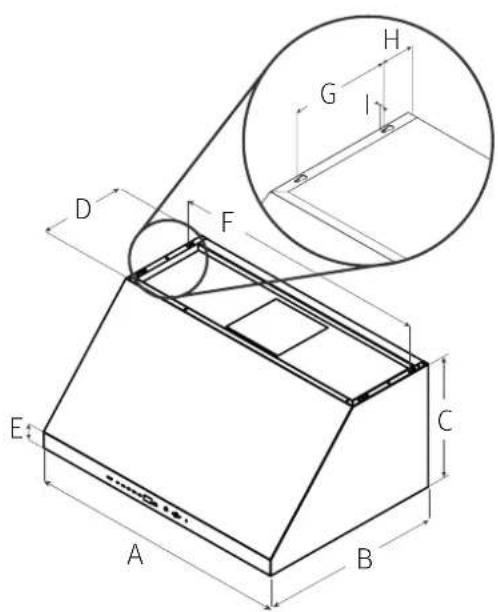

Dimentions and clearances 11

Accessories - Sold Separately 11

Installation 12

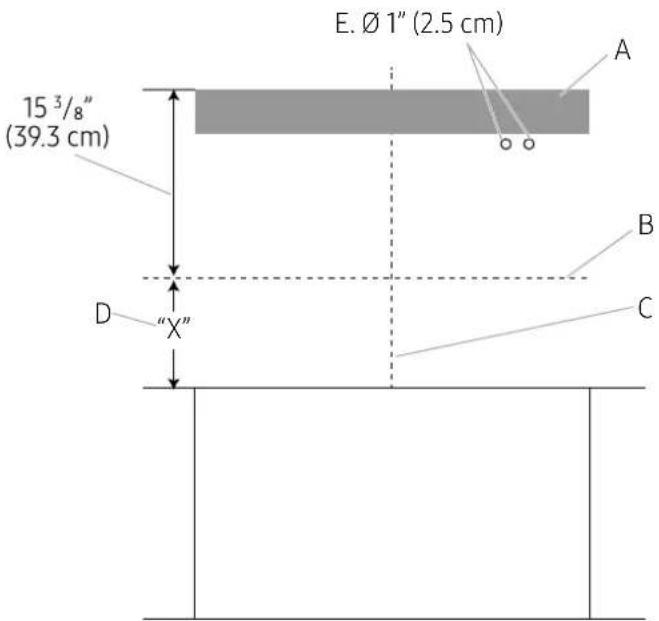

Installation instructions 12

Outside top exhaust 12

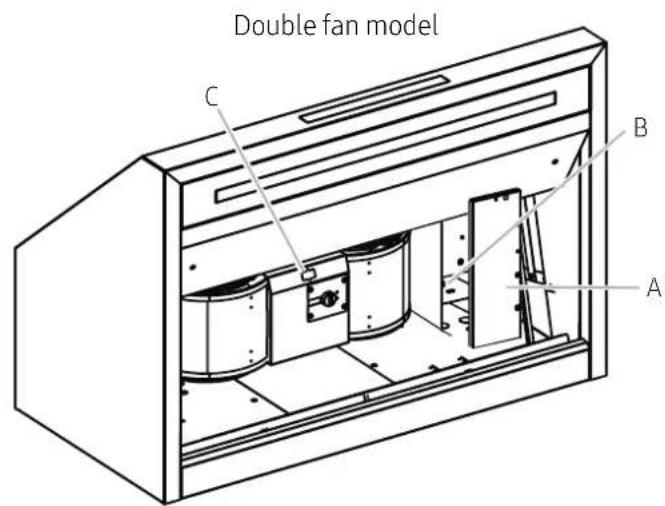

Complete preparation 15

Mounting the hood 16

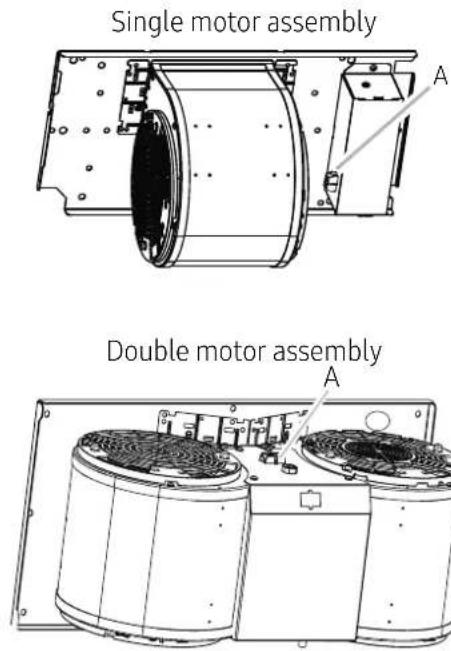

Install hood internal fan motor 16

Electrical connection 18

Completing the installation 19

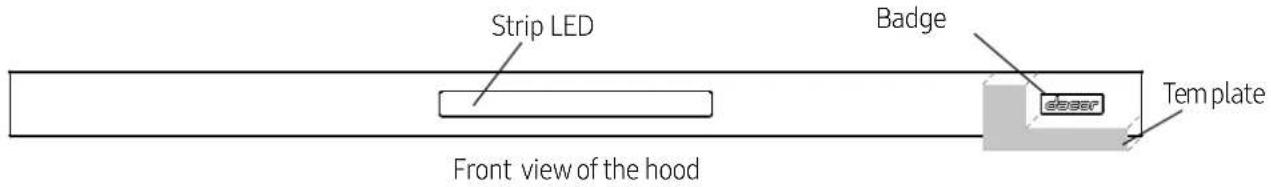

AttachDacor badge 20

Important Notes

Installer

• In the interest of safety and to minimize problems, read this manual thoroughly before starting the installation.
• Leave this manual with the customer.
• Show the owner how to shut off power to the hood.

Customer

Keep this manual for personal and professional reference.

Customer Service

To resolve questions and installation issues, contact your Dacor dealer or Dacor customer service. Before calling, have the hood's model and serial number available. (See the data label inside the hood above the filters on the chassis' rear wall).

All specifications are subject to change without notice. Dacor assumes no liability for such changes. ©2022 Dacor, all rights reserved.

APPROVED FOR RESIDENTIAL APPLIANCES

READ AND SAVE THESE INSTRUCTIONS

PLEASE READ ENTIRE INSTALLATION GUIDE BEFORE PROCEEDING.

INSTALLATION MUST COMPLY WITH ALL LOCAL CODES.

IMPORTANT: Save these instructions for the local electrical inspector's use.

INSTALLER: Please leave these instructions with this unit for the owner.

OWNER: Please retain these instructions for future reference.

Symbols used in this manual

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

WARNING

Turn off power circuit at service panel and lock out panel before wiring this appliance.

CAUTION

Hazards or unsafe practices that may result in electric shock, personal injury, or property damage.

NOTE

Useful tips and instructions.

These warning icons and symbols are here to prevent injury to you and others.

Please follow them explicitly. After reading this section, keep it in a safe place for future reference.

State of California Proposition 65 warning (US only)

WARNING

This product contains chemicals known to the State of California to cause cancer and birth defects or other

reproductive harm - www.p65 warnings.ca.gov

1. FCC Notice

CAUTION

FCC CAUTION:

Any changes or modifi cations not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of FCC Rules. Operation is subject to following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received including interference that cause undesired operation.

For products sold in the US and Canadian markets, only channels 1~11 are available. You cannot select any other

channels.

FCC STATEMENT:

This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorienting or relocating the receiving antenna
- Increasing the separation between the equipment and receiver
- Connecting the equipment to an outlet that is on a different circuit than the radio or TV
- Consulting the dealer or an experienced radio/TV technician for help

FCC RADIATION EXPOSURE STATEMENT:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.

2.IC Notice

The term "IC" before the radio certificaton number only signifi es that Industry Canada technical specifie cations were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003. For products sold in the US and Canadian markets, only channels 1~11 are available. You cannot select any other channels.

IC RADIATION EXPOSURE STATEMENT:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING PRECAUTIONS:

• Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
• Before servicing or cleaning the unit, switch the power off at the service panel and lock the service panel to prevent power from being switched on accidentally. If the service panel cannot be locked, securely fasten a prominent warning device, such as a tag to the service panel.
• Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
• Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
• When cutting or drilling into the wall or ceiling; do not damage electrical wiring and other hidden utilities.
• Ducted fans must always be vented outdoors.

CAUTION

For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

CAUTION

To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings, attics or into crawl spaces, or garages.

WARNING

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK

WARNING

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

• Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
  Always turn the hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe).
• Clean ventilating fans frequently. Grease should not be allowed to accumulate on the fan or filter.
• Use proper pan sizes. Always use cookware appropriate for the size of the surface element.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING PRECAUTIONS:*

SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the fl ames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
- NEVER PICK UP A FLAMMING PAN - you may get burned.
DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
- Use an extinguisher ONLY if:

• You know you have a class ABC extinguisher, and you already know how to operate it.
• The fire is small and contained in the area where it started.
• The fire department is being called.
• You can fight the fire with your back to an exit.

*Based on "Kitchen Fire Safety Tips" published by NFPA.

WARNING

To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.

WARNING

Do not let children near this appliance. Do not let children play with this appliance.

Keep all packaging materials out of children's reach. Properly dispose the packaging materials after this appliance is unpacked.

NOTE

Suitable for use in household cooking area.

Read and save these Instructions

Electrical requirements

IMPORTANT

Observe all governing codes and ordinances.

It is the customer's responsibility:

• To contact a qualified electrical installer.
  To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 - latest edition, or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition* and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

A copy of the above code standards can be obtained from: National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

• A 120 volt, 60Hz , AC only, 15-amp, fused electrical circuit is required.
  If the house has aluminum wiring, follow the procedure below.

• Connect a section of solid copper wire to the pigtail leads.

• Connect the aluminum wiring to the added section of copper wire using special connectors and/or tools designed and UL listed for joining copper to aluminum.

• Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

• Wire sizes and connections must conform with the rating of the appliance as specified on the model/ serial rating plate. The model/serial plate is located behind the filter on the rear wall of the hood.
• Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition and all local codes and ordinances).

Venting requirements

• Vent system must terminate outdoors.
• Do not terminate the vent system in an attic or other enclosed area.
• Do not use a 4'' (10.2 cm) laundry-type wall cap.
• Use metal vent only. Rigid metal vent is recommended.
• Plastic or metal foil vent is not recommended.

• The length of the vent system and the number of elbows should be kept to a minimum to provide efficient performance. For the most efficient and quiet operation:

• Use no more than three 90^ elbows.

• Make sure there is a minimum of 30^ (76.2 cm) of straight vent between the elbows if more than 1 elbow is used. Do not install 2 elbows together.

Venting methods

To use the hood's top outlet to vent your hood, a 10'' (25.4 cm) round vent system is required. This vent system is not included and must be purchased separately.

NOTE

Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that greatly reduces performance. The vent system can terminate either through the roof or wall.

Always install a metal vent cover where the ductwork exits the house. Hood must be vented to the outside of building only.

Discharge direction

This hood is factory set for venting through the roof (vertical discharge) or wall (horizontal discharge).

To vent through a wall, a 90^ elbow is needed.

Ductwork installation guidelines

For safety reasons, ducting should vent directly outdoors (not into an attic, underneath the house, into the garage or into any enclosed space). Do not exceed 50 ft (15.24m) of duct. Keep duct runs as short and straight as possible. Elbows and transition fittings reduce air flow efficiency.

Back to back elbows and "S" turns give very poor delivery and are not recommended. A short straight length of duct at the inlet of a remote fan gives the best delivery.

• Use clamps to seal all joints in the vent system.
• The vent system must have a damper. If the roof or wall cap has a damper, do not use the damper supplied with the hood.
• Use caulking to seal the exterior wall or roof opening around the cap.
• The size of the vent should be uniform.

Ducting recommendations

Proper performance is dependent upon proper ducting.

Cold weather

Cold weather installations should have an additional backdraft damper installed to minimize backward cold air flow and a nonmetallic thermal break to minimize conduction of outside temperatures as part of the ductwork. The damper should be on the cold air side of the thermal break. The break should be as close as possible to where the ducting enters the heated portion of the house.

Make-up air

Local building codes may require the use of make-up air systems when using ducted ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale. It is the responsibility of the owner and the installer to determine if additional requirements and/or standards apply to specific installations.

Ducting options

The hood is equipped with a 10^ (25.4 cm) round transition for discharge of fumes to the outside.

Closely follow the instructions set out in this manual. Dacor is not responsible for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual.

Preparation

Do not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut, then a supporting frame must be constructed.

Fittings material is provided to secure the hood to most types of walls/ceilings.

However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling.

Before making cutouts, make sure there is proper clearance within the ceiling or wall for the exhaust vent.

Mounting height

CAUTION

Mount this hood so that the bottom edge above the cooking surface is at 30^ (76.2 cm) minimum for a gas cooking surface or 24^ (60.9 cm) for an electric cooking surface.

There is no maximum mounting height, however, we recommend mounting the hood no greater than 36^ (91.4 cm) above the cooking surface. For every inch (2.5 cm) above 36^ (91.4 cm), fume and moisture capture efficiency diminishes at an increasing rate and may not deliver an acceptable level of ventilating performance.

This hood is intended for household use.

Check your ceiling height and hood height before selecting your hood.

Horizontal discharge

A 90^ elbow may be installed immediately above the hood.

Roof Venting Wall Venting
A. Roof Cap
B. 10^ (25.4 cm)
Round Vent

A.Wall Cap
B. 10^ (25.4 cm)
Round Vent

Installation Requirements

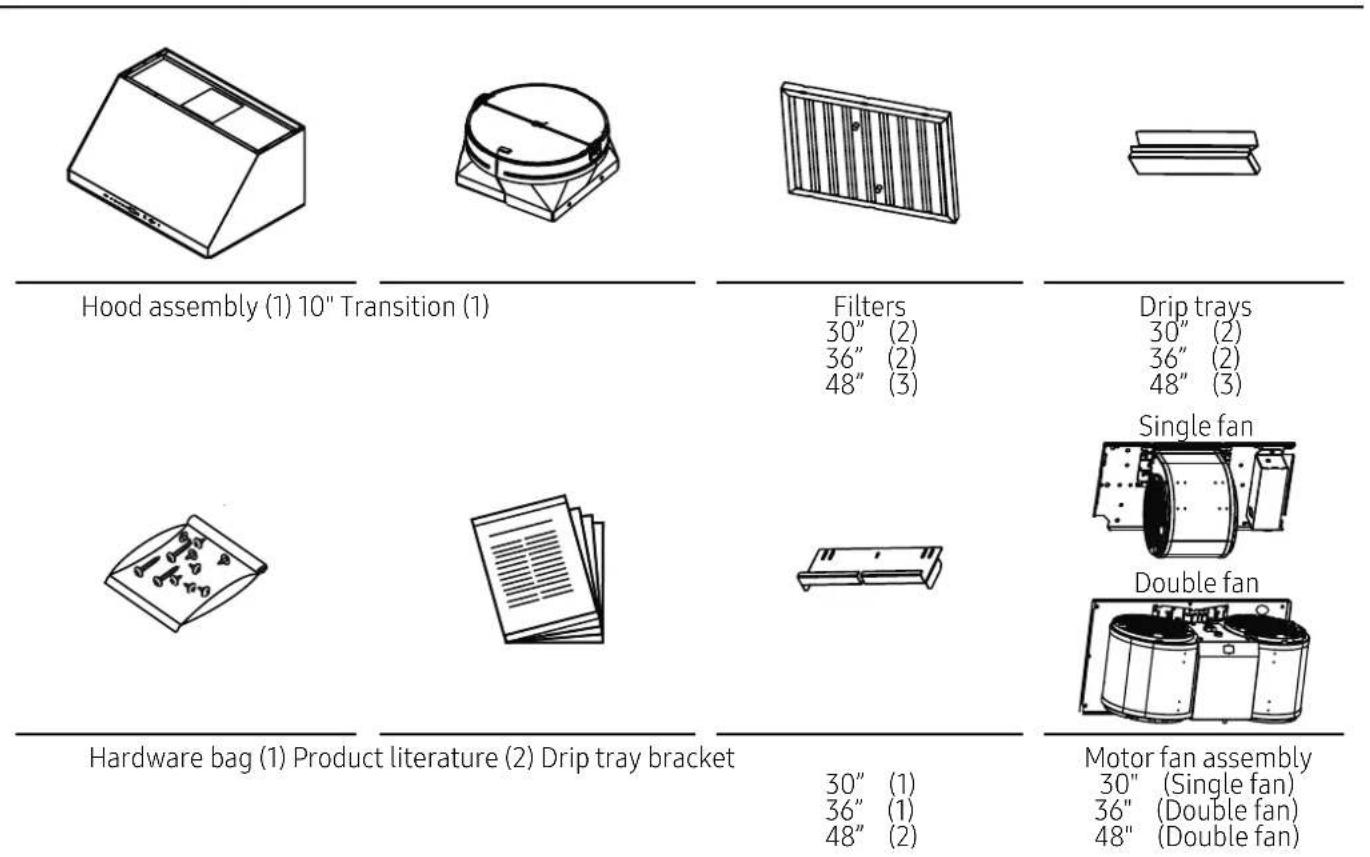

What is in the box

Tools and parts

Removing the packaging

CAUTION

Remove the carton carefully. Wear gloves to protect against sharp edges.

WARNING

Remove the protective film before putting into operation.

Parts supplied

• Hardware bag includes:

Part Qty Part	Qty
6 x 80 mm	6	Torx 20 adapter	1
6 x 16 mm	4	Ø 6.4 x 11 mm washers	4
4.2 x 19 mm	4	Ø 5.3 x 20 mm washers	2
Drip tray screws	2	3.5 x 9.5 mm	4
10 x 60 mm	6	6 - 9 wire fan connector	1

Installation Requirements

Parts not supplied

Tools/materials required

Level
- Drill with 1^ (2.5 cm), 12'' (3.0 mm) and 18'' (15.8 mm) drill bits
- Pencil
- Wire stripper or utility knife
- Tape measure or ruler
- Pliers
- Caulking gun and weatherproof caulking compound
- Vent clamps
Jigsaw

Metal snips
- Screwdrivers:

• Phillips

• Flat -blade

Parts needed

Home power supply cable
- 1/2'' (12.7 mm) UL listed or CSA approved strain relief
3 UL listed wire connectors
- 1 wall or roof cap
Metal vent system

Dimentions and clearances

	30" 36" 48"
A 3D" (76 cm) 36" (91.2 cm)		48" (121.7 cm)
B 25" (63.2 cm)
C 18" (45.7 cm)
D 12" (30.5 cm)
E 21/4" (7 cm)
F	29½" (74 cm)	35½" (89.2 cm)	47½" (119.6 cm)
G	7½" (19 cm)
H	2½" (6.5 cm)
I	3/8" (1 cm)

Accessories - Sold Separately

Installation instructions

We recommend that a qualified technician install the hood. It is the installer's responsibility to ensure the hood complies with the installation clearances specified for the product.

• It is recommended that the vent system be installed before the hood is installed.
• If possible, disconnect and remove any cooking appliance from beneath the hood area to provide easier access to the rear wall.
• Before making cutouts, make sure there is proper clearance within the ceiling or wall for the exhaust vent.

Outside top exhaust

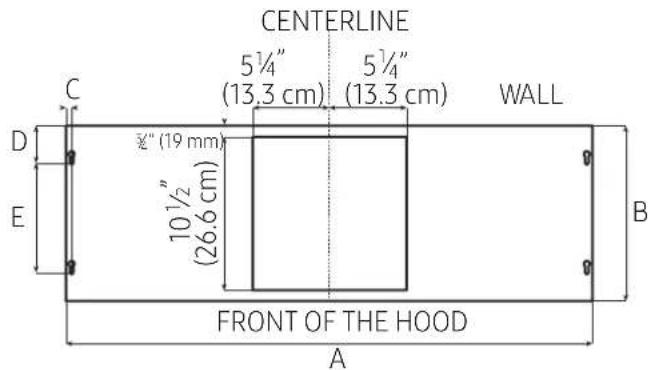

Top installation diagram

Use the diagram or the hood as a template and mark the locations for the ductwork, electrical wiring and keyhole screw slots.

Top view of the hood

	30" 36" 48"
A 30" (76 cm) 36" (91.2 cm) 48" (121.7 cm)
B 12" (30.5 cm)
C 1' (2.5 cm)
D 2 5/8" (6.5 cm)
E	7 1/2" (19 cm)

• Confirm that all installation parts have been removed from the shipping carton.
• Turn off the power at the circuit breaker panel or fuse box.
• Determine which venting method to use: roof or wall exhaust.

NOTE

This hood is factory set to vent through the top air exit.

1. Select a flat surface for assembling the hood. Place a covering over that surface.

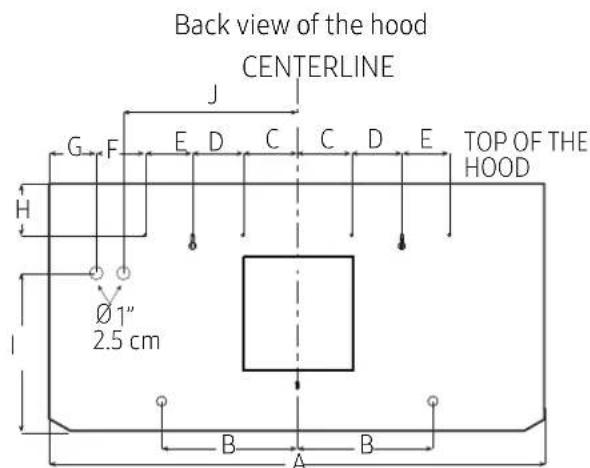

Rear installation diagram

Use the diagram or the hood as a template and mark the locations on the wall for electrical wiring and keyhole screws slots.

BOTTOM OF THE HOOD

	30"	36"	48"
A	30" (75.5 cm)	36" (90.6 cm)	48" (121.1 cm)
B	\( 9^{13}/_{16}{}^{\prime\prime} \)(25 cm)
C	\( 3^{15}/_{16}{}^{\prime\prime} \)(10 cm)
D	\( 5/8" \)(9.2 cm)
E	\( 3^{7}/_{16}{}^{\prime\prime} \)(8.7 cm)
F	2" (5 cm)
G	\( 1/4" \)(8.2 cm)
H	\( 3^{11}/_{16}{}^{\prime\prime} \)(9.3 cm)
I	\( 11^{3}/_{8}{}^{\prime\prime} \)(28.9 cm)
J	\( 9^{5}/_{8}{}^{\prime\prime} \)(24.5 cm)	\( 12^{5}/_{8}{}^{\prime\prime} \)(32 cm)	\( 18^{5}/_{8}{}^{\prime\prime} \)(47.3 cm)

Wall installation

WARNING

USE TWO OR MORE PEOPLE TO MOVE AND INSTALL THE HOOD. FAILURE TO DO SO CAN RESULT IN BACK OR OTHER INJURY.

The hood is attached to the wall with a wood support that is attached to the inside back of the hood. To support the hood safely, the wood support must be fixed firmly to at least 2 vertical wooden studs that are located behind the sheetrock that makes up the wall.

NOTE

These instructions are not applicable to masonry (brick, concrete, etc.) walls. If you have a masonry wall, consult a professional installer.

IMPORTANT: The studs (or wall if you have a masonry wall) must be capable of supporting up to 150 lbs.

NOTE

If your kitchen has wood framing, at least 2 screws provided for mounting this hood must be fastened into solid wood studs. Do not fasten into sheetrock only.

NOTE

Mark the hood knockouts on the wall and make the necessary cutouts before installing the hood.

Installation instructions for wood framing

1. Determine and mark the centerline on the wall where the hood will be installed.
2. Select a mounting height "X" for the bottom of the hood (See D below).
3. For gas cooking installations: Mount the hood so the bottom is at least 30^ (76.2 cm) above the cooking surface.
4. For electric/induction cooking installations: Mount the hood so the bottom is at least 24^ (60.9 cm) above the cooking surface.
5. Mark a horizontal reference line on the wall (B below) for the bottom of the hood. Use a level to confirm that the line is leveled.
6. Find and mark the location of the wood studs or wood supports behind the wall. See rear installation diagram.
7. Draw a line 15 38 (39.3 cm) above the reference line for the bottom of the hood to mark the wood support location on the wall. Use a level to confirm that the line is leveled.

A. Wood support
B. Bottom of hood
C. Center Line
D. Dimension "x" = hood mounting height
E. Knockout wiring holes

1. Remove the wood support from the back of the hood by loosening the 2 screws from the inside.
2. Line the top of the wood support up with the wood support location line on the wall, and then center it on the center line.
3. Locate the marks for the studs on the wood support, and then draw two vertical lines marking where the studs intersect with the wood support.
4. Mark the center of each line, remove the wood support from the wall, and then drill a pilot hole on the support at each mark.
5. Again, line the top of the wood support up with the wood support location line, and then center it on the centerline.
6. Push a pencil point or awl through the holes you just drilled in the wood support to mark on the wall the location of the pilot holes for 2 - 6 × 80 mm screws that will go into the studs.
7. Also mark on the wall the locations of two additional pilot holes (B) by pushing a pencil point or awl through pre-drilled holes in the center of the wood support. These holes are for the supplied 2 - 10 × 60 mm wall anchors. See the diagram below.

A. Screw holes
B. Screw holes (already made)
C. Wood Support

1. Remove the wood support, and then drill four pilot holes into the wall.
2. Push 2 - 10 × 60 ~mm of the supplied wall anchors into the two pilot holes at the center.
3. Fasten the wood support to the wall by screwing 2 - 6 x 80 mm fixing screws through the wood support into the pilot holes you drilled in the studs.
4. Using the rear installation diagram as a guide (see page 12), cut the knockout wiring holes in the wall.
5. Screw 2 - 6 x 80 mm screw (mounting screws) into the holes (B) in the center of the wood support. Screw them through the support into the anchors underneath. Leave a 14 " (6.4 mm) gap between the wall and the back of the screw head to slide the hood into place.

NOTE

Once the hood is mounted you must tighten these screws.

Complete preparation

1. Determine and make all necessary cuts in the wall or roof for the vent system. Install the vent system before installing the hood. See the "Venting Methods" section.
2. Determine the location where the power supply cable will be run through the wall.
3. Drill a 1'' (2.5 cm) hole at this location.
4. Pull enough power supply cable through the wall to allow for easy connection to the terminal box.
5. Remove the terminal box cover and set aside.

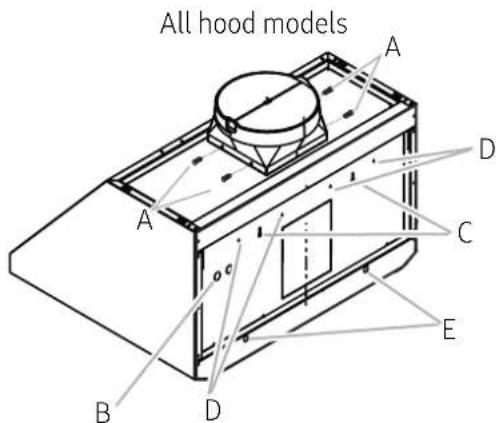

A. Terminal box cover
B. Knockout
C. Power supply wire connector

1. For all hood models install the 10^ (25.4 cm) round vent transition with damper to the top of the hood (depending on your installation), using 4-3.5 x 9.5 mm screws.
2. Remove the knockout from the back of the hood and install a UL listed or CSA approved 12 (1.3 cm) strain relief.

A. 4 - 3.5 × 9.5 ~mm screws
B. Knockout
C. Mounting screws slot
D. 4 - 4.2 × 19 ~mm screws slots
E. 2 - 6 × 80 ~mm screws slots

NOTE

The exhaust adaptor/damper can be installed up to 1 inch on either side of the hood center to accommodate off-center ductwork.

In extreme off-center installations, one end of the duct connector may need to be trimmed to clear the electrical cable clamp.

1. Place the hood near its mounting position and run the power supply cable through the strain relief into the terminal box (enough to make connection).
2. Tighten the strain relief screws.
3. Make the electrical connection. See the "Electrical connection" section (p.18).

Mounting the hood

NOTE

Mark the hood knockouts on the wall, and then make the necessary cutouts before the installation.

NOTE

The hood attaches to the wall by the 6 mounting screws in the wood support mounted to the wall.

To mount the hood, follow these steps:

1. Using 2 or more people, hang the hood on the wall by placing the 2 screws mounted in the wood support attached to the wall through the wide portion of the slotted holes in the back of the hood.

NOTE

If your installation uses the optional duct cover, the vent system needs to be connected to the hood and the duct cover mounted to the top of the hood before you tighten the mounting screws.

1. Pull the hood down so the screws protrude through the narrow portions of the slots, align the bottom of the hood with the horizontal line marking the hood bottom, level the hood, and then tighten the 2 mounting screws.

2. Mark 2 lower mounting hole locations. Drill 18'' (0.32 cm) pilot holes if the holes will be drilled into wood studs or framing. If the holes will not be drilled into wood, drill two 38'' (0.95 cm) pilot holes and insert 10 x 60 mm wall anchors. Install 2 - 6 x 80 mm screws with 5.3 x 20 mm washers (D and C) into the lower mounting holes, and then tighten.

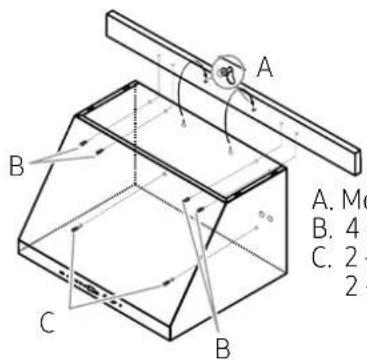

A. Mounting screws
B. 4 - 4.2 × 19 ~mm screws
C. 2 - 6 × 80 ~mm screws with 2 - 5.3 × 20 ~mm washers

1. Install the 4 - 4.2 × 19 ~mm screws (B) through the back of the hood into the wood support, and then tighten.
2. Connect the vent system to the hood. Seal all joint with clamps.

Install hood internal fan motor

1. Place the hood fan motor assembly inside the hood.

A. Wire connection

1. Slide the left mounting plate flange under the fan motor mounting bracket.

A. Motor mounting bracket
B. Mounting plate left flange

1. Push the right end of the motor mounting plate up, and then snap it into the spring tab.

NOTE

The spring tab should be outside the slot in the mounting plate.

A. Motor mounting plate
B. Spring tab

1. Align the mounting holes and then install 4 - 6 x 16 mm screws with 4 - 6.4 x 11 mm lock washers.

A. Screw with lock washer
B. Mounting hole

1. Make the connection between the fan and the terminal box with the supplied wire fan connector.

A. Motor mounting plate
B. Power supply wire fan connector

Double motor assembly

Electrical connection

WARNING

ELECTRICAL SHOCK HAZARD. DISCONNECT POWER BEFORE SERVICING. REPLACE ALL PARTS AND PANELS BEFORE OPERATING. FAILURE TO DO SO CAN RESULT IN DEATH OR ELECTRICAL SHOCK.

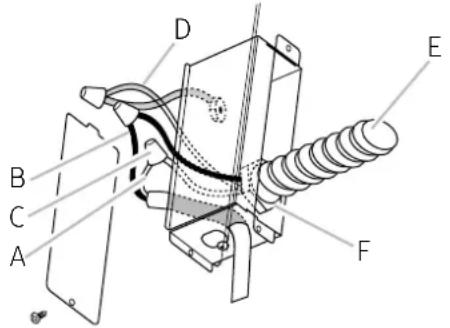

1. Run 3 wires - black, white, and green - according to the National Electrical Code and local codes and ordinances, in 12 conduit from the service panel to the terminal box.

A. White wires
B. Black wires
C. UL listed wire connectors
D. Green, bare or yellow/ green wires

E. Home power supply
F. UL listed or CSA approved 1 / 2 (1.3 cm) strain relief

WARNING

ELECTRICALLY GROUND THE FAN. CONNECT THE GROUND WIRE TO THE GREEN AND YELLOW GROUND WIRES IN THE TERMINAL BOX. FAILURE TO DO SO CAN RESULT IN DEATH OR ELECTRICAL SHOCK.

1. Use UL listed wire connectors and connect black wires (B) together.
2. Use UL listed wire connectors and connect white wires (A) together.
3. Connect green (or bare) ground wire from home power supply to the green/yellow ground wire (D) in terminal box using UL listed wire connectors.
4. Close and secure the terminal box cover.

Completing the installation

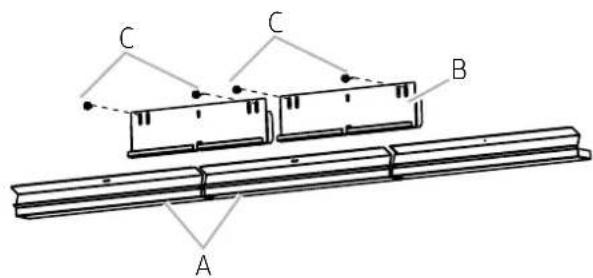

1. Place the drip tray bracket over the hood back filter support and place 2 drip tray screws on the slots.

A. Drip trays
B. Drip tray bracket
C. Drip tray screws

Double motor assembly

1. Grasp the filter handles with both hands and then place the front edge of the filter into the hood.
2. Push up on the back of the handle, and then set rear of filter into the drip tray to secure. Repeat for each filter.

Model shown for reference only, features may vary

Place the filters and check the operation of the hood.

• To get the most efficient use from your new hood, read the "Use and Care" manual.
• Keep these Installation Instructions and Use and Care Guide close to hood for easy reference.

AttachDacor badge

Use the template on this page for alignment of the badge.

Cut out the template and tape it onto the hood front

surace and verify the template is aligned with the right

side of the hood and within the upper and lower edge of

the front surface. Practice placing the badge first before

removing the adhesive release paper.

NOTE: The badge has very high retention adhesive - once the badge is attached its extremely difficult to remove.

Before removing the release paper from the back of the badge, practice placing the badge in the proper position on the hood without any overlap between the badge and this template.

After this practice, remove the release paper from the back of the badge, and attach the badge to the hood without any overlap of the badge to this template.

Remove and discard this template.

Sommaire

Important Safety Instructions 23

State of California Proposition 65 warning (US only)

A AVERTISSEMENT

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

This hood is factory set for venting through the roof (vertical discharge) or wall (horizontal discharge).

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

	30" 36" 48"
A 30" (76 cm) 36" (91.2 cm)		48" (121.7 cm)
B 25" (63.2 cm)
C 18" (45.7 cm)
D 12" (30.5 cm)
E 21/4" (7 cm)
F	29½" (74 cm)	35½" (89.2 cm)	47½" (119.6 cm)
G	7½" (19 cm)
H	29½" (6.5 cm)
I	3½" (1 cm)

Accessorios - Se vende por分校

	30" 36" 48"
A 30" (76 cm) 36" (91.2 cm) 48" (121.7 cm)
B 12" (30.5 cm)
C	1" (2.5 cm)
D	2 5/8" (6.5 cm)
E	7 1/2" (19 cm)
