Contents Before You Begin 3 Important Notes 3 Customer Service 3 Important Safety Instructions 4 Installation Requirements 7 Electrical requirements 7 Venting requirements 8 Venting methods 8 Ducting options 9 What is in the box 10 Tools and parts 11 Dimetions and clearances 12 Accessories - Sold Separately 12 Installation 12 Installation instructions 12 Ceiling support structures 13 Installing the single fan hood 14 Electrical connection 16 Install the double fan hood 17 Electrical connection 20 Duct cover installation 21 Completing the installation 22 Attach Dacor badge 23ENGLISH 3 Important Notes Installer

• In the interest of safety and to minimize problems, read this manual thoroughly before starting the installation.

• Leave this manual with the customer.

• Show the owner how to shut off power to the hood. Customer Keep this manual for personal and professional reference. Customer Service To resolve questions and installation issues, contact your Dacor dealer or Dacor customer service. Before calling, have the hood’s model and serial number available. (See the data label inside the hood above the lters on the chassis’ rear wall). All specications are subject to change without notice. Dacor assumes no liability for such changes. ©2022 Dacor, all rights reserved. Before You BeginENGLISH4

APPROVED FOR RESIDENTIAL APPLIANCES

FOR RESIDENTIAL USE ONLY

READ AND SAVE THESE INSTRUCTIONS

PLEASE READ ENTIRE INSTALLATION GUIDE BEFORE PROCEEDING. INSTALLATION MUST COMPLY WITH ALL LOCAL CODES. IMPORTANT: Save these instructions for the local electrical inspector’s use. INSTALLER: Please leave these instructions with this unit for the owner. OWNER: Please retain these instructions for future reference. Symbols used in this manual WARNING Hazards or unsafe practices that may result in severe personal injury or death. WARNING Turn off power circuit at service panel and lock out panel before wiring this appliance. CAUTION Hazards or unsafe practices that may result in electric shock, personal injury, or property damage. NOTE Useful tips and instructions. These warning icons and symbols are here to prevent injury to you and others. Please follow them explicitly. After reading this section, keep it in a safe place for future reference. State of California Proposition 65 warning (US only) WARNING This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm - www.p65warnings.ca.gov

CAUTION FCC CAUTION: Any changes or modi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of FCC Rules. Operation is subject to following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received including interference that cause undesired operation.

For products sold in the US and Canadian markets, only channels 1~11 are available. You cannot select any other channels. FCC STATEMENT: This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Important Safety InstructionsENGLISH 5

APPROVED FOR RESIDENTIAL APPLIANCES

FOR RESIDENTIAL USE ONLY

READ AND SAVE THESE INSTRUCTIONS

PLEASE READ ENTIRE INSTALLATION GUIDE BEFORE PROCEEDING. INSTALLATION MUST COMPLY WITH ALL LOCAL CODES. IMPORTANT: Save these instructions for the local electrical inspector’s use. INSTALLER: Please leave these instructions with this unit for the owner. OWNER: Please retain these instructions for future reference. Symbols used in this manual WARNING Hazards or unsafe practices that may result in severe personal injury or death. WARNING Turn off power circuit at service panel and lock out panel before wiring this appliance. CAUTION Hazards or unsafe practices that may result in electric shock, personal injury, or property damage. NOTE Useful tips and instructions. These warning icons and symbols are here to prevent injury to you and others. Please follow them explicitly. After reading this section, keep it in a safe place for future reference. State of California Proposition 65 warning (US only) WARNING This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm - www.p65warnings.ca.gov

CAUTION FCC CAUTION: Any changes or modi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of FCC Rules. Operation is subject to following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received including interference that cause undesired operation.

For products sold in the US and Canadian markets, only channels 1~11 are available. You cannot select any other channels. FCC STATEMENT: This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Important Safety Instructions This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorienting or relocating the receiving antenna

• Increasing the separation between the equipment and receiver

• Connecting the equipment to an outlet that is on a different circuit than the radio or TV

• Consulting the dealer or an experienced radio/TV technician for help FCC RADIATION EXPOSURE STATEMENT: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.

The term “IC” before the radio certi cation number only signi es that Industry Canada technical speci cations were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003. For products sold in the US and Canadian markets, only channels 1~11 are available. You cannot select any other channels. IC RADIATION EXPOSURE STATEMENT: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter. WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING PRECAUTIONS:

• Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.

• Before servicing or cleaning the unit, switch the power off at the service panel and lock the service panel to prevent power from being switched on accidentally. If the service panel cannot be locked, securely fasten a prominent warning device, such as a tag to the service panel.

• Installation work and electrical wiring must be done by quali ed person(s) in accordance with all applicable codes and standards, including re-rated construction.

• Suf cient air is needed for proper combustion and exhausting of gases through the ue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

• When cutting or drilling into the wall or ceiling; do not damage electrical wiring and other hidden utilities.

• Ducted fans must always be vented outdoors. CAUTION For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.ENGLISH6 Important Safety Instructions CAUTION To reduce risk of re and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings, attics or into crawl spaces, or garages. WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK WARNING TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

• Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.

• Always turn the hood ON when cooking at high heat or when ambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).

• Clean ventilating fans frequently. Grease should not be allowed to accumulate on the fan or lter.

• Use proper pan sizes. Always use cookware appropriate for the size of the surface element. WARNING TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING PRECAUTIONS:*

• SMOTHER FLAMES with a close tting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the ames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

• NEVER PICK UP A FLAMMING PAN - you may get burned.

• DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.

• Use an extinguisher ONLY if: - You know you have a class ABC extinguisher, and you already know how to operate it. - The re is small and contained in the area where it started. - The re department is being called. - You can ght the re with your back to an exit. *Based on “Kitchen Fire Safety Tips” published by NFPA. WARNING To reduce the risk of re or electrical shock, do not use this fan with any solid-state speed control device. WARNING Do not let children near this appliance. Do not let children play with this appliance. Keep all packaging materials out of children’s reach. Properly dispose the packaging materials after this appliance is unpacked. NOTE Suitable for use in household cooking area. Read and save these InstructionsENGLISH 7 Installation Requirements Electrical requirements IMPORTANT Observe all governing codes and ordinances. It is the customer’s responsibility:

• To contact a qualied electrical installer.

• To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 — latest edition*, or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances. If codes permit and a separate ground wire is used, it is recommended that a qualied electrician determine that the ground path is adequate. A copy of the above code standards can be obtained from: National Fire Protection Association 1 Batterymarch Park Quincy, MA 02169-7471 CSA International 8501 East Pleasant Valley Road Cleveland, OH 44131-5575

• A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required.

• If the house has aluminum wiring, follow the procedure below.

1. Connect a section of solid copper wire to the pigtail

2. Connect the aluminum wiring to the added section

of copper wire using special connectors and/or tools designed and UL listed for joining copper to aluminum.

• Follow the electrical connector manufacturer’s recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

• Wire sizes and connections must conform with the rating of the appliance as specied on the model/ serial rating plate. The model/serial plate is located behind the lter on the rear wall of the hood.

• Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition and all local codes and ordinances). Important Safety Instructions CAUTION To reduce risk of re and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings, attics or into crawl spaces, or garages. WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK WARNING TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

• Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.

• Always turn the hood ON when cooking at high heat or when ambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).

• Clean ventilating fans frequently. Grease should not be allowed to accumulate on the fan or lter.

• Use proper pan sizes. Always use cookware appropriate for the size of the surface element. WARNING TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING PRECAUTIONS:*

• SMOTHER FLAMES with a close tting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the ames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

• NEVER PICK UP A FLAMMING PAN - you may get burned.

• DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.

• Use an extinguisher ONLY if: - You know you have a class ABC extinguisher, and you already know how to operate it. - The re is small and contained in the area where it started. - The re department is being called. - You can ght the re with your back to an exit. *Based on “Kitchen Fire Safety Tips” published by NFPA. WARNING To reduce the risk of re or electrical shock, do not use this fan with any solid-state speed control device. WARNING Do not let children near this appliance. Do not let children play with this appliance. Keep all packaging materials out of children’s reach. Properly dispose the packaging materials after this appliance is unpacked. NOTE Suitable for use in household cooking area. Read and save these InstructionsENGLISH8 Installation Requirements Venting requirements

• Vent system must terminate outdoors.

• Do not terminate the vent system in an attic or other enclosed area.

• Do not use a 4” (10.2 cm) laundry-type wall cap.

• Use metal vent only. Rigid metal vent is recommended.

• Plastic or metal foil vent is not recommended.

• The length of the vent system and the number of elbows should be kept to a minimum to provide efcient performance. For the most efcient and quiet operation: - Use no more than three 90° elbows. - Make sure there is a minimum of 30” (76.2 cm) of straight vent between the elbows if more than 1 elbow is used. Do not install 2 elbows together.

• Use clamps to seal all joints in the vent system.

• The vent system must have a damper. If the roof or wall cap has a damper, do not use the damper supplied with the hood.

• Use caulking to seal the exterior wall or roof opening around the cap.

• The size of the vent should be uniform. Venting methods To use the hood’s top outlet to vent your hood, a 10” (25.4 cm) round vent system is required. This vent system is not included and must be purchased separately. NOTE Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that greatly reduces performance. The vent system can terminate either through the roof or wall. Always install a metal vent cover where the ductwork exits the house. Hood must be vented to the outside of building only Discharge direction This hood is factory set for venting through the roof (vertical discharge) or wall (horizontal discharge). To vent through a wall, a 90° elbow is needed. Ductwork installation guidelines For safety reasons, ducting should vent directly outdoors (not into an attic, underneath the house, into the garage or into any enclosed space). Do not exceed 50 ft (15.24 m) of duct. Keep duct runs as short and straight as possible. Elbows and transitios ttings reduce air ow efciency. Back to back elbows and “S” turns give very poor delivery and are not recommended. A short straight length of duct at the inlet of a remote fan gives the best delivery. Ducting recommendations Proper performance is dependent upon proper ducting. . Cold weather Cold weather installations should have an additional backdraft damper installed to minimize backward cold air ow and a nonmetallic thermal break to minimize conduction of outside temperatures as part of the ductwork. The damper should be on the cold air side of the thermal break. The break should be as close as possible to where the ducting enters the heated portion of the house. Make-up air Local building codes may require the use of make-up air systems when using ducted ventilation systems greater than specied CFM of air movement. The specied CFM varies from locale to locale. It is the responsibility of the owner and the installer to determine if additional requirements and/or standards apply to specic installations.ENGLISH 9 Installation Requirements Ducting options The hood is equipped with a 10” (25.4 cm) round transition for discharge of fumes to the outside. Closely follow the instructions set out in this manual. Dacor is not responsible for any eventual inconveniences, damages or res caused by not complying with the instructions in this manual. Preparation Do not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut, then a supporting frame must be constructed. Fittings material is provided to secure the hood to most types of walls/ceilings. However, a qualied technician must verify suitability of the materials in accordance with the type of wall/ceiling. Before making cutouts, make sure there is proper clearance within the ceiling or wall for the exhaust vent. Mounting Height CAUTION Mount this hood so that the bottom edge above the cooking product is at 30”(76.2cm) minimum for a gas cooking product or 24”(60.9cm) for an electric cooking surface. There is no maximum mounting height, however, we recommend mounting the hood no greater than 36”(91.4cm) above the cooking surface. For every inch (2.54 cm) above 36”(91.4cm), fume and moisture capture efciency diminishes at an increasing rate and may not deliver an acceptable level of ventilating performance. This hood is intended for household use. Check your ceiling height and hood height before selecting your hood. Roof Venting Wall Venting

A. Roof Cap B. 10” (25.4 cm) Round Vent A. Roof Cap B. 10” (25.4 cm) Round VentENGLISH10 Installation Requirements What is in the box Hood assembly (1) 36" single fan Duct cover extension (2) 36" single fan 10 " Transition (1) 36" single fan Horizontal supports (2) 36" single fan Transition adapter (1) 36" single fan Upper vertical supports (4) Lower vertical supports (4) 36" single fan Hood base (1) 42" double fan 54" double fan Blower housing with 10"transition (1) 42" double fan 54" double fan Horizontal support (1) 42" double fan 54" double fan Duct cover extension (2) 42" double fan 54" double fan Vertical supports (4) 42" double fan 54" double fan Hardware bag (1) Product literature (2) Upper duct covers (2) Lower duct covers (2) Filters 36" (2) 42" (3) 54" (3)ENGLISH 11 Tools and parts Remove the packaging. CAUTION Remove the carton carefully. Wear gloves to protect against sharp edges. WARNING Remove the protective lm before putting into operation. Parts Supplied

• Hardware bag includes: Part Qty 5 x 45 mm

Parts not supplied Tools/materials required

• Drill with ³/₁₆’’ (4.76 mm) drill bit

• Wire stripper or utility knife

• Tape measure or ruler

• Caulking gun and weatherproof caulking compound

• Screwdrivers: - Phillips - Flat - blade Parts needed

• Home power supply cable

• ½” (12.7 mm) UL listed or CSA approved strain relief

• 3 UL listed wire connectors

• Metal vent system Installation RequirementsENGLISH12 Installation Requirements Dimetions and clearances

Extension Kit DHD-D0000IS/DA DHD-D0000IM/DA Installation Installation instructions We recommend that a qualied technician install the hood. It is the installer’s responsibility to ensure the hood complies with the installation clearances specied for the product.

• It is recommended that the vent system be installed before the hood is installed.

• Before making cutouts, make sure there is proper clearance within the ceiling or wall for the exhaust vent.

• Conrm that all installation parts have been removed from the shipping carton.

1. Turn off the power at the circuit breaker panel or fuse

2. Determine which venting method to use: roof or wall

venting. NOTE This hood is factory set to vent through the top air exit.

3. Select a at surface for assembling the hood. Place a

covering over that surface.ENGLISH 13 Ceiling support structures

• This vent hood is heavy. Adequate structure and support must be provided in all types of installations.

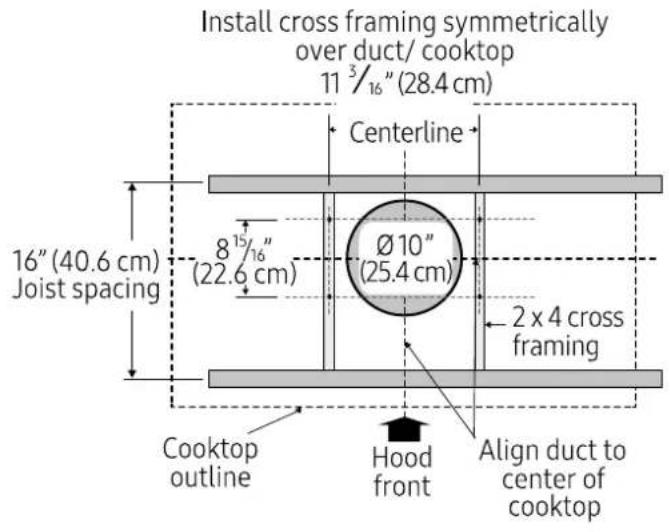

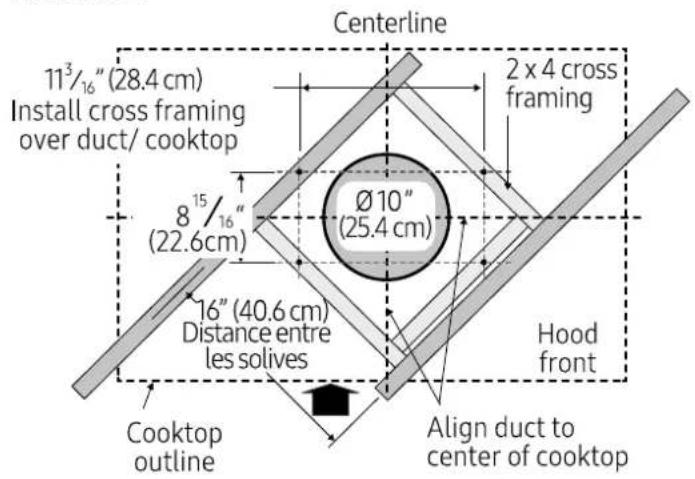

• At the hood location, install 2”x 4” cross framing between ceiling joists as shown (2”x 4” are required to support the weight of the hood). Arrange cross framing in the ceiling to suit the existing structure. Your ceiling joists will be like one of the following: NOTE: Top ceiling joists parallel to front of hood. InstallationENGLISH14 Installing the single fan hood

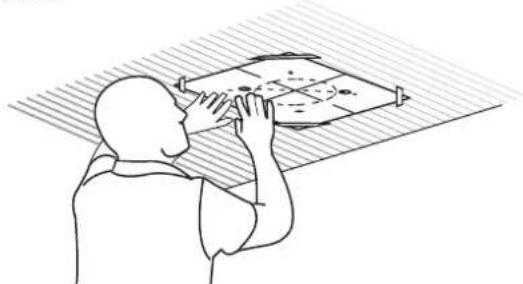

1. Place the template in the ceiling considering the

instructions for ceiling support structures. NOTE Always consider the front of hood when placing the template on the ceiling. It will dene the control’s location.

2. Mark with a pencil the hole locations for screws and

duct in the ceiling. Remove the template.

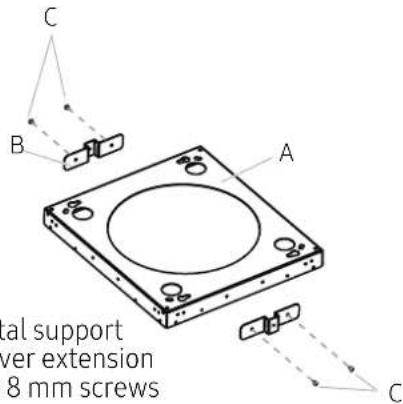

3. Fix one duct cover enxtension on each of both sides

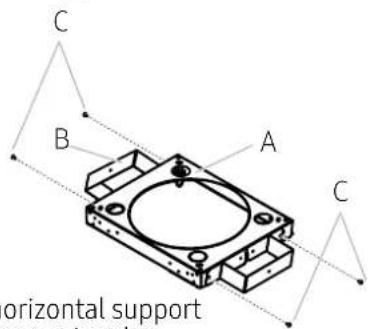

of one of the horizontal supports with 4 - 4.2 x 8 mm screws using the Torx 20 adapter. That will be the upper horizontal support.

A. Upper horizontal support B. Duct cover extension C. 4 - 4.2 x 8 mm screws

4. Fix the upper horizontal support to the ceiling with

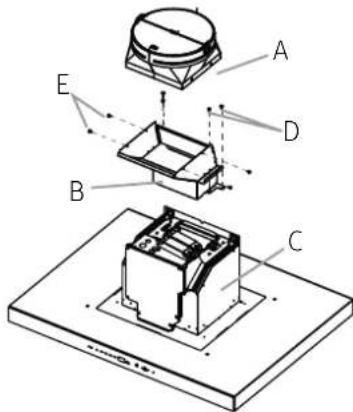

transition adapter and place it over the vent opening on the hood assembly as pictured below.

A. 10" round transition B. Transition adapter C. Hood assembly D. 4 - 3.5 x 9.5 mm screws E. 4 - 4.2 x 8 mm screws

6. Fix lower vertical supports over the lower horizontal

support with 16 - 4.2 x 8 mm screws.

A. Lower horizontal support B. 16 - 4.2 x 8 mm screws InstallationENGLISH 15

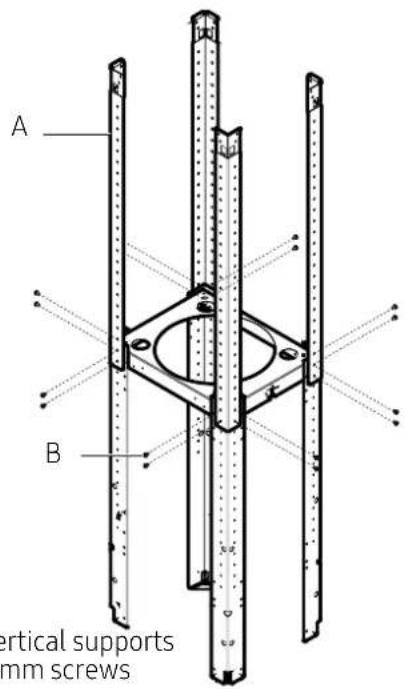

7. Install the 4 vertical supports with 16 - 4.2 x 8 mm

screws. A. 4 - Upper vertical supports B. 16 - 4.2 x 8 mm screws

8. Install the structure to the horizontal support with

16- 4.2 x 8 mm screws.

A. Upper horizontal support B. 16 - 4.2 x 8 mm screws C. Duct cover extension B.B.

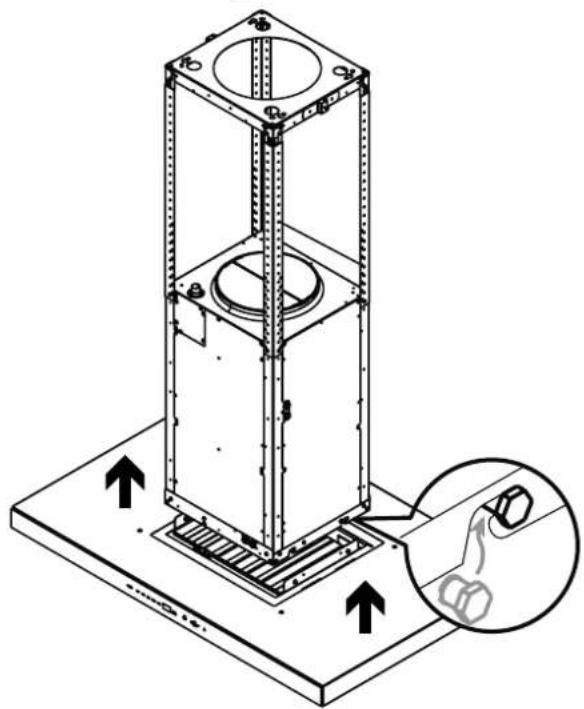

9. Using 2 or more people, lift the hood assembly under

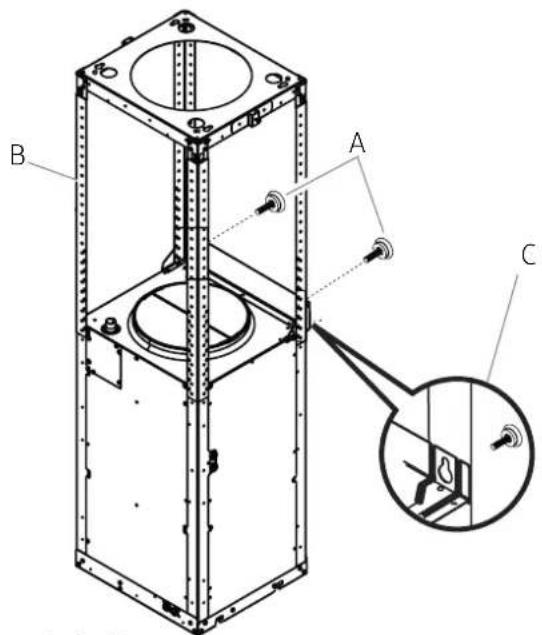

A. Lower vertical supports B. Hood assembly

10. Attach the hood assembly to the lower vertical

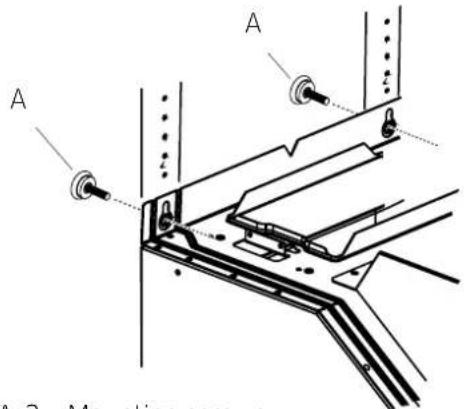

supports with 2 mounting screws.

A. 2 - Mounting screws B. Lower vertical support C. Place mounting screws through the structure InstallationENGLISH16

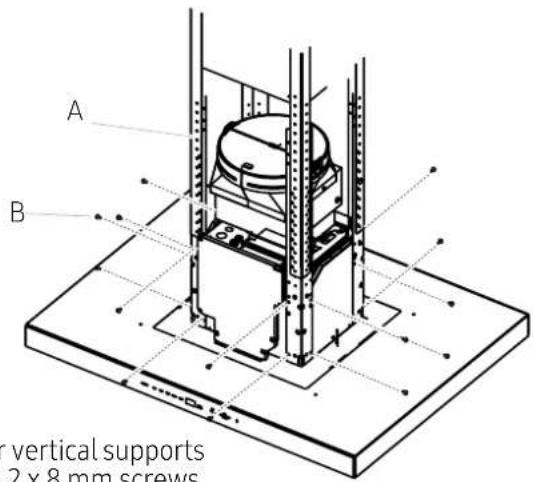

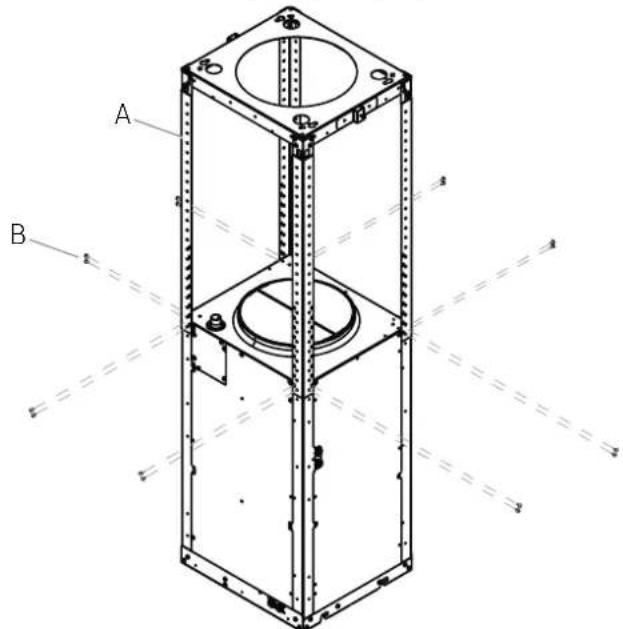

11. Install the 4 vertical supports with 16 - 4.2 x 8 mm

screws. Check everything is tightly screwed.

A. Lower vertical supports B. 16 - 4.2 x 8 mm screws

12. Remove the 2 mounting screws from the structure.

1. Disconnect power.

2. Remove terminal box cover.

3. Remove the knockout in the terminal box cover and

install a UL listed or CSA approved ¹⁄₂” strain relief.

A. Knockout B. Terminal box cover

4. Run home power supply cable through

strain relief, into terminal box.

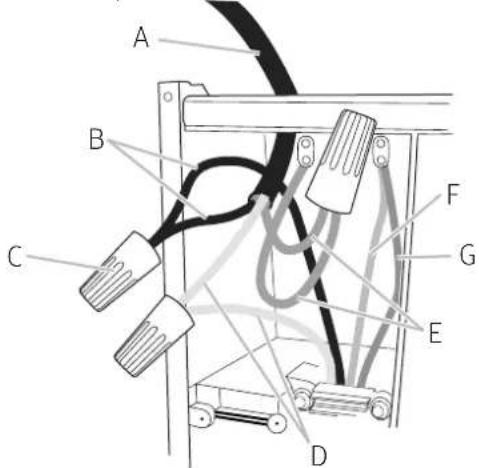

A. Home power supply cable B. Black wires C. UL listed wire connectors D. White wires E. Green (or bare) and yellow-green ground wires F. Power board ground wires G. Fan ground wires

5. Use UL listed wire connectors and connect black

6. Use UL listed wire connectors and connect white

wires (D) together. InstallationENGLISH 17 Installation WARNING ELECTRICAL SHOCK HAZARD. WARNING ELECTRICALLY GROUND FAN. CONNECT GROUND WIRE TO GREEN AND YELLOW GROUND WIRE IN TERMINAL BOX. FAILURE TO DO SO CAN RESULT IN DEATH OR ELECTRICAL SHOCK.

7. Connect green (or bare) ground wire from home

power supply to yellow-green ground wire (E) in terminal box using UL listed wire connectors.

8. Tighten strain relief screw.

9. Install terminal box cover.

10. Reconnect power.

Install the double fan hood

1. Place the template in the ceiling considering the

instructions for ceiling support structures. NOTE Always consider the front of hood when placing the template on the ceiling. It will dene the control’s location.

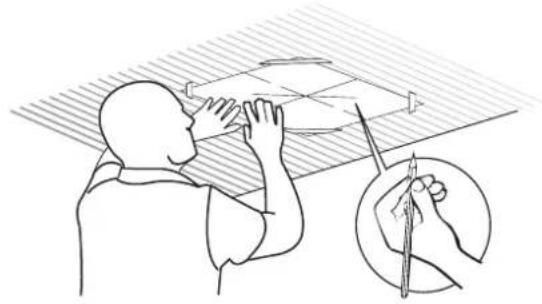

2. Mark with a pencil the hole locations for screws and

duct in the ceiling. Remove the template.

3. Fix one duct cover extension on each of both sides

of the horizontal support with 4 - 4.2 x 8 mm screws using the Torx 20 adapter.

A. Horizontal support B. Duct cover extension C. 4 - 4.2 x 8 mm screws

4. Fix the horizontal support to the ceiling with

4-5x45mm screws. Use 8 x 40 mm anchors if necessary.ENGLISH18

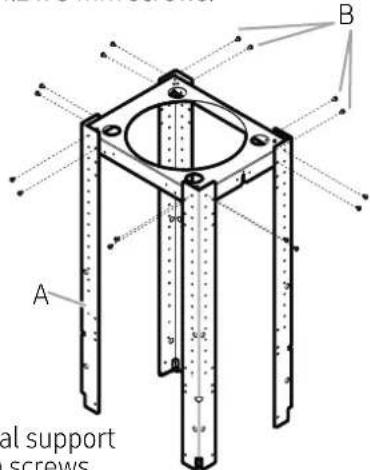

5. Install the 4 vertical supports over the horizontal

support with 16 - 4.2 x 8 mm screws.

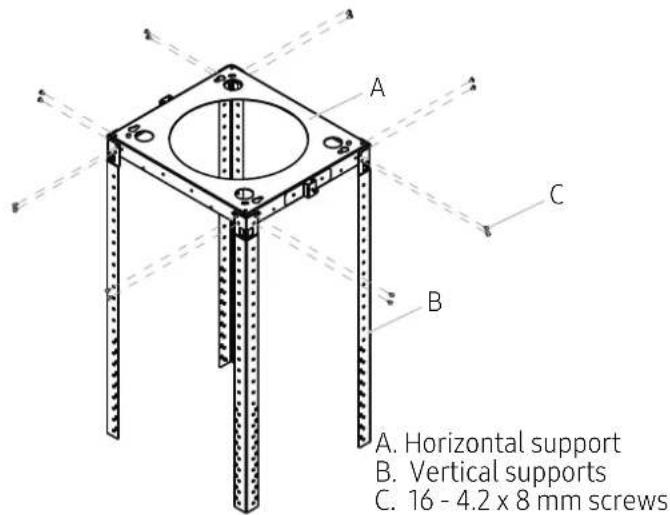

A. Horizontal support B. Vertical supports C. 16 - 4.2 x 8 mm screws

6. Using 2 or more people, lift the blower housing under

A. Vertical supports B. Blower housing

7. Attach the blower housing to the vertical supports

with 2 mounting screws.

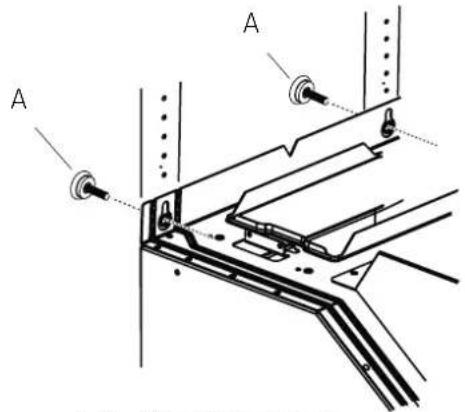

A. 2 - Mounting screws B. Vertical support C. Place leveling screws through the structure

8. Install the 4 vertical supports with 16 - 4.2 x 8 mm

screws. Check everything is tightly screwed.

A. Vertical supports B. 16 - 4.2 x 8 mm screws InstallationENGLISH 19

9. Remove the 2 mounting screws from the structure.

A. 2 - Mounting screws

10. Using 2 or more people, lift the hood base beneath

the motor housing. Insert the hood base pins into the housing lower slots. Once the four pins are inserted, the hood base is supported.

11. Secure the hood base to the blower housing with 4 -

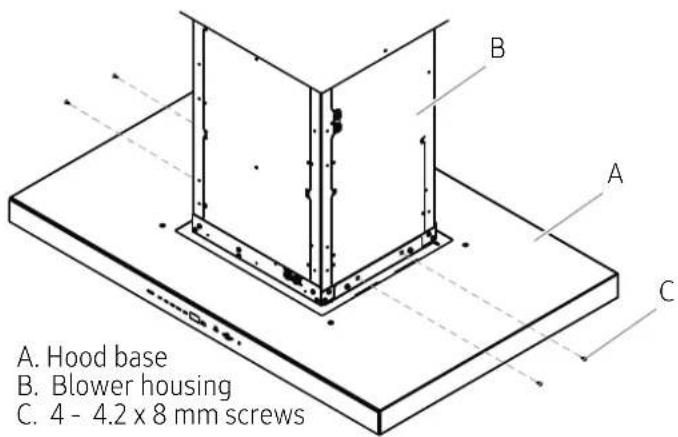

A. Hood base B. Blower housing C. 4 - 4.2 x 8 mm screws

12. Untie the base connector and plug with the blower

housing wire connector. InstallationENGLISH20 Installation Electrical connection WARNING ELECTRICAL SHOCK HAZARD. WARNING DISCONNECT POWER BEFORE SERVICING. REPLACE ALL PARTS AND PANELS BEFORE OPERATING. FAILURE TO DO SO CAN RESULT IN DEATH OR ELECTRICAL SHOCK.

1. Disconnect power.

2. Remove terminal box cover.

3. Remove the knockout in the terminal box cover and

install a UL listed or CSA approved ¹⁄₂” strain relief.

4. Run home power supply cable through strain relief,

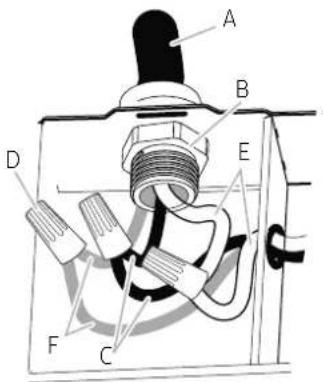

into terminal box. A. Home power supply cable B. UL listed or CSA approved strain relief C. Black wires D. UL listed wire connectors E. White wires F. Green (or bare) and yellow-green ground wires

5. Use UL listed wire connectors and connect black

6. Use UL listed wire connectors and connect white

wires (E) together. WARNING ELECTRICALLY GROUND BLOWER. CONNECT GROUND WIRE TO GREEN AND YELLOW GROUND WIRE IN TERMINAL BOX. FAILURE TO DO SO CAN RESULT IN DEATH OR ELECTRICAL SHOCK.

7. Connect green (or bare) ground wire from home

power supply to yellow-green ground wire (F) in terminal box using UL listed wire connectors.

8. Tighten strain relief screw.

Installation Duct cover installation

• Attach the upper duct covers to the duct cover extensions using 2 - 3.5 x 6.5 mm screws on the screw slots (B) using the Torx 10 adapter. NOTE The slotted holes in the upper duct covers will be visible when assembled, and can be hidden down inside the lower duct covers.

A. Upper duct covers B. 2 - 3.5 x 6.5 mm installation screws

• Place lower duct covers.

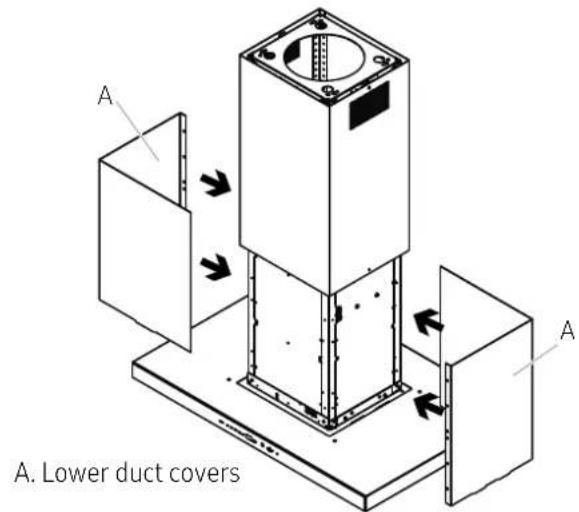

A. Lower duct covers

• Place the lower duct covers over the hood canopy slots.

A. Hood canopy slotsENGLISH22 Completing the installation Place the lters and check the operation of the hood.

1. Grasp the lter handles with both hands and then

place the front edge of the lter into the hood.

2. Push up on the back the handle, and then set rear of

lter into the drip tray to secure. Repeat for each lter.

Model shown for reference only, features may vary

• To get the most efcient use from your new hood, read the “Use and Care” manual.

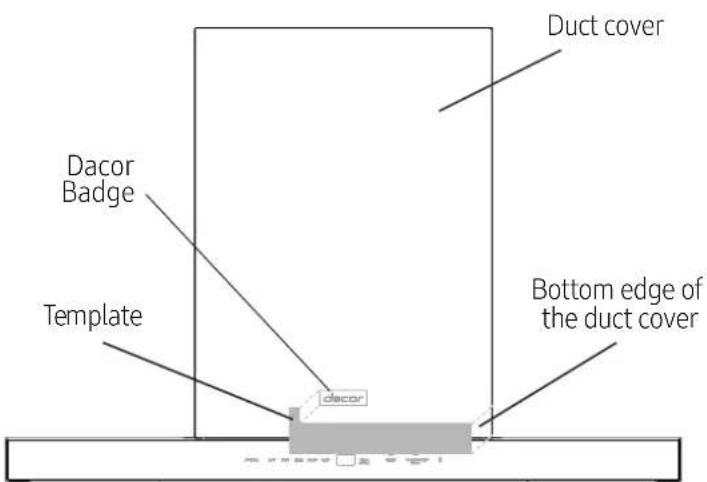

de la cubierta del ducto Cubierta del ducto NOTE: The nameplate badge has very high retention adhesive - once the nameplate badge is attached its extremely difficult to remove. Before removing the release paper from the back of the nameplate badge, practice placing the nameplate badge in the proper position on the hood without any overlap between the nameplate badge and this template. After this practice, remove the release pper from the back of the nameplate badge, and attach the nameplate badge to the hood without any overlap of the nameplate badge to this template. Remove and discard this template. Placa DacorContact Dacor If you have any questions or comments relating to Dacor appliances, please contact the Dacor Customer Service Center. Country Contact Center Web Site U.S.A. 1-833-353-5483 www.dacor.com CANADA 1-844-509-4659 www.dacor.com
