Camspot 3.7 Pro - Surveillance Camera Overmax - Free user manual and instructions

Product type	Indoor surveillance camera
Brand	Overmax
Model	Camspot 3.7 Pro
Video resolution	Full HD (1080p) / switchable HD
Night vision	Yes, with infrared LEDs
Viewing angle	100° (estimated)
Connectivity	Wi-Fi 2.4 GHz (not compatible with 5 GHz)
Local storage	microSD card up to 128 GB (FAT32 format)
Audio	Built-in microphone and speaker, two-way audio
Power	5 V DC, 1.5 A (power adapter included)
Dimensions (approx.)	80 x 80 x 80 mm
Weight (approx.)	150 g
Voice assistant	Compatible with Google Assistant and Amazon Alexa (via Tuya Smart)
Mobile app	Overmax Control (iOS and Android)
Mounting	On a flat surface or wall/ceiling with included bracket
Motion detection	Yes, with push notifications
Privacy mode	Yes, disables the camera
Reset	Reset button (hold for 5 seconds for reset, 8 seconds for factory reset)
Warranty	Compliant with EU directives, legal warranty of conformity

Frequently Asked Questions - Camspot 3.7 Pro Overmax

How do I reset the camera to factory settings?

Press and hold the Reset button for 5 seconds for a soft reset, or 8 seconds to restore factory settings (you will hear a beep). You can also remove the device from the list in the app.

Why won't my camera connect to Wi-Fi?

Make sure your phone and camera are on the same 2.4 GHz network (5 GHz is not supported). Check that the Wi-Fi password has no special characters, DHCP is enabled on the router, and the signal is strong. Reset the camera if necessary.

What type of memory card should I use?

Use a microSD card up to 128 GB in FAT32 format. Make sure it is not damaged and enable card recording in the app settings.

How do I change the router the camera is connected to?

Remove the camera from the device list in the app or press and hold the Reset button for 8 seconds until a beep, then reconfigure it with the new Wi-Fi network via the app.

Why am I not receiving motion detection notifications?

Check that push notifications are enabled in your phone settings and in the Overmax Control app. Also make sure motion detection is enabled in the app.

How do I install the camera on the ceiling?

Use the included mounting bracket. Attach it to the wall/ceiling with the included screws and anchors, then clip the camera onto the bracket. Make sure the surface is clean and stable.

Can I use the camera with Google Assistant or Alexa?

Yes, download the Tuya Smart app (free) and link it to your Overmax Control account. Follow the instructions in the app to set up the voice assistant.

How do I activate privacy mode?

In the Overmax Control app, tap the Privacy Mode icon. The camera turns off and data transfer is limited. To reactivate, tap again.

What to do if the app cannot find the camera?

Make sure the camera is powered on, your phone is connected to the same 2.4 GHz Wi-Fi network, and Bluetooth is enabled (for automatic search). You can also add the device manually by selecting the model Camspot 3.7 Pro.

How do I view the camera from a computer?

Open the Overmax Control app on your phone, click on 'Add Device', then scan the QR code displayed in your computer's browser. You can then access the live stream via a web link.

USER MANUAL Camspot 3.7 Pro Overmax

EN: The product complies with requirements of EU directives.

Pursuant to the Directive 2012/19/EU, this product is subject to selective collection. The product must not be disposed of along with domestic waste as it may pose a threat to the environment and human health. The worn-out product must be handed over to the electrics and electronics recycling center.

2

<

Zarejestruj się

Poland

E-mail

6

Line drawing of a mechanical device with a circular head and base, resting on a hatched surface (no text or symbols)

Technical line drawing of two mechanical components with mounting holes and a circular component, no text or symbols present

Wprowadzenie

Drogi Kliencie!

https://ipc-eu.ismartlife.me/login

PL Montaż

Thank you for placing trust in us and choosing Overmax.

Thanks to high-quality materials and modern solutions, we provide you with a product perfect for everyday use. We are convinced that the product will satisfy your requirements as it has been manufactured with utmost care. Before you use the product, please read this manual carefully.

Should you have any remarks or questions concerning the product, please do not hesitate to contact us: [e-mail]

Information about the device

Frequency: 2.412-2.472 GHz

Indoor camera

Power supply: 5V DC 1.5A

The set (fig. A)

1. Camera

2. Mounting bracket

3. Screws and mounting pins

4. Power supply

5. USB cable

Device description (fig. B)

1. Microphone

2. Lens

3. Light sensor

4. Infrared diodes

5. MicroSD card slot

6. Reset

7. Speaker

8. Power supply socket (5V DC 1.5A)

1. Downloading by application (fig. 1)

Search for the “Overmax Control” app in the iOS Store / Google Play or scan the QR code and download the app. You can download it for iOS and Android.

2. Registering a new user (fig. 2 and 3)

• To register for the application, click on the “Register” box and then read and accept the Privacy Policy.
• Enter your email address to receive your verification code.
• Enter your verification code in the blank field.
• Enter your individual password and select "Finish".

EN

3. Logging in to an existing account

• In order to log in to an existing account, select “Log in using an existing account” (fig. 2).
• Select the appropriate country/region.
• Enter your email address and password, then log in.

4. Manually adding the device in the application (fig. 4)

The product only supports 2.4GHz Wi-Fi and does not support 5GHz Wi-Fi. Before setting up Wi-Fi, set your router parameters. The Wi-Fi password should not contain special characters.

• Make sure the router and camera are as close together as possible to allow for quick setup of the device.
- Connect your mobile device to the local Wi-Fi network to which the camera will be connected, then select “My home”. Select „Add device” and „Add manually”, then select the „Camspot 3.7 Pro” device.

- Select your Wi-Fi network and enter your password.

- You can add the device using Auto Scan, which allows your phone to automatically search for nearby Wi-Fi enabled devices.

- Press and hold the “Reset” button for 5 seconds to restore the factory settings. Click „Next step” and continue.

EN

• To pair the camera, scan the QR code from the phone screen through the camera lens, holding the camera 15-20cm away. Try to hold your mobile phone in a stable position while scanning.
• When you hear the sound signal, click “I heard the sound”. Wait for the device to complete the configuration.

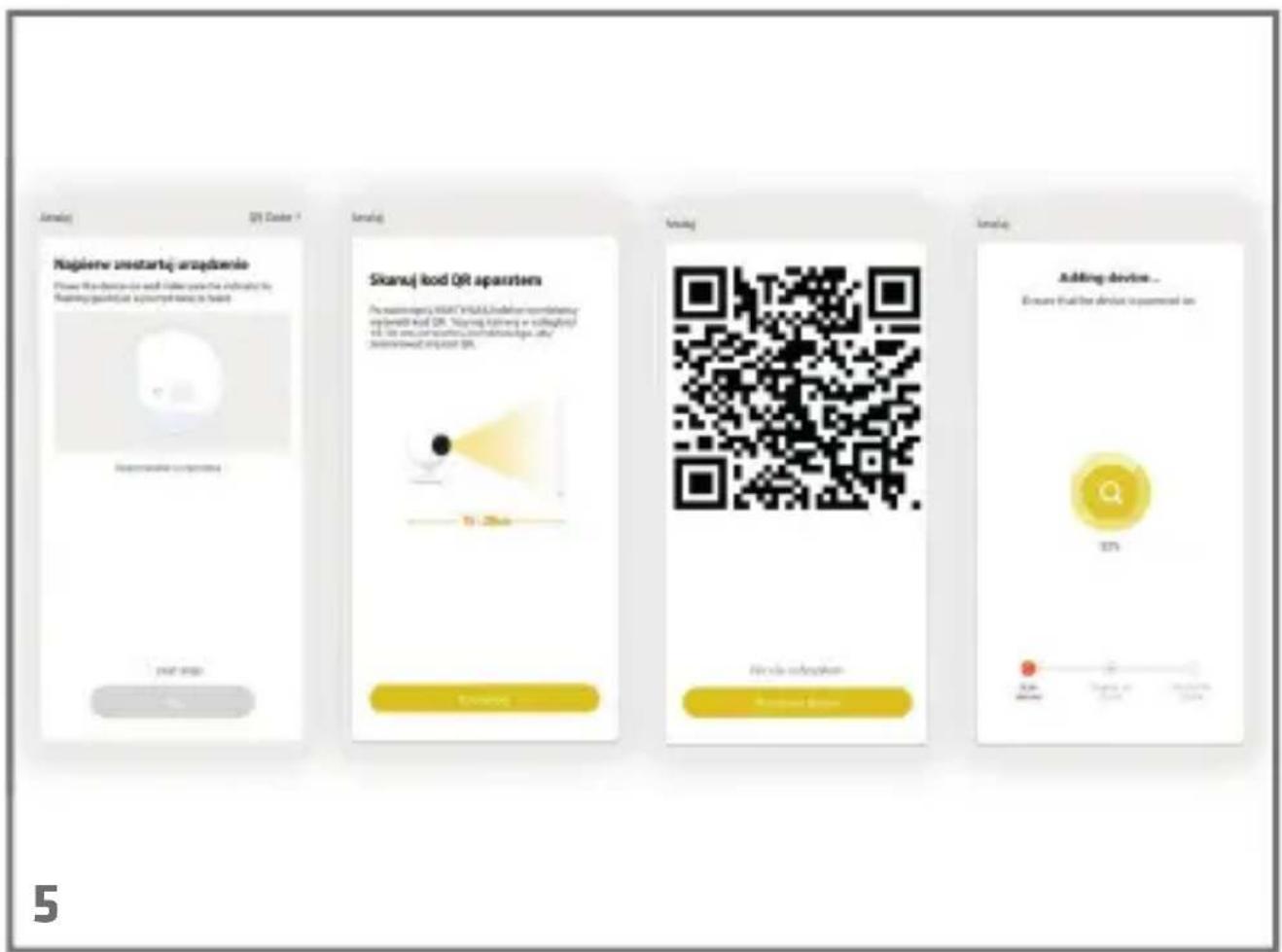

• After adding the device, click „Finish” to finish adding the device (fig. 5).

5. Description of the mobile application functions (fig. 6)

Real-time preview interface:

1. HD/SD - change recording resolution FullHD / HD
2. Volume control
3. Zoom
4. Full screen
5. Photo
6. Two-way audio communication
7. Video recording
8. Play (microSD card FAT32 required, max. 128 GB)
9. Gallery
10. Bright/dark application mode
11. Private mode (allows you to limit data transfer by turning off the camera)
12. Night mode
13. Motion tracking
14. Motion sensor
15. Sound sensor
16. Control
17. Locations
18. Cloud
19. Smart functions
20. Patrol function
21. Alarm (switches off automatically after 10 seconds)
22. Edition
    In order to access the camera view via a web browser, turn on the

"Overmax Control" application, click on add the device, then scan the QR code displayed in the browser of your computer.

Live camera preview at: https://ipc-eu.ismartlife.me/login

Mounting

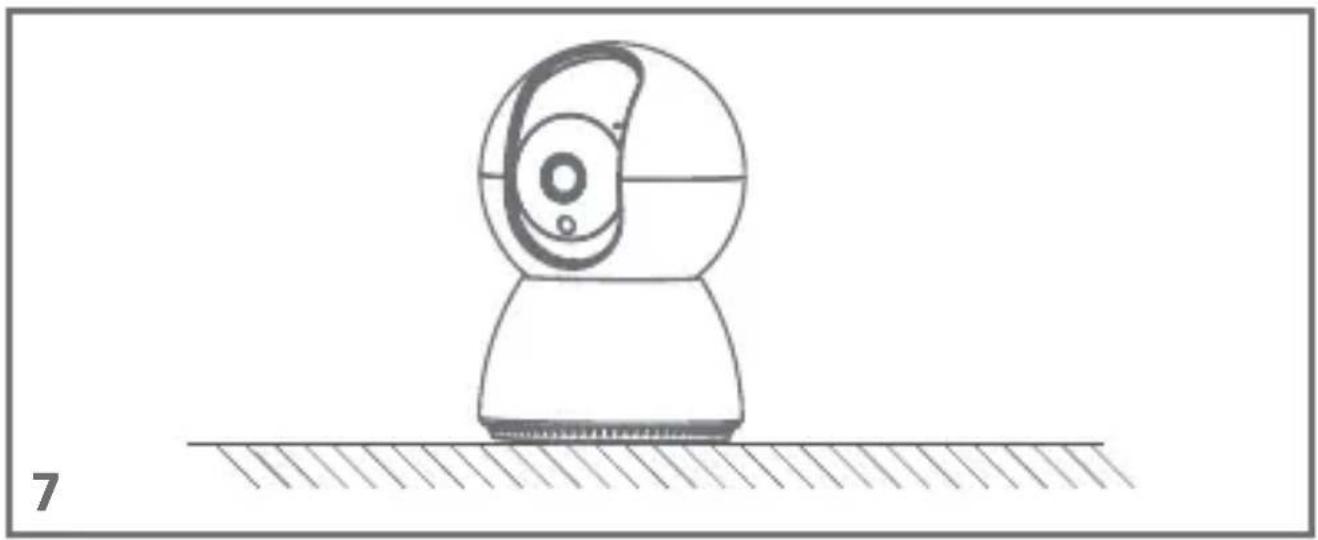

- Place the camera on a flat surface of a desk or table (fig. 7).

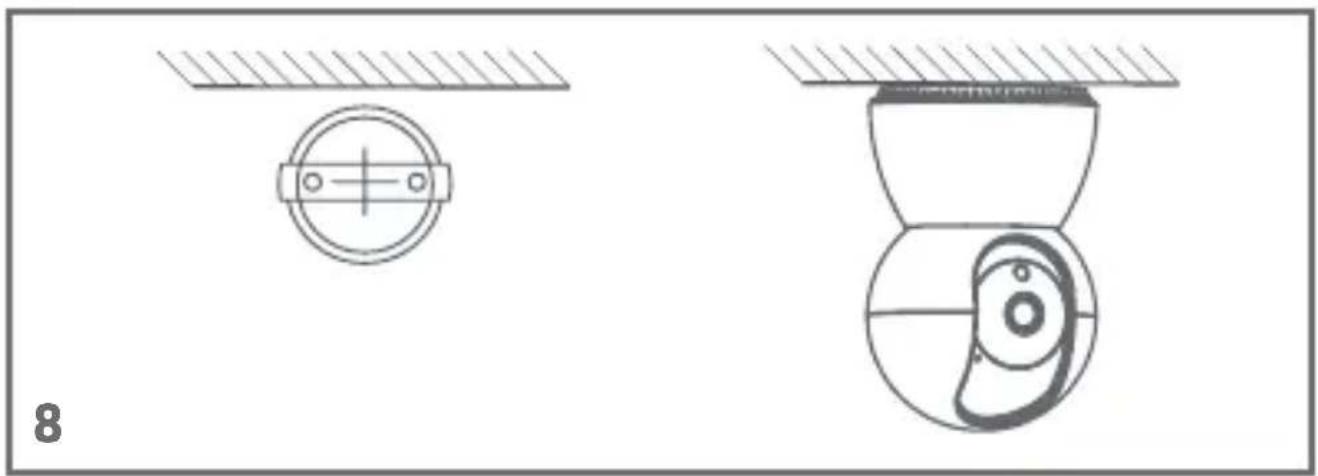

- To mount the camera on a wall/ceiling, use the mounting bracket included in the set. Make sure the surface is clean (fig. 8).

Google Assistant/Alexa function

- If you wish to use this function, you will need to download the Tuya Smart app.

- The Tuya Smart app is free and available for Android (Google Play) and iOS (App Store) devices.

Troubleshooting

Question Answer
How do I restore the factory settings on my device?	Remove the camera from the device list in the app or press and hold the reset button for 5 seconds until you hear the sound.
After selecting the 2.4GHz Wi-Fi network and entering the correct password, the camera still cannot connect.	Make sure your phone and camera are connected to the same network.Make sure that the DHCP protocol is enabled.Press and hold the reset button for 8 seconds to reset the device.Make sure the Wi-Fi signal strength is high.
How can I change the router the camera is connected to?	Remove the camera from the device list in the app or press and hold the reset button for 8 seconds until you hear the sound. Then reconfigure the device.

EN

The microSD card is not recognized by the device.	Check the camera settings and make sure you have enabled saving to a microSD card. The device can support up to 128GB cards. Make sure the card is not damaged and supports the FAT32 format.
Why am I not receiving a notification when the device detects movement?	Make sure your phone and app have push notifications enabled.

Illustrations are provided for information purposes only. The actual appearance of the products may differ from the images shown.
