USER MANUAL Mini 38610 UNOLD

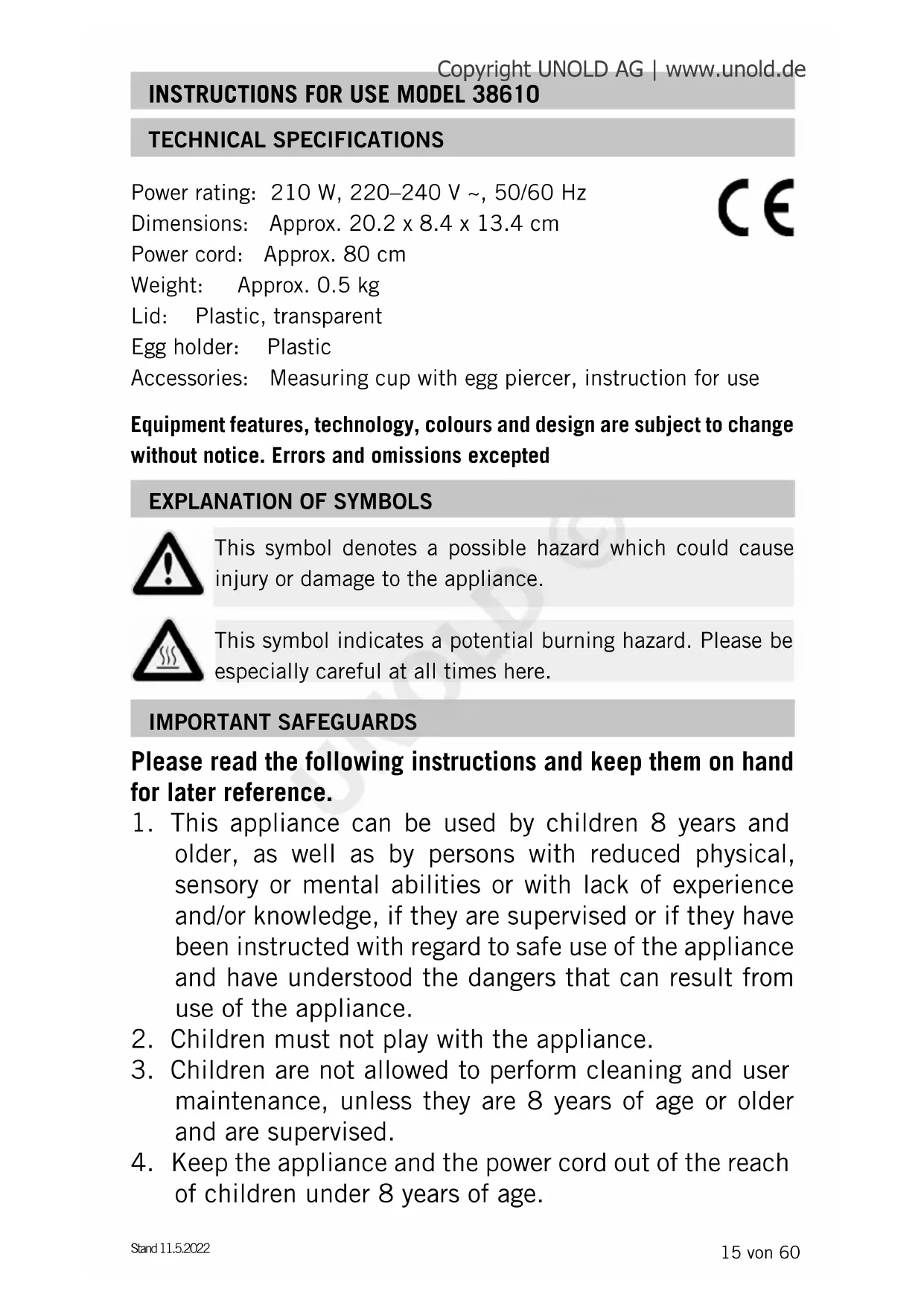

Instructions for use Model 38610

Technical Specifications. 15

Explanation of symbols. 15

Important Safeguards. 15

Before first use. 18

Operation. 18

Cleaning and care. 20

Guarantee Conditions. 21

Waste Disposal /

Environmental Protection 21

Service 14

Specification technique 22

Dimensions: Approx. 20.2 × 8.4 × 13.4 cm

Power cord: Approx. 80 cm

Weight: Approx. 0.5kg

Lid: Plastic, transparent

Egg holder: Plastic

Accessories: Measuring cup with egg piercer, instruction for use

Equipment features, technology, colours and design are subject to change without notice. Errors and omissions excepted

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance.

This symbol indicates a potential burning hazard. Please be especially careful at all times here.

IMPORTANT SAFEGUARDS

Please read the following instructions and keep them on hand for later reference.

1. This appliance can be used by children 8 years and older, as well as by persons with reduced physical, sensory or mental abilities or with lack of experience and/or knowledge, if they are supervised or if they have been instructed with regard to safe use of the appliance and have understood the dangers that can result from use of the appliance.
2. Children must not play with the appliance.
3. Children are not allowed to perform cleaning and user maintenance, unless they are 8 years of age or older and are supervised.

4. Keep the appliance and the power cord out of the reach of children under 8 years of age.

5. CAUTION - parts of this product can become very hot and cause burn injuries! Particular caution is required if children or persons at risk are present..

6. Connect the appliance only to an AC power supply with the voltage indicated on the rating plate.
7. Do not operate this appliance with an external timer or remote control system.
8. Never immerse the appliance or the lead cable in water or other liquids.
9. The base should never come into contact with water or other liquids. In case this ever happens, the appliance must be completely dry before operating it again.
10. Do not clean the appliance in a dish-washer.
11. Never touch the appliance or lead cable with wet hands.

12. This appliance is intended for domestic and similar use such as:

13. staff kitchen areas in shops, offices and other working environments;
    agricultural enterprises;

14. by clients in hotels, motels and other accommodation facilities;
    bed and breakfast accommodations and holiday homes.

15. For safety reasons, never place the appliance on hot surfaces, a metal tray or a wet surface.

16. Do not place the appliance or lead cable near open flames during operation.
17. Always use the appliance on a level, uncluttered and heat-resistant surface.
18. Make sure that the lead cable does not hang over the edge of the worktop or table, since this can cause accidents, for example if small children pull on the cable.
19. Route the lead cable so that it is prevented from being pulled or tripped over.
20. Never wrap the lead cable around the appliance.

21. Always disconnect the lead cable from the wall socket pulling on the plug, never on the cable.

22. Never carry the base by the lead cable.

23. Use the appliance only indoors.
24. Do not use the appliance near combustible materials such as curtains etc.
25. Do not use the appliance in the oven or the microwave.
26. Make sure that the lid of the appliance is always completely closed, to prevent injuries from hot splashing water.
27. Make sure that all users, especially children, are aware of the danger of injury from escaping steam or hot splashing water. Risk of burns!
28. The surface of the cover may become hot during operation. Therefore always use the handles of the cover.
29. Do not move the appliance as long as it is in operation, to prevent scalding from splashing water.
30. Do not use the appliance with accessories of other manufacturers or brands, to prevent damage.
31. Disconnect the appliance from the wall socket after use and prior to cleaning. Never leave the appliance unattended when it is connected to the wall socket.
32. Let the appliance cool off before cleaning it.
33. Never open the casing of the appliance. There is danger of electric shock.
34. Check the appliance, the wall socket and the lead cable regularly for wear or damage. In case the lead cable or other parts appear damaged, please send the appliance or the base to our after sales service for inspection and repair. Unauthorised repairs can constitute serious risks for the user and void the warranty.
35. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

CAUTION:

The appliance becomes very hot during operation!

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

BEFORE FIRST USE

1. Remove all packaging and transport safety devices. Keep the packaging material away from children. Choke hazard! Dispose of the packaging material according to the applicable statutory waste disposal regulations.
2. Inspect the appliance for damage. If there is visible damage, to not start the appliance but contact our customer service department. Check whether all accessories listed in this manual have been shipped with your appliance.
3. Clean all parts with a damp cloth, as described in the chapter "Cleaning and care".
4. Connect the base to the mains supply by means of the lead cable (220-240 V~, 50/60 Hz).
5. Check if the appliance is placed firmly.

OPERATION

1. Depending on the desired hardness and the number of eggs, fill the provided measuring cup with cold water up to the appropriate mark and pour the water into the cooking tray.
2. The symbols stand for the following degrees of hardness:

Hard

Medium

Soft

1. The respective measuring lines indicate the number of eggs to be cooked. Select the appropriate degree of hardness and the desired number of eggs and then fill the measuring cup to the appropriate line.
2. Note: The scales on the measuring cup serve as guide values. Depending on the size of the egg and personal taste, it may be necessary to adjust the amount of water slightly if the desired degree of hardness is not achieved. If the eggs get too hard, fill

the measuring cup with less water. In these cases, you can use one measuring line less or one measuring line more as a guide value.

1. The markings on the measuring cup apply for size "L" eggs. Attention: Very large eggs may not fit into the appliance.
2. Pierce the eggs on the big end so that they do not burst open during the cooking process.

Caution:

Danger of injury due to the egg piercer!

1. Place the egg insert on the cooking tray, place the eggs on the egg insert and fit on the lid.
2. Plug the power cord into an electrical outlet.
3. Switch on the appliance via the ON/OFF switch.
4. The indicator light is illuminated.
5. As soon as the cooking process is concluded a signal tone sounds and the appliance switches itself off. If you want to end the cooking process, unplug the appliance from the power supply and let the appliance cool down.
6. Take off the lid.

Caution: Pay attention to the escaping steam!

Because the lid is hot, only grasp the lid on the handle and use pot holders if necessary.

1. Only place the lid on heat-resistant surfaces!
2. Take the egg insert with the eggs out of the cooking tray and hold the eggs under cold water. If the eggs are not placed under cold water immediately after the signal sounds, they will continue to harden.
3. The eggs are now ready to serve.
4. After a brief cooling time of approx. 5 the appliance is again ready to be used.
5. Unplug the mains plug after use.
6. Attention: Clean the appliance after each use as described in the chapter "Cleaning and Care". This ensures faultless function.

Never immerse the appliance into water or other liquids. Unplug the appliance before cleaning it. Let the appliance cool down and pour away any excess water in the water tray.

1. Do not use any sharp or scouring agents. Wipe the housing with a damp cloth and dry with a soft cloth. Use mild cleansers, but never apply such cleanser directly on the housing, but on the cloth.
2. Lid and egg holder can be washed and dried with a soft cloth.
3. After each cooking process, rub off the cooking tray with a soft cloth that has been moistened with a few drops of household vinegar.
4. Deposits in the water tray can be removed by means of a solution of water and vinegar or by means of descaler.

DESCALING

Allow the appliance to cool before. descaling.

1. Descale the appliance on a regular basis, depending on the frequency of use and local hardness of the water, to extend the service life of the appliance and to keep power consumption to a minimum.
2. If the appliance switches off before the end of cooking, it is strongly recommended that the appliance be descaled.
3. Use a standard descaling product for household appliances (observe the manufacturer's information!
4. In the case of severe calcification, allow the decalcification solution to take effect.
5. After descending please clean the cooking plate to eliminate all descaler residues.

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website www.unold.de/ruecksendingung (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

The instruction booklet is also available for download: www.unold.de

NOTICE D'UTILISATION MODELE 38610

SPECIFICATION TECHNIQUE

Puissance:210W,220-240V\~，50/60Hz

Dimensions: Env. 20,2 × 8,4 × 13,4 cm

CONDITIONS DE GARANTIE

Wymiary: Ok. 20, 2 x 8, 4 x 13, 4 cm

Kabel: Ok. 80 cm

Waga: Ok. 0,5 kg
