AC 22 - Dehumidifier Dantherm - Free user manual and instructions

Product type	Mobile dehumidifier
Brand	Dantherm
Model	AC 22
Dimensions (L x W x H)	Approx. 500 x 400 x 800 mm
Weight	Approx. 30 kg
Power supply	230 V / 50 Hz
Power consumption	Approx. 1.5 kW
Refrigerant	R1234yf, GWP = 4
Operating modes	Cooling (Cool), Dehumidification (Dryer), Ventilation (Fan)
Water tank	With full level alarm (FULL)
Fan speed	Low (LOW) and High (HIGH)
Continuous function	Yes (CONT mode)
Remote thermostat	Optional (compatible with Cool mode)
Water drain connection	3/4" male fitting for fixed hose
Air filter cleaning	Every month (or more depending on dust)
User maintenance	Filter cleaning only
Safety	Grounding mandatory, disconnect before maintenance
Alarms	Full tank, low temperature, sensor, high/low pressure
Spare parts	Original only
End of life	Dismantling by specialized refrigeration technician

Frequently Asked Questions - AC 22 Dantherm

How to turn the device on and off?

Press the ON/OFF button on the control panel. When starting, the display first shows [ - - ]. To turn off, press again. The device does not restart immediately after shutdown.

How to select the operating mode?

Use the MODE button to choose between Cool (cooling), Dryer (dehumidification) and Fan (ventilation). Each mode is indicated by a corresponding LED.

How to set the desired temperature or humidity?

Press the SET ▲ or ▼ buttons to adjust the set point. The display flashes then freezes. For continuous operation, press ▼ until CONT is displayed.

What to do if the display shows "FULL"?

The FULL alarm indicates the water tank is full or missing. Empty it or insert it correctly. The alarm resets automatically.

How to clean the air filter?

Unplug the device, carefully remove the filter located at the back, and clean it with low-pressure air flow. Replace it. Perform this operation at least once a month.

Can I use a hose for continuous water drainage?

Yes, remove the tank and connect a hose to the condensate drain (3/4" male fitting).

What to do in case of high pressure alarm (HiPS)?

Clean both air filters, unplug the device, open the electrical panel and reset the high pressure switch. If the alarm persists, contact authorized service.

Does the device contain a dangerous gas?

Yes, the refrigerant is R1234yf, which is flammable. Do not pierce or burn the device. Installation and maintenance of the circuit must be carried out by a professional.

Can I use a remote thermostat?

Yes, optional, only in cooling mode. Connect it to the device in standby, then press HOURS/TAC for 5 seconds. The display shows "RC" and the temperature.

How to know the total operating hours?

Press the HOURS/TAC button on the control panel. The display temporarily shows the total operating hours.

USER MANUAL AC 22 Dantherm

IMPORTANT: In order to have a correct function you must use an electrical generator in class G3 or more (frequency variation ±1% , tension variation ±2% ). The maximum power of electrical generator must be three time the nominal power of device that you must connect.

NOTE:

PICTURES - FIGURE - ABBILDUNGEN - FIGURAS - FIGURES - FIGUREN - FIGU- RAS - FIGURER - KUVAT - FIGURER - FIGURER - ILUSTRACJE - ИЛЛЮСТРАЦИИ - OBRÁZKY - ÁBRÁK - SLIKE - ŞEKİLLER - SLIKE - ILIUSTRACIJOS - ATTĚLI - JOONISED - IMAGINI - OBRÁZKY - CXEMI - МАЛЮНКИ - SLIKE - EIKONEΣ - 图示 - СУРЕТТЕМЕЛЕР

Ø 400 mm Ø 300 mm * If ready * If ready

PICTURES - FIGURE - ABBILDUNGEN - FIGURAS - FIGURES - FIGUREN - FIGU- RAS - FIGURER - KUVAT - FIGURER - FIGURER - ILUSTRACJE - ИЛЛЮСТРАЦИИ - OBRÁZKY - ÁBRÁK - SLIKE - ŞEKİLLER - SLIKE - ILIUSTRACIJOS - ATTĚLI - JOONISED - IMAGINI - OBRÁZKY - CXEMI - МАЛЮНКИ - SLIKE - EIKONEΣ - 图示 - СУРЕТТЕМЕЛЕР

PICTURES - FIGURE - ABBILDUNGEN - FIGURAS - FIGURES - FIGUREN - FIGU- RAS - FIGURER - KUVAT - FIGURER - FIGURER - ILUSTRACJE - ИЛЛЮСТРАЦИИ - OBRÁZKY - ÁBRÁK - SLIKE - ŞEKİLLER - SLIKE - ILIUSTRACIJOS - ATTĚLI - JOONISED - IMAGINI - OBRÁZKY - CXEMI - МАЛЮНКИ - SLIKE - EIKONEΣ - 图示 - СУРЕТТЕМЕЛЕР

Technical line drawing of a portable air purifier with labeled components and exploded view (no text or symbols)

PICTURES - FIGURE - ABBILDUNGEN - FIGURAS - FIGURES - FIGUREN - FIGU- RAS - FIGURER - KUVAT - FIGURER - FIGURER - ILUSTRACJE - ИЛЛЮСТРАЦИИ - OBRÁZKY - ÁBRÁK - SLIKE - ŞEKİLLER - SLIKE - ILIUSTRACIJOS - ATTĚLI - JOONISED - IMAGINI - OBRÁZKY - CXEMI - МАЛЮНКИ - SLIKE - EIKONEΣ - 图示 - СУРЕТТЕМЕЛЕР

FAN SPEED LOW HIGH ALARM 8888 ON/OFF FAN SPEED MODE DRYERCOOLFAN 5" SET MODE /TAC HOURS

4

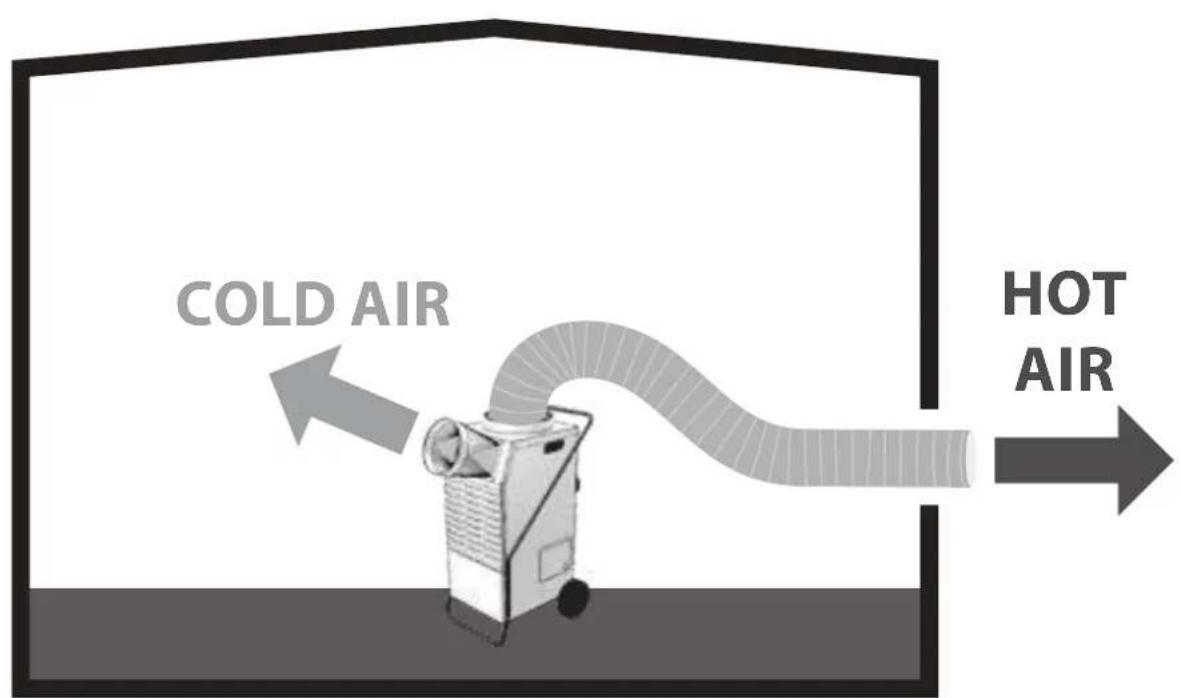

HOT AIR COLD AIR

5

PICTURES - FIGURE - ABBILDUNGEN - FIGURAS - FIGURES - FIGUREN - FIGU- RAS - FIGURER - KUVAT - FIGURER - FIGURER - ILUSTRACJE - ИЛЛЮСТРАЦИИ - OBRÁZKY - ÁBRÁK - SLIKE - ŞEKİLLER - SLIKE - ILIUSTRACIJOS - ATTĚLI - JOONISED - IMAGINI - OBRÁZKY - CXEMI - МАЛЮНКИ - SLIKE - EIKONEΣ - 图示 - СУРЕТТЕМЕЛЕР

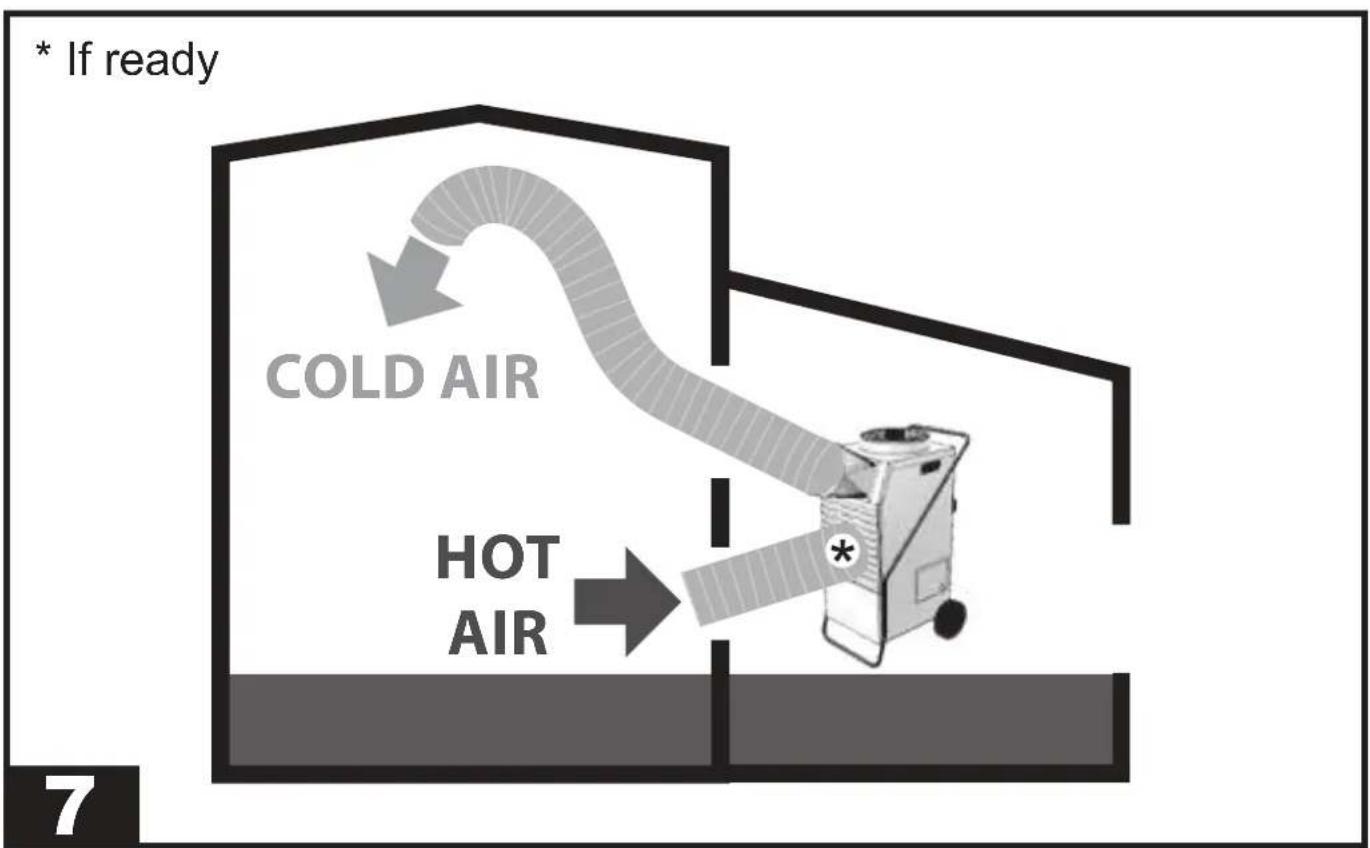

COLD AIR HOT AIR

6

PICTURES - FIGURE - ABBILDUNGEN - FIGURAS - FIGURES - FIGUREN - FIGU- RAS - FIGURER - KUVAT - FIGURER - FIGURER - ILUSTRACJE - ИЛЛЮСТРАЦИИ - OBRÁZKY - ÁBRÁK - SLIKE - ŞEKİLLER - SLIKE - ILIUSTRACIJOS - ATTĚLI - JOONISED - IMAGINI - OBRÁZKY - CXEMI - МАЛЮНКИ - SLIKE - EIKONEΣ - 图示 - СУРЕТТЕМЕЛЕР

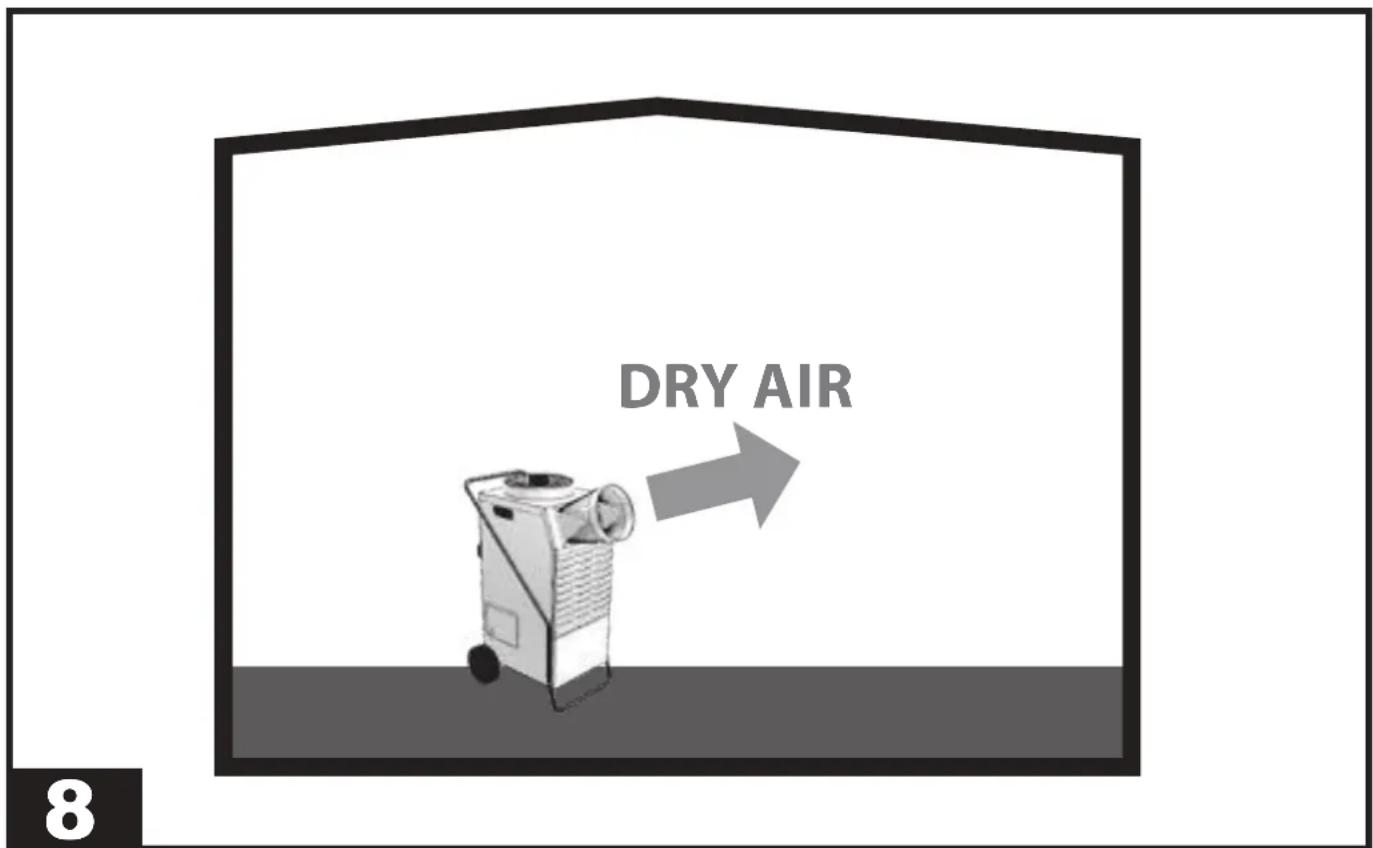

DRY AIR 8

9

PICTURES - FIGURE - ABBILDUNGEN - FIGURAS - FIGURES - FIGUREN - FIGU- RAS - FIGURER - KUVAT - FIGURER - FIGURER - ILUSTRACJE - ИЛЛЮСТРАЦИИ - OBRÁZKY - ÁBRÁK - SLIKE - ŞEKİLLER - SLIKE - ILIUSTRACIJOS - ATTĚLI - JOONISED - IMAGINI - OBRÁZKY - CXEMI - МАЛЮНКИ - SLIKE - EIKONEΣ - 图示 - СУРЕТТЕМЕЛЕР

10

NOTE:

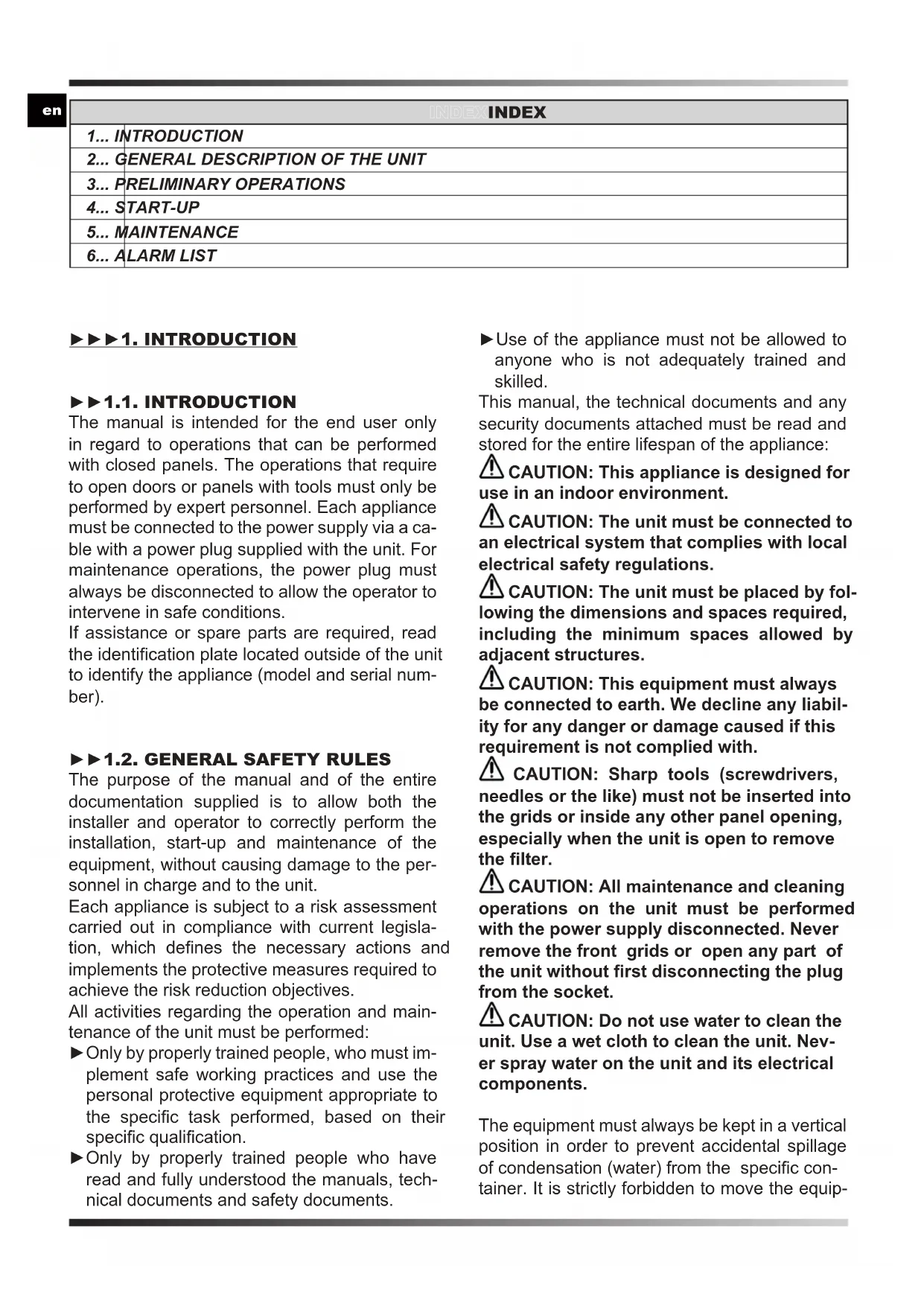

1... INTRODUCTION
2... GENERAL DESCRIPTION OF THE UNIT
3... PRELIMINARY OPERATIONS
4... START-UP
5... MAINTENANCE
6... ALARM LIST

▶▶▶1. INTRODUCTION

▶▶1.1. INTRODUCTION

The manual is intended for the end user only in regard to operations that can be performed with closed panels. The operations that require to open doors or panels with tools must only be performed by expert personnel. Each appliance must be connected to the power supply via a cable with a power plug supplied with the unit. For maintenance operations, the power plug must always be disconnected to allow the operator to intervene in safe conditions.

If assistance or spare parts are required, read the identification plate located outside of the unit to identify the appliance (model and serial number).

▶▶1.2. GENERAL SAFETY RULES

The purpose of the manual and of the entire documentation supplied is to allow both the installer and operator to correctly perform the installation, start-up and maintenance of the equipment, without causing damage to the personnel in charge and to the unit.

Each appliance is subject to a risk assessment carried out in compliance with current legislation, which defines the necessary actions and implements the protective measures required to achieve the risk reduction objectives.

All activities regarding the operation and maintenance of the unit must be performed:

▶ Only by properly trained people, who must implement safe working practices and use the personal protective equipment appropriate to the specific task performed, based on their specific qualification.
▶ Only by properly trained people who have read and fully understood the manuals, technical documents and safety documents.

▶Use of the appliance must not be allowed to anyone who is not adequately trained and skilled.

This manual, the technical documents and any security documents attached must be read and stored for the entire lifespan of the appliance:

⚠️ CAUTION: This appliance is designed for use in an indoor environment.

⚠️ CAUTION: The unit must be connected to an electrical system that complies with local electrical safety regulations.

⚠️ CAUTION: The unit must be placed by following the dimensions and spaces required, including the minimum spaces allowed by adjacent structures.

⚠️ CAUTION: This equipment must always be connected to earth. We decline any liability for any danger or damage caused if this requirement is not complied with.

CAUTION: Sharp tools (screwdrivers, needles or the like) must not be inserted into the grids or inside any other panel opening, especially when the unit is open to remove the filter.

⚠️ CAUTION: All maintenance and cleaning operations on the unit must be performed with the power supply disconnected. Never remove the front grids or open any part of the unit without first disconnecting the plug from the socket.

⚠️ CAUTION: Do not use water to clean the unit. Use a wet cloth to clean the unit. Never spray water on the unit and its electrical components.

The equipment must always be kept in a vertical position in order to prevent accidental spillage of condensation (water) from the specific container. It is strictly forbidden to move the equip-

ment while connected to the power outlet, as the resulting vibrations and movements may cause the condensation to leak from the specific container, thus affecting the electrical parts.

The unit can only be moved after emptying the condensate tank, and in any case, it is ALWAYS REQUIRED to remove the plug from the socket before moving the appliance. Should water be accidentally spilled on the appliance, the unit must be immediately turned off and disconnected from the power supply and may only be turned on after eight HOURS/TAC have elapsed.

CAUTION: The equipment contains R1234yf refrigerant: this gas is flammable. The amount of charge is indicated in the data table of this user manual.

Warning, the refrigerant is odourless.

Do not use any means to accelerate the defrosting process or for cleaning other than those recommended by the manufacturer.

The appliance must be placed in a room that does not have ignition sources continuously in operation (e.g. open flames, a gas appliance while running or an electric heater running).

Do not drill holes into or burn the appliance.

▶▶1.3. PERSONAL PROTECTIVE EQUIPMENT

Use the following personal protective equipment during unit use and maintenance operations:

⚠ CLOTHING: Those who carry out maintenance or work on the unit in environments with slippery floors must wear safety shoes with non-slip soles.

⚠️ GLOVES: Appropriate gloves must be worn during cleaning and maintenance operations. When refilling the refrigerant gas, the use of appropriate gloves is mandatory in order to prevent the risk of freezing.

⚠️ MASK AND GOGGLES: Masks to protect the respiratory tract and safety goggles to protect the eyes must be worn during cleaning and maintenance operations.

▶▶1.4. GENERAL SAFETY RULES

The following safety signs, which must be respected, are affixed on the unit:

Read the user manual.

Read the technical manual.

Electric shock hazard.

Flammable material hazard.

⚠️ CAUTION: It is strictly forbidden to remove the safety signs on the units.

▶▶▶2. GENERAL DESCRIPTION OF THE UNIT

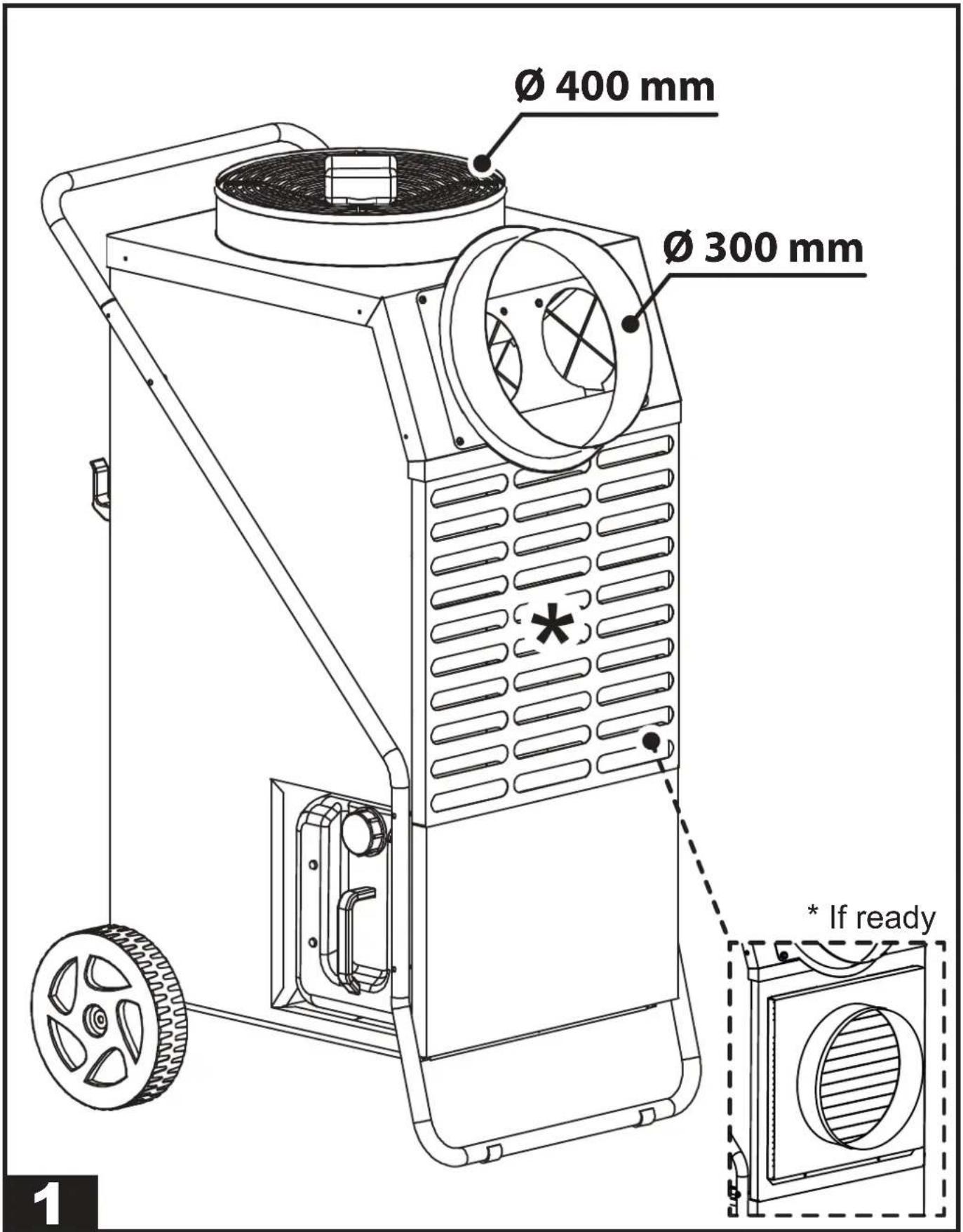

(PIC. 1)

(PIC. 2)

A. Ambient air inlet.

B. Ambient air inlet.

C. Hot air outlet.

D. Cold air outlet.

This appliance allows you to control the ambient temperature and relative humidity. The available functions are cooling, dehumidification and ventilation.

For correct ambient climate control, it is necessary to adapt the appliance and select the correct desired operating mode via the control panel, considering that the lower grids (front and rear) draw in the ambient air, whereas the upper grids release air into the environment [the upper/front grid (D PIC. 2) releases cold air, whereas the upper grid (C PIC. 2) releases hot air].

Refer to the “CONTROL PANEL” paragraph for the operating modes.

▶▶2.1. REFRIGERANT CIRCUIT

The refrigerant gas used in these units is R1234yf. The refrigerant circuit is built in compliance with current standards.

Flammable material hazard.

This unit is hermetically sealed and contains fluorinated gas R1234yf GWP (R1234yf) = 4.

▶▶▶3. PRELIMINARY OPERATIONS

▶▶3.1. REMOVAL OF THE PACKAGING AND ASSEMBLY

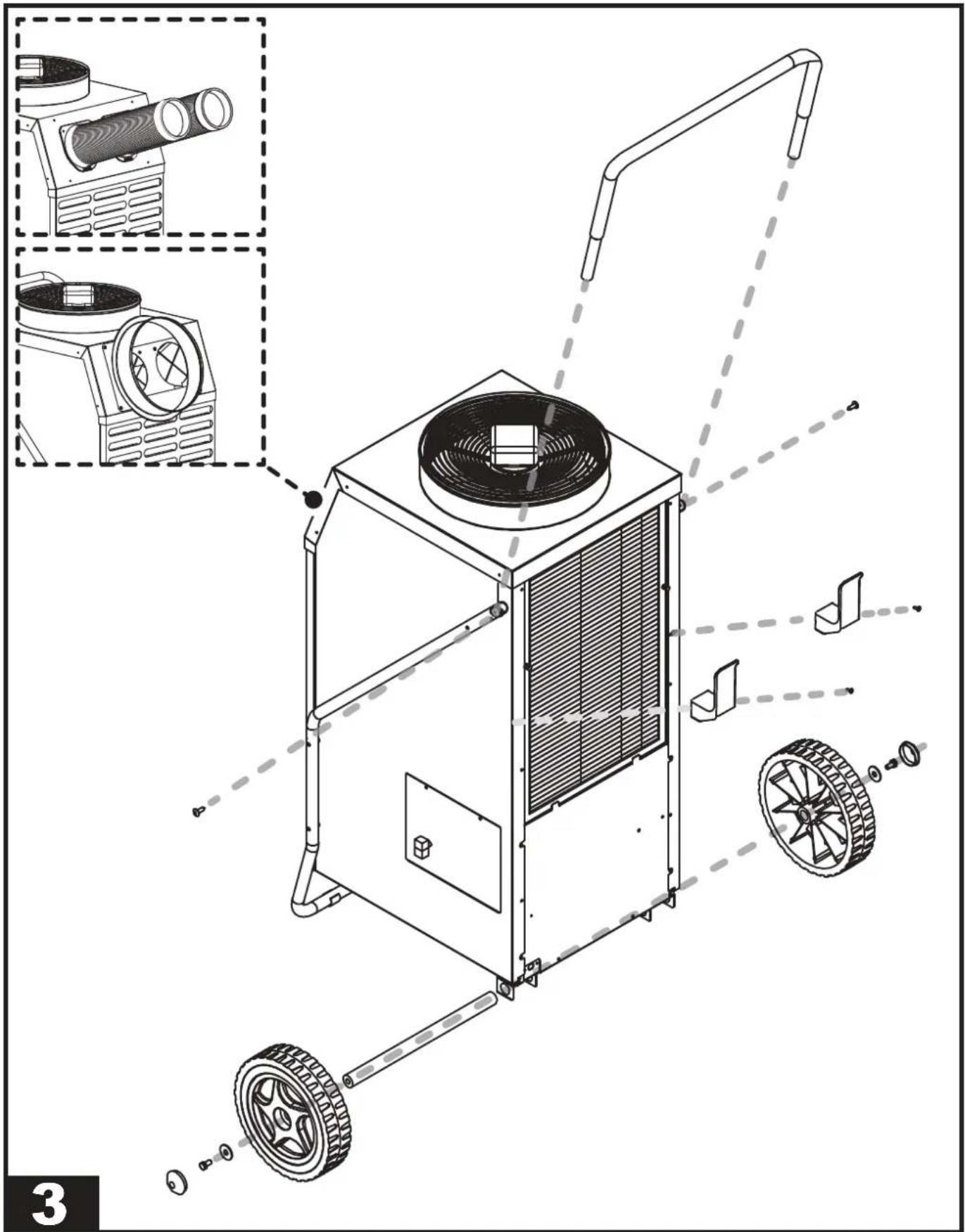

(PIC. 3)

Remove the packaging taking care not to damage the unit. Dispose of the packaging products (wood, plastic, cardboard), taking them to the specialised collection or recycling centres (follow the local regulations in force).

CAUTION: Assemble the appliance, with the adequate air outlet (1 or 2-way outlet, depending on the model), handles, wheels, cord reel and all the relevant nuts and bolts, before operating it.

NOTE: Correct operation requires the appropriate air outlet to be installed, according to the actual requirements (depending on the model).

▶▶3.2. INSPECTION

All units are factory assembled and wired (except for certain components). Upon receiving the unit, it must be immediately and thoroughly inspected, checking that it has not been damaged during transport or that no parts are missing.

Before use, specifically check for any dents on the external metal panels, including those in the tank compartment. Also check that the cable, plug and relevant insulation are intact. Otherwise, it is FORBIDDEN to connect and start the unit, which must be sent to an authorised service centre.

▶3.3. OPERATING PRINCIPLES

⚠️ CAUTION: To ensure correct operation of the appliance, it is recommended to operate the unit within the limits shown on the technical data table.

▶▶3.4. POSITIONING

Set up the appliance to ensure an adequate air flow.

⚠️ CAUTION: Make sure that the appliance is placed in such a way so as to prevent contact with water.

▶▶3.5. SERVICE AREA

The hot air expelled by the fan must not be obstructed. Avoid recirculation phenomena of the air expelled and drawn by the appliance so as to prevent compromising the performance of the unit or even interrupting normal operation.

CAUTION: The equipment must not be placed in cramped environments, which do not allow adequate distribution of the air from the dedicated inlets and outlets in the room.

⚠️ CAUTION: Do not place or hang objects on the front panel, it may cause damage to the unit.

▶3.6. GENERAL INFORMATION

⚠️ CAUTION: Disconnect the power plug from the socket before carrying out any maintenance operation on the electrical part.

CAUTION: Check that the supply voltage corresponds to the unit's operating data (voltage and frequency) shown on the data plate on the dehumidifier. The appliance is fitted with a power cable for correct operation.

CAUTION: The earthing connection is mandatory.

▶▶▶4. START-UP

▶▶4.1. PRELIMINARY CHECKS

CAUTION: Check that the power cord is y connected.

CAUTION: Check that all the cover pan-in the correct position and are locked via

▶▶4.2. CONTROL PANEL

(PIC. 4)

The unit is equipped with a luminous control panel, which indicates the operating status of the appliance.

A brief description is provided below:

CONTROL PANEL:

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

shows [--] when the unit is connected to the mains and electrically powered.

LED:

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

ventilation speed (LOW > Low speed / HIGH > High speed).

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

alarm. The display will show the error message.

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

operating mode:

-COOL LED: This LED indicates that the appliance is operating in "COOLING" mode.

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□-

perature set point is reached.

This LED indicates that the appliance is operating in "DEHUMIDIFICATION" mode.

- midity set point is reached.

-LED FAN: This LED indicates that the appliance is operating in "VENTILATION" mode.

BUTTONS:

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

on.

Press the "ON/OFF" button to turn the appliance _________________]).

then on immediately, the compressor does not start immediately. After a few minutes, the appliance restarts automatically.

to select the desired ventilation speed (LOW > Low Speed / HIGH > High Speed).

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

desired set point value. The display will start

and the new set point has been detected by the electronics.

It is possible to operate the appliance regardless of the degree of temperature or humidity in the environment; in fact, the appliance will work

"CONT" appears on the display.

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

desired operating mode:

COOL MODE]: Se-

lect the "COOL" cooling mode on the control panel.

□□□□□□□□□□□□□□□□□□□□□□□□□□□□

[COOL MODE]:

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

2) to outside the room.

control panel.

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

MODE mode on the control panel.

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

to view the working HOURS/TAC of the appli- ance.

▶▶4.3. DISCHARGE PIPE CONNECTION (Set-up)

A discharge pipe can be connected to the appli-

▶▶4.4. CONNECTING AIR DUCTING PIPES

Air ducting pipes can be connected to the appliance. It is recommended to use only pipes of adequate section and to avoid bends or narrowing of the duct sections.

It is forbidden to move the appliance when it is ON and when it is connected to ducting pipes.

▶▶4.5. CONNECTION AND ACTIVATION OF THE REMOTE TEMPERATURE CONTROL (optional)

(Valid for cooling only)

(PIC. 10)

NOTE: Use only original accessories.

Depending on the model, it is possible to connect a remote temperature control to the appliance in order to obtain the desired temperature in the room, even remotely (only compatible with the cooling feature).

With the appliance in stand-by mode (i.e. product switched off but powered by electricity), connect the remote temperature control (PIC. 10), press the "HOURS/TAC" button for about 5" on the control panel and set the desired temperature on the remote temperature control. The control panel display will show "RC" and the room temperature. The "COOL" LED will flash during defrosting or if the temperature set point is reached.

▶▶▶5. MAINTENANCE

▶▶5.1. CHECKS TO BE PERFORMED BY THE USER

The only maintenance to be carried out by the user is the cleaning of the air filter, which must be performed at least once a month.

The cleaning frequency can be increased due to the dustiness of the working environment of the appliance.

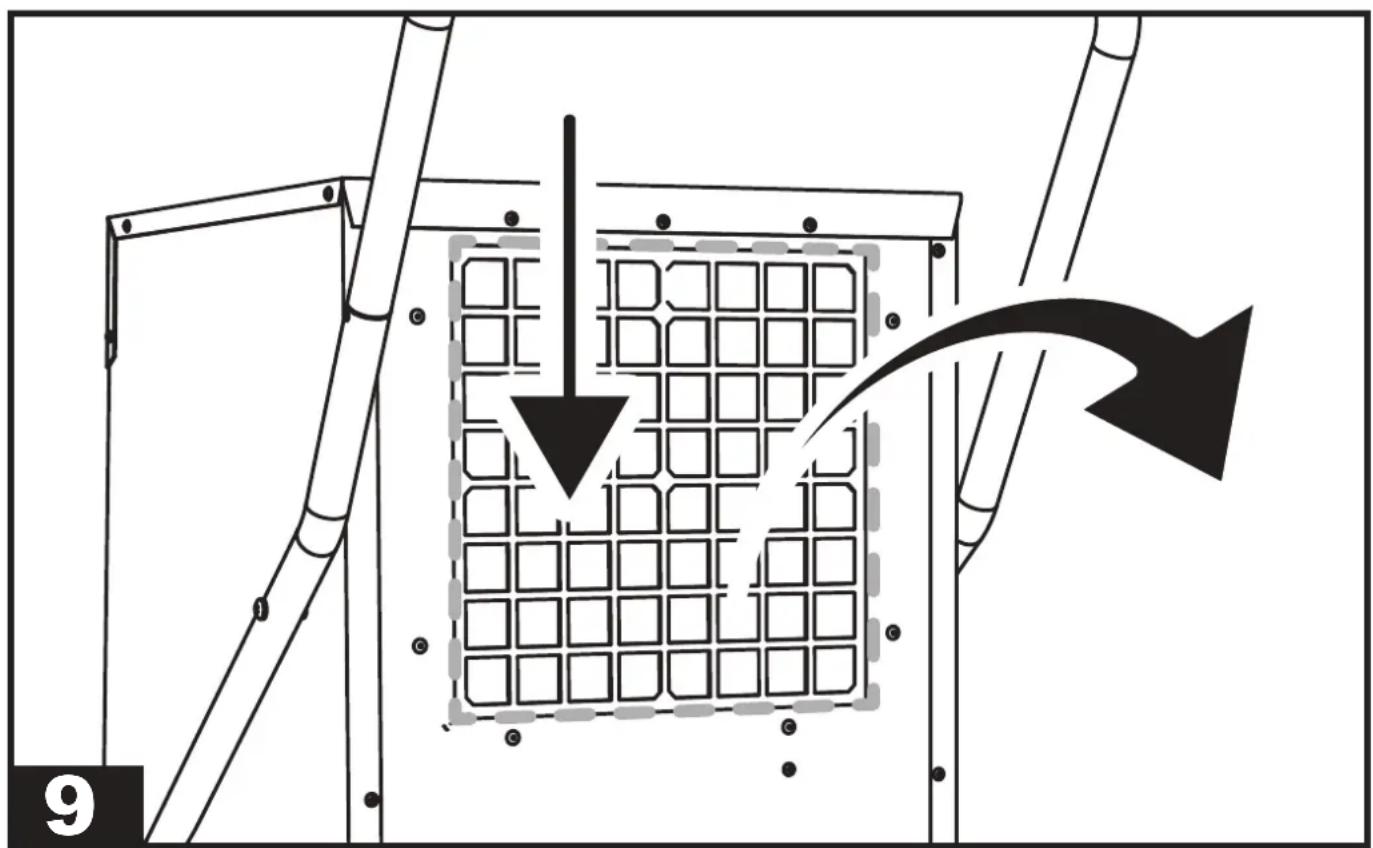

The filter is on the rear of the appliance. Remove the filter gently (PIC. 9) and then remove the dust by means of a low pressure air flow.

CAUTION: REMOVE THE FILTER FROM THE APPLIANCE TO PERFORM CLEANING. IT IS FORBIDDEN TO PERFORM CLEANING WITH THE FILTER INSTALLED.

▶5.2. SPARE PARTS

Should it be required to replace one or more parts during maintenance by specialised operators, this must be done by using original spare parts only.

If required, request the "spare parts list" from your vendor, specifying the model and serial number of the unit.

▶5.3. DISMANTLING THE UNIT

The unit has been designed and built to ensure continuous operation. The lifespan of some components such as the fan and the compressor depends on their maintenance.

CAUTION: The unit contains substances and components dangerous for the environment (electronic components, refrigerant gas and oils). At the end of its useful life, in the event of dismantling the unit, the operation must be carried out by specialised refrigerating personnel.

The unit must be sent to specific specialised centres for the collection and disposal of equipment containing dangerous substances. The refrigerant fluid and the lubricating oil contained in the circuit must be recovered, in accordance with the regulations in force in your country.

▶▶▶6. ALARM LIST

ALARM POSSIBLE CAUSE	POSSIBLE SOLUTION
FULL + “FULL” Full or missing	ng tank The alarm is autom	atically reset by empty-ing or inserting the tank
ALARM + “Lo t” Room temperature	low	Room temperature conditions not suitable for operation
ALARM + “Prob” Malfunction	of the humidity probe. In any case, the unit continues to operate	Contact the authorised service centre
ALARM + “Pro2” Malfunction	of the ambient temperature probe	Contact the authorised service centre
ALARM + “dEFr” ALARM + “Lotd”	Defrosting thermostat malfunction	Contact the authorised service centre
ALARM + “HiPS” High pressure	sure alarm in the refrigerant circuit	Clean both the air filters.Disconnect the unit from the power supply.Open the electrical panel and reset the high pressure switch.If the alarm persist contact the authorised service centre
ALARM + “LoPS” Low pressure	sure alarm in the refrigerant circuit	Clean both the air filters.Disconnect the unit from the power supply and riconnect.If the alarm persist contact the authorised service centre

▶▶▶3. OPÉRATIONS PRÉLIMINAIRES

▶▶3.1. DÉBALLAGE ET ASSEMBLAGE (FIG. 3)

▶▶4.3. BRANCHEMENT D'UN TUYAU D'ÉVACUATION (agencement)

▶▶1.2. GENERELLE SIKKERHEDSREG-LER

Stefano Verani (Member of the Board)

▶en - DISPOSAL OF THE PRODUCT

-This product has been designed and manufactured with top-quality materials and components, which can be re-cycled and re-used. -When a crossed-wheely bin symbol is attached to the product, it means that the product is protected by the, 2012/19/UE European Directive.

-Please obtain information regarding the local differentiated collection system for electrical and electronic products.

-Respect local Standards in force and do not dispose of old products as normal domestic waste. Correct disposal of the product helps to prevent possible negative consequences for health, the environment and mankind.

▶pl - UTYLIZACJA PRODUKTU

▶Iv - PRODUKTA IZNĪCINĀŠANA

Unit 2B, 512 Yunchuan Rd.,

Shanghai, 201906, CHINA

Dantherm China LTD
