Product Type	Pool cleaning robot
Brand	Bestway
Model	Flowclear 58620
Usage	Automatic pool floor cleaning
Power supply	Rechargeable Li-ion battery
External adapter	DSS18-0842000-B / DSS18-0842000-C
Charging time	Approximately 5 to 6 hours
Charge indicator	Red (charging), Green (charged)
Maximum operating depth	3 meters
Water operating temperature	5°C to 35°C
Propulsion system	Water propulsion nozzle
Direction	180° swiveling head with side fin
Filter type	Debris compartment with filter cover
Filter cleaning	Rinse with fresh water
Maintenance	Recharge battery every 3 months if not used
Safety	Use with residual current device (RCD/GFCI)
Precautions	Do not use with people or animals in the water
Storage	Well-ventilated area, away from sunlight, temperature 10-25°C
Suitable pool	Above-ground or in-ground pool, minimum length 2 meters
Operation	Straight and arc trajectory
Replaceable parts	Fin, float, filter cover
Battery	Not user-replaceable (removal only by technician)
Included accessories	Charging station, external adapter, hook
Dimensions	Not specified in the manual
Weight	Not specified in the manual

Frequently Asked Questions - Flowclear 58620 BESTWAY

How to charge the Bestway Flowclear 58620 pool cleaning robot?

Use the provided external adapter (models DSS18-0842000-B / DSS18-0842000-C) and the charging station. Make sure the robot is turned off (switch to OFF) and the contacts are clean and dry. Connect the adapter to the station, then place the robot on the station. The red light indicates charging, green indicates fully charged (approximately 5 to 6 hours). Do not exceed 10 hours of charging.

What to do if the robot does not pick up debris?

First check if the battery is sufficiently charged. Then, inspect the rotor under the swiveling head: it may be blocked by debris. Clean the suction mouth and the debris compartment. Make sure the filter is not clogged. If the problem persists, consult the manual or the Bestway support website.

How to clean the robot's filter?

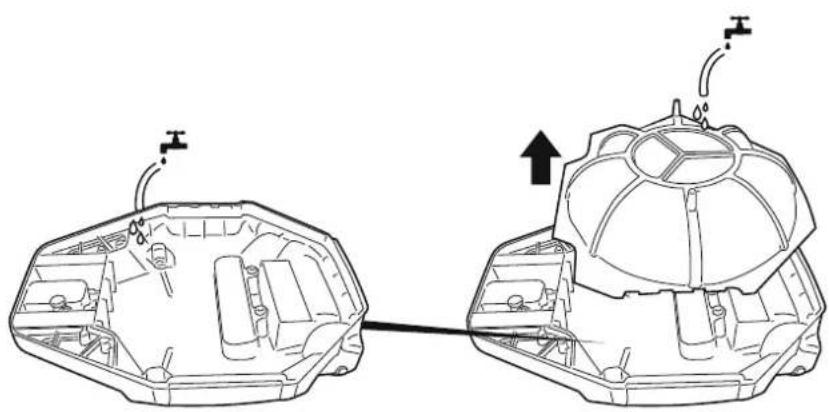

Remove the filter cover and empty the debris. Rinse the compartment and the grid with fresh water. Use a soft brush if needed. Replace the cover before next use.

Can I use the robot in a saltwater pool?

Yes, but make sure all salt is completely dissolved before placing the robot in the water. This prevents damage to the device.

What is the battery lifespan and how to maintain it?

The battery is a rechargeable Li-ion pack. To extend its life, fully charge it before storage, then store it at 30-50% charge in a cool place (10-25°C). Recharge it at least every three months.

How to store the robot after use?

Clean the robot and accessories with fresh water, dry them with a damp cloth. Drain the water from the robot. Store it in a well-ventilated area, away from sunlight, heat, and chemicals, out of reach of children.

The robot stops in the middle of the pool, what to do?

Check if the robot is stuck on an obstacle or a fold in the liner. Turn off the filtration system if necessary, as suction from the floor may stop the robot. Clean the debris compartment if it is full.

How to replace the robot's side fin?

The fin is easily replaced by removing it from its housing. Make sure the robot is powered off. Refer to the 'Fin Replacement' section in the manual for detailed instructions.

Why is the robot not charging?

Check that the charging station is properly connected to the external adapter and the robot. Make sure the contacts are clean and dry. If the light does not turn on, the adapter or battery may be defective. Contact Bestway technical support.

Can I use the robot right after a shock treatment of the pool?

No, it is recommended to wait 24 to 48 hours after a shock treatment before using the robot, to avoid damaging the device and ensure effective cleaning.

USER MANUAL Flowclear 58620 BESTWAY

Visit www.bestwaycorp.com/support for help WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwaycorp.com/support

58620

OWNER'S MANUAL

bestwaycorp.com/support

Visit Bestway YouTube channel YouTube

Visit www.bestwaycorp.com/support for help WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwaycorp.com/support

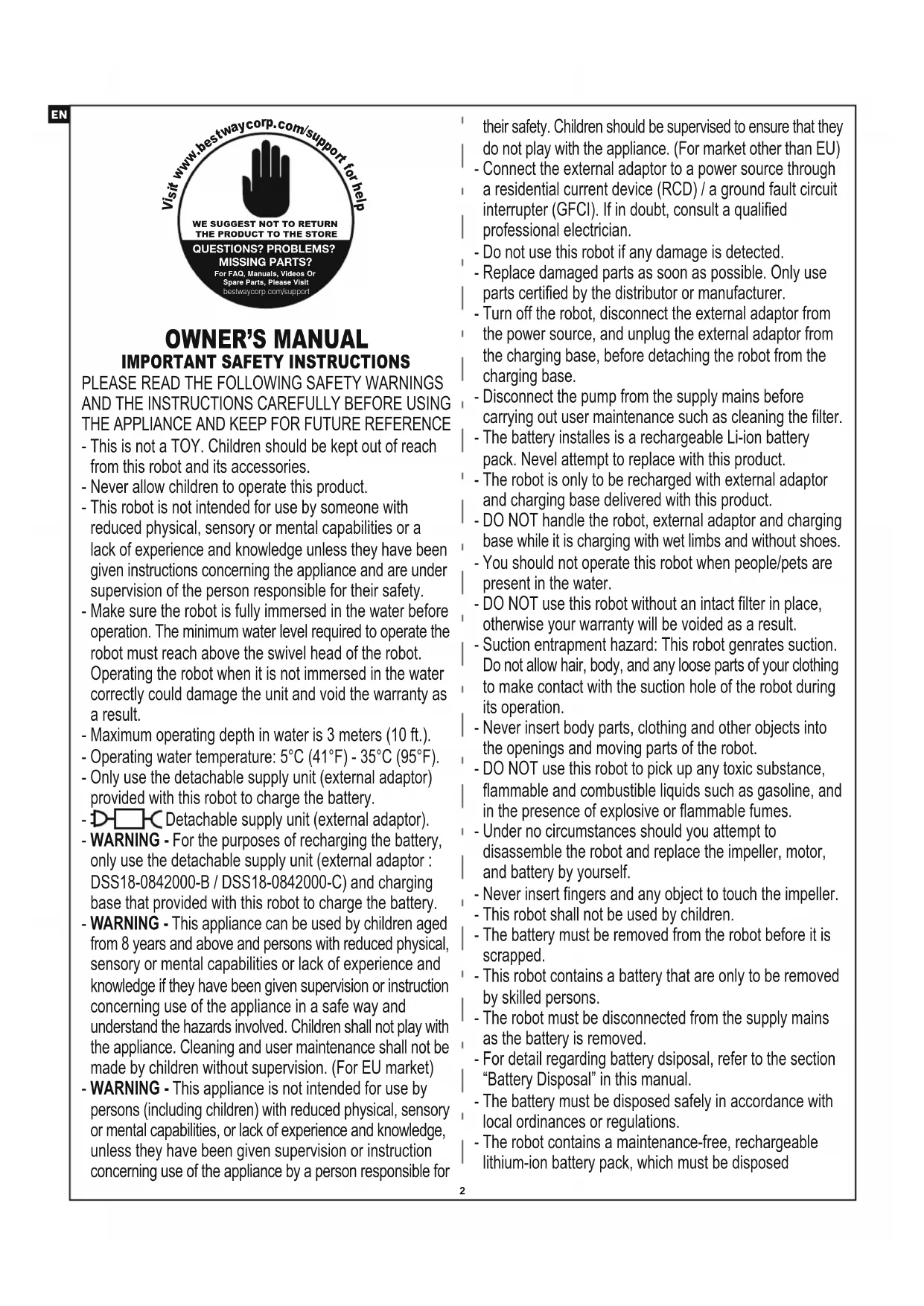

OWNER'S MANUAL IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ THE FOLLOWING SAFETY WARNINGS AND THE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE

• This is not a TOY. Children should be kept out of reach from this robot and its accessories.
• Never allow children to operate this product.
• This robot is not intended for use by someone with reduced physical, sensory or mental capabilities or a lack of experience and knowledge unless they have been given instructions concerning the appliance and are under supervision of the person responsible for their safety.

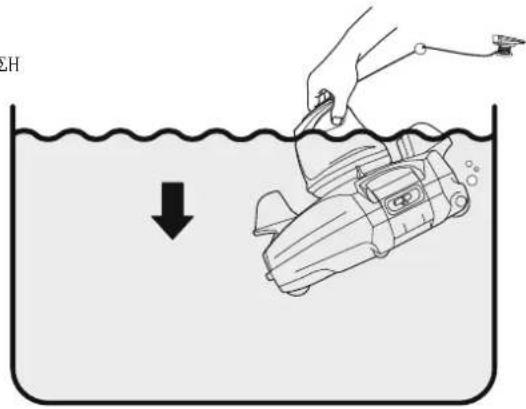

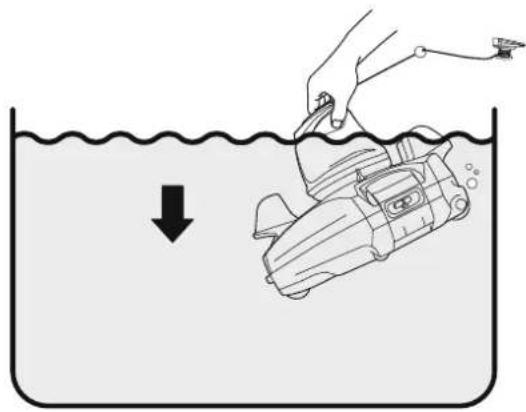

• Make sure the robot is fully immersed in the water before operation. The minimum water level required to operate the robot must reach above the swivel head of the robot. Operating the robot when it is not immersed in the water correctly could damage the unit and void the warranty as a result.
• Maximum operating depth in water is 3 meters (10 ft.).
• Operating water temperature: 5°C (41°F) - 35°C (95°F).
• Only use the detachable supply unit (external adaptor) provided with this robot to charge the battery.
• Detachable supply unit (external adaptor).
• WARNING - For the purposes of recharging the battery, only use the detachable supply unit (external adaptor : DSS18-0842000-B / DSS18-0842000-C) and charging base that provided with this robot to charge the battery.
• WARNING - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (For EU market)
• WARNING - This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for

their safety. Children should be supervised to ensure that they do not play with the appliance. (For market other than EU)
- Connect the external adaptor to a power source through a residential current device (RCD) / a ground fault circuit interrupter (GFCI). If in doubt, consult a qualified professional electrician.
- Do not use this robot if any damage is detected.
- Replace damaged parts as soon as possible. Only use parts certified by the distributor or manufacturer.
- Turn off the robot, disconnect the external adaptor from the power source, and unplug the external adaptor from the charging base, before detaching the robot from the charging base.
- Disconnect the pump from the supply mains before carrying out user maintenance such as cleaning the filter.
- The battery installies is a rechargeable Li-ion battery pack. Nevel attempt to replace with this product.
- The robot is only to be recharged with external adaptor and charging base delivered with this product.
- DO NOT handle the robot, external adaptor and charging base while it is charging with wet limbs and without shoes.
- You should not operate this robot when people/pets are present in the water.
- DO NOT use this robot without an intact filter in place, otherwise your warranty will be voided as a result.
- Suction entrapment hazard: This robot generates suction. Do not allow hair, body, and any loose parts of your clothing to make contact with the suction hole of the robot during its operation.
- Never insert body parts, clothing and other objects into the openings and moving parts of the robot.
- DO NOT use this robot to pick up any toxic substance, flammable and combustible liquids such as gasoline, and in the presence of explosive or flammable fumes.
- Under no circumstances should you attempt to disassemble the robot and replace the impeller, motor, and battery by yourself.

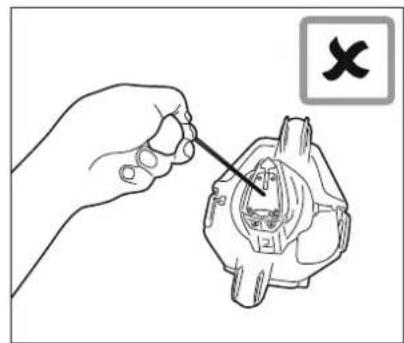

- Never insert fingers and any object to touch the impeller.
- This robot shall not be used by children.
- The battery must be removed from the robot before it is scrapped.
- This robot contains a battery that are only to be removed by skilled persons.
- The robot must be disconnected from the supply mains as the battery is removed.
- For detail regarding battery dsiposal, refer to the section "Battery Disposal" in this manual.
- The battery must be disposed safely in accordance with local ordinances or regulations.
- The robot contains a maintenance-free, rechargeable lithium-ion battery pack, which must be disposed

properly. Recycling is required; please contact your local authorities for more information.

- External adaptor and charging base:

• Never use the external adaptor and charging base for anything other than charging the battery of the robot that is supplied in the same pack.
• The external adaptor and charging base should not be used outdoors, nor should it be exposed to rain, humidity, any liquid or heat.
• The transformer (or external adaptor) is to be located outside zone 1.
• Keep the external adaptor and charging base out of reach of children.
• Never use the external adaptor and charging base if any damage is detected.
• DO NOT handle the external adaptor and charging base with wet hands.
• Keep the external adaptor disconnected from power when it is not in use.
• Never attempt to open the external adaptor.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or an equally-qualified person in order to prevent hazards of any kind.
• Make sure the robot is completely dry before charging.

BATTERY DISPOSAL:

Recycling is required, please contact your local authority for information.

• The battery must be removed from the pool vacuum before it is scrapped.
• The pool vacuum must be disconnected from the supply mains (electrical outlet) when removing the battery.
• The battery must be disposed of safely and properly.

CAUTION!

• This robot is designed for underwater use only; it is not an all-purpose vacuum cleaner. DO NOT attempt to use it to clean anything other than your pool.
• Use only original accessories delivered with this product.
• DO NOT use this robot right after pool-shocking. It is recommended to first leave the pool circulating for at least 24-48 hours.
• If you are planning on using the robot in a saltwater pool, make sure all salt are dissolved before placing it into the water.
• It is not recommended to use this robot with another automatic cleaner/cleaner simultaneously.
• Avoid picking up hard, sharp objects with this product which may damage the robot and filter.
• To avoid damaging the external adaptor and charging base, do not attempt to carry the robot by the cable of external adaptor or pull the cable to disconnect it from

the power source and charging base.

• Charge the robot indoors in a clean, dry area with good ventilation and away from sunlight.
• DO NOT leave the robot charged for over 10 hours.
• If the robot will not be used for an extended period, detach it from the charging base and use a damp cloth to clean and dry the robot and its accessories. Make sure to charge the robot to about 30% to 50% of the battery capacity before it is stored. Store in a well-ventilated area away from sunlight, heat, ignition sources, pool chemicals, and children. Recharge the robot every three months.
• All actions concerning the disassembly of the swivel head (ie. battery disposal) can only be carried by an authorized technician.

Above warnings and cautions are not intended to incorporate all possible instances for risks and / or severe injuries. Pool / spa owners should always exercise extra caution and common sense when utilizing the product.

SAVE THESE INSTRUCTIONS

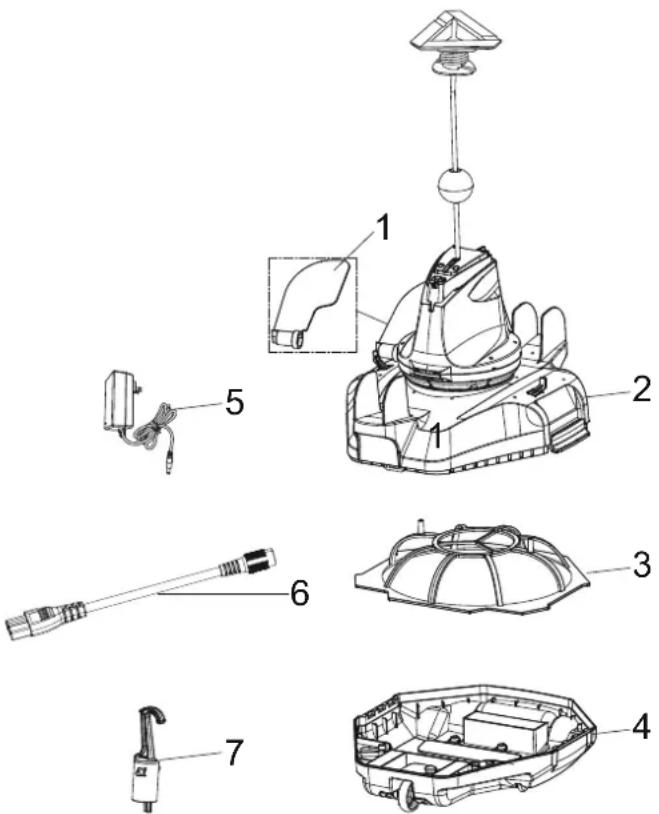

Part List

Exploded view diagram of a mechanical device with numbered parts and labeled components

Part No.	Part Code QTY
1	P05622	1
2	P05623	1
3	P05625	1
4	P05624	1
5	P05620	1
6	P03880	1
7	P03879	1

The robot has a water-propelling nozzle at the bottom of the swivel head. Water is first sucked in through the suction mouth at the bottom of the robot, which then goes through the filter and is discharged via the propelling nozzle. Water jetting from the nozzle propels the robot forward. Once the robot stops against an obstacle such as the pool wall, its side flap sways and its swivel head turns 180°, allowing the robot to move in the opposite direction. The robot moves in a generally straight pattern in one direction and in an arc pattern in the other direction. The robot vacuums the pool bottom as it moves, collecting debris in its compartment.

Assembly and Operation

WARNING For Charging

• Use only the original external adaptor and provided charging cable.

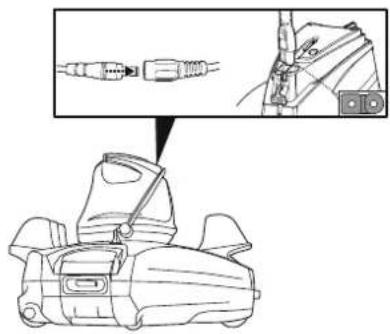

• Make sure the robot and the charger port are clean and dry before set-up.

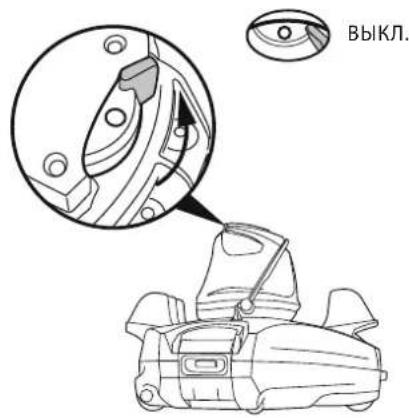

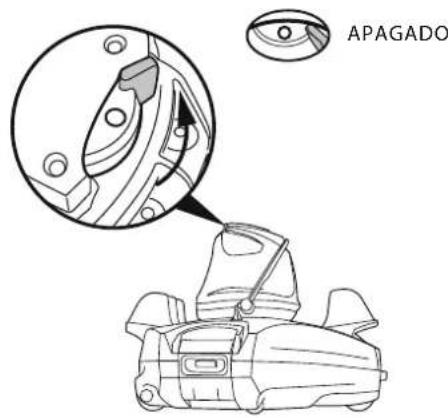

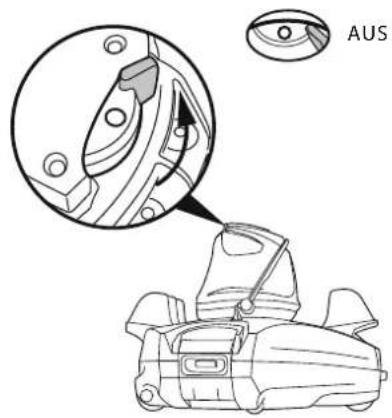

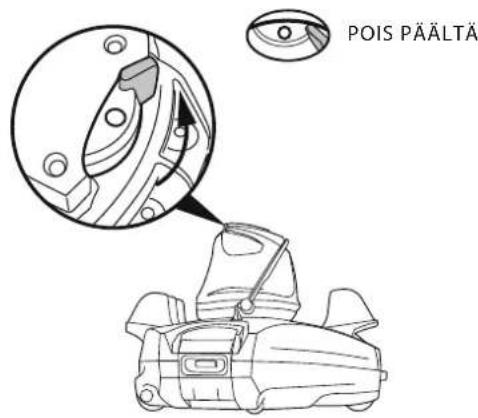

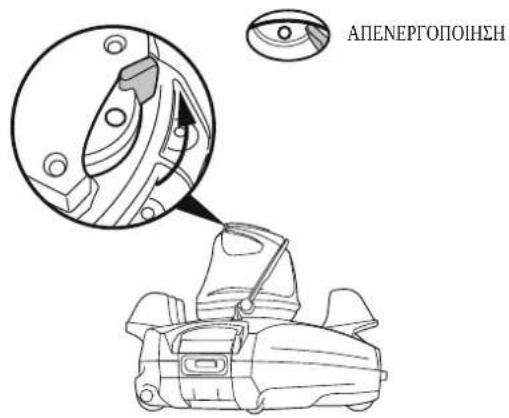

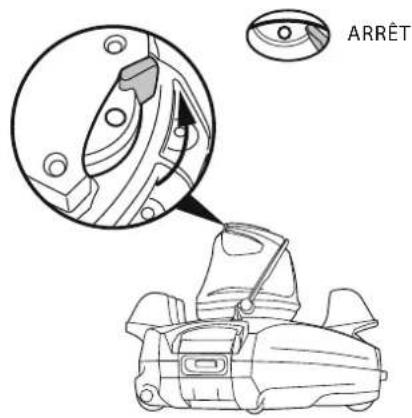

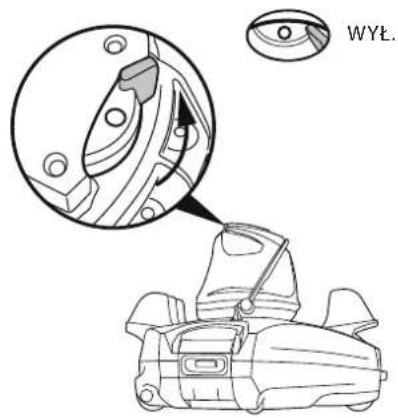

• Make sure that the robot is turned off by sliding the switch to OFF position prior to charging.

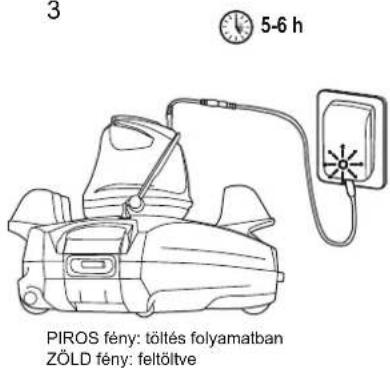

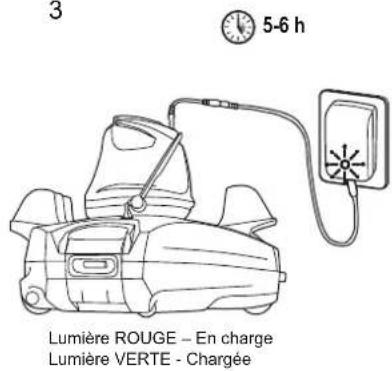

• Fully charge the robot (about 5-6 hrs) before using it for the first time
• Power indicator light: No light - Power off / no power

Light - Power on

Blinking light - Battery power will cease within 10 minutes.

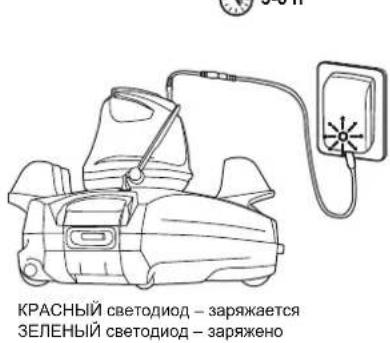

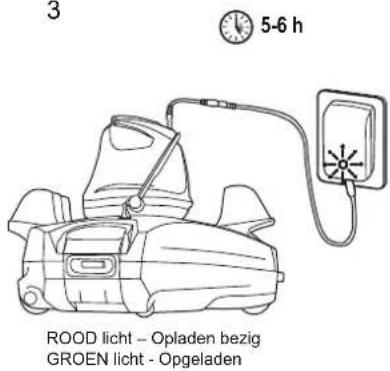

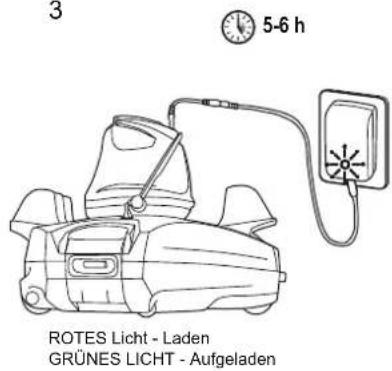

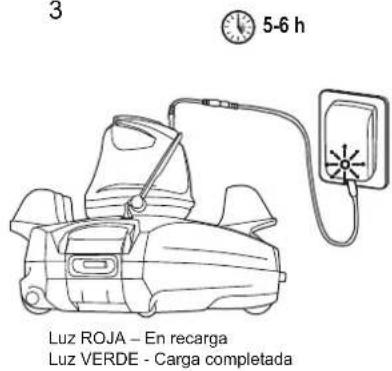

Note: Once the robot begins charging, the indicator light on the external adaptor will turn red.

When the robot is almost fully charged, the indicator light will turn green.

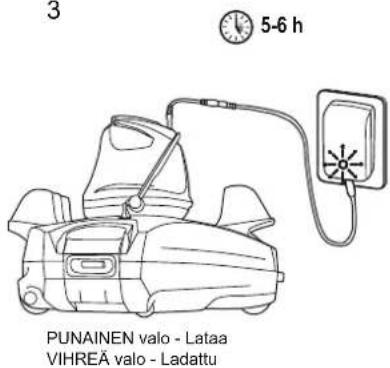

1 OFF 2 3 5-6 h

RED light – Charging

GREEN light - Charged

4 5

2

1 2

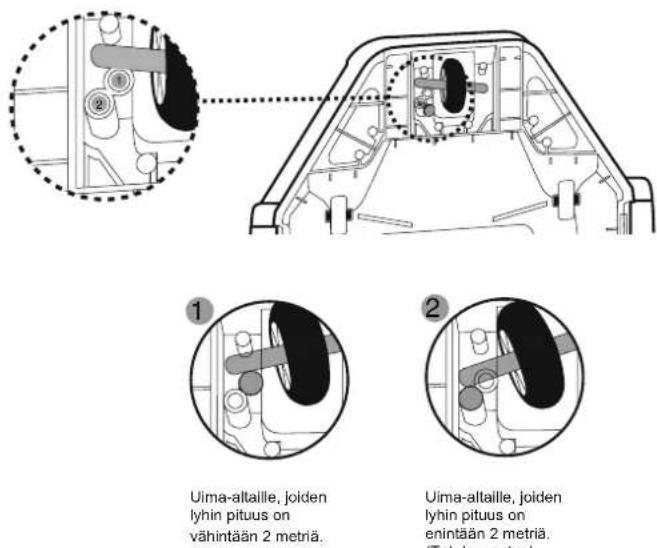

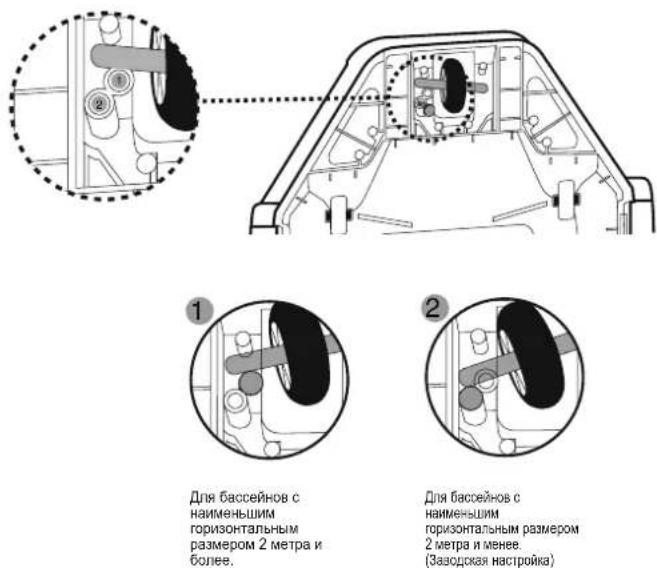

For pools where the

shortest length is

2 meters or above

For pools where the

shortest length is

2 meters or below.

(Factory setting)

6

1. 1. 1. 4.

Note: Pry to detach the float cover and release the rope from the float to the depth of pool water plus about 0.5 m (19.7 in.).

7

8

ON

9

10

1.

2.

2.

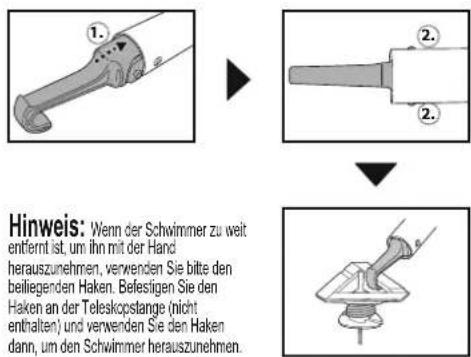

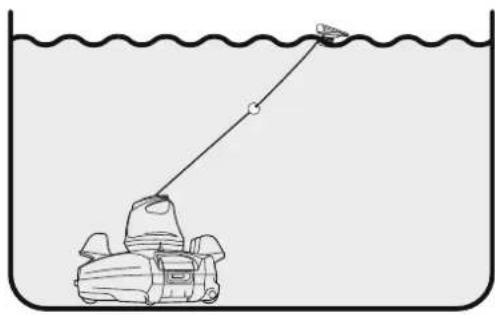

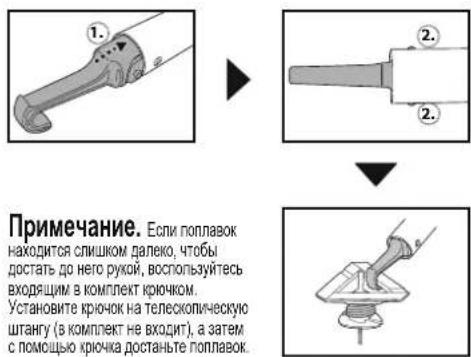

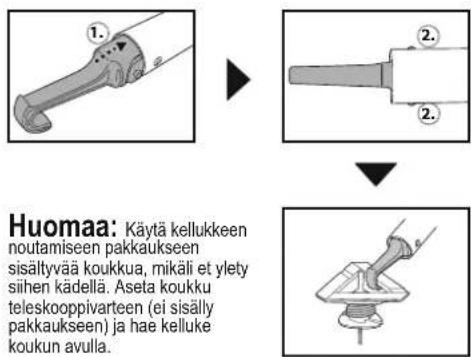

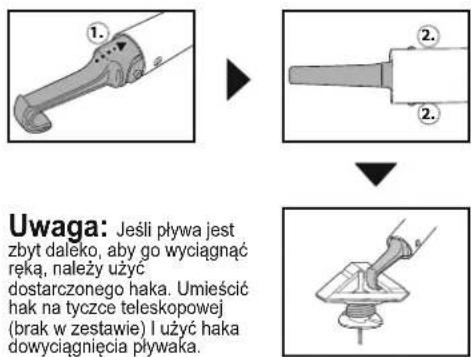

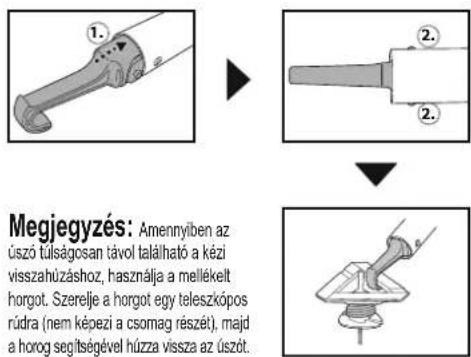

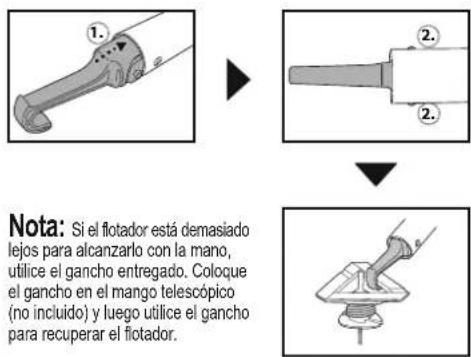

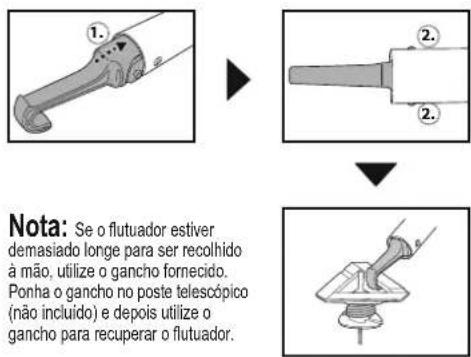

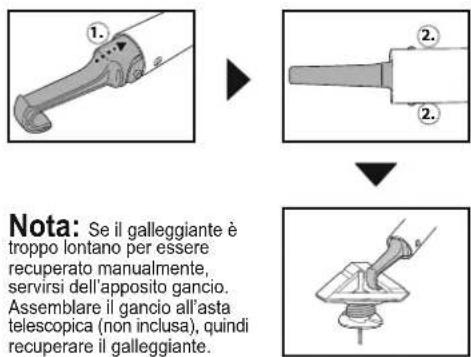

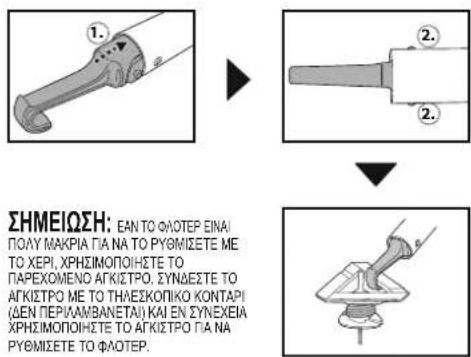

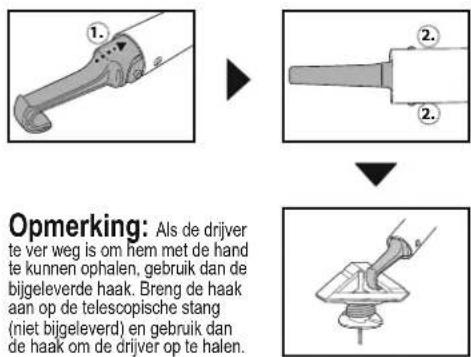

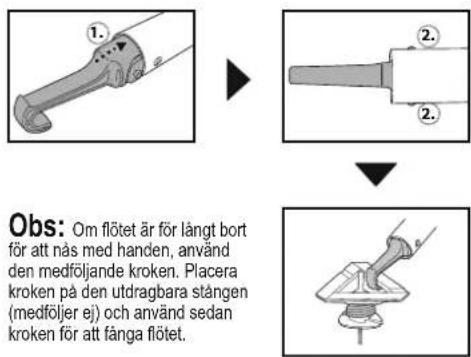

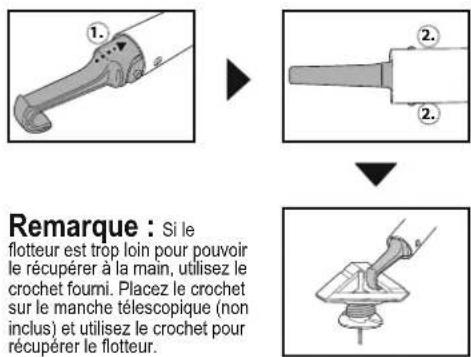

Note: If float is too far to be retrieved by hand, use the provided hook. Place the hook on the telescopic pole (not included) and then use the hook to retrieve the float.

11

12

OFF

13

14

Illustration of a hand holding a hard hat with a checkmark icon (no text or symbols on the hat itself)

Hand holding a tool interacting with a mechanical component, no text or symbols visible

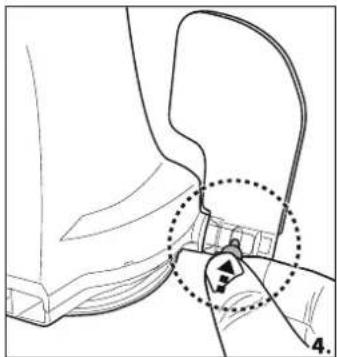

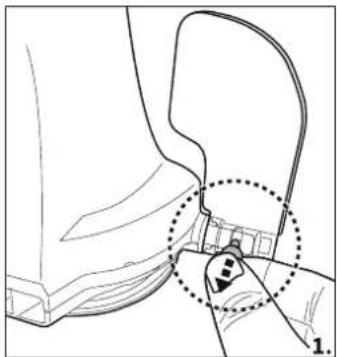

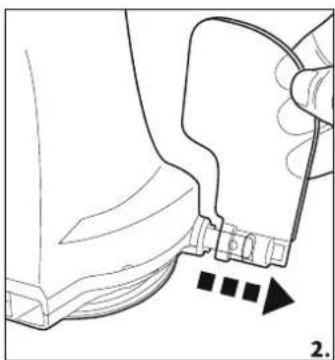

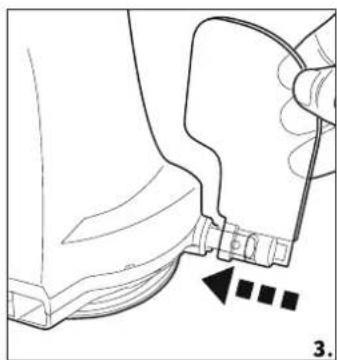

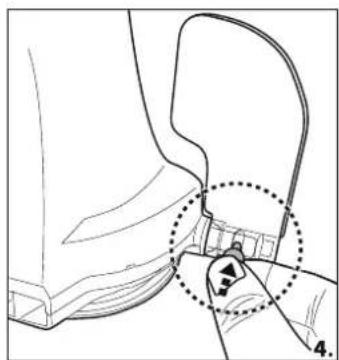

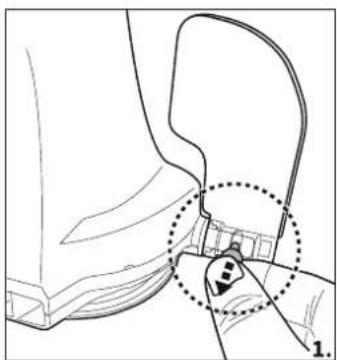

Flap replacement

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Technical line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Maintenance and Storage

1. Battery discharges on its own during storage. Make sure to fully-charge the robot before storage.
2. You must re-charge the battery at least once every three months when it is not in use.
3. Unplug the external adaptor from the socket and then unplug the charging cable from the external adaptor and robot.
4. Detach accessories from the robot. If necessary, rinse the robot and accessories with fresh water. DO NOT use detergent.
5. Be sure to drain the water from the robot before storing it.
6. Use a damp cloth to clean and dry the robot and its accessories.
7. Store them in a well-ventilated area away from sunlight, heat, ignition sources, pool chemicals and from children. Ambient temperature for storage should be 10^ - 25^ ( 50^ - 77^ ). NOTE: A higher storage temperature may reduce the battery life.

How to remove the battery pack

Recommended tools (not included): Screwdriver.

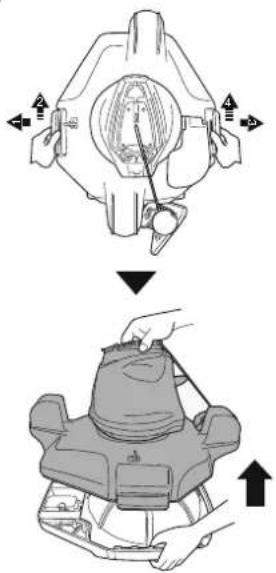

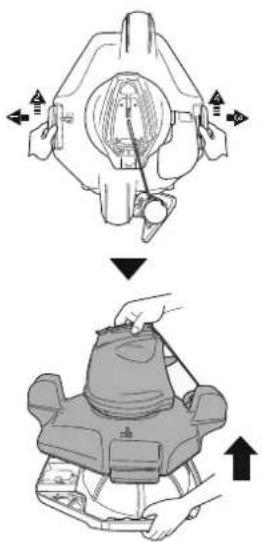

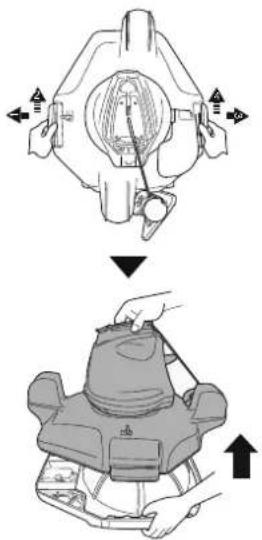

1. Release the top cover (preassembled with the swivel head). Turn the cover up side down and release the swivel head by turning its bottom locking plate counter-clockwise. Remove the swivel smoothing-ring.

3D rendered image of a white plastic mechanical component with curved blades and a central circular feature (no text or symbols visible)

Hand holding a mechanical component with a circular housing and mounting holes (no visible text or symbols)

Hand pressing a circular component on a mechanical housing (no visible text or symbols)

Hand holding a mechanical component with a circular housing (no visible text or symbols)

1. Use the screwdriver to unscrew the 4 screws located on the bottom of the head to release the bottom plate at first. Use the screwdriver to unscrew all the screws on the base as shown. Remove the impeller and then pry up the base and remove it to expose head inside.

Close-up of a mechanical component with arrows indicating fasteners or fasteners (no text or symbols visible)

Close-up of a mechanical component with arrows indicating fasteners or fasteners (no text or symbols visible)

Close-up of a mechanical component with internal wiring and housing (no visible text or symbols)

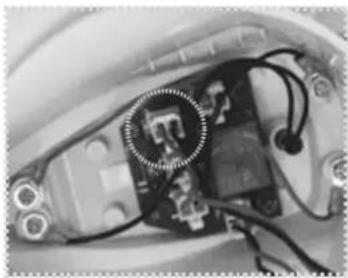

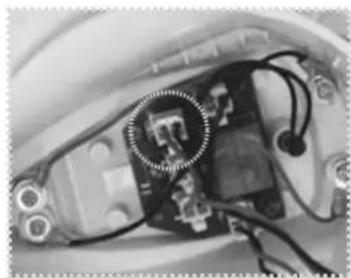

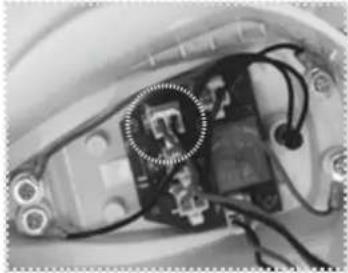

1. Remove the battery pack to expose the PCBA. To detach the battery connection wire, press the clip on the connector and then pull it out. NOTE: Wrap the connector immediately with insulating tape in order to avoid short circuit caused by contact of both wire terminals.

Close-up of a mechanical assembly showing internal components and housing (no visible text or symbols)

Close-up of an electronic device showing internal components and wiring (no visible text or symbols)

Close-up of a mechanical component with numbered annotations (1, 2, 3) pointing to specific parts.

Illustration of a battery pack connected to a cable with a dotted circle highlighting the cable (no text or symbols)

DISPOSAL

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

TROUBLESHOOTING

Problem	Possible Cause	Solution
Robot does not capture the debris	Battery is running out Charge the robot again.
	Impeller is jammed	Power off the robot and inspect the hole under the swivel head to see if the impeller is jammed by large debris. For assistance, please visit the support section on our website, www.bestwaycorp.com.WARNING! Make sure the robot is off before the unit is serviced.
	Suction mouth is clogged	Remove clogged objects from the suction mouth.
	Impeller is broken	For assistance, please visit the support section on our website, www.bestwaycorp.com.
	Debris compartment is full	Clean both debris compartment and filter cover.
Robot stopped moving in the middle of pool but swivel head is still turning	Robot stopped by obstacle or large creases in the pool liner.	Check to see that if there is anything obstructing the cleaner.Remove the obstacle.
	Robot is stopped by suction from the main drain of pool floor	Turn off the filtration system as instructed in manual.
Swivel head rotates repeatedly	Air trapped inside the robot	The swivel head may rotate repeatedly for a few minutes once the robot sinks to the pool bottom.This phenomenon will stop once the air trapped inside the robot is gradually discharged and the robot will begin to move regularly.
Robot does not cover the entire pool	Debris compartment is full	Clean the debris compartment
	Operation time is shorter as expected	Clean the filter compartment and recharge the robot for 6 hrs
	Moving direction is interrupted by water circulation generated by filtration system	Turn off the filtration system (as instructed in filtration manual) at least 15 minutes before robot operation.
	Wheel is jammed	Check and remove debris from the wheel.
	Position of locking pin is not set properly.	Follow instruction to adjust the locking pin position.
	Algae renders the pool floor slippery which results in the robot going in circles.	Scrub the pool bottom and robot wheels to remove the algae
Robot moves along the pool wall	Position of locking pin-is not set properly / robot facing direction is wrong at beginning.	Follow instruction to adjust locking pin setting. Make sure that robot's front/back faces the pool wall at beginning.
Robot moves slowly or does not move at all.	Debris compartment is full or filter cover is clogged.	Clean the debris compartment. Flush the screen with water to remove small particles. If brush is deem necessary, use a soft brush to clean the screen gently.Note: make sure that the filter cover is In place before next operation
		Remove clogged objects from the suction mouthSuction mouth is close
	Impeller is jammed	Power off the robot and inspect the hole under the swivel head to see if the impeller is jammed by large debris. For assistance, please visit the support section on our website, www.bestwaycorp.com.WARNING! Make sure the robot is off before the unit is serviced.
Swivel head does not turn or turn noticeably slowly	Side flap does not come up.	Check and remove any debris that hinders the movement of the flap.
	Swivel head bottom is jammed	Detach the swivel head and smoothening-ring in accordance with instructions of section “How to remove the battery pack” from the manual, then:- Remove trapped debris- Verify the smoothening-ring and bottom plate are installed correctly (refer to below diagrams)- Inspect the smoothening-ring for potential damages and wear and tear. Replace with a new one if necessary
Debris escapes from the robot	Suction mouth’s flap ( at cleaner bottom) is damaged	Suction mouth’s flap works like a door to prevent the debris from escaping from the debris compartment.For assistance, please visit the support section on our website, www.bestwaycorp.com.
	Debris clogged at suction mouth and prevents the flap to close.	Remove clogged debris from the suction mouth.
Debris leaks outside at the filter cover	Filter cover net is damaged	Replace with a new filter cover.For assistance, please visit the support section on our website, www.bestwaycorp.com.
Round float sinks	Float is broken and water leaks in	Replace with a new float.For assistance, please visit the support section on our website, www.bestwaycorp.com.
Robot operation lasts shorter than advertised	Battery is not fully charged	Charge the robot for at least 6 hrs.
Robot cannot be charged / recharged	Battery is damaged	For assistance, please visit the support section on our website, www.bestwaycorp.com.WARNING! DO NOT replace the battery by yourself. This could result in severe or fatal injuries and the warranty will be voided as a result.
	Charging base is not completely connected with external adaptor and robot.	Make sure that the charger base is connected with external adaptor and robot properly and completely.Refer to instruction manual.
	External adaptor is out of order	For assistance, please visit the support section on our website, www.bestwaycorp.com.WARNING! Using the wrong external adaptor will result in damaging the robot / battery and voiding the warranty as a result.

Exploded view diagram of a mechanical device with numbered parts for identification

N.° Peça	Código da QTD
1	P05622	1
2	P05623	1
3	P05625	1
4	P05624	1
5	P05620	1
6	P03880	1
7	P03879	1

Line drawing of a car seatbelt with attached cable connectors, showing a close-up detail (no text or symbols)

3

3 5-6 h Luz VERMELHA - A carregar Luz VERDE - Carregado

4

Mechanical assembly diagram showing a component being adjusted to a base, with no visible text or symbols.

5

Simple line drawing of a tool with a string and coiled cable, no text or symbols present

1.

2.

3.
   4.

Illustration of a hand holding a small boat inside a beaker with an arrow indicating downward motion (no text or symbols)

9

Simple line drawing of a small boat pulling a fishing rod into a container with a wavy line above (no text or symbols)

10

Illustration of a hand pulling a device into a container with an upward arrow, no text or symbols present

12

DESLIGAR

13

Diagram showing a mechanical device with directional arrows indicating assembly or movement (no text or symbols present)

14

Technical line drawing of a mechanical housing assembly with two views showing internal components and directional arrows (no text or symbols)

Illustration of hands holding a hard hat with a checkmark icon (no text or symbols on the hat itself)

Hand holding a tool interacting with a mechanical component, no text or symbols visible

Substituição da aba

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Technical line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section and numbered annotation (no readable text or symbols)

3D rendered image of a mechanical component with no visible text or symbols

Hand holding a mechanical component with a circular housing and mounting holes (no visible text or symbols)

Hand pressing a button on a mechanical component (no visible text or symbols)

Hand holding a mechanical component with a circular housing and central hole (no visible text or symbols)

Close-up of a mechanical component with arrows indicating fasteners or fasteners (no text or symbols visible)

Close-up of a mechanical component with arrows indicating fasteners or fasteners (no text or symbols visible)

Close-up of a mechanical component with internal wiring and housing (no visible text or symbols)

Exploded view diagram of a car airship with numbered parts and labeled connectors

No de Código de CANT.
1	P05622	1
2	P05623	1
3	P05625	1
4	P05624	1
5	P05620	1
6	P03880	1
7	P03879	1

Line drawing of a car seatbelt with attached cable connectors and a close-up inset showing the cable being inserted (no text or symbols)

3

3 5-6 h Luz ROJA - En recarga Luz VERDE - Carga completada

4

Mechanical assembly diagram showing a component being adjusted to a base with arrows indicating motion (no text or symbols present)

5

Simple line drawing of a mechanical device with a string and rope, no text or symbols present

1.

2.

3.
   4.

Diagram illustrating the steps of a hairpin repair or cleaning procedure, showing steps from pinning to cutting and finishing.

8
ENCENDIDO

Illustration of a hand pulling a small boat into a beaker with a downward arrow indicating fluid flow (no text or symbols)

9

Simple line drawing of a small boat pulling a fishing rod into a container with a wavy line above (no text or symbols)

10

Illustration of a hand pulling a device into a container with an upward arrow, no text or symbols present

12

APAGADO

13

Diagram showing a mechanical assembly with directional arrows indicating movement or force (no text or symbols present)

14

Technical line drawing of a mechanical assembly with two views: top shows internal components, bottom shows a dome-like structure with arrows indicating motion (no text or symbols)

Illustration of hands holding a hard hat with a checkmark icon (no text or symbols on the hat itself)

Hand holding a tool interacting with a mechanical component, no text or symbols visible

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Technical line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

3D rendered image of a mechanical component with no visible text or symbols

Hand holding a mechanical component with a circular housing and mounting holes (no visible text or symbols)

Hand pressing a button on a mechanical component (no visible text or symbols)

Close-up of a hand holding a mechanical component, no visible text or symbols

Close-up of a mechanical component with arrows indicating fasteners or fasteners (no text or symbols visible)

Close-up of a mechanical component with arrows indicating fasteners or fasteners (no text or symbols visible)

Close-up of a mechanical component with internal wiring and housing (no visible text or symbols)

Close-up of a mechanical component with internal wiring and mounting holes (no visible text or symbols)

Close-up of an electronic device interior with visible wiring and a highlighted component (no text or symbols)

Close-up of a mechanical component with numbered annotations (1, 2, 3) and no readable text or symbols.

Illustration of a battery with a cable and connector, no text or symbols present

ELIMINACIÓN

Exploded view diagram of a mechanical device with numbered parts and labeled components

Teile-Nr.	Teile-Menge
1	P05622	1
2	P05623	1
3	P05625	1
4	P05624	1
5	P05620	1
6	P03880	1
7	P03879	1

Line drawing of a car seatbelt with connector details (no text or symbols)

3

Mechanical assembly diagram showing a component being adjusted to a base with arrows indicating motion (no text or symbols present)

5

Simple line drawing of a tool with a string and coiled cable, no text or symbols present

1.

2.

3.
   4.

Illustration of a hand holding a small object submerged in a beaker with an arrow indicating downward motion (no text or symbols)

9

Simple line drawing of a small boat pulling a fishing rod into a container with a wavy line above (no text or symbols)

10

Illustration of a hand pulling a device into a container with an upward arrow, no text or symbols present

12

AUS

13

Diagram showing a mechanical device with directional arrows indicating assembly or movement (no text or symbols present)

14

Technical line drawing of a mechanical housing assembly with two views showing internal components and directional arrows (no text or symbols)

Illustration of hands holding a hard hat with a checkmark icon (no text or symbols on the hat itself)

Hand holding a tool interacting with a mechanical component, no text or symbols visible

Ersetzen der Klappe

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Technical line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Pflege und Lagerung

3D rendered image of a mechanical component with no visible text or symbols

Hand holding a mechanical component with a circular housing and mounting holes (no visible text or symbols)

Hand pressing a button on a mechanical component (no visible text or symbols)

Hand holding a mechanical component with a circular housing and central hole (no visible text or symbols)

Close-up of a mechanical component with arrows indicating fasteners or fasteners (no text or symbols visible)

Close-up of a mechanical component with arrows indicating fasteners or fasteners (no text or symbols visible)

Close-up of a mechanical component with internal wiring and housing (no visible text or symbols)

Close-up of a mechanical component with internal wiring and mounting holes (no visible text or symbols)

Close-up of an electronic device showing internal components and wiring (no visible text or symbols)

Close-up of a mechanical component with labeled parts (1, 2, III) and no readable text or symbols beyond labels

Illustration of a battery with a cable and connector, no text or symbols present

ENTSORGUNG

Line drawing of a car seatbelt with connector details (no text or symbols)

3

3 5-6 h PUNAINEN valo - Lataa VIHREÄ valo - Ladattu

4

Diagram showing a mechanical assembly process with a downward arrow and an upward arrow, no text or symbols present.

5

Simple line drawing of a mechanical device with a string and coiled cable (no text or symbols)

1.

2.

3.
   4.

Diagram illustrating a mechanical assembly process with labeled steps and component illustrations

8

Illustration of a hand pulling a small boat into a beaker with an arrow indicating downward motion (no text or symbols)

9

Simple line drawing of a small boat pulling a fishing rod into a container with water (no text or symbols)

10

Illustration of a hand pulling a device into a container with an upward arrow, no text or symbols present

12

POIS PÄÄLTÄ

13

Diagram showing a mechanical device with directional arrows indicating assembly or movement (no text or symbols present)

14

Technical line drawing of a mechanical housing assembly with two views showing internal components and directional arrows (no text or symbols)

Line drawing of a hand holding a hard hat with a checkmark icon in the corner (no text or symbols on the hat itself)

Hand holding a tool interacting with a mechanical component, no text or symbols visible

Läpän vaihtaminen

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Technical line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

3D rendered image of a white plastic device with curved legs and a central circular component (no visible text or symbols)

Hand holding a mechanical component with a circular housing and mounting holes (no visible text or symbols)

Hand pressing a button on a mechanical component (no visible text or symbols)

Hand holding a mechanical component with a circular housing (no visible text or symbols)

Close-up of a mechanical component with arrows indicating fasteners or fasteners (no visible text or symbols)

Close-up of a mechanical component with arrows indicating direction (no text or symbols visible)

Close-up of a mechanical component with internal wiring and housing (no visible text or symbols)

Close-up of a mechanical component with internal wiring and mounting holes (no visible text or symbols)

Close-up of an electronic device showing internal components and wiring (no visible text or symbols)

Close-up of a mechanical component with labeled parts (1, 2, 3) and no readable text or symbols

Illustration of a battery with a cable and connector, no text or symbols present

HÄVITTÄMINEN

Exploded view diagram of a mechanical device with numbered parts and labeled components

Onderdee	Onderdeelc HOEV
1	P05622	1
2	P05623	1
3	P05625	1
4	P05624	1
5	P05620	1
6	P03880	1
7	P03879	1

Line drawing of a car seatbelt with connector details (no text or symbols)

3

Mechanical assembly diagram showing a component being adjusted to a base with arrows indicating motion (no text or symbols present)

5

Simple line drawing of a tool with a string and coiled cable, no text or symbols present

1.

2.

3.
   4.

Diagram illustrating the step-by-step assembly of a car's steering wheel, showing disassembly and reassembly with ON/OFF labels.

8

Illustration of a hand pulling a small boat into a beaker with an arrow indicating downward motion (no text or symbols)

9

Simple line drawing of a small boat pulling a fishing rod into a container with a wavy line above (no text or symbols)

10

Illustration of a hand pulling a plastic bag over a container with an upward arrow, no text or symbols present

12

OFF

13

Diagram showing a mechanical device with directional arrows indicating assembly or movement (no text or symbols present)

14

Technical line drawing of a mechanical assembly with two views: top shows internal components, bottom shows a dome-like structure with arrows indicating motion (no text or symbols)

Illustration of hands holding a hard hat with a checkmark icon (no text or symbols on the hat itself)

Hand holding a tool interacting with a mechanical component, no text or symbols visible

Flap terugplaatsen

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Technical line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

3D rendered image of a mechanical component with no visible text or symbols

Hand holding a mechanical component with a circular housing and mounting holes (no visible text or symbols)

Hand pressing a button on a mechanical component (no visible text or symbols)

Hand holding a mechanical component with a circular housing and central hole (no visible text or symbols)

Close-up of a mechanical component with a hand holding a screwdriver (no visible text or symbols)

Close-up of a mechanical component with arrows indicating direction, no visible text or symbols

Close-up of a mechanical component with internal wiring and housing (no visible text or symbols)

Close-up of a mechanical component with internal wiring and mounting holes (no visible text or symbols)

Close-up of an electronic device showing internal components and wiring (no visible text or symbols)

Close-up of a mechanical component with numbered annotations (1, 2, 3) and no readable text or symbols.

Illustration of a battery with a cable and connector, no text or symbols present

WEGGOOIEN

Exploded view diagram of a mechanical device with numbered parts and labeled components

Cod. Codice QTÀ
1	P05622	1
2	P05623	1
3	P05625	1
4	P05624	1
5	P05620	1
6	P03880	1
7	P03879	1

Line drawing of a car seatbelt with connector details (no text or symbols)

3

3 5-6 h Luce ROSSA - In carica Luce VERDE - Carica completa

4

Mechanical assembly diagram showing a component being adjusted to a base with arrows indicating motion (no text or symbols present)

5

Simple line drawing of a mechanical device with a string and rope, no text or symbols present

1.

2.

3.
   4.

Diagram illustrating the step-by-step assembly of a car's steering wheel, showing disassembly and reassembly with ON/OFF labels.

8

Illustration of a hand holding a small boat inside a beaker with an arrow indicating downward motion (no text or symbols)

9

Simple line drawing of a small boat pulling a fishing rod into a container with a wavy line above (no text or symbols)

10

Illustration of a hand pulling a device into a container with an upward arrow, no text or symbols present

12

OFF

13

Diagram showing a mechanical device with directional arrows indicating assembly or movement (no text or symbols present)

14

Technical line drawing of a mechanical assembly with two views: top shows internal components, bottom shows a dome-like structure with arrows indicating motion (no text or symbols)

Line drawing of hands holding a hard hat with a checkmark icon (no text or symbols on the hat itself)

Hand holding a tool interacting with a mechanical component, no text or symbols visible

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Technical line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

3D rendered image of a white plastic mechanical component with curved arms and a central circular feature (no text or symbols visible)

Hand holding a mechanical component with a circular housing and mounting holes (no visible text or symbols)

Hand pressing a button on a mechanical component (no visible text or symbols)

Close-up of a hand holding a mechanical component, no visible text or symbols

Close-up of a mechanical component with arrows indicating fasteners or fasteners (no text or symbols visible)

Close-up of a mechanical component with arrows indicating direction, no visible text or symbols

Close-up of a mechanical component with internal wiring and housing (no visible text or symbols)

Close-up of a mechanical component with internal wiring and mounting holes (no visible text or symbols)

Close-up of an electronic device showing internal components and wiring (no visible text or symbols)

Close-up of a mechanical component with numbered annotations (1, 2, 3) and no readable text or symbols.

Illustration of a battery with a cable and connector, no text or symbols present

SMALTIMENTO

Exploded view diagram of a mechanical device with numbered parts and labeled connectors

Pièce N° Code de la Q.TÉ
1	P05622	1
2	P05623	1
3	P05625	1
4	P05624	1
5	P05620	1
6	P03880	1
7	P03879	1

Line drawing of a car seatbelt with connector details (no text or symbols)

3

Mechanical assembly diagram showing a component being adjusted to a base with arrows indicating motion (no text or symbols present)

5

Simple line drawing of a tool with a string and coiled cable, no text or symbols present

1.

2.

3.
   4.

Diagram illustrating a mechanical assembly process with labeled steps and component illustrations

MARCHE

8

Illustration of a hand pulling a small boat into a beaker with an arrow indicating downward motion (no text or symbols)

9

Simple line drawing of a small boat pulling a fishing rod into a container with a wavy line above (no text or symbols)

10

Illustration of a hand pulling a device into a container with an upward arrow, no text or symbols present

12

ARRÊT

13

Diagram showing a mechanical device with directional arrows indicating assembly or movement (no text or symbols present)

14

Technical line drawing of a mechanical housing assembly with two views showing internal components and directional arrows (no text or symbols)

Illustration of hands holding a hard hat with a checkmark icon (no text or symbols on the hat itself)

Hand holding a tool interacting with a mechanical component, no text or symbols visible

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Technical line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section and numbered annotation (no readable text or symbols)

3D rendered image of a white and gray plastic device with no visible text or symbols

Hand holding a mechanical component with a circular housing and mounting holes (no visible text or symbols)

Hand pressing a button on a mechanical component (no visible text or symbols)

Hand holding a mechanical component with a circular housing (no visible text or symbols)

Close-up of a mechanical component with a hand holding a tool, showing no visible text or symbols.

Close-up of a mechanical component with arrows indicating direction, no visible text or symbols

Close-up of a mechanical component with internal wiring and housing (no visible text or symbols)

Close-up of a mechanical component with internal wiring and mounting holes (no visible text or symbols)

Close-up of an electronic device showing internal components and wiring (no visible text or symbols)

Close-up of a mechanical component with numbered annotations (1, 2, 3) and no readable text or symbols.

Illustration of a battery with a cable and connector, no text or symbols present

MISE AU REBUT

Line drawing of a car seatbelt with attached cable connectors and a close-up inset showing the cable being inserted (no text or symbols)

3

Mechanical assembly diagram showing a component being adjusted to a base, with no visible text or symbols.

5

Simple line drawing of a mechanical device with a string and rope, no text or symbols present

1.

2.

3.
   4.

Diagram illustrating the steps to remove a car body from a plastic component, with magnified views showing the process.

8
ΕΝΕΡΓΟΠΟΙΗΣΗ

CH

9

Simple line drawing of a small boat pulling a fishing rod into a container with a wavy line above (no text or symbols)

10

Illustration of a hand pulling a device into a container with an upward arrow, no text or symbols present

12

Diagram showing a mechanical device with directional arrows indicating movement or force, no text or symbols present.

14

Technical line drawing of a mechanical housing assembly with two views showing internal components and directional arrows (no text or symbols)

Illustration of hands holding a hard hat with a checkmark icon (no text or symbols on the hat itself)

Hand holding a tool interacting with a mechanical component, no text or symbols visible

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Technical line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section and numbered annotation (no readable text or symbols)

3D rendered image of a white and gray plastic device with no visible text or symbols

Hand holding a mechanical component with a circular housing and mounting holes (no visible text or symbols)

Hand pressing a button on a mechanical component (no visible text or symbols)

Hand holding a mechanical component with a circular housing (no visible text or symbols)

Close-up of a mechanical component with a hand holding a screwdriver (no visible text or symbols)

Close-up of a mechanical component with arrows indicating direction, no visible text or symbols

Close-up of a mechanical component with internal wiring and housing (no visible text or symbols)

Close-up of a mechanical component with internal wiring and mounting holes (no visible text or symbols)

Close-up of an electronic device showing internal components and wiring (no visible text or symbols)

Close-up of a mechanical component with labeled parts (1, 2, III) and no readable text or symbols

Illustration of a battery with a cable and connector, no text or symbols present

АПОРРИΨΗ

Exploded view diagram of a mechanical device with numbered parts and labeled components

No Код	части К-ВО
1	P05622	1
2	P05623	1
3	P05625	1
4	P05624	1
5	P05620	1
6	P03880	1
7	P03879	1

Line drawing of a car seatbelt with attached cable connectors, showing a close-up detail (no text or symbols)

31

Mechanical assembly diagram showing a valve mechanism and a close-up of the component (no text or symbols)

5

Simple line drawing of a mechanical device with a string and coiled cable (no text or symbols)

1.

2.

3.
   4.

Diagram illustrating the steps to remove a device from a mechanical component, with labeled arrows indicating the process.

87

Illustration of a hand holding a small object submerged in a beaker with an arrow indicating downward motion (no text or symbols)

9

Simple line drawing of a boat pulling a small boat in water (no text or symbols)

10

Diagram of a hand pulling a device into a container with an upward arrow, no text or symbols present

12

ВЫКЛ.

13

Diagram showing a mechanical device with directional arrows indicating assembly or movement (no text or symbols present)

14

Technical line drawing of a mechanical housing assembly with two views showing internal components and a directional arrow (no text or symbols)

Illustration of hands holding a hard hat with a checkmark icon (no text or symbols on the hat itself)

Hand holding a tool interacting with a mechanical component, no text or symbols visible

Замена щитка

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Technical line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section and numbered annotation (no readable text or symbols)

3D rendered image of a white and gray plastic device with no visible text or symbols

Hand holding a mechanical component with a circular housing and mounting holes (no visible text or symbols)

Hand pressing a button on a mechanical component (no visible text or symbols)

Hand holding a mechanical component with a circular housing (no visible text or symbols)

Close-up of a mechanical component with a hand holding a tool, showing no visible text or symbols.

Close-up of a mechanical component with arrows indicating direction, no visible text or symbols

Close-up of a mechanical component with internal wiring and housing (no visible text or symbols)

Close-up of a mechanical component with internal wiring and mounting holes (no visible text or symbols)

Close-up of an electronic device with exposed circuit board and wiring (no visible text or symbols)

Close-up of a mechanical component with numbered annotations (1, 2, 3) and no readable text or symbols.

Illustration of a battery with a cable and connector, no text or symbols present

УТИЛИЗАЦИЯ

Mechanical assembly diagram showing a valve mechanism and a hand holding a component (no text or symbols)

5

Simple line drawing of a tool with a string and coiled cable, no text or symbols present

1.

2.

3.
   4.

Technical diagram showing mechanical component assembly with magnified views and a close-up of a device labeled 'W1'

8

Illustration of a hand holding a small object submerged in a beaker with an arrow indicating downward motion (no text or symbols)

9

Simple line drawing of a boat pulling a small boat in water (no text or symbols)

10

Diagram of a hand pulling a device into a container with an upward arrow, no text or symbols present

12

WYL.

13

Diagram showing a mechanical assembly with arrows indicating motion or force direction (no text or symbols present)

14

Technical line drawing of a mechanical housing assembly with two views showing internal components and a directional arrow (no text or symbols)

Illustration of hands holding a hard hat with a checkmark icon (no text or symbols on the hat itself)

Hand holding a tool interacting with a mechanical component, no text or symbols visible

Wymiana klap

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Technical line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section and numbered annotation (no readable text or symbols)

3D rendered image of a white and gray plastic device with no visible text or symbols

Hand holding a mechanical component with a circular housing and mounting holes (no visible text or symbols)

Hand pressing a button on a mechanical component (no visible text or symbols)

Hand holding a mechanical component with a circular housing (no visible text or symbols)

Close-up of a mechanical component with a hand holding a tool, showing no visible text or symbols.

Close-up of a mechanical component with arrows indicating direction, no visible text or symbols

Close-up of a mechanical component with internal wiring and housing (no visible text or symbols)

Close-up of a mechanical component with internal wiring and mounting holes (no visible text or symbols)

Close-up of an electronic device showing internal components and wiring (no visible text or symbols)

Close-up of a mechanical component with numbered annotations (1, 2, 3) and no readable text or symbols.

Illustration of a battery with a cable and connector, no text or symbols present

UTYLIZACJA

Technical diagram of a mechanical device with numbered parts, including cable, connector, and housing components.

Technical line drawing of a mechanical housing or enclosure with no visible text or symbols

Technical line drawing of a mechanical component with an inset close-up view showing internal components (no text or symbols)

2

Line drawing of a car seatbelt with connector details (no text or symbols)

3

Mechanical assembly diagram showing a component being adjusted to a base with arrows indicating motion (no text or symbols present)

5

Simple line drawing of a tool with a string and coiled cable, no text or symbols present

1.

2.

3.
   4.

Technical diagram illustrating the process of a mechanical component with labeled parts and directional arrows indicating steps.

8

Illustration of a hand holding a small object submerged in a beaker with an arrow indicating downward motion (no text or symbols)

9

Simple line drawing of a boat pulling a small boat in water (no text or symbols)

10

Illustration of a hand pulling a device into a container with an upward arrow, no text or symbols present

12

KI

13

Diagram showing a mechanical device with directional arrows indicating assembly or movement (no text or symbols present)

14

Technical line drawing of a mechanical housing assembly with two views showing internal components and a directional arrow (no text or symbols)

Illustration of hands holding a hard hat with a checkmark icon (no text or symbols on the hat itself)

Hand holding a tool interacting with a mechanical component, no text or symbols visible

Fül cseréje

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Technical line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

3D rendered image of a white and gray plastic device with no visible text or symbols

Hand holding a mechanical component with a circular housing and mounting holes (no visible text or symbols)

Hand pressing a button on a mechanical component (no visible text or symbols)

Hand holding a mechanical component with a circular housing (no visible text or symbols)

Close-up of a mechanical component with a hand holding a screwdriver (no visible text or symbols)

Close-up of a mechanical component with arrows indicating direction, no visible text or symbols

Close-up of a mechanical component with internal wiring and housing (no visible text or symbols)

Close-up of a mechanical component with internal wiring and mounting holes (no visible text or symbols)

Close-up of an electronic device showing internal components and wiring (no visible text or symbols)

Close-up of a mechanical component with labeled parts (1, 2, 3) and no readable text or symbols beyond labels

Illustration of a battery with a cable and connector, no text or symbols present

ÁRTALMATLANÍTÁS

Exploded view diagram of a mechanical device with numbered parts and labeled components

Del nr. A	rtikelkod ANT	AL
1	P05622	1
2	P05623	1
3	P05625	1
4	P05624	1
5	P05620	1
6	P03880	1
7	P03879	1

Technical line drawing of a boat hull with visible structural components (no text or symbols)

Illustration of a hand pulling a small boat into a beaker with an arrow indicating downward motion (no text or symbols)

9

Simple line drawing of a boat pulling a small boat in water (no text or symbols)

10

Illustration of a hand pulling a plastic bag over a container with an upward arrow, no text or symbols present

12

AV

13

Diagram showing a mechanical device with directional arrows indicating assembly or movement (no text or symbols present)

14

Technical line drawing of a mechanical housing assembly with two views showing internal components and a directional arrow (no text or symbols)

Illustration of hands holding a hard hat with a checkmark icon (no text or symbols on the hat itself)

Hand holding a tool interacting with a mechanical component, no text or symbols visible

Ersätt klaff

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Line drawing of a mechanical component with a handle and mounting bracket, showing a close-up view (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

3D rendered image of a white and gray plastic device with no visible text or symbols

Hand holding a mechanical component with a circular housing and mounting holes (no visible text or symbols)

Hand pressing a button on a mechanical component (no visible text or symbols)

Hand holding a mechanical component with a circular housing (no visible text or symbols)

Close-up of a mechanical component with a hand holding a tool, showing no visible text or symbols.

Close-up of a mechanical component with arrows indicating direction, no visible text or symbols

Close-up of a mechanical component with internal wiring and housing (no visible text or symbols)

1. Remove the battery pack to expose the PCBA. To detach the battery connection wire, press the clip on the connector and then pull it out. NOTE: Wrap the connector immediately with insulating tape in order to avoid short circuit caused by contact of both wire terminals.

Close-up of a mechanical component with internal wiring and mounting holes (no visible text or symbols)

Close-up of an electronic device showing internal components and wiring (no visible text or symbols)

Close-up of a mechanical component with numbered annotations (1, 2, 3) and no readable text or symbols.

Illustration of a battery with a cable and connector, no text or symbols present

AVFALLSHANTERING

For support please visit us at:

bestwaycorp.com/support

©2020 Bestway Inflatables & Material Corp.

All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle Rechte vorbehalten/Tutti i diritti riservati

®TM Trademarks used in some countries under license to/

Bestway Inflatables & Material Corp., No.3065 Cao An Road, Shanghai, 201812, China.

Manufactured, distributed and represented in the European Union by

Bestway (USA) Inc., 3411 E. Harbour Drive, Phoenix, Arizona 85034, United States of America

Tel: [phone] (For U.S. and Canada)

Distributed in Australia & New Zealand by Bestway Australia Pty Ltd, Unit 2/98-104 Carnarvon St Silverwater, NSW 2128, Australia

Tel: Australia: ([phone]; New Zealand: 0800 142 101

Exported by/Exporté par/Exportado por/Exportiert von/Esportato da

Bestway (Hong Kong) International Ltd./Bestway Enterprise Company Limited

Suite 713, 7/Floor, East Wing, Tsim Sha Tsui Centre, 66 Mody Road, Kowloon, Hong Kong

www.bestwaycorp.com

Bestway.
