Product type	Garden spreader
Brand	Wolf Garten
Model	WEB
Use	Seeds, fertilizer, rock salt, de-icers
Power source	Batteries (not included)
Spreading width	1.2 m to 1.6 m depending on product
Flow adjustment	Positions 1 to 5
Motor speed	Adjustable
Safety switch	Yes
Minimum age of use	16 years old
Outdoor use only	Yes
Compatible materials	Seeds, fertilizer, rock salt, de-icers
Prohibited materials	Powders, pesticides, herbicides, liquids
Conditions of use	Do not use in rain; ventilated area
Required protection	Goggles and mask for dusty products
Maintenance	Clean with soapy water and damp cloth
Prolonged storage	Remove batteries
Disposal	Ecological recycling (electrical appliance)
Warranty	According to country conditions (see retailer)

Frequently Asked Questions - WEB Wolf Garten

How to adjust the spreading flow?

Use the adjustment knob (1) to select the position corresponding to the desired amount (from 1 for low flow to 5 for high flow). Consult the table in the manual for recommended positions according to the product.

What types of products can I spread with this device?

The spreader is designed for seeds, fertilizer, rock salt, and de-icers for domestic use. Do not use powders, pesticides, herbicides, or liquids.

What safety precautions should be followed?

Wear goggles and a mask when using dusty products, keep children and bystanders away, do not leave the device unattended, and do not use it in the rain.

How to clean the spreader after use?

Clean it with lightly soapy water and a damp cloth. Do not immerse the device in water and avoid any liquid penetration.

What type of batteries to use?

The spreader operates with batteries (not included). Insert them respecting the indicated polarities. If not used for a long time, remove the batteries.

Can I spread herbicides or weed killers with this device?

No, the spreader must not be used for powders, pesticides, or herbicides. Consult the instructions on your product packaging.

What to do in case of clogging?

Set the main switch to off. Do not insert your fingers or hands; use a stick or suitable object to unclog.

How to store the spreader for winter?

Clean it thoroughly, remove the batteries, and store it in a dry place. The warranty does not cover corrosion due to improper storage.

What is the minimum age to use this device?

The spreader is prohibited for persons under 16. Children must not play with the device.

Where to find the warranty conditions?

The warranty conditions are those published by Wolf Garten or the importer in each country. Contact your retailer or the nearest branch.

USER MANUAL WEB Wolf Garten

Gray golf meter with black base and handle, no visible text or symbols on the device itself

Technical diagram of a mechanical device with numbered parts labeled 1 to 5

de

1 Safety switch
2 Spreading volume setting
3 Spreading wheel
4 On/off switch
5 Motor speed setting

fr

Line drawing of a camera module with a circular inset showing a device (no text or symbols)

Diagram of a device with two cylindrical components and directional arrows, no text or symbols present

C 1 2 3 4

Diagram showing a mechanical device with directional arrows and a highlighted section, no text or symbols present.

E 1 2 3 4

Congratulations on the purchase of your WOLF-Garten product!

Please read the instructions carefully and familiarize yourself with the different control elements and how to operate the device properly. Attention! When using power tools it is important to observe the following safety advice in order to protect yourself against electrical shock. The operator is responsible for accidents involving other persons and/or their property.

Never let children or other persons who have not read these instructions use the device. Persons younger than 16 must not use the device. Local regulations may determine the minimum age for users.

Contents

Safety instructions .....7

Operation 8

Settings 9

Maintenance....9

Warranty 9

Safety instructions

Meaning of symbols

Read instruction manual before use!

Keep bystanders away!

Wear protective goggles!

General notes

• Keep this operating manual in a safe place and regularly consult it before using the device.
• Keep the device away from children - those not participating should be kept at a safe distance from the area where work is being carried out.

• Wear the appropriate eye and respiratory protection when using fertilisers. Protect your eyes and skin from dust.

• Do not use this spreader for spreading powders, pesticides or herbicides (e.g. weed or moss killer).

• Before using spreading material with this spreader, please read the instructions accompanying the respective fertiliser or seed packaging.
• Do not use any usual chemicals, or rather, those intended for commercial or industrial purposes. Only use commercial lawn and de-icing products.
• Do not use the spreader when it is raining.
• It is only suitable for use with grass seeds, fertilisers, rock salt and de-icers.
  ● The spreading area must be sufficiently aerated.
• Do not leave the spreader unattended when in operation.
• Do not use the spreader to distribute liquids.
• Do not direct the spreader at yourself or others and ensure that those not participating and domestic pets are kept away from the spreading area.
• When the device is not in use, do not leave any material in the spreader hopper.
  ● Always clean the spreader hopper before filling with new spreading material.
  ● Only suitable for use outdoors.
  ● Always switch the main switch off when removing blockages or cleaning, servicing or storing the device.
• Instead of using your fingers or hands to remove blockages use a stick or other suitable object.
• Ensure that loose long hair or clothes do not come into contact with the moving parts of the device.
  ● This product is not suitable for commercial use.

Battery

• If the electrolyte (acid) escapes from the battery cell due to ex-treme mishandling or extremely difficult conditions, observe the following:
  — Avoid contact with the skin
  — Rinse off the electrolyte with water or a neutralising agent.
  — The rinsing water must not seep into drains or the soil. It must be disposed of separately.
  — On contact with the skin or eyes, rinse with water and con-sult a doctor.
• Only use AA alkaline batteries (Mignon).

Dispose of batteries

Batteries contain lead and must be of in the correct manner. Batteries contain lead are harmful to the environment if they are incine-rated with other household garbage.

Disposal

Power tools do not belong in household garbage. Bring the device, accessories and packaging to an environmentally-friendly recycling location.

Operation

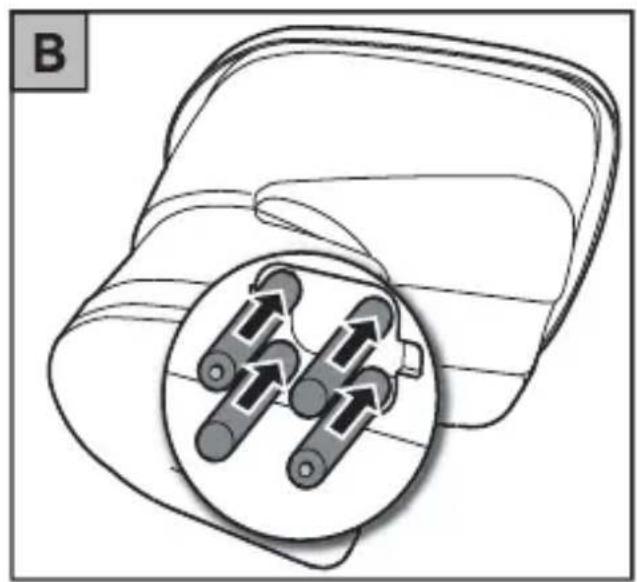

Installing the batteries A B

Ensure that the motor is in the OFF position.

- Place the batteries in the spreader as shown in the figure.

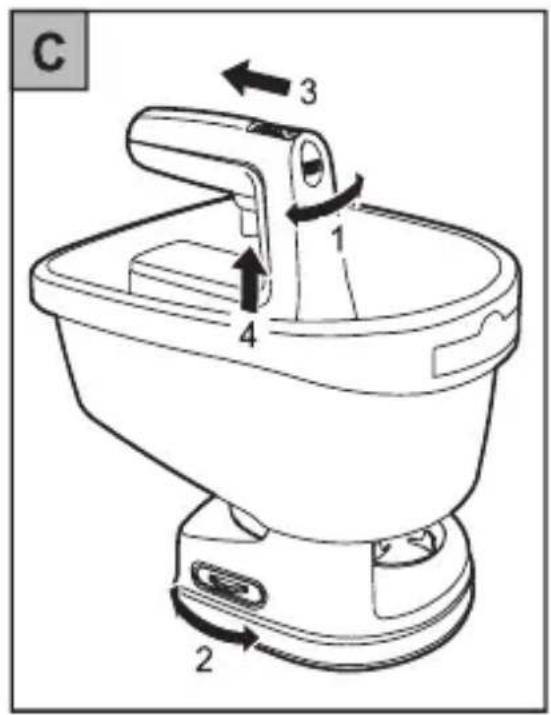

Working with the spreader C

Ensure that the ON/OFF switch is in the OFF position.

1. Hold the spreader over a paved surface.
2. Fill the spreader hopper.
3. Set the flow rate (1).
4. Set the motor speed to the desired spreading cover (2).
5. Push back the safety switch (3) and press the on/off switch (4).
6. First of all spread a small area and adjust the setting if necessary.

The on / off switch operates the spreading opening and the spreading plate at the same time.

Settings

These settings are recommendations. The spreading quantities can differ because of walking speed or working height. In this case please adapt walking speed or spreading settings.

Flow problems with rough granulates can be repaired by easy vibrating during application.

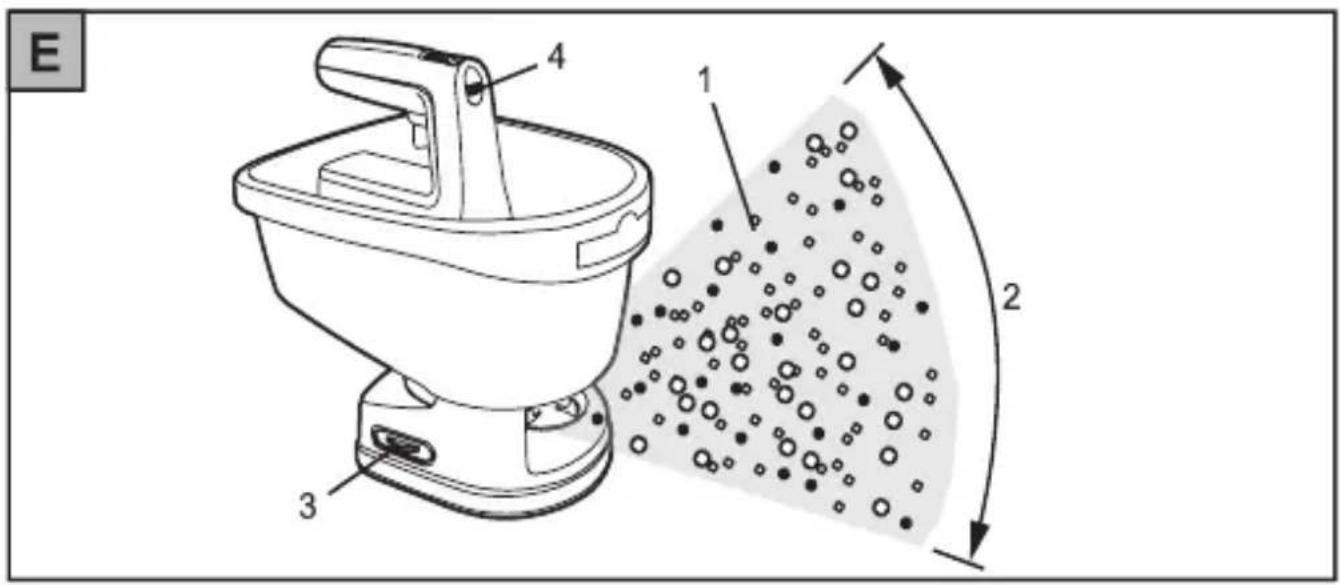

		E (1) (2) (3) (4)	E	E	E
NOVAPLANT® -Lawn renovating (Family / Loretta / Supra / Shadow) and sets: seed plus fertilizer		Seed: 20 g/m2Fertilizer: 25 g/m2	1,2 m1,6 m	33	5*5
Seed	LF / LG / LJ / LP / LP-N / LR / LG-R	20,0 g/m2	1,2 m	3	5*
Fertilizer	LE / LN 22,5 g/m2 1,6 m 3 5
	LX / LX-A / LX-N	23,5 g/m2	1,6 m	3	5
	LH-MU / LX-MU / LN-MU / LH / LK-MU	25,0 g/m2	1,6 m	3	5
	L-PF / LD 700 A / BluePower	18,0 g/m2	1,6 m	3	5
sand / salt		40,0 - 50,0 g/m2	1,6 m	3 - 4	4 - 5

* For spreading the seed mixtures, the surface has to be spreaded criss-cross to get the proper quantity. Through this you achieve additionally a optimal spreading accurateness. Spreading of seed mixtures only during calm.
- The spreading material packaging or the user instructions for the spreading materials show you how many grams (g) per square metre (m ^2 ) should be spread.

— Decrease the flow rate in the event of small volumes (e.g. with 20 g/m ^2 - setting 1).
— Increase the flow rate in the event of higher volumes (e.g. with 40 -50 g/m² - setting 5).

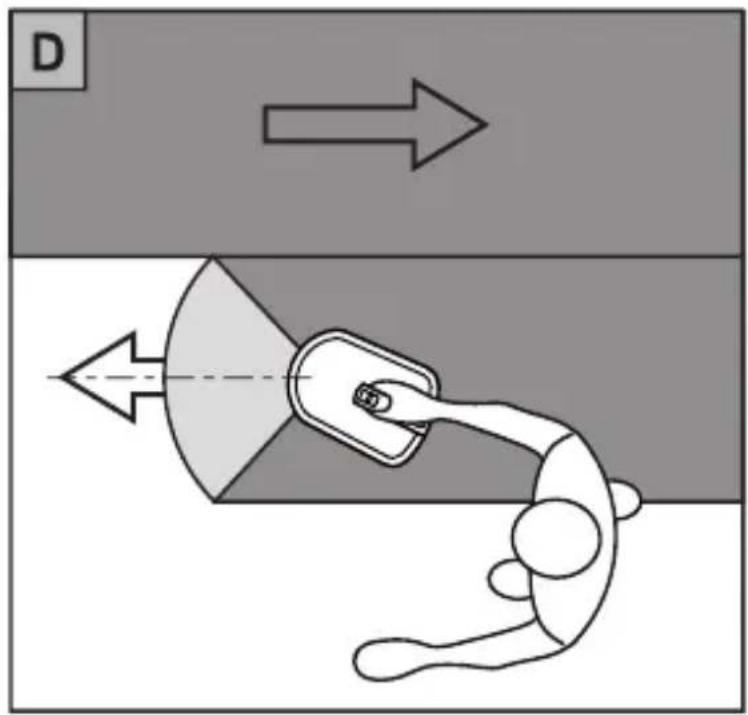

- Move over the area to be spread at a normal speed and hold the spreader as shown .D

Maintenance

Cleaning

- Thoroughly clean the spreader with mild soapy water and a moist cloth after use. Stop liquids from penetrating the device. Do not submerge any of the device parts in liquid.

Storage

- Remove the batteries from the device when not in use for several months.

Warranty

The warranty rules issued by our company or the importer apply to every country. As part of the warranty, we remedy malfunctions on your appliance free of charge provided that this malfunction is caused by a material or manufacturing defect. In the event of a warranty claim, please turn to your dealer or the nearest branch office.

• If the electrolyte (acid) escapes from the battery cell due to ex-treme mishandling or extremely difficult conditions, observe the following:
• Avoid contact with the skin.
  — Rinse off the electrolyte with water or a neutralising agent.

— The rinsing water must not seep into drains or the soil. It must be disposed of separately.

— On contact with the skin or eyes, rinse with water and con-sult a doctor.

- N'utiliser que des piles alcalines AA (piles R6).
