Brand	Bosch
Model	GHO 513 C Professional
Product type	High-pressure cleaner
Rated input power	2.3 kW
Rated pressure	13 MPa (130 bar)
Maximum working pressure	14 MPa
Water flow rate	8.3 l/min
Max. supply temperature	50 °C
Weight	16.5 kg
Protection class	IPX5
Motor insulation	Class F
Autostop function	Yes
Sound pressure level	81.8 dB(A)
Acoustic intensity level	90 dB(A)
Vibration	3.12 m/s²
Max. recoil force	22.11 N
Mains impedance	0.358 Ω
Power supply	230 V AC, 50 Hz
Safety device	Residual current circuit breaker 30 mA recommended
Intended use	Outdoor cleaning, vehicles, tools, boats

Frequently Asked Questions - GHO 513 C Professional BOSCH

What to do if the motor does not start?

Check that the plug is connected, the socket works, and the fuse has not blown. If the overload protection has tripped, let the motor cool down for 15 minutes. Also check that the water is not frozen.

Why is the pressure low or uneven?

A clogged nozzle or a dirty water filter are common causes. Clean the nozzle and filter. Make sure the water hose is not kinked and the water supply is sufficient (min. 8.3 l/min).

How to use the cleaner with detergents?

Use only detergents recommended by Bosch. Set the nozzle to low pressure (Lo). Fill the tank and follow the indicated dilutions. Rinse from top to bottom after application.

What minimum distance to keep when cleaning tires?

Maintain a distance of at least 30 cm between the lance and the tire/valve to avoid damage. A change in tire color may indicate damage.

How to maintain the device after use?

Unplug the unit and disconnect the water hose. Clean the external surfaces with a soft brush and cloth. Do not use water or solvents. Drain the pump by letting the motor run for a few seconds with the trigger pressed.

Can I use an extension cord?

Yes, provided it is approved for outdoor use, with a conductor cross-section of at least 1.5 mm² for a max. length of 20 m. The plug and connector must be watertight and not rest on the ground.

What to do if the device does not build up pressure?

Check that the water tap is open, the water filter is not clogged, and the nozzle is not obstructed. If the pressure remains low, quickly press the trigger five times to reprime the valve.

How to bleed air from the hose before use?

Open the tap, unlock the trigger, and press it fully until water flows steadily without air bubbles. Then release the trigger before starting.

Why does the motor stop during use?

The overload protection device may trip if the appliance overheats. Let the motor cool down for 15 minutes. Also check that the fuse has not blown and that the mains voltage matches the rating plate.

How to store the device at the end of the season?

Drain the pump by running the appliance for a few seconds without pressure. Store it in a dry, frost-free place. Do not kink the high-pressure hose and do not place objects on it.

USER MANUAL GHO 513 C Professional BOSCH

ORI DOKU-31227-0113.1m Page 1 Friday, July 14, 2017 12:18 PM

Illustration of a Bosch electric shock absorber with hoses and components (no text or symbols)

Robert Bosch Power Tools GmbH

7053B Stuttgart

GERMANY

www.bosch-do-it.com

1609 92A 3EP (2019.05) O/243 92105-JT

GHP 5-13 C

BOSCH

ar Technologies Consulting Applicable

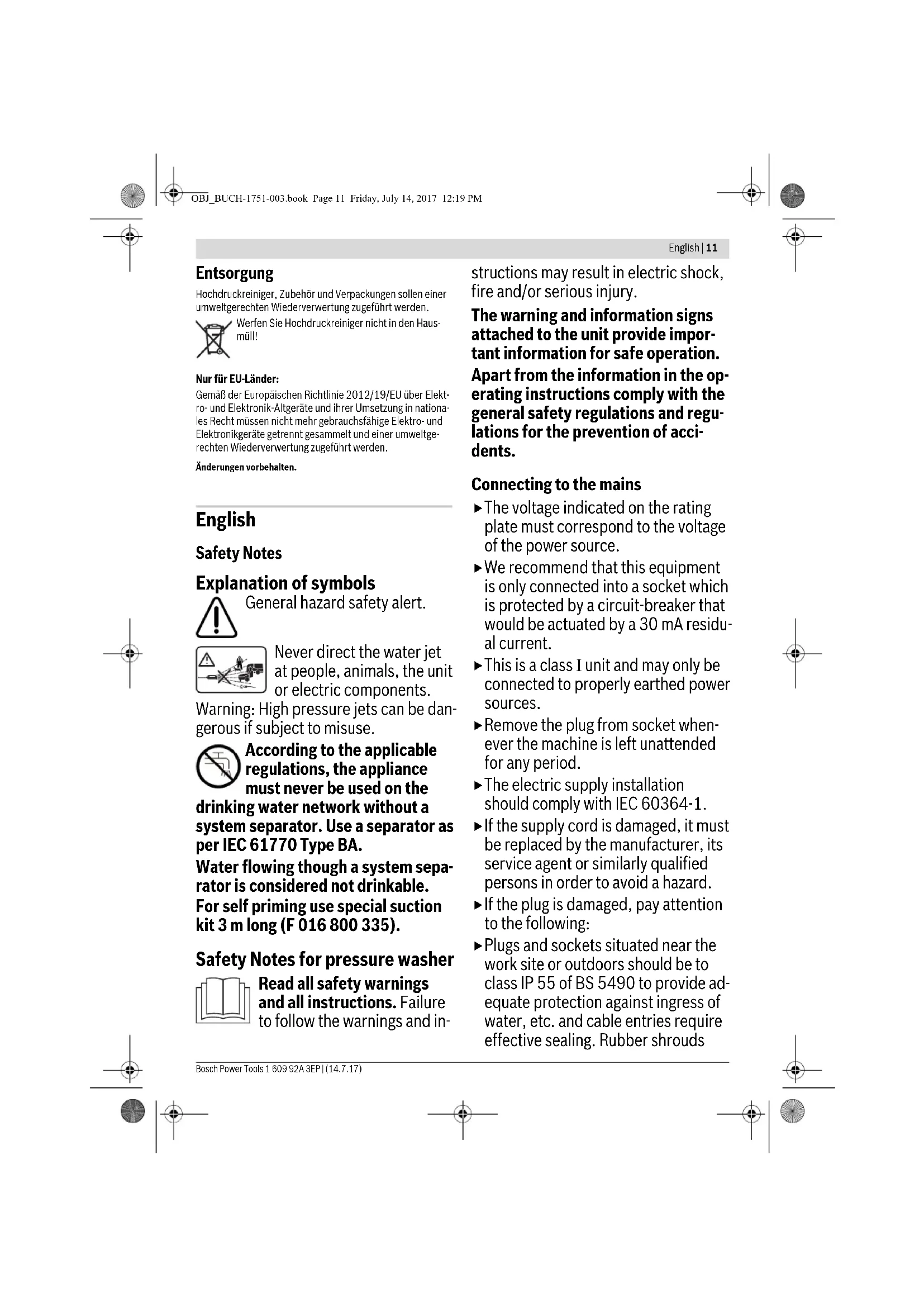

Explanation of symbols

General hazard safety alert.

Never direct the water jet at people, animals, the unit or electric components.

Warning: High pressure jets can be dangerous if subject to misuse.

According to the applicable regulations, the appliance must never be used on the drinking water network without a system separator. Use a separator as per IEC 61770 Type BA.

Water flowing though a system separator is considered not drinkable.

For self priming use special suction kit 3 m long (F 016 800 335).

Safety Notes for pressure washer

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

The warning and information signs attached to the unit provide important information for safe operation.

Apart from the information in the operating instructions comply with the general safety regulations and regulations for the prevention of accidents.

Connecting to the mains

▶The voltage indicated on the rating plate must correspond to the voltage of the power source.
▶ We recommend that this equipment is only connected into a socket which is protected by a circuit-breaker that would be actuated by a 30 mA residual current.
This is a class I unit and may only be connected to properly earthed power sources.
▶ Remove the plug from socket whenever the machine is left unattended for any period.
▶The electric supply installation should comply with IEC 60364-1.
▶ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
▶ If the plug is damaged, pay attention to the following:
▶ Plugs and sockets situated near the work site or outdoors should be to class IP 55 of BS 5490 to provide adequate protection against ingress of water, etc. and cable entries require effective sealing. Rubber shrouds

12 | English

should be provided over cable glands. Drip-proof (class IP X2 of BS 5490) plugs and sockets to BS 4343 are suitable for use indoors where the plug is away from the water spray area where the appliance is in use.

▶ Never touch the mains plug with wet hands.
▶ Do not pull plug while operating the device.
▶ Do not run over, crush or pull the power supply cord or extension cord, otherwise it may be damaged. Protect the cable from heat, oil and sharp edges.
▶ Do not use the unit, if the power supply cord or important parts, e. g. high-pressure hose, power gun or safety devices are damaged.
▶ Warning: Inadequate extension cords can be dangerous.
▶ If an extension cord is used, the plug and socket must be of watertight construction. The extension cord must have a cross section in accordance with the operating instructions and be protected against splashed water. The connection must not be in water.
▶When replacing plugs on the power supply cable or extension lead the spray water guard and mechanical stability must remain intact.

Water connection

▶ Comply with the regulations of your water supply company.
▶ All connecting hoses must have properly sealed joints.

▶The appliance should never be used on the drinking water supply without a back flow valve. Water which has passed the back flow valve is regarded as undrinkable.
The high-pressure hose must not be damaged (danger of bursting). A damaged high-pressure hose must be replaced immediately. Only use hoses and connections recommended by the manufacturer.
▶ High-pressure hoses, fittings and couplings are important for the safety of the appliance. Use only hoses, fittings and couplings recommended by the manufacturer.
▶ Only clean or filtered water should be used for intake.

Application

▶ Before use, check that the unit and operating equipment are in perfect condition and are safe to operate. Do not use the unit if it is not in perfect condition.
▶ Do not direct the jet against yourself or others in order to clean clothes or footwear.
▶ Do not use solvent-containing liquids, undiluted acids, acetone or solvents! This includes petrol, paint thinners, heating oil. The sprayed vapour is highly flammable, explosive and toxic.
▶The appropriate safety regulations must be observed when using the unit in dangerous areas (e.g. petrol stations). It is forbidden to operate the unit in potentially explosive locations.

English | 13

▶The unit must be placed on a solid base.
▶Take care if using the machine in a confined space ensuring that there is adequate ventilation. Ensure that all vehicles are switched off at all times whilst cleaning.
▶Operation of this machine requires both hands to be used at all times. Do not operate from a ladder. Take care when using the machine on balconies or other raised areas ensuring that you can see any edges at all times.
▶ Only use detergents recommended by the manufacturer. Comply with the application, disposal and warning instructions of the detergent manufacturers.
▶ All current-conducting components in the working area must be protected against splashed water.
▶The gun trigger must not be jammed in position "ON" during operation.
▶Wear suitable protective clothing to protect against splash water. Do not use the machine in reach of persons, unless these are also wearing protective clothing.
▶If necessary wear personal protective equipment (PPE) e. g. safety goggles, breathing protection etc to protect against water, particles and/or aerosols sprayed back from parts.
▶ During use of high pressure cleaners, aerosols may be formed. Inhalation of aerosols can be hazardous to health.
▶ High pressure may cause objects to rebound. If necessary wear suitable

personnel protective equipment such as safety goggles.

▶ Vehicle tyres/tyre valves may only be cleaned from a minimum distance of 30 cm in order to avoid damages by the high-pressure jet. The first indication of damage is the discolouration of the tyre. Damaged vehicle tyres/tyre valves are dangerous to life.
▶ Materials containing asbestos and other materials which contain substances which are hazardous to your health must not be sprayed.
▶ Detergents must not be used undiluted. The products are safe to use as they contain no acids, alkalis or substances which are detrimental to the environment. We recommend that the detergents are kept out of the reach of children. If detergent comes into contact with the eyes, wash immediately with plenty of water and if swallowed contact a doctor immediately.
▶ Never use the power washer without water filter, or with a contaminated or damaged water filter. Using the power washer without water filter or with a contaminated or damaged water filter shall void the warranty.
▶ Metal parts may become hot after prolonged usage, if necessary wear protective gloves.
- Avoid high pressure washing in bad weather conditions especially when there is a risk of lightning.

14 | English

Operation

The operator must use the unit in accordance with the regulations. He/she must take local conditions into account and be aware of other people, especially children, when operating the unit.
The unit may only be used by authorised persons who have received training or have demonstrated their ability to operate the unit. The unit must not be operated by children or juveniles (danger of accidents due to incorrect use of the unit).
▶ Never allow children, persons with physical, sensory or mental limitations or a lack of experience and/or knowledge and/or people unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator.
▶Children should be supervised to ensure that they do not play with the machine.
▶The unit must never be left unsupervised while the unit is switched on.
▶The water jet from the high-pressure nozzle produces a recoil on the gun. You should therefore hold the gun and spray lance firmly with both hands.

Transport

▶ Switch off the motor and secure the unit before transporting.

Maintenance

▶ Switch off the unit prior to all cleaning and maintenance work and before replacing components. Pull out the mains plug if the unit is mains-operated.
▶ Repairs may only be carried out by authorised Bosch Service Centres.

Accessories and spare parts

▶Accessories and spare parts which have been approved by Bosch must be used. Original accessories and spare parts guarantee that the unit can be operated safety and without any breakdowns.

Symbols

The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the machine in a better and safer manner.

Symbol Meaning

	Movement direction
	Weight
	On
	Off
Lo Low pressure
Hi High pressure
	Accessories

Intended Use

The product is intended for cleaning areas and objects outside the house, tools, vehicles and boats, if the appropriate accessories such as cleaning agents approved by Bosch are used.

Intended use is related to operation within 0°C and 40°C ambient temperature.

Technical Data

Pressure washer GHP 5-13 C
Article number	3 600 J10 0..
Rated power	kW 2.3
Supply temperature max.	°C 50
Supply rate min.	l/min 8.3
Rated pressure	MPa 13
Max. operating pressure	MPa 14
Rated Flow	l/min 8.3
Maximum inlet pressure	MPa 1
Kickback force at the gun to the maximum pressure	N 22.11
Motor insulation	Class F
Motor protection	IPX5
Detergent tank	-
Autostop function	●
Net impedance	Ω 0.358
Weight according to EPTA-Procedure 01:2014	kg 16.5
Protection class	± /I
Serial number	See serial number (rating plate) on pressure washer.

The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary. Starting cycles generate brief voltage drops. Interference with other equipment/machines may occur in case of unfavourable mains system conditions. Malfunctions are not to be expected for system impedances below 0.358 ohm.

Noise/Vibration Information

Sound emission values determined according to EN 60335-2-79.

Typically the A-weighted noise levels of the product are: Sound pressure level 81.8 dB(A); sound power level 90 dB(A). Uncertainty K = 3 dB.

Wear hearing protection!

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60335-2-79: a_h=3.12 m/s^2, K=1.5 m/s^2

Mounting and Operation

Action Figure Page
Delivery Scope	1 234

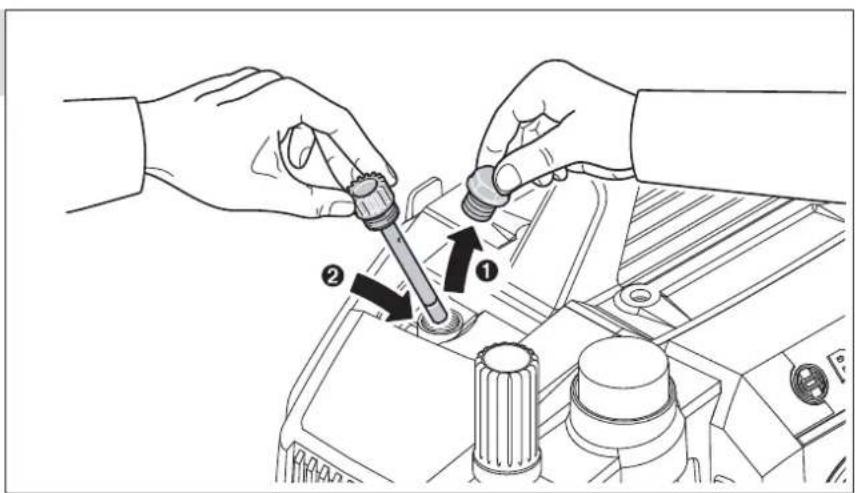

Insert dip stick for ventilation	2 234
Connect detergent bottle	3 235

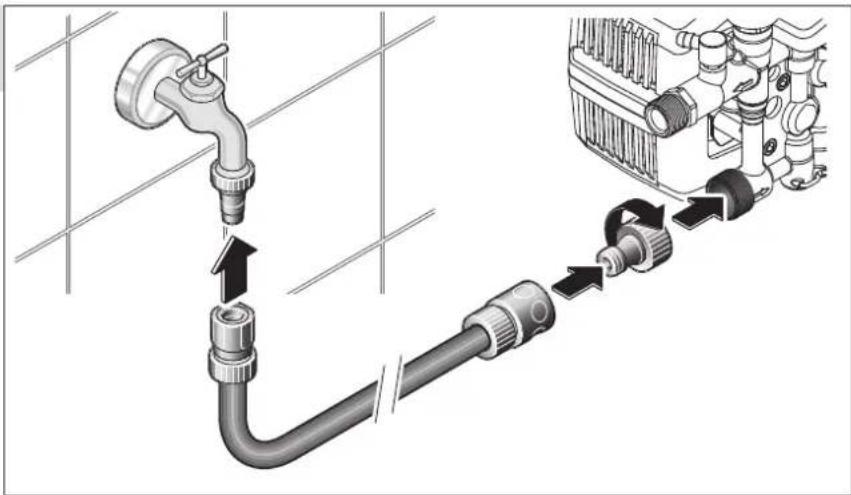

Connecting to the water supply	4 235

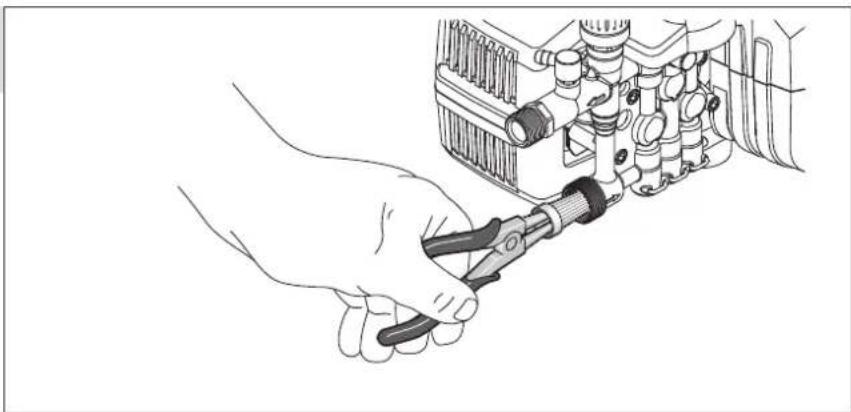

Clean the water filter	5 235

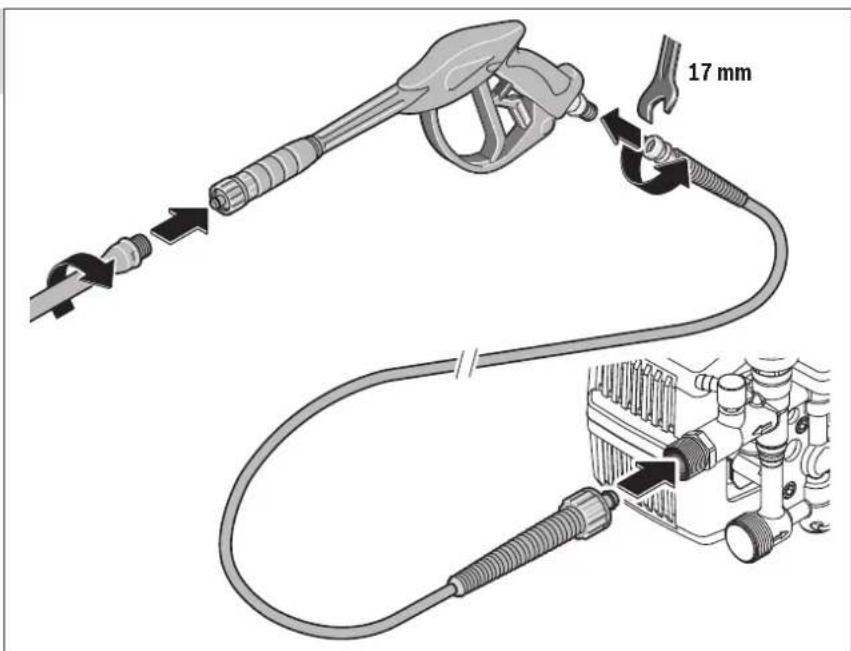

Connecting high pressure water supply hose/nozzle	6 236

Action Figure Page

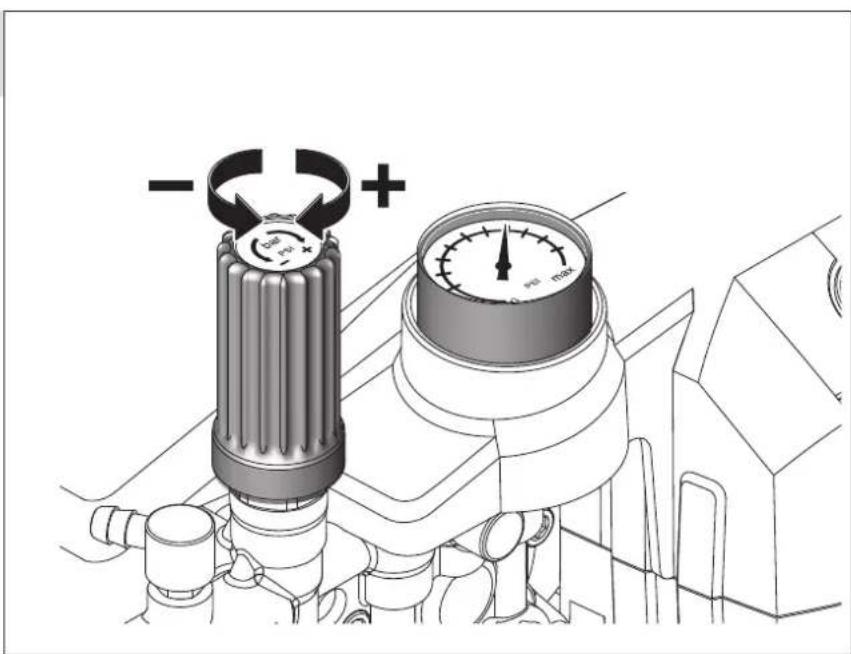

Adjust water pressure 7 236

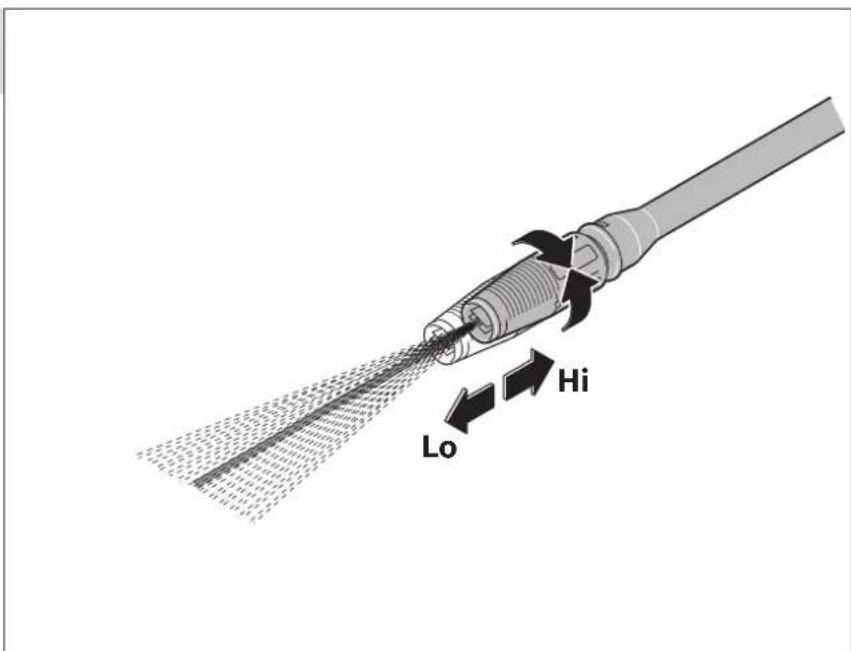

Adjust water jet	8 237

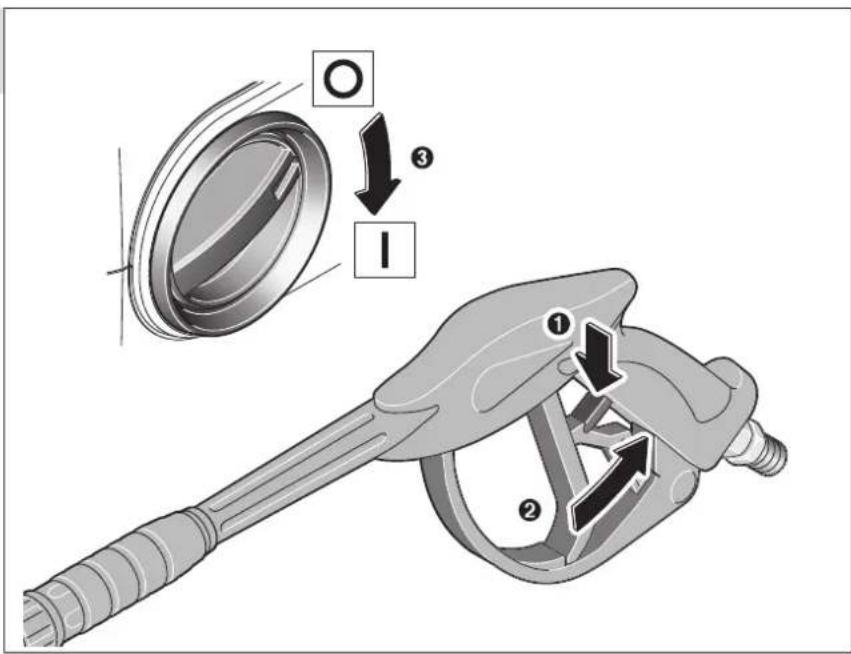

Switching On and Off	9 237
Working Advice	10	238

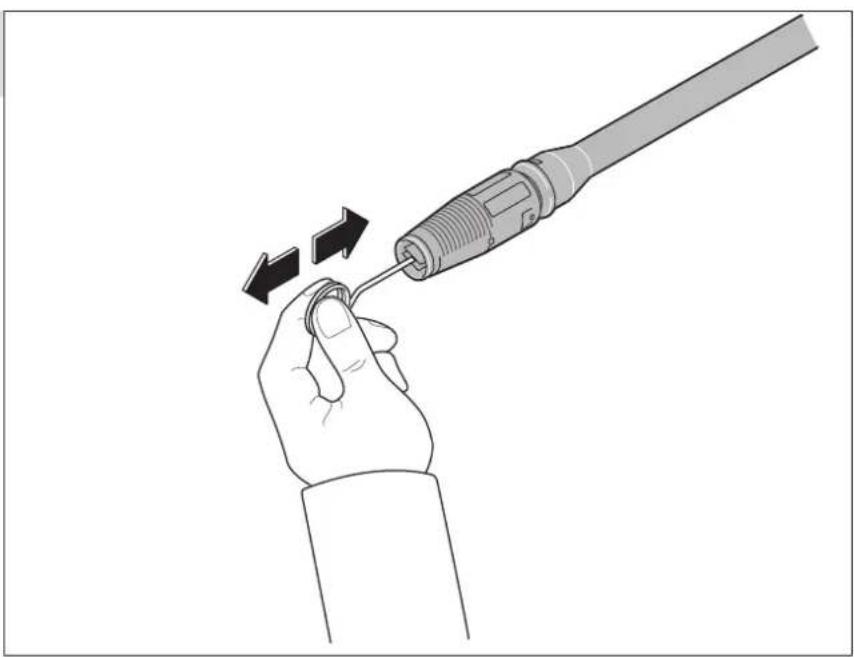

Clean nozzle	11	238

Starting

For Your Safety

Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled.

Your machine is double insulated for safety and requires no earth connection. The operating voltage is 230 V AC, 50 Hz (for non-EU countries 220 V, 240 V as applicable).

For increased electrical safety use a Residual Current Device (RCD) with a tripping current of not more than 30 mA. Always check your RCD every time you use it.

The supply cables must be inspected for signs of damage at regular intervals and may only be used if in perfect condition. If the replacement of the supply cord is necessary, this has to be done by Bosch or an authorized Bosch service agent in order to avoid a safety hazard.

Only use approved extension cables.

WARNING! Inadequate extension cables can be dangerous. Extension cable, plug and socket must be of watertight construction and intended for outdoor use.

Extension cords, cables, leads, reels should only be used if they comply with EN 61242/IEC 61242 or IEC 60884-2-7.

If you want to use an extension cable when operating your product, only the following cable dimensions should be used: - Nominal Conductor Area of 1.5mm^2 to a max. cable length of 20m for a Cord Extension Set

The connections (plugs and sockets) should be kept dry and off the ground.

It is recommended that this is accomplished by means of a cord reel which keeps the socket at least 60 mm above the ground.

Note: If an extension cable is used it must be earthed and connected through the plug to the earth cable of your supply network in accordance with prescribed safety regulations.

Refer to the instruction manual of the extension cord, lead, reel manufacturer and your local wiring regulations.

If in doubt contact a qualified electrician or the nearest Bosch Service Centre.

For products not sold in GB:

WARNING: For your safety, it is required that the plug attached to the product is connected with the extension cord. The coupling of the extension cord must be protected against splash water, be made of rubber or coated with rubber. The extension cord must be used with a cable strain relief.

16 | English

Products sold in GB only: Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362).

If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug.

The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Products sold in AUS and NZ only: Use a residual current device (RCD) with a rated residual current of 30 mA or less.

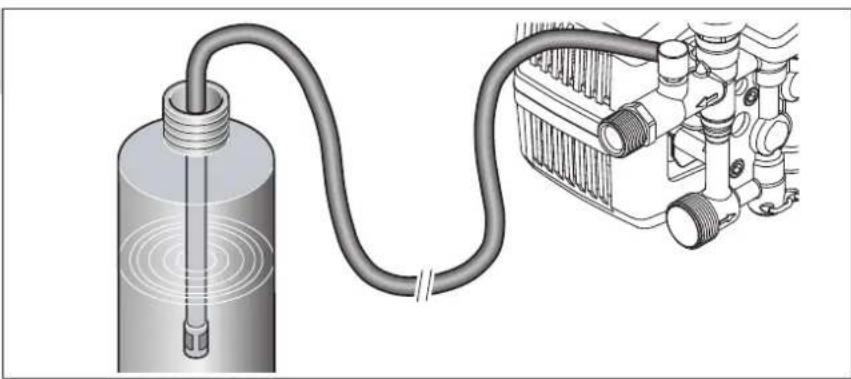

Drawing in water from open reservoirs

- Screw the suction hose with filter (special suction kit part no. F 016 800 335) to the water connection.

- Switch on the appliance in low pressure mode.

- Let the appliance run for appx. 10 seconds, then switch off. Repeat the procedure a couple of times until water exiting is smooth and bubble free.

To prevent damage to the appliance, do not allow it to operate dry.

Operation

Starting

Attach water supply hose (not supplied) to the mains water supply and machine.

Connect the product to the mains supply ensuring that the mains switch is in the off position.

Open water tap.

Press the safety lock to release the trigger. Fully press the trigger until there is a constant flow of water to clear the air from the machine and water supply hose. Release trigger. Point the power gun downwards. Press the trigger safety lock to release the trigger. Fully press the trigger.

Operate on/off switch.

Autostop function

The machine is designed to switch off the motor when the trigger is released on the gun.

Working Advice

General

Ensure that the pressure washer is on level ground.

Do not overreach with the high pressure hose or move the pressure washer by pulling the hose, this could cause the machine to become unstable and fall over.

Do not kink or drive a motor vehicle over the high pressure hose. Do not expose the high pressure hose to sharp edges or corners.

Never use a roto nozzle to clean motor vehicles.

Do not tamper with or adjust the safety valve setting.

Dip stick

The pressure washer is delivered with an oil cap for storing the product, and an oil ventilated cap with an oil dip stick, to be used when the product is operated.

Working advice for cleaning with detergents

▶ Only use cleaning agents suitable specifically for high pressure washers.

We recommend that you use detergent sparingly for the sake of the environment. Observe the recommended dilution on the detergent label.

By offering you an individualised range of cleaning and preserving agents, Bosch guarantees troublefree operation of the unit.

Recommended cleaning method

Step 1: Loosening dirt

Spray on detergent sparingly and allow to react for a short time.

Step 2: Removing dirt

Spray off the loosened dirt with the high-pressure spray.

Note: When cleaning vertical surfaces, apply the detergent from bottom to top. When rinsing off, work from top to bottom.

Troubleshooting

Problem Possible Cause Corrective Action

Motor refuses to start Plug not connected Connect plug

Mains socket faulty Use another socket

Fuse faulty/blown Replace fuse

Extension cable damaged Try without extension cable

Motor protector has activated Allow to cool for 15 minutes

Frozen Wait for pump/water supply hose/acces

sory to thaw

English | 17

Problem	Possible Cause	Corrective Action
Motor stops Fuse faulty/blown Replace fuse
	Wrong mains voltage Check that mains voltage corresponds to specifications on the model tag
	Motor protector has activated Allow to cool for 15 minutes
Fuses blow Fuses incorrectly rated Change to a mains supply higher than the pressure washer amp consumption
Motor starts but no pressure Nozzle partly blocked Clean nozzle
Motor "sounds" but fails to start Insufficient power supply Check that the voltage of the mains pow-er supply line is the same as that on the plate
	Voltage loss due to use of extension cable	Check characteristics of extension cable
	Appliance not used for a long period of time	Contact your Bosch Service Centre
	Problems with TSS (Total Stop System) device	Contact your Bosch Service Centre
Pressure pulsating	Air in the inlet water supply hose/pump	Allow pressure washer to run with open spray handle and nozzle at low pressure until regular working pressure is obtained
	Inadequate water supply	Check that the water supply corresponds to specifications. The minimum specifica-tion for the water supply hose is 1/2" or 13 mm diameter
	Water filter blocked	Clean water filter
	Water supply hoses squeezed	Straighten out kinked water supply hoses
	High pressure hose too long	Remove high pressure extension hose. Retry (extension hose max. 7 m)
Pressure too low, but steady	Nozzle worn	Change the nozzle
Note: Several types of accessory will nor-mally deliver a lower pressure	Start/stop valve worn	Activate trigger five times in quick suc-cession
Motor starts up but with restricted or no working pressure	No water supply	Connect water supply
	Water filter clogged up	Clean the water filter
	Nozzle clogged up	Clean nozzle
The pressure washer starts irregularly by itself	Pump/spray gun leaky	Contact your Bosch Service Centre
Water leaks from machine	Leaking pump	A slight water leak is permissible; in case of excessive leak, contact Bosch Service Centre
No detergent taken in Adjustable nozzle on high pressure set-ting		Set nozzle on "Lo" setting
		Detergent too dense
		High pressure hose extension being used
		Deposits or restriction in detergent cir-cuit

Maintenance and Service

Maintenance

▶ Stop, remove plug from the power supply and disconnect from water supply.

Note: To ensure long and reliable service, carry out the following maintenance regularly.

Bosch Power Tools 1 609 92A 3EP | (14.7.17)

Regularly check for obvious defects such as loose fixings, and worn or damaged components.

Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using.

18 | English

After use/Storage

Clean the exterior of the machine thoroughly using a soft brush or cloth. Do not use water, solvents or polishes. Remove all debris, especially from the ventilation slots.

End of season storage: Drain water out of pump running motor for a few seconds. Pull trigger to release all water.

Do not place other objects on top of the machine.

Ensure cables are not trapped when storing. Do not kink high pressure hose.

After-sales Service and Application Service

www.bosch-do-it.com

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the machine.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch-pt.com.au

www.bosch-pt.co.nz

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Environmental Protection

Chemicals dangerous to the environment must not be allowed to enter the ground, ground water or ponds, streams, etc. For the use of cleaning agents, observe the instructions on the package and the prescribed concentration exactly.

For the cleaning of motor vehicles the local regulations should be observed: Do not allow oil sprayed off to enter into the ground water. Recycle raw materials instead of waste disposal.

Disposal

The pressure washer, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of pressure washers into household waste!

Only for EC countries:

According to the European directive 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national law, electrical and electronic equipment that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

Subject to change without notice.

Français | 19

Français

Robert Bosch (France) S.A.S.

Stap 1: Vuil losmaken

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

Miljøbeskyttelse

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

Miljöskydd

Robert Bosch Sp. z o.o.

BSC

Ul. Szyszkowa 35/37

02-285 Warszawa

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

Service scule electrice

Strada Horia Măcelariu Nr. 30-34, sector 1

013937 Bucureşti

Service scule electrice

Strada Horia Măcelariu Nr. 30-34, sector 1

013937 Bucureşti, România

www.bosch-pt.com/bg/bg/

OBJ_BUCH-1751-003.book Page 199 Friday, July 14, 2017 12:19 PM

Eesti|199

Central Motors & Equipment LLC

1984:البريد

Malatan Trading & Contracting LLC

131:البريد

سلطنة عمان

[phone]: ماتف

International Construction Solutions W L L

البريد: 51 الدوحة

قطر

[phone]: هاتف

974 4453 8585:فاكس

Illustration of a Bosch electric shock absorber with attached hoses and components (no text or symbols)

2

Technical diagram showing car engine component inspection with labeled parts 1 and 2

3

Diagram of a mechanical device connected to a cylindrical tank with tubing, showing internal components and wiring (no text or labels)

4

Diagram showing pipe connection with valve and hose assembly, including directional arrows indicating flow or movement.

5

Line drawing of hands using a pliers to adjust internal components (no text or symbols)

236

6

17 mm

7

- + 100%

1 609 92A 3EP | (14.7.17) Bosch Power Tools

8

Hi Lo

9

Diagram illustrating the step-by-step installation of a fuel pump, showing valve assembly and valve turning process.

Bosch Power Tools 1 609 92A 3EP | (14.7.17)

OBJ BUCH-1751-003.book Page 238 Friday, July 14, 2017 12:19 PM

238

10

Line drawing of a person spraying water with a spray can and a cross symbol (no text or labels)

11

Illustration of a hand holding a cable with a connector inserted, showing two arrows indicating direction (no text or symbols present)

1 609 92A 3EP | (14.7.17) Bosch Power Tools

CE
1

de	EU-KonformitätserklärungHochdruckreiniger Sachnummer	Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen.
en	EU Declaration of ConformityPressure washer Article number	We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.
fr	Déclaration de conformité UENettoyeur haute N° d'article pression	Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.
es	Declaración de conformidad UELimpiadora de alta N° de artículo presión	Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las Directivas y los Reglamentos mencionados a continuación y están en conformidad con las siguientes normas.
pt	Declaração de Conformidade UELimpador de alta N.° do produto pressão	Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.
it	Dichiarazione di conformità UEIdropulitrice Codice prodotto	Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle Direttive e dei Regolamenti elencati di seguito, nonché alle seguenti Normative.
nl	EU-conformiteitsverklaringHogedrukreiniger Productnummer	Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordeningen en overeenstemmen met de volgende normen.
da	EU-overensstemmelseserklæringHøjtryksrenser Typenummer	Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestimmelser i følgende direktiver og forordninger og opfylder følgende standarder.
sv	EU-konformitetsförklaringHögtryckstvätt Produktnummer	Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningarnas och att de stämmer överens med följande normer.
no	EU-samsvarserklæringHøytrykkspyler Produktnummer	Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestimmelser i direktivene og forordningene nedenfor og med følgende standarder.
fi	EU-vaatimustenmukaisuusvakuutusPainepesuri Tuotenumero	Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivi-en ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia.
el	Δήλωση πιστότητας ΕΕΠλυντικό υψηλής Αριθμός πίεσης ευρετηρίου	Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα.
tr	AB Uygunluk beyaniYüksek basınçlı te-mizleyici Ürün kodu	Tek sorumlu olarak, tanimlanan ürünün aşağıdaki yönetmelik ve direktiflerin geçerli bütün hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan ederiz.
pl	Deklaracja zgodności UEMyjka Numer wysokociśnieniowa katalogowy	Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporządzeń, oraz że są zgodne z następującymi normami.
cs	EU prohlášení o shoděVysokotlaký čistič Objednací číslo	Prohlašujeme na výhradní zodpovědnost, že uvedený výrobek splňuje všechna příslušná ustanovení niže uvedených směrnic a nařízení a je v souladu s následujícími normami:
sk	EÚ vyhlásenie o zhodeVysokotlakový čistič Vecné číslo	Vyhlasujeme na výhradní zodpovednosť, že uvedený výrobok splňa všetky príslušné ustanovenia nižšie uvedených smerníc a nariadení a je v súlade s nasledujúcími normami:
hu	EU konformitási nyilatkozatNagynyomású tisz-tító Cikkszám	Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnek az alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyi idevágó előírásainak és megfelelnek a következő szabványoknak.

II			CE
ru	Заявление о соответствии ЕСОчиститель Товарный Noвысокого давления	Мы заявляем под нашу единоличную ответственность, что названныепродукты соответствуют всем действующим предписаниям нижеуказанныхдиректив и распоряжений, а также нижеуказанных норм.
uk	Заява про відповідність ЄССОчищувач Товарний номервисокого тиску	Мизаявляємо під нашу одноособову відповідальність, що названі виробивідповідають усім чинним положенням нищеозначених директив ірозпоряджень, а також нижчеозначеним нормам.
kk	ЕО сәйкестік мағлүмдамасыЖоғары қысым Өнім нөмірітазалағыш	Өз жауапкершілікпен біз аталған өнімдер төменде жзылған директикалармен жарлықтардың тиісті қағидаларына сәйкестігін және төмендерінормаларға сай екенін білдіреміз.
ro	Declarație de conformitate UEMașină de curățat Număr deсу інaltă presiune identificare	Declarăm pe proprie răspundere că produsele menționate corespund tuturordispozițiilor relevante ale directivelor și reglementărilor enumerate în cele ceurmează și sunt în conformitate cu următoarele standarde.
bg	ЕС декларация за съответствиеВодоструйнамашина Каталоженномер	С пълна отговорност ние декларираме, че посочените продукти отговарят навсички валидни изисквания на директивите и разпоредбите по-долу исъответства на следните стандарти.
mk	EU-Изјава за сообразностВисокопритиснапералка Број на дел/артикл	Со целосна одговорност изјавуваме, дека опишаните производи се восогласност со сите релевантни одредби на следните регулативи и прописи иссе во согласност со следните норми.
sr	EU-izjava o usaglašenostiUredjaj za čišćenje Broj predmetavisokim pritiskom	Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovaraju svímdotičnim odredbama naknadno navedenih smernica u uredaba i da su u skladu sasledećim standardima.
sl	Izjava o skladnosti EUVisokotlačni čistilec Številka artikla	Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu z vsemirelevantnimi določili direktiv in uredb ter ustreza naslednjim standardom.
hr	EU izjava o sukladnostiVisokotlačni uredaj Kataloški br.za čišćenje	Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovaraju svimrelevantnim odredbama direktiva i propisima navedenima u nastavku i da su su-kladni sa sljedećim normama.
et	EL-vastavusdeklaratsioonKõrgsurvepesur Tootenumber	Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt loetletuddirektiivide ja määruste kõikidele asjaomastele nõuetele ja on kooskõlas järgmis-te normidega.
lv	Deklarăcija par atbilstibu ESstandartiemAugstspiediena Izstrădăjumanitirîtăjs numurs	Mês ar pilnu atbildību paziņojam, ka šeit aplūkotie izstrădājumi atbilst visiemtălăk minėtajăs direktivăs un rikojumos ietvertajăm saistošajăm nostădnăm, kăari sekojošiem standartiem.
lt	ES atitikties deklaracijaAukšto slėgio plovi-mo jrenginys Gaminio numeris	Atsakingai pareiškiame, kad išvardyti gaminiai atitinka visus privalomus žemiaunurodytų direktyvų ir reglamentų reikalavimus ir šiuos standartus.
	GHP 5-13 C	3 600 J10 0..	2011/65/EU2014/30/EU2006/42/EC2000/14/ECEN 60335-1:2012+A11:2014EN 60335-2-79:2012EN 55014-1:2006 + A1:2009 + A2:2011EN 55014-2:2015EN 61000-3-2:2014EN 61000-3-11:2000EN 50581:2012

CE

III

en 2000/14/EC: Measured sound power level 90 dB(A), uncertainty K = 3 dB, guaranteed sound power level 93 dB(A); Conformity assessment procedure in accordance with annex V. Product category: 27 Technical file at: *

Chairman of Executive

Management

Helmut Heinzelmann

Head of Product Certification

i.v. h=mc

Robert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANY

Stuttgart, 06.05.2019
