USER MANUAL 82001 KORONA

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

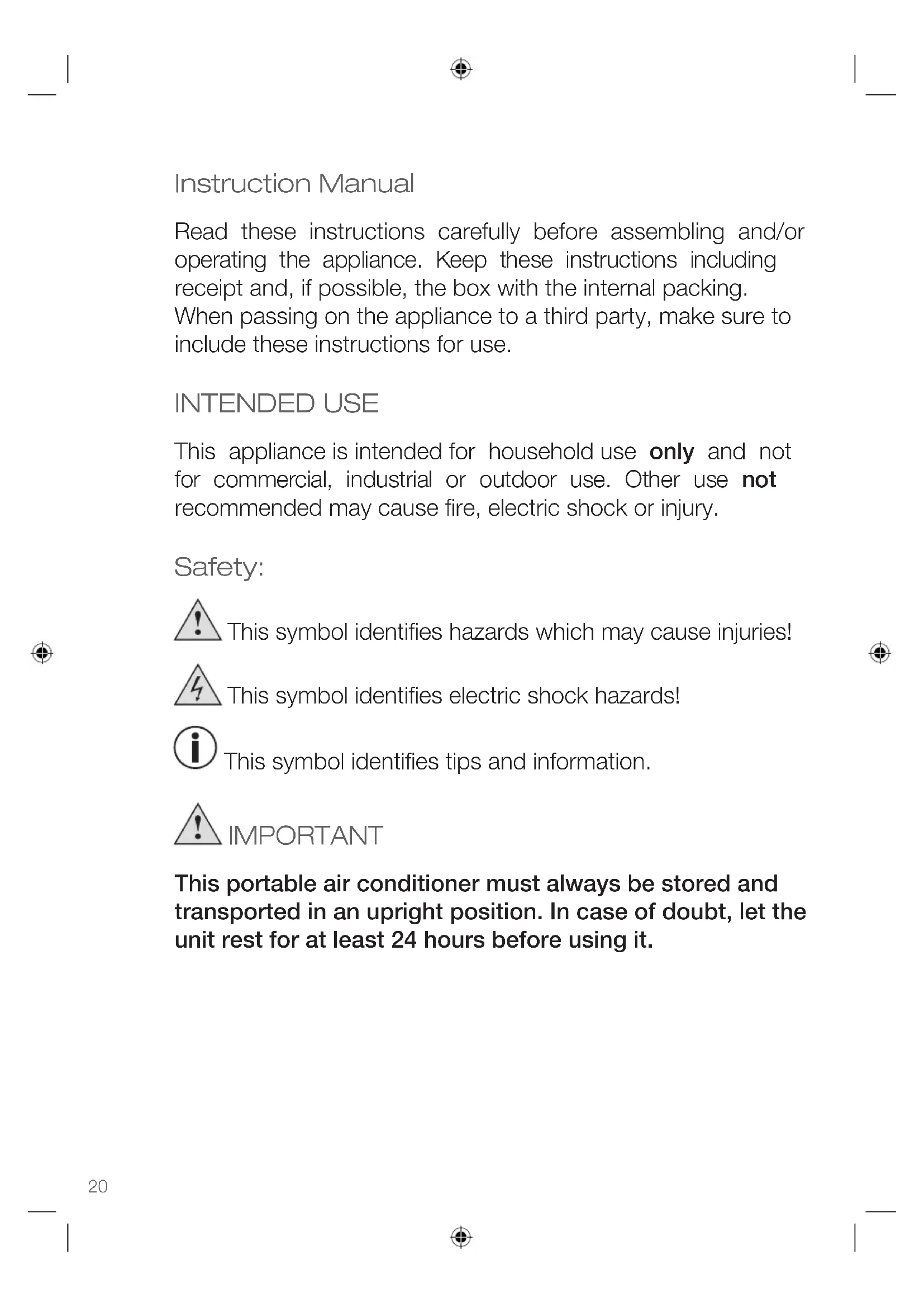

Bedienungsanleitung

Read these instructions carefully before assembling and/or operating the appliance. Keep these instructions including receipt and, if possible, the box with the internal packing. When passing on the appliance to a third party, make sure to include these instructions for use.

INTENDED USE

This appliance is intended for household use only and not for commercial, industrial or outdoor use. Other use not recommended may cause fire, electric shock or injury.

Safety:

This symbol identifies hazards which may cause injuries!

This symbol identifies electric shock hazards!

This symbol identifies tips and information.

! IMPORTANT

This portable air conditioner must always be stored and transported in an upright position. In case of doubt, let the unit rest for at least 24 hours before using it.

REFRIGERANT

The refrigerant used in this mobile air conditioner is R290. The refrigerant used is less than 1kg and is in a closed refrigerant circuit.

Caution, risk of fire! R290

Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification.

Any repairs you need, contact the nearest authorized Service Centre and strictly follow manufacturer's instruction only.

WARNING:

• Appliance shall be installed, operated and stored in a room with a floor area larger than 11m^2
• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
• Do not pierce or burn.
• Be aware that refrigerants do not have any odour.

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Always unplug your appliance when it is not in use, and before cleaning.

Always pull the plug - not the cord.
- Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
- Do not run cord under carpeting. Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use.
- Do not allow the cord to hang over sharp edges.
- Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
• if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.
• Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock and risk of burns.

• Only use the appliance for its intended purpose and as described in this manual.
• The air conditioner is only suitable for indoor use and is not suitable for other applications.

• Appliance shall be installed, operated and stored in a room with a floor area larger than 11m^2

• Do not operate your air conditioner in an extremely humid or wet environment, e.g. bathroom or laundry room.

• If you have any questions regarding the electrical installation, follow the instructions of the manufacturer, and if necessary, ask a professional electrician to install it.
• Place the appliance on an even, dry and stable surface and make sure to adhere to a safety distance of 50~cm around and above the appliance.

• Never place or operate the unit where it could be subject to:

• Heat sources such as radiators, heat registers, stoves or other products that produce heat

• Direct sunlight
• Excessive dust
• Mechanical vibration or shock
• Lack of ventilation
• Uneven surfaces, to avoid the tipping of the appliance during use

• Only operate the appliace with a filter in place

• Never cover the ventilation slots and make sure that the appliance is kept in a well ventilated place.

• Do not place any heat sources and magnetic objects near or on top of the appliance and make sure that the surrounding environment shall be dry and free of damp.

Provide occasional ventilation during use. Do not direct airflow at fireplaces or other heat related sources as this could cause flare ups or make units run excessively. Do not climb on or place objects on the unit. Do not hang objects off the unit. Do not place containers with liquids on the unit. Turn off the air conditioner at the power source when it will not be used for an extended period of time. Periodically check the condition of the unit's installation accessories for any damage. Do not apply heavy pressure to the radiator fins of the unit. Operate the unit with air filter in place. Do not block or cover the intake grille, discharge area and outlet ports. Ensure that any electrical/electronic equipment is one yard away from the unit. Do not use or store flammable gases near the unit. CAUTION! Avoid Injury or damage to the unit or other property.

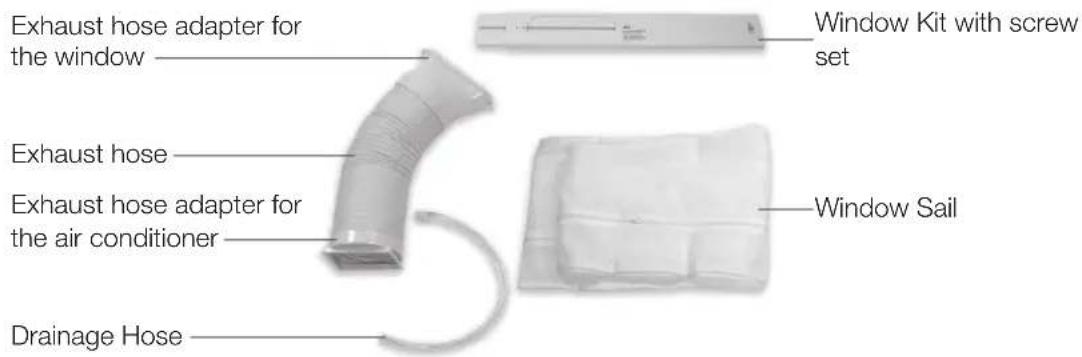

SCOPE OF DELIVERY

1 Portable Air Conditioner
1 Exhaust Hose
1 Exhaust Hose Adapter for the window
1 Exhaust Hose Adapter for the air conditioner
1 Window Kit + screws
1 Screws Set to secure the hose adaptor for window
1 Remote control (use 2 × AAA batteries, not included)
1 Drainage hose
1 Window Sail

The batteries for the remote control are not included in the scope of delivery!

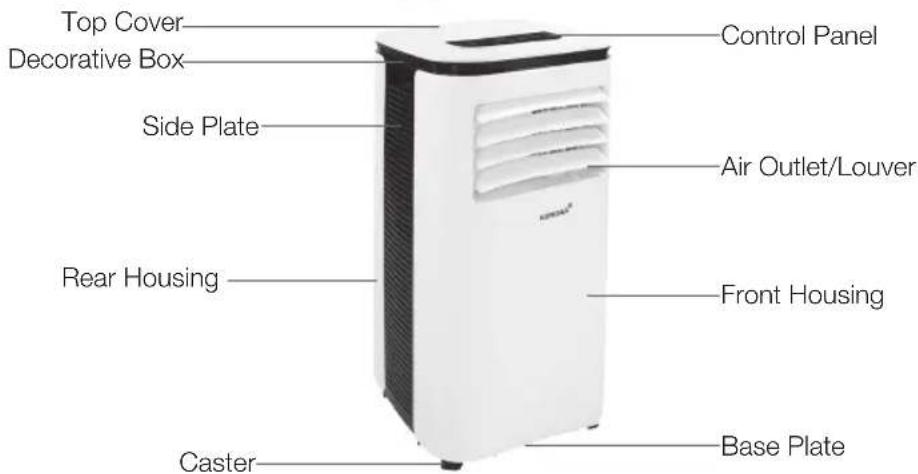

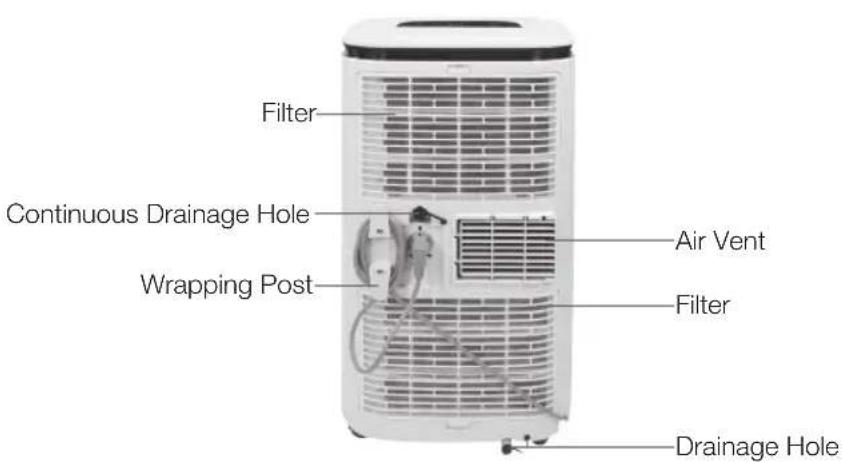

PRODUCT DESCRIPTION

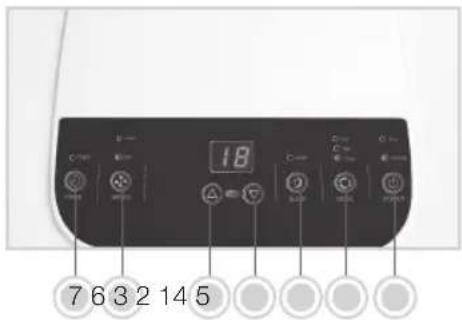

Control Panel

1. Power ON/OFF
2. Mode Key Switch between cooling, fan, and dehumidifying
3. Sleep
4. UP
5. DOWN
6. Speed
7. Timer

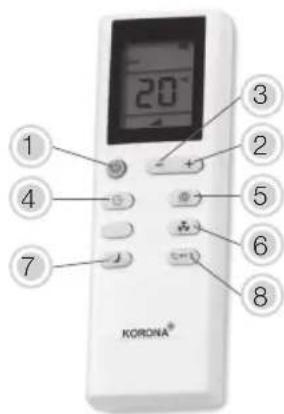

REMOTE CONTROL

1. Power: Press the the button to turn on or turn off the machine.
2. Press the + button to increase temperature and timing set value.
3. Press the button to reduce temperature and timing set value.
4. Timer: Press the button to set timing value.
5. Mode: Press the button to switch between cooling, fan and dehumidification mode.
6. Fan: Press the button to select high, and low wind speed output.
7. Sleep Mode: Press the button to turn on the sleep mode.

8. Press the button to switch between Celsius and Fahrenheit.

9. Make sure the distance between the appliance and the remote control is not more than 6 metres.

10. Aim the remote control at the appliance and make sure that the angle is less than 30 degrees.

BEFORE FIRST USE

• Remove all packaging material and check whether the appliance is complete and that all accessories are included.
• Fully unwind the power cord.
• Let the appliance rest for 24 hrs in upright position.

If any items are damaged or missing, contact your dealer or customer service.

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away from food suffocation.

INSTALLATION

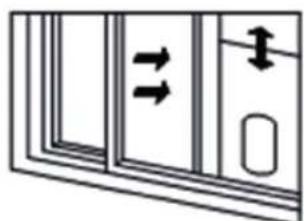

INSTALLATION OF THE WINDOW KIT (sliding window)

• Take the window kit and pull the inner part outside until the hole in the outer part is visible.
• Put the T-bolt from the screw set through the hole

• Push the parts of the window slide set back together, making sure the T-part of the T-bolt slides into the slit of the inner part of the windowslide set lengthwise. Screw the butterfly nut from the screw set loosely onto the T-bolt.

The window kit can be installed horizontally or vertically.

• Slide the window half open, and place the window kit in the frame.
• Extend the window slide set so the full width of the frame is being covered.
• Fasten the butterfly nut to fix the window slide set.

For all other types of windows, use the included window sail, instructions of use are included.

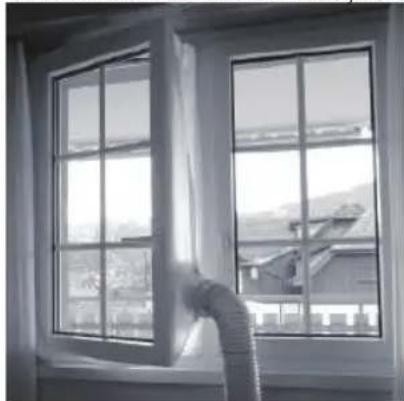

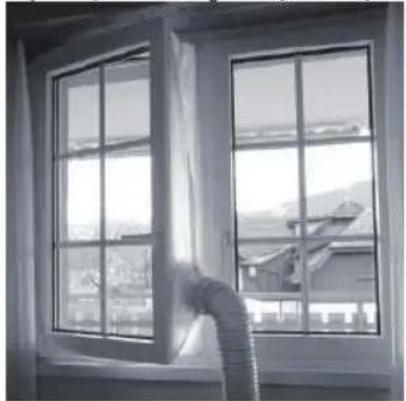

Installation instruction for Window sail

The window sail is fixed by velcro tape to the window frame and window case. The exhaust hose can then easily be fixed to the sail to ensure the hot air is channeled to the outside.

1. Unpack the window sail and remove all Velcro tape from packing.
2. Open the window and clean the area where you like to attach the Velcro tape to from dust, grease.
3. Double check your selected position of Velcro tape still enables you to open and close the window properly
4. Attach the Velcro tape to the window frame and the window case.
5. Attach the window sail to the Velcro tape accordingly.
6. Open the zipper to insert the exhaust hose. Make sure it is properly fixed.

Your window sail is now ready to use.

INSTALLATION OF EXHAUST HOSE

Warning: This appliance should only be connected to a properly installed wall socketed) and should not be operated by any means of an external timer or separate remoteol system.

1. Place the appliance on an even, dry and stable surface and close to a properly installed wall socket.

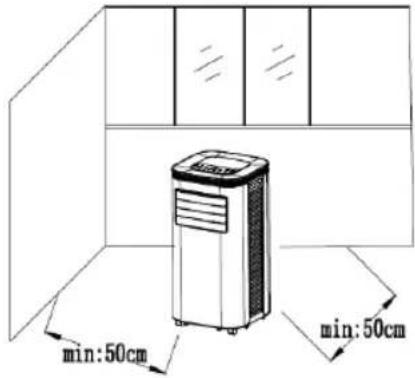

Adhere to a safety distance of at least 50~cm above and around the appliance.

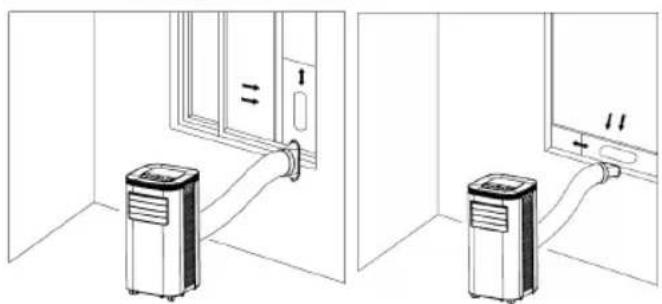

1. Place the appliance close to a window and properly installed wall socket.
2. Extend the ends of the exhaust hose and attach the window hose adapter at one end and the air condition adapter to the other end of the exhaust hose.

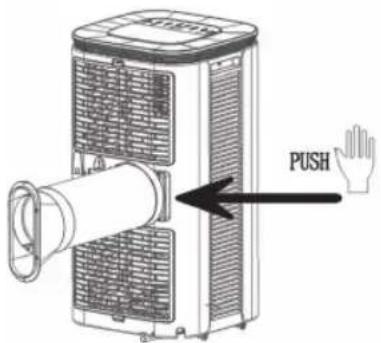

3. Extend the exhaust hose to its maximum and connect the air condition adapter to the appliance and lead the window adapter through the whole of the window kit respectively through the hole of the window sail (see window sail instructions)

ATTENTION: To prevent breaking of the exhaust hose, it can only be twisted or aimed to a certain limit. The maximal length of the exhaust hose is 150~cm . Do not use tensions or other exhaust hoses; this can cause serious malfunctions.

• To prevent overheating, the outlet of the device must not be blocked.

OPERATION

The appliance can be operated via the control panel or the remote control.

TURNING THE APPLIANCE ON / OFF

• Connect the appliance to a properly installed wall socket and make sure your local voltage matches the technical data of the appliance.
  -A beep sound is heard and on the display appears the current room temperature.
• Push the Power button and the appliance operates in the last used mode.
• If you use the appliance for the first time it is the cooling mode. The indicator light of the chosen mode lights up.

You can easily turn or move the appliance with the sturdy castor wheels to direct the airstream into the room.

• Turn off the appliance by pushing the Power button.
  -After use, disconnect the appliance from the mains.

By pressing the Mode key, your portable air conditioner can switch between the following operation modes: Cooling, Fan and Dehumidifying.

COOLING MODE

Press the Mode button once or repeatedly until the respective indicator light (cool) above the Mode button lights up.

The appliance in now functioning as an air conditioner

Use the UP and DOWN button to increase or decrease the temperature buttons.

The temperature setting ranges from 16^ to 31^ which will be indicated on the display.

Press the Speed button to switch between the desired speed level (low or high) of exhaust air.

The respective indicator light light up.

FAN MODE

Press the Mode button once or repeatedly until the respective indicator light (fan) above the Mode button lights up.

Press the Speed button to switch between the desired speed level (low or high) of exhaust air. The respective indicator light light up.

DEHUMIDIFYING MODE (DEHUM)

Press the Mode button once or repeatedly until the respective indicator light (dehum) above the Mode button lights up.

In this mode, the appliance operates in the lowest speed and will start to remove excess moisture from the air.

ATTENTION:

The appliance is fitted with an internal water collection tank. Once this container has reached its capacity the appliance stops functioning and the indicator light "water full" lights up on the control panel.

If you wish to continue using the appliance, the water container needs to be emptied.

Please follow the steps under CLEANING AND CARE - Emptying the Water Tank.

SLEEPING MODE

The device has a sleep function. If you turn on this function, the device will operate in its most silent and energy saving mode. Attention: the sleep function only works in the "COOL" mode.

1. Press the button "sleep" to turn on the sleep function. The device switches to the lowest and most energy saving mode.
2. Press the button "sleep" again to turn off the sleep function.

TIMER MODE

On hot days, the timer mode enables you to arrive home and find a nice and cooled down room.

AUTOMATIC TURN ON TIME

When in Off mode:

Press the Timer button and the display starts blinking.

Use the UP or Down button to select the desired switch on time. The time setting ranges from

1 to 24 hours.

Once the switch on time is set, the display stops blinking.

If needed, press the Timer button again to adjust the switch-on time.

To switch off the timer function, simply press the Timer button again.

AUTOMATIC TURN OFF TIME

When in Power On mode:

Press the Timer button and the display starts blinking.

Use the UP or Down button to select the desired switch off time. The time setting ranges from

1 to 24 hours.

Once the switch of time is set, the display stops blinking.

Press the Timer button again to change the switch off time if desired.

To switch off the Timer function, simply press the Timer button again.

The indicator lights up and timer is set.

CLEANING AND CARE

Clean the air conditioner and filters regularly to maximize performance and efficiency, and to prolong the appliance's life.

Before cleaning, always switch off the appliance and disconnect it from the mains.

Never immerse the appliance in water. Danger! Electric Shock!

• Clean the appliance using a soft damp cloth.

Never use alcohol, gasoline, and/or any other aggressive cleaning agents/hard objects may damage the appliance exterior. Never spray water directly onto the unit.

To remove dust between the vents, use a soft brush or carefully use the vacuum cleaner.

EMPTYING THE WATER TANK

The device has an internal water collection tank. Once, the capacity of water tank is reached, the appliance stops operating and the indicator light on the control panel "water full" lights up.

In order to empty the water tank, turn off the appliance and disconnect it from the mains.

• Place the appliance device on an elevation, and place a bucket or any other kind of container underneath the drainage.

• Remove the lid from the drainage hole to remove the water from the appliance.

ATTENTION:

• Keep the appliance upright and carefully move the appliance to avoid water spillage over the brim of the water collection tank. During the water emptying process, you can slightly slant the appliance in order to remove all water from the water tank.
• If the capacity of the used bucket is not enough to collect all the water, reattach the lid to the drainage hole, empty the bucket and repeat the steps until the water tank is completely empty.

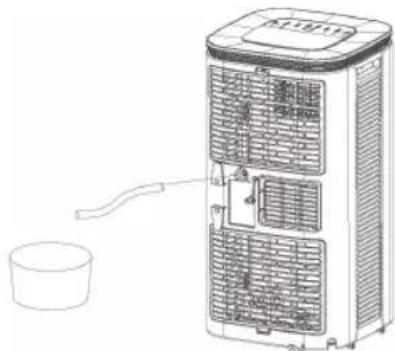

CONTINUOUS DRAINAGE

Continuous Drainage can only be used if the appliance is set to Dehumidifying (Dehum) Mode!

• Turn off the appliance and disconnect it from the mains.
• Remove the lid from the continuous drainage hole.
• Properly attach the drainage hose to the continuous drainage hole and make sure that the end of the hose is placed into a proper water collection container, e.g. bucket or bigger.
• Turn on the appliance and follow th steps as described in this manual.

Cleaning the Filter

For an optimal result, clean the filter every two weeks, and replace it at least 1x per year, or more often is necessary.

The filter should also be cleaned before storing it for a longer period of time or after it hadn't been used over a prolonged period of time.

• Switch off the appliance and disconnect it from the mains.
• Loosen the screw with a cross-head screwdriver to remove the filter from the back of the appliance.
• Rinse the filter with lukewarm water, or if necessary, let it soak for a while in soapy water and rinse again to get rid of any cleaning residue.

Before reattaching the filter make sure that it is properly dry otherwise this may cause an electric shock or injury to the user due to water entering the appliance.

STORAGE

Keep the appliance away from children and store it in a clean and dry place.

If you are not going to use the appliance for an extended period of time:

• Switch off the unit and disconnect it from the mains.
• Drain the water from the water tank and operate the appliance in fan mode for a few hours to thoroughly dry any moisture left on the coils inside the unit.
  Clean the filters.
• Remove the exhaust hose and adapters and

Keep the appliance away from children and store it in a clean and dry place.

Problem Possible cause Solution

The airconditioning is not functioning	There is no electricity The room temperature is lower than the set cooling temperature. In the cooling mode: the room temperature is too low or too high In the dehumidifying mode: the room temperature is too low. The device is standing in sunlight.	Check whether the socket the device is connected to, has electricity Change the set cooling temperature The device optimally functions at a room temperature between 7°C and 35°C The device optimally functions at a room temperature of 17°C and higher Move the device into the shade
Cooling is not functioning properly	Doors or windows are open Central heating or other sources of heat The filter is dirty or clogged The inlets or outlets are blocked.	Close open doors and windows Turn off the heating Clean the filter Remove obstructions.
The device makes a lot of noise	The device is not placed on a stable and flat surface.	Place the device on a stable and flat surface
Compressor does not function	The device is overheated Wait	a couple of minutes until the temperature has lowered and restart the device
Remote control does not work	The batteries are empty The distance between device and remote control is too big. The remote control is not aimed at the device	Replace the batteries Stand closer to the device Aim the remote control at the device
Display indicates 'E1' The outlet temperature sensor does not function properly		Have the outlet temperature sensor checked by a professional
Display indicates 'E2' The room temperature sensor does not function properly		Have the room temperature sensor and switches checked by a professional

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your dehold waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Portable Air Conditioner 82001 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Disposal Instruction For Batteries

Standard and rechargeable batteries should not be thrown into regular household waste. As a consumer, you are legally obliged to return used batteries for proper disposal. You can hand in your used batteries at public collection points in your district or sales outlets where batteries of this type are sold.

Note:The codes below are printed on batteries containing harmful substances:

Pb = Battery contains lead

Cd = Battery contains cadmium

Hg = Battery contains mercury

TECHNICAL DATA

Voltage: 220-240V~50Hz

Rated input power: 1010W

Cooling Capacity: 9000BTU (2.64kW)

Permissible Excessive operating pressure: Suction 0.6Mpa / Discharge 1.8Mpa

Max Allowable Pressure: 3.0MPa

Air Flow: 350m^3 /h

Refrigerant: R290/210g

Protection class:

C

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
• for damages due to wear and tear (batteries, etc.)
• for damages known by customer at time of purchase
  for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a customer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against
KORONA electric GmbH, Sundern/Germany.
Telephone Hotline: [phone]
Mail: [e-mail]
web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.

Handleiding

ACCENSIONE PROGRAMMATA

Permissible Excessive operating pressure: Suction 0.6Mpa / Discharge 1.8Mpa

CIHAZI ACMA / KAPATMA

NEM ALMA MODU (DEHUM)

INSTALACJA WEZA WYLOTOWEGO
