USER MANUAL SaluSpa 60034 BESTWAY

Visit www.bestwaycorp.com/support for help WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or spare Parts, Please Visit bestwaycorp.com/support

IMPORTANT SAFETY INSTRUCTIONS

WARNING IMPORTANT SAFETY INSTRUCTIONS

When using this electrical equipment, basic safety precautions should always be followed, including the following:

READ AND FOLLOW ALL INSTRUCTIONS.

WARNING – To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times.

A wire connector is provided on this unit to connect a minimum 6 AWG (13.3 mm ^2 ) solid copper conductor between this unit and any metal equipment, metal enclosures of electrical equipment, metal water pipe, or conduit within 5 feet (1.5 m) of the unit.

DANGER – Risk of injury.

a) Replace damaged cord immediately.
b) Do not bury cord.
c) Connect to a grounded, grounding type receptacle only.

WARNING – This product is provided with a ground-fault circuit-interrupter integrated with the power plug at the end of the cord. The GFCI must be tested before each use. With the product operating, push the test button on the GFCI and the product should not operate. Push the reset button on the GFCI and the product should now operate normally. When the product fails to operate in this manner, there is a ground current flowing indicating the possibility of an electrical shock. Disconnect the power until the fault has been identified and corrected.

DANGER – Risk of Accidental Drowning. Extreme caution must be exercised to prevent unauthorized access by children. To avoid accidents, ensure that children cannot use this spa unless they are supervised at all times.

DANGER – Risk of Injury. The suction fittings in this spa are sized to match the specific water flow created by the pump. Should the need arise to replace the suction fittings or the pump, be sure that the flow rates are compatible. Never operate spa if the suction fittings are broken or missing. Never replace a suction fitting with one rated less than the flow rate marked on the original suction fitting.

DANGER – Risk of Electric Shock. Install at least 5 feet (1.5 m) from all metal surfaces. As an alternative, a spa may be installed within 5 feet of metal surfaces if each metal surface is permanently connected by a minimum 6 AWG (13.3 mm ^2 ) solid copper conductor to the wire connector on the terminal box that is provided for this purpose.

DANGER – Risk of Electric Shock. Do not permit any electric appliance, such as a light, telephone, radio, or television, within 5 feet (1.5 m) of a spa.

WARNING – To reduce the risk of injury:

a) The water in a spa should never exceed 104^ F ( 40^ C). Water temperatures between 100^ F ( 38^ C) and 104^ F ( 40^ C) are considered safe for a healthy adult. Lower water temperatures are recommended for young children and when spa use exceeds 10 minutes.
b) Since excessive water temperatures have a high potential for causing fetal damage during the early months of pregnancy, pregnant or possibly pregnant

women should limit spa water temperatures to 100^ F ( 38^ C).

c) Before entering a spa, the user should measure the water temperature with an accurate thermometer since the tolerance of water temperature-regulating devices varies.
d) The use of alcohol, drugs, or medication before or during spa use may lead to unconsciousness with the possibility of drowning.
e) Obese persons and persons with a history of heart disease, low or high blood pressure, circulatory system problems, or diabetes should consult a physician before using a spa.
f) Persons using medication should consult a physician before using a spa since some medication may induce drowsiness while other medication may affect heart rate, blood pressure, and circulation.

WARNING: TO AVOID ELECTRIC SHOCK, DO NOT USE THE SPA WHEN IT IS RAINING.

WARNING: Water attracts children; Always attach a spa cover after each use.

WARNING: TO REDUCE THE RISK OF INJURY: Never add water that is higher than 104°F (40°C) into the Spa.

CONSULT YOUR PHYSICIAN FOR RECOMMENDATIONS.

CAUTION:

We strongly recommend not to unfold and inflate the spa if the ambient temperature is below 59^(15^) . We suggest inflating the spa indoors, and then continuing set up outdoors. If the outdoor temperature is lower than 42.8^(6^) , the spa heater must always be on. In this mode, the Freeze Shield ^™ system can keep the internal temperature between 42.8^(6^) and 50^(10^) to prevent damage, such as water freezing in the pipes or the circulation system.

IMPORTANT: If the Freeze Shield™ system isn't working, alarms will pop up on the spa. Be sure to check the status of your spa if the outdoor temperature is below 42.8°F(6°C). In case of a long-term absence from home when there is a risk of temperatures falling below 42.8°F(6°C), we strongly suggest disassembling the spa and storing it following the storage procedure.

CAUTION: Do not use the spa alone.

CAUTION: Always enter and exit the spa slowly and cautiously. Wet surfaces are slippery.

CAUTION: To avoid damage to the pump, the spa must never be operated unless the spa is filled with water.

CAUTION: Immediately leave spa if the user feels uncomfortable or sleepy.

NOTE: Please examine equipment before use. Notify Bestway® at the customer service address listed on this manual for any damaged or missing parts at the time of purchase. Verify that the equipment components represent the model that you had intended to purchase.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

WARNING: CHILDREN SHOULD NOT USE SPAS OR HOT TUBS WITHOUT ADULT SUPERVISION.

WARNING: DO NOT USE SPAS OR HOT TUBS UNLESS ALL SUCTION GUARDS ARE INSTALLED TO PREVENT BODY AND HAIR ENTRAPMENT.

WARNING: PEOPLE USING MEDICATIONS AND/OR HAVING AN ADVERSE MEDICAL HISTORY SHOULD CONSULT A PHYSICIAN BEFORE USING A SPA OR HOT TUB.

WARNING: PEOPLE WITH INFECTIOUS DISEASES SHOULD NOT USE A SPA OR HOT TUB.

WARNING: TO AVOID INJURY, EXERCISE CARE WHEN ENTERING OR EXITING THE SPA OR HOT TUB.

WARNING: DO NOT USE DRUGS OR ALCOHOL BEFORE OR DURING THE USE OF A SPA OR HOT TUB TO AVOID UNCONSCIOUSNESS AND POSSIBLE DROWNING.

WARNING: PREGNANT OR POSSIBLY PREGNANT WOMEN SHOULD CONSULT A PHYSICIAN BEFORE USING A SPA OR HOT TUB.

WARNING: WATER TEMPERATURE IN EXCESS OF 38°C (100°F) CAN BE INJURIOUS TO YOUR HEALTH.

WARNING: BEFORE ENTERING THE SPA OR HOT TUB, MEASURE THE WATER TEMPERATURE WITH AN ACCURATE THERMOMETER.

WARNING: DO NOT USE A SPA OR HOT TUB IMMEDIATELY FOLLOWING STRENUOUS EXERCISE.

WARNING: PROLONGED IMMERSION IN A SPA OR HOT TUB CAN BE INJURIOUS TO YOUR HEALTH.

WARNING: DO NOT PERMIT ELECTRIC APPLIANCES (SUCH AS A LIGHT, TELEPHONE, RADIO, OR TELEVISION) WITHIN 1.5 M OF THIS SPA OR HOT TUB.

CAUTION: MAINTAIN WATER CHEMISTRY IN ACCORDANCE WITH MANUFACTURER'S INSTRUCTIONS.

WARNING

REDUCE THE RISK OF ELECTROCUTION

1. NEVER PLACE AN ELECTRIC APPLIANCE WITHIN 5 FEET OF SPA.

REDUCE THE RISK OF CHILD DROWNING

1. SUPERVISE CHILDREN AT ALL TIMES.
2. ATTACH SPA COVER AFTER EACH USE.

REDUCE THE RISK OF OVERHEATING

1. CHECK WITH A DOCTOR BEFORE USE IF PREGNANT, DIABETIC, IN POOR HEALTH, OR UNDER MEDICAL CARE.
2. EXIT IMMEDIATELY IF UNCOMFORTABLE, DIZZY, OR SLEEPY. SPA HEAT CAN CAUSE HYPERTHERMIA AND UNCONSCIOUSNESS.
3. SPA HEAT IN CONJUNCTION WITH ALCOHOL, DRUGS, OR MEDICATION CAN CAUSE UNCONSCIOUSNESS.

WHEN PREGNANT, SOAKING IN HOT WATER FOR LONG PERIODS CAN HARM YOUR FETUS. MEASURE WATER TEMPERATURE BEFORE ENTERING.

1. DO NOT ENTER SPA IF WATER IS HOTTER THAN 100°F(38°C)
2. DO NOT STAY IN SPA FOR LONGER THAN 10 MINUTES.

NOTE: The warning label must be posted near your spa in a readable position during using your spa.

1. Take out the warning label from the accessory kit.
2. Carefully peel the warning label.
3. Affix the warning label.
   To order the warning label, please contact your local Bestway After Sales Service.

SPA SUCTION FITTING INSTRUCTIONS

When installing and using this equipment, basic safety precautions shall always be followed, including the following:

IMPORT ANT SAFETY INSTRUCTIONS READ, FOLLOW, AND UNDERSTAND ALL INSTRUCTIONS AND WARNINGS.

• Any modification that increases the flow rate of the circulation system shall require reevaluation of the cover/grate and sump to ensure that the flow rating of the Suction Outlet Fitting Assembly (SOFA) is not exceeded.
• Missing, broken, or cracked cover/grates, sumps, mud-frames, or any other SOFA component shall be replaced before bathers are allowed to use the pool.

• Loose cover/grates shall be reattached before bathers are allowed to use the pool.

• Replace suction fittings every 3 years.

• The use of adhesives or other attachment methods that prevent access to suction piping or SOFA components requiring periodic servicing is prohibited.

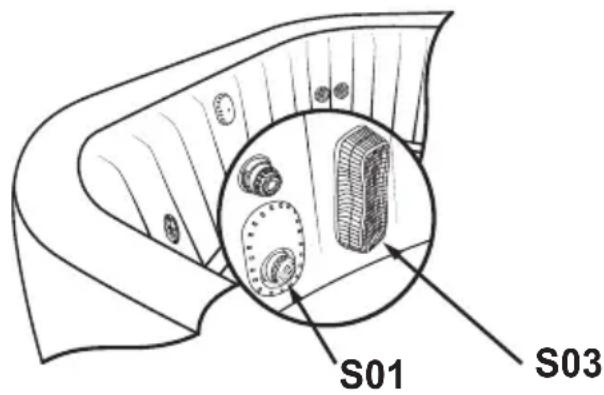

• Refer to the following diagram for each SOFA component part instructions:

S01 S03

1. Any field modification made to a SOFA not authorized by the manufacturer's installation instructions shall void the SOFA certification.

2. No modification shall be made to a SOFA structure or flow path unless the new configuration has been certified as new SOFA.

3. Cover/grates and all other SOFA components shall be replaced at or before the end of their service life and that service life begins the month and year in which a SOFA component is installed with or without water.

4. Winterizing instructions. Dry the suction fittings completely, and store the product in a dry room at a storage temperature of 59^ F\~104°F( 15^ C\~40°C).

- Cover/grate, including fasteners, shall be observed for damage or tampering each operational day.

- Missing, broken, or cracked cover/grates shall be replaced before bathers are allowed to use the pool.

- Loose cover/grates and associated components shall be reattached before bathers are allowed to use the pool.

- SOFA components and fastener receptacles shall be clean and free of debris or obstructions during installation of cover/grate and fasteners.

- Remember to hand-check cover/grate for snugness to the sump/ frame after installation.

1. Before using the product, please check the integrity of the head of the suction fitting. If the product is broken, please do not use it.

2. All SOFAs shall be installed in accordance with the manufacturer's installation

instructions.

• No modification shall be made to a SOFA structure or flow path unless the new configuration has been certified to the original SOFA.
• These SOFA-configuration specific flow ratings NOT be exceeded at any time the pool is open to bathers.
• Cover/grates, when installed, shall not protrude more than 2 in. (51 mm) from the finished surface of the pool in which the SOFA is installed.

8.

Installation Information label (Copy) Manufacturers name: Bestway (Nantong) Recreation Corp. Cover part number: S01/S03 Life expectancy: 3 Years Cover flow rating: 20 GPM/90 GPM Configuration and installed orientation: Wall Location: Spa Pool liner Date of installation: ____ Installer need to fill in the balance of information and give it to be kept with other important pool related documents.

Please research and download General Certificate of Conformity through www.bestwaycorp.com

SAVE THESE INSTRUCTIONS SELECTED LOCATION

IMPORTANT: Due to the combined weight of the SaluSpa, water, and users, it is extremely important that the surface where the SaluSpa is installed is smooth, flat, level and capable of supporting the weight for the entire time the SaluSpa is installed (not on the carpet or other similar material). If the SaluSpa is placed on a surface which does not meet these requirements, any damage caused by improper support is not covered under the manufacturer's warranty. It is the responsibility of the SaluSpa owner to assure the integrity of the surface at all times.

1. Indoor Installation:

Be aware of special requirements if you install the spa indoors.

- Humidity is a natural side effect with SaluSpa installation. First determine the effects of moisture on exposed wood, paper, etc. in the proposed location. To minimize these effects, it is best to provide plenty of ventilation to the selected area. An architect can help determine if more ventilation is needed.

2. Outdoor Installation:

• During filling, draining or when in use, water may spill out of the spa. Therefore the SaluSpa should be installed near a floor drain.
• Do not leave the spa surface exposed to direct sunlight for long periods of time.

PRE-SETUP CHECK LIST

PARTS CHECKS

Please examine equipment before use. Notify Bestway® customer service of any damaged or missing parts at the time of purchase. Verify that the equipment components represent the model that you had intended to purchase. For reference please use the diagrams below.

Abstract geometric diagram with overlapping planes and shaded regions (no text or symbols)

MALDIVES HYDROJET PRO S200106 (60034)

— 79" x 79" x 31.5" / 2.01 m x 2.01 m x 80 cm

HAWAII HYDROJET PRO S200106 (60032)

— 71" x 71" x 28" / 1.80 m x 1.80 m x 71 cm

4 - 6 2-3°F/h

1-1.5°C/h

320 gal/h
1,211 L/h

0.08Bar
1.2PSI

210 gal
795 L

1,869 Lb
848 kg

INSTALLATION

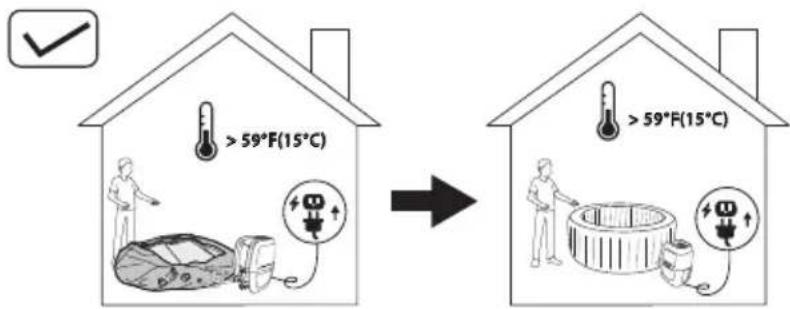

SET-UP INSTRUCTION IN WINTER

< 50°F(10°C)

> 59°F(15°C) > 59°F(15°C)

It is important to follow these suggestions if you are setting up the spa during the winter period. This will prevent damage to the PVC material and extend the life of your product drastically.

• If the ambient temperature is below 50^(10^) , we suggest keeping the package indoor where the temperature is above 59^(15^) for at least 2h before inflation. This will make the spa liner more flexible and easier to set up.
• Open the package in the same room where the temperature is above 59^ F(15^ C) , and inflate the spa using the spa heater.
• Position the spa liner outdoor in the desired position, connect the spa heater and fill with water.

Important: The water temperature used to fill the spa must be above 42.8^ F( 6^ C), otherwise when you begin to operate with the spa heater, the E03 alarm will appear.

Important: If the Freeze Shield™ system isn't working, alarms will pop up on the spa. Be sure to check the status of your spa if the outdoor temperature is below 42.8°F(6°C). In case of a long-term absence from home when there is a risk of temperatures falling below 42.8°F(6°C), we strongly suggest disassembling the spa and storing it following the storage procedure. When you assemble the spa, the automatic warm function will turn on. In this condition, the spa can be used when the temperature is lower than 42.8°F(6°C).

1 2 3

Simple line drawing of a folded fabric or cushion (no text or symbols)

Diagram of a medical device with tubing and connectors, showing an arrow indicating direction (no text or symbols present)

Line drawing of an electrical plug connected to a device with a circular warning symbol (no text or labels)

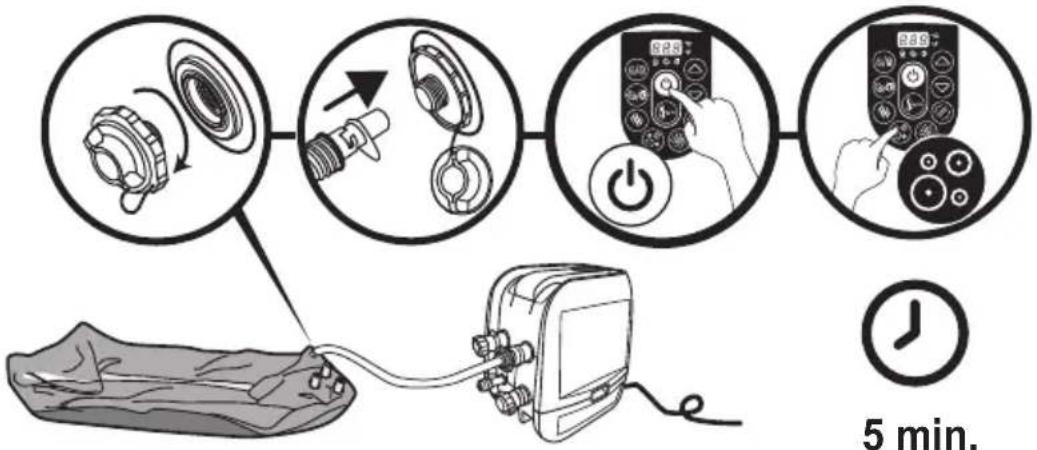

4

5 min.

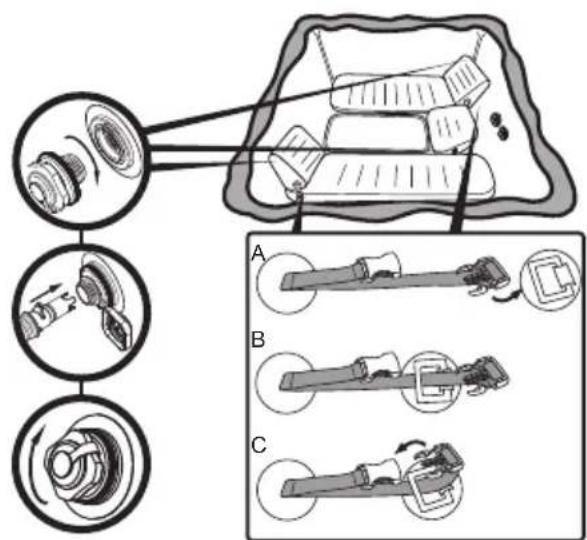

Diagram illustrating mechanical assembly steps with labeled components A, B, and C showing progressive assembly from raw gears to final parts.

Only for Maldives

5.25.1

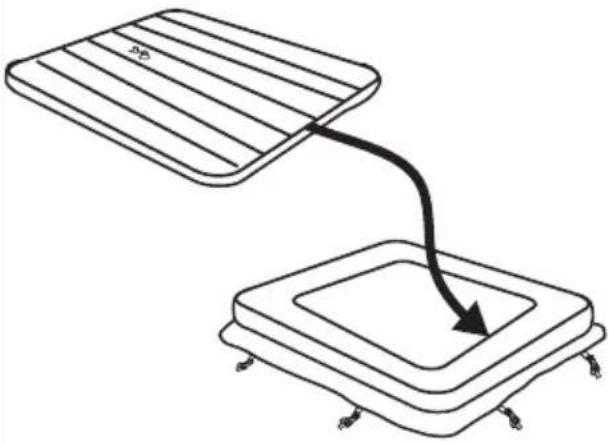

Diagram showing two rectangular blocks with a curved arrow pointing downward from one to the other (no text or symbols)

6

Diagram illustrating a medical procedure for using a pressure monitor, showing step-by-step instructions and confirmation signs.

7

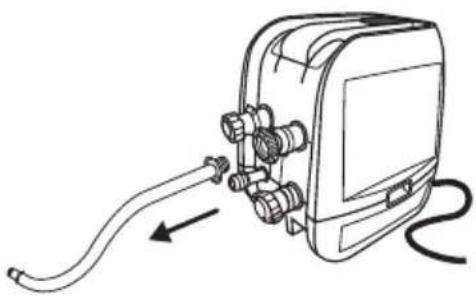

Line drawing of a handheld electronic device with hoses and connectors, no text or symbols present

8

Line drawing of a portable device with a hand panel and a walkie-talkie (no text or symbols)

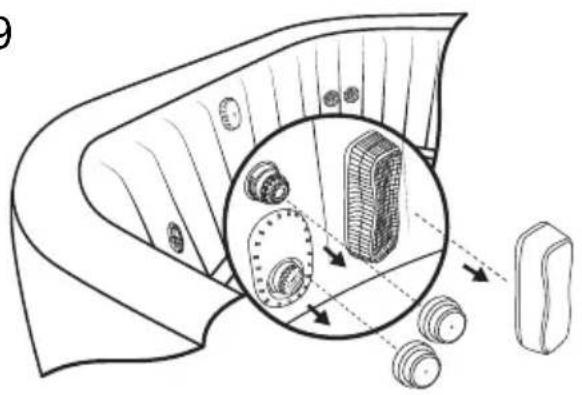

9

Diagram of a biological structure with a magnified inset showing cellular components (no text or labels)

10

Diagram of a mechanical component with an inset showing internal components and a close-up view of a device (no text or symbols present)

11

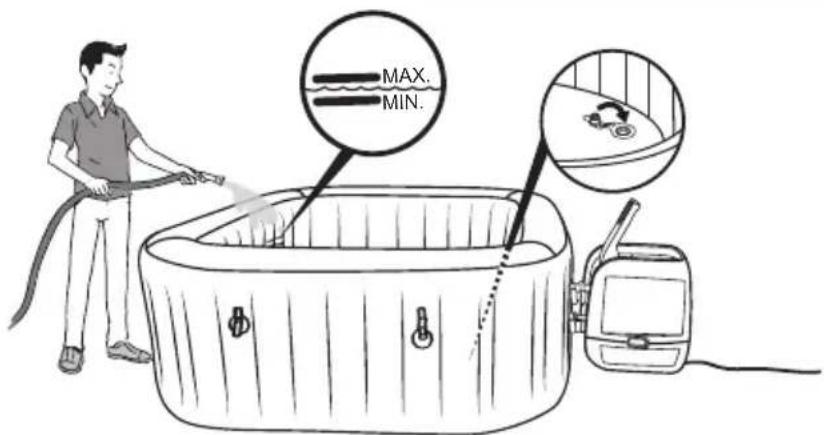

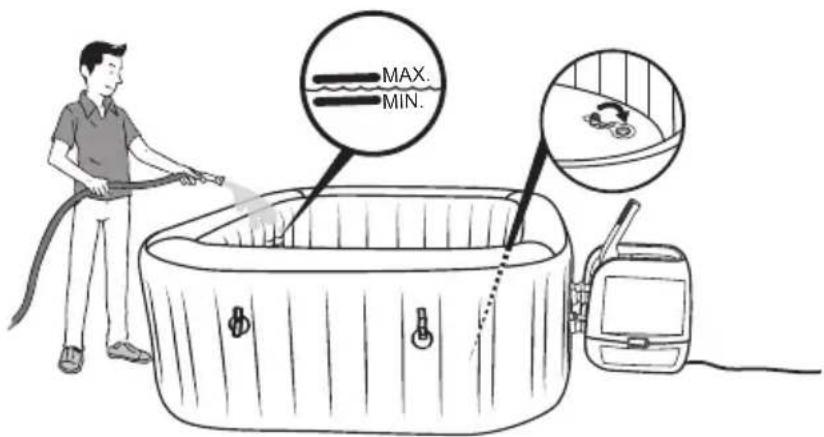

MAX. MIN.

GFCI Test

IMPORTANT: RISK OF ELECTRIC SHOCK. THE GFCI MUST BE TESTED BEFORE TURNING ON THE PUMP EACH TIME.

8.88 °C +5 F 6/6 Δ -°C -°C -°C -°C -°C -°C -°C -°C -°C -°C

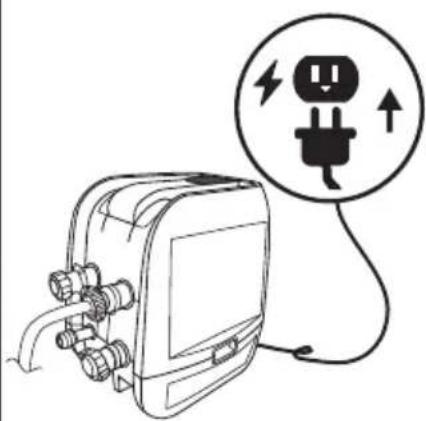

1. Plug the GFCI into a power outlet, the indicator turns red.
2. Press the test button, the indicator turns off.
3. Press the reset button, the indicator turns red and the spa is ready for use.

WARNING: The GFCI plug must be tested before each use to avoid risk of electric shock.

WARNING: Before inserting plug into a power outlet, make sure the current rate of the power outlet is suitable for the pump.

WARNING: Do not use the pump if this test fails. For assistance, please visit the support section on our website, www.bestwaycorp.com.

WARNING: Using an extension lead or multi plug adaptor with the spa heater can cause the plug to overheat, causing damage to the equipment and surrounding items. The spa is a class I electrical appliance and must be connected directly to a grounded socket. It is recommended to only use a socket which is resistant to humidity and capable of high power loading. Regularly check the plug and socket for signs of damage before using the spa – do not use the spa if the plug or socket is damaged. If you are unsure about the quality of the electrical supply, please consult a qualified electrician before use.

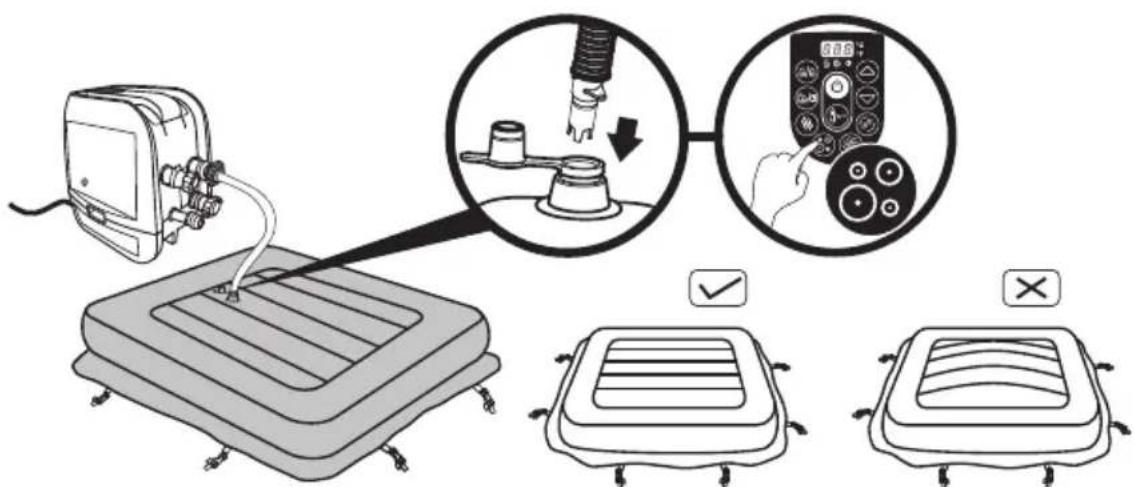

NOTE: When inflating, you will notice that air will be expelled from the area where the air hose connects to the pump, this is normal for technique requirements.

NOTE: Do not use an air compressor to inflate the pool.

NOTE: Do not drag the pool on rough ground as this may cause damage to the pool liner.

NOTE: Inflation time for reference only.

When inflating, you will notice that air will be expelled from the area where the air hose connects to the pump. This is normal for technique requirements.

Important: Don't cover the holes on the base of the inflation hose. This operation will over inflate the liner and damage the structure.

Do not use an air compressor to inflate the pool.

Do not drag the pool on rough ground as this may cause damage to the pool liner. Inflation time for reference only.

Line drawing of a medical or laboratory device with tubing and a magnified inset showing four circular components (no text or symbols)

USING THE SPA

Hyperthermia occurs when the internal temperature of the body reaches a level several degrees above the normal body temperature of 98.6^ F( 37^ C). The symptoms of hyperthermia include an increase in the internal temperature of the body, dizziness, lethargy, drowsiness, and fainting. The effects of hyperthermia include failure to perceive heat, failure to recognize the need to exit spa or hot tub, unawareness of impending hazard, fetal damage in pregnant women, physical inability to exit the spa or hot tub, and unconsciousness resulting in the danger of drowning.

WARNING – The use of alcohol, drugs, or medication can greatly increase the risk of fatal hyperthermia.

WARNING: WATER TEMPERATURE IN EXCESS OF 100°F(38°C) CAN BE INJURIOUS TO YOUR HEALTH.

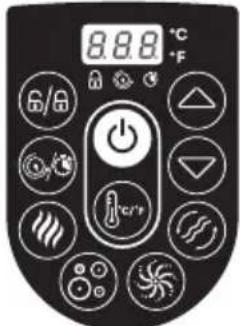

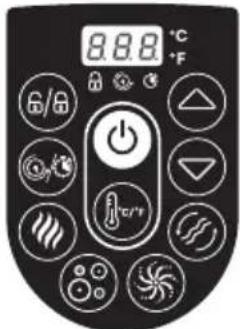

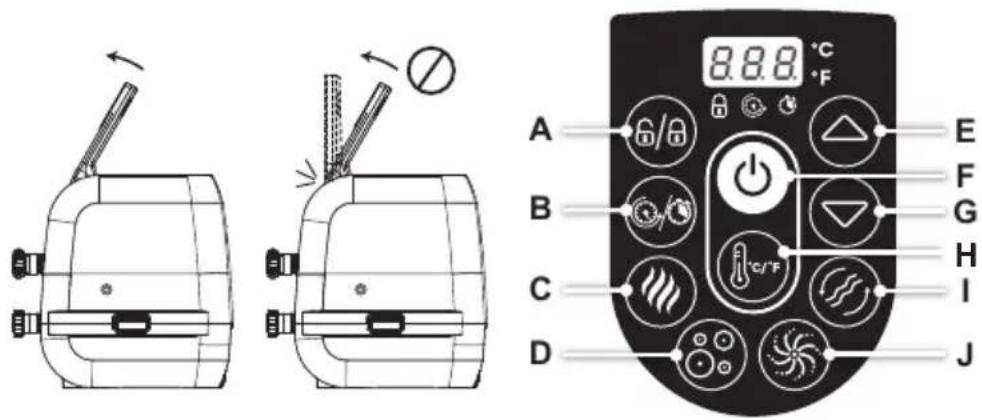

8.8.8 °C °F A B C D E F G H I J

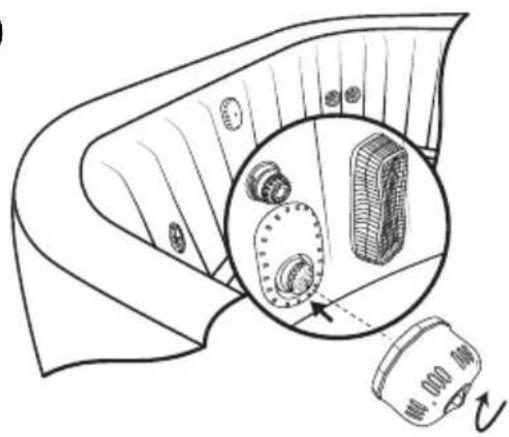

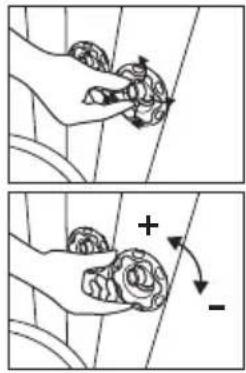

Adjustment of Jet Nozzle

Diagram illustrating hand manipulation of a flower with directional arrows and polarity signs

A. LOCK/UNLOCK BUTTON: The pump has a 5-minute auto-lock, this light will turn on. To lock or unlock the pump, place a finger over the lock/unlock button for 3 seconds.

B. POWER-SAVING TIMER BUTTON: Designed to help avoid wasting power by setting the time and duration of the heating cycle for the spa. This way, you can enjoy your spa at the time you desire, without needing to leave the heater on at all times.

STEP 1: Set the heating duration

1. Press the 📋 button unit the Ⓤ LED starts to flash.
2. Press the 🔒 or ⬤ button to adjust the heating duration (From 1-999 hours).
3. Press the Ⓗ button again to confirm the heating duration.

STEP 2: Set the number of hours FROM NOW when the heater will activate

1. After setting the heating duration, the LED starts to flash.
2. Press the 🔒 or 🔒 button to adjust the hours until time of activation (From 0-999 hours).
3. Press button again or simply touch nothing for 10 seconds to confirm the setting. The LED will light steadily, and the countdown to heater activation will begin.
   To modify the timer settings: Press the ⏻ button and use the ➕ or ➤ button to adjust. Cancel the setting: Press the ⏻ button for 2 seconds.

NOTE: After setting, the screen flashes the current temperature and time alternately.
NOTE: Timer adjustment (amount of time with the heater ON) may be set from 1 to 999 hours; Reservation time adjustment (the number of hours FROM NOW when the heater will begin to function) may be set from 0 to 999 hours. If the timer is set at 0 hour, the heating system will activate immediately.
Note that the timer is one time per use - the user sets the duration of the heating cycle, and how many hours from now the heating cycle begins. The timer does NOT repeat until reset.

C. HEAT BUTTON: Use this button to activate the heating system. When the light above the heat button is red, the heating system is activated. When the light is green, the water is at the set temperature and the heating system is at rest.

NOTE: If the heating system is activated the filtration system will automatically start.

NOTE: After turning off the heating system the filtration system will continue to operate.

NOTE: If the spa heater is on when the water temperature is below 42.8^(6^) , the heating system will warm the water until 50^(10^) automatically.

D. MASSAGE SYSTEM BUTTON: Use this button to activate the massage system, which has a 30-minute auto-shutoff feature. The light above the Massage System Button displays red when activated.

IMPORTANT: Do not run the Massage system when the cover is attached. Air can accumulate inside the spa and cause irreparable damage to the cover and bodily harm.

NOTE: Heat and massage system work together to create a warm massage experience.

E/G. TEMPERATURE ADJUSTMENT BUTTONS: Pressing the

Temperature Increase or Decrease buttons will cause the LED to flash. When it is flashing you can adjust to the desired temperature setting. If you hold these buttons down the values will rapidly increase or decrease. The new and desired temperature setting will remain on the LED display for 3 seconds to confirm the new value.

NOTE: The default temperature is 95^ F( 35^ C).

NOTE: Temperature adjustment ranges from 68^(20^) to 104^(40^) .

F. ON/OFF BUTTON: Press this button for 2 seconds to active the control panel buttons and the light turns to green. Press this button for 2 seconds to turn off all currently activated functions.

H. CELSIUS/FAHRENHEIT TOGGLE: The temperature can be displayed in either Fahrenheit or Celsius.

I. WATER FILTER BUTTON: This button turns the filter pump on and off. The light above the Water Filter Button displays red when activated.

J. HYDROJET SYSTEM BUTTON: This button turns the water pump on and off. The light above the HydroJet system button displays red when activated.

NOTE: The system will shut off automatically after 1 hour.

NOTE: Do not dry run the HydroJet System.

POWER-SAVING TIMER LED:

This flashing LED means you are setting the heating duration. The light will be on when the heating function starts to work.

This flashing LED means you are setting the number of hours FROM NOW when the heater will activate. When the light is on, the Power-Saving Timer function is set.

NOTE: The WATER HEATER rate may change in the conditions below: - When the outdoor temperature is below 59^(15^) .

- If the cover is not in position when the heating function is activated.

NOTE: To display the current water temperature, run the filter system for at least a minute.

The water temperature as tested by an external thermometer may vary from the temperature as displayed on the spa panel by as much as approximately 35.6^(2^) .

WINTER USE INSTRUCTIONS

• You can keep the spa on during winter when the temperature is lower than 42.8^(6^) . The Freeze Shield™ system automatically keeps the water temperature between 42.8^(6^) and 50^(10^) , and it will prevent the water from freezing.
  Important: If the water temperature is below 42.8^ F( 6^ C), the spa heater must always be on. In this mode, the Freeze Shield ^™ system can keep the internal temperature between 42.8^ F( 6^ C) and 50^ F( 10^ C) to prevent damage, such as water freezing in the pipes or the circulation system.
  Important: If the Freeze Shield™ system isn't working, alarms will pop up on the spa. Be sure to check the status of your spa if the outdoor temperature is below 42.8°F(6°C). In case of a long-term absence from home when there is a risk of temperatures falling below 42.8°F(6°C), we strongly suggest disassembling the spa and storing it following the storage procedure.
• Any damage as a result of using the spa in these conditions is the responsibility of the customer. Do not use the spa when the ambient temperature reaches 14^(-10^) .

IMPORTANT

To reach 104^ F( 40^ C), the heating duration required is based on the starting water temperature and ambient temperature, the data below is purely for reference. To display the current water temperature, run the filter system for at least a minute.

Ambient Temperature	Water Temperature	Set Temperature	Heating Duration
50°F(10°C)	50°F(10°C)	104°F(40°C)	32 h
59°F(15°C)	59°F(15°C)	104°F(40°C)	26 h
68°F(20°C)	68°F(20°C)	104°F(40°C)	20 h
77°F(25°C)	77°F(25°C)	104°F(40°C)	14 h
86°F(30°C)	86°F(30°C)	104°F(40°C)	9 h

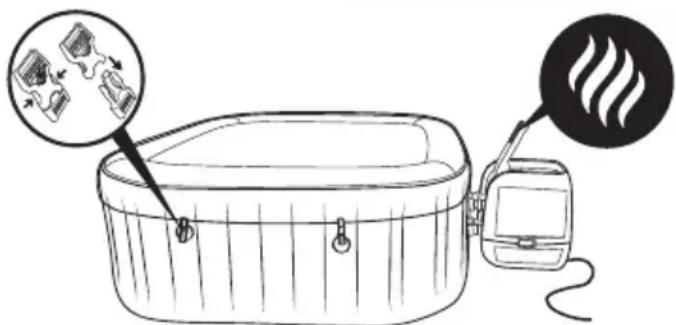

• Be sure to cover the spa with the spa cover whenever the heating function is activated. Leaving the spa uncovered will increase the heating duration required.

- When the spa is assembled with water, do not switch off the spa heater if the temperature is lower than 42.8^(6^) .

Diagram showing a device emitting heat from a container with a magnified inset highlighting internal components.

Power Rate	Heat Element Power	Filter Pump Power	Massage Tube Power	Jet Pump Power
110-120V AC,60Hz, Single Phase12A at 20°C	11.3A at 20°C	0.7A 12A	6.5A

MAINTENANCE

CAUTION: You must ensure the pump is unplugged before beginning spa maintenance to avoid risk of injury or death.

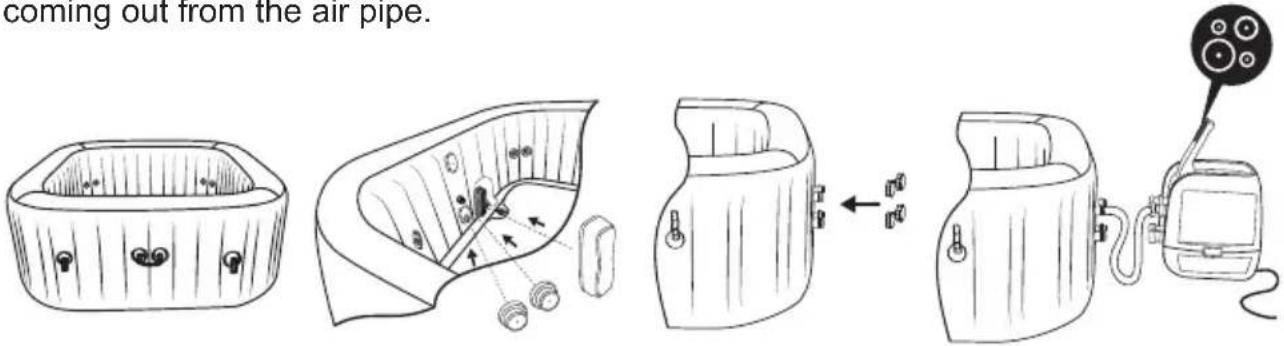

Adding Air: Your spa will require additional air to be added from time to time.

Changes in temperature from day to night will change the pressure in the spa and may cause a certain amount of deflation. Please follow the assembly instructions and inflate to the accurate pressure needed.

When you need to use the pump for inflation, please block the hoses to prevent water from escaping, then disconnect the pump, screw on the cap to avoid water coming out from the air pipe.

coming out from the air pipe.

Cover Maintenance

The cover shall be cleaned inside and out periodically using a suitable solution that includes adequate disinfection (e.g. 10 mg/l of Free Chlorine).

Filter Cartridge Maintenance

To ensure your spa water stays clean, check and clean your filter cartridges every day follow the steps below.

NOTE: We recommend changing your filter cartridges every week or, if the filter cartridges remain soiled and discolored, they should be replaced.

Filter Set

Filter Cartridge

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Illustration of a cylindrical pipe with a handle emitting steam (no text or symbols)

Water Maintenance

Many pollutants in the water settle on surfaces below the water line. These pollutants can cause bacterial, algal or fungal growth. It is recommended that spas are cleaned as regularly as necessary. After a time, tenacious stains or biofilms may develop on the accessible surfaces below the water line or high concentrations of salts or unwanted reaction by-products may also occur. Depending on hygienic condition, cleanliness, visibility, odour, debris and stains, it is recommended to change the water completely and clean/disinfect the spa. When emptying the spa, the regulations and the instructions for draining the water shall be observed. Keeping your spa water clean and chemically balanced is necessary. Simply cleaning the filter cartridge is not enough for proper maintenance, we recommend you use pool chemicals to maintain water chemistry and chlorine or bromine tablets (do not use granules) with the chemical dispenser.

Water quality will be directly related to frequency of use, number of users and overall maintenance of the spa. The water should be changed every

3 days if there is no chemical treatment being performed with the water.

It is highly recommended to use tap water for spa filling to minimize the influence of unwanted content, such as minerals. Barefoot areas and relaxing areas shall be cleaned as well. No cleaning water may flow into the spa or spa water cycle. The dirt and cleaning agents shall be rinsed carefully to drain in the spa surround.

Note: We recommend you take a shower before using your SaluSpa, as cosmetic products, lotions, and other residues on the skin can quickly degrade water quality. To use the chemical dispenser, please follow the below instruction.

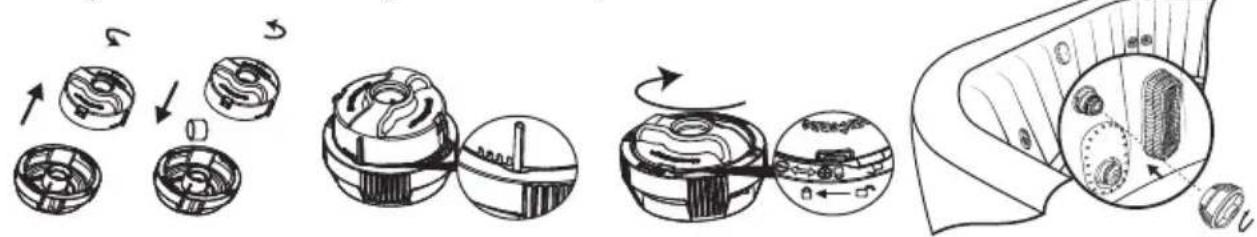

Using chemical tablets (not included):

Diagram illustrating the step-by-step assembly of a mechanical device with labeled parts and motion arrows.

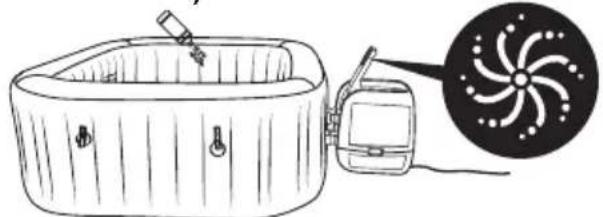

Using chemical liquid (not included):

Illustration of a portable stove with a fan emitting a circular fan-like pattern (no text or symbols)

NOTE: Remove the chemical dispenser from spa when the spa is in use.

IMPORTANT: After performing chemical maintenance and before using the spa, use a test kit (not included) to test the water chemistry. We recommend maintaining your water as below table.

pH	Total Alkalinity	Free Chlorine
7.4-7.6	80-120ppm	2-4ppm

NOTE: Damage resulting from chemical imbalance is not covered by the warranty. Pool chemicals are potentially toxic and should be handled with care. There are serious health risks from chemical vapors and the incorrect labeling and storage of chemical containers. Please consult your local pool supply retailer for more information about chemical maintenance. Pay close attention to the chemical manufacturer's instructions. Spa damage resulting from misuse of chemicals and mismanagement of spa water is not covered by the warranty.

DISASSEMBLY AND STORAGE

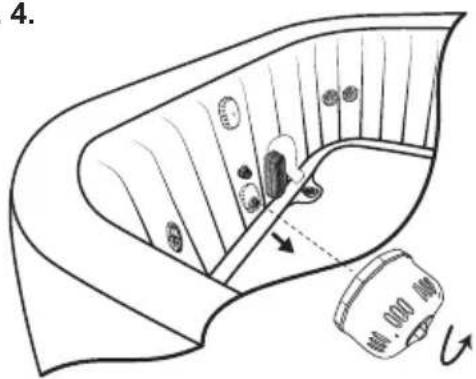

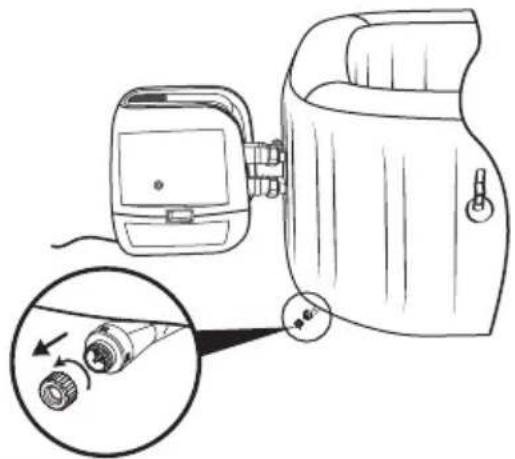

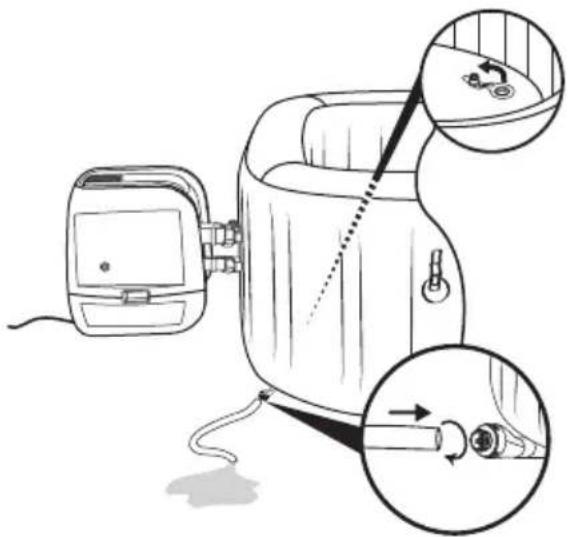

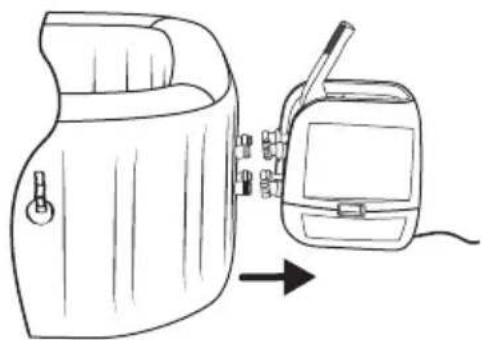

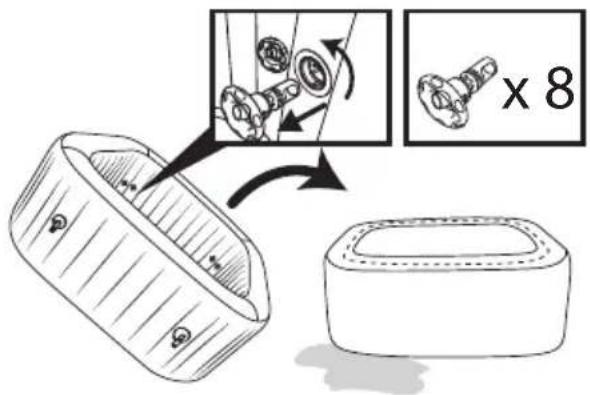

DRAINING THE SPA

1.2.

Line drawing of a device with a close-up inset showing a connector detail (no text or symbols)

Diagram of a device with cable and connector, showing internal components and directional arrows (no text or symbols)

3.4.

4.

Diagram illustrating a biological or mechanical process with labeled components and directional arrows indicating flow or movement.

5.6.

Line drawing of a portable device with a hand panel and a separate device, both shown with an arrow indicating direction (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled parts and magnified detail view

1.

Line drawing of a portable electronic device with connectors and a cable (no text or symbols)

Make sure the spa and pump are completely dry. This is essential to extend the life of the spa. We recommend using the pump to blow dry the spa, pump and pipes. Remove the filter sets and discard the used filter cartridges. Re-attach the two stopper caps onto the spa's inlet and outlet valves. It is recommended you store the spa in its original package in a warm [above 59°F(15°C)] and dry place.

CLEANING THE SPA

Detergent residues and dissolved solids from bathing suits and chemicals may build up on the spa walls. Use soap and water to clean the walls and rinse thoroughly. NOTE: DO NOT use hard brushes or abrasive cleaners.

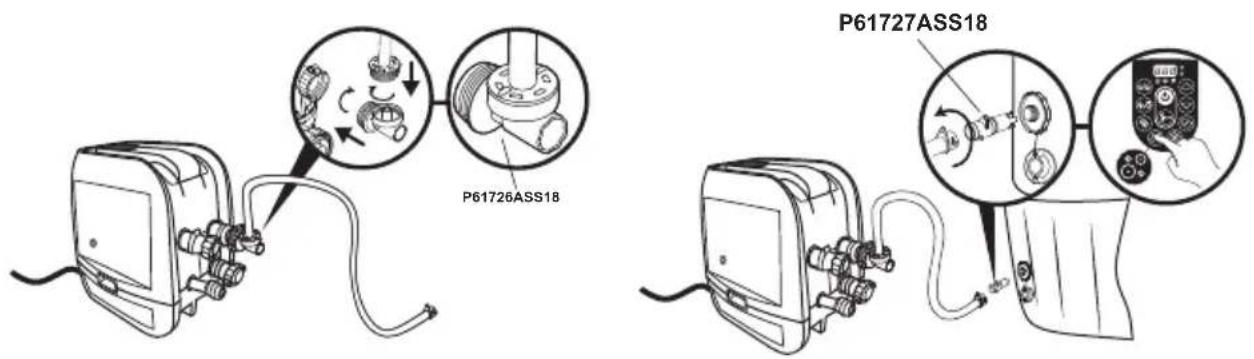

DEFLATION

Your spa is equipped with a deflation function to remove all the air from inside the chamber to make it easier to pack and store.

P61726ASS18 P61727ASS18

REPAIR

For PVC part.

If the spa is torn or punctured, use the provided underwater adhesive repair patch.

1. Clean area to be repaired.
2. Carefully peel patch
3. Press patch over area to be repaired.
4. Wait 30 seconds before inflation.

For Tritech PVC material.

If the spa is torn or punctured, use the provided PVC repair patch and glue (not included) following these steps:

1. Clean and dry area to be repaired.
2. Cut the provided PVC patch to appropriate size.
3. Use glue (not included) to coat the one side of the newly cut patch. Make sure the glue is evenly distributed.
4. Wait for 30 seconds and then place the cut patch with glue over the damaged area.
5. Smooth out any bubbles of air that may be trapped underneath, and press firmly for two minutes.
6. The product is once again ready for use. Repeat this process should further leaks occur.
7. Wait 30 minutes before inflation.

TROUBLESHOOTING

Bestway strives to provide the most trouble-free spas on the market.

If you experience any problems whatsoever, do not hesitate to contact Bestway or your authorized dealer. Here are some helpful tips to help you to diagnose and rectify some common sources of trouble.

Problems Probable Causes Solutions

Pump does not operate - Power failure- GFCI broken	- Check power source- For assistance, please visit the support section on our website, www.bestwaycorp.com.
Pump does not heat properly	- Temperature set too low- Dirty Filter Cartridge- The thermal cut-out cut off- Spa is not covered- Heating element failed or fuse cutout	- Set to a higher temperature refer to section pump operation- Clean/replace the filter cartridge refer to section filter cartridge cleaning and replacement- Unplug the pump, and put the plug in a dry, cool place. Only restart the pump when the water temperature reaches 95°F(35°C) or lower- Attach the cover.- For assistance, please visit the support section on our website, www.bestwaycorp.com.
Massage System does not work	- Air Pump is overheating- The massage system stops automatically- Air pump is broken	- Unplug the pump and wait two hours until the pump has cooled. Insert the plug and press the massage system button- Press the massage system button to reactivate- For assistance, please visit the support section on our website, www.bestwaycorp.com.
Pump adapters are not level with the spa adapters	- One characteristic of PVC is that it changes shape, which is normal	- Elevate the pump with wood or another type of insulated material to bring the pump's adapters level with the spa's adapters
Spa pool leakage	- Spa is torn or punctured- Air valve is loose	- Use provided repair patch- Using soapy water, cover the air-valve to check if air is leaking, if so, use the provided wrench to fasten the air-valve following these steps:1. Deflate the spa.2. With one hand, hold the backside of the air valve from the inner side of the spa wall and turn the wrench clockwise.
Water is not clean	- Insufficient filtering time- Dirty Filter Cartridge- Improper water maintenance	- Increase filtration time- Clean/replace the Filter Cartridge (refer to Filter Cartridge Cleaning and Replacement section)- Refer to the chemical manufacturer's instructions
Control panel not working	The control panel has an auto-lock, which is activated after 5 minutes of inactivity. The LED display has one icon:If the lock icon is highlighted, the control panel is locked.- Control panel is not activated.	- To unlock the control panel, press thebutton for 3 seconds. If the control panel will not unlock, restart the pump – unplug and plug in the pump.- Press the on/off button for 2 seconds. If the problem persists, for assistance, please visit the support section on our website, www.bestwaycorp.com.
GFCI test failed	There is a defect in your spa	For assistance, please visit the support section on our website, www.bestwaycorp.com.
What kind of chemicals should be used for water maintenance?	Please consult your local chemical supplier for information about chemical maintenance. Pay close attention to the chemical manufacturer's instructions.
Water leaks from the adapters between the pump and spa	- Seals are missing inside the pump adapters- Seals are not in correct position- Seals are damaged- Adapters are not tightened correctly	- Insert the stopper caps on the spa ports to prevent the water from escaping and disconnect the pump. Check if the seals are in place.- If the seals are not in the correct position, open the gears, and place the seals in correct position.- If the seals are damaged, they must be replaced. For assistance, please visit the support section on our website, www.bestwaycorp.com.- If the seals are in correct position, the adapters are not tightened correctly. Connect the pump to the spa, hand-tighten the adapters, and remove the stopper caps from the spa ports. If there is leakage, tighten the adapter until there is no leakage.
The HydroJetTM system button is not working	- The button is on but water does not come out of the spa- The HydroJet system shuts off automatically after 1 hour- There is some air trapped in the hoses	- The thermofuse cut off the power due to a high temperature being reached by the motor. Power off the spa heater for about 3 hours, wait for the temperature to drop, and restart the HydroJet function. If the problem remains, please visit the support section on our website, www.bestwaycorp.com.- Restart the HydroJet function again to enjoy your spa- Disconnect the water pump and reconnect after draining some water

CAUSES REASONS SOLUTIONS

The water flow sensors work without pressing the filter or heat button.	1. The water flow sensor flags didn't fall back into the correct position.2. The water flow sensors are broken.	1. Unplug the plug, strike the side of the pump but not violently, and plug it back in.2. For assistance, please visit the support section on our website, www.bestwaycorp.com.
After starting or during the functions of filtering or/and heating, the water flow sensors do not detect water flow.	1. You forgot to remove the 2 stopper caps from inside the pool.2. Filter cartridges are dirty.3. Activate the filter or heat system and put your hand in front of the outlet pipe inside the pool to check if you can feel water flowing out.a. If no water flows out the water pump is broken.b. Water flows out but the alarm ^E02 appears, then the water flow sensors are broken.4. Filter blockage5. Bent pipes or poor water flow through the plastic pipes of the liner6. Debris screens are blocked: debris screens can become blocked by hard water due to calcium build-up.7. Perished washersThe washers within the spa couplings may have become perished or worn.	1. Remove the 2 stopper caps before heating, refer to Assembly section in the User's Manual.2. Remove the filter set from inside the pool and push the filter or heat button. If no alarm appears, clean or change the filter cartridges install the filter set inside the pool.3. For assistance, please visit the support section on our website, www.bestwaycorp.com.4. Clean the filter and check for damage. Replace or re-install as necessary. For assistance, please visit the support section on our website, www.bestwaycorp.com.5. Please check through the spa connection to see if the pipes are bending. For assistance, please visit the support section on our website, www.bestwaycorp.com.6. Empty the spa and place a garden hose inside the pipes to wash the debris. To be sure all debris is removed, perform the operation from the outside and inside of the spa.Use a toothbrush to remove any stubborn debris.For assistance, please visit the support section on our website, www.bestwaycorp.com.7. Check the washers inside the coupling for damage. Unscrew the couplings and remove the washer for further inspection.For assistance, please visit the support section on our website, www.bestwaycorp.com.
The pump's thermometer reads the water temperature below 40^ F( 4^ C) .	1. The water temperature is lower than 40^ F( 4^ C) .2. If the water temperature is higher than 44.6^ F( 7^ C) , the pump's thermometer is broken.	1. The spa is not designed to operate with water temperatures lower than 40^ F( 4^ C) . Unplug the pump and only re-start the pump when the water temperature reaches 43^ F( 6^ C) .2. For assistance, please visit the support section on our website, www.bestwaycorp.com.
The pump's thermometer reads the water temperature over 119^ F( 48^ C) .[809]	1. The water temperature is over 119^ F( 48^ C) .2. If the water temperature is lower than 113^ F( 45^ C) , the pump's thermometer is broken.	1. The spa is not designed to operate with water temperatures greater than 104^ F( 40^ C) . Unplug the pump and only re-start the pump when the water temperature reaches 100^ F( 38^ C) or lower.2. For assistance, please visit the support section on our website, www.bestwaycorp.com.
The pump's thermometer connections have issues.	1. The pump's thermometer connectors don't work properly.2. The pump's thermometer is broken.	For assistance, please visit the support section on our website, www.bestwaycorp.com.
The thermal cut-out cut off.	1. The ambient temperature is over 122^ F( 50^ C) or the pump is directly under the sunshine.2. The thermal cut-out is broken.	1. Unplug the pump, and put the pump in a dry, cool place. Only re-start the pump when the water temperature reaches 93.2^ F( 34^ C) or lower.2. For assistance, please visit the support section on our website, www.bestwaycorp.com.

SALUSPA®

TABLE DES MATIÈRES

CONSIGNES DE SÉCURITÉ IMPORTANTES pg 027

LISTE DE CONTRÔLE AVANT L'INSTALLATION pg 033

INSTALLATION pg 035

INSTRUCTIONS D'INSTALLATION EN HIVER pg 035

UTILISATION DU SPA pg 039

ENTRETIEN pg 042

DÉMONTAGE ET RANGEMENT pg 044

DÉPANNAGE pg 046

CODES D'ERREUR pg 047

Abstract geometric diagram with overlapping planes and shaded regions (no text or symbols)

MALDIVES HYDROJET PRO S200106 (60034)

— 79" x 79" x 31.5" / 2.01 m x 2.01 m x 80 cm

5 - 7 1-2°F/h

0.5-1°C/h

320 gal/h 1,211 L/h

0.08Bar 1.2PSI

277 gal 1050 L

2,465 Lb 1118 kg

HAWAII HYDROJET PRO S200106 (60032)

— 71" x 71" x 28" / 1.80 m x 1.80 m x 71 cm

4 - 6 2-3°F/h

1-1.5°C/h

320 gal/h
1,211 L/h

0.08Bar
1.2PSI

210 gal
795 L

1,869 Lb
848 kg

INSTALLATION

INSTRUCTIONS D'INSTALLATION EN HIVER

< 50°F(10°C)

>59°F(15°C) >59°F(15°C)

Simple line drawing of a folded fabric or cushion (no text or symbols)

Diagram of a medical device with tubing and connectors, showing no text or symbols

Line drawing of an electrical plug connected to a device with a circular warning symbol (no text or labels)

4

5 min.

Diagram illustrating mechanical assembly steps with labeled components A, B, and C showing progressive assembly from raw gears to final parts.

Diagram showing two rectangular blocks with a curved arrow pointing downward from one to the other (no text or symbols)

6

Diagram illustrating a medical procedure for using a pressure monitor, showing step-by-step instructions and validation outcomes.

7

Line drawing of a handheld electronic device with tubing and connectors (no text or symbols)

8

Line drawing of a portable device with a hand panel and a walkie-talkie (no text or symbols)

9

Diagram of a biological structure with a magnified inset showing cellular components (no text or labels)

10

Diagram of a mechanical component with an inset showing internal components and a magnified view (no text or symbols)

11

MAX. MIN.

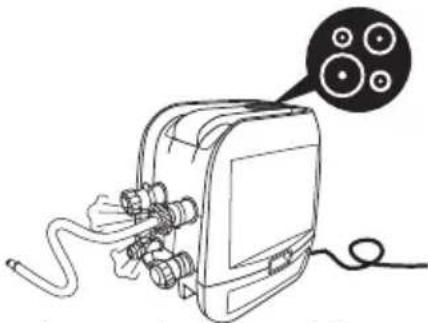

Test GFCI

IMPORTANT: RISQUE D'ÉLECTROCUTION. IL FAUT TESTER LE DISJONCTEUR DE FUITE DE TERRE À CHAQUE FOIS AVANT D'ALLUMER LA POMPE.

8.88 °C +5 F 6/6 Δ Δ c+/c

Line drawing of a device with cables and connectors, no text or symbols present

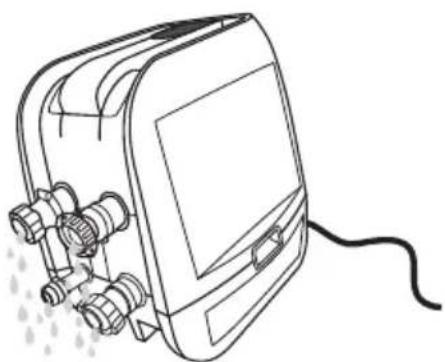

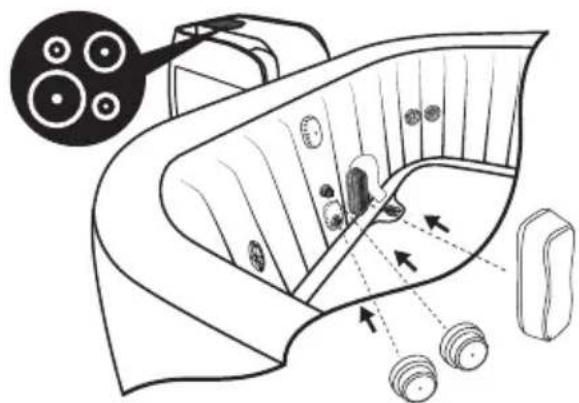

UTILISATION DU SPA

Diagram illustrating hand positioning and movement of a flower, showing correct (+) and incorrect (-) states with directional arrows.

Diagram showing a device emitting heat from a box, with a magnified inset highlighting internal components.

Diagram illustrating the step-by-step assembly of a mechanical component, showing disassembly and rolling operations.

Illustration of a portable water heater connected to a device with a circular fan-like pattern (no text or symbols)

Line drawing of a device with a close-up inset showing a connector detail (no text or symbols)

Diagram of a device with cable and connector, showing internal components and directional arrows (no text or symbols)

3.4.

4.

Diagram illustrating a biological or mechanical process with labeled components and directional arrows indicating flow or movement.

5.6.

Line drawing of a portable device with a hand panel and a separate device, both shown with an arrow indicating direction (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled parts and magnified detail view

1.

Line drawing of a portable electronic device with connectors and a cable (no text or symbols)

Abstract geometric diagram with overlapping planes and shaded regions (no text or symbols)

MALDIVES HYDROJET PRO S200106 (60034)

— 79" x 79" x 31.5" / 2.01 m x 2.01 m x 80 cm

5 - 7 1-2°F/h

0.5-1°C/h

320 gal/h 1,211 L/h

0.08Bar 1.2PSI

277 gal 1050 L

2,465 Lb 1118 kg

HAWAII HYDROJET PRO S200106 (60032)

— 71" x 71" x 28" / 1.80 m x 1.80 m x 71 cm

4 - 6 2-3°F/h

1-1.5°C/h

320 gal/h
1,211 L/h

0.08Bar
1.2PSI

210 gal
795 L

1,869 Lb
848 kg

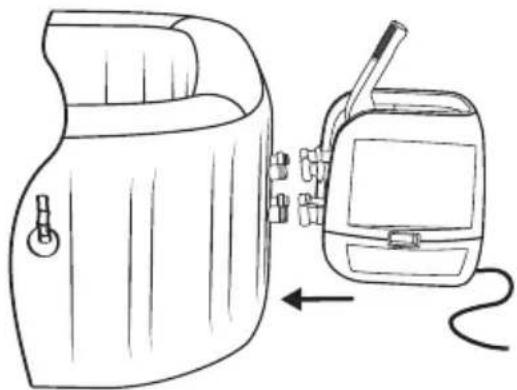

INSTALACIÓN

INSTRUCCIONES PARA USO EN INVIERNO

< 50°F(10°C)

>59°F(15°C) >59°F(15°C)

Simple line drawing of a folded fabric or cushion (no text or symbols)

Diagram of a cable being inserted into an electronic device with connectors (no text or symbols)

Line drawing of an electrical device connected to a plug with an icon indicating charging (no text or symbols present)

4

5 min.

Diagram illustrating mechanical assembly steps with labeled components A, B, and C showing progressive assembly from raw gears to final parts.

Solo para Maldives

5.25.1

Diagram showing two rectangular blocks with a curved arrow pointing downward from one to the other (no text or symbols)

6

Diagram illustrating a medical procedure for using a pressure monitor, showing step-by-step instructions and confirmation signs.

7

Line drawing of a handheld electronic device with tubing and connectors (no text or symbols)

8

Line drawing of a portable device with a hand panel and a walkie-talkie (no text or symbols)

9

Diagram of a biological structure with a magnified inset showing cellular components (no text or labels)

10

Diagram of a mechanical component with an inset showing internal components and a close-up view of a device (no text or symbols present)

11

MAX. MIN.

Prueba del GFCI

IMPORTANTE: RIESGO DE DESCARGA ELÉCTRICA. SE DEBE PROBAR EL GFCI ANTES DE ENCENDER LA BOMBA EN CADA USO.

8.8.8 °C °F 6/6 Δ Δ c+/+ 6/6 Δ Δ 6/6 Δ 6/6 Δ 6/6 Δ 6/6 Δ 6/6

Line drawing of a device with cable and connectors, no text or symbols present

USO DEL SPA

Illustration of a portable hot water heater connected to a small electric vehicle and a circular fan-like device (no text or symbols)

Line drawing of a device with a close-up inset showing a cable being inserted into a socket (no text or symbols)

Diagram of a device with cable and plug, showing internal components and directional arrows (no text or symbols)

3.4.

4.

Diagram of a biological structure with labeled parts and directional arrows, no readable text or symbols present.

5.6.

Line drawing of a portable device next to a handheld device with a scroll, showing no text or symbols.

Diagram illustrating a mechanical assembly process with magnified detail and 8x magnification view

1.

Line drawing of a portable electronic device with connectors and a cable (no text or symbols)

Para material PVC TriTech.

Abstract geometric diagram with overlapping planes and shaded regions (no text or symbols)

MALDIVES HYDROJET PRO S200106 (60034)

— 79" x 79" x 31.5" / 2.01 m x 2.01 m x 80 cm

5 - 7 1-2°F/h

0.5-1°C/h

320 gal/h 1,211 L/h

0.08Bar 1.2PSI

277 gal 1050 L

2,465 Lb 1118 kg

HAWAII HYDROJET PRO S200106 (60032)

— 71" x 71" x 28" / 1.80 m x 1.80 m x 71 cm

4 - 6 2-3°F/h

1-1.5°C/h

320 gal/h
1,211 L/h

0.08Bar
1.2PSI

210 gal
795 L

1,869 Lb
848 kg

INSTALAÇÃO

Simple line drawing of a folded fabric or cushion (no text or symbols)

Diagram of a cable being inserted into an electrical device (no text or symbols present)

Line drawing of an electrical plug connected to a device with a circular warning symbol (no text or labels)

4

5 min.

Diagram illustrating mechanical assembly steps with labeled components A, B, and C showing progressive assembly from raw gears to final parts.

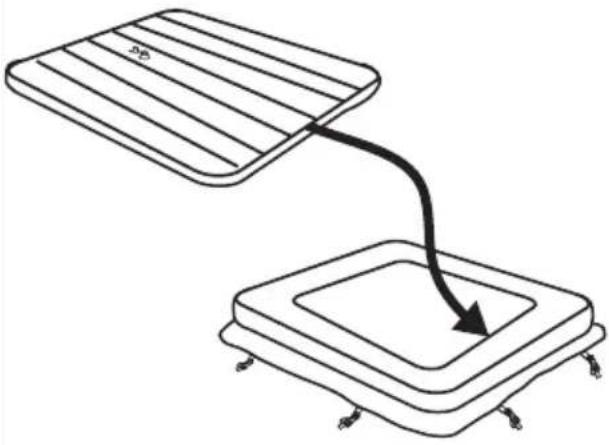

Diagram showing two rectangular blocks with a curved arrow pointing downward from one to the other (no text or symbols)

6

Diagram illustrating a medical procedure for using a pressure monitor, showing step-by-step instructions and validation outcomes.

7

Line drawing of a handheld electronic device with hoses and connectors, no text or symbols present

8

Line drawing of a portable device with a hand panel and a walkie-talkie (no text or symbols)

9

Diagram of a biological structure with a magnified inset showing cellular components (no text or labels)

10

Diagram of a mechanical component with an inset showing internal components and a close-up view of a device (no text or symbols present)

11

MAX. MIN.

Teste do GFCI

IMPORTANTE: RISCO DE CHOQUE ELÉTRICO. O GFCI DEVE SER TESTADO SEMPRE ANTES DE LIGAR A BOMBA.

8.8.8 °C °F 6/6 Δ Δ c+/+ 6/6 Δ Δ 6/6 Δ 6/6 Δ 6/6 Δ 6/6 Δ 6/6

Line drawing of an electronic device with connectors and a magnified inset showing three circular components (no text or symbols)

UTILIZAÇÃO DO SPA

8.8.8 °C °F A B C D E F G H I J

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Diagram of a hand holding roses with directional arrows indicating movement (no text or symbols)

Diagram showing a device emitting heat from a container, with an inset image of a device emitting heat.

Illustration of a hot water bath connected to a device with a circular fan-like pattern (no text or symbols)

Line drawing of a device with a magnified inset showing internal components (no text or symbols)

Diagram of a device with cable and connector, showing internal components and directional arrows (no text or symbols)

3.4.

4.

Diagram illustrating a biological or mechanical process with labeled components and directional arrows indicating flow or movement.

5.6.

Line drawing of a portable device with a hand panel and a separate device, both shown in line with an arrow indicating direction (no text or symbols present)

Diagram illustrating a mechanical assembly process with magnified detail and 8x magnification view

1.

Line drawing of a portable electronic device with connectors and a cable (no text or symbols)

Para o material TriTech PVC.

For support please visit us at:

bestwaycorp.com/support

©2020 Bestway Inflatables & Material Corp.

All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle Rechte vorbehalten/Tutti i diritti riservati ®™ Trademarks used in some countries under license to/

Bestway Inflatables & Material Corp., No.3065 Cao An Road, Shanghai, 201812, China.

Manufactured, distributed and represented in the European Union by/

Bestway (USA) Inc., 3411 E. Harbour Drive, Phoenix, Arizona 85034, United States of America

Tel: [phone] (For U.S. and Canada)

Distributed in Australia & New Zealand by Bestway Australia Pty Ltd, Unit 2/98-104 Carnarvon St Silverwater, NSW 2128, Australia

Tel: Australia: ([phone]; New Zealand: 0800 142 101

Exported by/Exporté par/Exportado por/Exportiert von/Esportato da

Bestway (Hong Kong) International Ltd./Bestway Enterprise Company Limited

Suite 713, 7/Floor, East Wing, Tsim Sha Tsui Centre, 66 Mody Road, Kowloon, Hong Kong

www.bestwaycorp.com
