USER MANUAL Professional Air TAURUS

Line drawing of a flat air fryer with control panel and side buttons (no text or symbols)

_

| _

一

1

Fig.1 MAX Fig.2

Fig.1 MAX

Two identical diagrams of a showerhead with water droplets, labeled Fig.2 (no text or symbols on the diagram itself)

B C D G

Español

Freidora de Aire

Professional Air

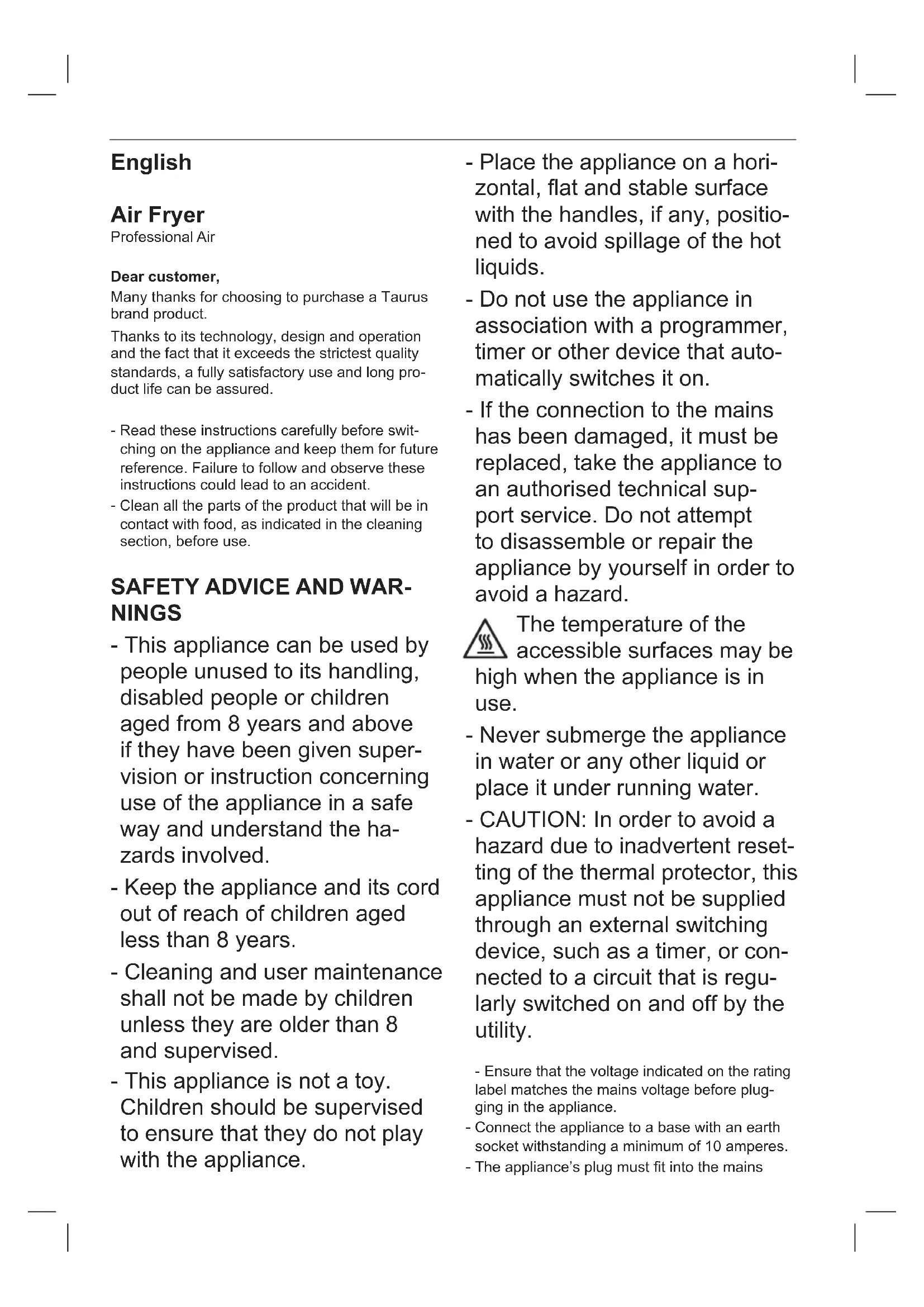

Many thanks for choosing to purchase a Taurus brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

• Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.
• Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.

SAFETY ADVICE AND WAR- NINGS

• This appliance can be used by people unused to its handling, disabled people or children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Keep the appliance and its cord out of reach of children aged less than 8 years.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

• Place the appliance on a horizontal, flat and stable surface with the handles, if any, positioned to avoid spillage of the hot liquids.

• Do not use the appliance in association with a programmer, timer or other device that automatically switches it on.
• If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

The temperature of the accessible surfaces may be in when the appliance is in

• Never submerge the appliance in water or any other liquid or place it under running water.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal protector, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

- Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.

• Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.
• The appliance's plug must fit into the mains

socket properly. Do not alter the plug. Do not use plug adaptors.

• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Do not clip or crease the power cord.
• Do not allow the power cord to hang or to come into contact with the hot surfaces of the appliance.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak
• Keep the working area clean and well lit. Cluttered and dark areas invite accidents.
• Use the appliance in a well ventilated area.
• Do not place the appliance on hot surfaces, such as cooking plates, gas burners, ovens or similar.
• Place the appliance on a horizontal, flat, stable surface, suitable for withstanding high temperatures and away from other heat sources and contact with water.
• CAUTION: In order to prevent overheating do not cover the appliance.
• Do not use or store the appliance outdoors.
• Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
• Do not use the appliance in the case of persons insensitive to heat (the appliance has heated surfaces).
• Do not touch the heated parts of the appliance, as it may cause serious burns.

USE AND CARE:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if the parts or accessories are not properly fitted.
• Do not use the appliance if the accessories attached to it are defective. Replace them immediately.
• Do not use the appliance when empty.
• Do not use the appliance if the timer switch does

not work properly.

• Do not move the appliance while in use.
• To keep the non-stick treatment in good condition, do not use metal or pointed utensils on it.
• Do not force the appliance's work capacity.

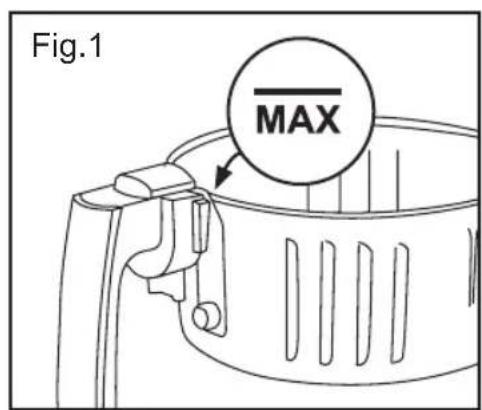

• Respect the MAX level. (Fig. 1)
• Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Do not store or transport the appliance if it is still hot.
• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
• Use only utensils appropriate to support high temperatures.
• Turn the thermostat control to the minimum (MIN) setting. This does not mean that the iron is switched off permanently.
• As a reference, in the annexed table you will find a recommendation on the cooking temperature and time for several meals.

SERVICE:

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

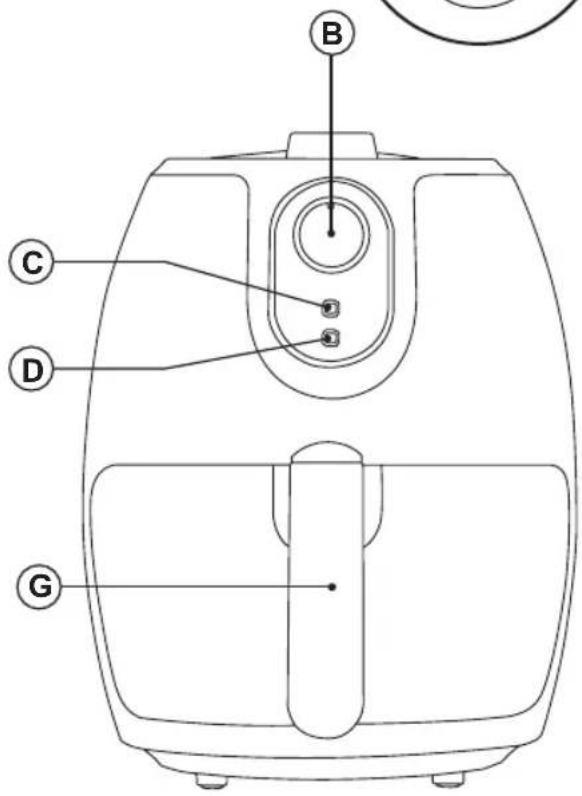

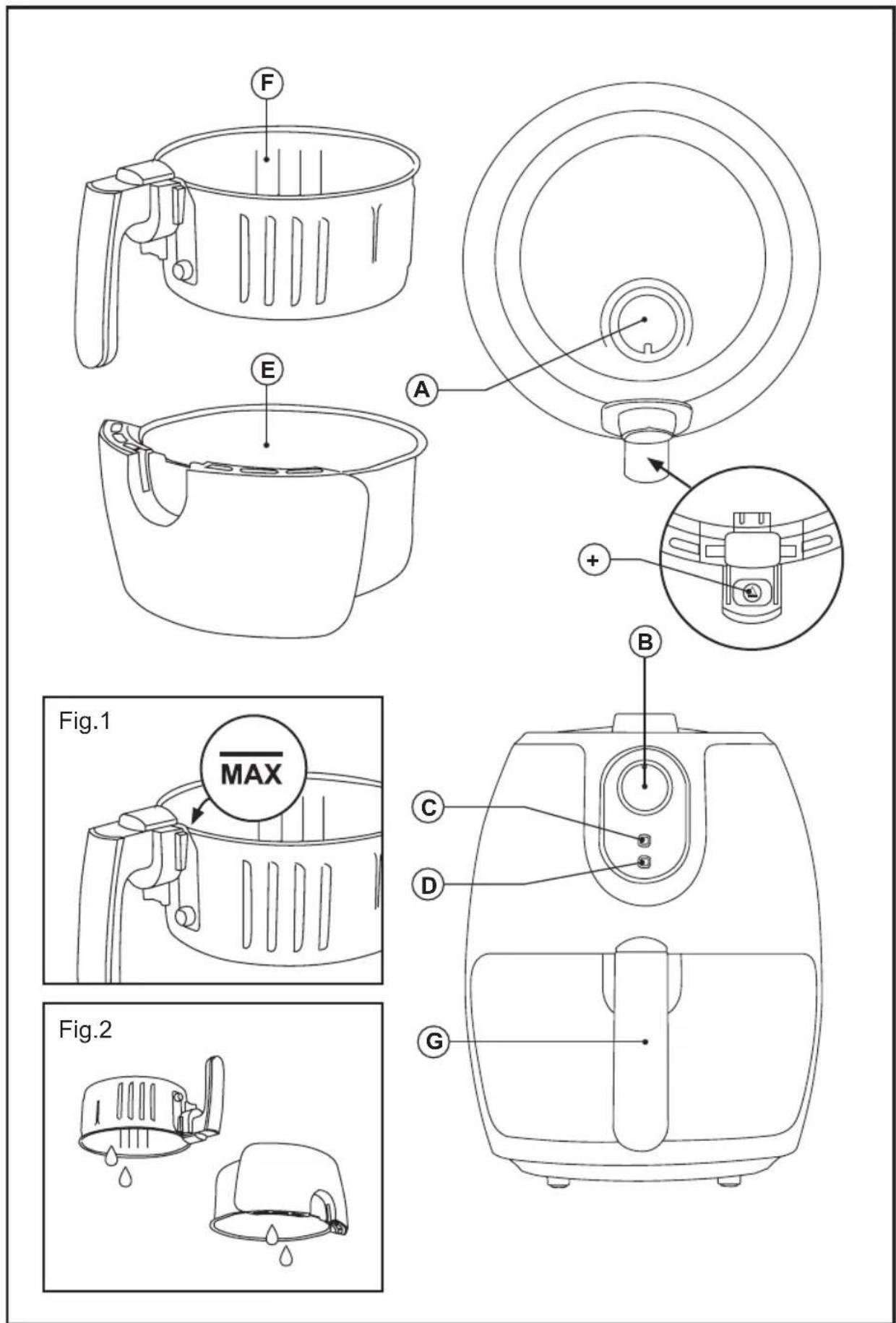

DESCRIPTION

A Thermostat
B Timer
C Green power pilot light
D Red heating pilot light
E Non-stick bowl
F Basket
G Basket handle
H Basket release button

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

INSTRUCTIONS FOR USE BEFORE USE:

• Make sure that the entire product's packaging has been removed.
• Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

USE:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.
• Take the bowl (E) out of the fryer carefully.

Note: Do not use the bowl without the basket in it.

Note: manipulate the bowl using the basket and its basket handle. Don't touch the bowl when it's hot.

• Put the ingredients you want to fry inside the basket (F)
• Introduce the bowl inside the fryer.
• Choose the needed temperature using the thermostat (A).
• Once you've done it, choose the right cooking time with the Timer (B) and the appliance will start to work.
• The green power pilot light (C) and the red heating pilot light (D) will switch on.
• During the process of frying, the red heating pilot light (D) will switch on intermittently, showing when the appliance is heating.

Note: have in mind that if the appliance is cool you should add 3 minutes to the cooking time.

Note: if you want to shake the ingredients, pull the bowl out of the appliance by the handle and shake it.

• Once the cooking time reaches its end, pull out the bowl outside the appliance. The appliance will switch off automatically.
  CAUTION: Bowl, basket and food will be very HOT.
• Place the bowl over a plain surface able to work with high temperatures.
• Split the basket from the bowl using the basket release button (H) and turn the basket to take off the fries, avoiding the risk of burns.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• When the timer reaches its min position (0 min) the fryer will stop automatically.
  To stop the fryer, you just have to turn the timer into its min position.
• Unplug the appliance from the mains.
• Clean the appliance as it is explained on the cleaning section.

PRACTICAL RECOMMENDATIONS: SAFETY THERMAL PROTECTOR:

- The appliance has a safety device, which protects the appliance from overheating.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the electrical equipment and the mains connection with a damp cloth and dry. DO NOT IMMERSE IN WATER OR ANY OTHER LIQUID.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• It is advisable to clean the appliance regularly and remove any food remains.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.
• The following pieces may be washed in a dishwasher (using a soft cleaning program):
• Non-stick Bowl
• Basket

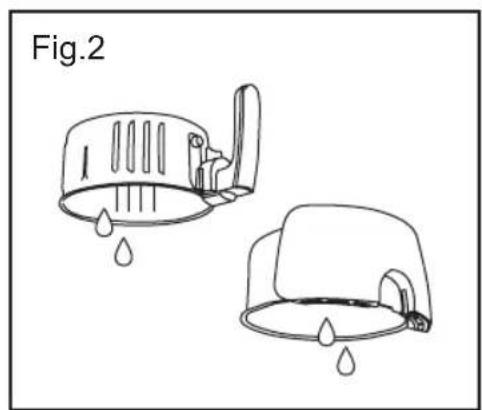

• The draining/drying position of the articles washable in the dishwasher or in the sink must allow the water to drain away easily. (Fig. 2)
• Then dry all parts before its assembly and storage.

SUPPLIES

• Supplies can be acquired from distributors and authorised establishments (such as filters, etc.) for your appliance model.
• Always use original supplies, designed specifically for your appliance model.

ANOMALIES AND REPAIR

- Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate

public recycling bins for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This symbol means that surface could to get hot during the use

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

RECOMENDED TIME AND TEMP. TABLE

Here you can find our recommendation on the time and temperature for frying different meals.

Meal Temp. Time Shake
Fried potatoes
Frozen fries 200°-min			√
Home-made(Add 1⁄2 tbspof oil)	180°-8-	2 min	√
Chicken
Drumsticks 180°-2 min
FrozenNuggets*	200°-1 min		√
Meat
Hamburguer 180°-1 min
Sausage roll 200° 13-15 min

* NOTE: To fry meals in the Professional Air fryer you should better use oven-ready ingredients.
