AVDS0100 - Docking station Avanca - Free user manual and instructions

USER MANUAL AVDS0100 Avanca

WATERPROOF BLUETOOTHSPEAKER

Enjoy your favorite music in the shower

USERMANUAL

INDEX

Nederlands 4

English 7

François 10

Deutsch 13

Espanol 16

Italiano 19

Polski 22

AVANCA

WATERPROOF BLUETOOTHSPEAKER | HANDLEIDING [NL]

1. INhOuD VERPAKING

1. Waterproof Bluetooth speaker
2. USB kabel
3. Handleiding

2. SPEcIFcATIES

WATERPROOF BLUETOOTHSPEAKER | HANDLEIDING [NL]

Voor iOS apparaten

WATERPROOF BLUETOOTHSPEAKER | HANDLEIDING [NL]

4. VEILIGHeIDSINSTRucTIES

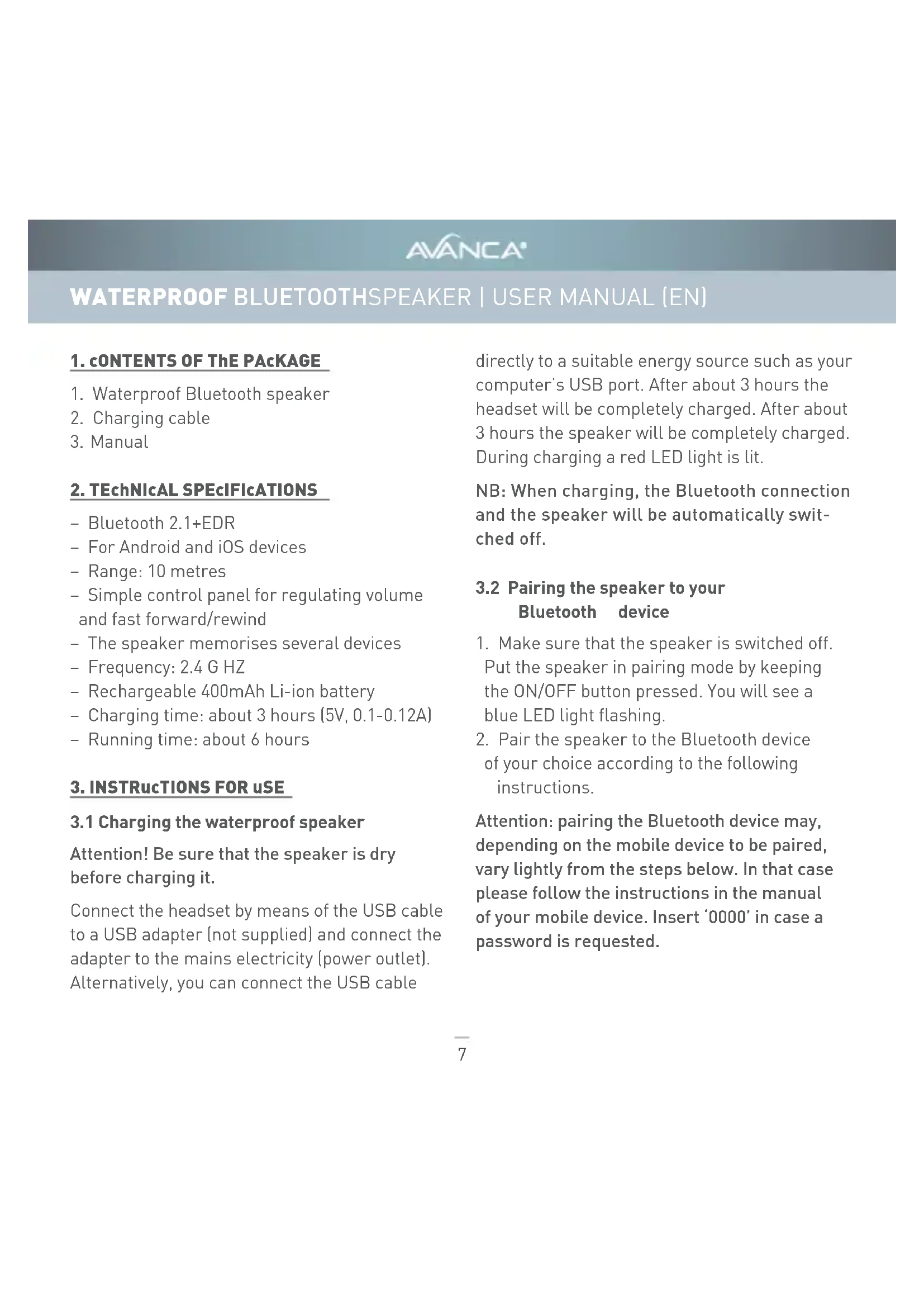

WATERPROOF BLUETOOTHSPEAKER | USER MANUAL (EN)

1. CONTENTS OF The PACKAGE

1. Waterproof Bluetooth speaker
2. Charging cable
3. Manual

2. TChNlcAL SPEcIFcATIONS

-Bluetooth2.1+EDR
- For Android and iOS devices
Range: 10 metres
- Simple control panel for regulating volume and fast forward/rewind
- The speaker memorises several devices
Frequency: 2.4 GHz
- Rechargeable 400mAh Li-ion battery
- Charging time: about 3 hours (5V, 0.1-0.12A)
- Running time: about 6 hours

3. INSTRUCTIONS FOR uSE

3.1 Charging the waterproof speaker

Attention! Be sure that the speaker is dry before charging it.

Connect the headset by means of the USB cable to a USB adapter (not supplied) and connect the adapter to the mains electricity (power outlet).

Alternatively, you can connect the USB cable

directly to a suitable energy source such as your computer's USB port. After about 3 hours the headset will be completely charged. After about 3 hours the speaker will be completely charged. During charging a red LED light is lit.

NB: When charging, the Bluetooth connection and the speaker will be automatically switched off.

3.2 Pairing the speaker to your Bluetooth device

1. Make sure that the speaker is switched off. Put the speaker in pairing mode by keeping the ON/OFF button pressed. You will see a blue LED light flashing.
2. Pair the speaker to the Bluetooth device of your choice according to the following instructions.

Attention: pairing the Bluetooth device may, depending on the mobile device to be paired, vary lightly from the steps below. In that case please follow the instructions in the manual of your mobile device. Insert '0000' in case a password is requested.

AVANCA

WATERPROOF BLUETOOTHSPEAKER | USER MANUAL (EN)

For iOS devices

1. Enter the 'Settings' menu. If necessary, activate the Bluetooth functionality.
2. Now the waterproof speaker will appear in the list of Bluetooth devices. Click the device and wait until the pairing has been carried out.

For Android devices

1. Go to 'Apps' and find the 'Settings' menu. Open the menu. If necessary, activate the Bluetooth functionality.
2. The device will automatically detect all Bluetooth devices in its vicinity. If it does not, please click on 'Scan' until your waterproof speaker appears in the list.
3. Click on the waterproof speaker and wait until the pairing has been carried out. Click on 'OK' when you are asked to confirm the device. Now you can enjoy speaker and listen to the music played on your Bluetooth device. You will also be able to answer incoming calls on your phone. The speakers range is about 10 metres.

3.3 Operating the speaker

Use the control panel at the centre of the speaker to operate the device.

switching the speaker on/off; keep pressed for detection Bluetooth devices

briefly press for previous track, keep pressed for lowering volume.

briefly press for next track, keep pressed for increasing volume.

answering/ending calls

play/pause music

AVANCA

WATERPROOF BLUETOOTHSPEAKER | USER MANUAL (EN)

4. SAFETY INSTRUCTIONS

Keep the product away from sharp objects. Don't place heavy objects on top of the product. Keep the product away from heating sources.

5. cLEANING

Clean the product with a moist cloth. Don't use any chemical liquids or oil!

6. PROBLEMS AND SOLUATIONS

My mobile device does not find the speaker in the list of Bluetooth devices

1. Check whether the speaker is within a 10-metre range of the Bluetooth device.
2. Check whether coupling mode has been activated.
3. Click on 'scan' or 'search' to start another search for devices in the vicinity.

I am not able to activate the speaker

1. The battery may be empty. Charge the battery minimally for 2 hours by means of a USB cable and try to activate the speaker again.
2. Maybe you didn't keep the button pressed long enough; it should be pressed for at least three seconds.

The speaker does not charge

1. Check whether the speaker has been correctly connected to the USB cable.
2. Check whether the USB cable has been correctly connected to either a USB adapter and mains, or directly to a power source such as your laptop.

I hear a disturbing sound when using the speaker.

This happens rarely. In case you experience a disturbing sound, please use the reset function on the speaker. A small reset button can be found on the control panel, next to the button to go to the next song and to raise the volume. Press the reset button for several seconds.

AVANCA

WATERPROOF BLUETOOTHSPEAKER | MANUEL (FR)

1. CONTENU DEL L'EMBALLAGE

WATERPROOF BLUETOOTHSPEAKER | MANUEL (FR)

WATERPROOF BLUETOOTHSPEAKER | MANUEL (FR)

4. MESuRES DE SÉCURITÉ

WATERPROOF BLUETOOTHSPEAKER | HANDBUCH (DE)

1. INhALT DER VERPAcKuNG

WATERPROOF BLUETOOTHSPEAKER | HANDBUCH (DE)

WATERPROOF BLUETOOTHSPEAKER | HANDBUCH (DE)

WATERPROOF BLUETOOTHSPEAKER | MANUAL (ES)

WATERPROOF BLUETOOTHSPEAKER | MANUAL (ES)

Para aparatos iOS

WATERPROOF BLUETOOTHSPEAKER | MANUAL (ES)

4. InstRUCCIOnes De seGURIDAD

WATERPROOF BLUETOOTHSPEAKER | MANUALE (IT)

WATERPROOF BLUETOOTHSPEAKER | MANUALE (IT)

WATERPROOF BLUETOOTHSPEAKER | MANUALE (IT)

WATERPROOF BLUETOOTHSPEAKER | INSTRUUKCJA (PL)

1. AWARTOSC OPAKOWANIA

WATERPROOF BLUETOOTHSPEAKER | INSTRUUKCJA (PL)

WATERPROOF BLUETOOTHSPEAKER | INSTRUUKCJA (PL)

4.InstRUkCJe BezPleCzeNstwA

WATERPROOF BLUETOOTHSPEAKER

Enjoy your favorite music in the shower

feAtURes

• Bluetooth 2.1+EDR, operating range: 10m
• Compatible with (almost) all Bluetooth devices
• Speaker remembers paired devices

• Panel for easy volume control, song changing and call pickup

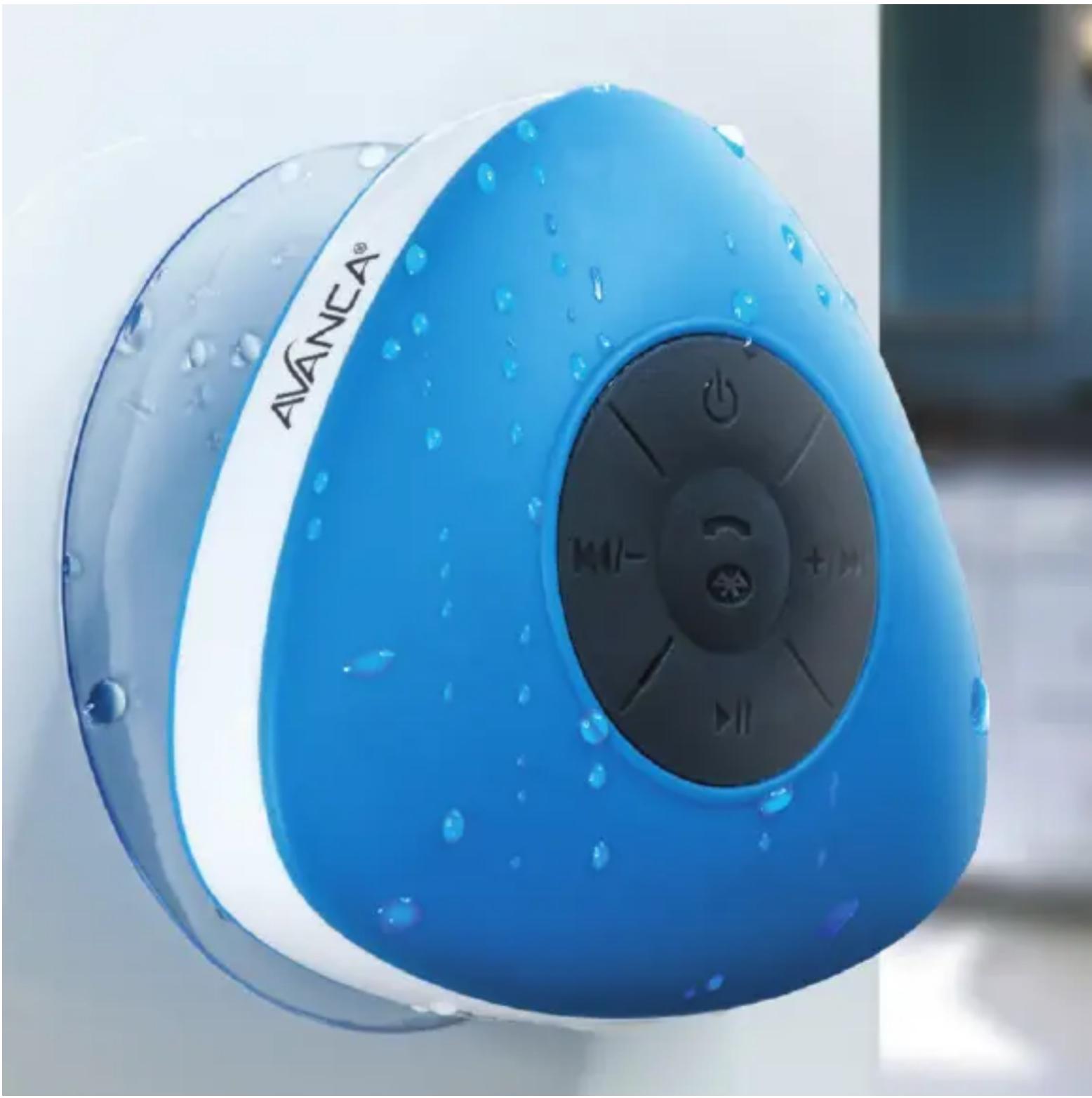

• Suction cup to stick the speaker to the wall or other flat surfaces

• Transmitting frequency: 2.4 GHz
• Rechargeable 400mAh Li-ion battery
• Operating time: approximately 6 hours
  Including charging cable
