USER MANUAL BCH3300 SCHEPPACH

Scope of delivery 21

Before starting the equipment 23 - 24

Attachment and operation 24 - 25

Disposal and recycling 27

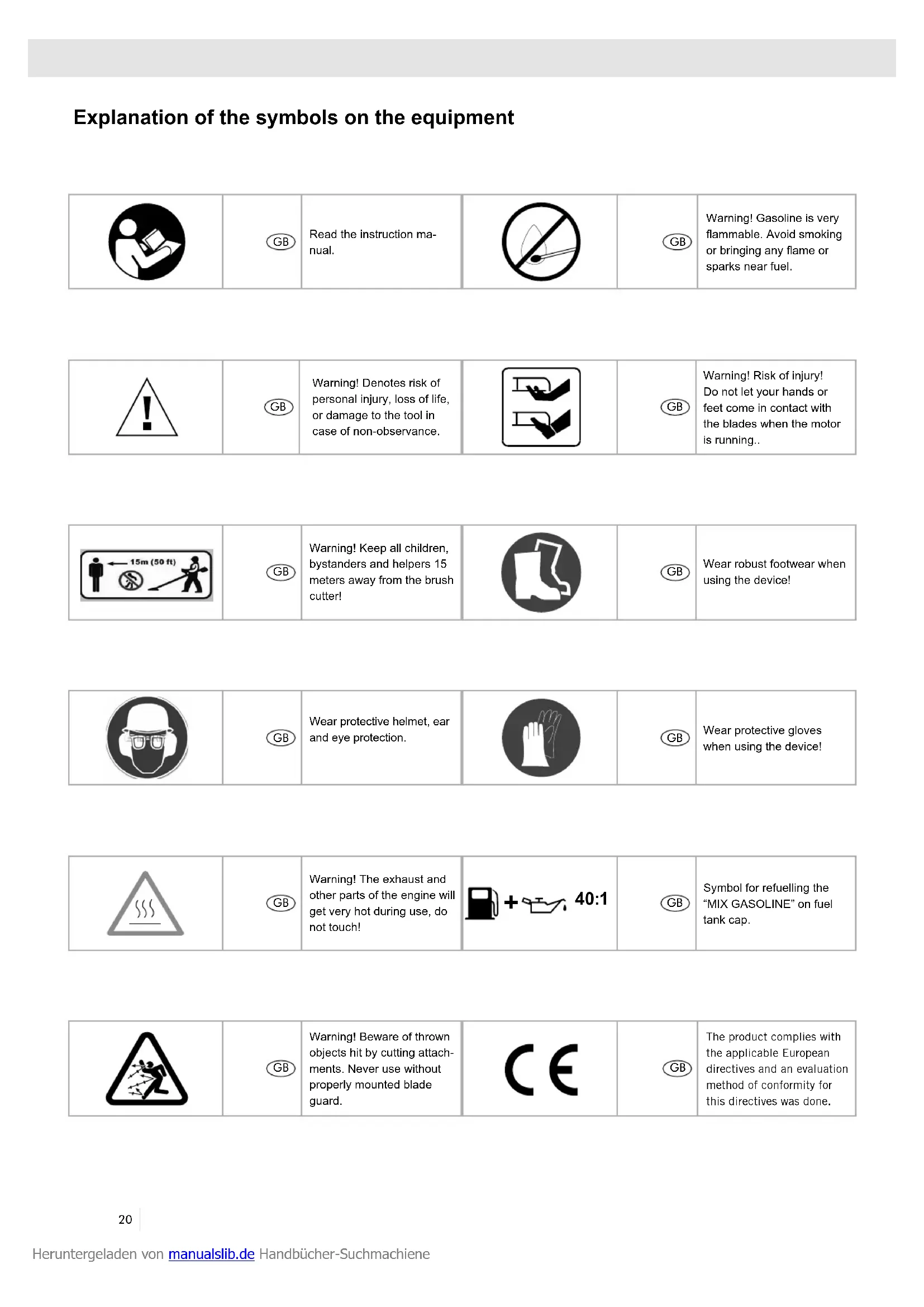

Read the instruction ma-nual. Warning! Denotes risk of personal injury, loss of life, or damage to the tool in case of non-observance. Warning! The exhaust and other parts of the engine will get very hot during use, do not touch! Warning! Beware of thrown objects hit by cutting attach-ments. Never use without properly mounted blade guard. The product complies with the applicable European directives and an evaluation method of conformity for this directives was done. Warning! Keep all children, bystanders and helpers 15 meters away from the brush cutter! Wear protective helmet, ear and eye protection. Warning! Gasoline is very ammable. Avoid smoking or bringing any ame or sparks near fuel. Warning! Risk of injury!Do not let your hands or feet come in contact with the blades when the motor is running.. Wear robust footwear when using the device! Wear protective gloves when using the device!

MANUFACTURER: scheppach Fabrikation von Holzbearbeitungsmaschine GmbH Günzburger Straße 69 D-89335 Ichenhausen DEAR CUSTOMER, We hope your new tool brings you much enjoyment and success. NOTE: According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Non-compliance of the operating instructions,

• Repairs by third parties, not by authorized service technicians,

• Installation and replacement of non-original spare parts,

• Application other than specied,

• A breakdown of the electrical system that occurs due to the non-compliance of the electric regulations and VDE regulations 0100, DIN 57113 / VDE0113. WE RECOMMEND: Read through the complete text in the operating instruc- tions before installing and commissioning the device. The operating instructions are intended to help the user to become familiar with the machine and take advan- tage of its application possibilities in accordance with the recommendations. The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to in- crease reliability and service life of the machine. In addition to the safety regulations in the operating in- structions, you have to meet the applicable regulations that apply for the operation of the machine in your coun- try. Keep the operating instructions package with the ma- chine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concerning the opera- tion of the machine and who are informed about the as- sociated dangers. The minimum age requirement must be complied with.

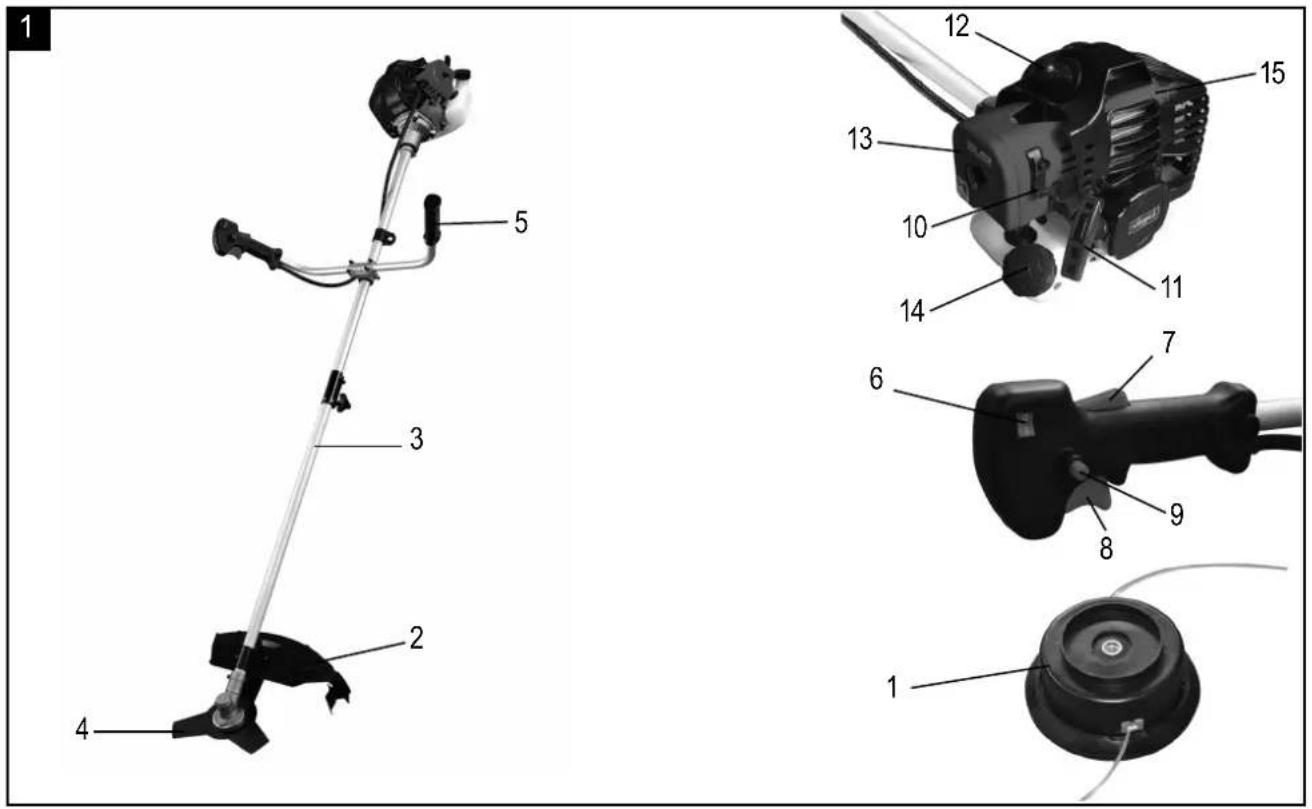

1. Line spool with cutting line

3. Long handle with drive shaft

13. Air lter housing cover

15. Housing for engine cooler

18. Combined oil/petrol cylinder

3. Scope of delivery

• Open the packaging and take out the equipment with care.

• Remove the packaging material and any packaging and/or transportation braces (if available).

• Check to see if all items are present.

• Inspect the equipment and accessories for transport damage. In case of complaints the supplier is to be informed immediately. Complaints received at a later date will not be acknow ledged.

• If possible, keep the packaging until the end of the guarantee period.

• Read the operating instructions to make yourself famil- iar with the device prior to using it.

• After that, please dispose of it in an environmentally friendly way.

• Only use original parts for accessories as well as for wearing and spare parts. Spare parts are available from your specialized dealer.

• Specify our part numbers as well as the type and year of construction of the device in your orders. m Important! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating! Heruntergeladen von manualslib.de Handbücher-Suchmachiene22 GB

The power scythe (using the cutting blade) is designed for cutting young trees, strong weeds and undergrowth. The power trimmer (using the line spool with cutting line) is designed for cutting lawns, grassed areas and small weeds. The operating instructions as supplied by the manufacturer must be obeyed to ensure that the equipment is used properly. Any use which is not ex- pressly permitted in the manual may result in damage to the equipment and place the user in serious danger. Be sure to observe the restrictions in the safety inst- ructions. Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equi- valent purposes. Important. Due to the high risk of bodily injury to the user, the petrol power scythe must not be used to car- ry out the following work: to clean dirt and debris off walkways, or to chop up tree or hedge clippings. Simi- larly, the petrol power scythe must not be used to level out high areas such as molehills. For safety reasons, the petrol power scythe must not be used as a drive unit for other work tools or toolkits of any kind. The equipment is allowed to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user/operator and not the manu- facturer will be liable for any damage or injuries of any kind resulting from such misuse. Non-permitted users: Persons who are not familiar with the operating manu- al, children, young people under the age of 16 as well as persons under the inuence of alcohol, drugs or medication must not operate the unit. Working hours for gasoline brush cutter While it is permitted to use a brush cutter at any time, operators should always show due consideration to others living nearby.

5. Important information

Safety instructions This appliance is not intended for use by persons (in- cluding children) with reduced physical, sensory or mental capabilities, or lack of experience and know- ledge, unless they have been given supervision or in- struction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Read the instructions carefully. Be familiar with the controls and the proper use of the appliance.

• Never allow children or people unfamiliar with these instructions to use the appliance. Local regulations may restrict the age of the operator.

• Never mow while people, especially children, or pets are nearby.

• The operator or user is responsible for accidents of hazards occurring to other people or their property.

• While cutting, always wear substantial footwear and long trousers.

• Do not operate the appliance when barefoot or wea- ring open sandals.

• Thoroughly inspect the area where the appliance is to be used and remove all stones, sticks, wires, bo- nes, and other foreign objects.

• Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.

• On multi-bladed appliances, take care as rotating one blade can cause other blades to rotate.

• Operate only in daylight or in good articial light.

• Avoid operating the appliance in wet grass, where feasible.

• Always be sure of your footing on slopes.

• Exercise extreme caution when changing direction on slopes.

• Do not cutting excessively steep slopes.

• Use extreme caution when reversing or pulling the appliance towards you.

• Never operate the appliance with defective guards or shields, or without safety devices.

• Switch on the motor according to instructions and with feet well away from the blade(s).

• In this case, do not tilt it more than absolutely ne- cessary and lift only the part which is away from the operator. Always ensure that both hands are in the operating position before returning the appliance to the ground.

• Do not put hands or feet near or under rotating parts.

• Never pick up or carry an appliance while the motor is running.

• Pull the spark from the socket: – whenever you leave the machine; – before clearing a blockage; – before checking, cleaning or working on the ap- pliance; – after striking a foreign object. Inspect the appliance for damage and make repairs as necessary; – if the appliance starts to vibrate abnormally (check immediately). Heruntergeladen von manualslib.de Handbücher-Suchmachiene23GB

4. Maintenance and storage

• Keep all nuts, bolts, and screws tight to be sure the appliance is in safe working condition.

• Check the grass catcher frequently for wear or dete- rioration.

• Replace worn or damaged parts for safety.

• For rotary mowers, ensure that only replacement cutting means of the right type are used. – Never store the equipment with petrol in the tank inside a building where fumes can reach an open ame or spark; – Allow the engine to cool before storing in any en- closure; – To reduce the re hazard, keep the engine, silencer, battery compartment and petrol storage area free of grass, leaves, or excessive grease; – If the fuel tank has to be drained, this should be done outdoors. Special satety warning

1. Grip the handles of the brush cutter rmly with both

hands. If you suspend the work, place the throttle into the idling position.

2. Always be sure to maintain a steady, even posture

3. Maintain the speed of the engine at the level re-

quired to perform cutting work and never raise the speed of the engine above the necessary level.

4. If the grass gets caught in the blade during opera-

tion, or if you need to check the unit or refuel the tank always be sure to turn off the engine.

5. If the blade touches a hard object like a stone im-

mediately stop the engine and check if something is wrong with the blade. If so, replace the blade with a new one.

6. If someone calls out while working, always be sure

to turn off the engine before turning around.

7. Never touch the spark plug or plug cord while

the engine is in operation. Doing so may result in being subjected to an electrical shock.

8. Never touch the mufer, spark plug or other me-

tallic parts of the engine while the engine is in operation or immediately after shutting down the engine. Doing so may result in serious burns.

9. When you nish cutting in one location and wish to

continue working in another spot, turn off the engi- ne and turn the machine to have the blade facing away from your body.

10. Check that the cutting attachment stopped turning

under the engine idle before starting to use the machine.

Cutter balde thickness mm Teeth quantity Max. cutting speed max. min-1 Power unitDisplacement ccm Max. engine output W Fuel tank capicity l Engine type 2-stroke engine, air-cooled Weight kg Subject to technical changes! Information concerning noise emission measured according to relevant standards: Sound pressure L

= 96.8 dB(A) Sound power L

= 2.5 dB(A) Wear ear-muffs. The impact of noise can cause damage to hearing. Vibration A

= 1.5 m/s2 Reduce noise generation and vibration to a minimum!

• Use only equipment that is in perfect condition.

• Maintain and clean the equipment regularly.

• Adopt your way of working to the equipment.

• Do not overload the equipment.

• Have the equipment checked if necessary.

• Switch off the equipment when not in use.

• Wear gloves. In these operating instructions we have marked the places that have to do with your safety with this sign: m

7. Before starting the equipment

Each time before use, check the following:

• That there are no leaks in the fuel system.

• That the equipment is in perfect condition and that the safety devices and cutting devices are complete.

• That all screws are securely fastened.

• That all moving parts move smoothly. Heruntergeladen von manualslib.de Handbücher-Suchmachiene24 GB 1 Fuel and oil Recommended fuels Use only a mixture of unleaded petrol and special 2-stroke engine oil. Mix the fuel mixture as indicated in the fuel mixing table. Important: Do not use a fuel mixture which has been stored for longer than 90 days. Important: Never use 2-stroke oil with a recommended mixing ratio of 100:1. The manufacturer’s warranty will be voided in case of engine damage due to inade- quate lubrication. Important: Only use containers designed and appro- ved for the purpose to transport and store fuel. Pour the correct quantities of petrol and 2-stroke oil into the mixing bottle (see scale printed on the bottle). Then shake the bottle well. Never use oil for 4-cycle engine or use water cooled 2-cycle engine. It can cause spark plug fouling exhaust part blocking or piston ring sticking. Mixed fuels, which have been left unused for a period of one month or more, may clog the carburetor or result in the engine foiling to operate property. Put remained fuel into an airtight container and keep it in the dark and cool room. 2 Fuel mixing table Mixing procedure: 40 parts petrol to 1 part oil Example: 1 l Petrol : 0,025 l 2-stroke oil 5 l Petrol : 0,125 l 2-stroke oil Warning! Take care of the emission of exhaust gases. Always shut off engine before fueling. Never add fuel to a machine with a running or hot engine. Take care of re!

8. Attachment and operation

ASSEMBLY When assembling this machine, please follow the inst- ructions for assembly printed. 1 Assemble the handle on the machine. Fig. 4 -6

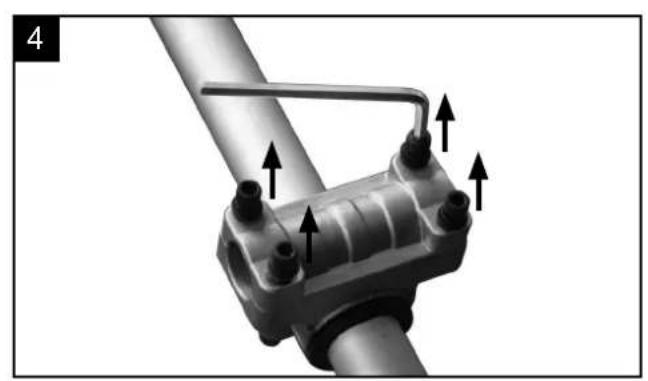

• Assemble the bike type handle on the machine: First release the inner hex screws, second take right and left handle on the centre of handle holder.

• Last assemble the handle holder and tighten the in- ner screws enough.

2. Mounting the shaft. Fig. 7

• Push the lower part of the shaft (b) right down until the stop pin (a) slots into the hole (c) in the shaft. This is easier to do if you rotate the bottom of the shaft (b) slightly in both directions. The pin (a) is in place when it is completely lodged in the hole.

• Fix the safe guard with hex key and wrench enc- losed as stardard accessories for tighting the nuts enough. Please see the below pictures showing. m Warning! Use only original manufacturer‘s repla- cement parts, accessories and attachments. Failure to do so can cause poor performance, possible injury and may void your warranty. Never use the machine without the guard assembled!

4. Assemble and disassemble the cutting head

grass trimmer / nylon cutting head. Fig. 14 - 15

• Release the nut. Line up the two holes of ange and shield, use one screw driver to hold the ange as below and turn the socket wrench clockwise, the nut will be released.

• Fit the Nylon cutting head. Remove another shield after release the nut. Still hold the ange, take the Nylon cutting head on the shaft and rotate counter-clockwise, the Nylon cutting head is tted. Fig. 15

• Release the Nylon cutting head. Fig. 10 Use screw driver to hold ange and then rotate the Nylon cutting head clockwise, it will be replaced. Brush cutter / Cutter blade

• Fit the blade. Fig. 8 - 10 Take the outer ange off after release the nut, then put the blade (4), outer ange (25), shield (24) and nut according to priority as below picture. Note the blade rotation direction needs be same as below picture. Use screw driver to hold ange and tighten nut counter-clockwise, ensure the nut is tightened enough.

• Release blade. Use screw driver to hold ange and release nut, the blade can be took off. m Warning! Please make sure the cutting head has been assem- bled correctly before use! Note: The packaging material is made of recycle ma- terials. Dispose of packaging materials in accordance with regulations.

5. Fit the belt. Fig. 17 - 21

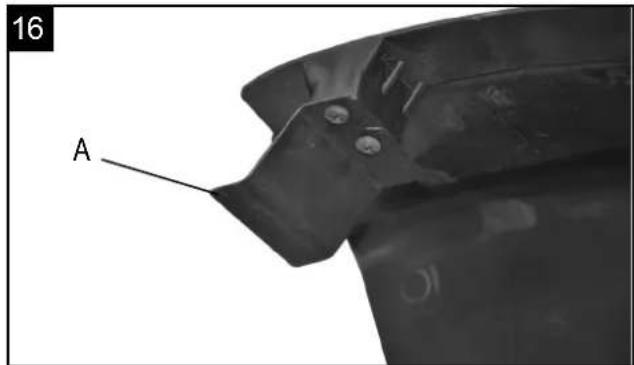

• to picture showing, t the belt well. OPERATION When working with the equipment, the appropriate plastic guard hood for cutting blade mode or cutting line mode must be tted to prevent objects being th- rown out by the equipment. The integrated blade in the cutting line guard hood au- tomatically cuts the line to the optimum length. Fig. 16 Filling with fuel m Danger of injury! Fuel is explosive! Turn off and cool the motor down before lling the tank with fuel. You must observe all safety instructions relating to handing fuel. Heruntergeladen von manualslib.de Handbücher-Suchmachiene25GB m Risk of device damage! The device is supplied without motor or gearbox oil. ATTENTION! Before operating, you must ll it with fuel.

• Unscrew the tank cap (14) and remove it. Fig. 1

• Pour in the fuel carefully. Avoid spilling!

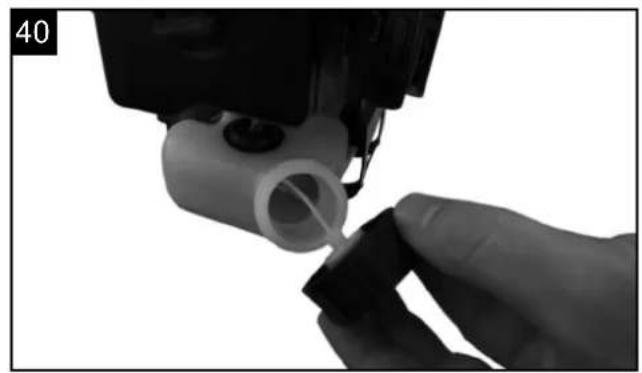

• Screw the tank cap on rmly by hand. Draining fuel. Fig. 40

• Hold a collection container beneath the fuel drain bolt.

• Unscrew the tank cap and remove it.

• Allow the fuel to run out completely.

• Screw the tank cap on rmly by hand. Start on the unit Do not start the unit until it has been completely assembled. m Danger of injury! Do not operate the device unless you did not nd any faults. If a part has become defective, make sure to replace it before you use the device again. Check before use!

• Check the safe condition of the device:

• Check the device for leaks.

• Check the device for visual defects.

• Check that all parts of the device have been securely tted.

• Check that all safety devices are in proper condition. m Danger of injury! Before starting work, always check the ground and remove all objects which could be thrown by the device. Start Fig. 21 - 27 + 41 Once the machine has been set up properly, start the engine as follow:

1. Set the equipment down on a hard, level surface.

2. Turn the engine switch to the ON position. Fig. 23

3. Put the choke lever on the position. Fig. 23

4. Press the fuel pump more than 5 times. Fig. 24

5. Pull the recoil starter handle 3-5 times to start the

6. Wait a while adjust the choke lever to position.

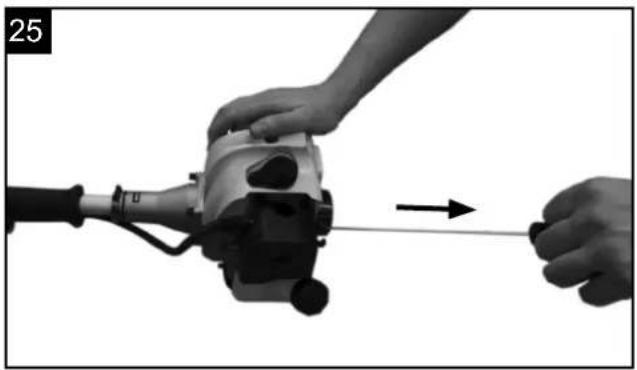

7. Pull the rope until engine starts. Fig. 25

8. When the engine is running and idling. The throttle

lever on handle is as picture 25. First press the lock off lever (7) and then switch the throttle lever (8) on, the machine will be working. If you want to lock the throttle lever (8) press the throttle lever lock (9). Fig. 27

9. Adjusting line length when working:

This machine is tted with a “Tap & Go”head.To release more line, tap the cutting line head against the round with engine at top speed: the line will be released automatically and the knife cut off the excess length. Fig. 41

10. If meet any problems, press the engine switch to off

position, the machine will stop running. If need stop cutting head working, release the throttle lever (8). Fig. 27

11. If any problem occurs, pull the pin of safety belt, then

release the brush cutter immediately. Fig. 22

12. If the machine is hot, the throttle level can be

adjusted to ON position directly when re start the machine. Note: If the engine does not start up even after several attempts, read the section „Engine troubleshooting“. Note: Always pull the starter cord out in a straight line. If it is pulled out at an angle, then friction will occur on the eyelet. As a result of this friction, the cable will become frayed and will wear away faster. Always hold the starter handle when the cable retracts. Never allow the cable to snap back when it has been pulled out. Note: Do not start the motor in tall grass. m Attention: When the engine has been switched off, the cutter continues running for several seconds therefore do not close to cutting head of brush cutter until the cutter has come to a standstill!

9. Working instructions

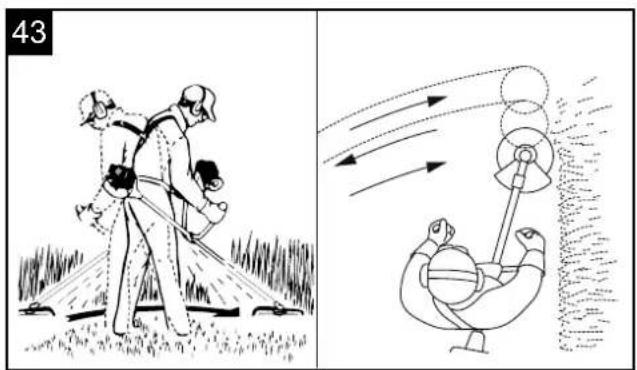

Extending the cutting line Caution! Do not use any kind of metal wire or metal wire encased in plastic in the line spool. This may cause serious injuries to the user. To extend the cutting line, run the engine at full speed and tap the line spool on the ground. This will automatically extend the line. Fig. 41 The blade on the safety shield will cut the line to the appropriate length. Fig. 16 m Important: Remove all grass and weed remnants at regular intervals to prevent the shaft tube overheating. Lawn, grass and weed remnants become trapped under the safety shield and prevent the shaft tube from recei- ving adequate ventilation. Remove the remnants careful- ly using a screwdriver or the like. Fig. 42 Different cutting methods When the equipment is correctly assembled it will cut weeds and long grass in places which are dif cult to access, e.g. along fences, walls and foundations and also around trees. It can also be used for „mowing“ down vegetation so that a garden can be better prepared or a certain area cleared down to the soil. Fig. 43 m Attention: Even if it is used carefully, cutting around foundations, stone or concrete walls, etc. will result in the line suff ering more than normal wear. Trimming/mowing Swing the trimmer from side to side in a scything motion. Always keep the line spool parallel to the ground. Check Heruntergeladen von manualslib.de Handbücher-Suchmachiene26 GB the site and decide which cutting height you require. Guide and hold the line spool at the required height to obtain an even cut. Fig. 43 Low trimming Hold the trimmer right in front of you at a slight angle so that the underside of the line spool is above the ground and the line strikes the correct target. Always cut away from yourself. Never draw the trimmer towards yourself. Cutting along fences/foundations Approach wire mesh fences, lath fences, natural stone walls and foundations slowly so that you can cut close to them without striking the obstacle with the line. If, for example, the line strikes stones, stone walls or foundations, it will wear or fray. If the line strikes wire fencing, it will break. Trimming around trees When trimming around tree trunks, approach slowly so that the line does not strike the bark. Walk around the tree, cutting from left to right. Approach grass or weeds with the tip of the line and tilt the line spool forwards slightly. Warning! Take extreme care during mowing work. When doing such work keep a distance of 30 meters between yourself and other people or animals. Mowing When mowing, you want to cut all the vegetation down to the ground. To do this, set the line spool at an angle of 30° to the right. Place the handle in the required position. Remember the increased risk of injury to the user, watchers and animals, and the danger of damaging property due to objects (for example stones) being thrown. Warning! Do not use the equipment to remove objects from footpaths, etc. The equipment is a powerful tool and can throw small stones and other objects a distance of 15 meters or more, causing injuries and damage to cars, houses and windows. Jamming If the cutting blade jams as a result of attempting to cut vegetation that is too dense, switch off the engine immediately. Remove the grass and scrub from the equipment before you restart it. Fig. 42 Preventing recoil When you work with the blade, there is a risk of recoil if it strikes solid objects such as tree trunks, branches, tree stumps, stones or the like. This will throw the equipment backwards in the direction opposite to the rotation of the tool. This can cause you to lose control of the equipment. Do not use the blade near fences, metal posts, boundary stones or foundations.

Before performing any maintenance or cleaning work, always turn off the engine and pull out the spark boot plug.

1. Do not spray the unit with water. It damages the

2. Clean the unit with a cloth, hand brush, etc.

Maintenance schedule12 hours of use 24 hours of use 36 hours of use Air lter clean clean replaceSpark plug check clean replace Expert inspection is required:

• If the brush cutter strikes an object.

• If the gears are damaged. Replacing the line spool/cutting line Fig. 35 - 39

1. Dismantle the line spool (1) as described in section

8.4 Assembly. Press the spool together and remove

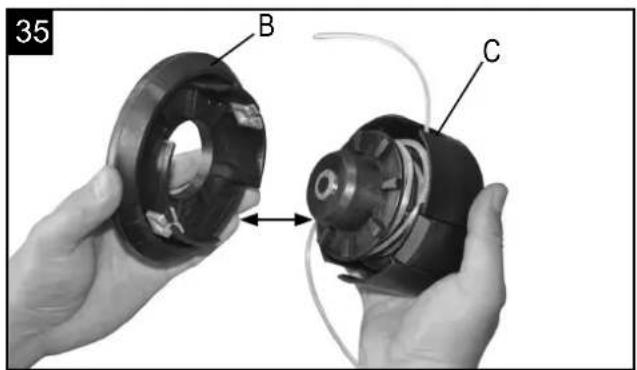

one half of the housing. Fig. 35

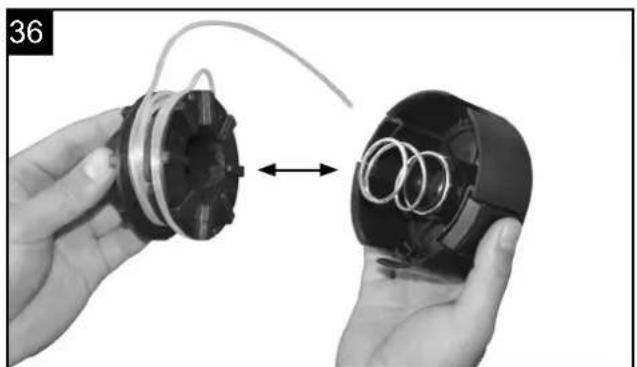

2. Take the spool plate out of the line spool housing.

3. Remove any remaining cutting line.

4. Place the new cutting line in the center and hang the

loop which has formed into the recess in the spool splitter. Fig. 37

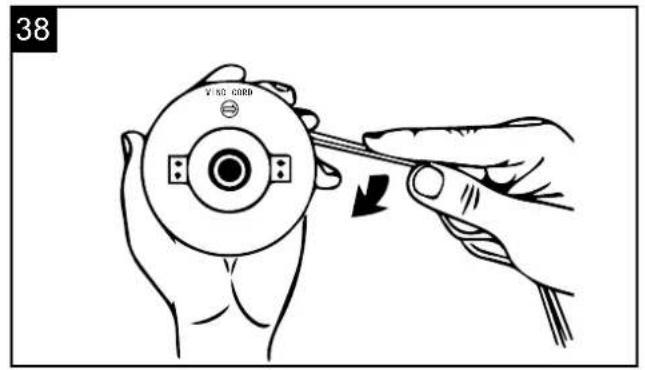

5. Wind the line onto the spool counter-clockwise and

under tension. The spool splitter will separate the two halves of the line. Fig. 38

6. Hook the last 15cm of the two ends of the line onto

the opposite lying line holders of the spool plate. Fig.

7. Thread the two ends of the line through the metal

eyelets in the line spool housing .

8. Press the spool plate into the line spool housing.

9. Pull the two line ends sharply to release them from

10. Join the housing parts together again. Fig. 35

11. Cut the excess line to a length of around 13cm. This

will reduce the load on the engine when starting and warming up.

12. Remount the line spool (see section 8.4). If you are

replacing the complete line spool, skip points 3-6. Grinding the safety hood blade The safety hood blade can become blunt over time.

• When you notice this, undo the screw holding the safety hood blade on the safety hood.

• Clamp the blade in a vise.

• Sharpen the blade with a at le and make sure that the angle of the cutting edge is not altered in the process. File in one direction only. Heruntergeladen von manualslib.de Handbücher-Suchmachiene27GB Replacing and resharpening the cutting blade at the end of the mowing season always resharpen the cutting blade or, if required, replace the cutting blade with a new one. Unbalanced blades will cause the brush cutter to vibrate violently-risk of accident! Change and clean the spark plug Fig. 32 - 33

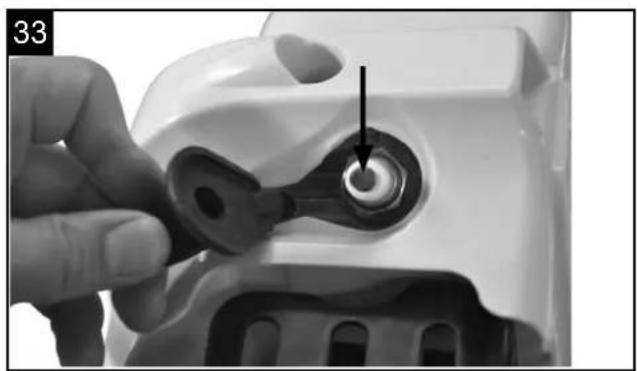

1. Once the engine has cooled, remove the spark plug

using the socket spanner supplied.

2. Clean the plug with a wire brush.

3. Using a feeler gauge; set the gap to 0.5-0.7 mm.

4. Install the spark plug carefully by hand, to avoid cross-

5. After the spark plug is seated, tighten with spanner to

compress the washer. Clean the air lter Fig. 28 - 31 Soiled air lters reduce the engine power by supplying too little air to the carburetor. Regular checks are therefore essential.

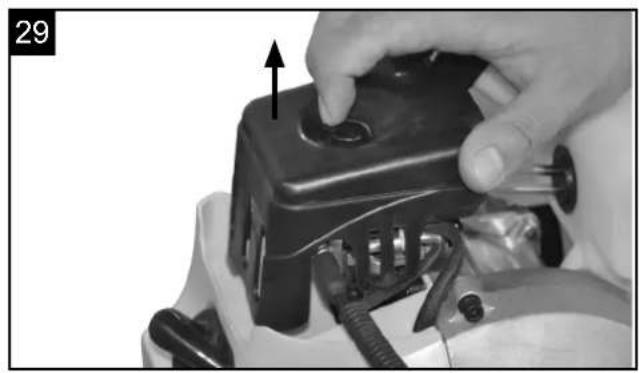

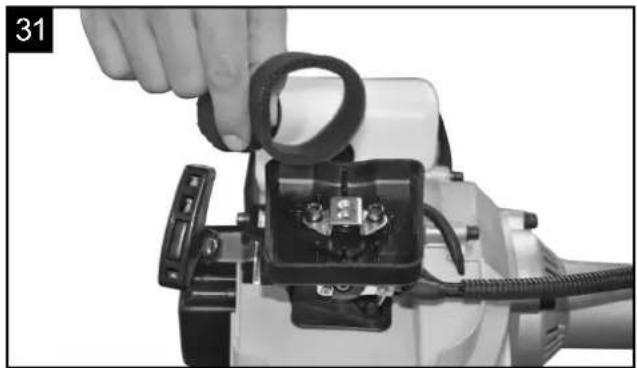

• Unclip the air lter cover and remove the sponge lter element.

• To avoid objects falling into the air tank, replace the air lter cover.

• Wash the lter element in warm soap water, rinse and allow drying naturally. Important: Never clean the air lter with petrol or inammable solvents. m Warning! Never run the engine without the air lter element installed. Lubricate angle transmission Lubricate with lithium-based grease. Remove the screw and put in the grease, turning the shaft manually until grease emerges, then replace the screw. Storing the unit After cutting, clean the unit thoroughly. Store the unit in a dry room allow the motor to cool down beforehand. Important hint in case of sending the equipment to a service station: Due to security reasons please see to it that the equipment is sent back free of oil and gas!

• Keep handles free of oil, so you always have a secure hold.

• Clean the equipment as required with a damp cloth and, if necessary, mild washing up liquid. m Important!

• Always pull out the spark boot plug each time before carrying out any cleaning.

• Never immerse the equipment in water or other liquids in order to clean it.

• Store the chainsaw in a safe and dry place out of the reach of children. Storage Important: Never put the equipment into storage for longer than 30 days without carrying out the following steps. Storing the equipment If you intend to store the equipment for longer than 30 days, the equipment must be prepared accordingly. Otherwise the fuel still remaining in the carburetor will evaporate and leave a rubbery sediment. This can cau- se problems when starting up the equipment and may require expensive repairs. 1 Slowly remove the fuel tank cap to release any pres- sure that may have formed in the tank. Carefully empty the tank. 2 To remove the fuel from the carburetor, start the engine and let it run until the equipment stops. 3 Leave the engine to cool (approx. 5 minutes). 4 Remove the spark plug (see section 10 Change and clean the spark plug). 5 Add one teaspoon of 2-stroke engine oil into the com- bustion chamber. Slowly pull the starter cord several times to apply a layer of oil to all internal components. Fit the spark plug again. Note: Store the equipment in a dry place and far away from possible ignition sources such as an oven, a gas- red hot water boiler, a gas- red dryer, etc. Putting the equipment back into operation 1 Remove the spark plug (see section 10 Change and clean the spark plug). 2 Quickly tug on the starter cord to remove excess oil from the combustion chamber. 3 Clean the spark plug and check that the electrode gap is correct, or insert a new spark plug with the correct electrode gap. 4 Prepare the equipment for operation. 5 Fill the tank with the relevant mixture of fuel and oil. See the section „Fuel and oil“. Transport To transport the machine, empty the petrol tank as described in section 8 draining fuel. Clean coarse dirt off the equipment with a brush or hand brush.

12. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equip- ment and its accessories are made of various types of material, such as metal and plastic. Defective compo- nents must be disposed of as special waste. Ask your dealer or your local council. Heruntergeladen von manualslib.de Handbücher-Suchmachiene28 GB

The table below contains a list of fault symptoms and explains what you can do to remedy the problem if your equipment fails to work properly. If the problem still persists after working through the list, please contact your nearest service work- shop. Important hint in case of sending the equipment to a service station: Due to security reasons please see to it that the equipment is sent back free of oil and gas! Fault Possible cause Remedy The equipment does not start

• Correct starting procedure not followed

• Sooted or damp spark plug

• Incorrect carburetor setting

• Blade or nylon cutter mounted incorrectly

• Follow the instructions for starting

• Clean the spark plug or replace it with a new one

• Contact an authorized customer service outlet

• Reassemble the blade or nylon cutter

• Check the fuel level The equipment starts but does not develop its full power

• Set the choke lever on the position

• Contact an authorized customer service outlet

• Have cutting blade resharpened /replaced The engine does not run smoothly

• Clean the spark plug and adjust the electrode gap, or t a new spark plug

• Contact an authorized customer service outlet Engine smokes excessively

• Use the correct fuel mix (see fuel mixing table)

• Contact an authorized customer service outlet If the temperature of machines is too high

4. Press the fuel pump more than 5 times. Fig. 24

• Storing in de brandstoeiding.

• Startinrichting is defect.
