CDJ500 - Receiver Vonyx - Free user manual and instructions

Brand	Vonyx
Model	CDJ500
Product type	Receiver with CD/USB player and built-in mixer
Power supply	220-240 V~ / 50 Hz, fuse 10-16 A
Main functions	CD player, USB, Bluetooth, microphone, crossfader, pitch control, loop, programming, scratch mode
Inputs	2 x RCA (line/phono), microphone jack 6.35 mm, USB
Outputs	Main stereo output (RCA), headphone jack 6.35 mm
Equalizer	3-band: bass, mid, treble
Pitch	Pitch fader with activation, pitch bend +/-
Playback	Single, continuous, repeat, program up to 20 tracks
Bluetooth	Pairing via Sync button
Maintenance and cleaning	Dry cloth, no chemicals, do not open
Safety	Do not expose to moisture, do not open, unplug during storms, use on protected circuit
Spare parts and repairability	Use original parts, repair by qualified technician only
General information	Indoor use, ambient temperature 5-35°C, CE certification

Frequently Asked Questions - CDJ500 Vonyx

How to pair a Bluetooth device with the CDJ500?

Press the Sync button to put the player in pairing mode, then activate Bluetooth on your device and select 'Vonyx CDJ500' from the list.

How to program playback of multiple tracks?

Press Stop, then PGM. Select the track using Track/Folder buttons and confirm with PGM. Repeat up to 20 tracks, then press Play/Pause to start.

How to create a loop?

During playback, press In to set the loop start, then Out for the end. To replay the last loop, press Reloop. Press again to stop.

What to do if the device does not power on?

Check that the power cord is properly connected and the mains socket is live. Ensure the fuse (10-16 A) has not blown. If the problem persists, contact a technician.

How to clean the device?

Use a dry, soft cloth. Never use chemicals, aerosols, or liquids. Disconnect the device before cleaning.

Can I use a power adapter with a different voltage?

No, the device is designed for 220-240 V~ / 50 Hz. Different voltage may damage the device and void warranty. Check compatibility before use.

Why is the sound distorted or weak?

Check the equalizer settings and fader levels. Ensure the Line/Phono selector is correctly positioned according to the source. If using a turntable, check the grounding (terminal GND).

How to use the Scratch function?

Press the Scratch button to activate dual wheel mode. Rotate the Jog wheel to scratch. Press Scratch again to deactivate.

The CD tray does not open, what to do?

Ensure the device is powered on. First press Stop or Pause, then Eject. Never force the tray manually. If the problem persists, contact a technician.

Can I repair the device myself?

No, the interior contains no user-serviceable parts. Any opening exposes you to dangerous voltages and voids warranty. Only a qualified technician may carry out repairs.

USER MANUAL CDJ500 Vonyx

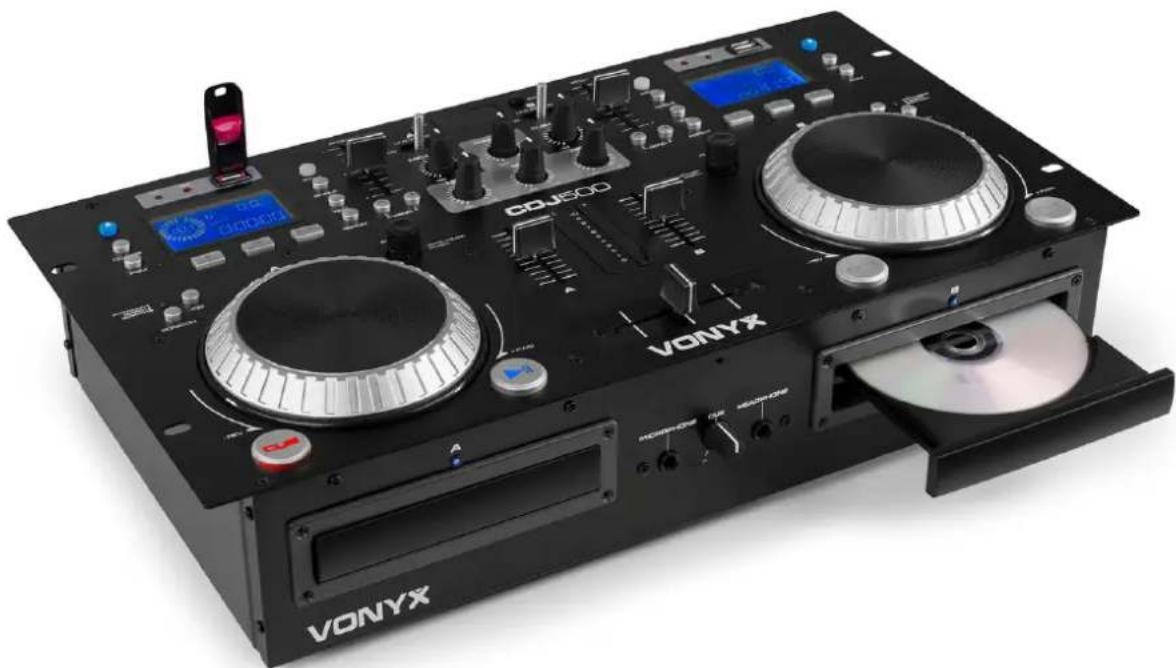

CDJ500 Amplified Double Player CD/MP3/USB/Bluetooth

Ref. nr.: 172.810

Black VONYX CDJ500 audio workstation with dual dials and control knobs (no readable text or symbols beyond branding)

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI

V1.0

FRONT AND BACKPANEL

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The product contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the product with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.

• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the product on and off. This shortens the life time.
• Keep the product out of the reach of children. Do not leave the product unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

CAUTION LASER RADIATION!

This device is equipped with two Class 1 laser diodes. To ensure a safe operation do not remove any covers or try to access the inside of the equipment. The inside of the device does not contain any parts which are subject to maintenance. Maintenance must only be carried out by qualified staff.

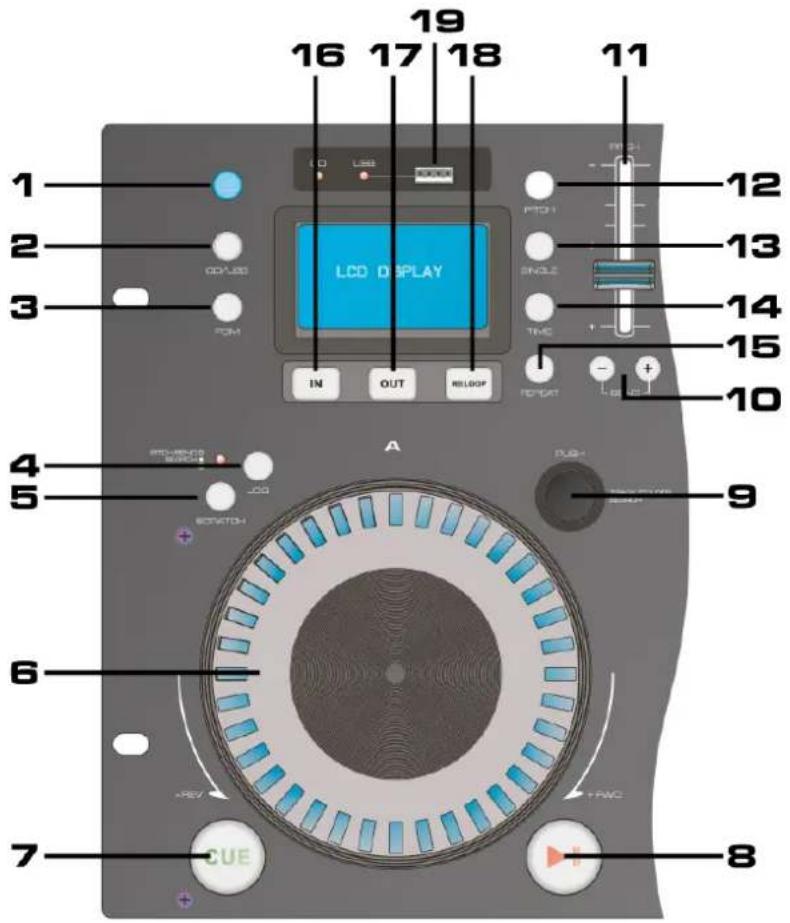

OVERVIEW

1. Eject

Press to load or eject disk.

NOTE: Disc tray will not open unless stop or pause button has been pushed first.

2. CD/USB

To enter into the CD or USB mode by this key conversion.

3. PGM Mode

Program up to 20 tracks in PGM-mode:

• Press STOP button to stop
• Press the PGM button to program
• Press Track/Folder search button to select track followed by PGM button.
• Repeat as necessary
• Press Play/Pause button to play or pause.

4. Jog mode

Turned ON in search mode. Turned OFF in pitch bend mode.

5. Scratch mode

Enables dual wheel in scratch mode, press again to turn off.

6. Jog & Shuttle Wheel

Shuttle: Use the dial to select the scanning direction and speed. The disc is scanned in the forward direction when the shuttle dial is turned clockwise from the neutral position, in the reverse direction when the shuttle dial is turned counter clockwise. The scanning speeds up when the shuttle dial is turned faster.

Jog: In pause mode, if you turn the jog, the point at which the sound is being produced moves by a number of frames corresponding to the number of clicks. Clockwise moves the point forward; counter clockwise moves the point backward. In play mode, the jog increases or decreases the speed of the song. (Clockwise: increase, counter clockwise: decrease).

7. Cue

Pressing the CUE button during play provides a return to the position al which play was started.

8. Play / Pause

Each lime you press the play/pause button, the operation changes from play to pause or from pause to play.

9. Track / Folder Search

Allows you to navigate through folders or tracks in either USB or CD mode.

10. Pitch Bend

The pitch will rise or drop when "+ " or "-" pressed and returned to !he original pitch when released.

11. Pitch fader

Use this fader to increase or decrease the speed of the track.

12. Pitch

Press the pitch button to activate the pitch fader. Press the pitch button again to deactivate this mode.

13. Single mode

Press this button to switch between the single and continuous play mode. The selected mode is indicated on the LCD. In single mode, after each track, the unit stops the reading. In continuous mode, the unit reads all tracks and stops.

14. Time mode

Select time mode for elapsed time, remaining time or total remaining time.

15. Repeat

Use this mode to repeat track or all tracks.

1. In

This mode sets the beginning of the loop.

1. Out

This mode sets the ending of the loop.

1. Reloop

This button is used to start the last saved loop. To finish loop, press again.

1. USB

Choose with this button if you will play from USB device or CD.

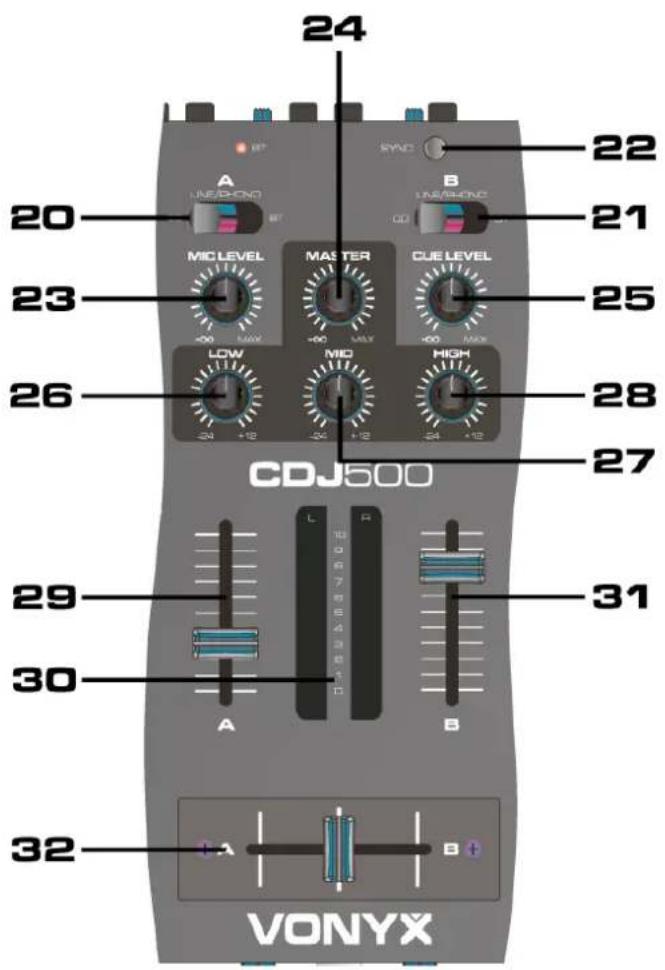

1. Input Channel A

Selects which source will be live to that channel based on what you have connected to the rear panel input section. In CD position the internal CD units are active.

1. Input Channel B

Selects which source will be live to that channel based on what you have connected to the rear panel input section. In CD position the internal CD units are active.

1. Sync

Press button to pair your Bluetooth device with the player.

1. MIC Level

Adjust microphone level

1. Master level

Adjust master level output.

1. Cue Level

Adjust cue level

1. Low

Adjust equalization of low frequencies.

1. Mid

Adjust equalization of mid frequencies.

1. High

Adjust equalization of high frequencies.

1. Fader Channel A

Controls individual level of channel A.

1. VU meter

Indicates the master output level.

1. Fader Channel B

Controls individual level of channel B.

1. Crossfader

Achieves clean segues between the two input channels. Hard left selects channel A. Hard right selects channel B. With the crossfader centered, both assigned channels are live. Use the crossfader for fast and seamless segues from one selected channel to the other.

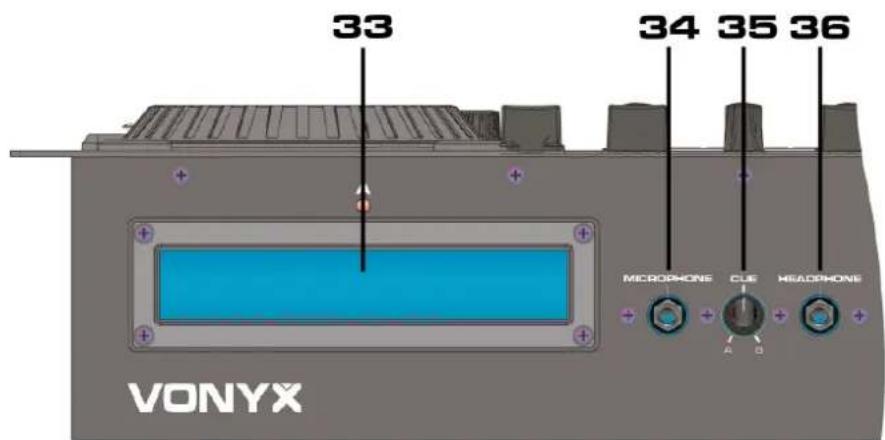

1. CD Tray

The disc tray is where the CD is held during loading (Do not force the cd tray to close. Excessive force will damage the cd mechanism, use the open and close buttons)

1. Microphone Input

Plug 6.35mm Jack (1/4") microphone plug in here

1. Cue Level

Adjust Cue volume.

1. Headphone input

Use to connect for audio monitoring with headphones.

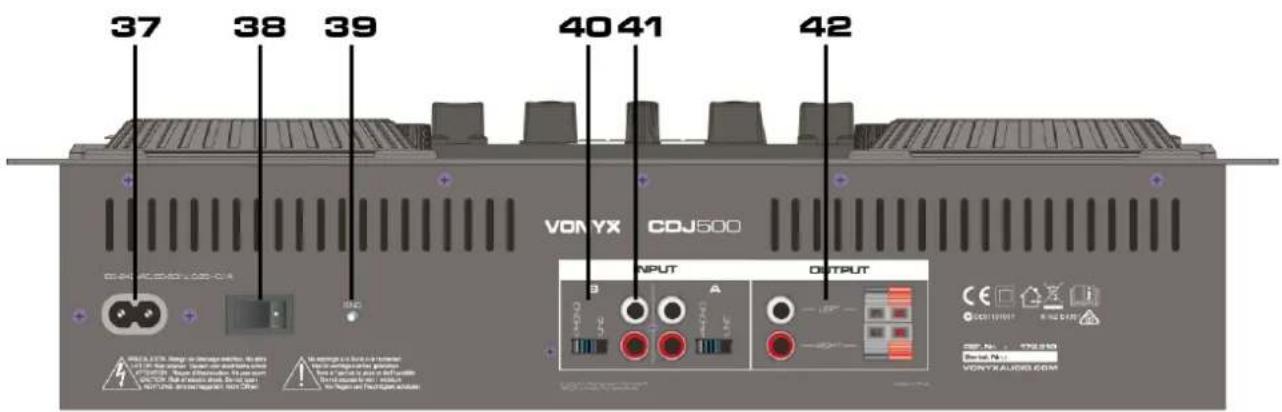

1. Power input

Plug in the included power cord

1. Power On/Off

Press the power switch to turn on or off.

1. GND

Grounding lug for turntable connection.

1. Line/phono input switch

Use this to allow either line level or phono level equipment to be plugged into your channel inputs when phono input is selected, your signal is fed directly to the high-quality RIAA phono pre-amplifiers. Line level sources will overload the sensitive phono pre-amps and will sound very bad, so always be sure to toggle the line/phono switch over to line before connection of line sources.

1. RCA input

Plug in the line level device such as tape deck or additional CD player here.

1. Stereo main output

Unbalanced connectors controlled by the master fader.

NEDERLANDS

Frequency response: 20Hz–20kHz

Power RMS: 100Watt

Signal to noise ratio: >90dB

Pitch bend: +/-12%

Pitch slider: +/-12%

Dimensions: 482 x 110 x 260mm

Weight : 6.5kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Blue glossy circular icon with a stylized white 't' shape (no text or symbols)

tronios

Sound & Light

CE Declaration of Conformity

Manufacturer:

Tronios B.V.

Product Description: CDJ500 Amplified Double Player CD/MP3/USB/Bluetooth

Trade

Name:

VONYX

I hereby declare that the product meets the requirements stated in Directives:

■ LVD 2014/35/EU
■ EMC 2014/30/EU
■ RoHS 2011/65/EU

Almelo,

20-09-2018

Name : M. Velders

Signature :

Specifications and design are subject to change without prior notice..

www.tronios.com

Copyright © 2018 by TRONIOS the Netherlands
