AP1200PA - Sound system Vonyx - Free user manual and instructions

Brand	Vonyx
Model	AP1200PA
Product type	Amplified portable PA system
Power	1200 W (peak)
Speaker	12" (30 cm) woofer
Mains power supply	220-240 V~, 50 Hz
Built-in battery	12 V, rechargeable lead-acid
Battery life	Approx. 4 to 6 hours (depending on usage)
Microphone inputs	2 x XLR / 6.35 mm jack (combo) for wired mic; 2 UHF wireless channels
Line inputs	1 x RCA pair (stereo)
Media player	USB, SD/MMC, Bluetooth; MP3, WMA formats
Equalizer	5 bands: 100 Hz, 300 Hz, 1 kHz, 3 kHz, 10 kHz
Effects	Adjustable echo for microphones
Microphones included	2 UHF wireless microphones (handheld)
Remote control	Included
Dimensions (approx.)	350 x 480 x 600 mm (W x H x D, estimate)
Weight (approx.)	18 kg (estimate)
Operating temperature	5 °C to 35 °C
Maintenance and cleaning	Use a dry cloth; do not use chemicals
Safety	Do not open the casing; unplug before handling; avoid moisture
Spare parts and repairability	Use only original parts; repair by qualified technician

Frequently Asked Questions - AP1200PA Vonyx

How to charge the battery for the first time?

Before first use, charge the built-in 12 V battery for at least 12 hours and at most 72 hours. Plug the unit into mains (220-240 V~) with the switch OFF. The charging indicator lights up.

How to connect a Bluetooth device?

Press the MODE button until "AUX" is displayed and activate Bluetooth. Search for "VONYX AP" on your device and pair. If a code is requested, enter "0000".

Why doesn't my wireless microphone work?

Check that batteries are inserted correctly, that the wireless microphones' ON/OFF switch is on, and that the volume of UHF channels (MC1/MC2) is not at minimum. Also ensure the "UHF WIRELESS MICROPHONE" switch is pressed in.

What is the procedure for replacing the fuse?

Unplug the device. Open the fuse holder at the rear with a small screwdriver. Remove the old fuse and replace it with a fuse of the same type and rating (10-16 A, 250 V). Close the fuse holder.

Can I use the device outdoors?

The device is designed for indoor use only. Do not expose it to rain or moisture. The ambient temperature must be between 5 °C and 35 °C.

How to avoid feedback (Larsen effect)?

Move microphones away from speakers, reduce microphone volume, lower treble on EQ, or reduce Echo effect.

What to do if the device does not turn on?

Check the power cord and mains socket. Ensure the fuse has not blown. If the battery is discharged, plug the unit into mains. If the problem persists, contact a technician.

How to maintain the device?

Clean the device with a soft, dry cloth. Do not use chemicals or aerosols. Avoid dust accumulation in ventilation slots.

What is the warranty and what to do in case of failure?

The warranty is valid if the device is used according to instructions. Do not attempt to repair yourself. Contact your dealer or an authorized technician. Use only original spare parts.

Can I connect an external audio source (CD player, smartphone)?

Yes, via the RCA (Line) inputs. Connect the source to the RCA IN jacks, then set the input selector to LINE (button pressed) and adjust the Line/MP3 level.

USER MANUAL AP1200PA Vonyx

Ref. nr.: 170.334; 170.335; 170.337; 170.338

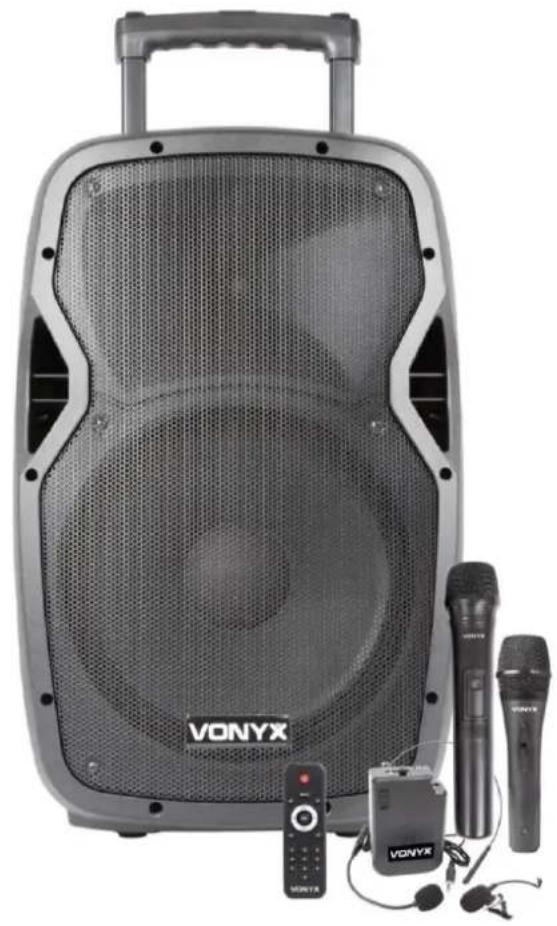

Vonyx audio amplifier device with front panel, two microphones, and a remote control (no visible text or symbols)

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The product contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the product with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the product on and off. This shortens the life time.

• Keep the product out of the reach of children. Do not leave the product unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.
• If the product has built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the unit for a long period of time. Or the battery may be damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

Content:

	AP1200PA Mobile Amplifier 12"		AP1500PA Mobile Amplifier 15"
Ref.nr:	170.334	170.335	170.337	170.338
UHF Wireless Microphone	2pcs	1pcs	2pcs	1pcs
UHF Bodypack	-	1pcs	-	1pcs
Wired Microphone	-	1pcs	-	1pcs
Remote control	1pcs	1pcs	1pcs	1pcs

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

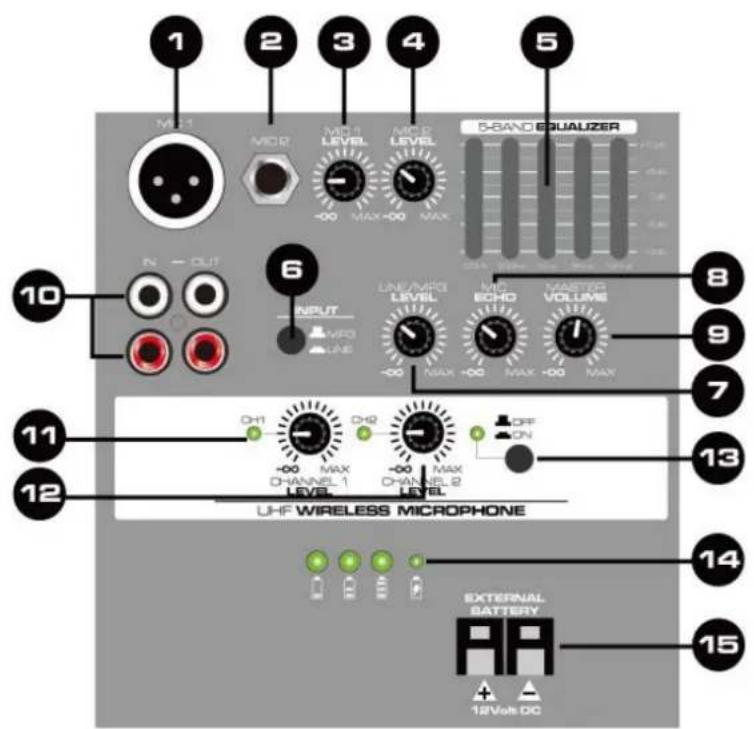

CONTROLS AND CONNECTIONS

1. Microphone Input Channel 1 XLR input jack for connecting a microphone.
2. Microphone Input Channel 2 6.3mm 14 " input jack for connecting a microphone.
3. Microphone Level Channel 1 Adjust the signal level of microphone channel 1.
4. Microphone Level Channel 2 Adjust the signal level of microphone channel 2.
5. Equalizer 5-band equalizer for the master signal. Adjust frequencies are 100Hz, 300Hz, 1kHz, 3kHz, 10kHz.
6. Input selector switch

Selects the input signal:

• Button not pressed: signal of media player.

• Button pressed: signal of the line input.

• Line/MP3 Level

Adjust the level of line- or MP3-signal.

1. Microphone Echo

Adjust the intensity of the echo effect.

1. Master Volume

Adjust the overall output level of the portable sound system.

1. Line In-/ Output

RCA jack in- and output for connecting audio units with line level output (e.g. mixer, CD player, tape recorder).

1. Wireless microphone Level Channel 1

Adjust the signal level of wireless UHF microphone channel 1.

1. Wireless microphone Level Channel 2

Adjust the signal level of wireless UHF microphone channel 2.

13. Microphone ON/OFF switch

- Button not pressed: received no signal from wireless microphones. - Button pressed: receive signal from wireless microphones.

14. Battery indicator

LED indicator of the battery capacity and charging.

15. External battery

Connection for alternative power supply from a 12Volt DC source.

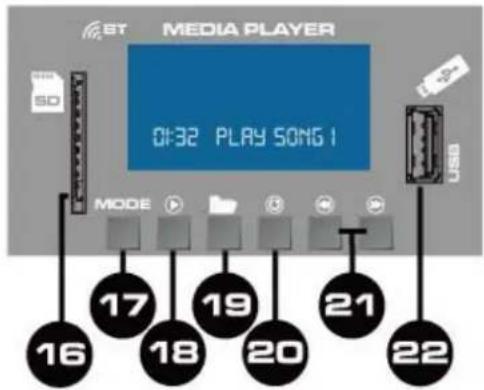

16. SD port

Connect your SD/MMC card in this slot to play music with MP3 or WMA format.

17. Mode button

Press the button to select BT/USB/SD function.

18. Play button

For switching between play and pause.

19. Folder button

Press this button to open the foldermap of USB or SD-card.

20. Repeat button

Press key for repeating of single track or all tracks.

21. Forward - Backward button

For title selection (short actuation) and fast forward/reverse (long actuation).

22. USB port

Connect your USB devices to this slot to play music with MP3 or WMA format.

UHF WIRELESS MICROPHONES

Insert the batteries into the wireless microphones (observe the polarity) and turn all volume controls down. Switch the system ON and the power led will light. Switch the microphones on and increase the Volume knobs to the desired position.

Take care not to incur feedback from the speaker. Turn the Echo and equalizer to a position in order to have the desired sound.

CHARGING BATTERY

Prior to use this system the internal 12V battery need to be charged for 12hours. If the Power-switch is in OFF position and the system is connected to mains, the battery will be (re)charged and the Charge-Led lights!!

Note: Pull the plug out of the mains outlet if the battery is fully charged!!

Before the device the first time is actuated, please charge the battery at least 12 hours and max. 72 hours! Battery should be regularly charged. For optimal battery life the battery should be charged at least 1x per month. Please note that if you do not load within 6 weeks, the battery becomes defective !!

CONNECT BT-DEVICE

1. Set the search function on of the BT device you want to play the music. See the operating instructions for that device..
2. Press the "MODE" button until "AUX" will show in display and activate BT-function.
3. Find on your BT-device "VONYX AP" and make the connection.

If password is required, you can enter "0000".

REPLACING THE FUSE

If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead.

Procedure:

Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing.

NEDERLANDS

REPLACEMENT DU FUSIBLE

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Blue glossy circular icon with a stylized white 't' or letter 'G' in the center (no text or symbols beyond the graphic)

tronios

Sound & Light

CE Declaration of Conformity

Manufacturer: TRONIOS BV

I hereby declare that the product meets the requirements stated in Directives 2014/35/EU and 2014/30/EU, R&TTE Directive (1999/5/EC) and conforms to the above mentioned Declarations.

Almelo,

19-05-2017

Name : M. Velders

Signature :

Specifications and design are subject to change without prior notice..

www.tronios.com

Copyright © 2017 by TRONIOS the Netherlands
