Product type	LED light with motion detector
Model	14101504L
Power supply	1 AA 1.5V battery
Protection rating	IP54
Sensor type	Infrared motion detector
Switch-on	Automatic at dusk with motion detection
Switch-off	Automatic after no motion
Use	Indoor and outdoor
Material	Plastic
Warranty	36 months
Delivery contents	LED spotlight, 1 AA battery, 2 wall plugs, 2 screws, double-sided adhesive tape, mounting plate, instructions
Cleaning	Soft damp cloth, without corrosive products
Safety instructions	Do not look directly at the light source, do not disassemble, keep out of reach of children
Batteries	Only use AA 1.5V batteries, observe polarity
Repairability	Non-replaceable LED, no user-serviceable parts

Frequently Asked Questions - 14101504L Livarno Lux

How to insert or replace the batteries?

Open the battery compartment on the back of the lamp by loosening the screw counterclockwise. Remove the cover, insert one AA 1.5V battery respecting the indicated polarity, then close and tighten the screw clockwise.

The detector does not work, what to do?

Check that the batteries are correctly inserted and that the insulating strip has been removed. Ensure the sensor is not obstructed. The lamp only turns on at dusk when motion is detected.

Can this lamp be used outdoors?

Yes, the IP54 protection rating allows outdoor use, but avoid immersion in water.

How to clean the lamp?

Allow the lamp to cool, then clean it with a soft slightly damp cloth. Do not use abrasive or corrosive products.

The lamp stays on permanently, is this normal?

No, the lamp should turn off automatically after a few seconds without motion. If it stays on, check that the sensor is not exposed to a heat source or parasitic movements.

What type of battery to use?

Use a non-rechargeable AA 1.5V battery. Never recharge a non-rechargeable battery.

How to mount the lamp on the wall?

Use the provided mounting plate. Mark the holes, drill, insert wall plugs, then fix the plate with screws. Finally, clip the lamp onto the plate.

The lamp does not turn on at all, what to check?

Check that the battery is properly inserted and in good condition. Ensure the insulating strip has been removed. Try a new battery. If the problem persists, contact customer service.

Can the LED be replaced?

No, the LEDs are not replaceable. If the LED is defective, the entire lamp must be replaced.

What is the detection range?

The exact range is not specified in the instructions, but for a classic infrared detector, it is generally 5 to 8 meters with an angle of about 120 degrees.

USER MANUAL 14101504L Livarno Lux

www.lidl-service.com PDF online

LED-SEnSorLEuchtE

DE AT CH

LED-SEnSorLEuchtE

Assembly, operating and safety instructions

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

GB Assembly, operating and safety instructions Page 35

A 14101504L 1 2 3 4 5 6

B 1 2 13 3 4 5 6

C 7 9 5

D 8 9 10 5

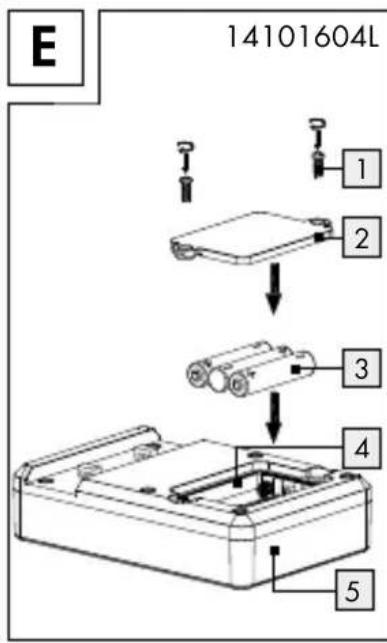

E 14101604L 1 2 3 4 5

F 1 2 13 3 4 5

G 8 9 10 11 5

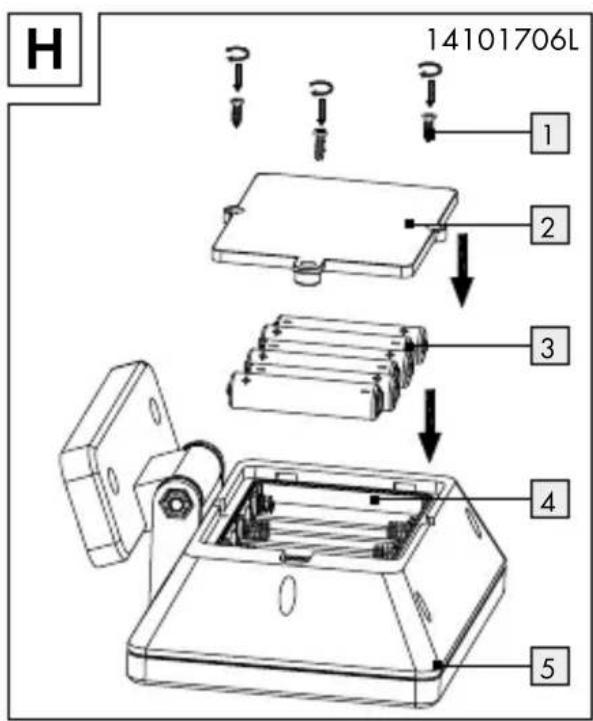

H 14101706L 1 2 3 4 5

Technical diagram of a device with numbered parts and directional arrows indicating assembly or operation

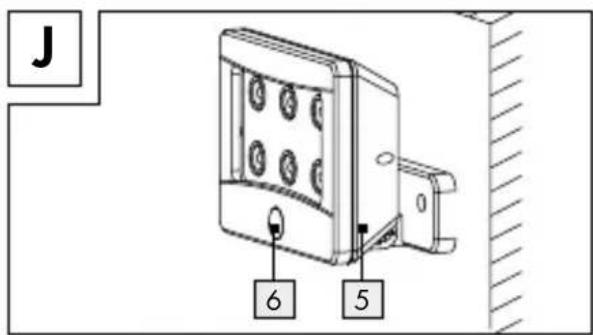

J 6 5

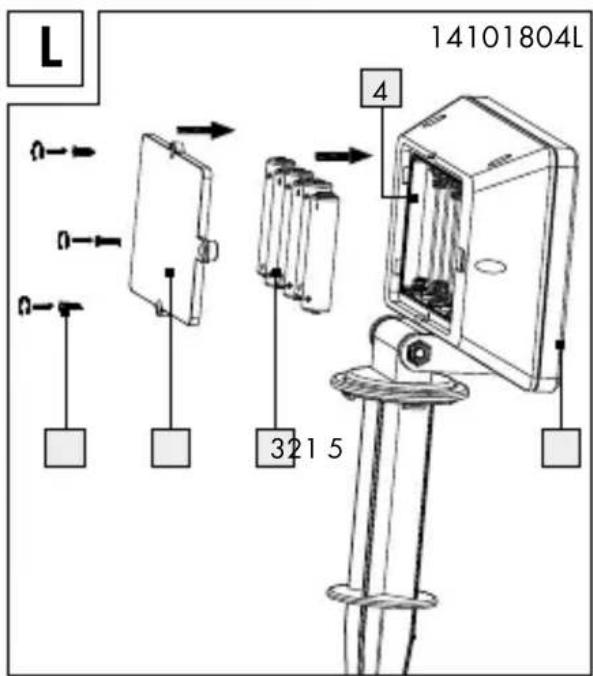

L 14101804L 0→ 0→ 0→ 321 5 4

K 9 0 8 11 5

N 5 6 12

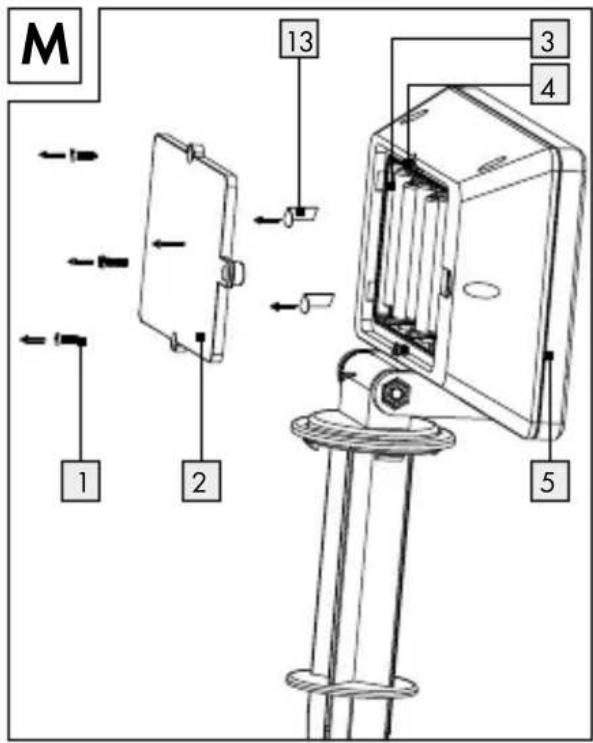

M 1 2 13 3 4 5

Einleitung

2 viti (14101504L, 14101604L, 14101706L)
2 cappucci (14101604L, 14101706L)

Intended use......Page 36

Scope of delivery....Page 36

Parts description......Page 37

Technical Data Page 37

Safety

Safety notices Page 37

Battery safety information......Page 38

Preparation

Required tools and material Page 39

Inserting / replacing batteries......Page 40

Mounting the light Page 40

Start-up Page 41

Cleaning and Care......Page 41

Disposal Page 41

Information

Warranty Page 42

Service address......Page 43

Declaration of conformity......Page 43

Manufacturer......Page 43

- Introduction

Congratulations on your new product. You have selected a high quality product. Please be sure to carefully read the complete operating instructions. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on to third parties as applicable.

Intended use

This light is suitable for indoor and outdoor use. Any use other than that described above or modification to the device is not permitted and may lead to damage. This product is intended for private household use only.

- Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 LED Sensor light, model 14101504L or 14101604L or 14101706L or 14101804L
1 battery, 1.5 V, AA (14101504L)
3 batteries, 1.5 V, AAA (14101604L)
6 batteries, 1.5 V, AAA (14101706L, 14101804L)
2 wall plugs (14101504L, 14101604L, 14101706L)
2 screws (14101504L, 14101604L, 14101706L)
2 caps (14101604L, 14101706L)
1 ground stake (14101804L)
1 instructions for assembly and use

Parts description

1 Screw (battery compartment)
2 Battery compartment cover
3 Battery
4 Battery compartment
5 Light
6 Sensor
7 Double-sided adhesive tape (14101504L)
8 Wall plugs (14101504L, 14101604L, 14101706L)
9 Mounting plate (14101504L, 14101604L, 14101706L)
10 Screws (14101504L, 14101604L, 14101706L)
11 Caps (14101604L, 14101706L)
12 Ground stake
13 Insulating strip

Technical Data

Model no.: 14101504L or 14101604L or 14101706L or 14101804L (the LEDs cannot be replaced!)

Battery: 1 x 1.5 V ---, AA (14101504L)

3 × 1.5 V ---, AAA (14101604L)

6 × 1.5 V---, AAA (14101706L, 14101804L)

IP code: IP 54

Safety

Safety notices

Damage due to failure to comply with these operating instructions will invalidate the warranty! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!

RISK A D W A C C D E N T AND

DANGER TO LIFE FOR INFANTS AND CHIL-

DREN! Never leave children unsupervised with pack-

aging materials or the device. Otherwise there is a risk to life from suffocation. Always keep children away from the device.

This product is not a toy.

This device may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Children should not be allowed to play with the device. Cleaning and user maintenance should not be performed by children without supervision.

Please note that the guarantee does not cover damage caused by incorrect handling, non-compliance with the operating instructions or interference with the device by unauthorised individuals.

■ Never take the product apart. Improper repairs may result in considerable danger for the user. Always have repairs performed by a professional.

The LEDs cannot be replaced.

Do not look directly into the light source (light bulb, LED etc.). CAUTION! RISK OF INJURY! Please do not use this device if you find that it is damaged in any way.

■ Never expose the unit to extreme temperatures or severe mechanical stress. The product may otherwise be deformed.

This product does not contain any parts that can be serviced by the user. The LEDs cannot be replaced.

■ Never open any of the components of the electrical equipment or insert any objects into the same components.

Battery safety information

WARNING! DANGER TO LIFE!

Batteries are not intended for children. If accidentally swallowed seek immediate medical attention.

CAUTION!

EXPLOSION HAZARD!

• Never recharge non-rechargeable batteries and do not short-circuit and / or open any batteries.
  ■ Never throw batteries into fire or water.
  Do not exert mechanical loads to batteries.
  If the above instructions are not complied with, the batteries may discharge themselves beyond their end voltage. There is then a danger of leaking. In the event of a battery leak, immediately remove it from the device to prevent damage.
  Do not let the fluid from a leaking battery come into contact with your skin, eyes or mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with clean water and seek immediate medical attention.
• Avoid extreme environmental conditions and temperatures, e.g. above radiators, as they may affect batteries.
  ■ Remove the batteries from the device if they have not been used for a long period.
  ■ Only use the specified battery type!
  When inserting the battery ensure the correct polarity! This is shown in the battery compartment.
  If necessary, clean the battery and device contacts before inserting the battery.
  ■ Promptly remove used batteries from the product.

● Preparation

• Required tools and material

The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions.

• Pencil / marking tool
• Screwdriver
• Electric drill
• Drill bit
• Spirit level

- Inserting / replacing batteries

Open the battery compartment on the back side of the light 5 by loosening the screws 1 counterclockwise (model 14101504L: fig. A, model 14101604L: fig. E, model 14101706L: fig. H, model 14101804L: fig. L).
Open the battery compartment cover?

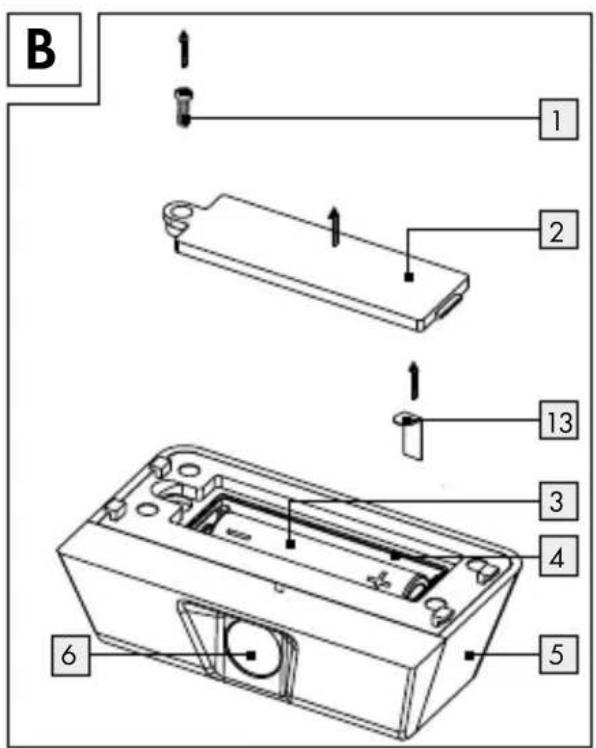

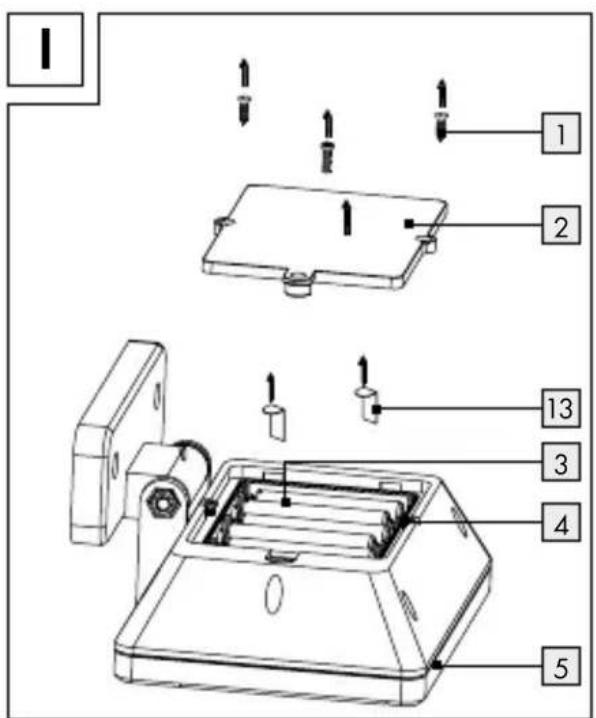

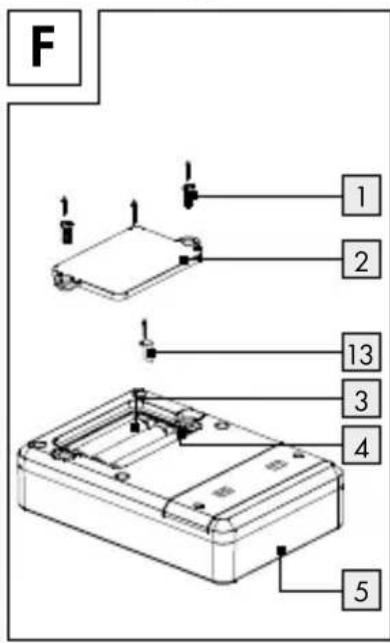

Remove the insulating strips before first usage (model 14101504L: fig. B, model 14101604L: fig. F, model 14101706L: fig. I, model 14101804L: fig. M).
☐ Insert the batteries ^3 . Use only batteries of the specified type (see "Technical Data").

Note: When inserting the battery ensure the correct polarity! This is indicated in the battery compartment 4.

☐ Close the battery compartment again with the battery compartment cover 2 and fix the cover by screwing on the screws 1 clockwise.

- Mounting the light

14101504L

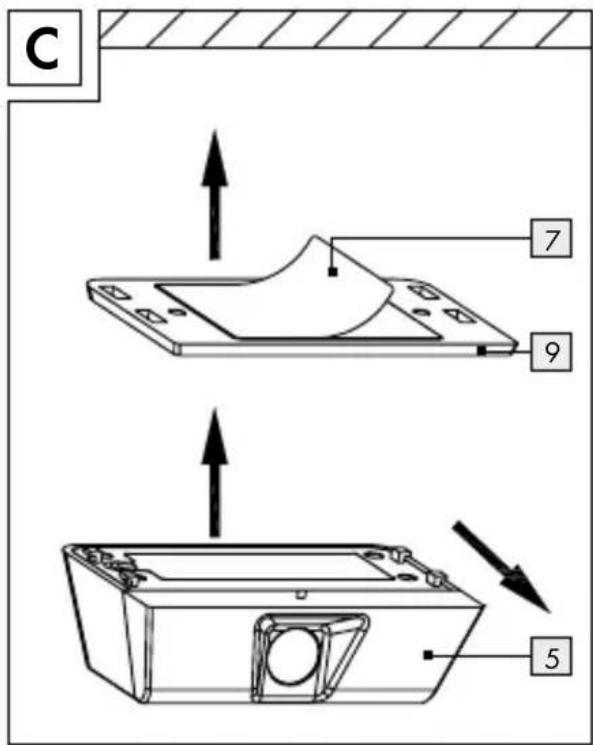

If you choose installation using double-sided adhesive tape, please remove the protective foil from the back first and stick it to the mounting plate 9 in the intended area, pressing firmly (see fig. C). Then remove the protective foil from the front side and fix the mounting plate 9 in the intended area.
☐ Make sure that the surface for mounting is dry, smooth and free of dust and grease.
☐ Fit the light onto the mounting plate 9. Ensure that the light is correctly seated.

14101504L, 14101604L, 14101706L

☐ Use the slotted holes of the mounting plate intended for the screws to mark the holes for drilling.
Now drill the mounting holes. Be careful not to damage the supply line.

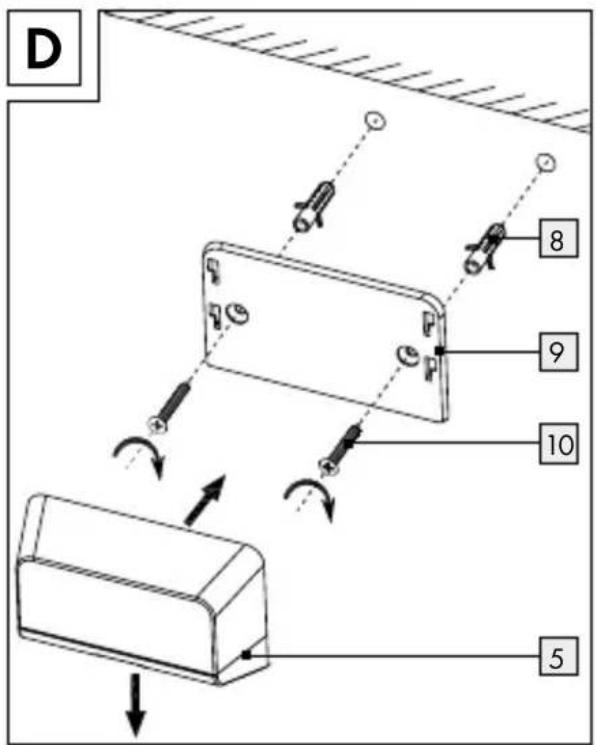

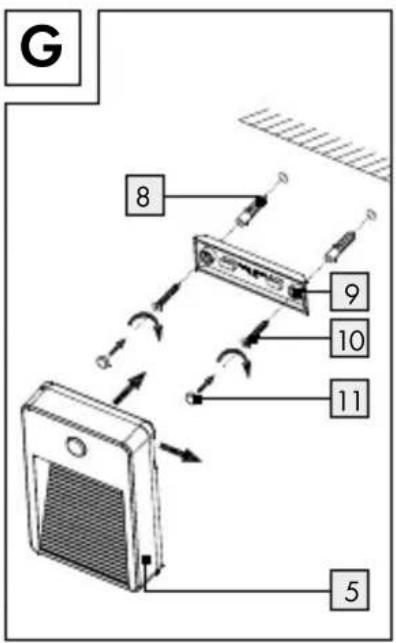

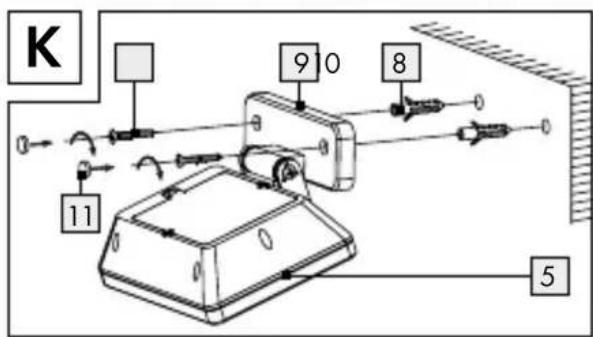

☐ insert the wall plugs 8 into the drilled holes (see fig. D or G or K).

Fix the mounting plate using the included screws 10 (see fig. D or G or K).
☐ 14101504L, 14101604L only: Fit the light onto the mounting plate 9. Ensure that the light is correctly seated (see fig. D or G).
14101604L, 14101706L only: Press the caps on the screws 10 (see fig. D or G).

14101804L

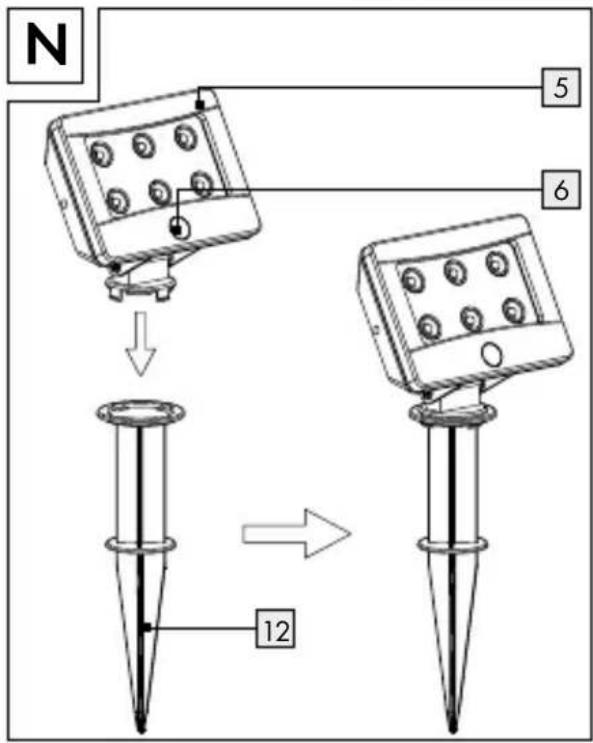

Stick the light onto the ground stake 12 (see fig. N). Ensure that the light is correctly seated.

Your light is now ready to use.

- Start-up

☐ The light will automatically switch on in darkness as soon as the sensor 6 detects motion.

☐ The light will automatically switch off if motion is no longer detected.

- Cleaning and Care

- Allow the light to cool down completely.

■ Only clean the light when it is switched off.

■ Never use corrosive or abrasive cleaning agents. The product may otherwise be damaged.

Do not immerse the light in water!

Use a slightly dampened, non-fluffing cloth to clean the product.

- Disposal

The package and packaging materials consist entirely of environmentally friendly materials. They can be disposed of at your local recycling facility.

The symbol of the wheelie bin with the line through it means that, in the European Union, the product has to be disposed of in a separate refuse collection. This applies to the product and to all components bearing this symbol. Do not dispose of products bearing this symbol in your normal household waste, but instead they must be taken for recycling to a collection site for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and protects the environment.

Defective or used batteries must be recycled in accordance with Directive 2006 / 66 / EC. Return batteries and / or the device to the provided recycling facilities.

Improper disposal of batteries can harm the environment!

Never dispose of batteries in your household waste. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of used batteries through your local collection site.

Information

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects.

In the event of a defect arising during the warranty period, please send the device to the listed Service Centre address, making reference to the following item number: 14101504L or 14101604L or 14101706L or 14101804L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

Serviceaddress

Please have your receipt and the item number (e.g. IAN 12345) ready as your proof of purchase when enquiring about your product.

Declaration of conformity €

This product fulfils the requirements of the applicable European and national directives (Electromagnetic Compatibility 2004/108/EC, Low Voltage Directive 2006/95/EC, Ecodesign Directive 2009/125/EC, RoHS Directive 2011/65/EU). Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer

59929 Brilon (Germany)

14101504L/14101604L/14101706L/14101804L032015-1
