Product type	LED recessed light
Brand	Livarno Lux
Model	14101202L / 14101206L
Operating voltage	230-240 V~, 50 Hz
Integrated bulbs	3× RGB LED + 7× white SMD (non-replaceable)
Power consumption	max. 5.7 W
Dimensions (each spot)	85 mm (diameter)
Recessed opening	68 mm
Protection rating	IP44 (outdoor recessed) / IP20 (indoor)
Protection class	II
Remote control battery	CR2025, 3 V (included)
Delivery contents	1 recessed spot (with receiver), 1 driver, 1 remote control, 2 protective grilles, 1 manual
Lighting functions	19 colors, adjustable white, Jump/Fade/Flash/Auto programs
Brightness adjustment	25%, 50%, 75%, 100% (via remote)
Minimum distance between spots	20 cm
Minimum distance to objects	0.3 m
Dimmer compatibility	Non-dimmable (do not use external dimmer)
Maximum admissible temperature	90 °C in the mounting space
Recommended cable cross-section	2 × 0.75 mm² minimum
Warranty	3 years (subject to conditions, see manual)
Maintenance	Cut off power, clean with dry, lint-free cloth
Disposal	Separate recycling (device and batteries)

Frequently Asked Questions - 14101202L Livarno Lux

How to install the recessed spot?

Electrical installation must be carried out by an electrician. Cut off the power at the circuit breaker. Drill a hole Ø 68 mm, run the mains cable (2×0.75 mm² min), connect the driver to the receiver, then insert the spot by folding back the springs. Restore power after installation. Observe the minimum distances (20 cm between spots, 0.3 m from objects).

Can I use a dimmer with this spot?

No, this LED lamp is not dimmable. The built-in remote control allows you to adjust brightness (25%, 50%, 75%, 100%) and colors. Do not connect an external dimmer, as this would damage the device and void the warranty.

What to do if the remote control does not work?

First check the battery (CR2025): replace it if necessary, observing polarity. Make sure no obstacle blocks the signal between the remote and the receiver. If the problem persists, contact customer service.

How to replace the remote control battery?

Open the battery compartment, remove the used battery and insert a new CR2025 battery, respecting polarity (+/-). Dispose of the used battery in a suitable recycling container. Do not recharge or throw into fire.

Are the LEDs replaceable?

No, the LED modules (3× RGB and 7× white SMD) are permanently integrated. If an LED is defective, the entire spot must be replaced. Contact customer service to obtain a replacement under warranty if applicable.

What cable cross-section is required for installation?

A cable type H03VV-2F with a minimum cross-section of 2 × 0.75 mm² is required. For multi-stranded connections, use appropriate terminals. Cable is not included.

Can I install this spot in a bathroom?

Yes, the IP44 protection rating (recessed external structure) makes it suitable for wet rooms such as bathrooms, provided it is properly recessed. Do not expose the lamp to direct water splashes before installation.

How to clean the recessed spot?

Before any cleaning, cut off the power supply (circuit breaker). Allow the lamp to cool. Use a dry, soft, lint-free cloth. Never use water, solvents or abrasive products. Risk of electric shock if liquid enters.

What to do if the lamp fails?

First check the mains power. If the lamp does not light up, the LED module may be defective. Do not attempt to repair it yourself; contact customer service with proof of purchase. The 3-year warranty covers material and manufacturing defects.

How to dispose of the device at end of life?

The device and its accessories bear the crossed-out wheelie bin symbol: do not dispose of with household waste. Take them to a recycling center for electronic waste (WEEE). Used batteries must be placed in the containers provided. Follow local regulations.

USER MANUAL 14101202L Livarno Lux

LAMPADA DA INCASSO A LED

SPOT ENCASTRABLE A LED

Assembly, operating and safety instructions

IAN 110553

DE AT CH

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

GB Assembly, operating and safety instructions Page 29

Einleitung

25%/50%/75%/100% Intensität einstellbar

Frequence: 433,92 MHz

Tension de

fonctionnement

ENTION! RISQUES D'EXPLOSION!

Intended use.
Scope of delivery.. Page 30
Parts description.. Page 30
Technical Data Page 30

Safety

Safety notices.. Page 30
Battery safety information.. Page 31

Preparation

Required tools and material . Page 32
Prior to installation
Installation
Controlling the recessed spotlight with the remote control... Page 33
Maintenance and Cleaning
Disposal

Warranty and Service

Warranty Declaration.. Page 34
Service address.. Page 34
Declaration of conformity. Page 34
Manufacturer.. Page 34

LED Recessed light

Introduction

Congratulations on your new product. You have selected a high quality product. Please be sure to carefully read the com

plete operating instructions. Unfold the two pages with the illustrations. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on to third parties as applicable.

Intended use

This light is protection level "IP44" and is only intended for residential use indoors. The light can be fastened to any normally inflammable surface. Protection level "IP44" only applies to the visible area of the light when installed. Protection level "IP20" applies to the area of the light not visible when installed (see Fig. A).

Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 Recessed spotlight (incl. receiver)
1 Driver with power supply
1 Remote control unit
2 Protective tubes
1 Instructions for assembly and use

Parts description

1 Driver with power supply
2 Receiver
3 Recessed spotlight
4 Retaining spring

Technical Data

Model no.: 14101202L or 14101206L

Operating voltage: 230 - 240V 50Hz

Bulb: 3 × RGB LED (not replace-able)

7 x white SMD (not replaceable)

Power input: max. 5.7 W

Dimensions per light: 85mm

Installation opening: 68mm

Protection class: II/

Remote control battery: 3 V, CR2025

Frequency: 433,92 MHz

Operating voltage

(Remote control unit): 3 ~V = -6 ~mA

Use a minimum diameter of 2 × 0.75 ~mm^2 for the cable harness. Use cable end sleeves on respective multistrand cables.

Safety

Safety notices

Damage due to failure to comply with these operating instructions will invalidate the warranty! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!

Avoid the risk of fatal injury from electric shock

Ensure that a qualified electrician, or a person trained to carry out electrical installations, performs the electrical installation.
Always check the light, power supply, and mains cable for damage before plugging it in. Never use the light if it shows any signs of damage.
The fixed LED module is not replaceable. If the LED module is damaged, dispose of the light or contact service.

CAUTION! A damaged mains cable indicates a life-threatening danger due to electric shock. In the event of damage, repairs or other problems with the light please contact the service centre or a qualified electrician.

Prior to installation, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box.
Prior to installation, verify the available mains voltage corresponds with the operating voltage required for the light (230 - 240V)

Ensure that the light does not come into contact with water or other liquids under any circumstances.
Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
Do not install the light on damp or conductive surfaces.

Avoid the risk of fatal injury from electric shock

The LED module is fixed and not replaceable. Never use the light if the LED module shows signs of damage.

Prevent fire and injury hazards

RISK OF INJURY! Check each lamp and lamp glass for damage immediately after unpacking. Do not mount the light with defective lamps and / or glass shade. Should this be the case, contact the service centre for a replacement.
RISK OF BURNS! Ensure the light has been switched off and has cooled before touching it to avoid burns. Lights develop a lot of heat around the lamp head.

FIRE HAZARD! Fit the light so that it is at least 0.3 m away from the material to be illuminated.

PLOSION HAZARD! Do not use the product in rooms or environments with highly flammable or ex

plosive liquids, gasses, vapours or dusts.

JTION! RISK OF FIRE! Never cover the recessed spotlight with heat-insulating materials or similar.

Ensure adequate cooling. Do not exceed the maximum temperature of 90^ in the installation area.
Only use the recessed spotlight with the included accessories. Do not connect recessed lights in series, doing so will void the warranty.
Do not leave the light or packaging material lying unattended. Plastic film or bags, Styrofoam etc. can become dangerous toys for children.

If the protective disc is defective, the entire light must be replaced.
Not dimmable. The LED lamp installed

is not suitable for dimmers or electronic switches.

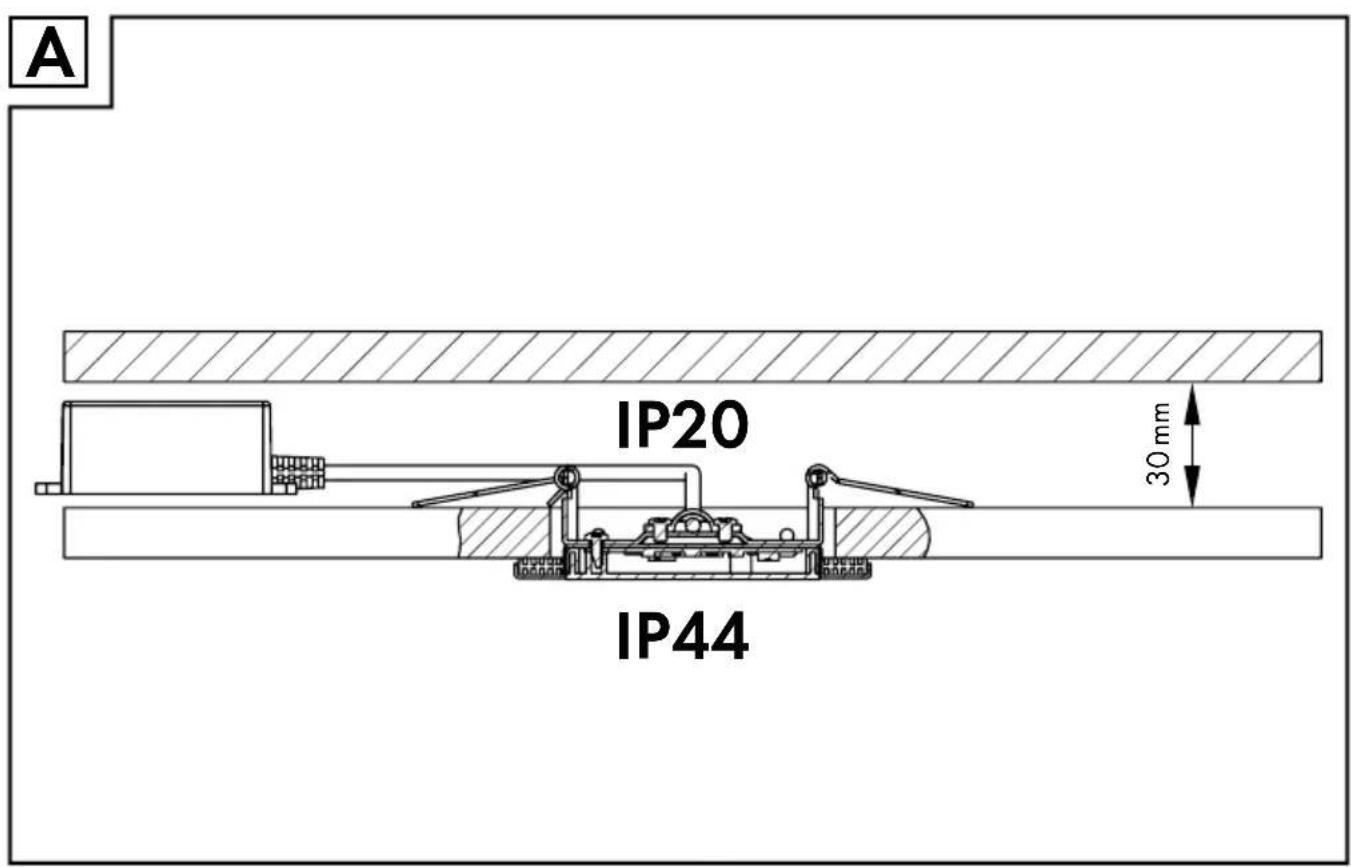

The light is protection level "IP44" and is only intended for residential use indoors.

Protection level "IP44" only applies to the visible area of the light when installed. Protection level "IP20" applies to the area of the light not visible when installed.
Do not look directly into the light source (light bulb, LED etc.).

Battery safety information

WARNING! DANGER TO LIFE!

Batteries are not intended for children. If accidentally swallowed seek immediate medical attention.

JTION! EXPLOSION HAZARD!

Never recharge non-rechargeable batteries and do not short-circuit and / or open any batteries.
Never throw batteries into fire or water.
Do not exert mechanical loads to batteries.

If you do not observe these instructions, the battery could be discharged beyond the cut-off voltage. There is then a danger of leaking. If a battery has leaked, please remove it instantly from the appliance to avoid damage.
Do not let the fluid from a leaking battery come into contact with your skin, eyes or mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with clean water and seek immediate medical attention.
Avoid extreme environmental conditions and temperatures, e.g. above radiators as they may affect batteries.
Remove the battery from the device if it is not going to be used for a prolonged period.
Only use the specified battery type!
When inserting the battery ensure the correct polarity! This is shown in the battery compartment.
If necessary, clean the battery and device contacts before inserting the battery.
Promptly remove drained batteries from the product.

and are only provided as a reference. The nature of the material is determined by the individual local conditions.

• Cable H03VV-2F of the required length with cable end sleeves (minimum cross-section 2 × 0.75 mm^2 )
  -Pencil/marking tool
  Voltage tester
  Screwdriver
• Electric drill
  Hole saw
• Edge cutter
  Ladder

Prior to installation

Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This person must be familiar with the properties of the light and the connection regulations.

Safe working

Install the light so it is protected from moisture, dirt and extreme heating.
When installing several recessed spotlights, be sure to space the lights a minimum of 20~cm apart.
Carefully prepare for assembly and allow yourself adequate time. Organise all parts and any necessary additional tools or materials before starting so they are easy to reach.
Always be attentive! Always pay attention to what you are doing and proceed with caution at all times. Never install the light if you are having difficulty concentrating or do not feel well.

Familiarise yourself with all the instructions and diagrams in this manual, as well as with the light itself, before you install it.

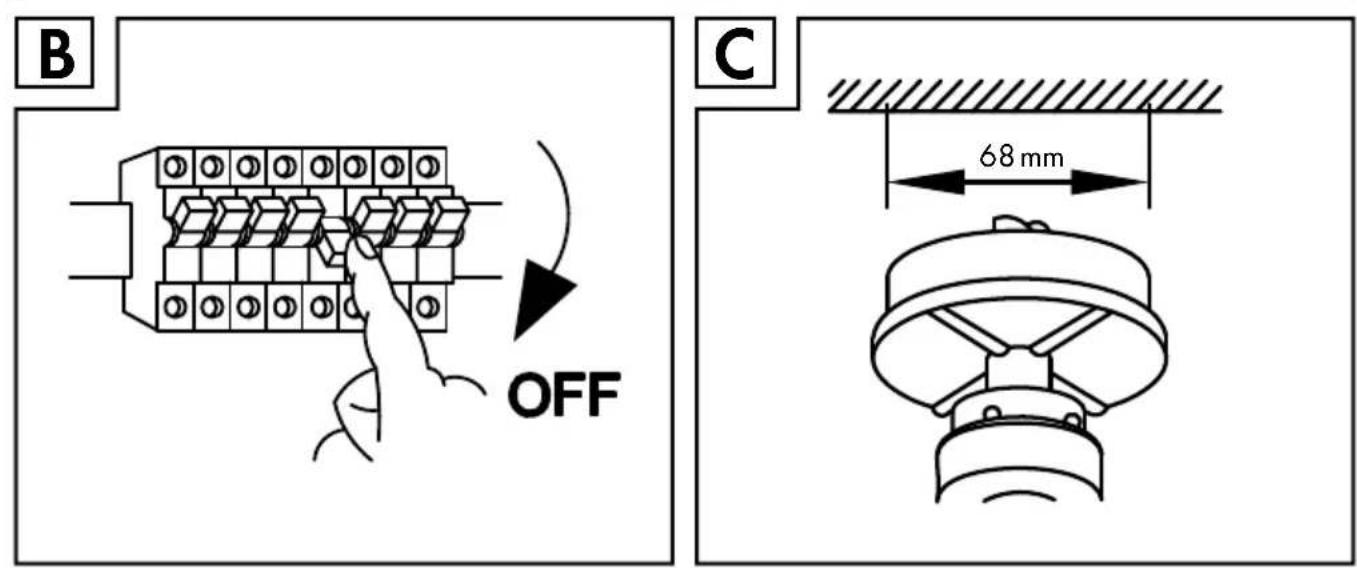

Before installation ensure that the circuit, to which the light will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (Position O, see Fig. B).
Use the voltage tester to verify the de-energised status.

Installation

Mark the position of the recessed spotlight. Cut a hole at the installation site using a hole saw ( 68mm) (See Fig.C). When installing several recessed spotlights, be sure to space the lights a minimum of 20~cm apart.

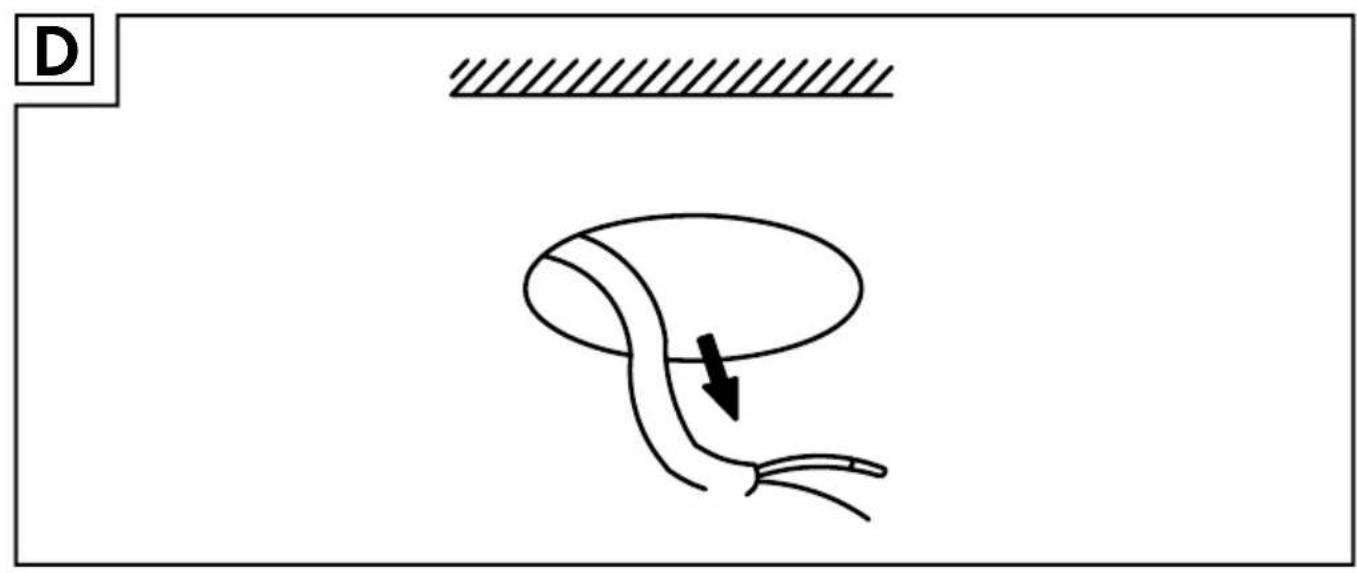

Feed the power cord (external) through the installation opening (see Fig. D).

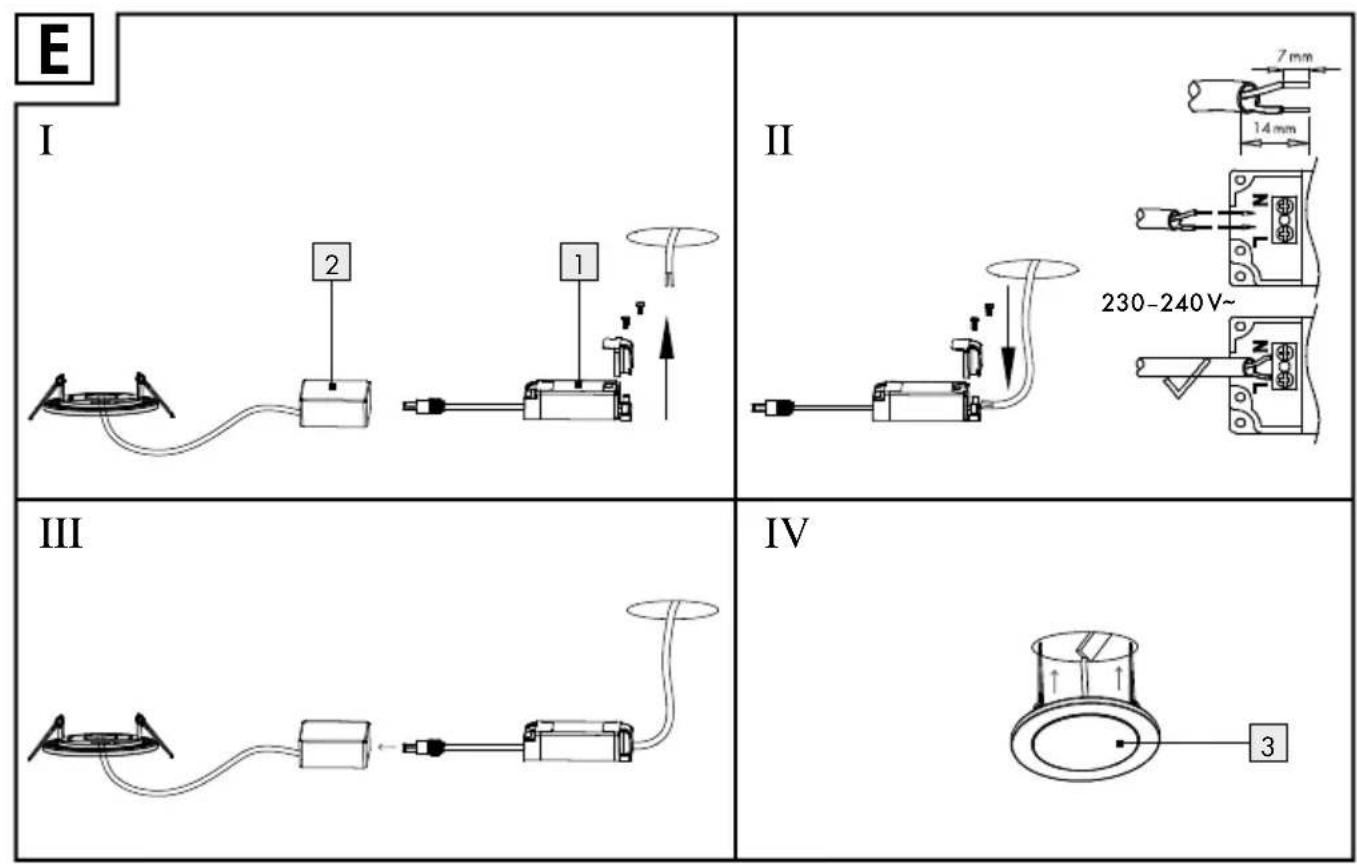

- Open the mains connection 1 cover on the driver using a screwdriver (see Fig. E / I).
Remove the insulation on the mains cable as shown in Fig. E / II.

Preparation

- Required tools and material

The tools and materials specified are not included. This information and these values are non-binding

• Connect the power cord (external) to the driver lustre terminal. Then replace the power connection cover on the driver and secure with a screwdriver (see Fig. E / II). Please note the marking L / N (L = black or brown, N = blue) of the connected wires. Any possibly present green / yellow wire present is not connected. As the light is Protection Class II, earthing of the lamp is not required. Use a type H03VV-2F cable with a minimum cross-section of 2 × 0.75 mm^2 . Please use cable end sleeves on multistrand cables.
  Connect the driver 1 to the receiver 2. Please follow the instructions in Fig. E / III.

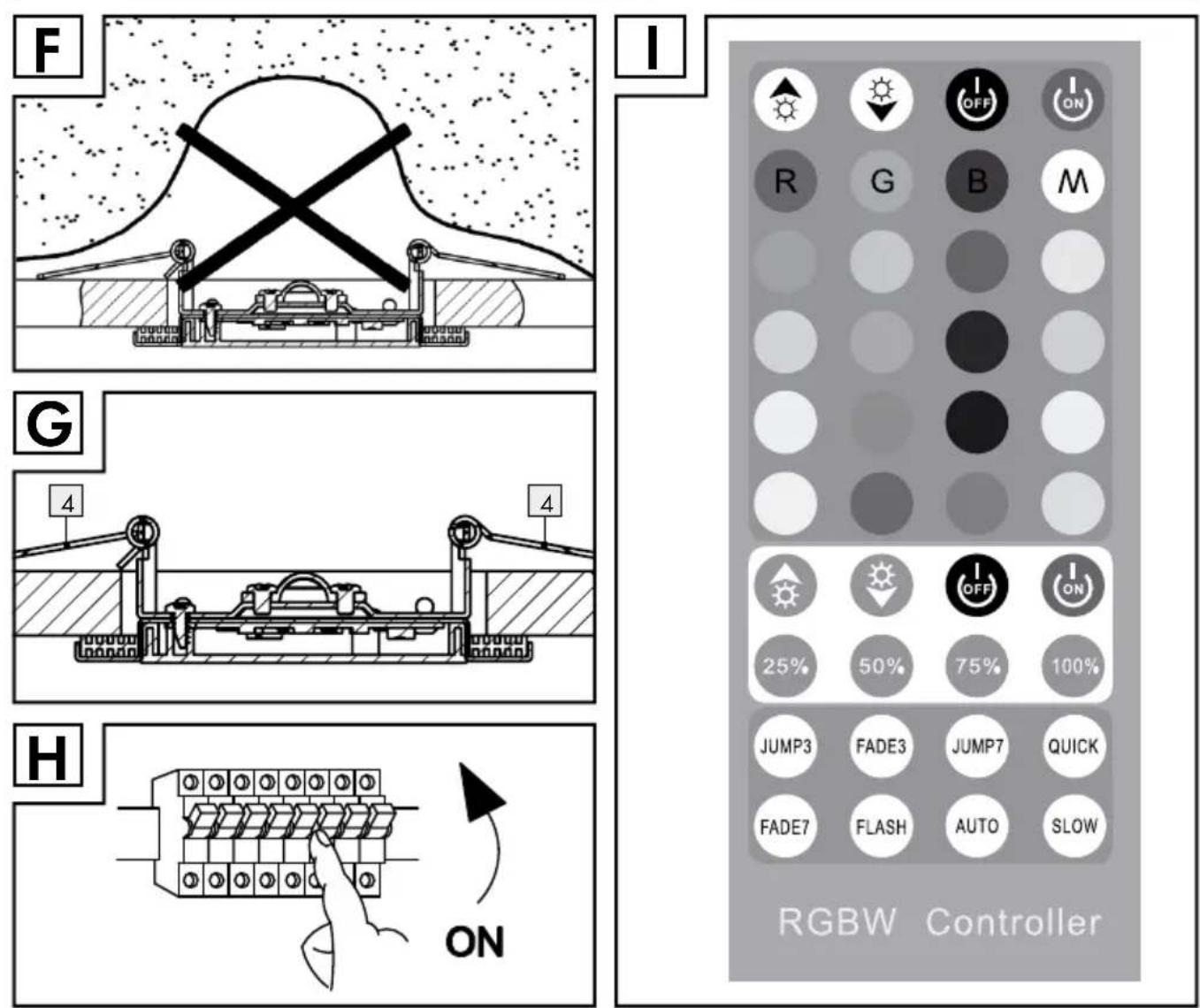

  Before fitting the recessed spotlight remove any insulating material near the driver 1 and the spotlight (see Fig. F).
  Now guide the driver into the installation opening.
• Flip the two retaining springs up and guide the recessed spotlight with receiver and connection cable into the installation opening (see Fig. E/IV).
  The recessed spotlight is now ready for use.
  Now switch on the power supply (see Fig. H).

- Controlling the recessed spotlight with the remote control (Fig. 1)

The following functions are available:

Colour programs:

• 19 individual colour selections

M button: "white Blend"
按钮：on
button: off
button:brighter
按钮：dim

JUMP 3 button: 3 colour static colour change

JUMP7 button: 7 colour static colour change

FADE 3 button: 3 colour flowing colour change

FADE 7 button: 7 colour flowing colour change

FLASH button: 6 colour flash function

AUTO button: auto cycle all programs

SLOW button: reduce speed

QUICK button: increase speed

White colour program:

按钮：on
button: off
button:brighter
按钮：dim

25%/50%/75%/100% brightness selections

- Maintenance and Cleaning

CAUTION! RISK OF ELECTRIC

SHOCK! Disconnect the light from the mains circuit before cleaning. To do so,

remove the fuse or switch off the circuit breaker in the fuse box (0 position).

CAUTION! RISK OF ELECTRIC

SHOCK! For electrical safety, never clean the light with water or other liquids,

or immerse it in water.

Do not use solvents, benzene or similar substances. They could damage the light.
Allow the light to cool off completely.
Only use a dry, lint-free cloth for cleaning.

- Disposal

The package and packaging materials consist entirely of environmentally friendly materials. They can be disposed of at your local recycling facility.

The symbol of the wheelie bin with the line through it means that, in the European Union, the product has to be disposed

of in a separate refuse collection. This applies to the product and to all components bearing this symbol. Do not dispose of products bearing this symbol in your normal household waste, but instead they must be taken for recycling to a collection site for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and protects the environment.

Defective or used batteries must be recycled in accordance with Directive 2006 / 66 / EC. Return batteries and/or the device to the provided recycling facilities.

Improper disposal of batteries can harm the environment!

Never dispose of batteries in your household waste. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of used batteries through your local collection site.

Warranty and Service

WarrantyDeclaration

This product has a 3 year warranty from the date of purchase extended only to the original buyer, not transferable. Please keep your receipt as proof of purchase. The guarantee applies to material or manufacturing defects only. It does not cover wear items or damage caused by improper use. Any modifications will void the warranty. This warranty does not limit your legal rights. Please phone the service centre for warranty claims. This is the only way to return your product free of charge.

-Serviceaddress

Please have your receipt and the item number (e.g. IAN 12345) ready as your proof of purchase when enquiring about your product.

Declaration of conformity

This product meets the requirements of applicable European and national directives (Electromagnetic Compliance 2004/108/EC, Low Voltage Directive 2006/95/EC, European Ecodesign Directive 2009/125/EC, RoHS Directive 2011/65/EU, R&TTE Directive 1999/5/EG). Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer

59929 Brilon (Germany)
