727FL - Kettle Flama - Free user manual and instructions

Product type	Cordless electric kettle
Brand	Flama
Model	727FL
Capacity	1.7 liters
Power	2200 W (estimation)
Supply voltage	220-240 V ~ 50/60 Hz (estimation)
Dimensions (approx.)	Height 25 cm, diameter 15 cm
Weight (approx.)	1 kg
Body material	Plastic and stainless steel
Main functions	Automatic switch-off at boiling, overheat protection, safety lid lock, power indicator light
Base	Power base with cord storage
Filter	Removable limescale filter
Level indicator	Transparent water level indicator
Care and cleaning	Clean the exterior with a dry cloth; descale every month with vinegar or lemon juice
Safety	Never immerse the kettle or base; do not use without water; unplug after use
Spare parts and repairability	Repairs must be carried out by an authorized FLAMA service; do not replace the cable yourself
Warranty	36 months (subject to proof of purchase)
Usage	Reserved for water only; domestic use

Frequently Asked Questions - 727FL Flama

How to use the Flama 727FL kettle for the first time?

Before first use, clean the inside of the kettle, then boil water at least once and discard it. This removes manufacturing residues. A slight odor may be released; this is normal.

What to do if the kettle does not turn on?

Check that the kettle is properly placed on the base and that the on/off switch is pressed. Ensure the lid is firmly closed. If the problem persists, check the electrical outlet.

How to descale the kettle?

It is recommended to descale the kettle once a month. Use a commercial liquid descaler or a mixture of half a liter of water with 5-6 tablespoons of lemon juice. Heat without boiling, then rinse thoroughly by boiling clean water at least twice.

Can I open the lid during operation?

No, never operate the kettle with the lid open. The automatic shut-off system works only when the lid is closed. Open the lid only for filling or cleaning.

How to clean the exterior of the kettle?

Unplug the appliance and let it cool. Clean the exterior of the kettle and the base with a dry, absorbent cloth. Never use abrasive products and never immerse the kettle or base in water.

What to do if the kettle turns off before the water boils?

This may be due to overheating if the kettle was turned on without water. Let it cool, fill with water up to the maximum level, and try again. If the problem persists, contact an authorized service.

How to remove and clean the anti-limescale filter?

Let the kettle cool and empty it. Open the lid, gently remove the filter. Clean it under running water with a soft brush, then replace it ensuring it is properly installed before using the kettle.

What is the maximum capacity of the kettle?

The kettle has a maximum capacity of 1.7 liters. Never exceed the maximum level indicated to avoid boiling water overflow.

Is the kettle suitable for all types of water?

Yes, it can be used with tap water. However, in hard water areas, regular descaling is necessary to maintain performance.

What to do if water spills on the base?

Unplug the appliance immediately. Wipe the base with a dry, absorbent cloth, and clean the surface it rests on. Ensure everything is dry before reusing the appliance.

USER MANUAL 727FL Flama

Black Flama water heater with white label and control buttons (no visible text beyond branding)

727FL

PT JARRO ELÉTRICO 1 ES HERVIDOR DE AGUA 6 EN ELECTRIC KETTLE 12 FR BOUILLOIRE

FLARA FLARA 6 5 7 8 1 2 3 4 5 6

JARRO ELÉTRICO

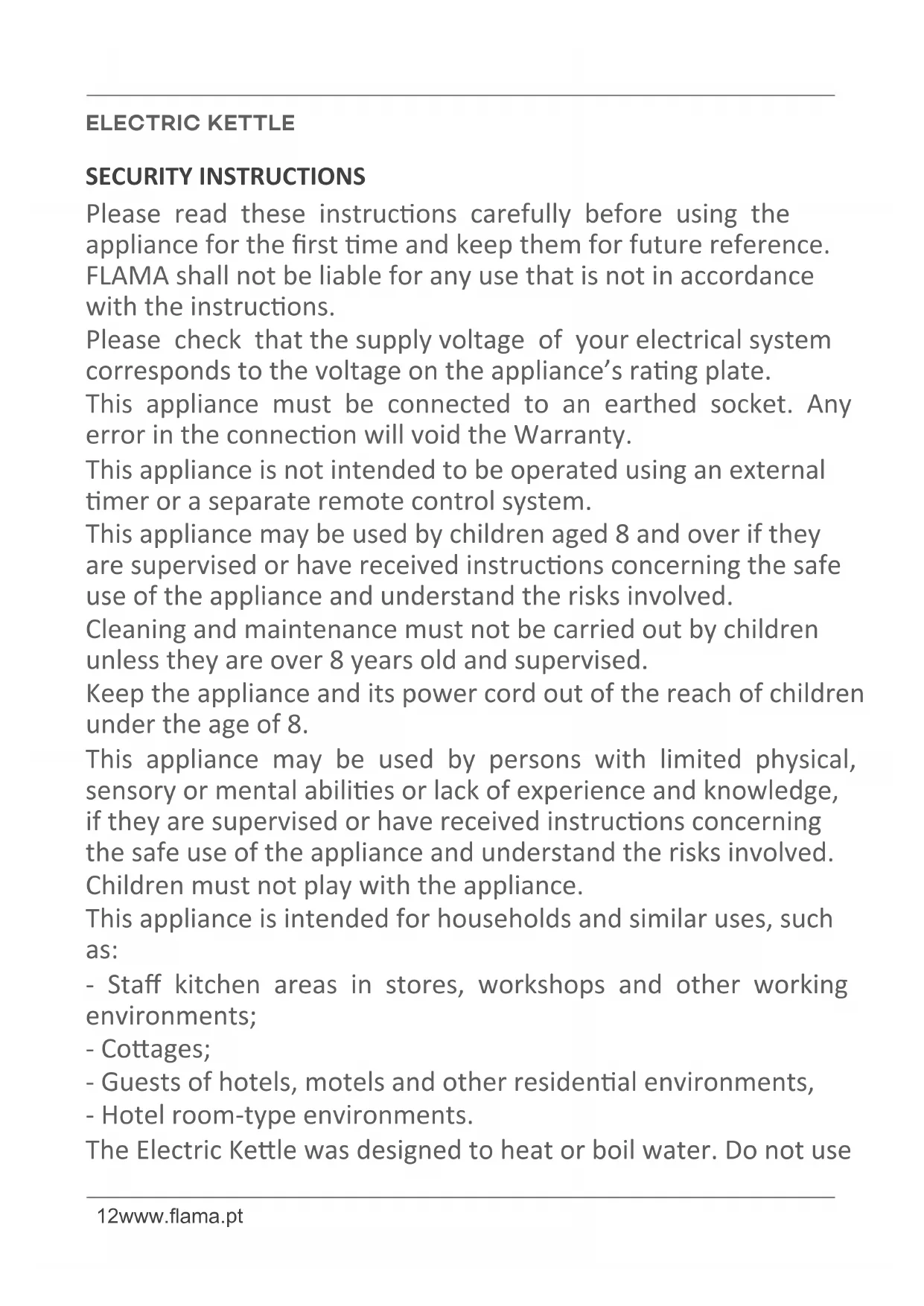

INSTRUÇÕES DE SEGURANÇA

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Please read these instructions carefully before using the appliance for the first time and keep them for future reference.

FLAMA shall not be liable for any use that is not in accordance with the instructions.

Please check that the supply voltage of your electrical system corresponds to the voltage on the appliance's rating plate.

This appliance must be connected to an earthed socket. Any error in the connection will void the Warranty.

This appliance is not intended to be operated using an external timer or a separate remote control system.

This appliance may be used by children aged 8 and over if they are supervised or have received instructions concerning the safe use of the appliance and understand the risks involved.

Cleaning and maintenance must not be carried out by children unless they are over 8 years old and supervised.

Keep the appliance and its power cord out of the reach of children under the age of 8.

This appliance may be used by persons with limited physical, sensory or mental abilities or lack of experience and knowledge, if they are supervised or have received instructions concerning the safe use of the appliance and understand the risks involved.

Children must not play with the appliance.

This appliance is intended for households and similar uses, such as:

- Staff kitchen areas in stores, workshops and other working environments;

- Cottages;

- Guests of hotels, motels and other residential environments,

- Hotel room-type environments.

The Electric Kettle was designed to heat or boil water. Do not use

any other liquid.

Only use the power base provided with the Electric Kettle.

To fill the Kettle, always remove it from the power base, to prevent water from overflowing onto it.

Never fill the Kettle above the maximum level indicator, marked on the water level indicator, as boiling water may spill out.

Never switch on the Electric Kettle without water in it.

Never switch on the Electric Kettle with the lid open.

Never run the Electric Kettle when the power base is wet.

When it is switched on, the body of the Kettle heats up.

Use only the handle of the Electric Kettle to move it around.

If the Kettle is too hot, allow it to cool down before filling it with cold water.

Please disconnect the appliance from the power supply by removing the plug from the fixed power socket after each use and when cleaning.

Clean the outside of the Electric Kettle and the power base with a dry, absorbent cloth.

Never immerse the kettle or the power base in water or any other liquid for cleaning.

Do not use the appliance if it is not working properly, or if it is in any way damaged. Any intervention other than cleaning must be carried out by an Authorized FLAMA Technical Assistance Service.

Do not use the appliance if the power cord or plug are damaged.

Do not attempt to replace the power cord or plug as this is a dangerous operation. Have them replaced immediately at an Authorized Flama Technical Assistance Service.

This product complies with the Low-Voltage and Electromagnetic Compatibility Directives.

This instruction manual is also available in PDF format at www.flama.pt.

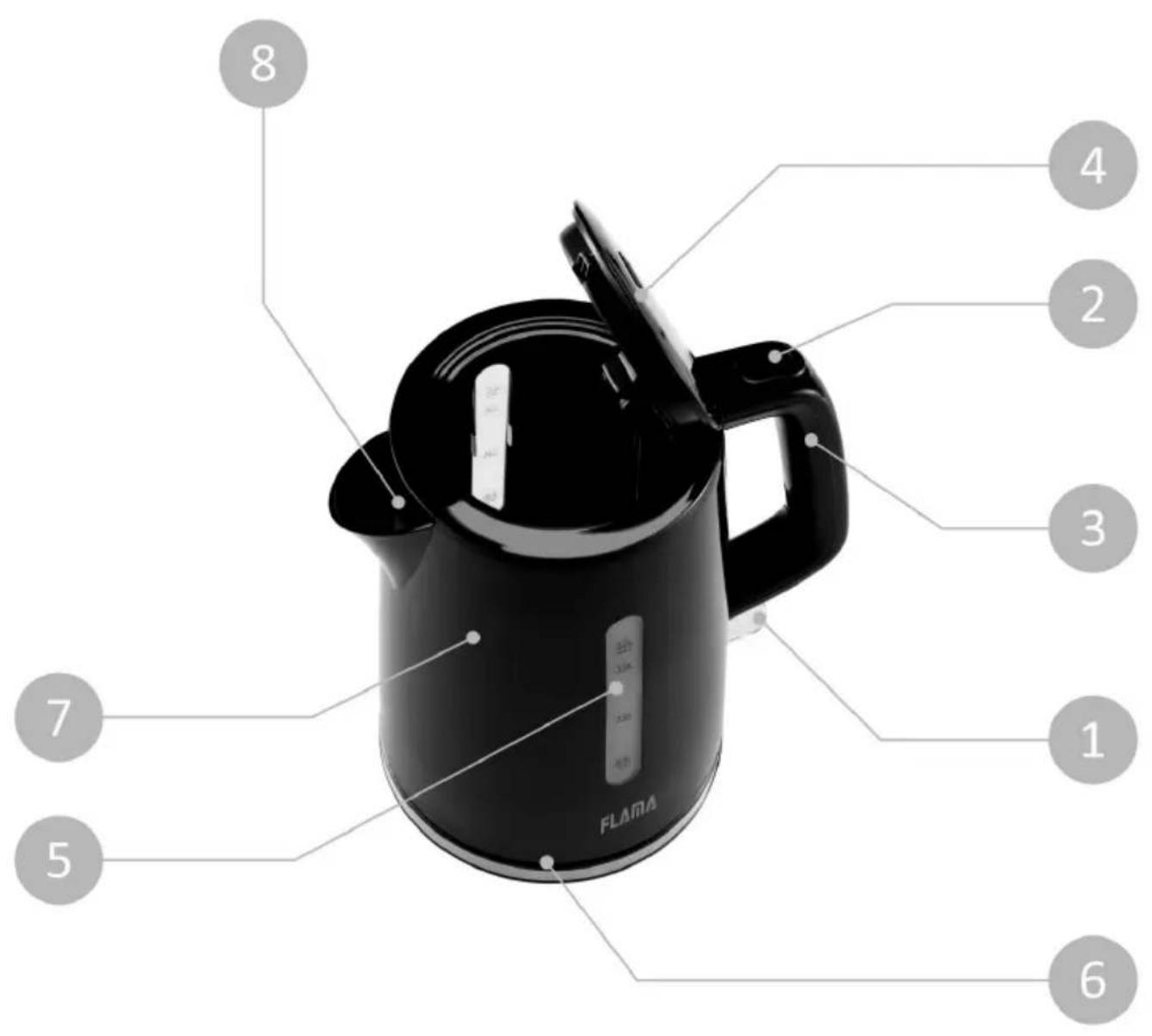

DESCRIPTION

1. ON/OFF switch / light indicator
2. cover open button
3. Handle
4. Cover
5. water level indicator
6. power base
7. Body
8. Filter

IMPORTANT ADDITIONAL INFORMATION

Never immerse the Kettle or the hopper base in water or any other liquid.

Clean the outside of the Kettle and the Feed Base with a dry, absorbent cloth.

Before putting the Kettle back into operation, unplug the plug from the socket and wipe off the water with a dry, absorbent cloth.

Never run the Water Kettle with the power base wet.

OPERATION

This product was designed to make its use simple, practical, efficient and safe.

Wireless device: maximum ease of use, cleanliness and security. The power cord is independent from the electric kettle.

Lid safety lock: ensures the lid does not open when pouring water.

Auto-off: the kettle switches off automatically when the water starts boiling.

Maximum level indication: the water level indicator, indicates the maximum amount of water that the electric kettle can take (1.7lt).

Level indicator: shows the amount of water that is inside the electric kettle.

Cable winder: for easy storage, wrap the cable around the bottom of the power base.

Before first use

Clean the inside of the kettle and then boil water (at least once). Discard the water from the 1st boil.

During the first use it can release some odours, which is perfectly normal.

Use

Unwind the power cord from the power base.

Place the pad on a flat surface away from hot surfaces or flames.

Open the kettle lid by pressing the lid opening button to unlock the lock.

Fill the electric kettle with water, outside the power base.

Never exceed the maximum level indicator, that is, do not fill with more than 1.7 litres.

Use the level gauge to check how much water is in the kettle.

Close the lid completely. Never operate the kettle with the lid open, as the “auto power off” system only works with the lid closed.

Place the electric kettle on the power base, fitting it snugly into the adapter.

Press the on/off switch to turn on the kettle. The indicator light turns on indicating that the kettle has started up.

As soon as the water boils, the jar will automatically turn off. The indicator light turns off.

Remove the electric kettle from the power base using the handle to move it.

If you want to stop heating, to get hot water without boiling, just turn the on/off switch to the "0" position and it turns off automatically (the indicator goes off).

If you want to reheat (reheat) the water, fit the kettle to the power base, set the on/off switch to the "I" position to turn the kettle on (and the indicator light comes on).

After the water comes to a boil and the kettle switches off automatically, a few drops of water may appear on the hopper. This is normal, it results from condensation generated during operation, and water appears through the holes in the bottom of the kettle.

Before putting the kettle back into operation, unplug the plug from the socket and wipe off the water with a dry, absorbent cloth.

Never run the water kettle with the power base wet.

If by accident, pour water into the power base, proceed as follows:

- disconnect the plug from the socket.

- clean the infeed base with a dry, absorbent cloth.

- clean the surface where the power base is placed.

- connect the plug to the socket and restart use.

If you carelessly put the kettle to work without water, the safety device that prevents overheating will actuate and turn it off. In this situation, remove the kettle from the feed base; let it cool down; fill with water without exceeding the maximum level indicator; place the kettle on the power base and reconnect.

Never put cold water in a very hot kettle, as you run the risk of getting burned.

MAINTENANCE AND CLEANING

After each use and before proceeding with any cleaning operation, always unplug the plug from the socket and allow the kettle to cool down. Descaling extends the life of the electric kettle, improves its behaviour, reduces electricity consumption and guarantees the correct functioning of the safety system that prevents overheating.

Never immerse the kettle or feed base in water or any other liquid.

Clean the outside of the kettle and the feed base with a dry, absorbent cloth.

Do not use abrasive products.

How to remove the filter:

To remove the kettle filter for cleaning, remove the kettle from the spout base and allow to cool. Do not remove the kettle filter if it is still hot or filled with water.

- Open the lid by pressing the open button.

- Remove the filter. Carry out the cleaning operation.

Place the filter in the same place, making sure it is properly placed.

Do not use the kettle before making sure the filter is correctly placed.

DESCALING

You should descale the electric kettle monthly, or more often depending on the lime scale in the water and how often you use the kettle.

To remove limescale stains from the inside of the body, periodically descale the jar using one of the following methods:

- Use a liquid descaling agent, available in commerce or at authorized Flama after

sales services, and proceed according to the instructions that come with the descaling agent or

- Use a mixture of half litre of water with 5 to 6 tablespoons of lemon juice.

When descaling, pay attention to the following:

• First add the water and then the descaling agent or lemon juice.
• Do not let the mixture boil and be aware of possible foam formation.
• After descaling, boil water at least twice, before normal use.

If brown spots appear on the inside of the body, it is not rust, but a deposit of ferritic limestone that is easily removed.

ANOMALIES AND REPAIR

In case of malfunction, please take the appliance to an authorized Technical Assistance Service. Do not attempt to disassemble or repair the appliance, as this may be dangerous.

PROTECTING THE ENVIRONMENT

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or numbers present)

This symbol indicates the separate collection of electrical and electronic equipment.

The main objective of the separate collection of this waste is to reduce the quantity to be disposed of, promote re-

use, recycling and other forms of recovery in order to reduce its negative effects on the environment.

When it is no longer in use, this appliance must not be disposed of together with other unsorted municipal waste.

The user is responsible for delivering it free of charge to the selective collection facilities available for that purpose.

Pieces of equipment that are no longer in use can also be taken back at points of sale, by purchasing new pieces of equipment that are equivalent and have the same functions.

For more detailed information on collection points, please contact your City Council or a point of sale for this equipment.

BOUILLOIRE

CONSIGNES DE SÉCURITÉ

DYSFONCTIONNEMENTS ET RÉPARATIONS

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

1. Keep the proof of purchase (receipt) for this product carefully. When a repair is made under these conditions, the technician will require proof of purchase. This assistance can only be provided once you have proven, with the proof of purchase, that your appliance is within the warranty period.
2. The warranty period for this appliance is defined by the respective EU Directive in force on the date of purchase/delivery.
3. Within the guarantee period, we will repair or replace, free of charge, any parts which, during the normal use of the appliance, have deteriorated as a result of a proven material or manufacturing defect.
4. This warranty does not cover consumable items, light bulbs, easily breakable parts made of glass or plastic, or any other defects that do not impair its proper functioning.
5. We accept no liability for damage caused by incorrect or careless use of the appliance, by its connection to an electrical current other than that indicated on the appliance's rating plate, by faulty electrical installation, or by atmospheric, chemical or electrochemical causes. Other claims or demands for compensation relating to objects which are not an integral part of the appliance will be denied.
6. The provision of assistance under warranty does not extend the warranty period. Only within this period will assistance be provided under warranty. The right to assistance is only granted to the first purchaser of the device and cannot be transferred to a third party.
7. The warranty expires when unauthorized persons have attempted to repair, modify or replace parts of the appliance.
8. All expenses and risks of transportation to our factory or vice versa will always be borne by the buyer.

WARRANTY CONDITIONS

To benefit from the Technical Assistance service during the 36-month warranty period after the date of purchase, you will need to:

Present the Invoice/Proof of Purchase, stating the model and the manufacturing number of the product (whenever possible).

Note: Failure to present the aforementioned documents will be grounds for not providing services under warranty.

CONDITIONS DE GARANTIE

CONDITIONS DE GARANTIE
