Product type	Digital photo frame
Brand	Braun
Model	DigiFrame 1591
Supported image formats	JPEG, BMP, PNG
Supported audio formats	MP3
Supported video formats	MPEG1, MPEG2, MPEG4, H264, RM, RMVB, MOV, MJPEG, DivX
Supported memory cards	SD, SDHC, MMC
Connectivity	USB 2.0, HDMI-IN
Main features	Slideshow with music, built-in clock, auto on/off, USB to SD copy, calendar
Display settings	Brightness, contrast, saturation
OSD languages	English and other languages
Standby mode	Yes
Power supply	AC adapter (not specified)
Care and cleaning	Clean with a soft dry cloth. Do not use abrasive products.
Safety	Use only the provided adapter. Do not expose to moisture.
Dimensions (estimated)	Approx. 25 x 18 x 3 cm (typical size for a 10-inch frame)
Weight (estimated)	Approx. 500 g

Frequently Asked Questions - DigiFrame 1591 BRAUN

How to turn on the DigiFrame 1591 digital photo frame?

Press the POWER button located on the back or side of the frame.

Which memory card formats are compatible?

The frame supports SD, SDHC, and MMC cards.

How to view photos from a USB drive?

Insert the USB drive into the port. From the main menu, select Photo, then choose the USB device. Navigate with the arrow keys and press OK to display.

Can the frame play music in the background of a slideshow?

Yes, the frame supports slideshow with music. You can start music playback in Music mode and simultaneously launch a slideshow in Photo mode.

How to use the HDMI input?

Connect an HDMI device to the HDMI-IN port on the frame. Press SOURCE, select HDMI with the ▲▼ keys, then press OK.

How to copy files from a USB drive to an SD card?

Go to Settings > Auto Copy and set it to On. Make sure the files are in the root of the USB drive. The copy will be performed automatically.

How to adjust the screen brightness?

In the Setting menu, select the Brightness option and adjust with the ▼▲ keys.

Can the frame display a calendar?

Yes, from the main menu, select Calendar. Use the arrow keys to navigate between months.

How to clean the frame screen?

Use a soft dry cloth to gently wipe the screen. Never use chemical or abrasive products.

What to do if the frame does not turn on?

Check that the AC adapter is properly connected and the outlet works. If the problem persists, contact customer service.

USER MANUAL DigiFrame 1591 BRAUN

Key features:

BRAUN DigiFrame 1591 4GB User's Manual

BRAUN PHOTO TECHNIK GMBH, Merkurstr. 8, 72184 Eutingen, Germany

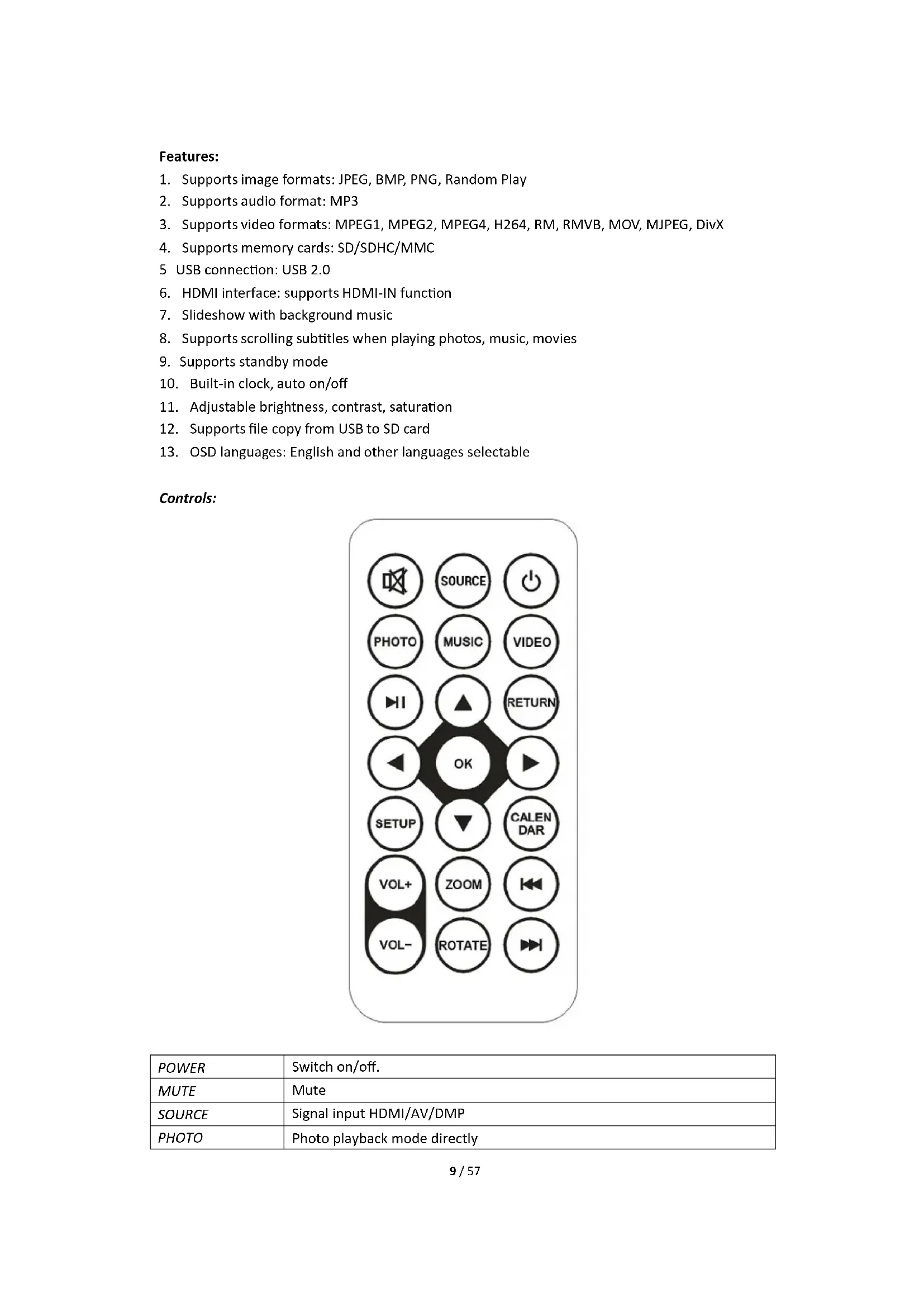

Features:

1. Supports image formats: JPEG, BMP, PNG, Random Play
2. Supports audio format: MP3
3. Supports video formats: MPEG1, MPEG2, MPEG4, H264, RM, RMVB, MOV, MJPEG, DivX
4. Supports memory cards: SD/SDHC/MMC 5 USB connection: USB 2.0
5. HDMI interface: supports HDMI-IN function
6. Slideshow with background music
7. Supports scrolling subtitles when playing photos, music, movies
8. Supports standby mode
9. Built-in clock, auto on/off
10. Adjustable brightness, contrast, saturation
11. Supports file copy from USB to SD card.
12. OSD languages: English and other languages selectable.

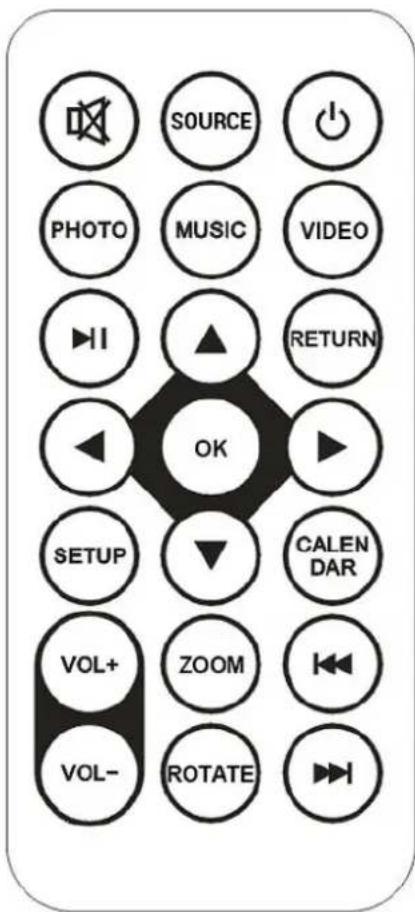

Controls:

POWER	Switch on/off.
MUTE	Mute
SOURCE	Signal input HDMI/AV/DMP
PHOTO	Photo playback mode directly
MUSIC	Music playback mode directly
VIDEO	Video-playback mode directly
▶II	Play or pause
RETURN	Back to previous screen
▲▼▲	Move up/down/left/right cursor keys.
OK	Confirmation
SETUP	Setup menu
CALENDAR	Calendar function directly
VOL+ VOL-	Volume adjustment
ZOOM	Enlarge the photo in photo play mode
ROTATE	Rotate the photo in photo play mode
▶▶▶	Select previous or next file

Main Menu:

Supports SD/SDHC/MMC and USB 2.0. Press to access photo, music, video, calendar and settings menus. Press OK button to confirm selection.

08:20

Tuesday 05, January


Note: Make sure there are supported picture, music or video files on the memory card or USB device.

Picture Mode:

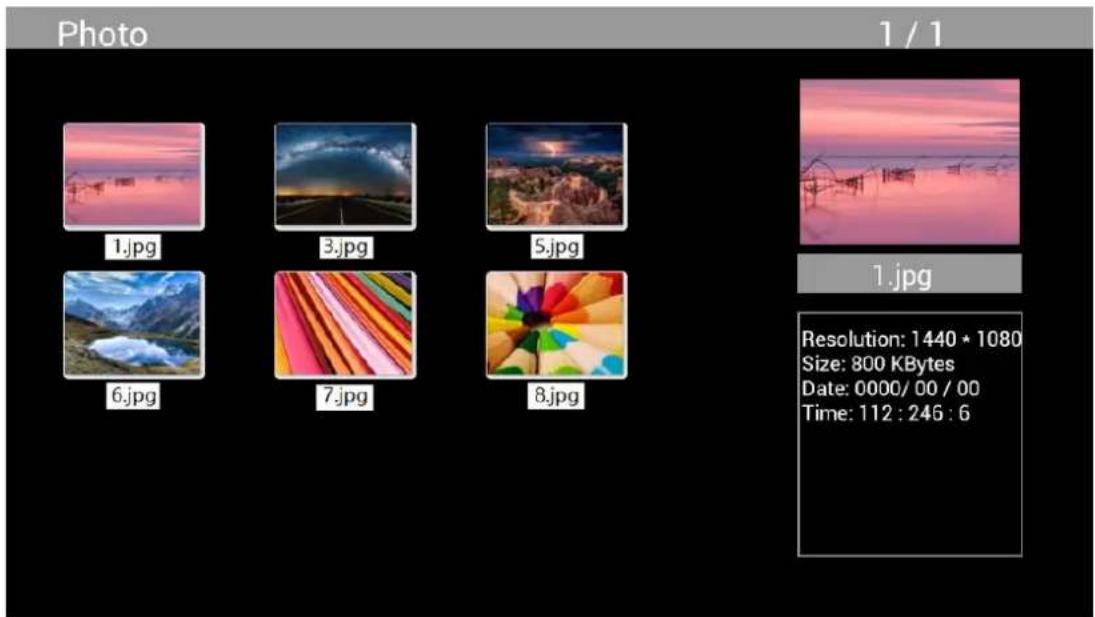

Highlight Photo from the main menu, press OK to select the USB or memory card for playback and press RETURN to access thumbnail mode. Press ◄ to select the photo for playback and press OK to confirm.

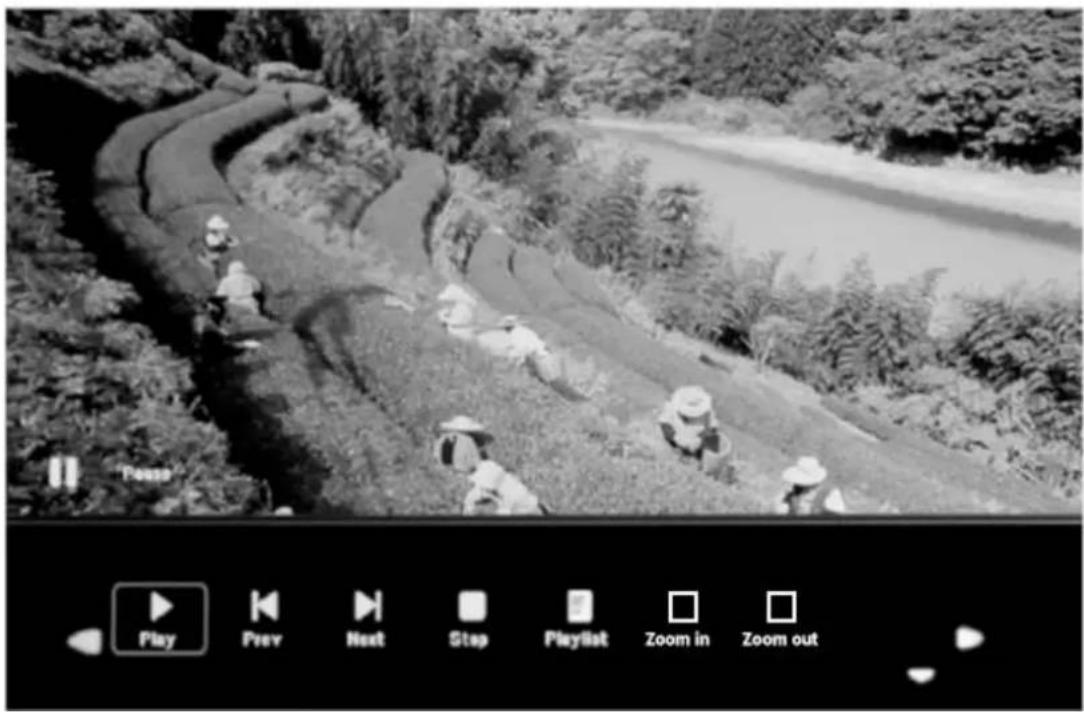

During photo playback, press OK to display the on-screen controls and select the desired function with ◄ Play, Previous, Next, Stop, Playlist, Zoom in, Zoom out, Move, then press OK to confirm.

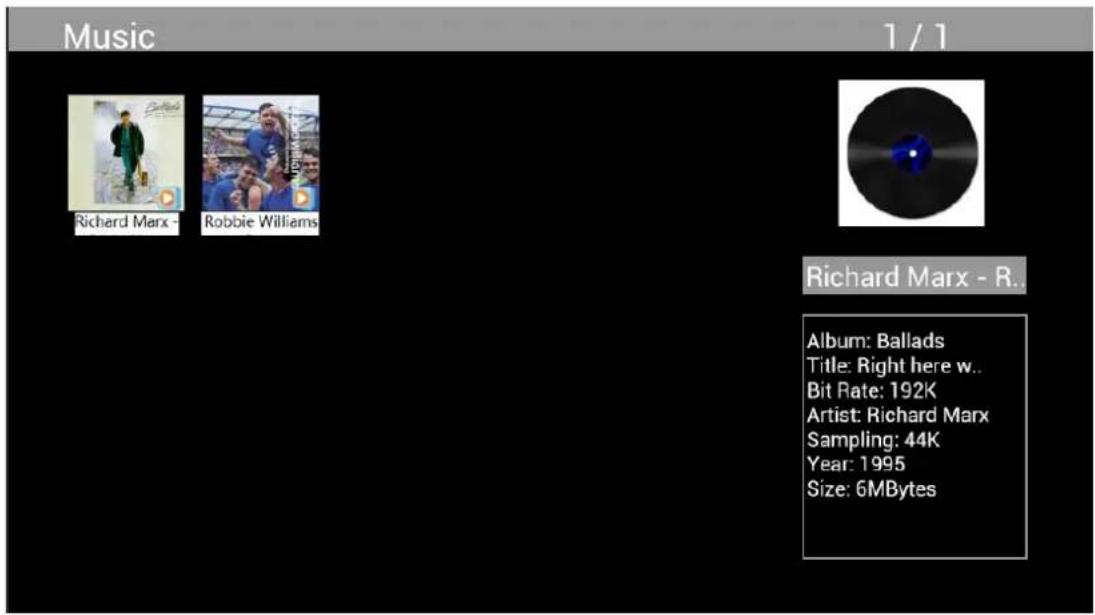

Music Mode

Highlight Music from the main menu, press OK to select the USB 2.0 or memory card for playback and press RETURN to access thumbnail mode. Press ▲▼◄ to select the music for playback and press OK to confirm.

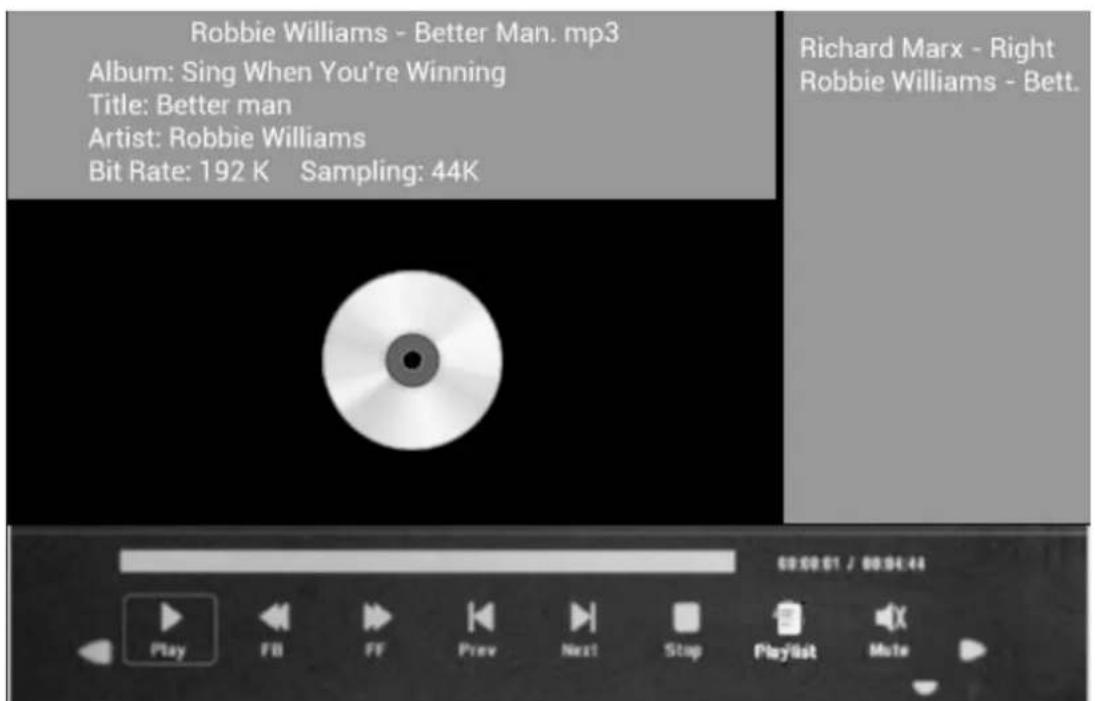

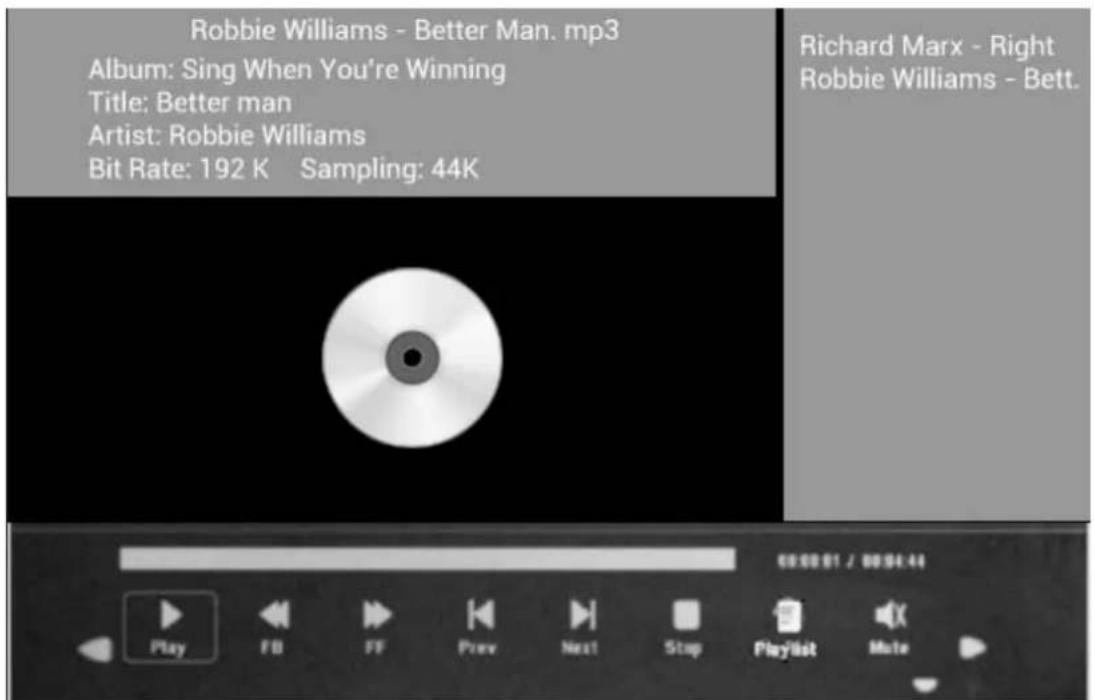

Music Playback:

During music playback, press OK to display the on-screen controls and select the desired function with the left/right arrows: Play, Fast Rewind, Fast Forward, Previous, Next, Stop, Mute, Playlist, then press OK to confirm.

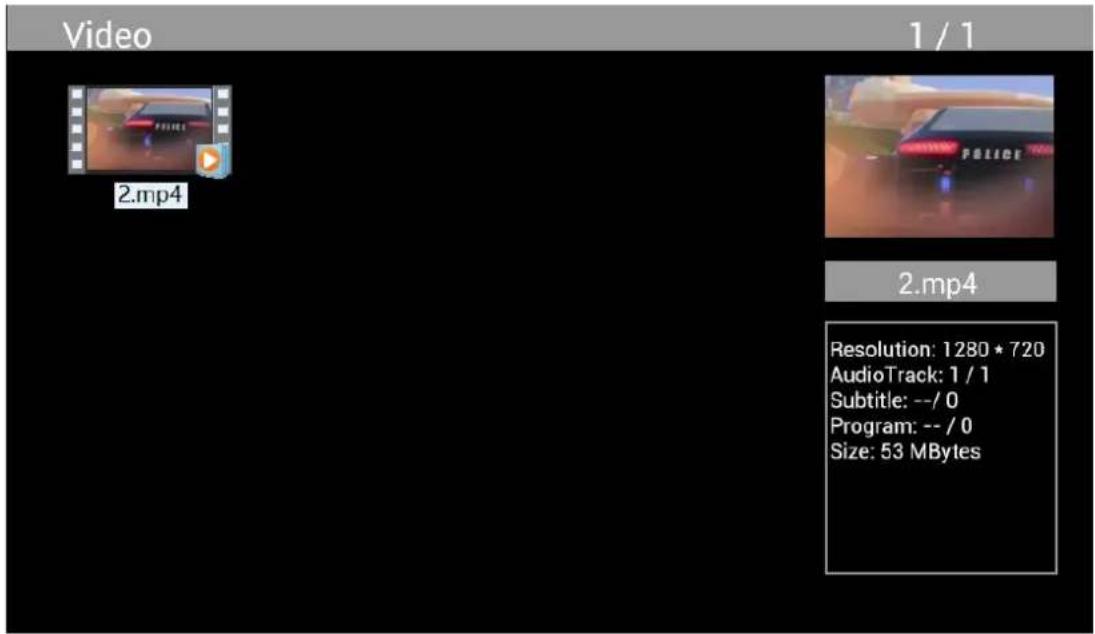

Video Mode

Highlight Video from the main menu, press OK to select USB 2.0 or memory card for playback and press RETURN again to access thumbnail mode. Use the left/right arrows to select the movie for playback and press OK to confirm.

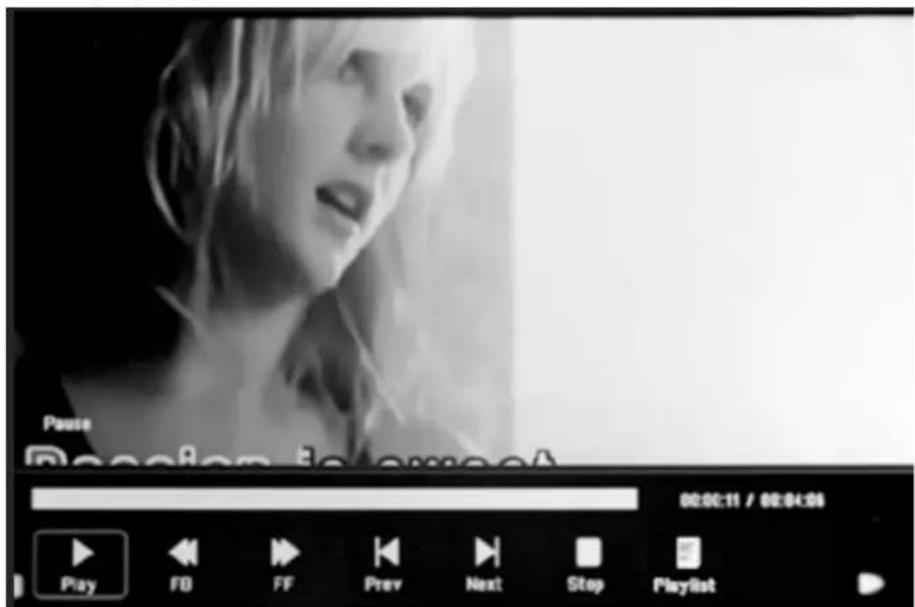

Video Playback:

During video playback, press OK to display the on-screen controls and select the desired function with the left/right arrows: Play, Fast Rewind, Fast Forward, Previous, Next, Stop, Playlist, Aspect, then press OK to confirm.

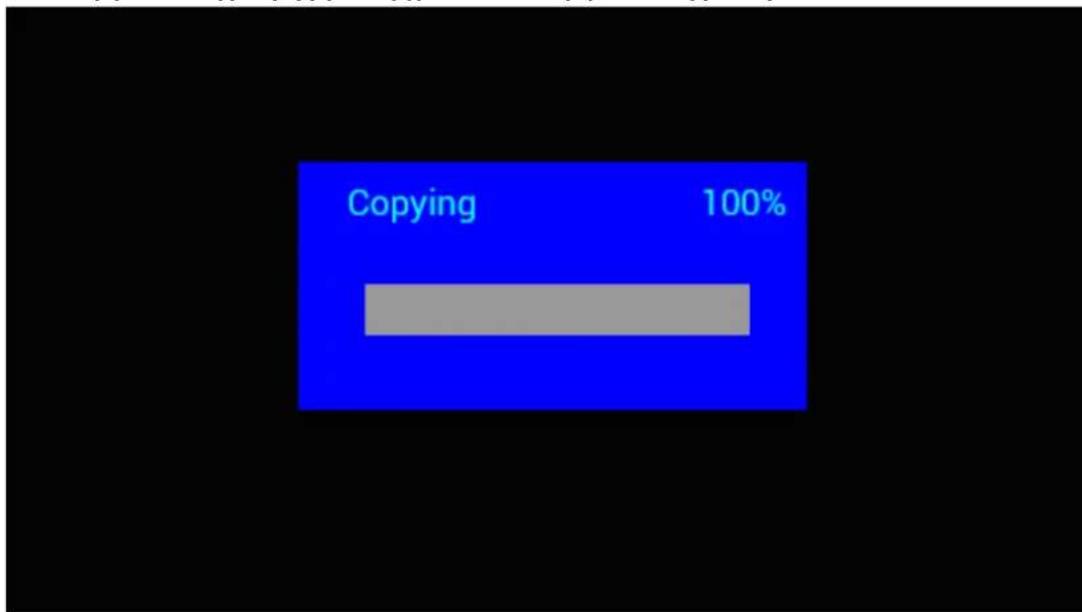

Copy Function for Image, Music and Video Files:

Copying all files from USB device to SD Card is supported. Highlight Setting and press OK to Settings menu, use the left/right arrows to select Setting option, use the left/right arrows to select and set the Auto Copy in the list, and set the value to On. The progress is displayed.

After successfully copying all files, the slideshow will start automatically.

Note: Make sure the photo/music/videos files are saved in the root directory of the USB device, not in any folder of the USB. Otherwise copying will fail.

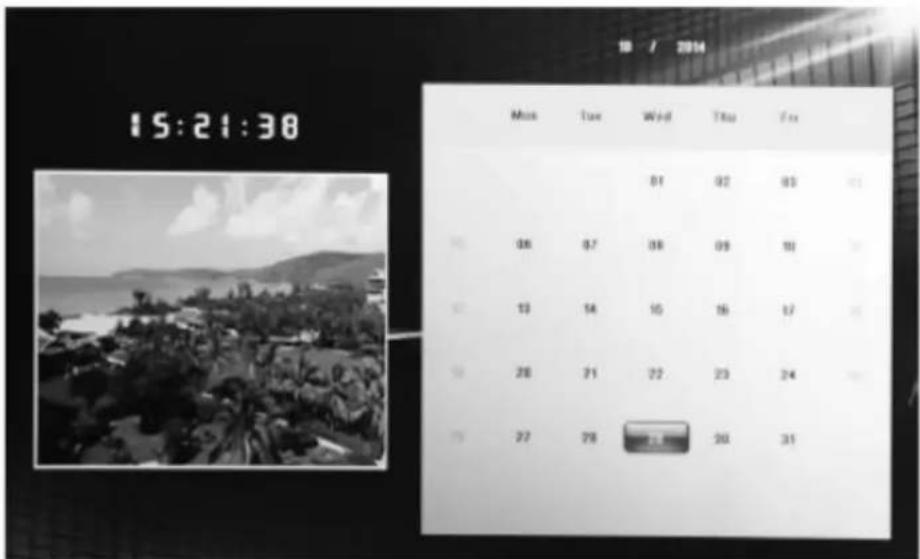

Calendar:

Press the Calendar menu from the main menu. Browse the calendar with the arrow keys.

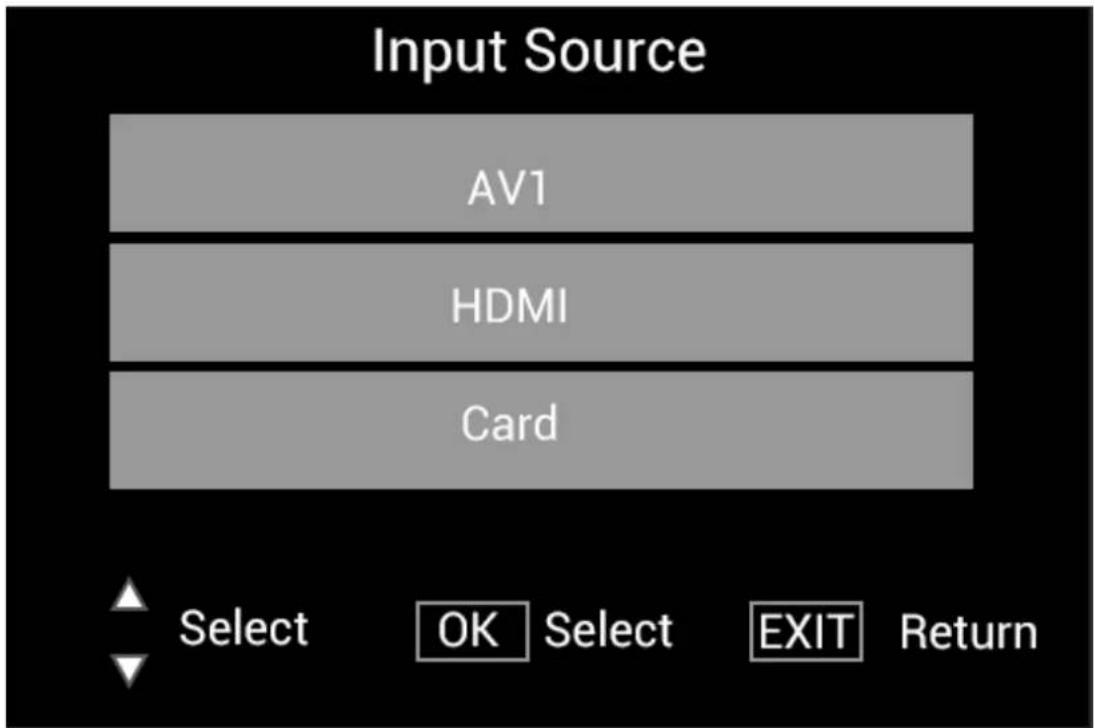

HDMI-IN Function:

Connect the HDMI device at the HDMI-IN interface of the digital picture frame. Press SOURCE, press the up/down arrows to highlight the HDMI option, and press OK to select HDMI as input source.

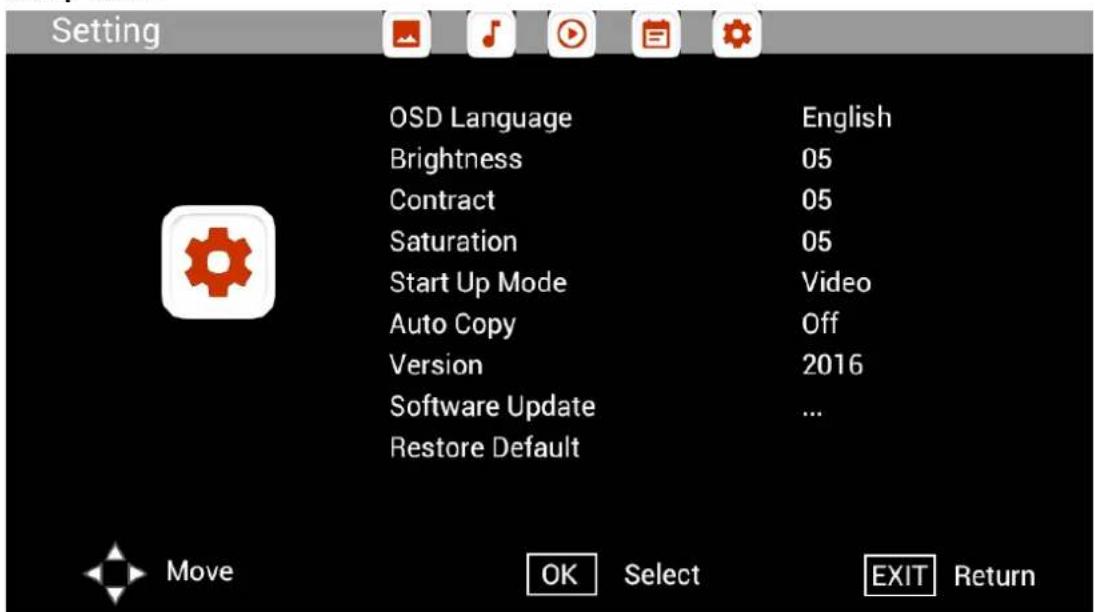

Setup Menu

Select Setting in the main menu, use the left/right arrows to select sub-menu Setup list: Photo, Music, Video,

Calendar, Setting, press to highlight the setting option, and press to set the Value.

BRAUN DigiFrame 1591 4GB

User Guide

Features:

Playback of music:

During music playback, press OK to display the control bar and select the desired function with the buttons: Play, Fast Rewind, Fast Forward, Previous, Next, Stop, Mute, Playlist, and then press OK to confirm.

Video Function

Select the Video option from the main menu, press OK to select USB 2.0 or memory card for playback, and press RETURN to return to the program function. Press A to select the file for playback and press OK to confirm.

Video Playback:

During video playback, press OK to display the control bar and select the desired function with the buttons: Play, Fast Rewind, Fast Forward, Previous, Next, Stop, Playlist, Aspect, and then press OK to confirm.

Function for copying photo, music, and video files:

Supports copying all files from a USB device to an SD card. Select the Setting option and press OK to enter the Settings menu, press to select the Setting option, press to select and define the Auto Copy function, and set the setting to On. A prompt appears.

After the successful copying of all files, the preview or presentation shows the content.
