DigiFrame 1094 - Digital photo frame BRAUN - Free user manual and instructions

Product Type	Digital Photo Frame
Brand	Braun
Model	DigiFrame 1094
Screen Size	10 inches (diagonal)
Supported Image Formats	JPEG, BMP, PNG
Supported Audio Formats	MP3
Supported Video Formats	MPEG1, MPEG2, MPEG3, H264, RM, RMVB, MOV, MJPEG, DivX
Supported Memory Cards	SD, SDHC, MMC
Connectivity	USB 2.0, HDMI-IN, headphone jack
Speaker	Integrated stereo
Main Features	Slideshow with background music, clock, calendar, auto on/off, USB to SD card copy, brightness/contrast/saturation settings
OSD Languages	English and other selectable languages
Power Supply	5 V DC (power adapter included)
Approximate Dimensions	260 x 180 x 25 mm
Approximate Weight	450 g
Care and Cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to moisture, do not open the casing. Use only the supplied adapter.
General Information	Manufactured by Braun Photo Technik GmbH, Germany. Support: +49 (0) 7457 / 9465-60

Frequently Asked Questions - DigiFrame 1094 BRAUN

How to turn the photo frame on and off?

Press the POWER button located on the frame or remote control to turn the device on or off.

How to choose the input source (HDMI, USB, SD card)?

Press the SOURCE button, then use the ▲▼ buttons to select HDMI, AV, or DMP, and confirm with OK.

How to play photos in slideshow with music?

Select PHOTO from the main menu, choose the device, then press OK to start the slideshow. You can add music by selecting MUSIC simultaneously.

What file formats are supported?

Images: JPEG, BMP, PNG. Audio: MP3. Video: MPEG1, MPEG2, MPEG3, H264, RM, RMVB, MOV, MJPEG, DivX.

How to copy files from a USB drive to an SD card?

Go to SETUP > Setting, enable the Auto Copy option to On. Make sure the files are at the root of the USB device. The copy starts automatically.

How to adjust brightness, contrast, and saturation?

In the SETUP menu, select the display adjustment options. Use the ▲▼ buttons to adjust the values.

How to use the calendar function?

Select CALENDAR from the main menu. Use the ▲▼◀▶ buttons to navigate between dates.

How to connect an external device via HDMI?

Connect the device to the HDMI-IN port on the frame. Press SOURCE, select HDMI with ▲▼, then OK.

How to set the automatic shutdown?

In the SETUP menu, look for the auto on/off option. You can program the switch-off time.

What to do if the frame does not detect my memory card?

Check that the card is inserted correctly and is in SD/SDHC/MMC format. Make sure supported files are present. Restart the frame if necessary.

USER MANUAL DigiFrame 1094 BRAUN

Digital tablet displaying a woman and child reading a book together in a bedroom setting (no visible text or symbols)

08:20 Tuesday 05, January Photo

Play Prev Next Stop Playlist Zoom in Zoom out

Robbie Williams - Better Man. mp3 Album: Sing When You're Winning Title: Better man Artist: Robbie Williams Bit Rate: 192 K Sampling: 44K Richard Marx - Right Robbie Williams - Bett. 00:00:01 / 00:04:44 Play FB FF Prev Next Stop Playlist Mate

Pause Reception is sweet 00:00:11 / 00:04:06 Play FD FF Prev Next Stop Playlist

Input Source AV1 HDMI Card Select OK Select EXIT Return

Setting OSD Language English Brightness 05 Contract 05 Saturation 05 Start Up Mode Video Auto Copy Off Version 2016 Software Update ... Restore Default Move OK Select EXIT Return

Digital tablet displaying a woman and child reading a book together in a bedroom setting (no visible text or symbols)

BRAUN 10" DigiFrame 1094 User Manual

BRAUN PHOTO TECHNIK GMBH, Merkurstr. 8, 72184 Eutingen, Germany

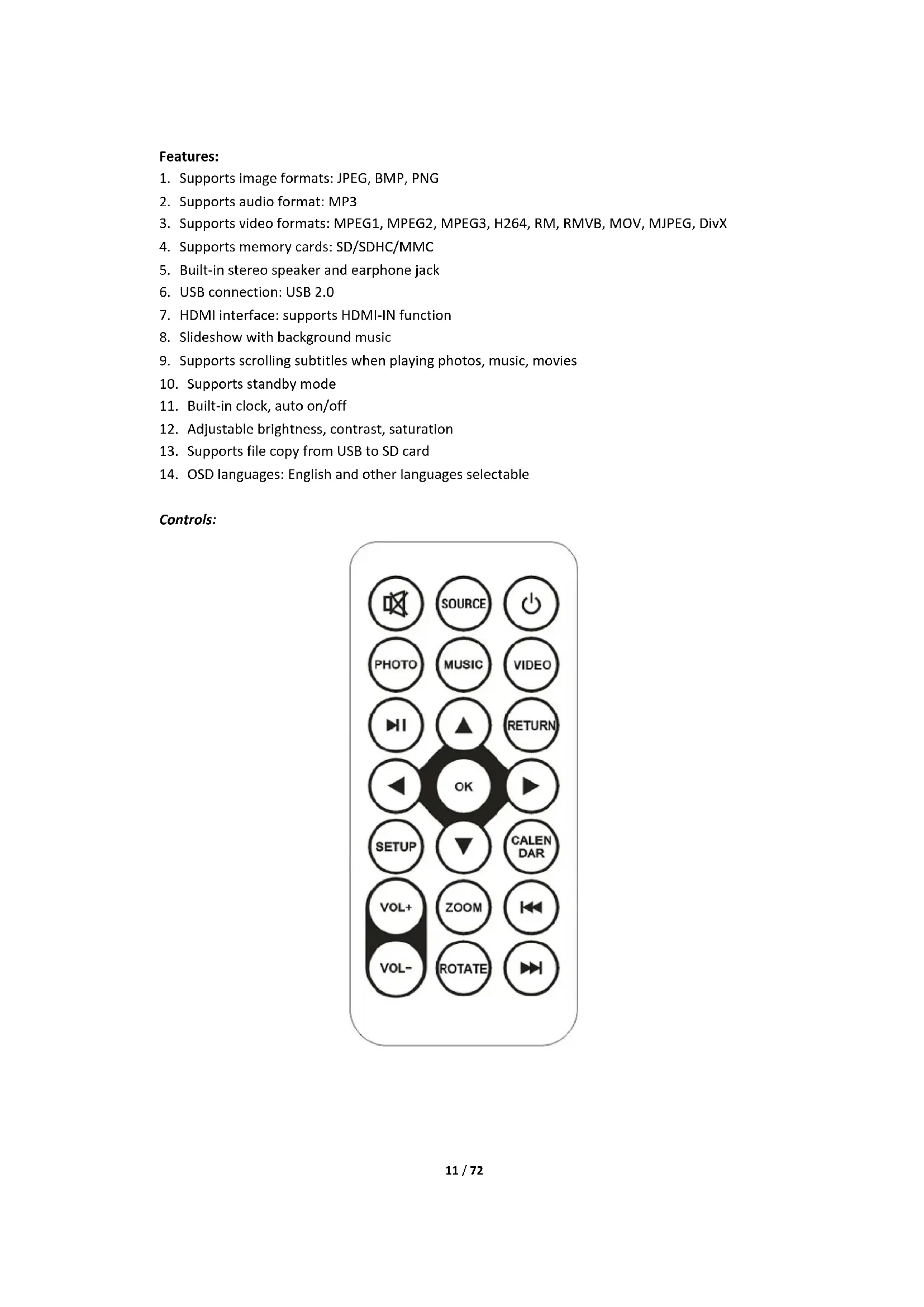

Features:

1. Supports image formats: JPEG, BMP, PNG
2. Supports audio format: MP3
3. Supports video formats: MPEG1, MPEG2, MPEG3, H264, RM, RMVB, MOV, MJPEG, DivX
4. Supports memory cards: SD/SDHC/MMC
5. Built-in stereo speaker and earphone jack
6. USB connection: USB 2.0
7. HDMI interface: supports HDMI-IN function
8. Slideshow with background music
9. Supports scrolling subtitles when playing photos, music, movies
10. Supports standby mode
11. Built-in clock, auto on/off
12. Adjustable brightness, contrast, saturation
13. Supports file copy from USB to SD card
14. OSD languages: English and other languages selectable

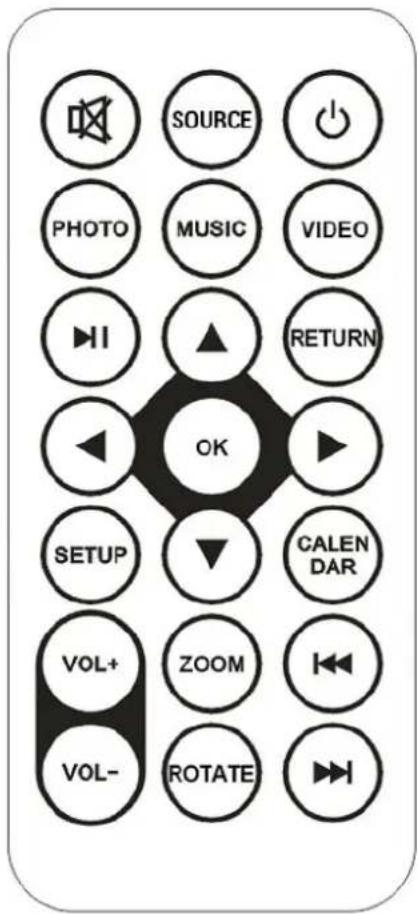

Controls:

SOURCE PHOTO MUSIC VIDEO RETURN OK SETUP CALENDAR VOL+ ZOOM VOL- ROTATE

POWER Switch on/off.
MUTE Mute
SOURCE Signal input HDMI/AV/DMP
PHOTO Photo playback mode directly
MUSIC Music playback mode directly
VIDEO Video-playback mode directly
▶||	Play or pause
RETURN Back to previous screen
▲▼◀▶	Move up/down/left/right cursor keys.
OK Confirmation
SETUP Setup menu
CALENDAR Calendar function directly
VOL+ VOL- Volume adjustment
ZOOM	Enlarge the photo in photo play mode
ROTATE Rotate the photo in photo play mode
|◀◀ ▶▶|	Select previous or next file

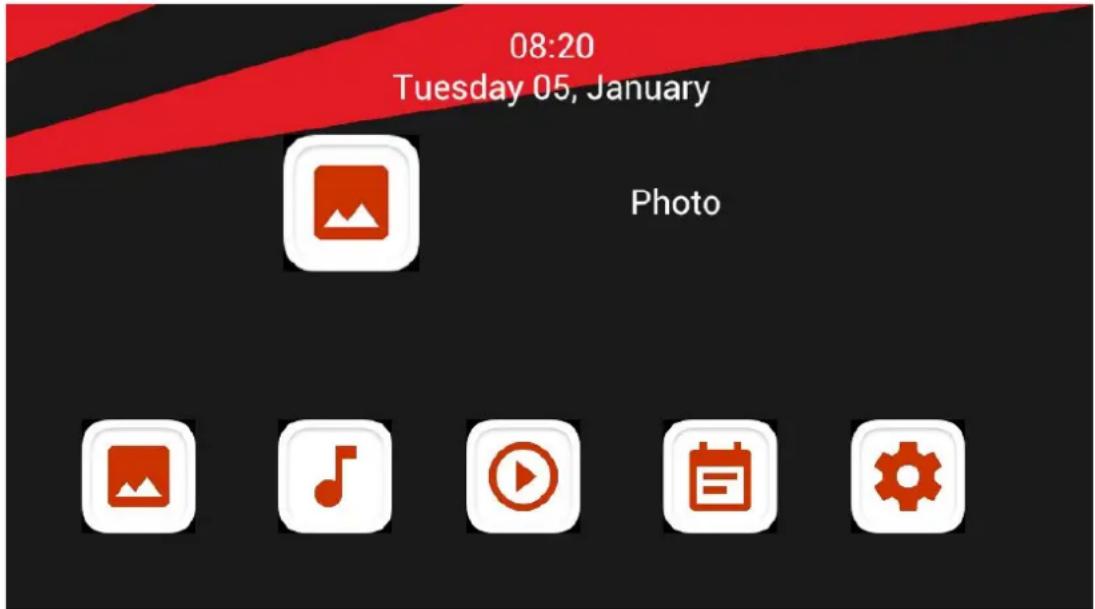

Main Menu:

Supports SD/SDHC/MMC and USB 2.0. Press ◀▶ to access photo, music, video, calendar and settings menus. Press OK button to confirm selection.

08:20 Tuesday 05, January Photo

Note: Make sure there are supported picture, music or video files on the memory card or USB device.

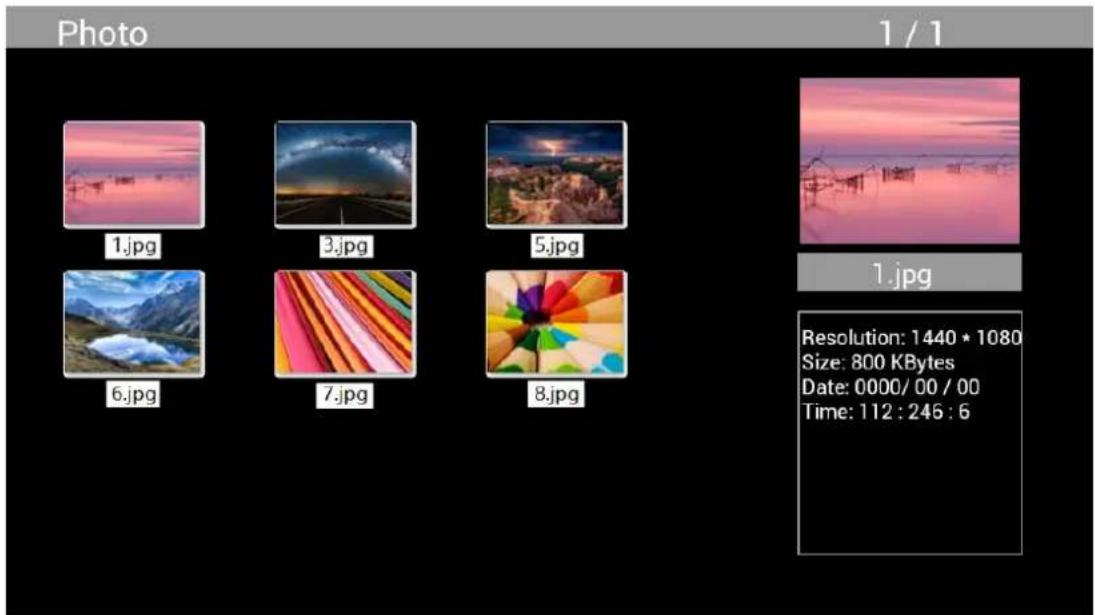

Picture Mode:

Photo 1 / 1 1.jpg 3.jpg 5.jpg 6.jpg 7.jpg 8.jpg Resolution: 1440 * 1080 Size: 800 KBytes Date: 0000/ 00 / 00 Time: 112 : 246 : 6

Highlight Photo from the main menu, press OK to select the USB or memory card for playback and press RETURN to access thumbnail mode. Press to select the photo for playback and press OK to confirm.

Play Prev Next Stop Playlist Zoom in Zoom out

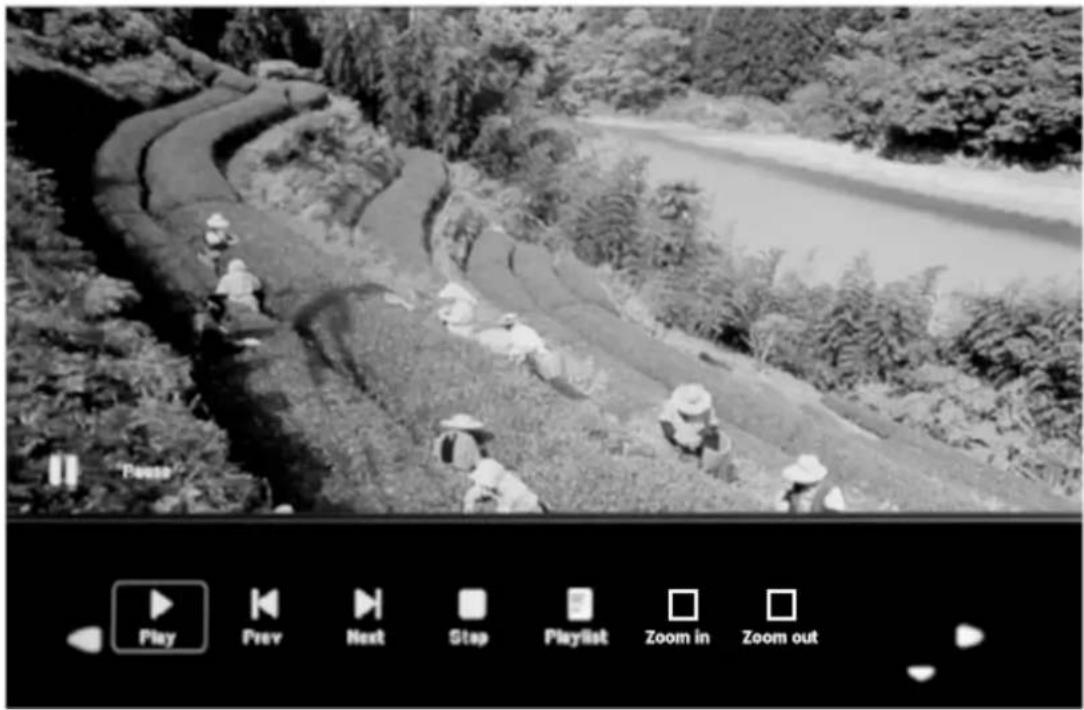

During photo playback, press OK to display the on-screen controls and select the desired function with ◀▶: Play, Previous, Next, Stop, Playlist, Zoom in, Zoom out, Move, then press OK to confirm.

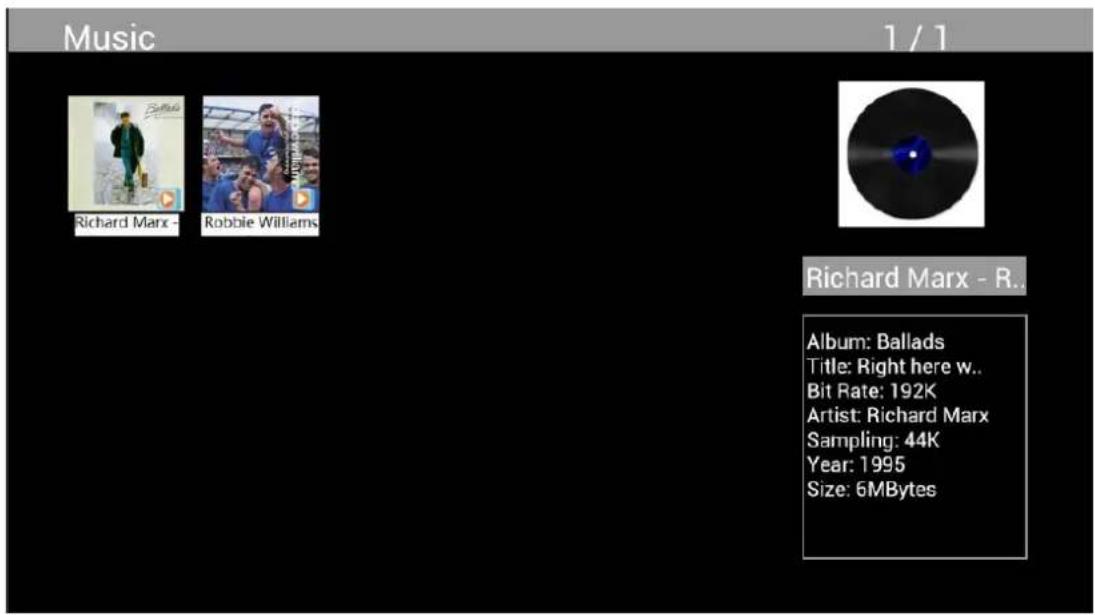

Music Mode

Music 1 / 1 Richard Marx - Robbie Williams Richard Marx - R.. Album: Ballads Title: Right here w.. Bit Rate: 192K Artist: Richard Marx Sampling: 44K Year: 1995 Size: 6MBytes

Highlight Music from the main menu, press OK to select the USB 2.0 or memory card for playback and press RETURN to access thumbnail mode. Press ▲ select the music for playback and press OK to confirm.

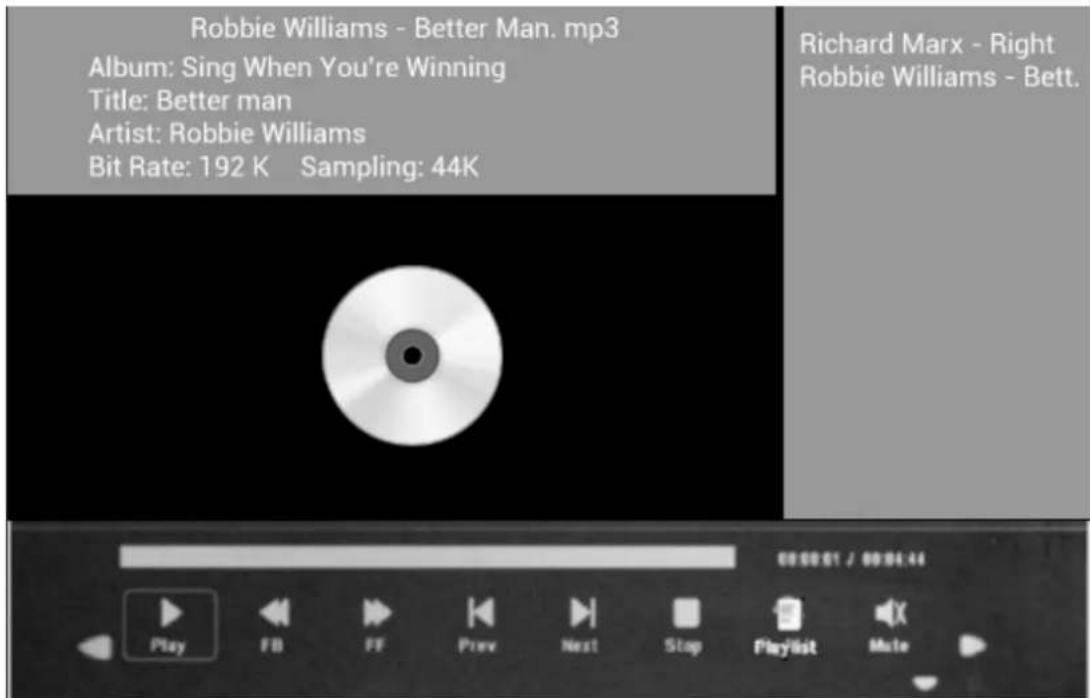

Music Playback:

Robbie Williams - Better Man. mp3 Album: Sing When You're Winning Title: Better man Artist: Robbie Williams Bit Rate: 192 K Sampling: 44K Richard Marx - Right Robbie Williams - Bett. 08:08:01 / 08:04:44 Play FB FF Prev Next Stop Playlist Mate

During music playback, press OK to display the on-screen controls and select the desired function with ◀▶: Play, Fast Rewind, Fast Forward, Previous, Next, Stop, Mute, Playlist, then press OK to confirm.

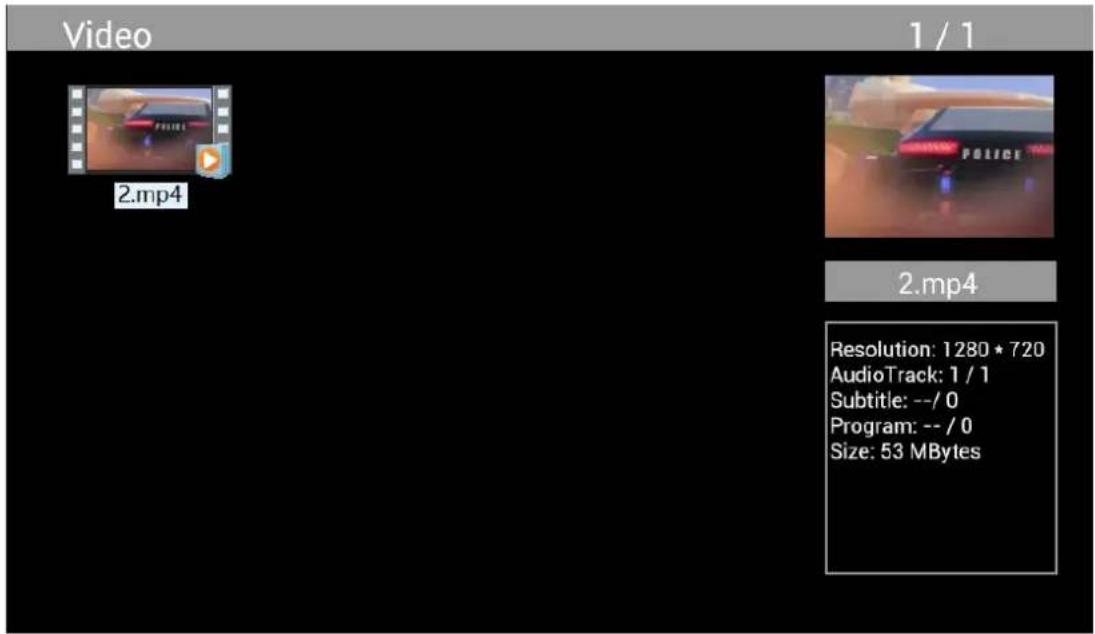

Video Mode

Video 1 / 1 2.mp4 2.mp4 Resolution: 1280 * 720 AudioTrack: 1 / 1 Subtitle: --/ 0 Program: -- / 0 Size: 53 MBytes

Highlight Video from the main menu, press OK to select USB 2.0 or memory card for playback and press RETURN again to access thumbnail mode. Press ▲▼◀▶ to select the movie for playback and press OK to confirm.

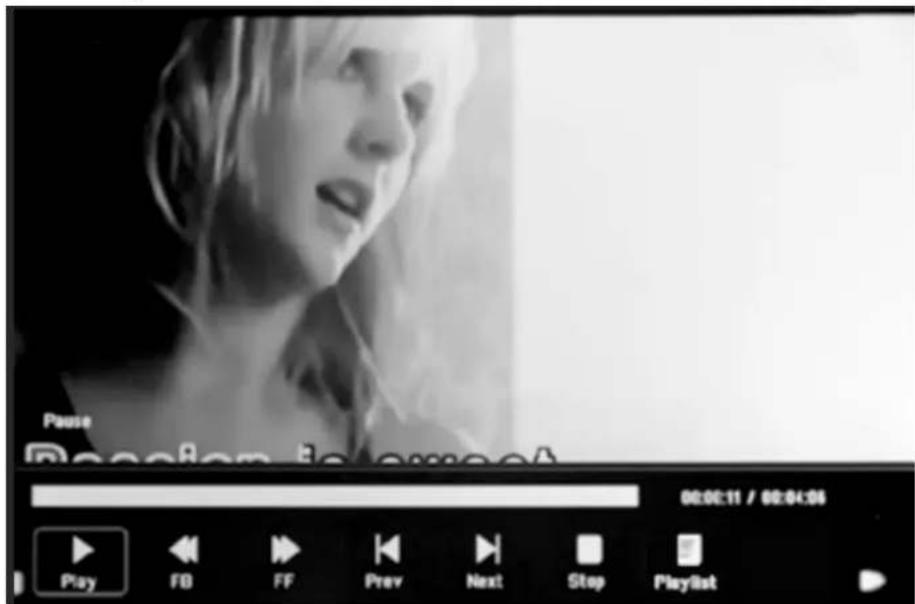

Video Playback:

Pause Reception is sweet 00:00:11 / 00:04:06 Play FD FF Prev Next Stop Play/Sat

During video playback, press OK to display the on-screen controls and select the desired function with ◀▶: Play, Fast Rewind, Fast Forward, Previous, Next, Stop, Playlist, Aspect then press OK to confirm.

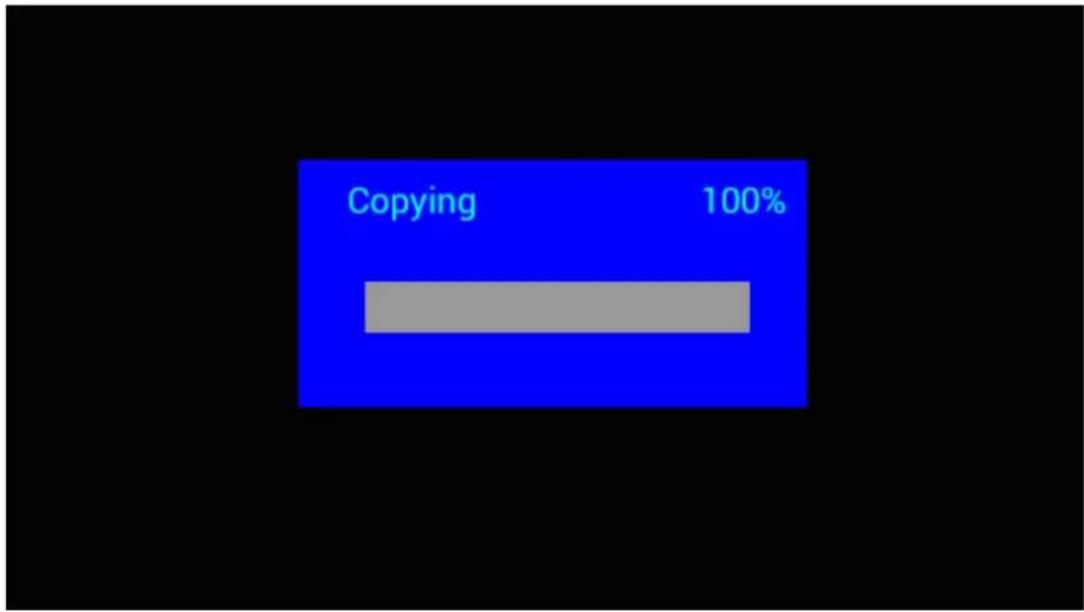

Copy Function for Image, Music and Video Files:

Copying all files from USB device to SD Card is supported. Highlight Setting and press OK to Settings menu, press ◀▶ to select Setting option, press ▲▼ to select and set the Auto Copy in the list, and set the value to On. The progress is displayed.

After successfully copying all files, the slideshow will start automatically.

Note: Make sure the photo/music/videos files are saved in the root directory of the USB device, not in any folder of the USB. Otherwise copying will fail.

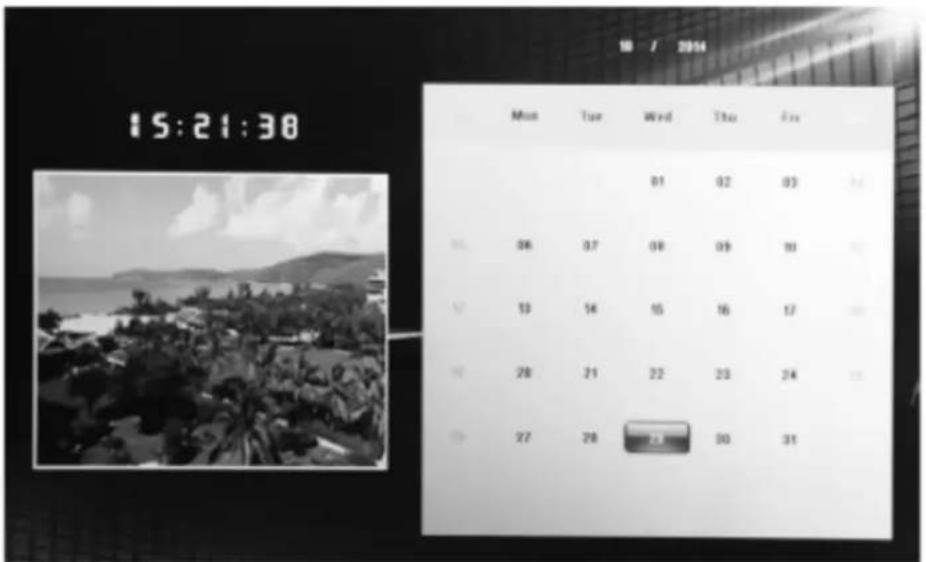

Calendar:

15:21:30 Mon Tue Wed Thu Fri 01 02 03 04 06 07 08 09 10 11 13 14 15 16 17 18 28 29 30 31 27 28 30 31

Press the Calendar menu from the main menu. Browse the calendar with

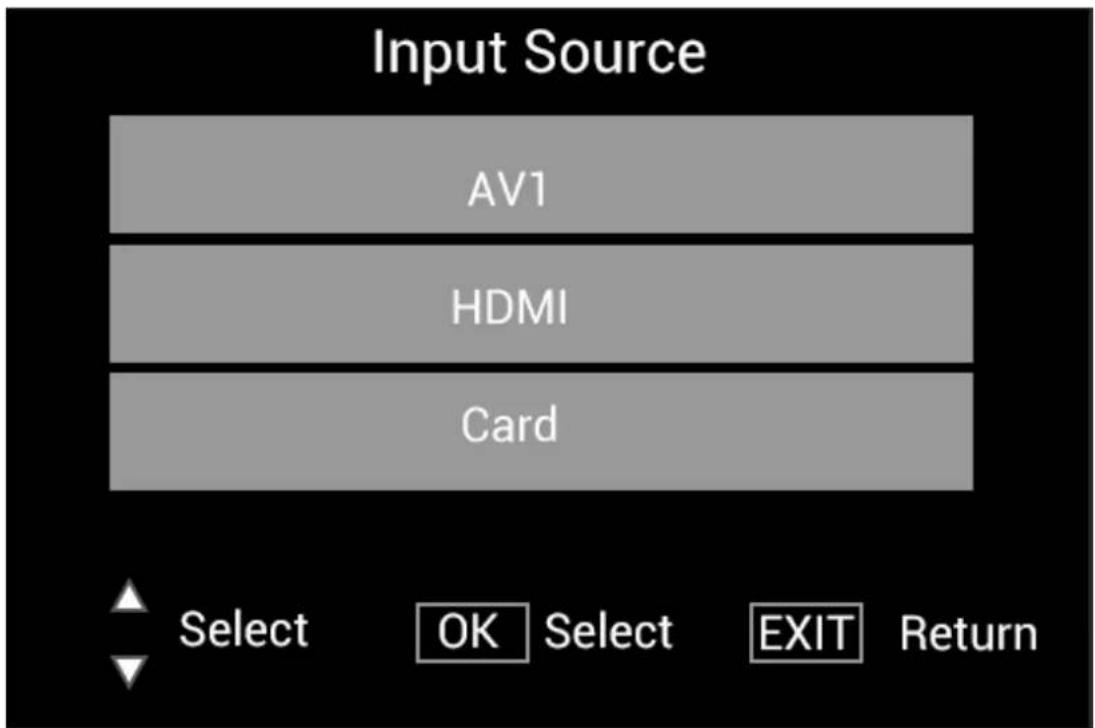

HDMI-IN Function:

Input Source AV1 HDMI Card Select OK Select EXIT Return

Connect the HDMI device at the HDMI-IN interface of the digital picture frame. Press SOURCE, press ▲▼ to highlight the HDMI option, and press OK to select HDMI as input source.

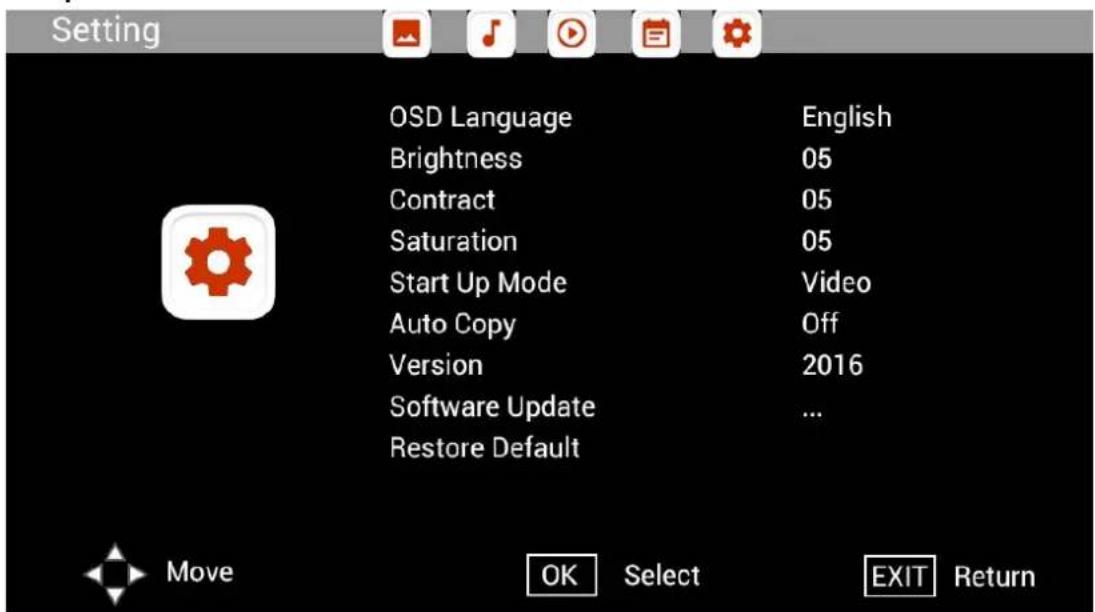

Setup Menu

Setting OSD Language English Brightness 05 Contract 05 Saturation 05 Start Up Mode Video Auto Copy Off Version 2016 Software Update ... Restore Default Move OK Select EXIT Return

Select Setting in the main menu, press ◀ to select sub-menu Setup list: Photo, Music, Video,

Calendar, Setting, press to highlight the setting option, and press to set the Value.

Technical Support

We are committed to providing the best customer service support. If you need assistance with your BRAUN product, please contact the BRAUN Technical Support department prior to returning this device. Reach out to us in any of the following ways:

This device has been tested and found to comply with the limits for a digital device according to the CE regulations. These limits are intended to provide reasonable protection against harmful interference in home installations. The declaration of conformity is available on our homepage.
