USER MANUAL DigiFrame 15 Vintage BRAUN

BRAUN DigiFrame 15 Vintage white

Bedienungsanleitung

User Manual

Manual del usuario

German 2
English 9
Spanish 16
French 23
Greek 30
Italian 37
Portuguese 44
Romanian 51

Schlüsselmerkmale:

1. Supports image formats: JPEG, BMP, PNG
2. Supports audio format: MP3
3. Supports video formats: MPEG1, MPEG2, MPEG4, H264, RM, RMVB, MOV, MJPEG, DivX
4. Supports memory cards: SD/SDHC/MMC
5. USB connection: USB 2.0
6. HDMI interface: supports HDMI-IN function
7. Slideshow with background music
8. Supports scrolling subtitles when playing photos, music, movies
9. Supports standby mode
10. Built-in clock, auto on/off
11. Adjustable brightness, contrast, saturation
12. Supports file copy from USB to SD card
13. OSD languages: English and other languages selectable

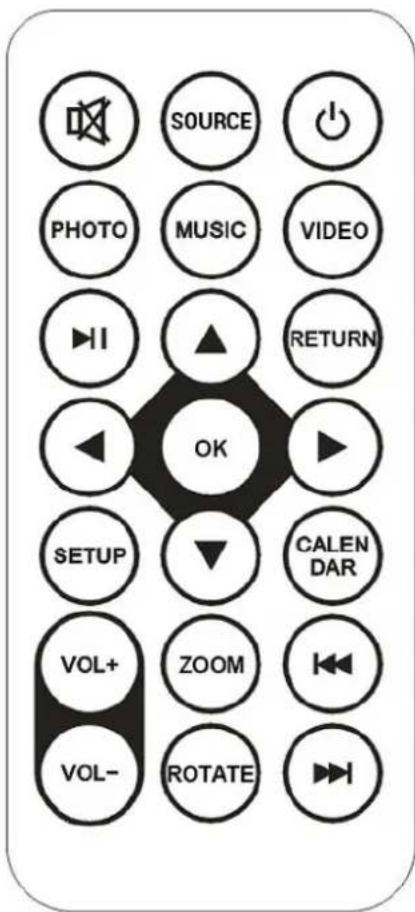

Controls:

POWER	Switch on/off.
MUTE	Mute
SOURCE	Signal input HDMI/AV/DMP
PHOTO	Photo playback mode directly
MUSIC	Music playback mode directly
VIDEO	Video-playback mode directly
▶II	Play or pause
RETURN	Back to previous screen
▲▼▲	Move up/down/left/right cursor keys.
OK	Confirmation
SETUP	Setup menu
CALENDAR	Calendar function directly
VOL+ VOL-	Volume adjustment
ZOOM	Enlarge the photo in photo play mode
ROTATE	Rotate the photo in photo play mode
▶▶▶	Select previous or next file

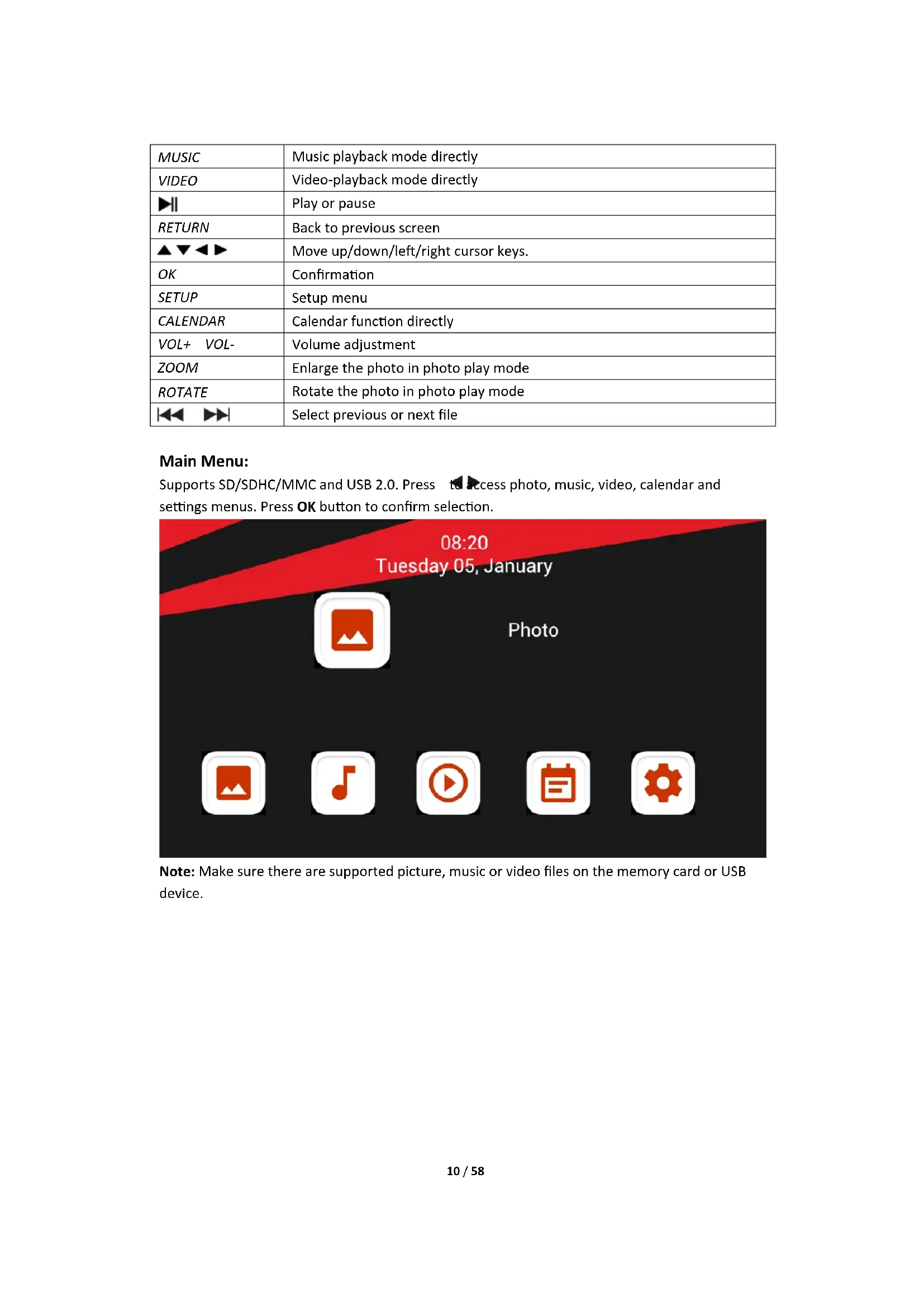

Main Menu:

Supports SD/SDHC/MMC and USB 2.0. Press to Access photo, music, video, calendar and settings menus. Press OK button to confirm selection.

08:20

Tuesday 05, January


Note: Make sure there are supported picture, music or video files on the memory card or USB device.

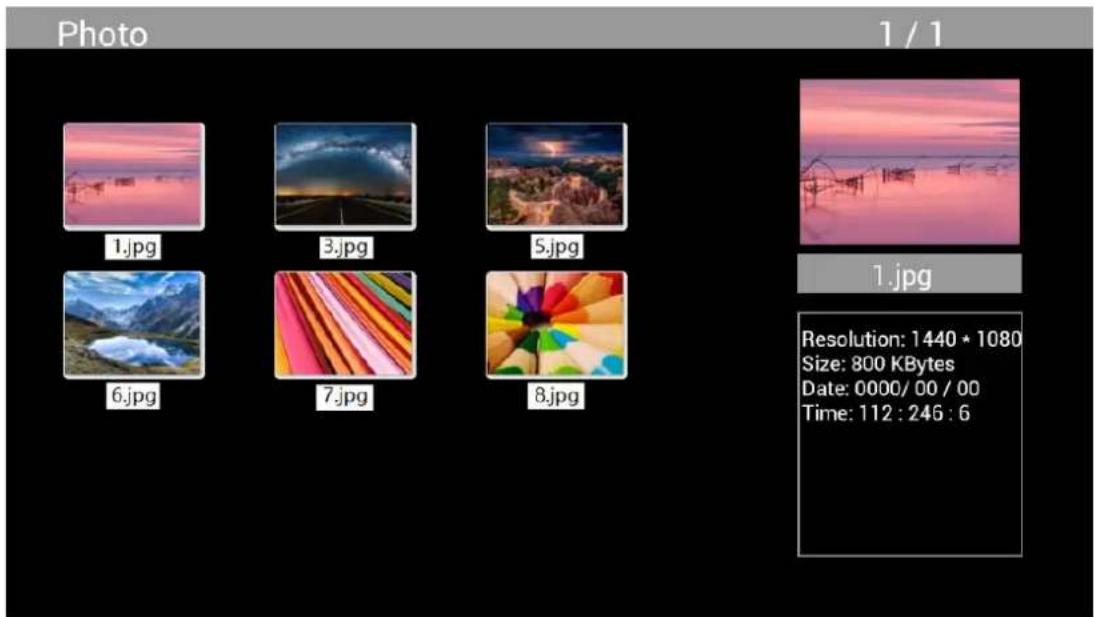

Picture Mode:

Highlight Photo from the main menu, press OK to select the USB or memory card for playback and press RETURN to access thumbnail mode. Press to select the photo for playback and press OK to confirm.

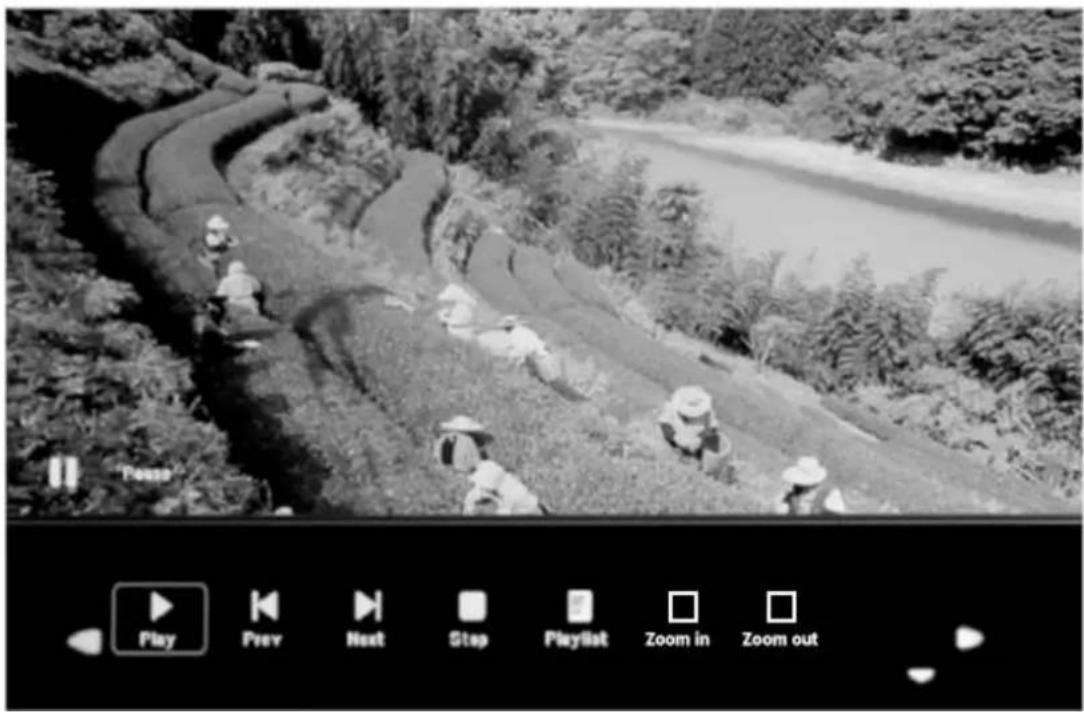

During photo playback, press OK to display the on-screen controls and select the desired function with Play, Previous, Next, Stop, Playlist, Zoom in, Zoom out, Move, then press OK to confirm.

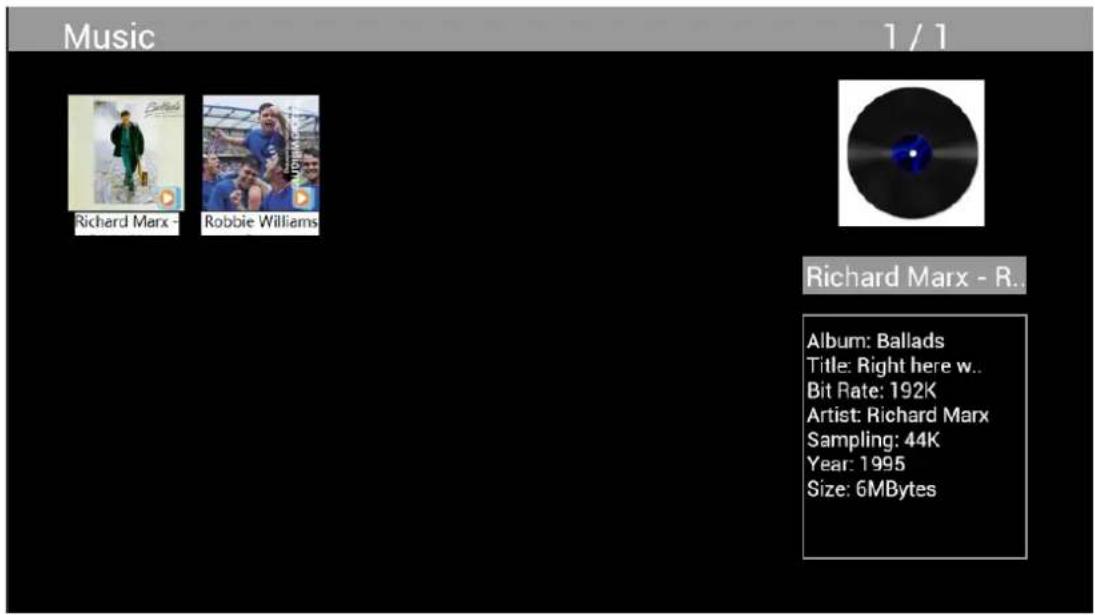

Music Mode

Highlight Music from the main menu, press OK to select the USB 2.0 or memory card for playback and press RETURN to access thumbnail mode. Press to select the music for playback and press OK to confirm.

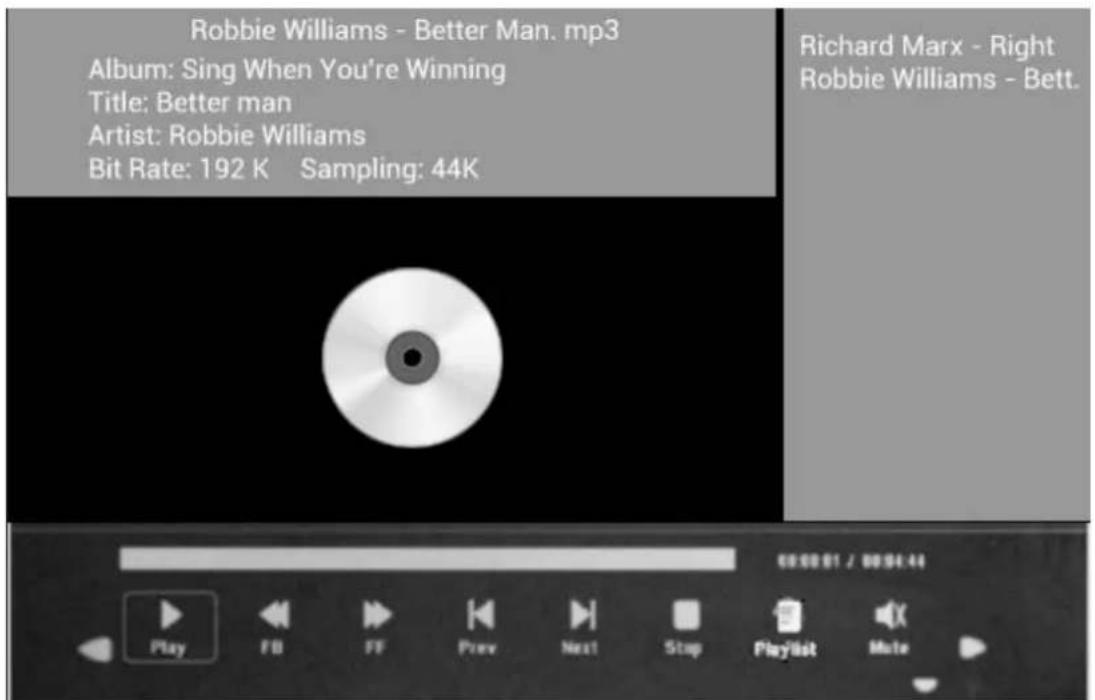

Music Playback:

During music playback, press OK to display the on-screen controls and select the desired function with : Play, Fast Rewind, Fast Forward, Previous, Next, Stop, Mute, Playlist, then press OK to confirm.

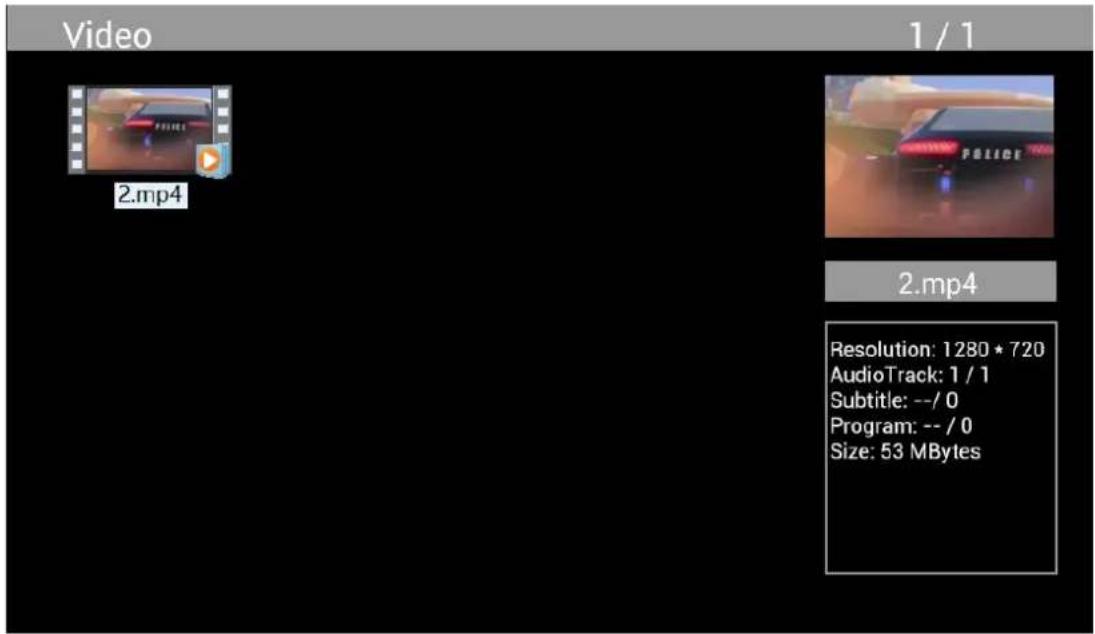

Video Mode

Highlight Video from the main menu, press OK to select USB 2.0 or memory card for playback and press RETURN again to access thumbnail mode. Press to select the movie for playback and press OK to confirm.

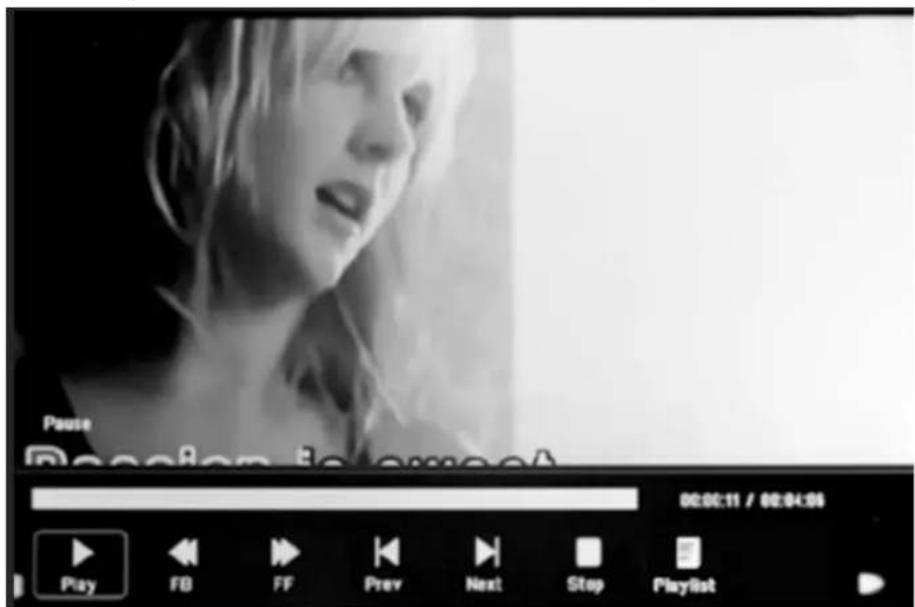

Video Playback:

During video playback, press OK to display the on-screen controls and select the desired function with Play, Fast Rewind, Fast Forward, Previous, Next, Stop, Playlist, Aspect then press OK to confirm.

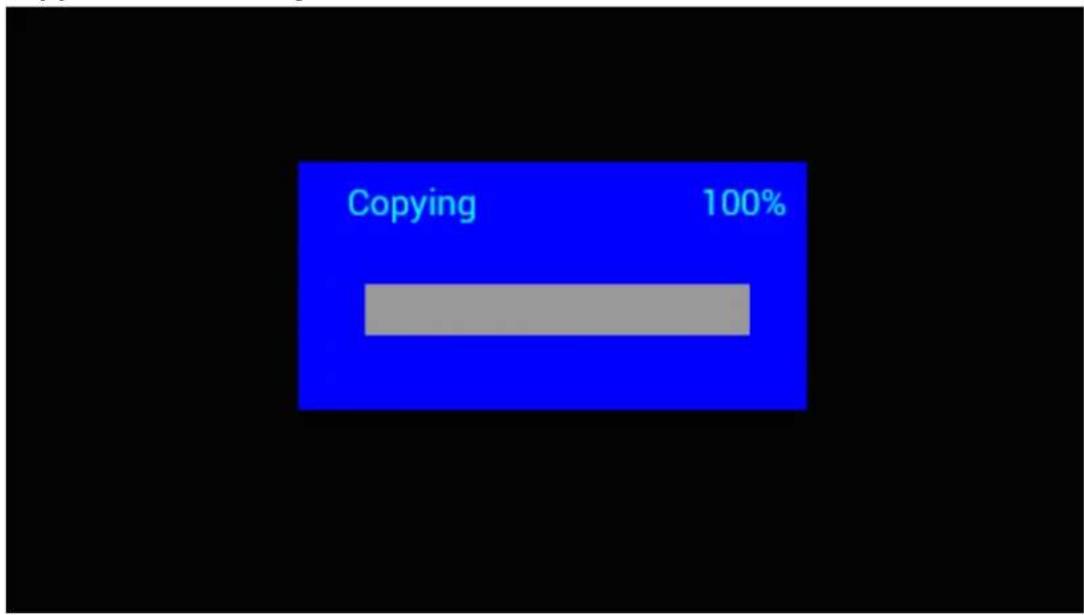

Copy Function for Image, Music and Video Files:

Copying all files from USB device to SD Card is supported. Highlight Setting and press OK to Settings menu, press to select Setting option, press to select and set the Auto Copy in the list, and set the value to On. The progress is displayed.

After successfully copying all files, the slideshow will start automatically.

Note: Make sure the photo/music/videos files are saved in the root directory of the USB device, not in any folder of the USB. Otherwise copying will fail.

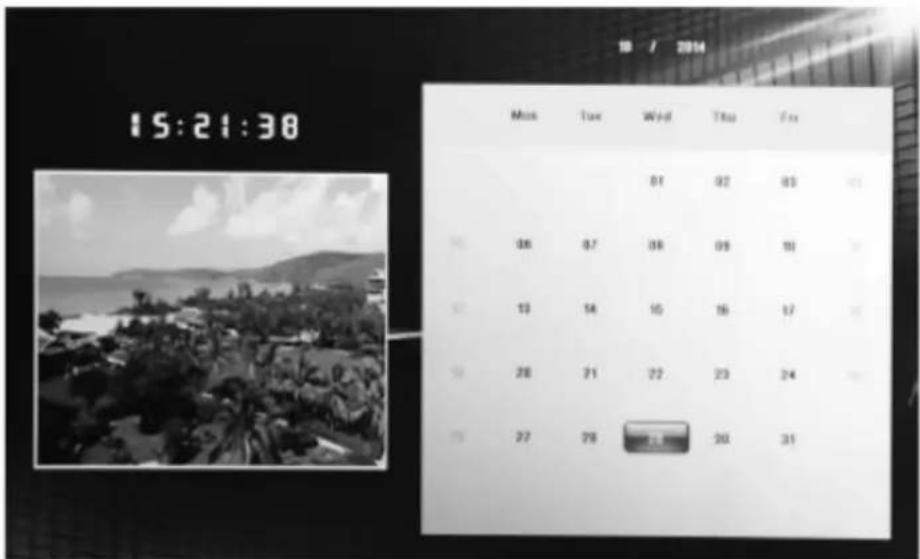

Calendar:

Press the Calendar menu from the main menu. Browse the calendar with

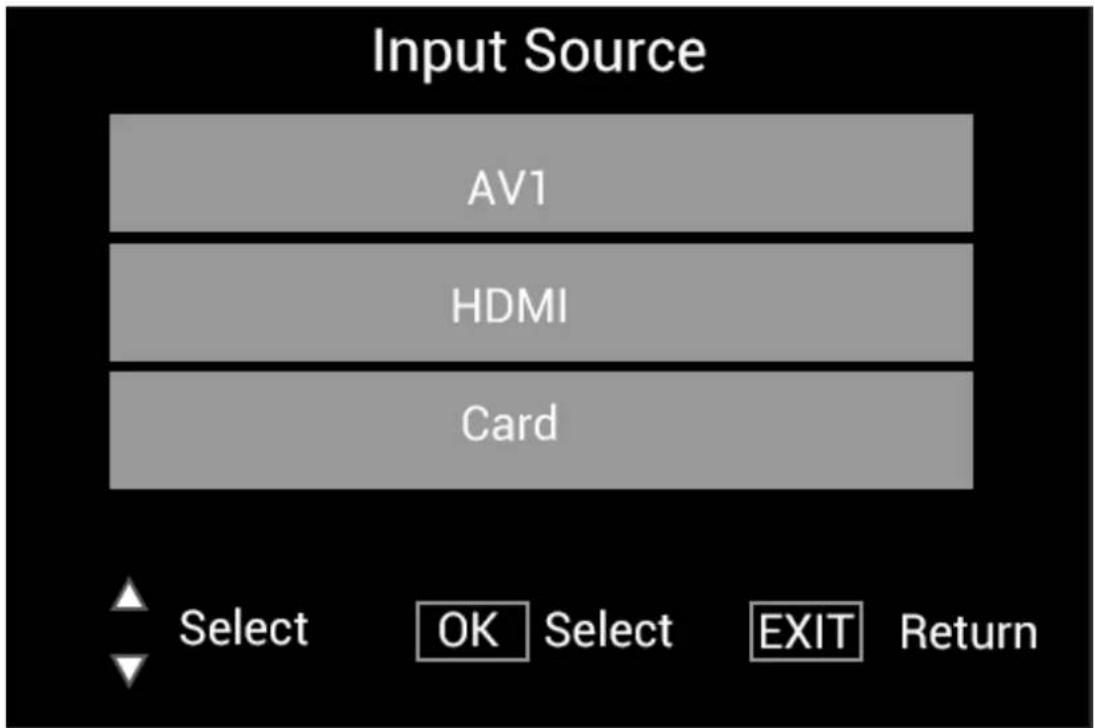

HDMI-IN Function:

Connect the HDMI device at the HDMI-IN interface of the digital picture frame. Press SOURCE, press to highlight the HDMI option, and press OK to select HDMI as input source.

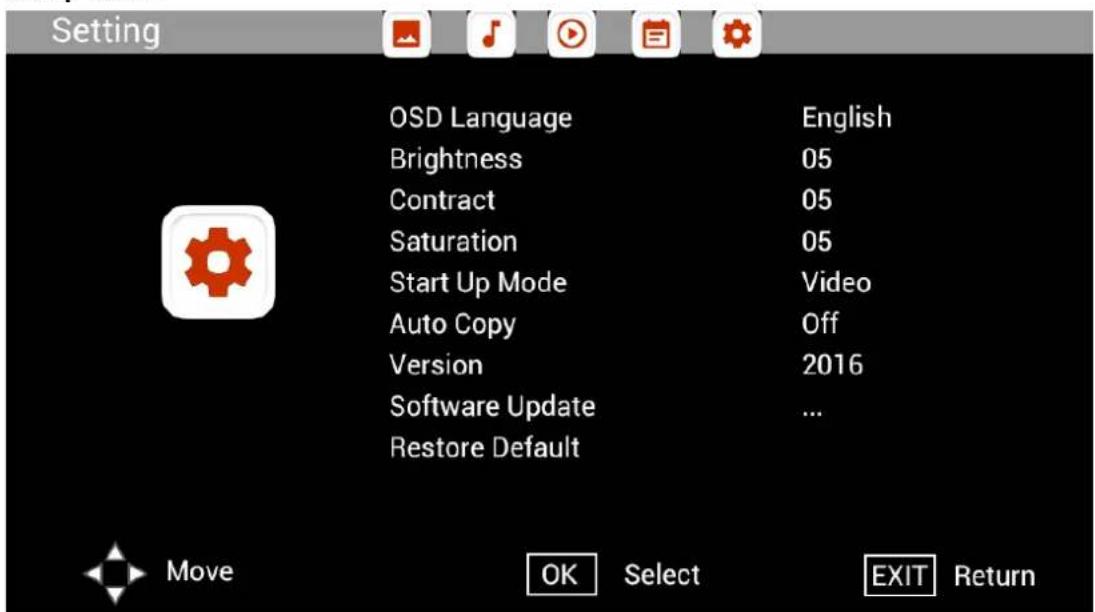

Setup Menu

Select Setting in the main menu, press to select sub-menu Setup list: Photo, Music, Video,

Calendar, Setting, press to highlight the setting option, and press to set the Value.
