ST127527.1 - Croque monsieur clip Emerio - Free user manual and instructions

Product type	Sandwich maker / grill
Brand	Emerio
Model	ST127527.1
Operating voltage	220-240 V ~ 50/60 Hz
Power	900 W
Plate material	Non-stick (Teflon coating)
Power indicator	Red light
Temperature indicator	Green light (turns off when ready)
Thermostat	Yes, built-in temperature control
Number of sandwiches	1 to 2 (standard bread slice size)
Approximate dimensions (L x W x H)	25 x 20 x 10 cm
Approximate weight	1.2 kg
Power cord length	Approximately 80 cm
Plug type	Schuko (Type F) - Europe
Locking function	Yes, closing latch
Cleaning	Wipe with damp sponge; do not immerse
Maintenance	Do not use abrasive cleaners or metal utensils
Safety	Hot surface; do not touch during use
Warranty	2 years
Country of origin	China (likely)

Frequently Asked Questions - ST127527.1 Emerio

How to use the appliance for the first time?

Remove all packaging, clean the plates with a damp sponge, dry them, then lightly coat with oil. Plug in the appliance: the red and green lights turn on. Wait for the green light to turn off, then place your sandwich. A slight smoke or odor may occur during first use; this is normal.

What types of bread to use?

Use classic sandwich bread. Make sure the bread does not extend beyond the cooking plates to avoid blocking closure. The buttered sides should face outward for better crispiness.

How long does it take to grill a sandwich?

About 2 to 4 minutes depending on thickness and filling. The green light turns on and off during cooking, indicating that the thermostat maintains the temperature.

Can I use metal utensils on the plates?

No, never use knives, metal spatulas or sharp objects, as they would damage the non-stick coating. Use a plastic or wooden spatula.

How to clean the appliance?

Unplug it and let it cool completely. Wipe the plates with a damp sponge or cloth. For crumbs, use a very soft brush. Never immerse the appliance in water, do not run water over the cooking surfaces, and do not use abrasive cleaners.

What to do if the appliance does not heat up?

Check that the plug is connected and power is available. If the lights do not turn on, contact after-sales service. Do not attempt to repair the appliance yourself.

Is it possible to make more than one sandwich at a time?

The appliance can grill one sandwich of two slices at a time. You cannot stack multiple sandwiches.

What fillings are recommended?

Cheese, ham, pineapple, tomatoes, cooked meats, onions, herbs and spices. For a crispier result with fruits, sprinkle the buttered sides with a little sugar.

Is the appliance suitable for professional use?

No, this appliance is designed for household use only. Commercial use is not recommended and would void the warranty.

What to do in case of breakdown or defect?

Contact the point of sale or Emerio customer service (www.emerio.eu/service). The 2-year warranty covers manufacturing defects, but not damage due to non-compliant use or repair by an unauthorized person. Keep your receipt.

USER MANUAL ST127527.1 Emerio

XXL Sandwich toaster (EN)

XXL Sandwichtoaster (DE)

Grille-Sandwichs XXL (FR)

XXL Smorgasgrill (SE)

XXL Sandwich toaster (NL)

Opiekacz do kanapek XXL (PL)

Tostadora de sandwich XXL (ES)

Content - Inhalt - Teneur - Innehäll - Inhoud - Trešć - Contenido
Instruction manual - English 2
Bedienungsanleitung - German 6-
Mode d'emploi-French -11-
Bruksanvisning - Swedish. 16
Gebruiksaanwijzing - Dutch 21
Instrukcja obstugi - Polish 26-
Manual de Instrucciones - Spanish 31

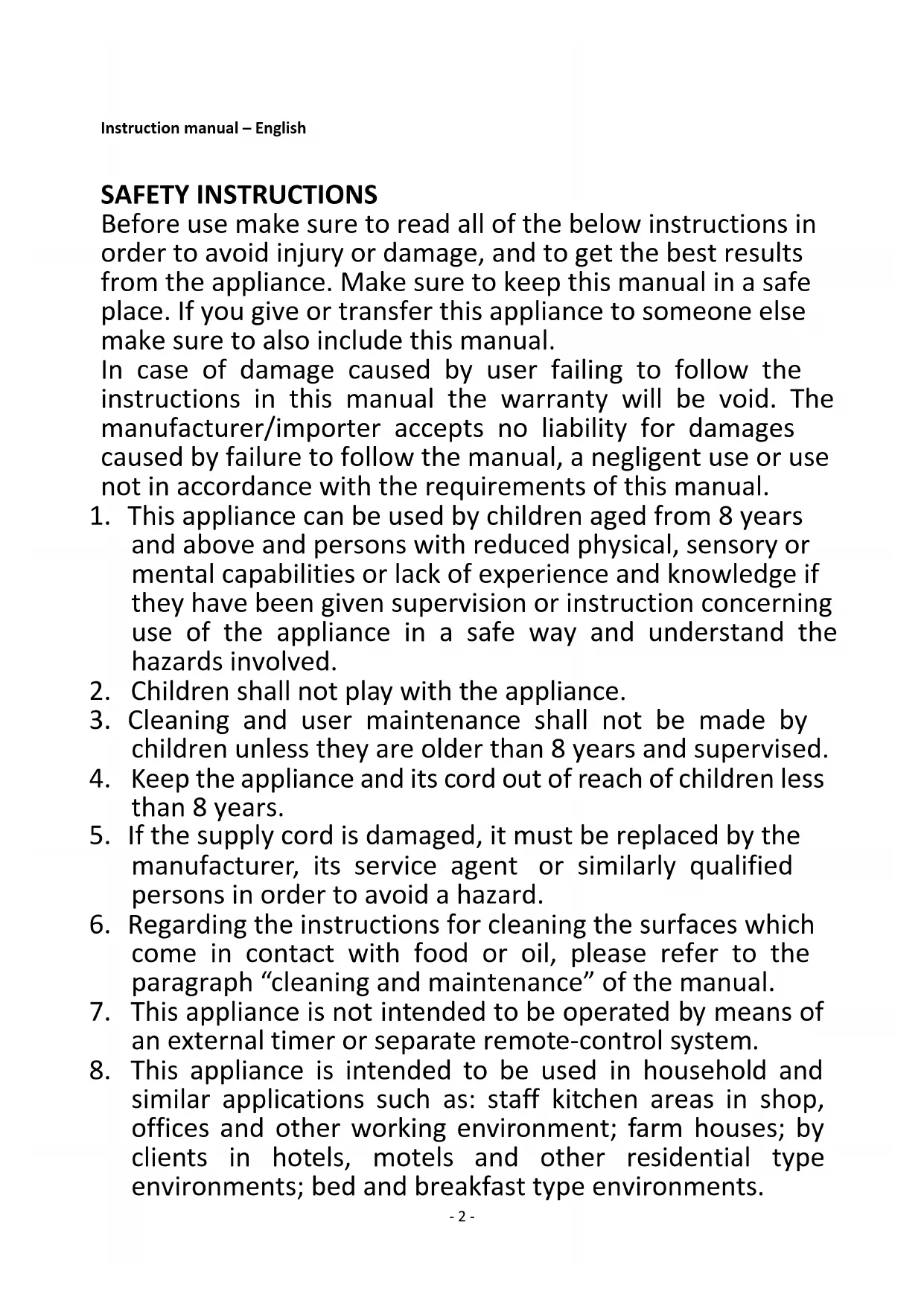

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph "cleaning and maintenance" of the manual.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

8. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shop, offices and other working environment; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

9. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

10. Always plug the appliance into an earthed plug socket.
11. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
12. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
13. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
14. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
15. Do not touch the appliance if it falls into water. Remove the plug from its socket and send it to an authorized service center for repair.
16. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
17. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
18. Never leave the appliance unattended during use.
19. This appliance is not designed for commercial use.
20. Do not use the appliance for other than intended use.
21. Place the appliance on a stable, level surface from which it cannot fall off.
22. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. The bread shall not stick out of the toasting surface!

PARTS DESCRIPTION

1. Red power light
2. Green control light
3. Non-stick cooking plates
4. Handle

BEFORE INITIAL USE

1. Remove all packaging.
2. Clean the cooking plates by wiping with a sponge or cloth dampened in warm water. DO NOT IMMERSE THE UNIT AND DO NOT RUN WATER DIRECTLY ON THE COOKING SURFACES.
3. Dry with a cloth or paper towel.
4. For best results, lightly coat the cooking plates with a little cooking oil or cooking spray. Notice: When your appliance is heated for the first time, it may emit slight smoke or odor. This is normal with many heating appliances. This does not affect the safety of your appliance.

USE

1. Connect the appliance to an appropriate socket. Both of the indicator lights will illuminate and the toasting surface begins to heat.
2. As soon as the appliance has heated up, the green control light goes off.
3. The appliance must be heated up before you toast a sandwich. In the meantime prepare your sandwich.
4. Open the appliance at the handle by unlocking the catch.
5. Put the slices of bread on the lower toasting surface. Ensure that the buttered sides are facing outwards. The bread shall not stick out of the toasting surface!
6. Now put the filling on the bread slices (e.g. cheese, ham, pineapple, etc.) and cover this with the second slice of bread. Once again, ensure that the buttered sides are facing outwards.
7. Close the appliance, making sure that the catch is engaged.
8. Caution: If the slices of bread have too much filling on, it will not be possible to close the appliance. Take some of the filling off. Never use force to close the appliance.
9. During toasting the temperature regulating thermostat switches off and on again. The green control light also switches off and on again.
10. After completion of the toasting process (approx. 2-4 minutes) open the catch and remove the sandwiches with the help of a flat wooden or plastic spatula. Never use sharp or metal objects (e.g. knives, metal spatulas, etc.) as this will damage the non-stick coating.
11. If you wish to toast more sandwiches, close the appliance again and wait until the toasting surfaces have reheated sufficiently, repeat the toasting process as described above.
12. After use, disconnect the mains plug immediately. With the appliance open, allow it to cool down.

TIPS FOR TASTY SANDWICHES

1. Allow the appliance to heat up completely before you begin tasting.
2. Lay the buttered side facing outwards.
3. With fruit fillings the toasted bread will be crispier if you sprinkle a little sugar on the buttered side.
4. The following ingredients are particularly recommended: cheese, ham, pineapple, tomatoes, cooked meat, onions, herbs and spices.

CLEANING AND MAINTENANCE

1. First, disconnect the mains plug!
2. Only clean when the appliance has completely cooled down.
3. Clean the housing surface and the toasting surfaces of the sandwich toaster with a soft, damp cloth.
4. It is easiest to remove toast or food crumbs with a very soft brush.
5. Never use abrasive cleaning agents or sharp objects (e.g. scrubbing brush or knife) for cleaning.
6. Caution: Do not immerse the appliance in water or other liquids. There is danger to life due to electric shock!

STORAGE

Always unplug the appliance before storage.
Always make sure the appliance is cool and dry before storing.

TECHNICAL DATA

Operating voltage: 220 - 240V 50 / 60Hz

Power: 900W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer.

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling - European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

Emerio B.V.

Oudeweg 115

2031 CC Haarlem

The Netherlands

Customer service:

T: [phone]

www.emerio.eu/service

Kundeninformation:

T: [phone]

www.emerio.eu/service

Klantenservice:

T: [phone]

www.emerio.eu/service
